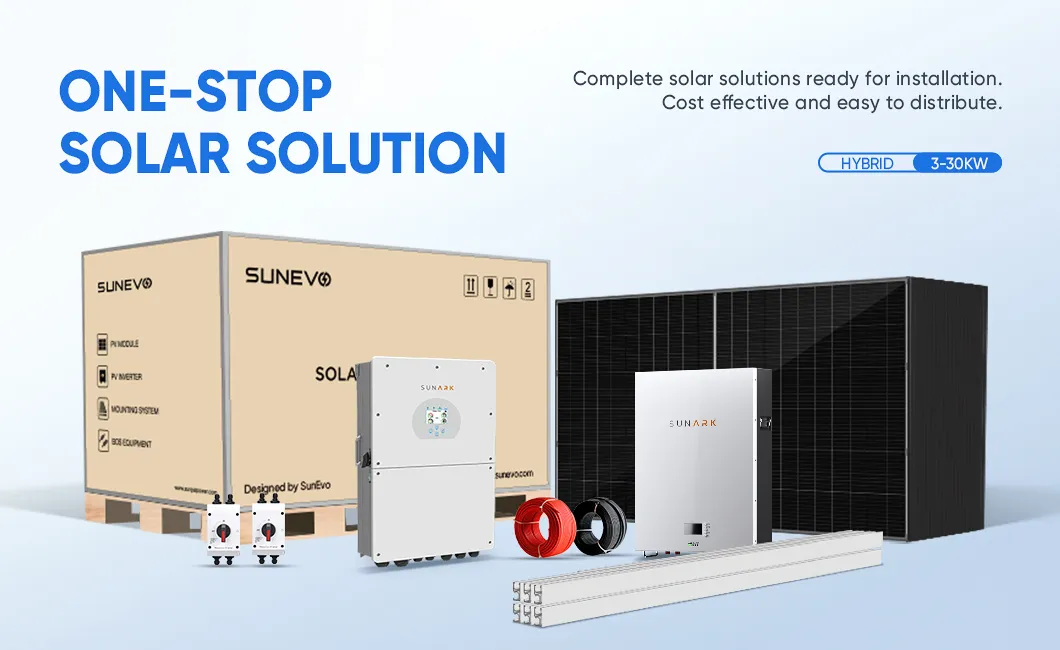

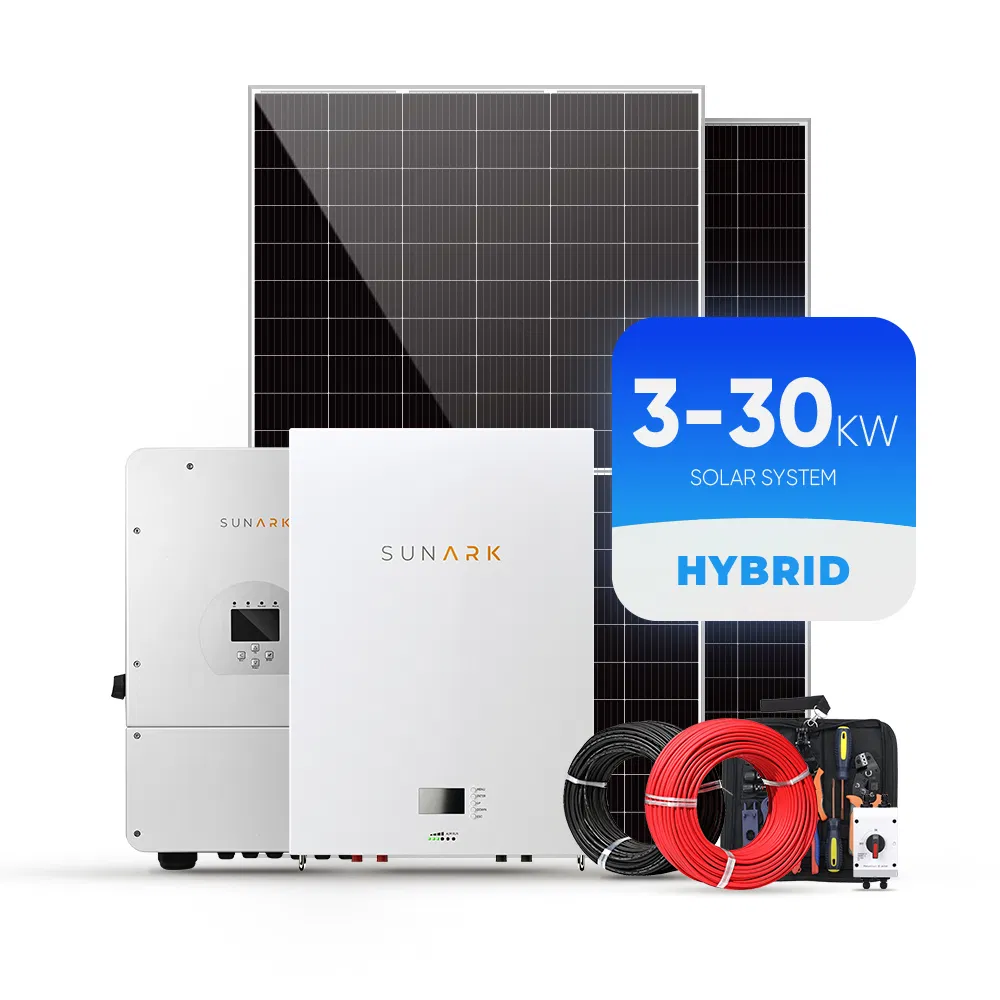

Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home

1 / 5

Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Year

Send Inquiry

Product Description

Overview
Product Description
Packaging & Shipping
Application
About Us
Global Projects

Basic Information

Model NO. SE-HY

Condition New

Certification ISO, CB, CE, TUV

Application Home

Specification Normal, 3-30KW

Solar Panel Monocrystalline 400-700W

Solar Inverter Hybrid 3-30kw

Battery Type Gel / LiFePO4 Lithium Battery

Monitoring System APP Available for PC and Phone

PV Mounting System Customized

Other Accessories Cable, Switch, Assembly Tool, etc

Transport Package Wooden Box

Production Capacity 5000 Set/Week

Product Description

All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home

Warranty

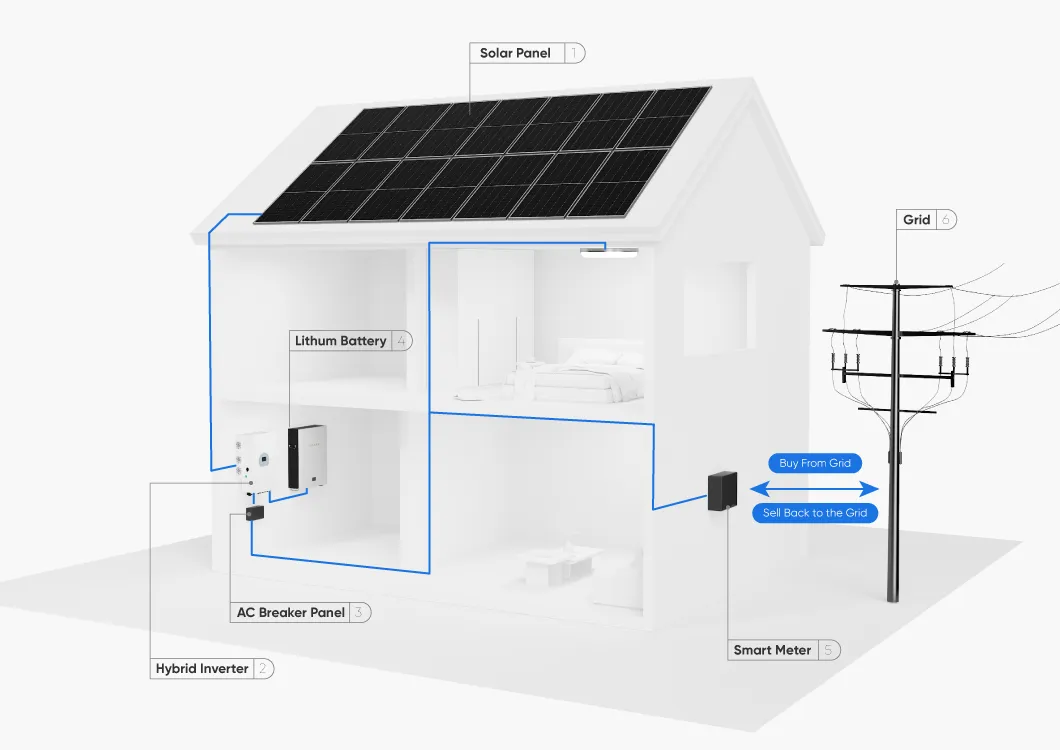

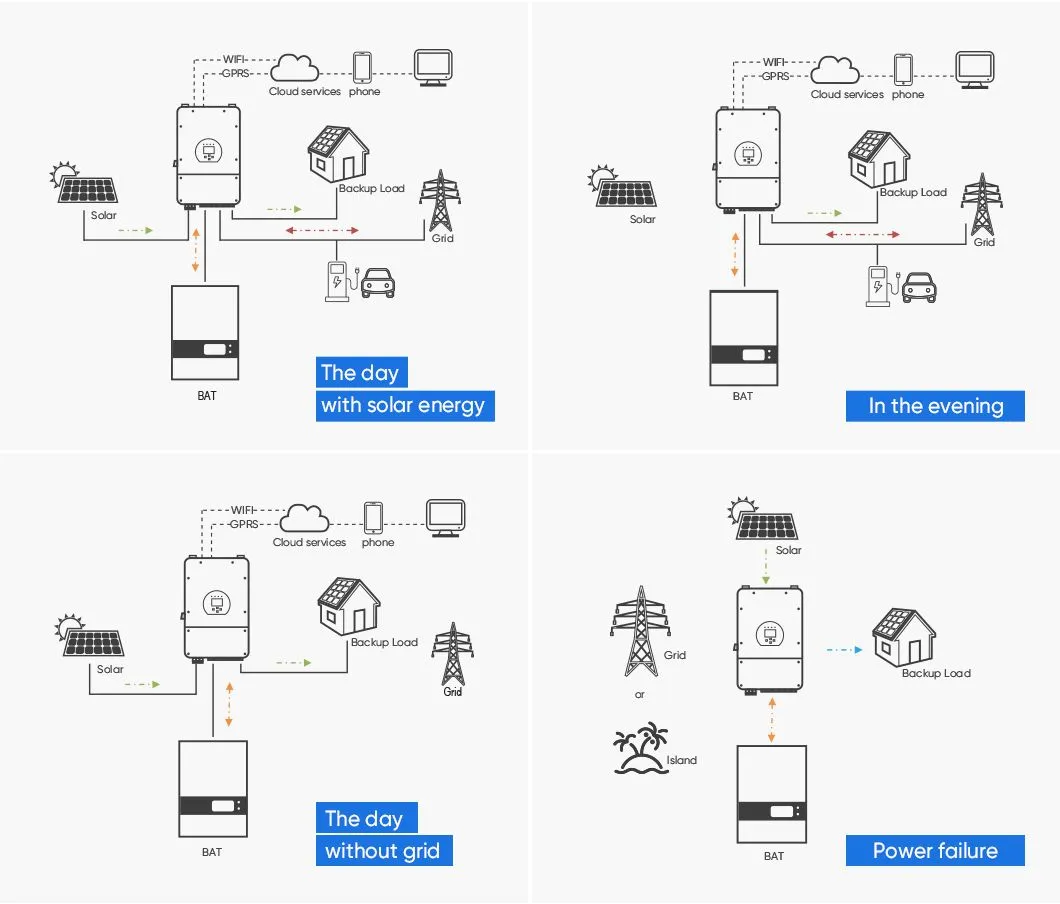

How it works

Technical Specifications (3KW - 10KW)

Model	SE-3KW-HY	SE-5KW-HY	SE-10KW-HY
Half Cut Mono 550W Solar Panel	6 Pieces	10 Pieces	21 Pieces
DC Disconnect Switch	1 Piece	2 Pieces	3 Pieces
Hybrid Inverter	SUN-3K-SG04LP1-EU	SUN-5K-SG03LP1-EU	SUN-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

Technical Specifications (15KW - 30KW)

Model	SE-15KW-HY	SE-20KW-HY	SE-30KW-HY
Half Cut Mono 550W Solar Panel	30 Pieces	42 Pieces	63 Pieces
DC Disconnect Switch	4 Pieces	6 Pieces	9 Pieces
Hybrid Inverter	SUN-5K-SG03LP1-EU 3 Pieces	SUN-10K-SG04LP3-EU 2 Pieces	SUN-10K-SG04LP3-EU 3 Pieces
Wall Mounted LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

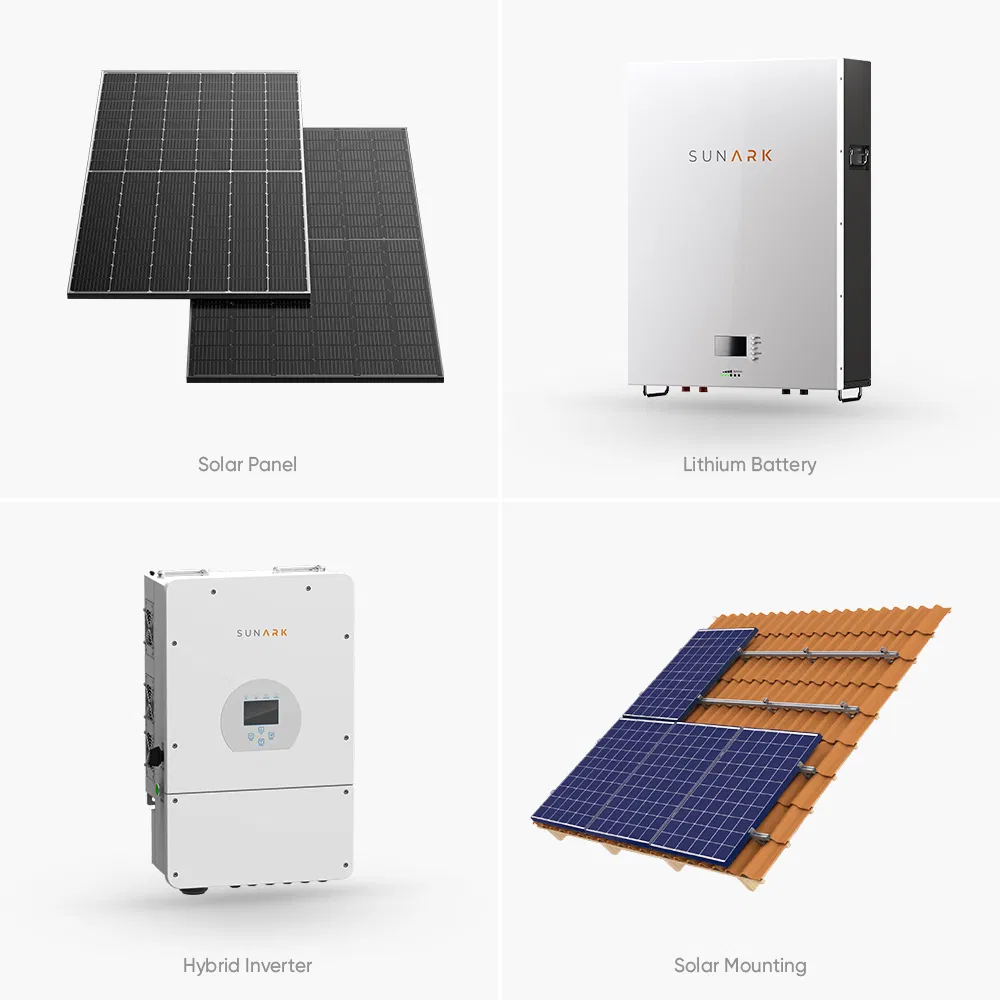

What's Included in the System

Half Cut Mono 750W Solar Panel

Peak Power Watts: 750W
Maximum Power Voltage: 42.68V
Maximum Power Current: 17.58A
Open Circuit Voltage: 50.77V
Short Circuit Current: 18.71A
Dimensions: 2384*1303*33mm
Weight: 37.9kg

Hybrid Solar Inverter

48V low voltage battery, transformer isolation design.
6 time periods for battery charging and discharging.
Max. charging/discharging current of 240A.
Max.10pcs parallel.
DC couple and AC couple to retrofit existing solar system.

Monitoring System

Open station supports one-click installation and registration.
Problem support one-click dispatch and navigation.
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability.

Wall Mounted LiFePo4 Battery

15-20 years design life. Up to 6000+ cycle life.
Wall mount or ground stack brick, simply connecting to inverter.
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS to protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.

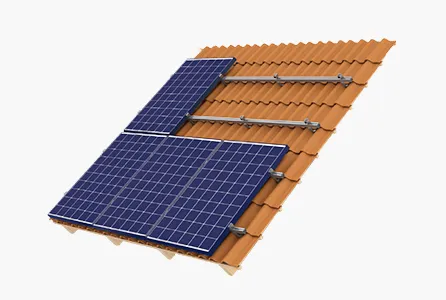

PV Mounting System

Mounting Rail & Rail Splice Kit: Al6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm.
L Foot Asphalt Shingle Mount & Hanger Bolt Optional.
Cable Clip & Tie Optional.
Ground Clip & Lugs Optional.

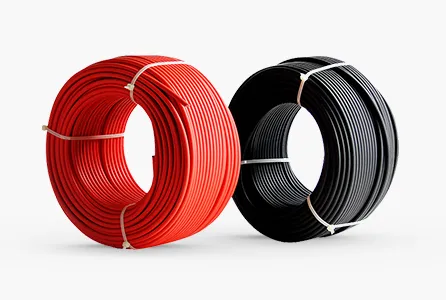

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional.
Rated Voltage: 1000VDC(TUV).
Rated Current: 55A, 70A.
Colors: Black For STD, Red Optional.
Lifetime: ≤25 Years.

DC & AC Disconnect Switch

IP Rating: IP66.
Rated Voltage: 1000VDC.
Connection Type: M20, M25, MC4.
Rated Current: 16A, 20A.

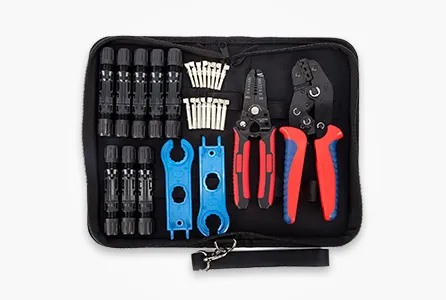

PV Tools

Wire Cable Cutter & Stripper.
MC3 MC4 Crimper.
MC4 Connectors Assembly & Disassembly Tool.

Packaging & Shipping

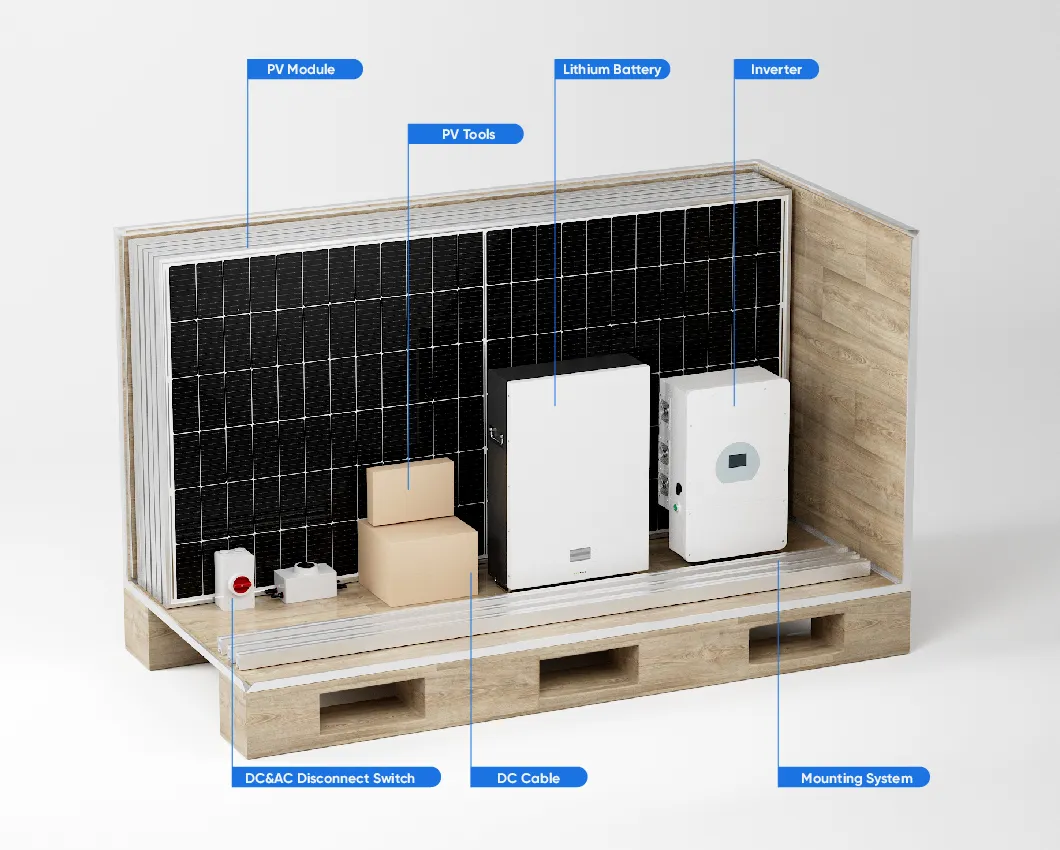

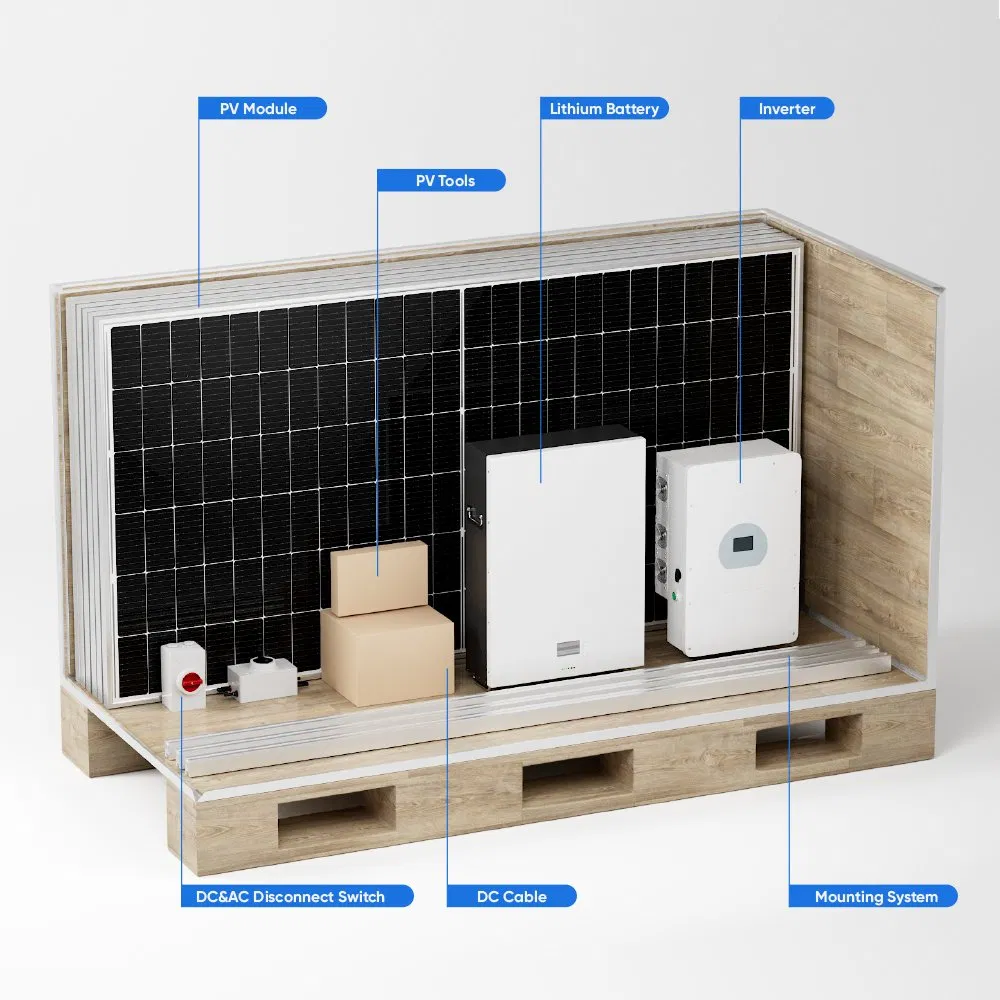

Wooden Box Packaging for Solar System Components

Solar Panels Ready for Container Loading

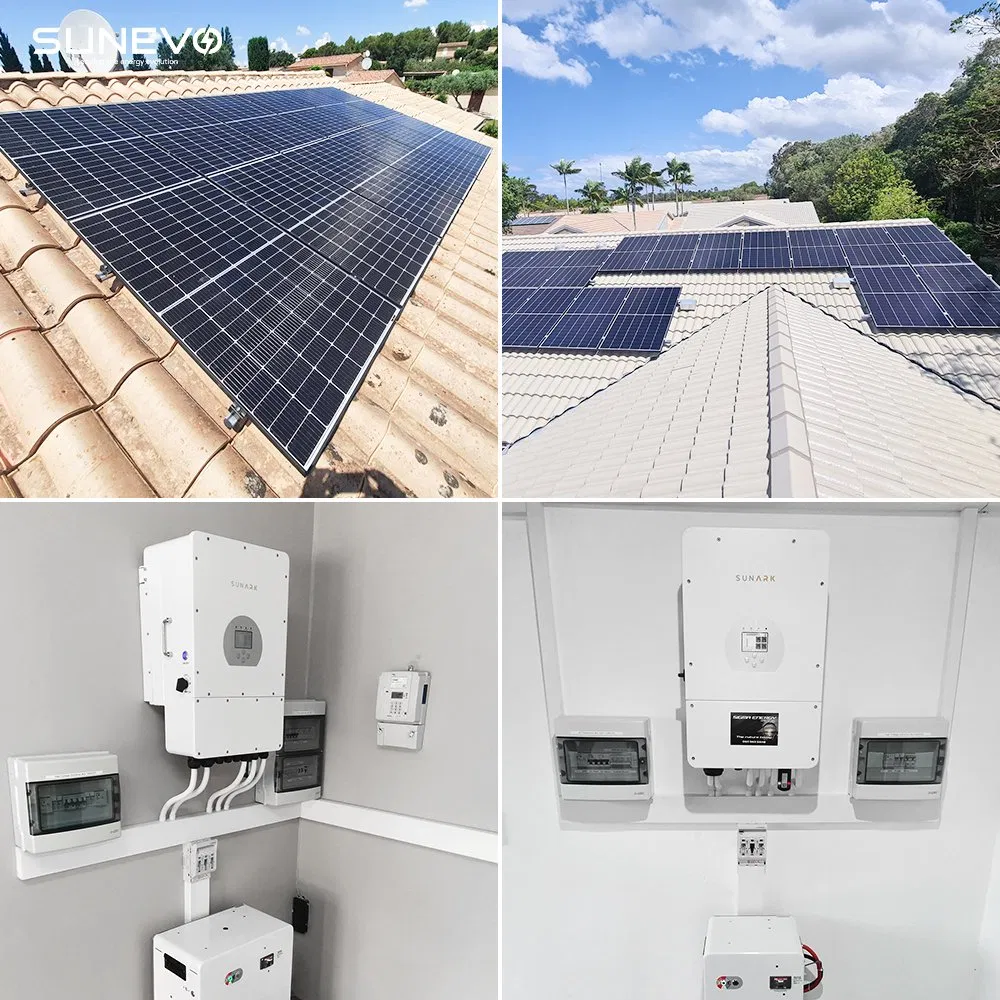

Application

About Us

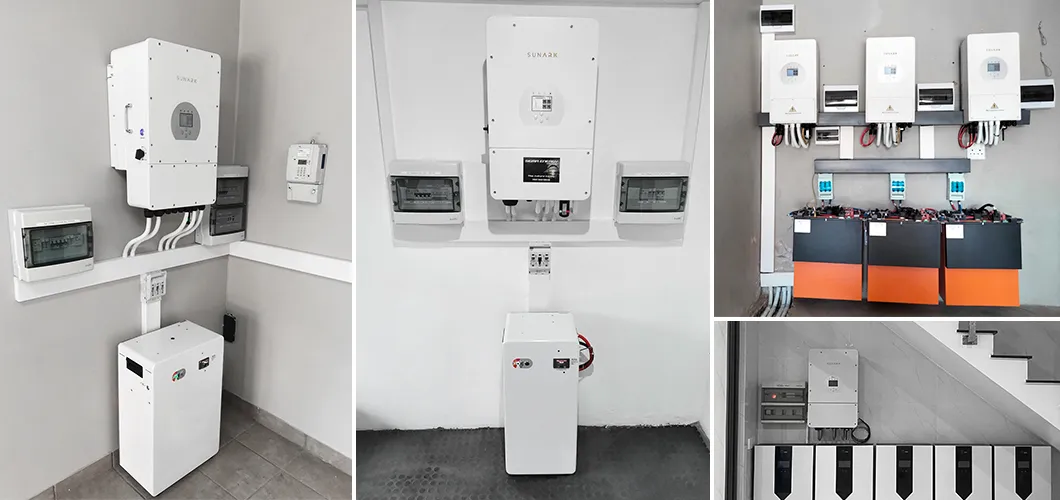

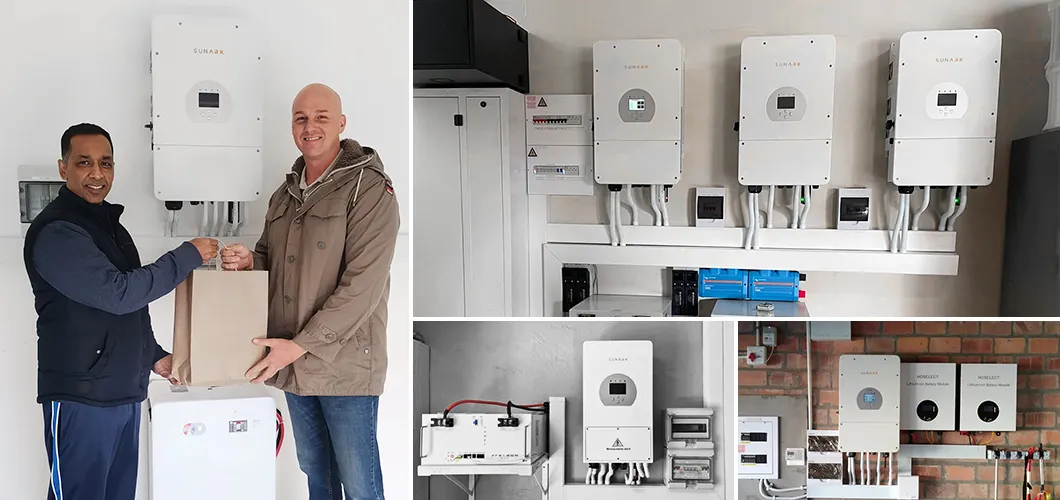

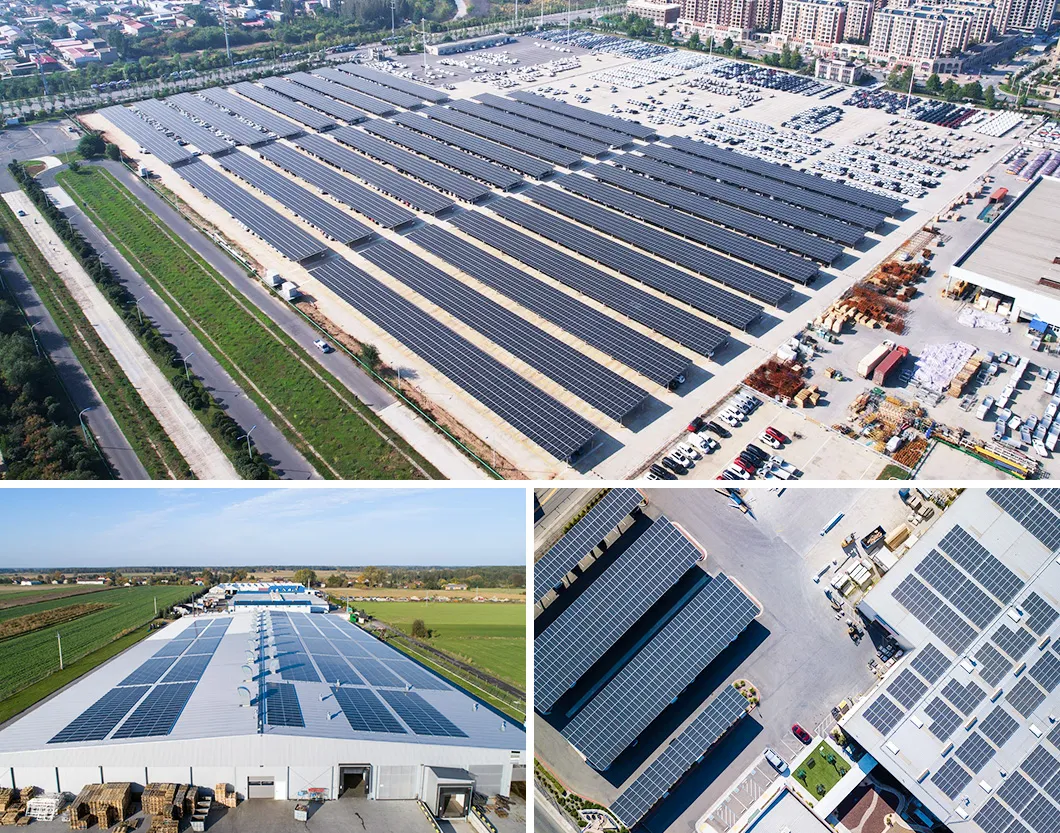

Global Project Cases

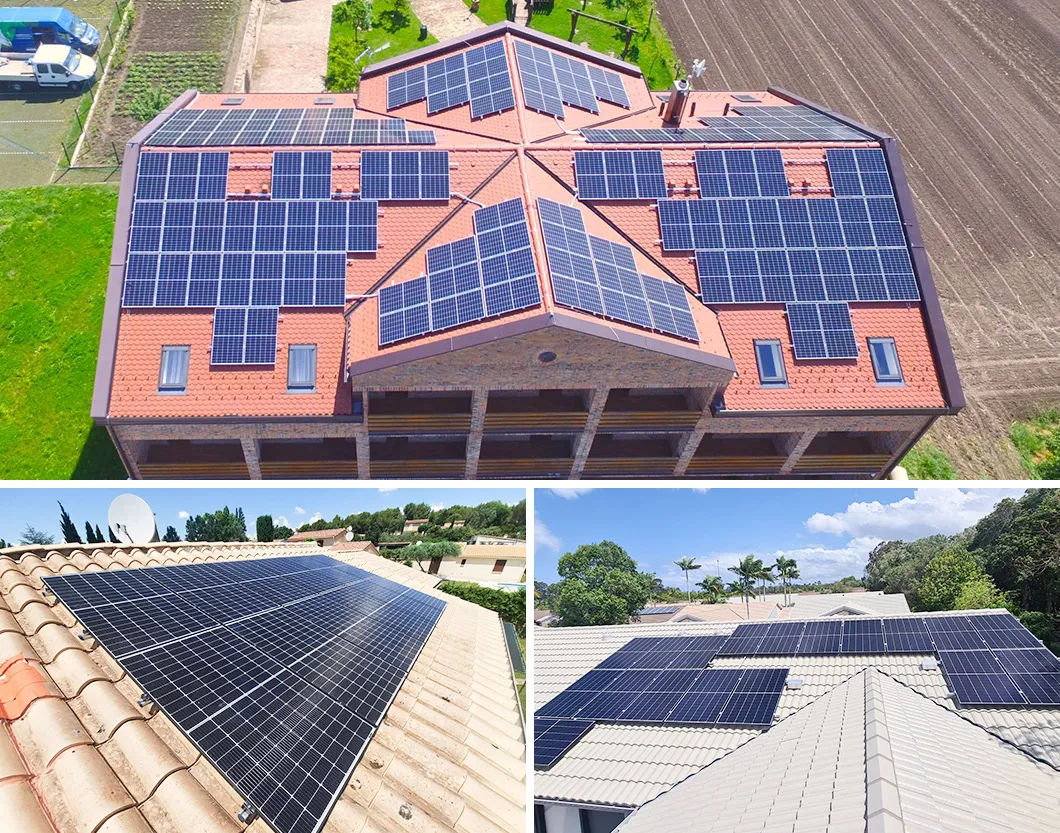

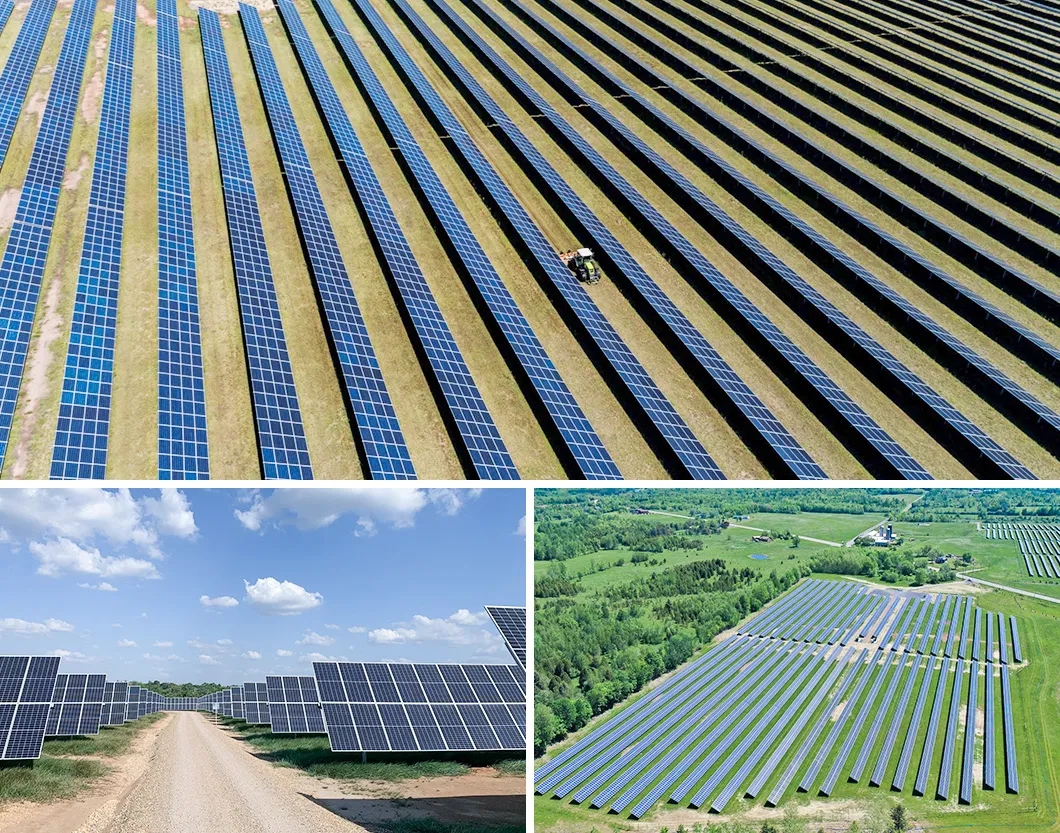

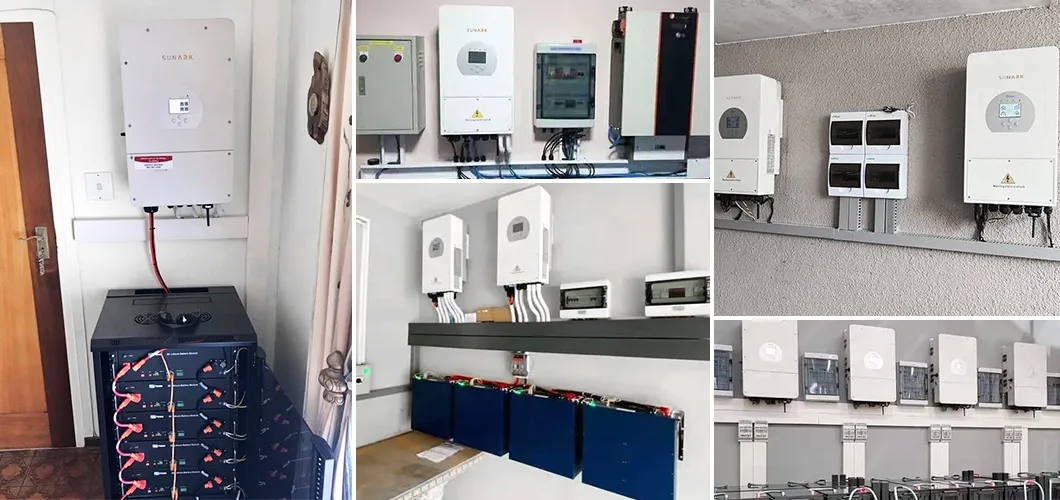

Residential Solar Plant Installation Case 1

Frequently Asked Questions

What components are included in this complete solar power system?

The complete system packages include high-efficiency Half Cut Monocrystalline Solar Panels, a smart Hybrid Solar Inverter, a Wall-Mounted LiFePO4 Lithium Battery system, a customized PV Mounting System, DC cables, AC/DC disconnect switches, MC4 connectors, and essential PV tools for installation.

What are the benefits of using a LiFePO4 lithium battery over traditional batteries?

The LiFePO4 (Lithium Iron Phosphate) battery provides a much longer service life (15 to 20 years design life) and supports over 6,000 charge/discharge cycles. It features a built-in intelligent Battery Management System (BMS) to protect against overcharging, over-discharging, and overheating, ensuring high safety for indoor residential storage.

How does remote monitoring work for this solar system?

The system features an integrated monitoring module that links to a dedicated app compatible with both PCs and smartphones. This allows users to track solar generation, battery capacity levels, and home consumption in real-time, along with receiving automatic logs for troubleshooting.

Is the PV mounting system customized to suit my home's roof?

Yes. The mounting system is fully customized based on your specific roof structure (such as asphalt shingles, metal tiles, flat concrete roofs, or ground mounting layouts) using premium Al6005 and SUS304 bolts for durability and wind resistance.

Can I expand the solar storage system capacity later if needed?

Yes, our LiFePO4 battery modules are designed to be scalable. You can easily add more battery storage modules in parallel connection to expand the overall energy storage capacity of your existing system as your power demand increases.
