Basic Info.
Certification
ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet
Application
Home, Industrial, Commercial, Agriculture Irrigation
Specification
Normal, 5KW/10KW
Solar Panel Type
Mono / Poly Solar Panel
Output Voltage
EU: 230/400/480V Us: 120/240V etc
Monitoring
WiFi/GPRS Device
Work Time (H)
24hours/Day
Mounting Brackets
Roof/Ground Installation
Accessories
Mc4 Spanner, Crimping Pliers etc
Inverter
Singe Phase/Three Phase
Battery Type
AGM/Gel/Lithium Battery
Transport Package
Wooden Box / Carton Packing
Production Capacity
1000000watt/Day
Packaging & Delivery
Package Size
210.00cm * 120.00cm * 120.00cm
Package Gross Weight
27.000kg
Product Description
System Configuration
| Item |
5KW |
10KW |
15KW |
| Half Cell Solar Panel |
10 pieces |
20 pieces |
30 pieces |
| PV Combiner Box |
DC Breaker/Combiner/Short-Circuit Protection/Lightning Protector |
| Hybrid Inverter (On and Off Grid) |
5kw |
10kw |
15kw |
| WIFI Module Monitor |
1 set |
1 set |
1 set |
| Solar Battery |
Lithium Powerwall with BMS/GEL |
Lithium Powerwall with BMS/GEL |
Lithium Powerwall with BMS/GEL |
| PV Cable |
4/6mm² |
4/6mm² |
4/6mm² |
| Mounting Bracket |
Tile Roof/Ground |
Tile Roof/Ground |
Tile Roof/Ground |
| MC4 Connector |
10pcs |
20pcs |
30pcs |
| Installation Tool Box |
1set |
1set |
1set |
| Installation Manual |
Yes |
Yes |
Yes |
Technical Specification

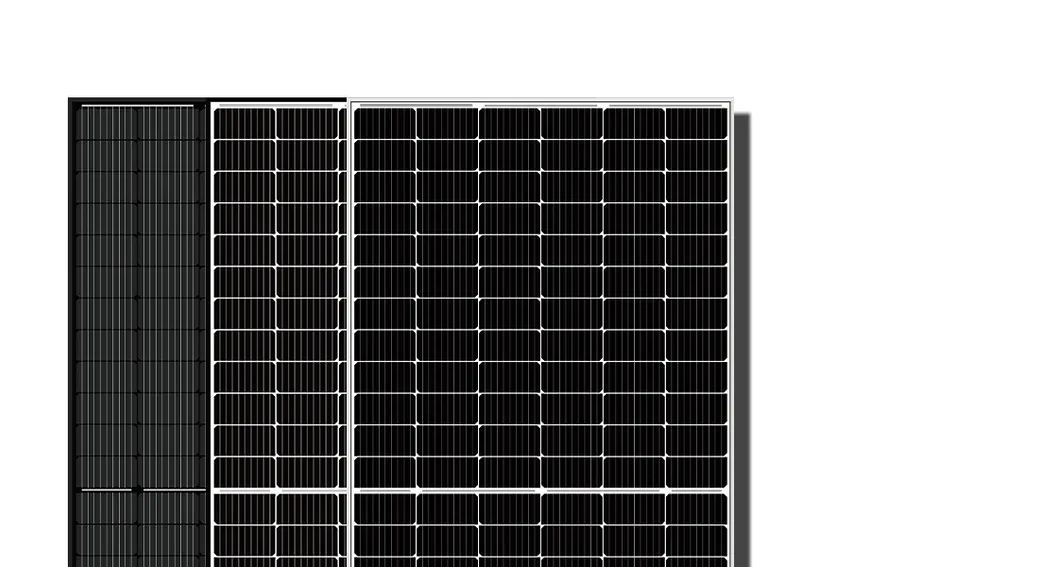

Solar Panels
- Optional Mono/Poly Blue/Black Panels
- High Efficiency with Half Cell PERC panels available
- 9BB/10BB/12BB PV cell Mono 182mm/210mm
- Wind/Snow Load 2400Pa / 5400Pa*
- Silver/Black Panels OEM/ODM
- Anti-PID

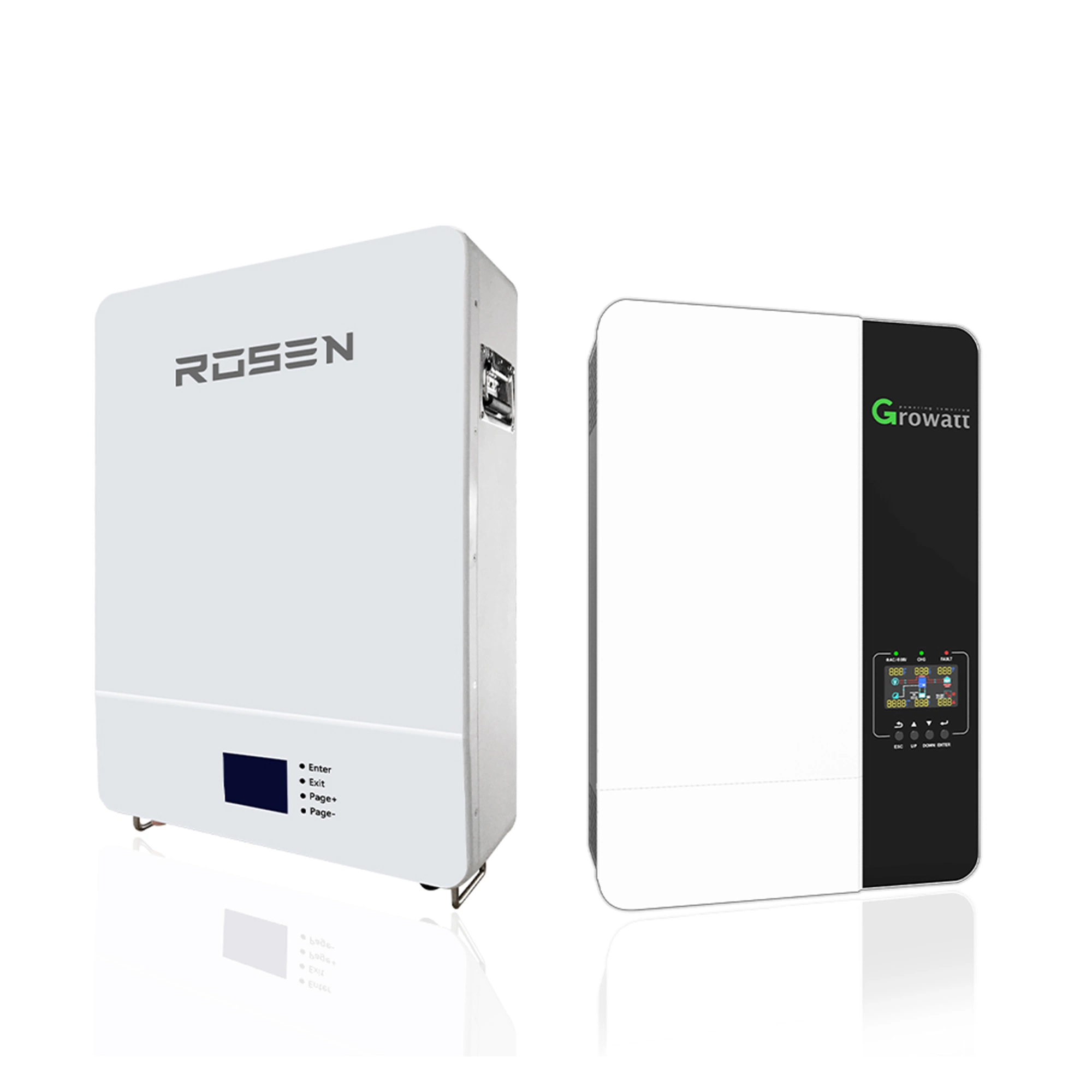

Hybrid Solar Inverter
- Single Phase/Three Phase AC Voltage
- Intelligent cloud platform monitoring
- Realizing one-key APP real-time monitoring
- Support RS232, RS485, GPRS, WIFI and other communication methods
- Low and High Voltage with BMS and communication for Lithium battery

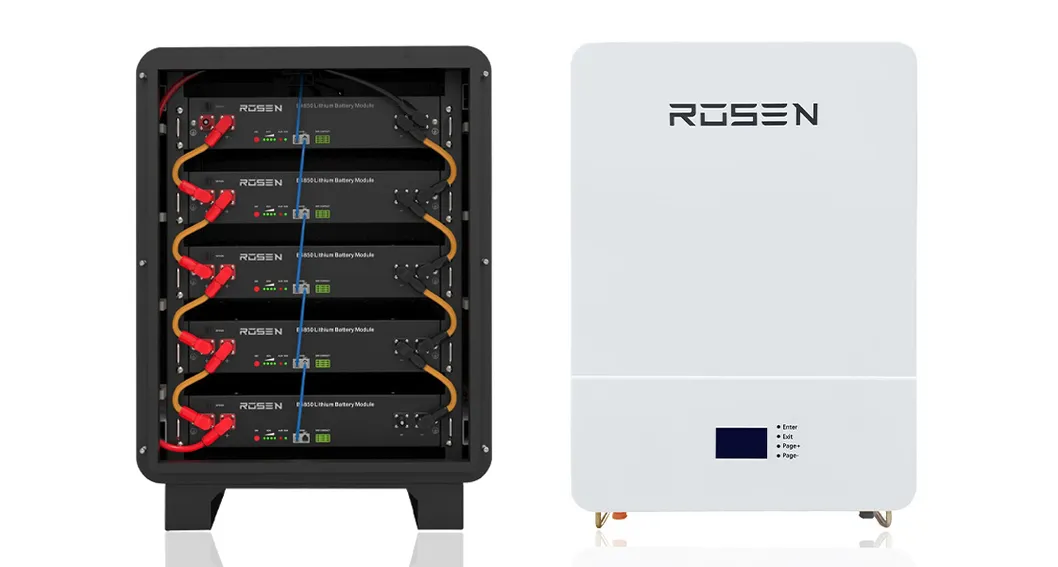

Solar Battery
- 48V LV Storage 96V/192V/384V HV Battery Optional
- Lithium ion LifePO4 Module or Powerwall Optional
- Matched BMS and communication for hybrid inverters
- Lead Acid Deep Cycle Battery Storage

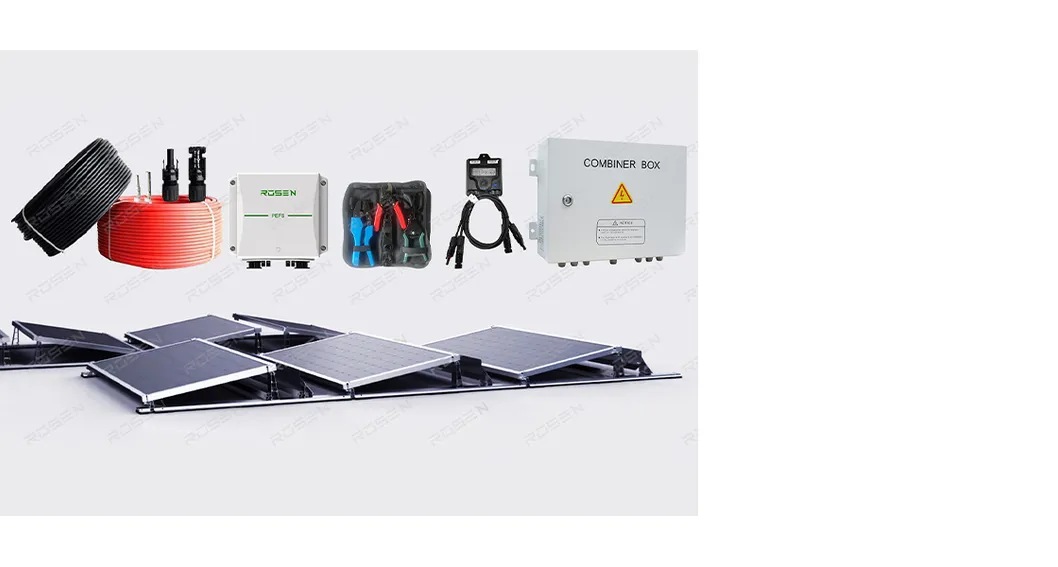

EPC Accessories
- Tile or color steel roof tile/ground installation
- DC Breaker/Combiner/Short-Circuit Protection
- Lightning Protector/Firefighter Safety Smart Switch
- DC Cable & MC4 Connector & Installation Tool Box
Packing & Delivery

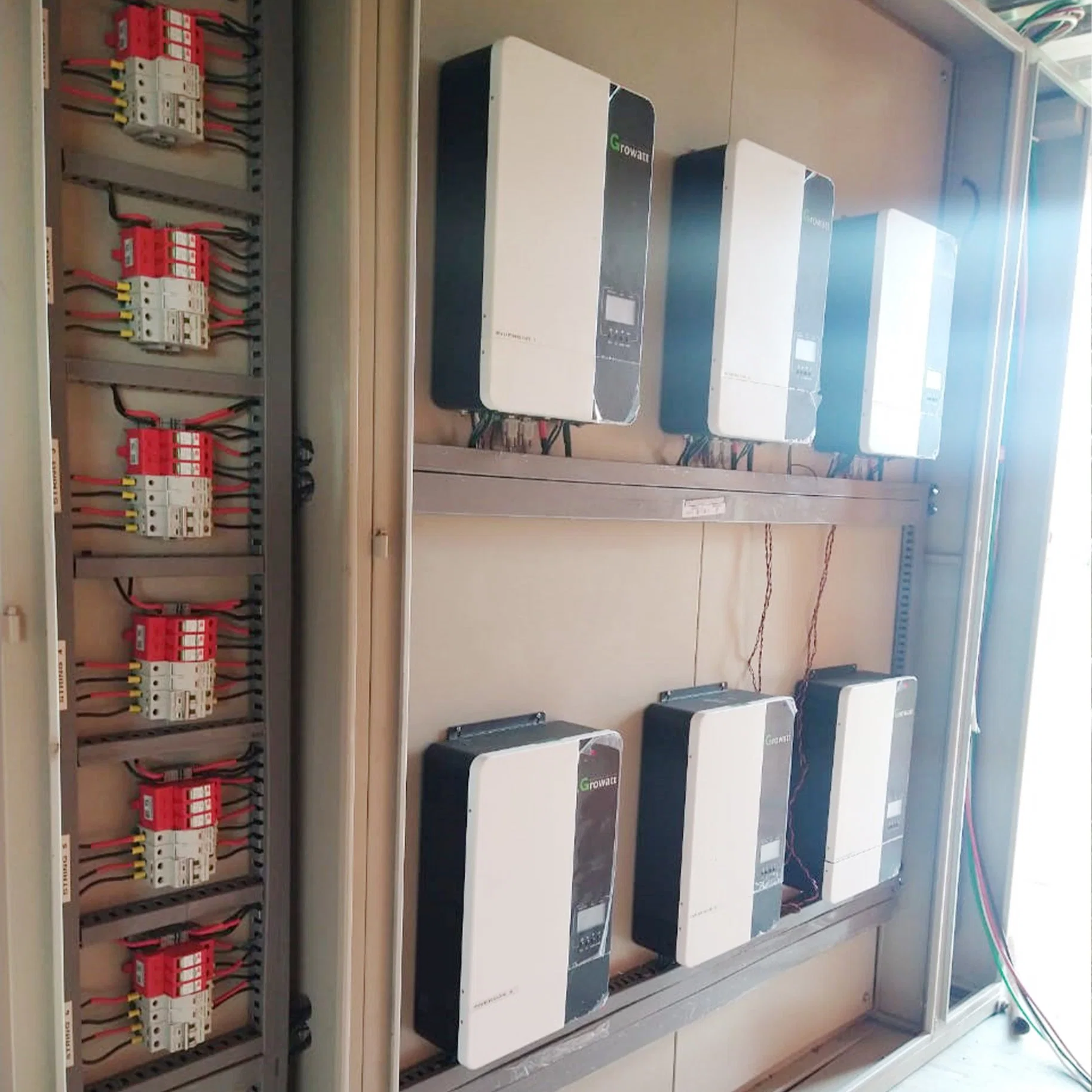

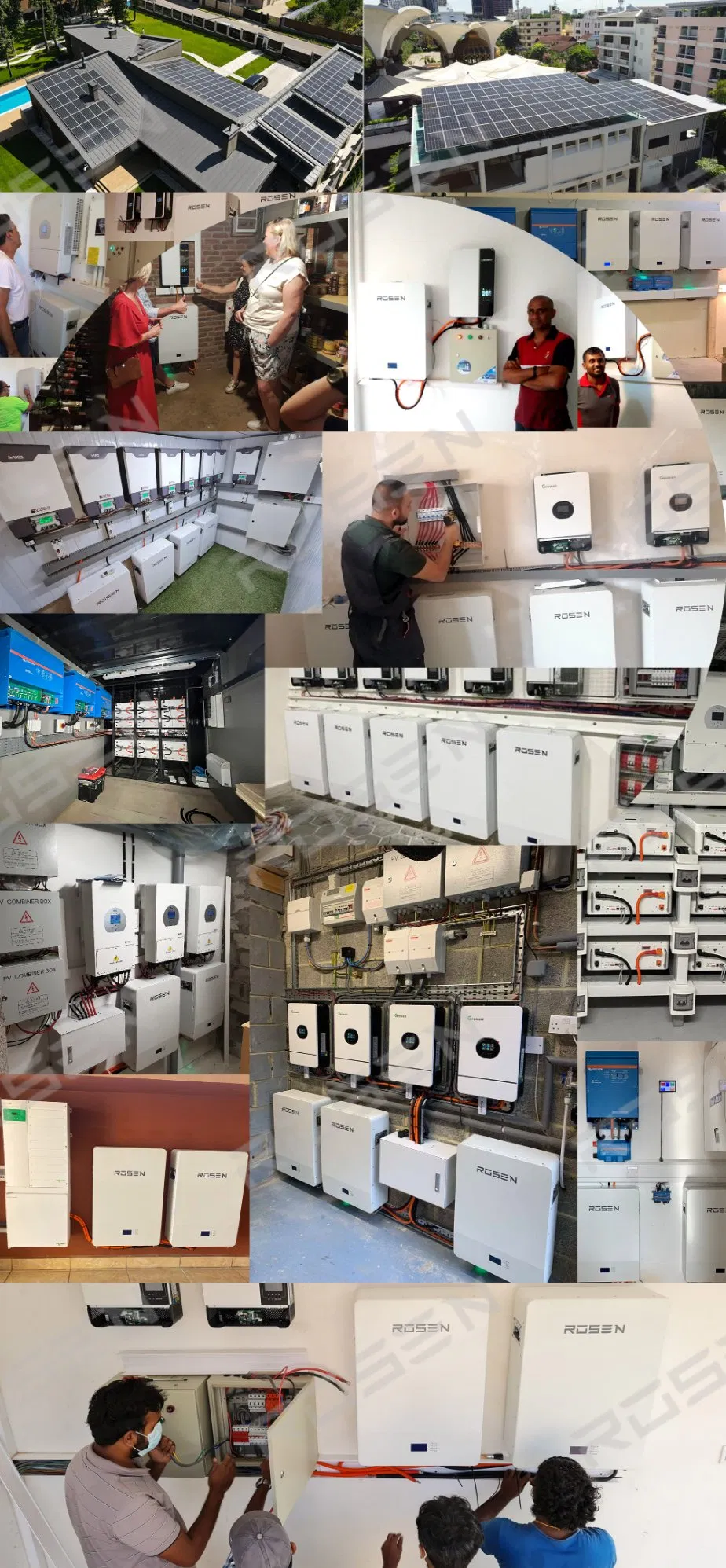

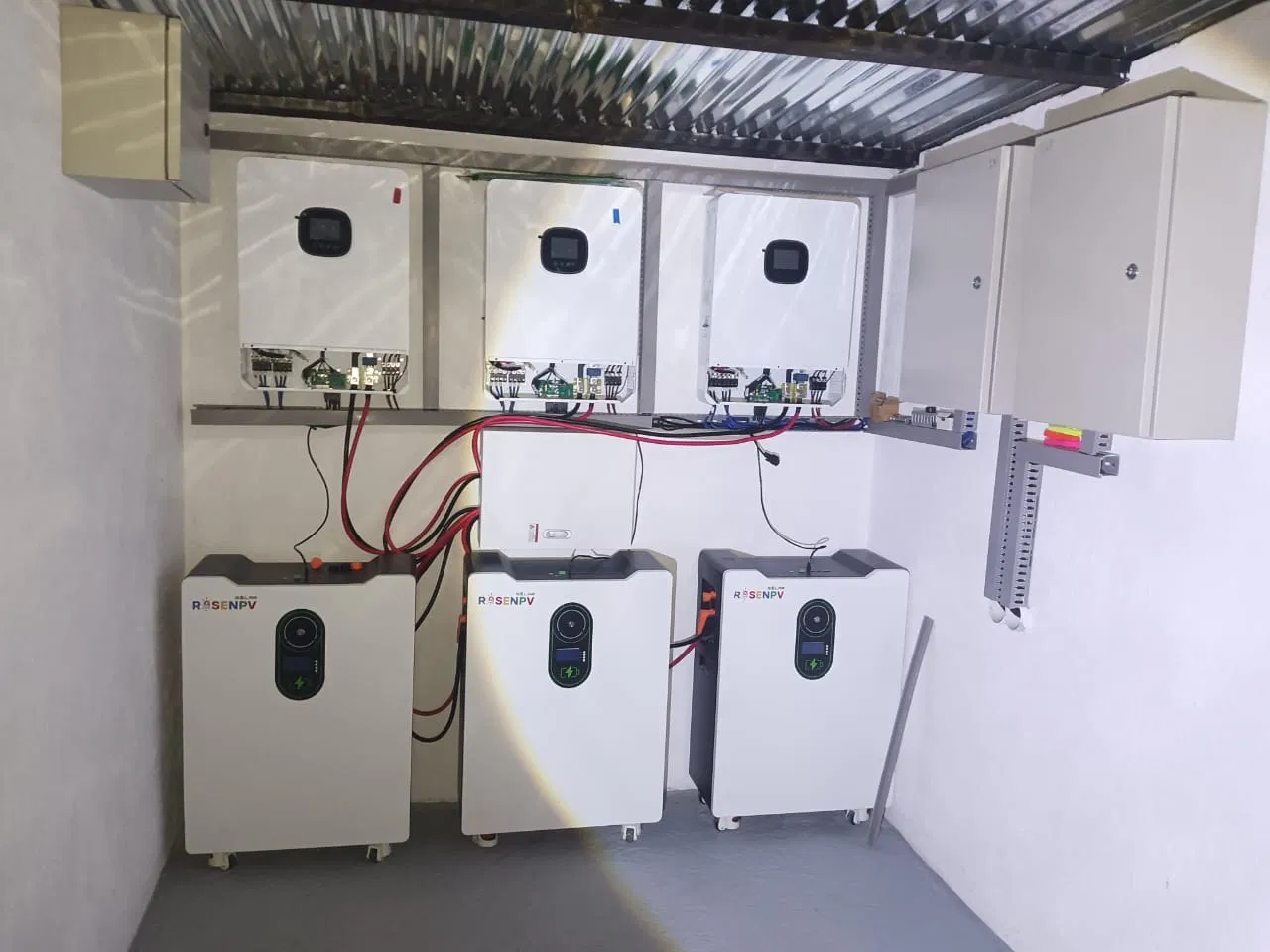

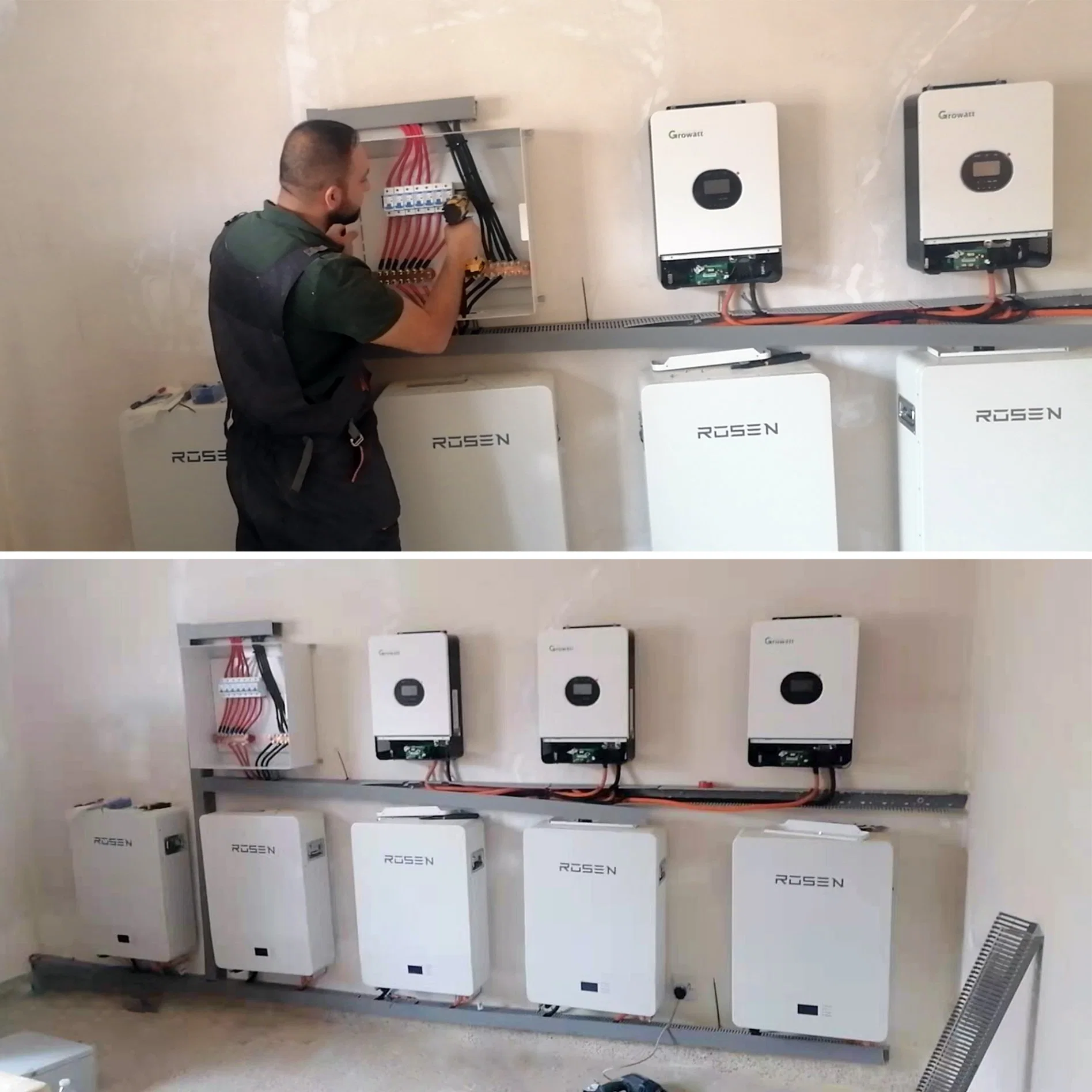

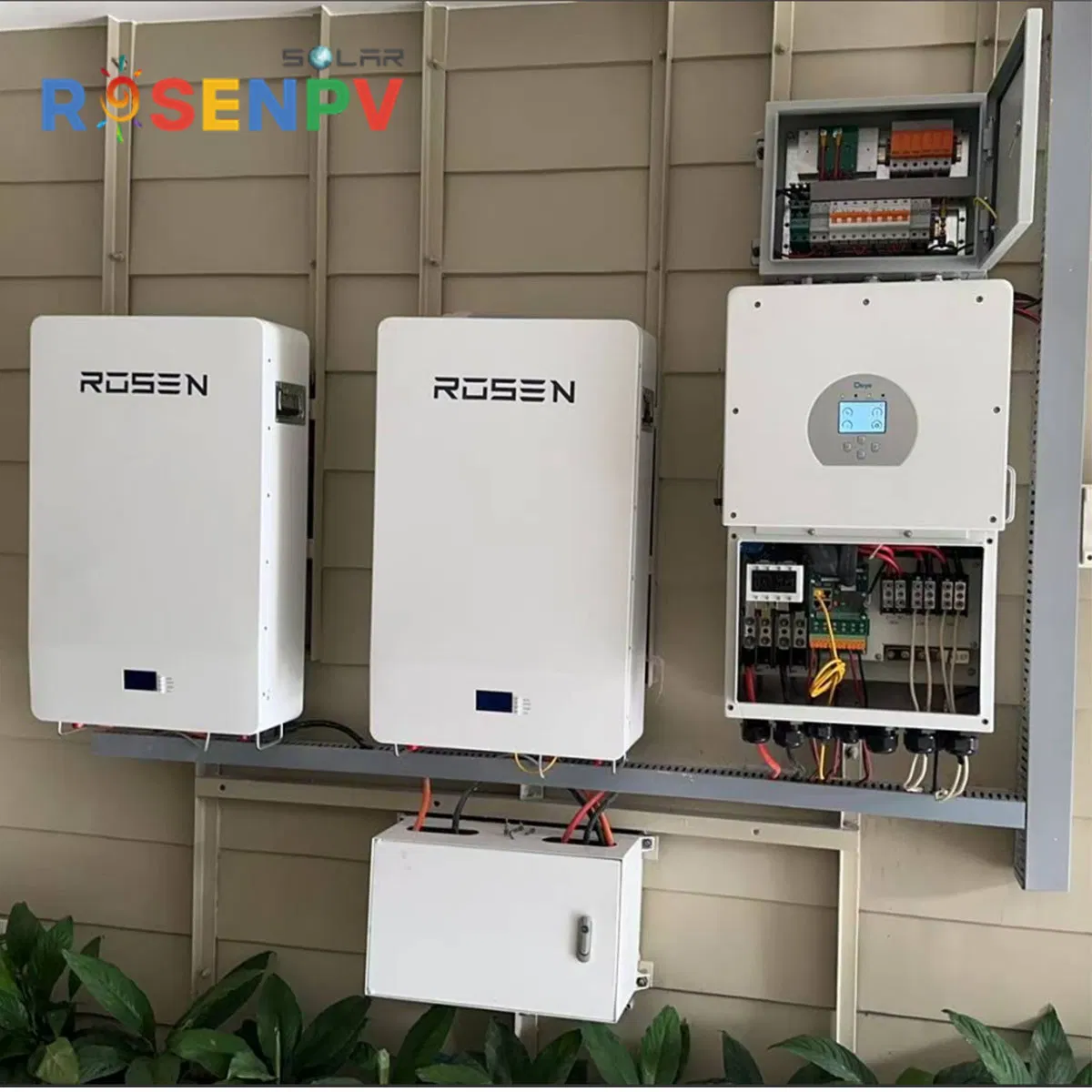

Project Showcase
Our solar projects are installed around the world for home, commercial and industrial use. Home Lithium battery hybrid solar systems are more installed for roof mounting with solar panel power range 3kw, 5kw, 8kw, 10kw, 15kw, 20kw, 30kw etc, lithium batteries with power wall and rack mount types. Commercial projects are more On Grid systems like 50kw, 100kw, 150kw, 200kw, 300kw Grid tied for cement or soil ground mounting. Industrial projects for tender EPC like 1MW, 2.5MW, 3MW, 5MW, 10MW etc. Usually we have solar panels PERC, bifacial and black types in stock. Our technicians will help with installation guidance, project design, commissioning, and aftersale service.
Frequently Asked Questions

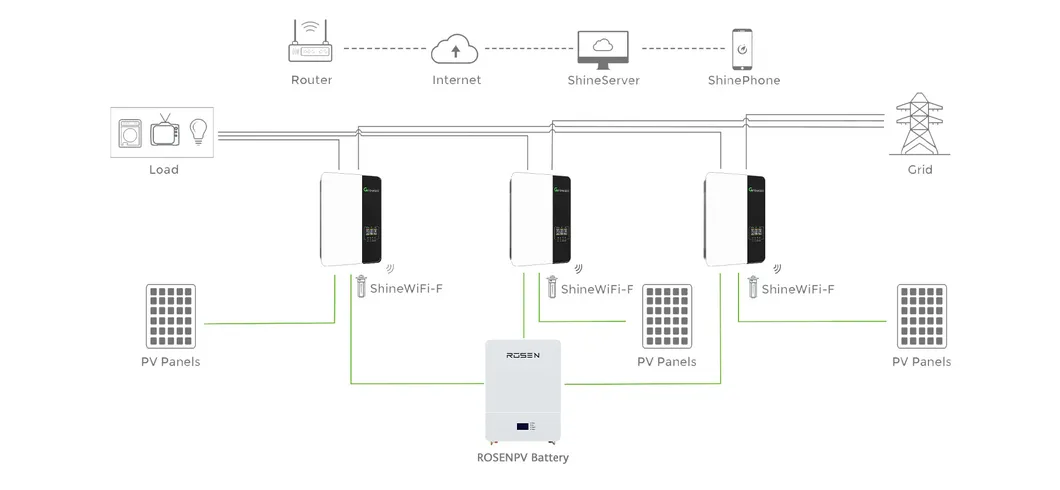

What is a hybrid solar battery system?
A hybrid solar system combines solar panels, a hybrid inverter, and battery storage. It allows you to run on solar power during the day, store excess electricity for night use, and keep grid connection as a backup or sell excess power back to the grid.
Can I monitor my solar system remotely?
Yes, the system includes a WiFi/GPRS module that connects to an intelligent cloud platform. You can monitor power production, battery status, and load consumption in real-time via a mobile application.
What type of battery storage is available?
We offer both highly efficient Lithium-ion LiFePO4 modules (such as Powerwall formats with integrated BMS) and cost-effective Gel/AGM deep cycle batteries depending on your capacity needs and budget.
Are the mounting brackets suitable for my roof type?
Our mounting structures are versatile and customizable. We offer specific mounting solutions optimized for tile roofs, color steel tile roofs, and open ground installations.
How durable are the solar panels against harsh weather?
The high-efficiency solar panels are built with robust frames and anti-PID technology, certified to withstand wind loads up to 2400Pa and heavy snow loads up to 5400Pa.
What support do you provide for installation?
Our packages include detailed installation manuals, complete tools, and MC4 connectors. Additionally, technicians are available to assist you with design guidance, system commissioning, and remote technical support.
