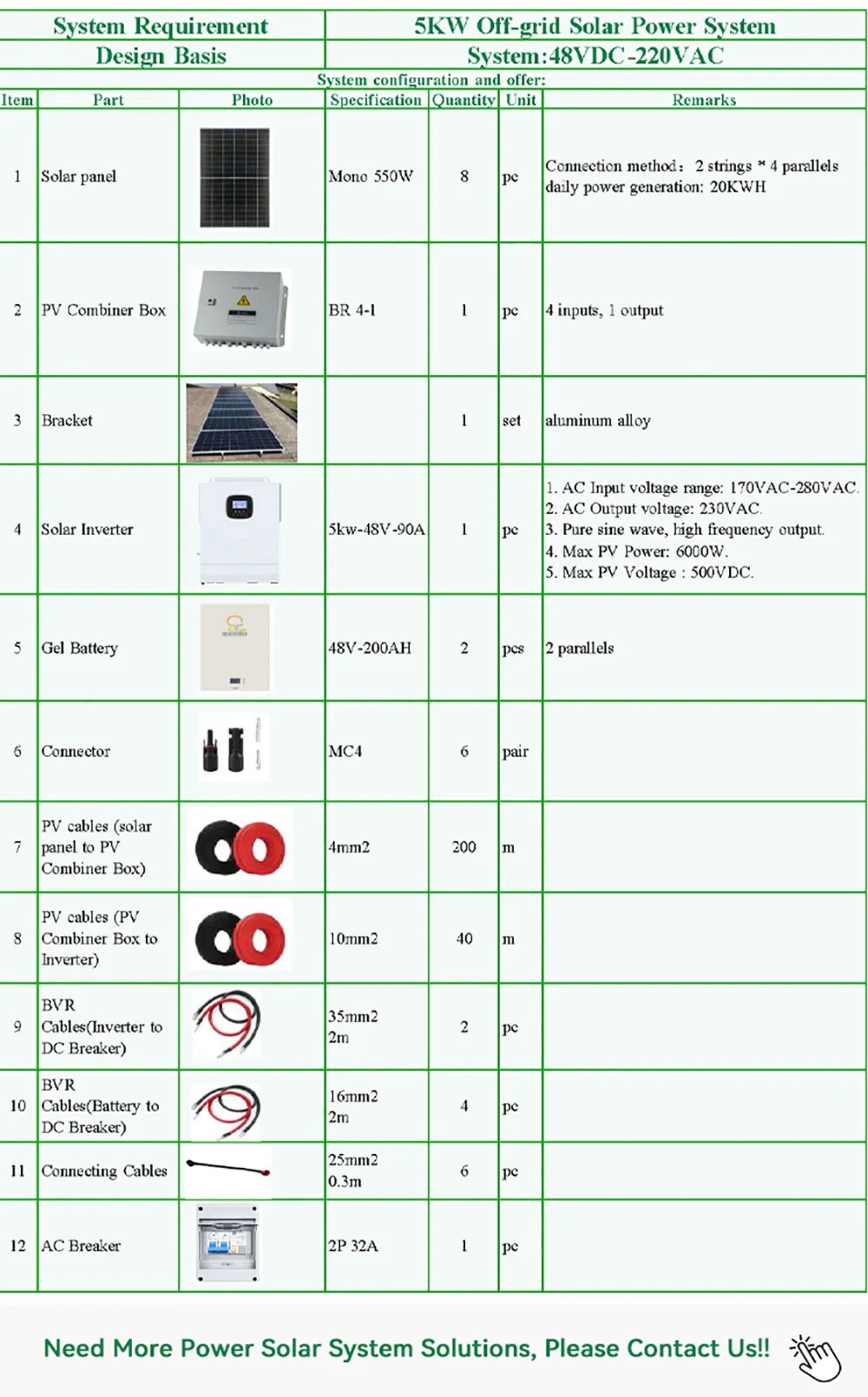

| Item | Part | Specification | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Solar Panel | Mono Half Cell Mono 550W Class A+ 21.6% Efficiency |
8 pcs | Connection method: 2 strings * 4 parallels. Daily power generation: 20KWH. |
| 2 | PV Combiner Box | — | 1 set | 4 inputs, 1 output. |
| 3 | Bracket | — | 1 set | Aluminum alloy material. |
| 4 | Solar Inverter | 5kw-48V-90A | 4 pcs |
1. AC Input voltage range: 170VAC-280VAC. 2. AC Output voltage: 230VAC. 3. Pure sine wave, high frequency output. 4. Max PV Power: 6000W. 5. Max PV Voltage: 500VDC. |
| 5 | Lithium Battery | 48V-200AH | 8 pcs | 2 parallels. |
| 6 | Connector | — | 6 pair |
20 Years Design Lifespan. *Note: If longer cables are required, pricing will be confirmed based on requirements. |
| 7 | PV Cables (Panel to Combiner Box) | 4mm² | 200m | |
| 8 | PV Cables (Combiner Box to Inverter) | 10mm² | 40m | |
| 9 | BVR Cables (Inverter to DC Breaker) | 35mm² 2m | 2 pcs | |
| 10 | BVR Cables (Battery to DC Breaker) | 16mm² 2m | 2 pcs | |
| 11 | Connecting Cables | 25mm² 0.3m | 6 pcs | |
| 12 | AC Breaker | 2P 32A | 1 pc |

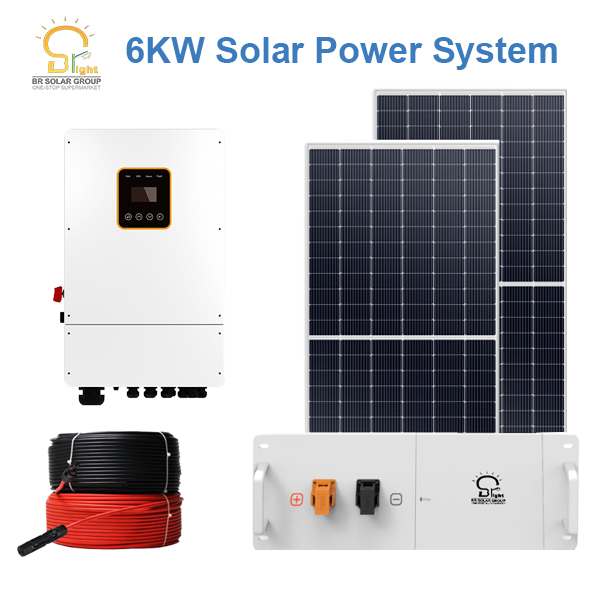

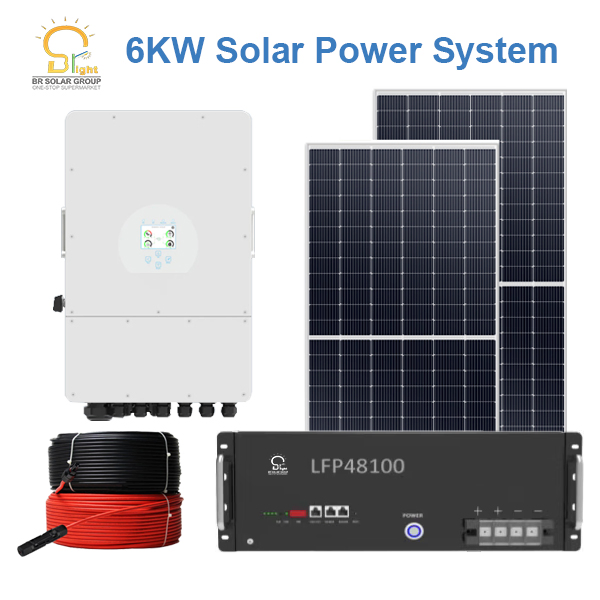

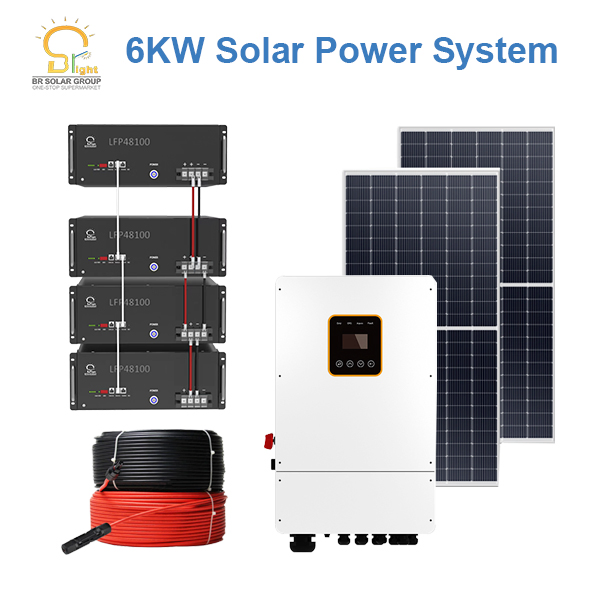

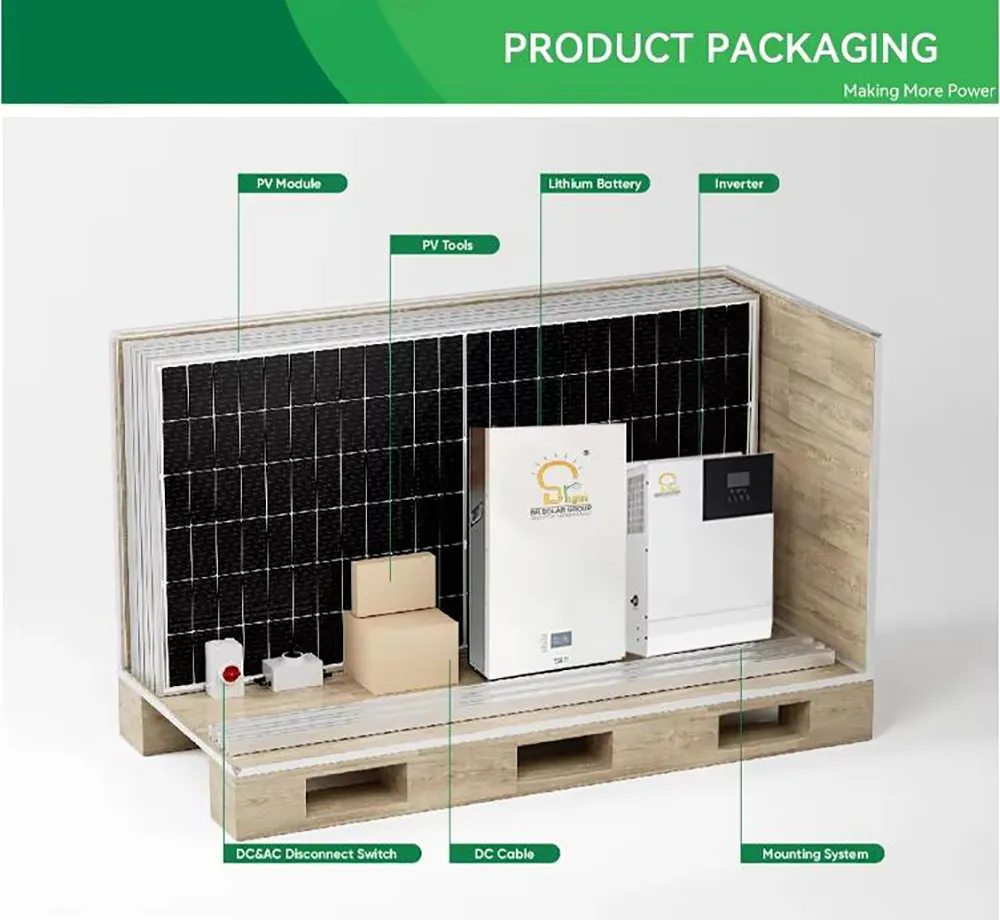

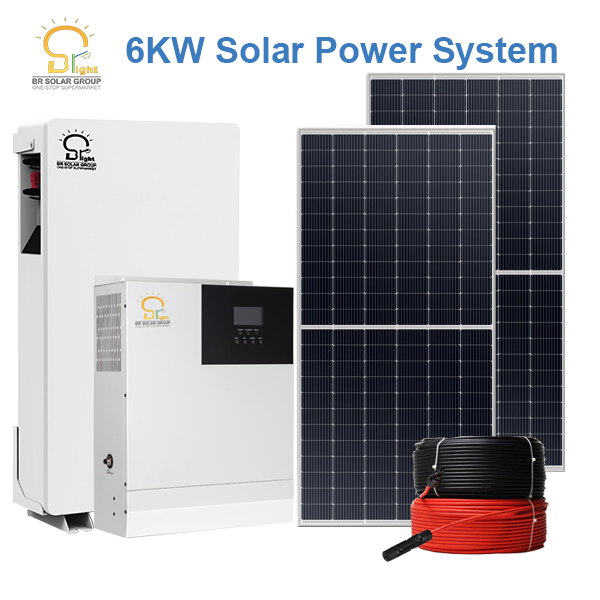

This system comes complete with Monocrystalline solar panels, pure sine wave high-frequency solar inverters, a lithium battery storage bank, a PV combiner box, mounting brackets, and all necessary connection cables and circuit breakers.
The lithium battery storage bank and the overall system configuration are engineered with a design lifespan of 20 years under standard operating conditions.
Yes, the solar power configuration can be customized to fit your specific needs. Please note that if you require longer connection cables, the final pricing will be adjusted accordingly.
We utilize Class A+ Monocrystalline Half-Cell solar panels (550W) that feature a high efficiency rating of 21.6% for optimal daily power generation.
The setup includes 5kW-48V-90A inverters featuring an AC input range of 170VAC-280VAC, 230VAC pure sine wave output, a maximum PV input power of 6000W, and a maximum PV voltage of 500VDC.
Yes, our systems are highly scalable. They can be customized and expanded from 15kW up to 200kW capacity setups depending on your residential, commercial, or industrial power needs.
