5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System

1 / 5

5kw 10kw15kw Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO. 5-30KWH

Condition New

Certification ISO, CE, 10years Warranty

Application Home, Industrial, Commercial, 10years Warranty

Specification Normal

Model No. Br5-30off

Load Power 5kw-30kw

Output Frequency 50/60Hz

Output Voltage 220V/380V Us 120/240V

Monitoring WiFi/GPRS Device

PV Cable 4/6/10mm^2 etc

Work Time (H) 24hours/Day

Mounting Brackets Roof/Ground Installation

Accessories Mc4 Spanner, Crimping Pliers etc

Inverter Single Phase/Three Phase

System Type Single Phase/Triple Phase

Solar Panel Type Mono Panels

Inverter Type Pure Sine Wave Inverters

Inverter(W) 5kw with Parallel Capacity

Transport Package Wooden Packages

HS Code 8541402000

Production Capacity 60000 Pieces/Year

Packaging & Delivery

Package Size 80.00cm * 50.00cm * 30.00cm

Package Gross Weight 50.000kg

Product Description

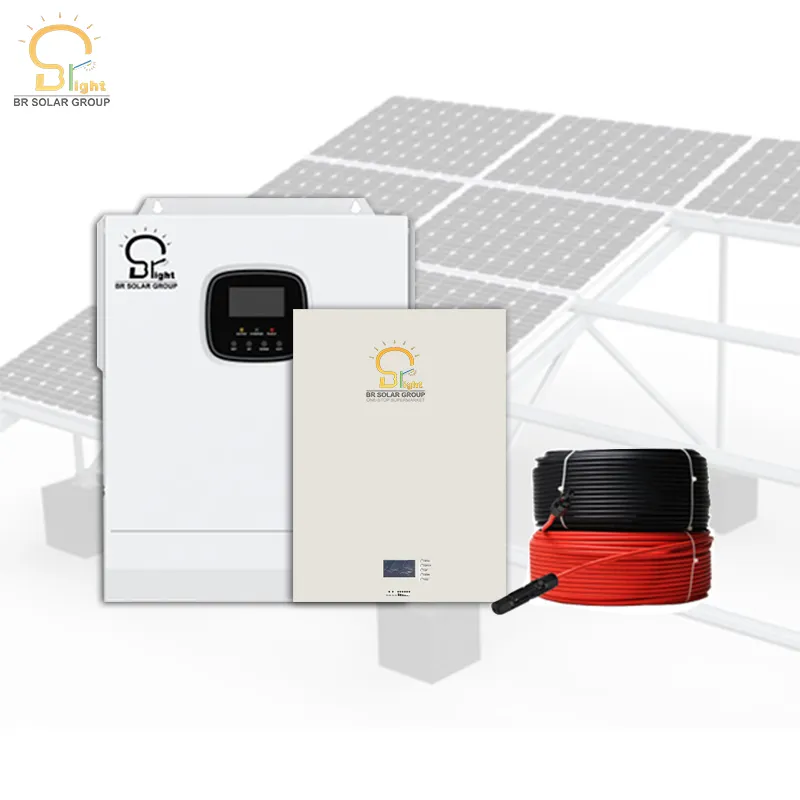

Complete Hybrid off Grid Solar PV Photovoltaic Battery Storage Panel System

INSTRUCTION OF SOLAR ENERGY SYSTEM

5KW off grid solar system is widely used in the following places:

Mobile equipment such as motor homes and ships;
Used for civilian life in remote areas without electricity, such as plateaus, islands, pastoral areas, border posts, etc., for lighting, televisions, and tape recorders;
Home rooftop grid-connected power generation system;
Photovoltaic water pump to solve drinking and irrigation of deep water wells in areas without electricity;
Transportation field, such as beacon lights, signal lights, high-altitude obstacle lights, etc;
Communication fields, including unattended microwave relay stations, optical cable maintenance stations, broadcasting power supply systems, and GPS power supplies.

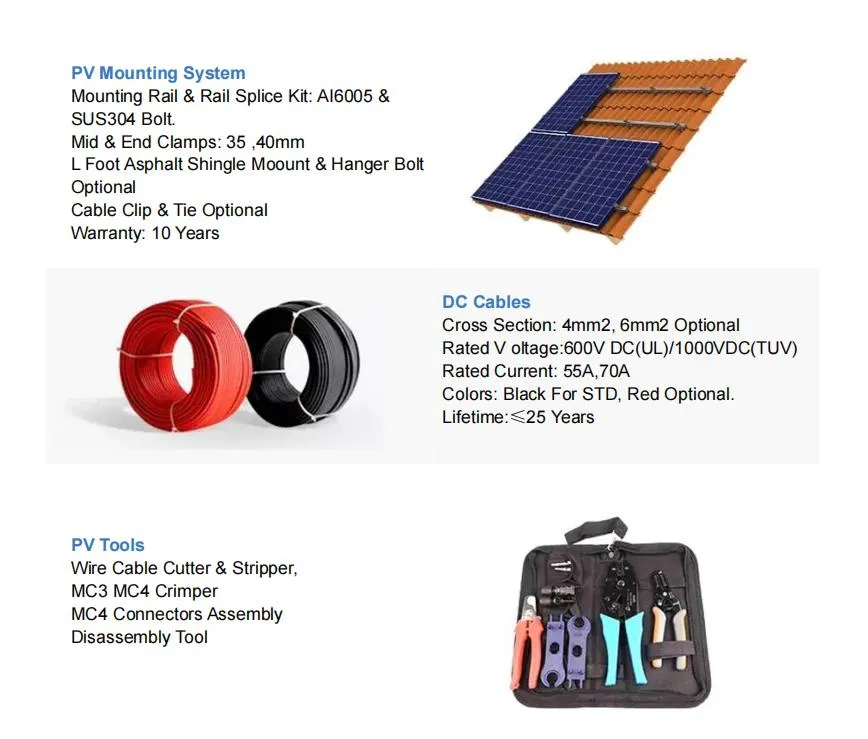

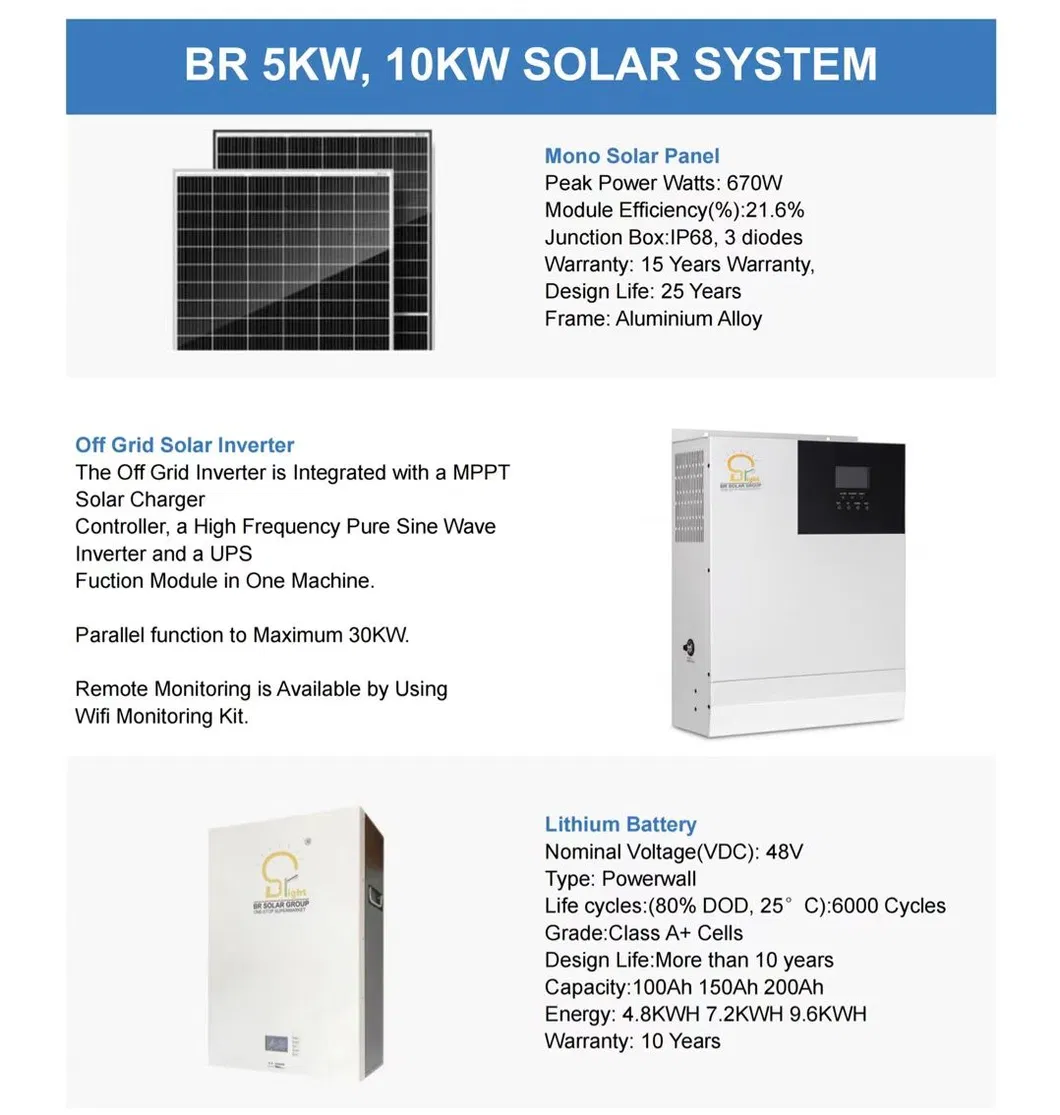

CUSTOMIZED 5KW SOLAR SYSTEM

Item	Part	Specification	Quantity	Remarks

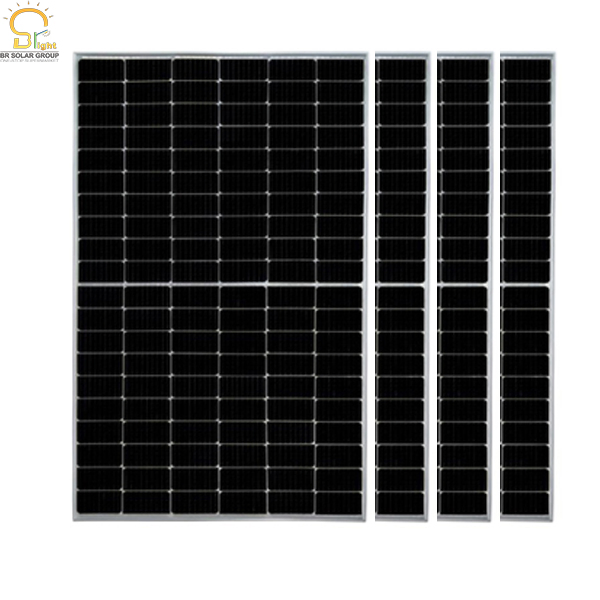

1	Solar panel	Mono Half Cell BR-M550W Class A+, 21.6% Efficiency	4pcs	Class A+ Grade, 550W, TUV Certificate, connection: 2 strings x 2 parallels. Daily generation: 9.3KWH. 25 Years Lifespan.
2	Y-Type MC4 Connector	BR 2-1	1pc	4 inputs, 1 output. 20 Years Lifespan.
3	Mounting Bracket	Hot-dip Galvanized Rooftop Mounting Brackets	1set	Anti-Rust, Anti-Corrosion, Anti-Salt Spray, wind resistance ≥160KW/H. 35 Years Lifespan.

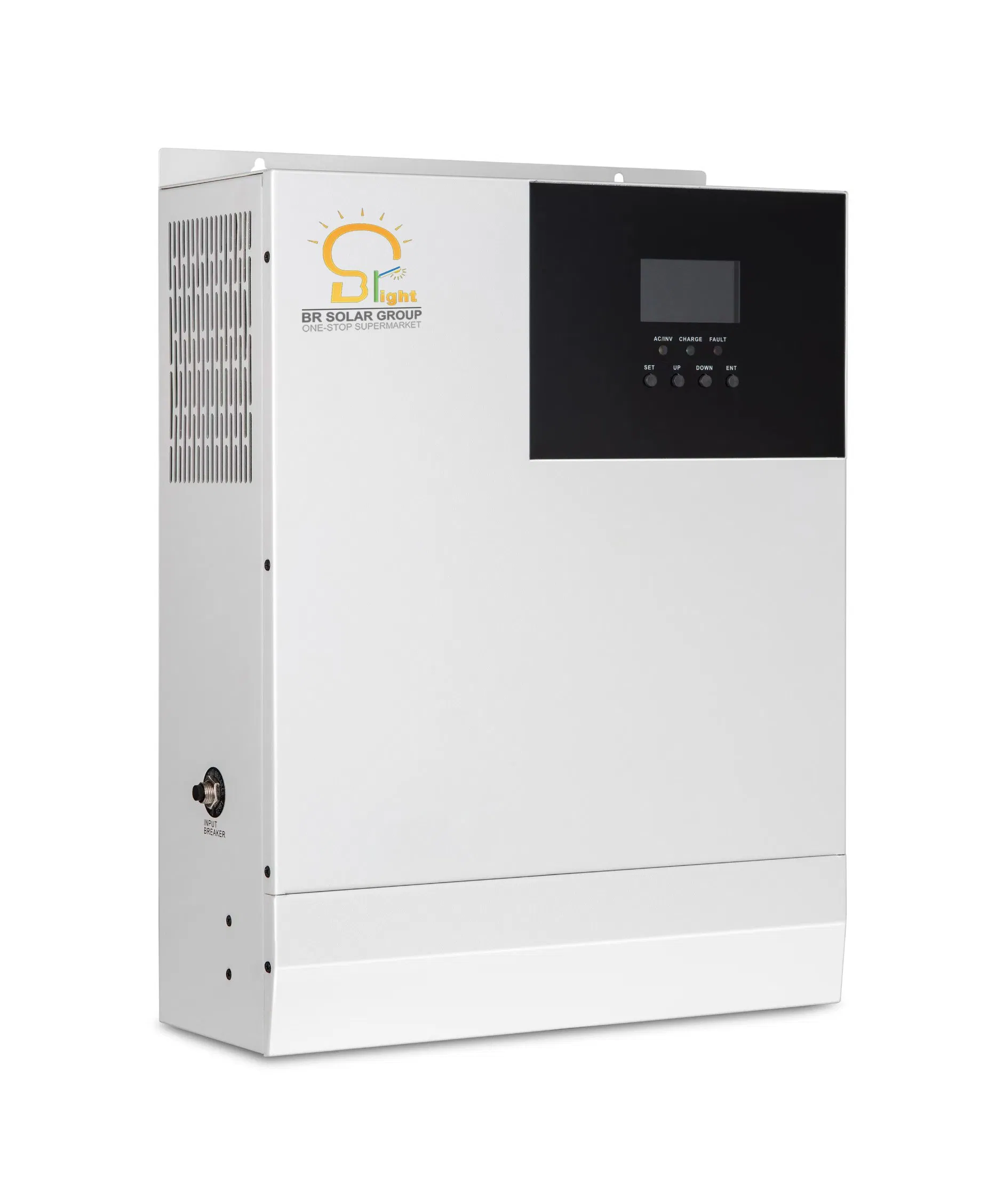

4	Power Frequency Inverter	BR Bright Series All in one Inverter BR-48V/5kw	1set	AC input: 220VAC. Support grid/Diesel Input. Pure sine wave, AC output: 220VAC, 50/60HZ. 15 Years Lifespan.
5	Deep Cycle GEL Battery	2218 Times 30% Deep Cycling Gelled Battery BR-12V-200AH	4pcs	European Projects Standard 58KGS. 4pcs in series. Total release power: 6.7KWH. 12 Years Lifespan.
6	MC4 Connector	MC4	2 pairs	20 Years Lifespan. Free basic length.
7	PV cables (panel to combiner box)	4mm2	60m	20 Years Design Lifespan
8	BVR Cables (combiner box to Controller)	6mm2	10m
9	BVR Cables (Controller to Battery)	16mm2	2sets
10	BVR Cables (Inverter to Battery)	25mm2	2sets
11	Connecting Cables	25mm2	4sets
12	Breaker	2P63A	1pc
13	Installation Tools	PV Installation Package	1 Package	FREE GIFTS
14	Extra Accessories	FREE CHANGING	1 SET	FREE GIFTS

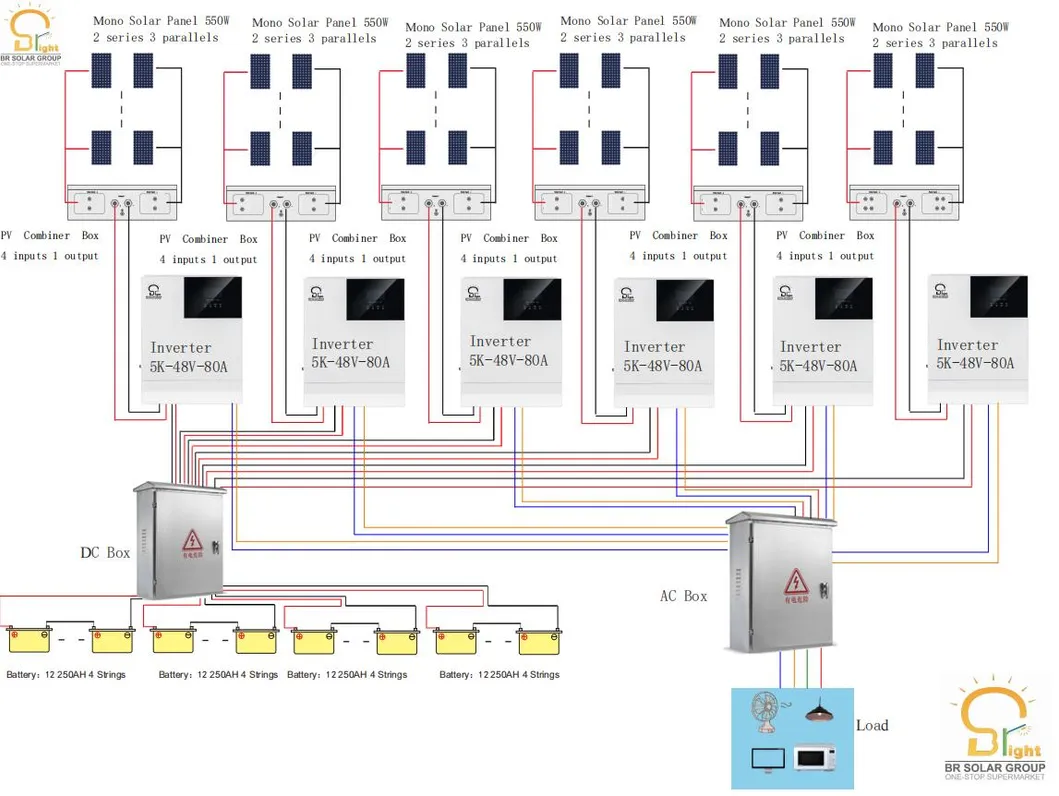

DIAGRAM OF 30KW PARALLEL SOLAR SYSTEM

30kw Parallel Solar System Connection Diagram

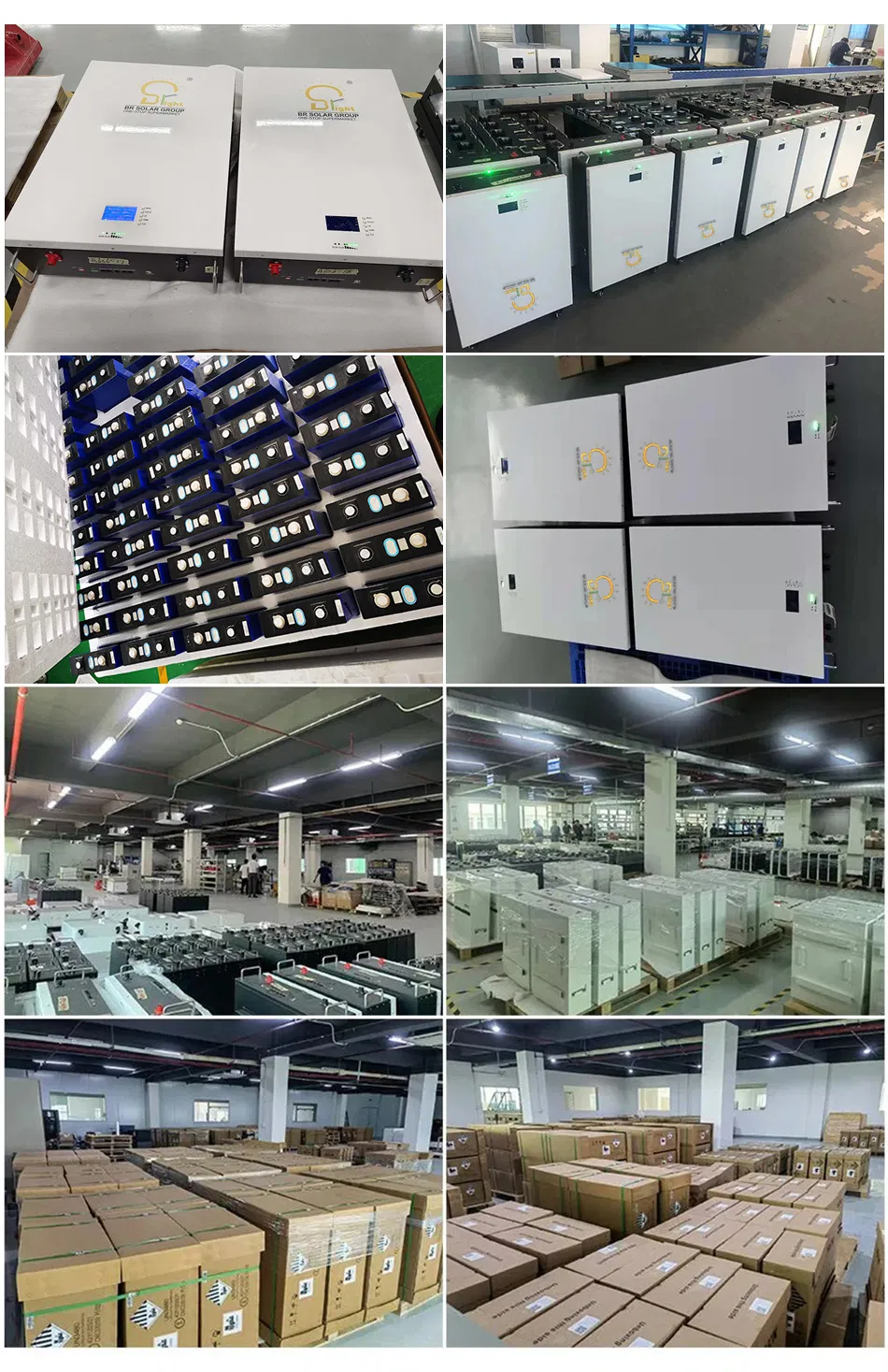

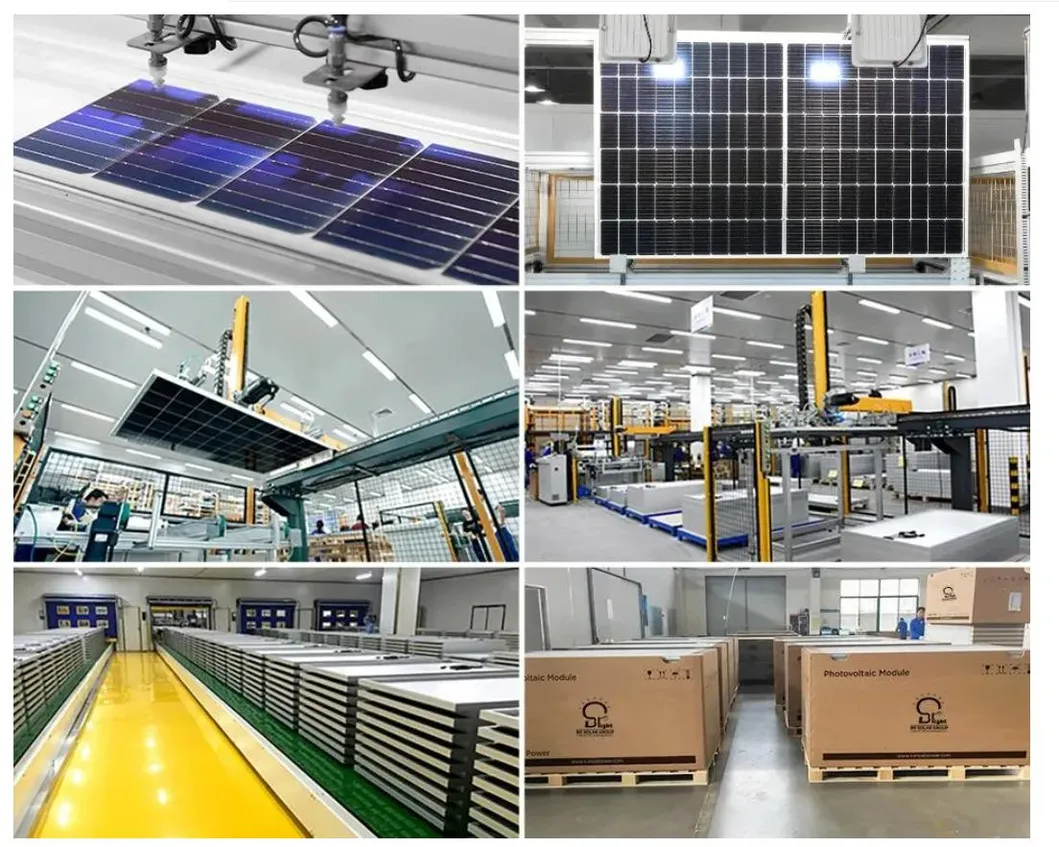

FACTORY DETAILS

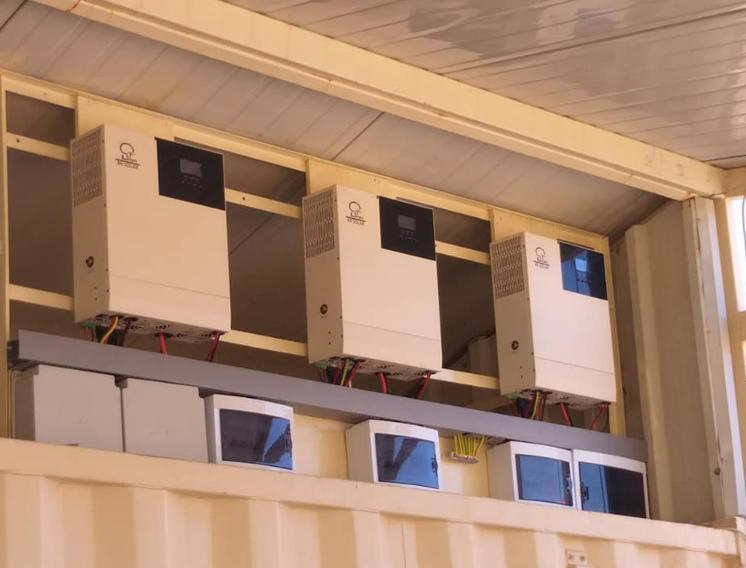

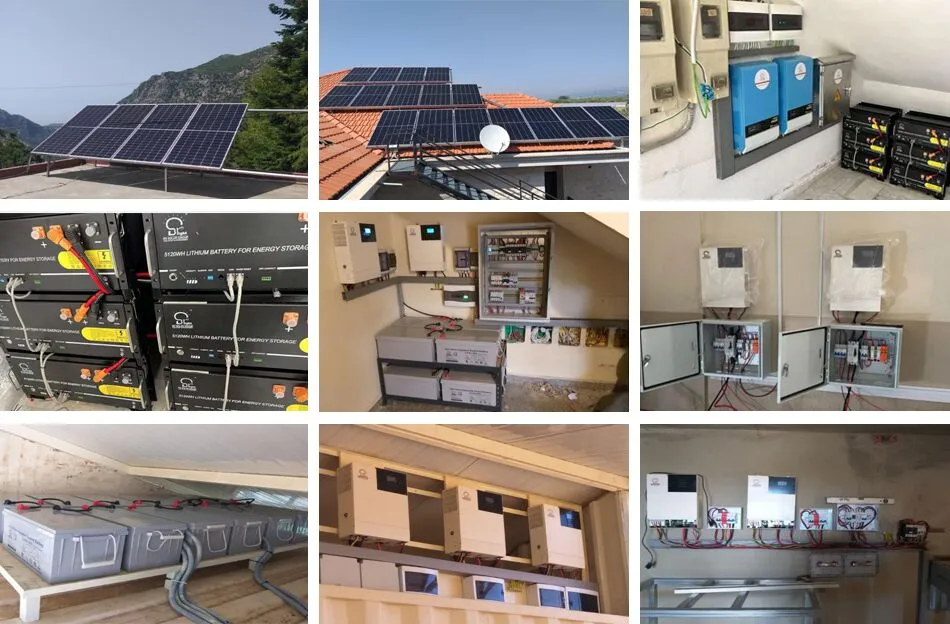

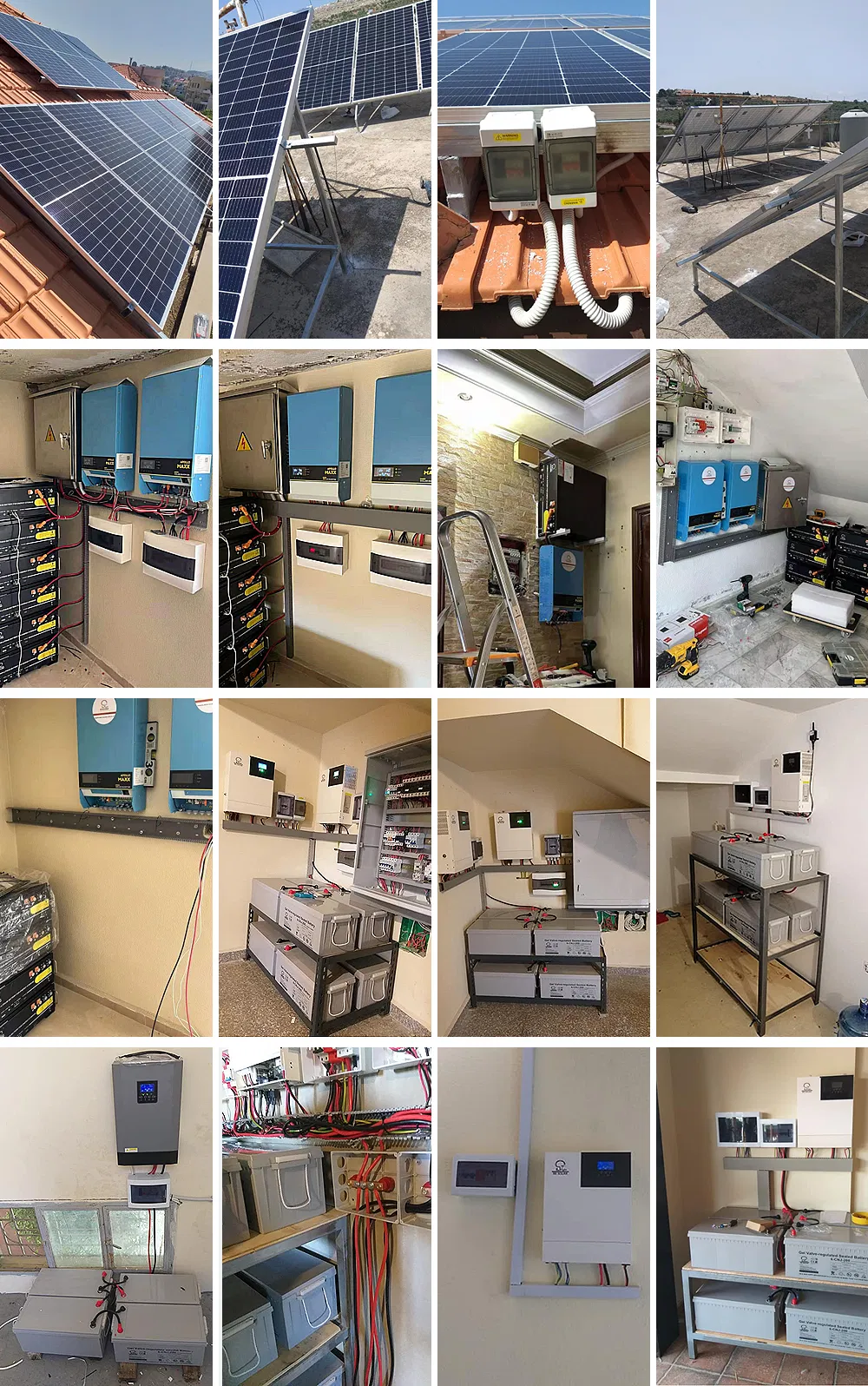

PROJECTS OF SOLAR POWER SYSTEMS

We choose quality materials; quality is our culture. Our solar products have been successfully applied in more than 128 countries including UN projects and NGO projects.

CERTIFICATES

WHY CHOOSE US --- EXCLUSIVE ONE-STOP SERVICE

Fantastic Services

Fast response, professional design solutions, careful guidance, and perfect after-sales support.

Diverse Cooperation

Flexible cooperation modes including OBM, OEM, ODM, and more.

Fast Delivery

Standardized products ship within 7 working days; conventional products within 15 working days.

Global Experience

14 years manufacturing & exporting experience, serving over 114 countries including UN, NGO, and World Bank projects.

Custom Localized Designs

We design systems specifically optimized to meet localized market requirements with 1-3 select solutions.

Assured Quality Control

Strict quality standards managed via our signature 3T Quality Control Method.

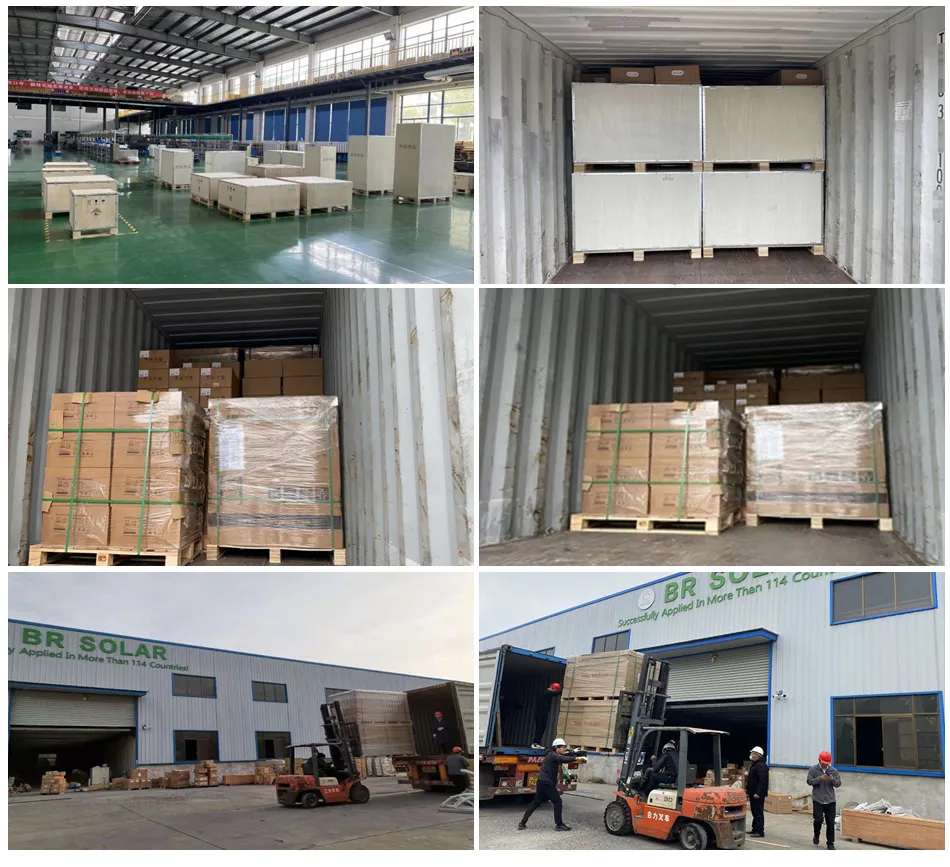

LOADING, PACKAGING & SHIPPING

Frequently Asked Questions

Can I have a sample order for solar products?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

What is the lead time for orders?

Samples require 5-7 days. Mass production lead time depends on the specific order quantity.

Are you a factory or a trading company?

We are a factory with high production capacity and a comprehensive range of solar products in China. You are welcome to visit our facility at any time.

How do you ship the goods and how long does it take to arrive?

Samples are typically shipped via DHL, UPS, FedEx, or TNT and usually take 7-10 days to arrive. Airline and sea shipping are also available as options.

What is your warranty policy?

We offer a 3 to 5 years warranty for the entire system and will replace components with new ones for free in the event of quality issues.

What certifications do your solar energy systems have?

Our products are fully certified and compliant with international standards, including ISO 9001:2000, CE & EN, RoHS, IEC, IES, FCC, TUV, SONCAP, PVOC, SASO, CCPIT, and CCC.
