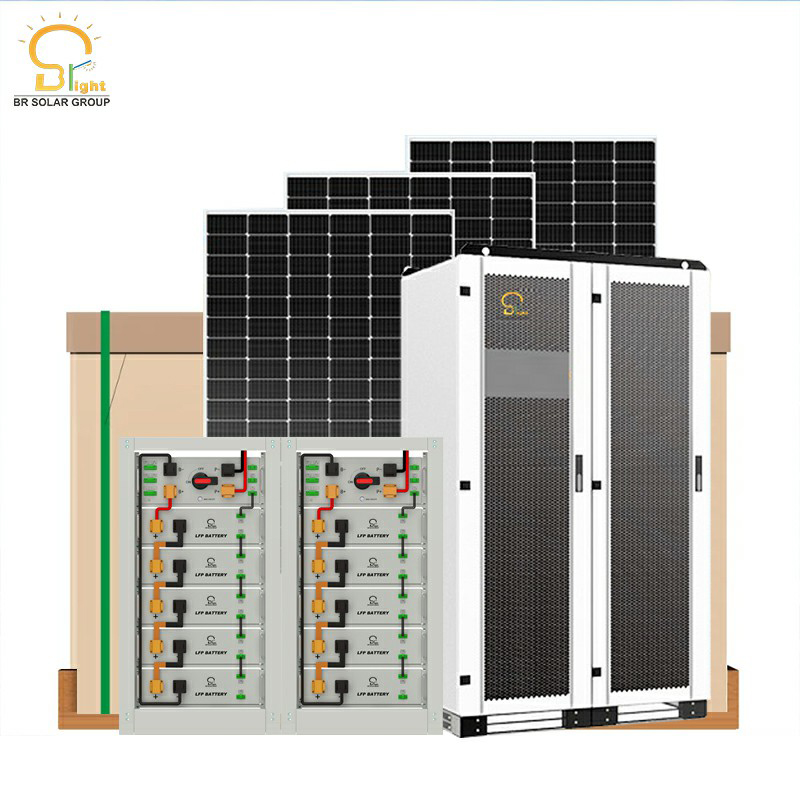

100kw Hybrid/off Grid Solar Voltage Home Power Lithium Ion Battery Inverter PV Module Panels Energy Storage Hybrid Ground Portable System

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info
Model NO.
100KW
Condition
New
Certification
CE/Rosh/MSDS/Un38.3/IEC/ISO9001/ISO14001
Application
Home, Industrial, Commercial
Specification
Normal, customized
Model Range
30kw-300kw
Installation
Fixed
Output Frequency
50/60Hz
Output Voltage
220V/380V Us 120/240V
Monitoring
WiFi/GPRS Device
PV Cable
4/6/10mm^2 etc
Work Time (H)
24hours/Day
Safety Class
Class a
Technical Support
Solar System Installation Video
Usage
Solar Energy System, Battery Back up, UPS Backup
Display
LED Display
Mounting Brackets
Roof/Ground Installation
Accessories
Mc4 Spanner, Crimping Pliers etc
Inverter
Single Phase/Three Phase
Solar Panel Type
Mono Panels
Transport Package
Standard Export Carton with Foam Inside
HS Code
8507600090
Production Capacity
100000PCS/Month
Packaging & Delivery
Package Size
80.00cm * 50.00cm * 30.00cm
Package Gross Weight
50.000kg
Product Description

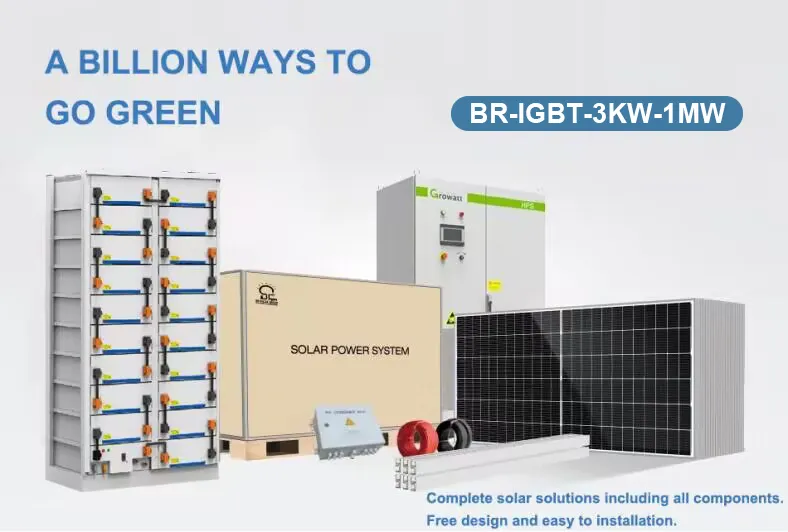

Solar Voltage Home Power Lithium Ion Battery Inverter PV Module Panels Energy Storage System
Working Principle for Solar Power System

Solar System absorbs sun's energy to light up your home and power your home electrical appliances including charging mobiles.
The components of the solar system includes solar panel, lighting bulbs, integration controlling box inside with charge controller, solar battery, and inverter. Some system can be with fan, TV set, laptop, air conditioner, etc.
Providing illumination powered from the sun energy, the solar panel in the system convert the sun's energy directly into electricity.
This electricity can be stored in the battery and used for lighting whenever required.
Our solar System, compact, portable and easily mountable, is an economical solution to all your power problems and comes in an easy-to-install kit.

Solar System Components Details
Instruction of Solar Energy System
  • Mobile equipment such as motor homes and ships;
  • Used for civilian and civilian life in remote areas without electricity, such as plateaus, islands, pastoral areas, border posts, etc., such as lighting, televisions, and tape recorders;
  • Home rooftop grid-connected power generation system;
  • Photovoltaic water pump to solve drinking and irrigation of deep water wells in areas without electricity;
  • Transportation field. Such as beacon lights, signal lights, high-altitude obstacle lights, etc;
  • Communication and communication fields. Solar unattended microwave relay station, optical cable maintenance station, broadcasting and communication power supply system, rural carrier telephone photovoltaic system, small communication machine, soldier GPS power supply, etc.
Customized 100KW Solar Power System Specifications
Component Details & Parameters Qty Unit
Solar panel N-Type TOPCon Solar Module, TUV Certificate by Germany. Connection method: 14 strings x 60 parallels. 25 Years Design Lifespan. 840 Pcs
PV combiner box 6 inputs, 1 output. Current counter-attack, Over current protection, Over-voltage protection, Lightning protection. 20 Years Design Lifespan. 10 Pcs
Bracket Aluminum alloy rail tripod system. Anti-Rust, Anti-Corrosion, Anti-Salt Spray, wind resistance ≥ 150KW/H. 1 Set
Hybrid Inverter IGBT TECHNOLOGY, 500KW/380AC 3PHASE. AC input: 380VAC. Support grid/Diesel Input. Pure sine wave, power frequency output. AC output: 3800VAC, 50/60HZ (optional). Especially for Inductive loads - Perfect performance for big Inductive Industrial equipments. 15 Years Design Lifespan. 1 Set
DC Distribution Box Electrical Distribution Busbar Box. Built-in DC Breakers & bolder cables to facilitate the terminals connection and more balanced charging. Easy connection & best protection. 15 Years Design Lifespan. 1 Set
Lithium Battery 51.2V280AH modules * 14pcs (716.8V-280AH), One cluster. DOD: 90%, > 8000 cycles. Communication: CAN. Battery production: Over-current/Over-voltage/Short circuit/Under-voltage. Total 1003KWH power as back up. 15 Years Design Lifespan. 5 Set
Communication Machine Communication management machine. 1 Set
AC Distribution Electrical Distribution Busbar Box. Built in AC Breakers Cables, built-in bolder cables for balanced charging and easy connection. 15 Years Design Lifespan. 1 Set
Connector MC4. Rated Voltage: 1000V DC. Rated current: 30A. Waterproof and dustproof grade: IP67. Ambient temperature: -40ºC to +85ºC. 150 Pairs
PV cables 6mm2, Pure Copper (solar panel to PV combiner box). 3000 M
BVR cables 25mm2, Pure Copper (PV combiner box to DC Distribution Box). 200 M
BVR cables 120mm2, Pure Copper (DC Distribution Box to Inverter). 80 M

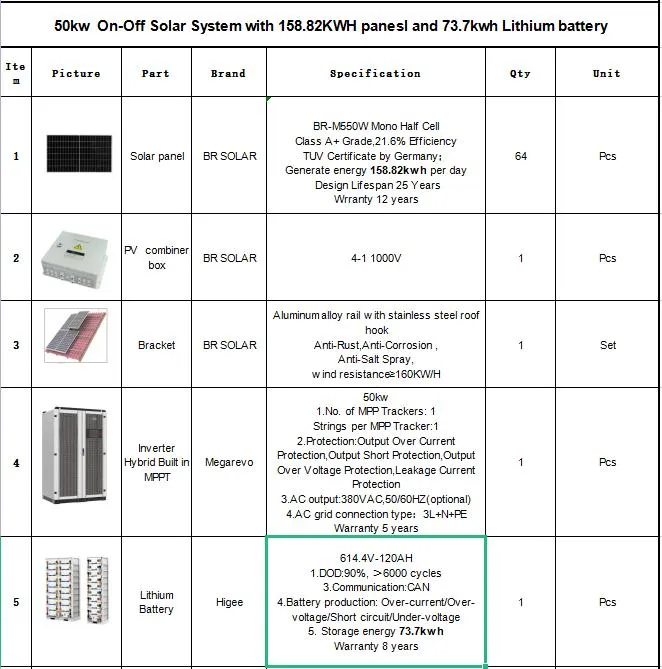

System Connection and Distribution Box details
Diagram of 100KW Parallel Solar Hybrid System

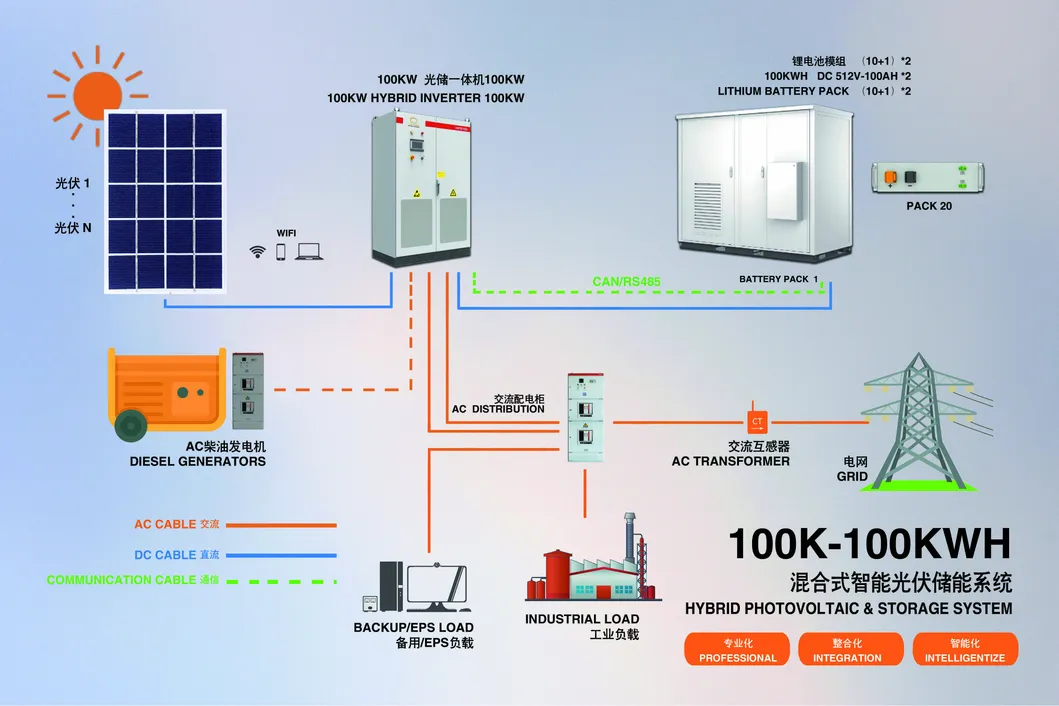

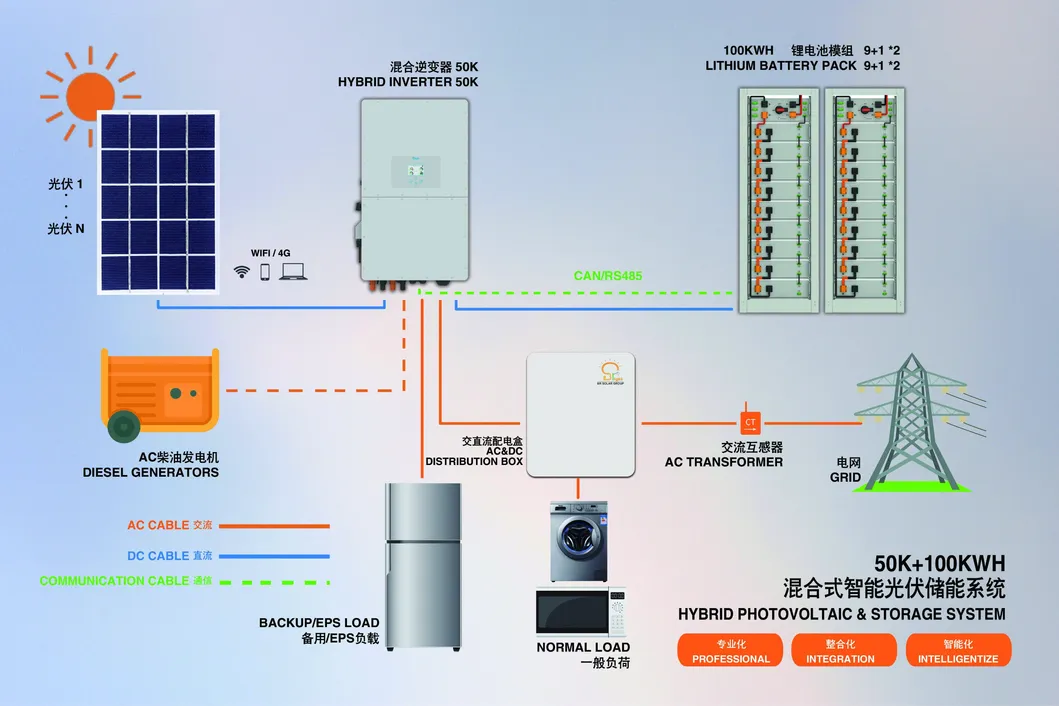

Diagram 1 of Parallel Solar Hybrid System Diagram 2 of Parallel Solar Hybrid System
Factory Details

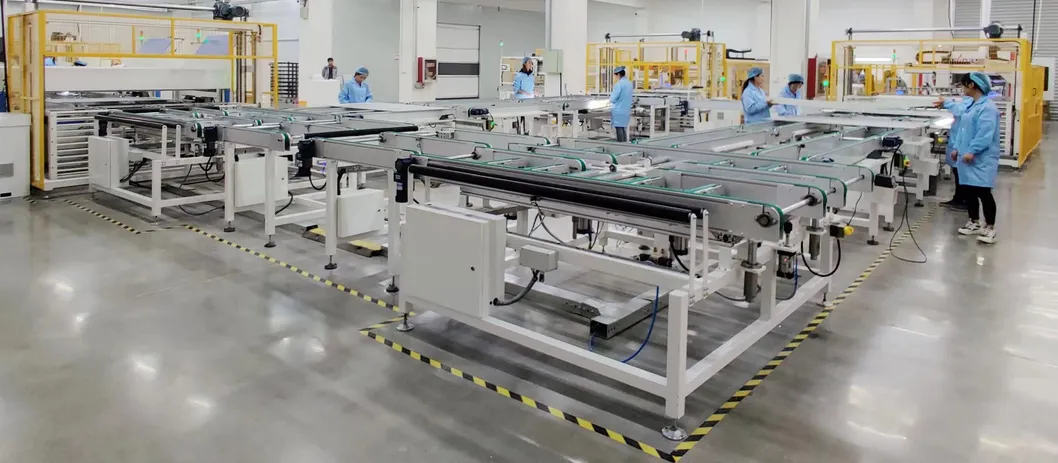

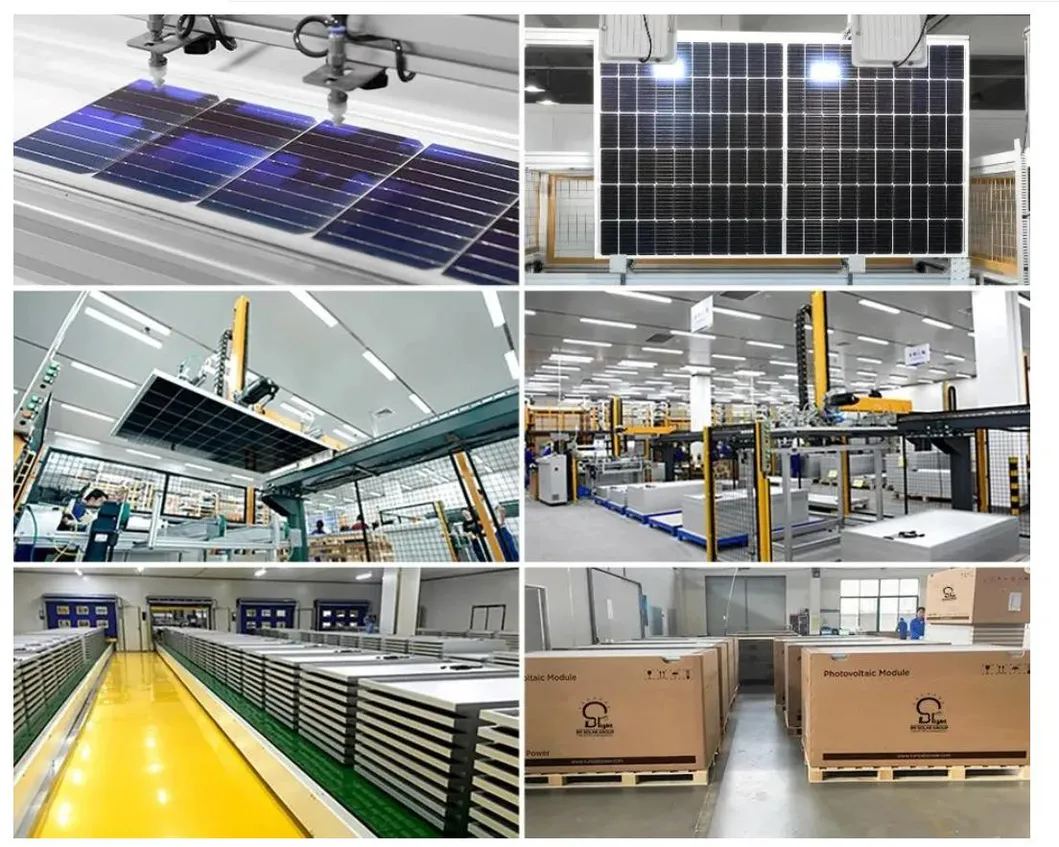

Factory View 1 Factory View 2 Production Facility

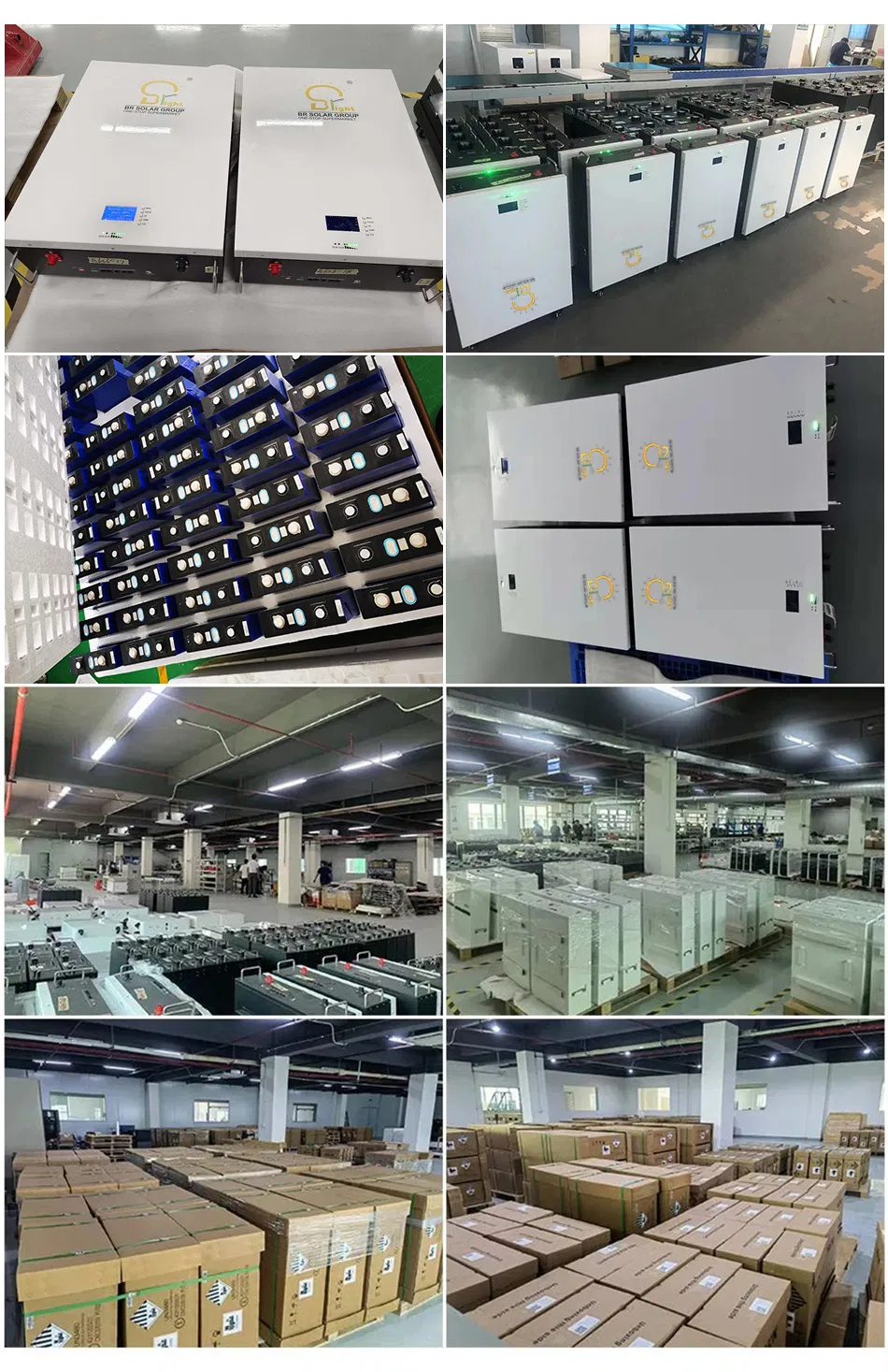

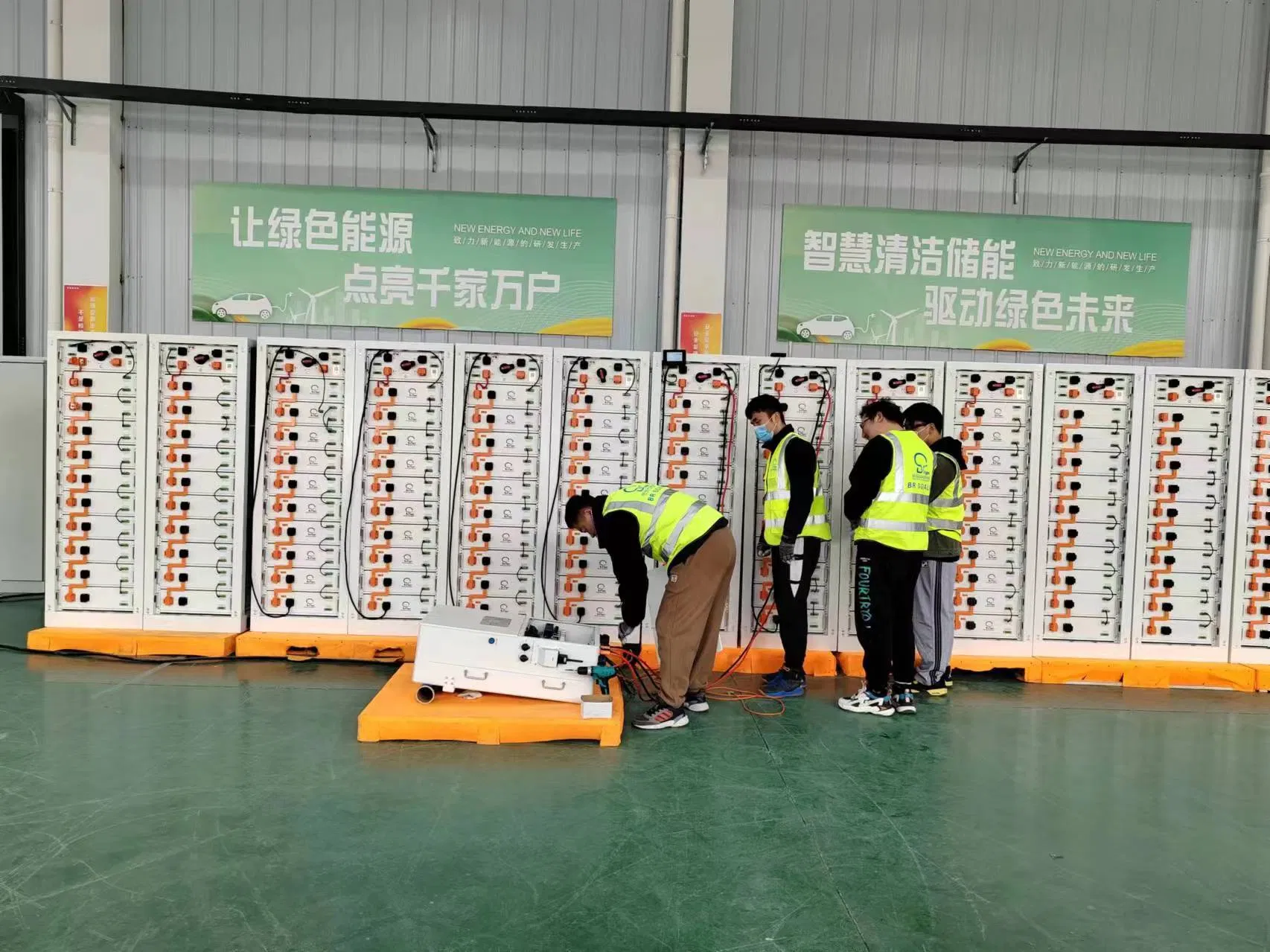

Assembling Line Quality Inspection
Projects & Applications

We Choose A Quality Material, Quality Is Our Culture. Our solar products have been successfully applied in more than 128 countries including UN projects and NGO projects.

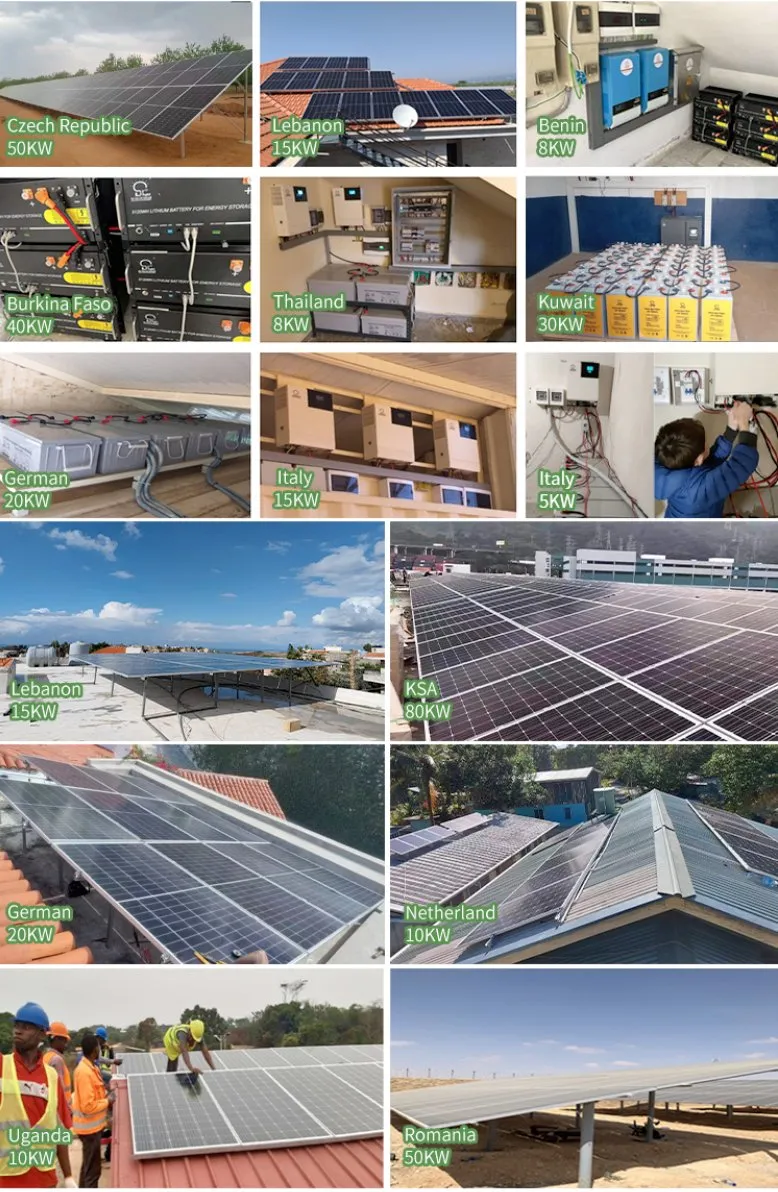

Global Solar Power System Projects
Certificates

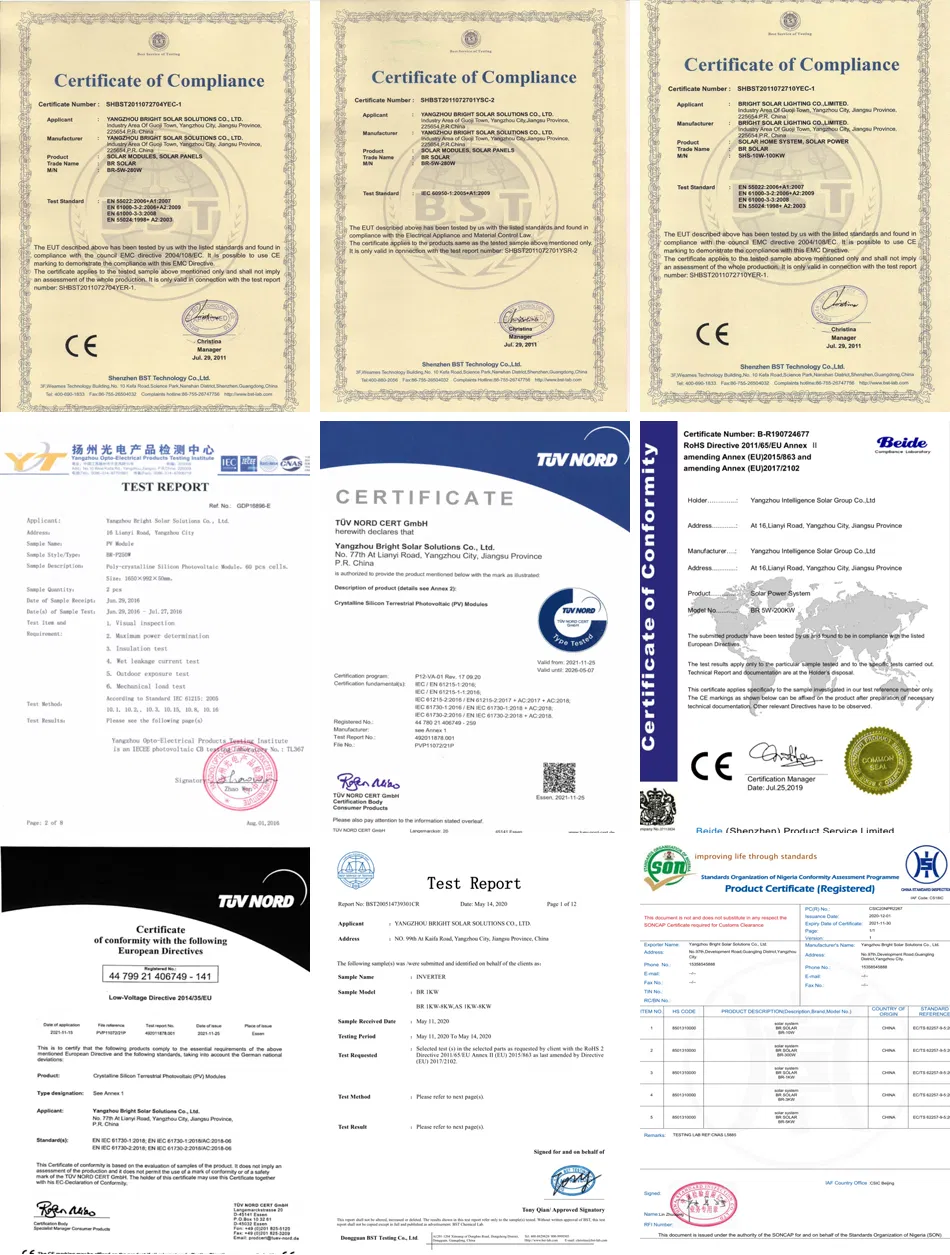

Solar Quality Certificates
Why Choose Us - Exclusive One-Stop Service
A. Fantastic Services: Fast response, Professional design solutions, Careful guidance and Perfect after-sales support.
B. Diverse Ways of Cooperation: OBM, OEM, ODM, etc.
C. Fast Delivery: Standardized Products within 7 working days; Conventional Products within 15 working days.
D. Reliable Certificates: ISO 9001:2000, CE & EN, RoHS, IEC, IES, FCC, TUV, SONCAP, PVOC, SASO, CCPIT, CCC, AAA, etc.
E. Global Experience: 14 Years Manufacturing & Exporting Experience, applied in more than 114 countries including UN, NGO & WB projects. We understand local markets well.
F. Flexible Designs: Suitable designs tailored to local markets with 1-3 solutions to choose from.
G. Quality Assurance: 3T Method to control overall product quality.
H. Installation Support: Video guides and on-site setup guidance are available for container-load orders.
Loading, Packaging & Shipping

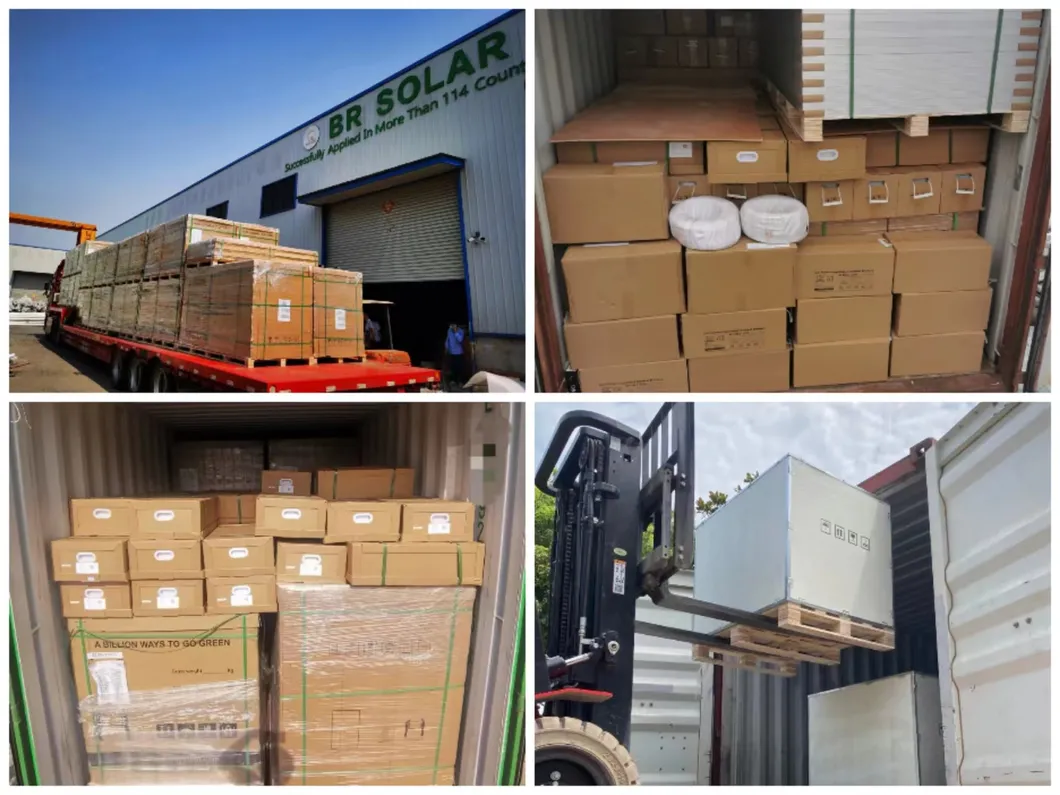

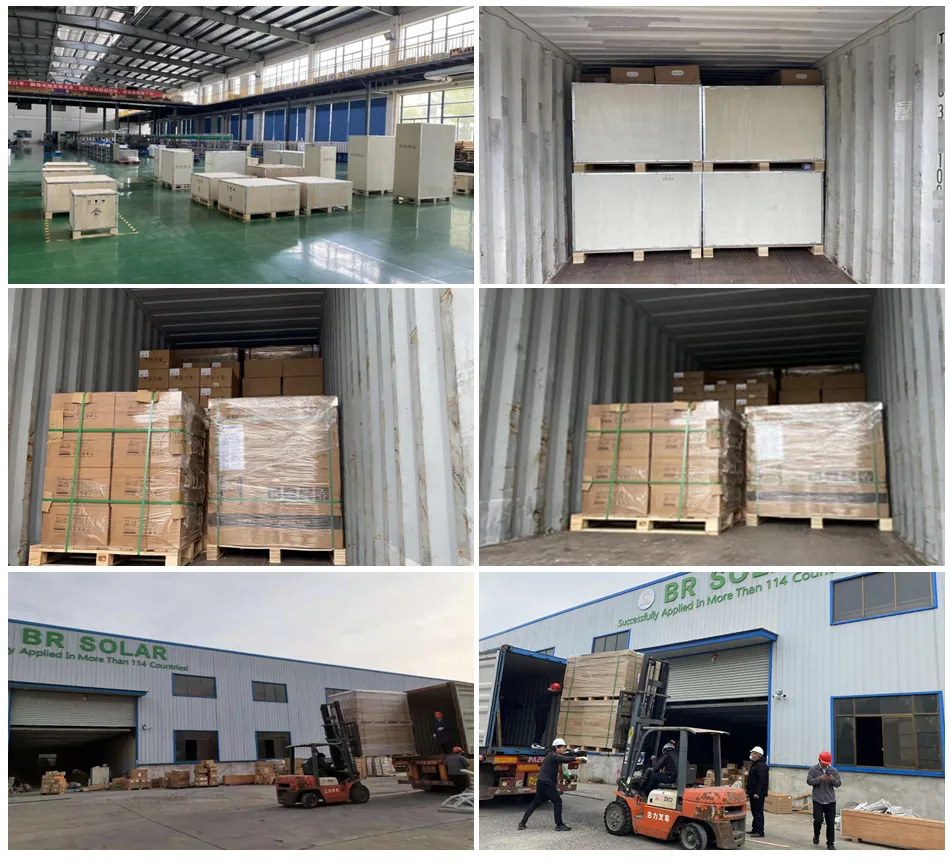

Solar System Loading and Package Processes Shipping Container Load
Frequently Asked Questions (FAQ)
Can I have a sample order for solar products?
Yes, we welcome sample orders to test and check the overall quality. Mixed samples are fully acceptable.
What is the expected lead time?
Samples generally require 5 to 7 days, while mass production timelines depend on the total order quantity.
Are you a factory or a trading company?
We are a factory with high production capacity and a diverse range of solar products in China. You are welcome to visit our facility at any time.
How do you ship the goods and how long does it take to arrive?
Samples are typically shipped via express carriers such as DHL, UPS, FedEx, or TNT, taking about 7 to 10 days to arrive. Ocean and air freight shipments are also available options for bulk orders.
What is your Warranty Policy?
We offer a comprehensive 3 to 5 years warranty for the entire system. In the event of any verified quality issues, we replace the components with new ones free of charge.
What kind of appliances can this system run?
The hybrid system is designed to convert and store sun energy to power standard home, commercial, and industrial appliances. This includes lights, fans, TV sets, laptops, and air conditioning units based on the system size.
