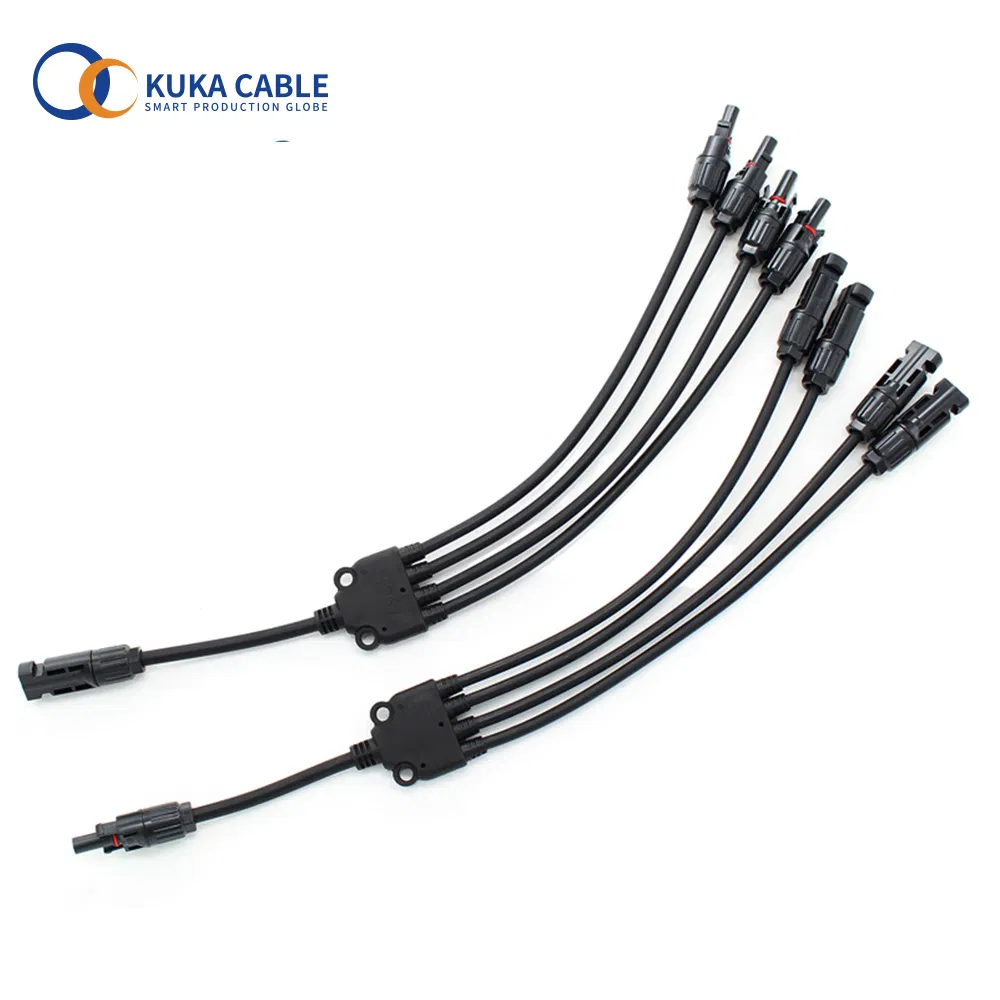

Solar PV Y Branch Connector 1000/1500V IP68 PPO Insulation for PV Cable

1 / 5

Solar PV Y Branch Connector 1000/1500V IP68 PPO Insulation for PV Cable

Customization:	Available
Gender:	Male and Female
Pin:	4 Pins

Send Inquiry

Product Description

Basic Info

Model NO. Y branch solar connector

Application Power

Certification YUV, MSDS, CE, ISO 9001, RoHS

Terminal Material Copper Galvanized

Interface Type DC/DC

Rated Voltage 1000VDC, 1500VDC

Rated Current 30A

Cable Cross-Section Areas IP67

Locking System Snap-in

Flame Class UL-94-V0

Cable Size 4mm² / 6mm²

Transport Package Customized

Specification Customized

HS Code 8541900000

Production Capacity 50000PS/Day

Product Description

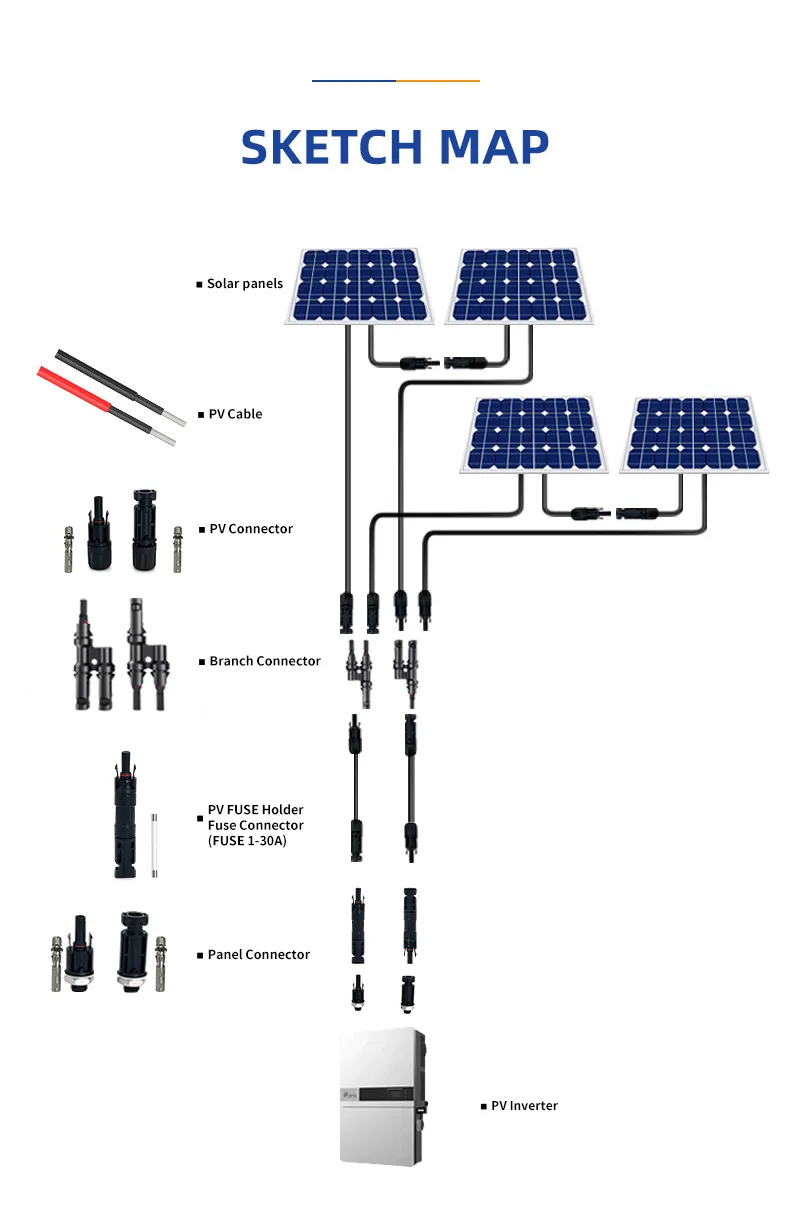

Solar Connector: Connectors specially designed for solar applications. Used to connect panels, combiner boxes, inverters. Popular connectors are MC4, Amphenol UTX, Staubli. Available in range of ampacities and wire gauges. Male/female connectors certified by UL, TUV to meet IP67 rating against weather.

4 in 1 Male Female Photovoltaic Wire Connector

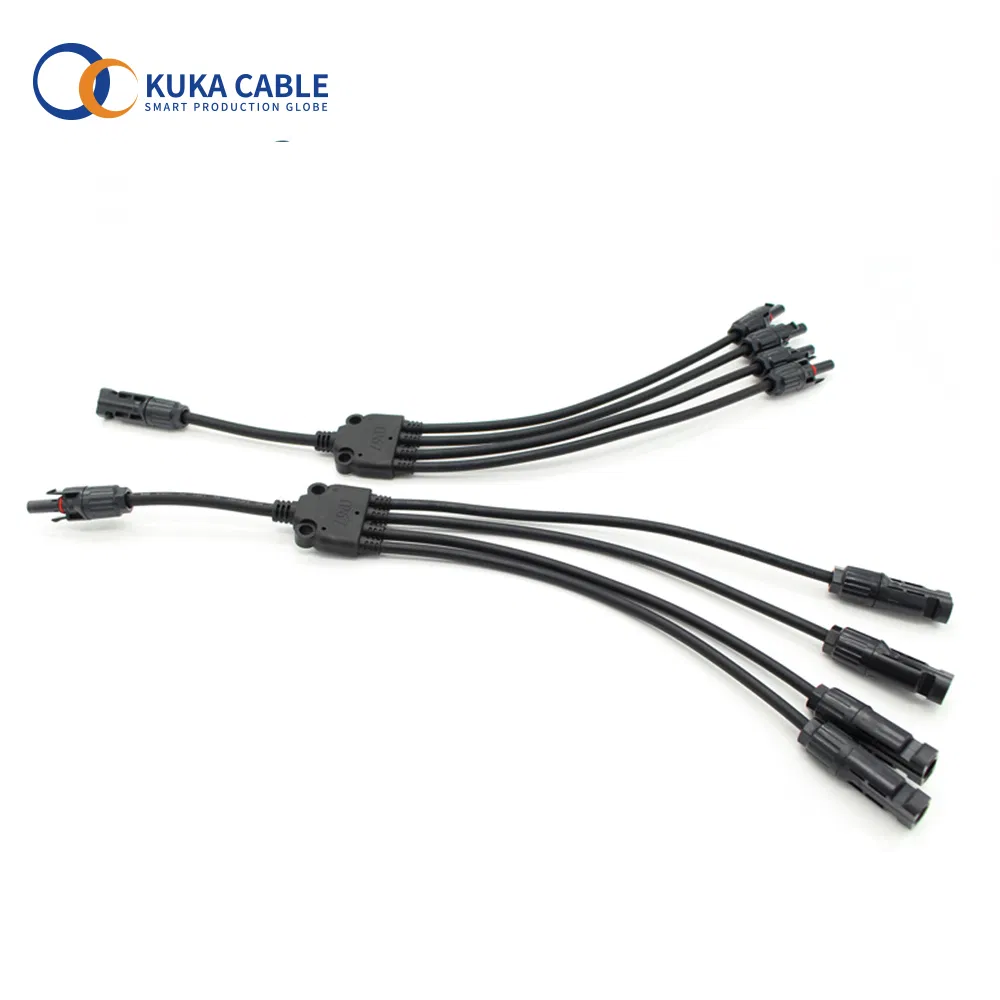

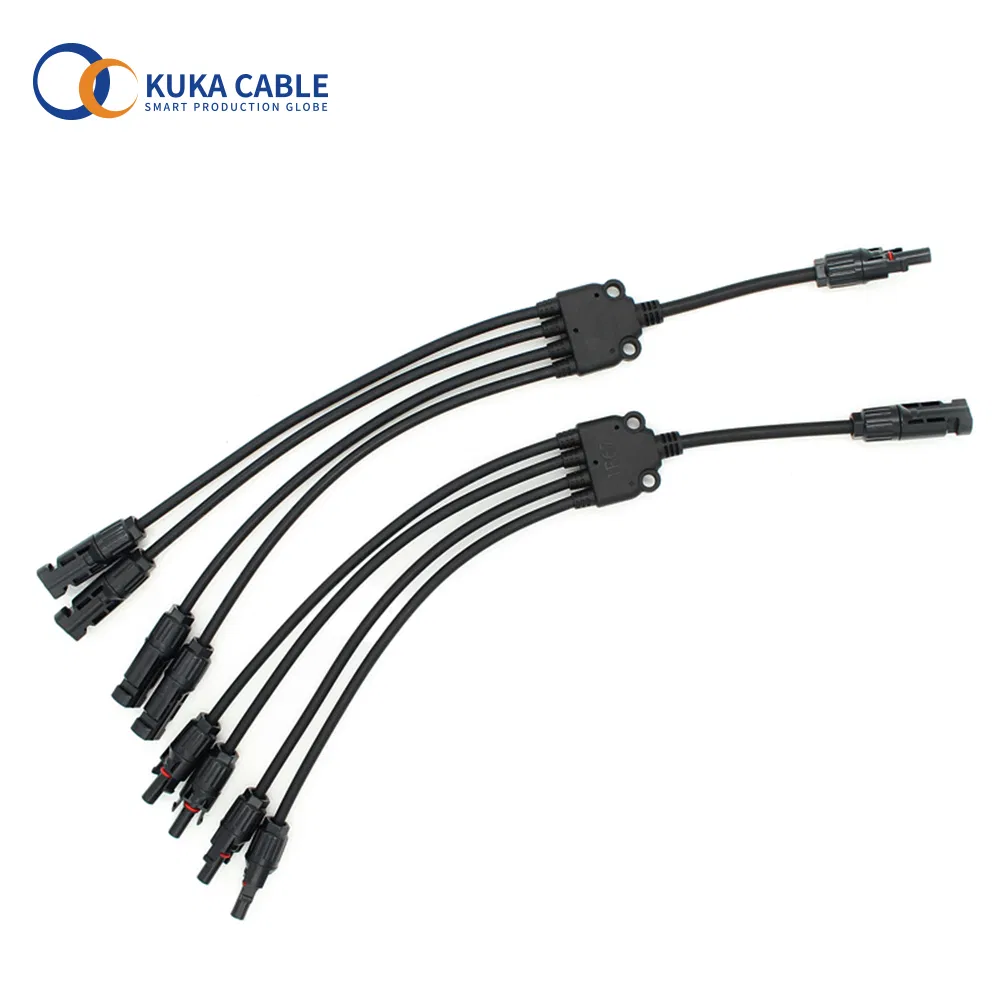

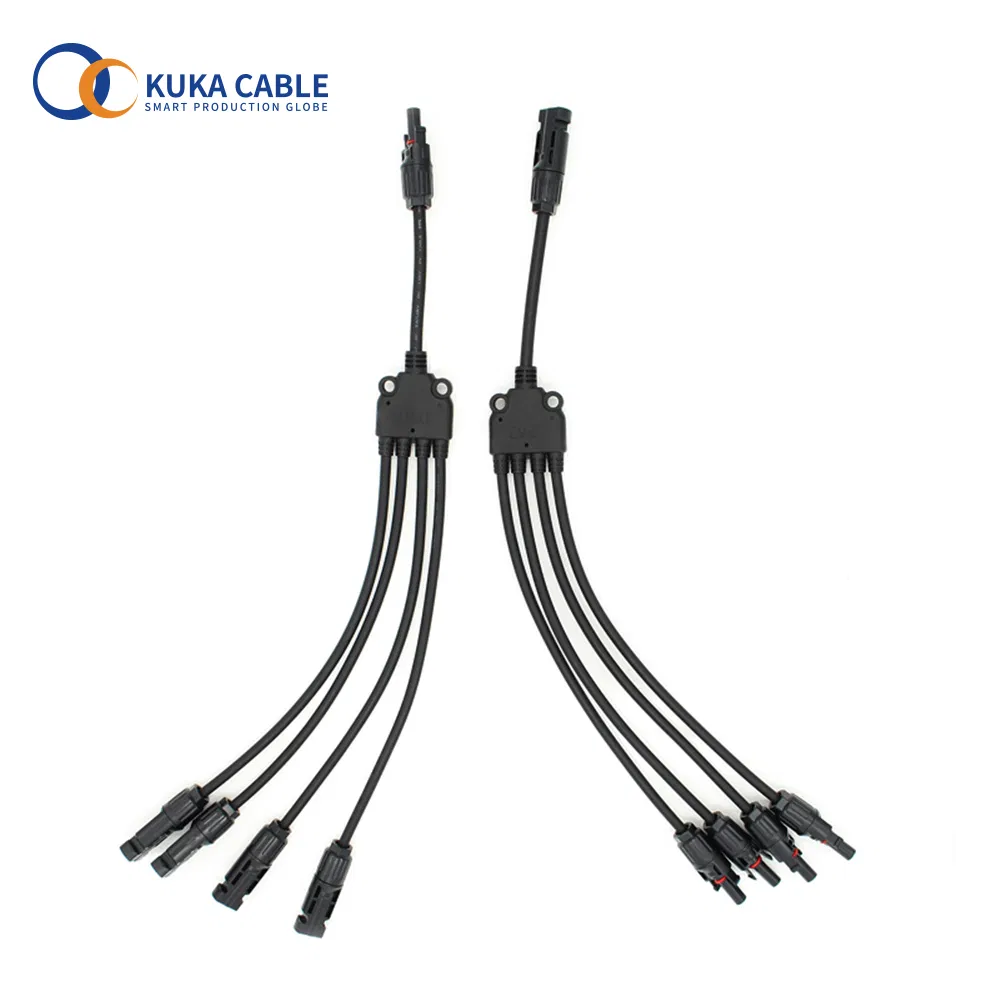

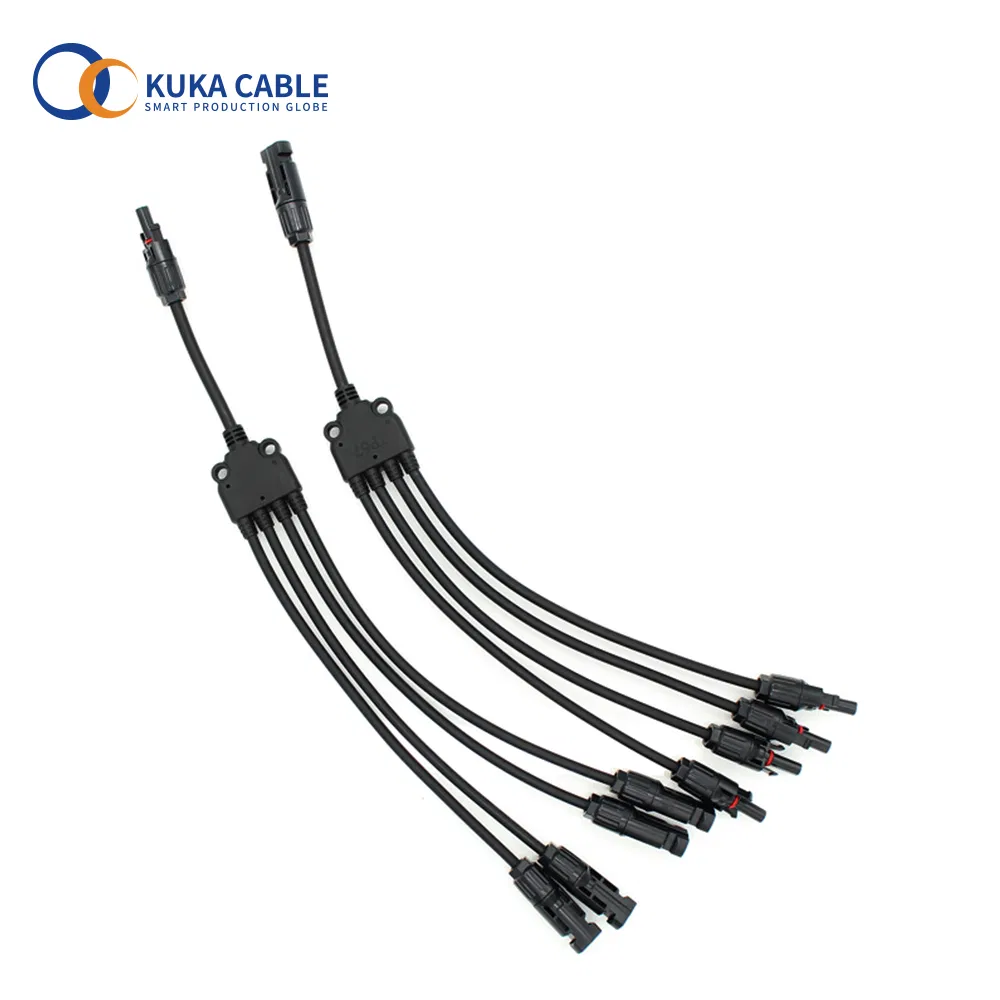

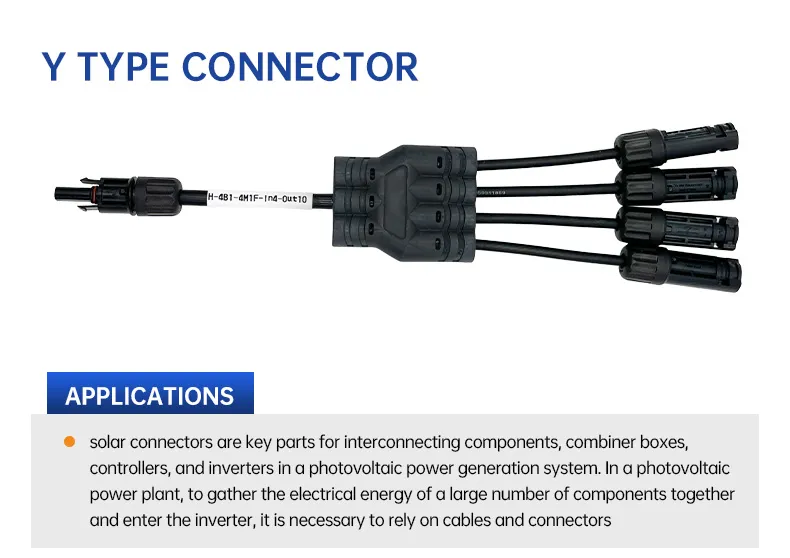

Y Branch parallel Connector (1 male to 2 female and 1 female to 2 male).

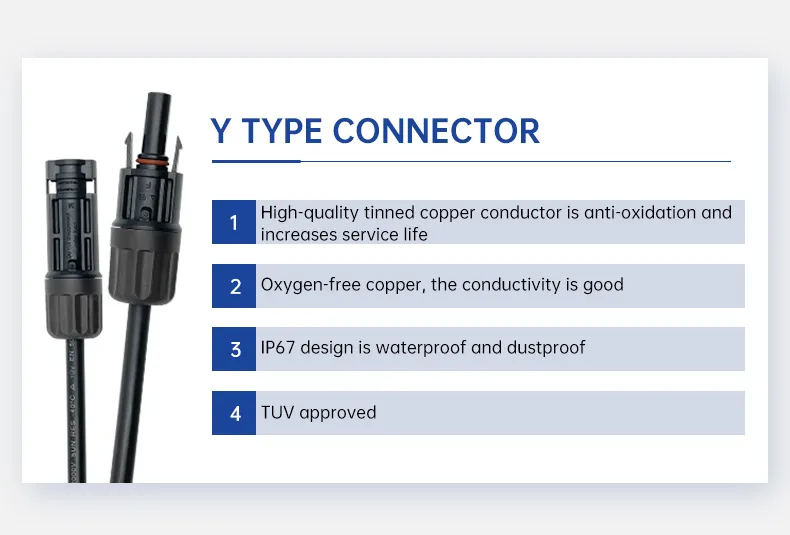

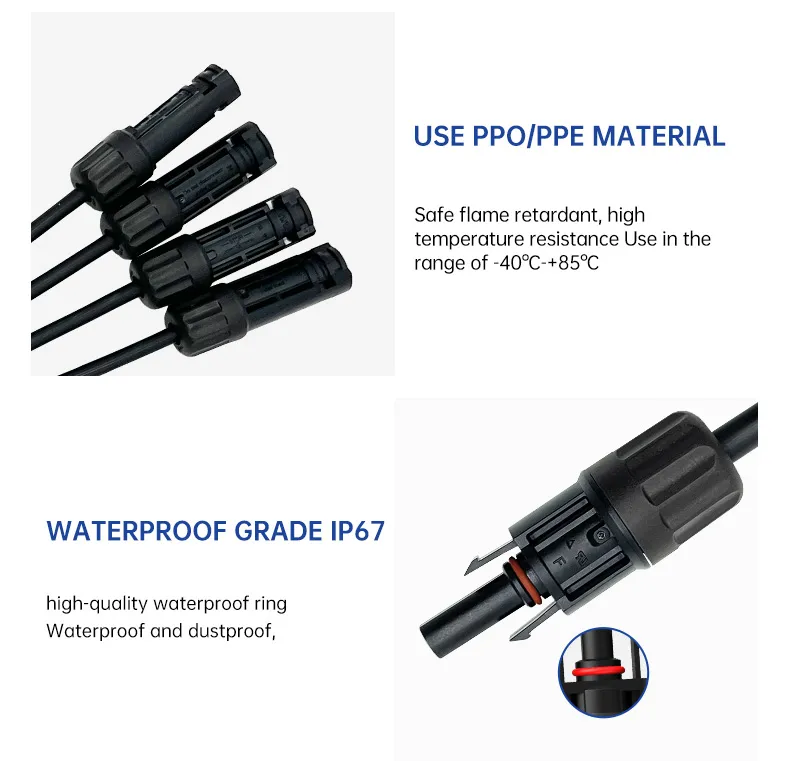

The waterproof ring on connection is perfect to seal out water and dust to prevent corrosion.
Suitable Single Core Cable Section: 1.5mm² -- 6mm².
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.

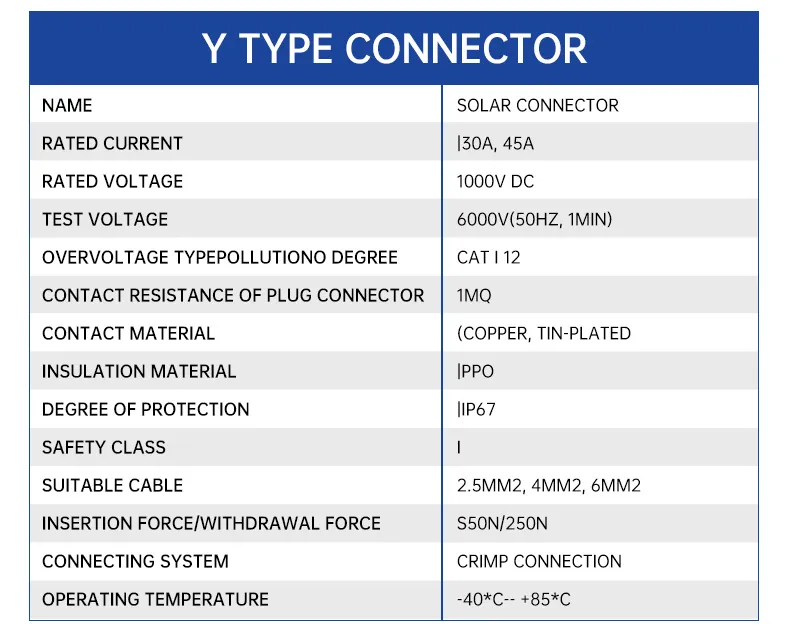

Parameter Specification Chart
Product No.	MC4-2T	MC4-3T	MC4-4T
Branch	2 in 1	3 in 1	4 in 1
Rated Voltage	1000VDC, 1500VDC	1000VDC, 1500VDC	1000VDC, 1500VDC
Rated Current	30A	30A	30A
Cable cross-section areas	IP67	IP67	IP67
Contact resistance	≤0.5mΩ	≤0.5mΩ	≤0.5mΩ
Contact material	Copper tin-plated	Copper tin-plated	Copper tin-plated
Insulation material	PPO	PPO	PPO
Temp. Range	-40ºC ~ +90ºC	-40ºC ~ +90ºC	-40ºC ~ +90ºC
Locking System	Snap-in	Snap-in	Snap-in
Flame class	UL-94-V0	UL-94-V0	UL-94-V0
Cable size	4mm² / 6mm²	4mm² / 6mm²	4mm² / 6mm²

Frequently Asked Questions (FAQ)

Q1 I didn't find my needed model on this page.

We are a factory. The catalog will be emailed to you as soon as you contact us. We also supply customization services. Please contact us!

Q2 How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, which varies according to the order quantity.

Q3 Can I see a sample first before I place a bulk order?

Of course. We can offer small samples for testing quality and evaluating the market.

Q4 How about the Minimum Order Quantity (MOQ)?

We have standard MOQ requirements, but we also accept small quantity trial orders to support your initial business.

Q5 What are your terms of payment?

For payments less than or equal to 1000 USD, 100% in advance. For payments greater than or equal to 1000 USD, 30% T/T in advance, with the balance paid before shipment.

Q6 What certifications do your solar connectors hold?

Our solar connectors comply with international quality and safety standards, holding TUV, MSDS, CE, ISO 9001, and RoHS certifications.
