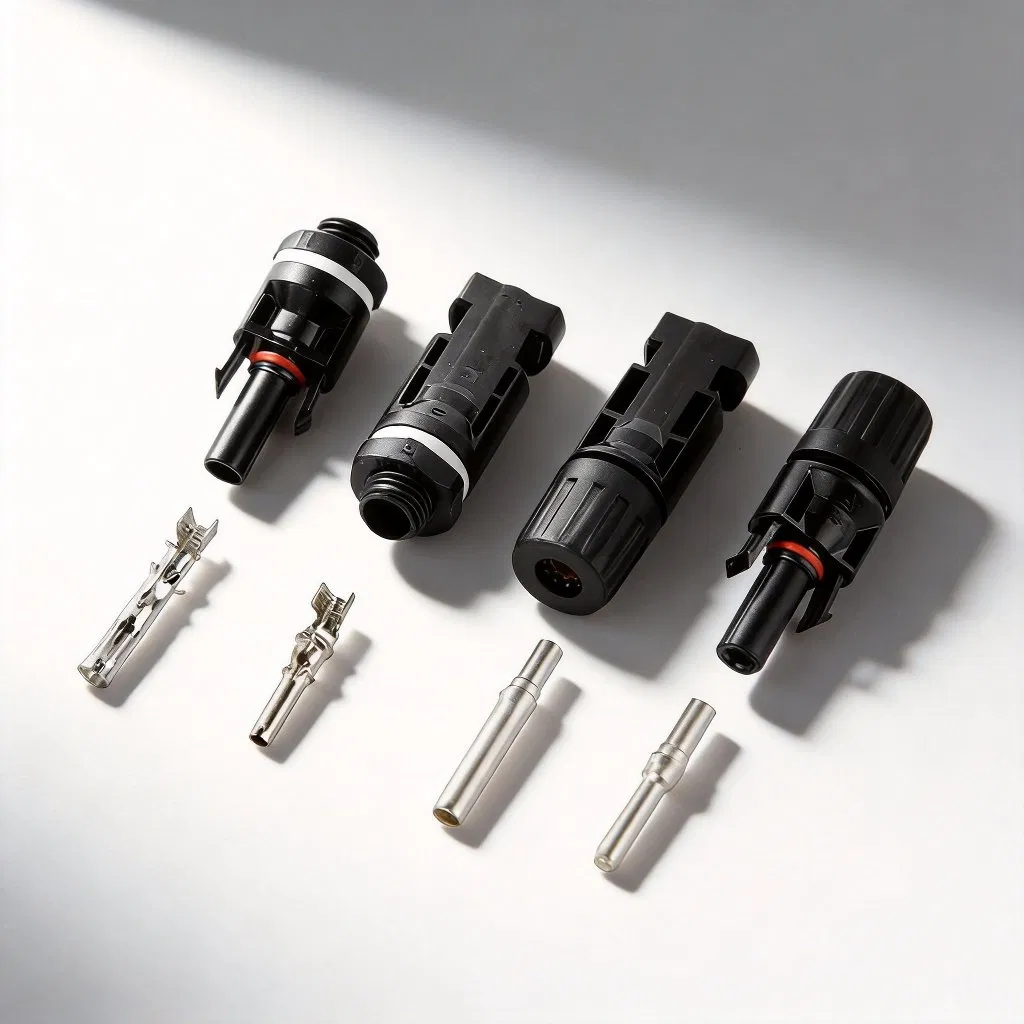

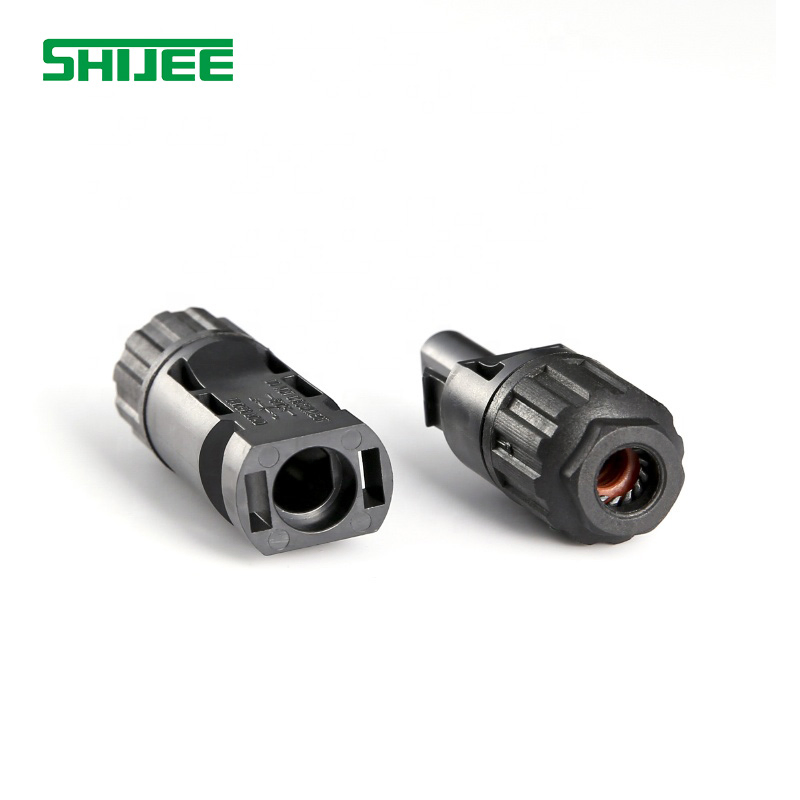

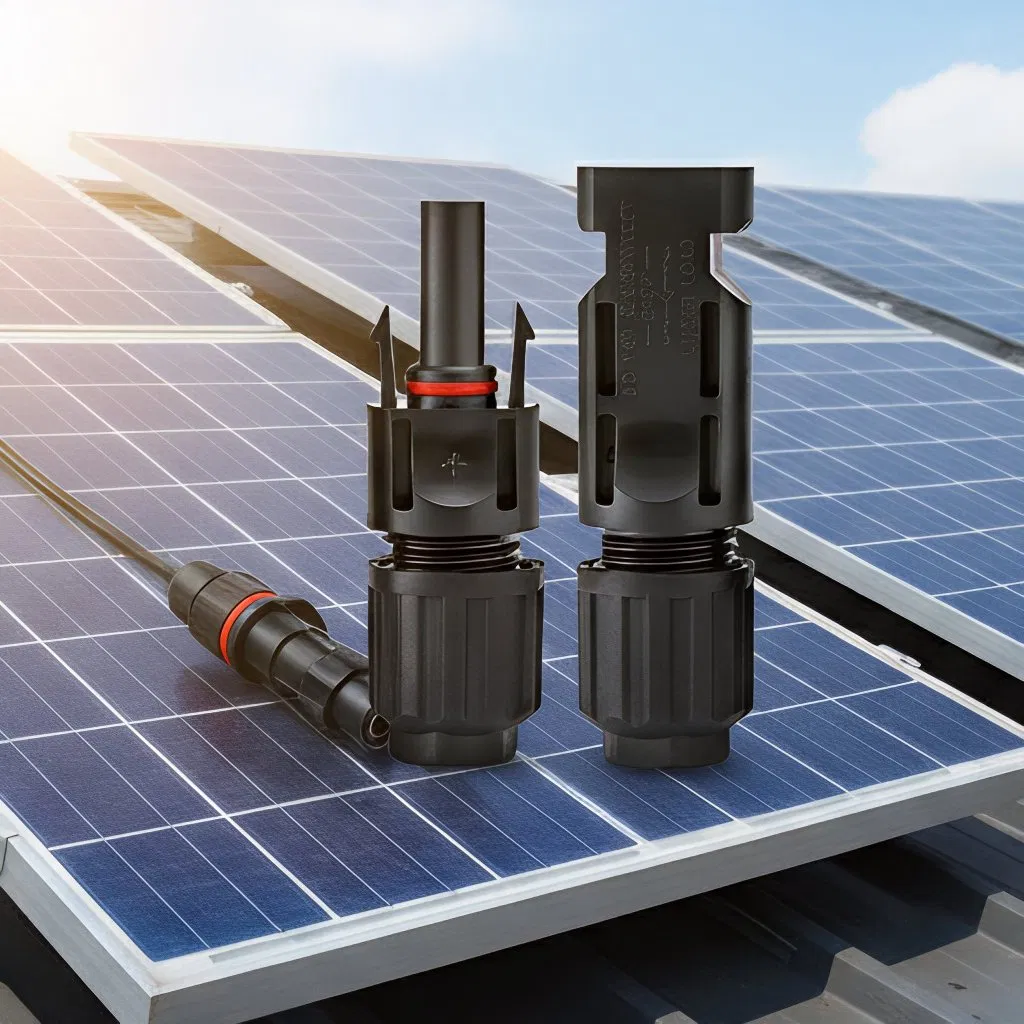

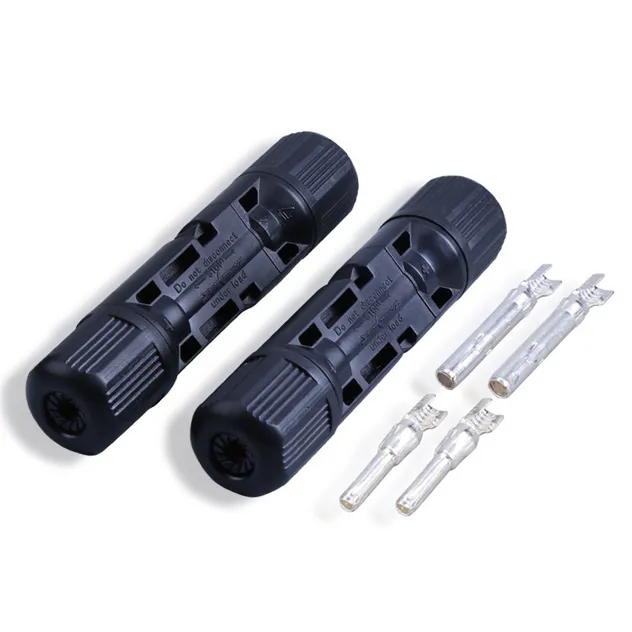

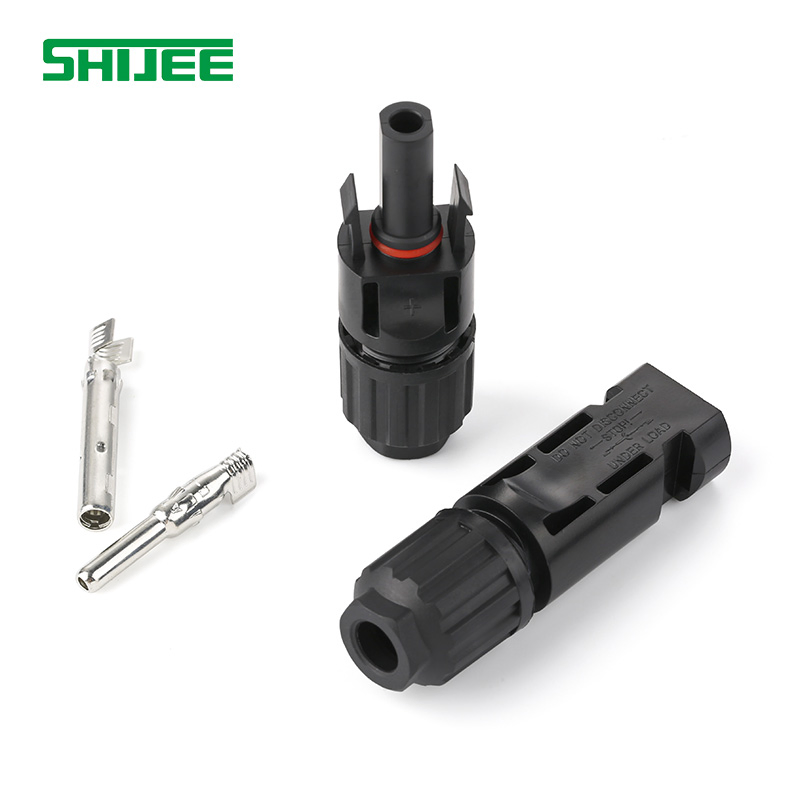

This advanced solar panel mounting connector is engineered for high-voltage photovoltaic systems, supporting up to 1500V DC and 35A current for efficient, stable power transmission. The integrated IP68-rated waterproof connector ensures complete protection against dust, moisture, and harsh environmental conditions, maintaining electrical safety and performance in outdoor installations. Designed with a 2.5mm pitch for precise alignment, the connector features durable copper contacts and reinforced plastic housing that combine conductivity with mechanical strength, suitable for a wide range of solar panel arrays and mounting configurations.
Easy to install and built for long-term durability, this connector set supports seamless integration in both residential and commercial solar power systems. Its corrosion-resistant materials and secure locking mechanism provide reliable, maintenance-free operation across varying temperatures and weather exposures. By offering high current capacity, superior insulation, and dependable weatherproofing, this PV connector helps optimize system efficiency, simplify wiring, and ensure safe, sustained energy harvest from your solar installation.
| Product Name | Solar Panel Mount Connector |
| Rated Voltage | 1500V DC |
| Rated Current | 35A |
| IP Rating | IP68 (Waterproof & Dustproof) |
| Connector Type | PV Connector (Copper-Plastic Hybrid) |
| Pitch | 2.5 mm |
| Contact Material | High-Purity Copper (Tin-Plated) |

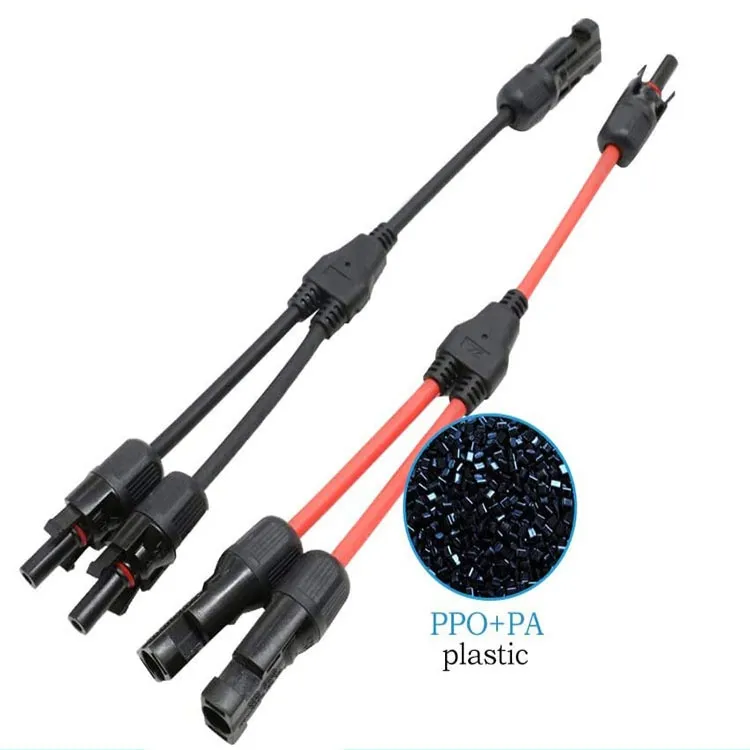

| Insulation Material | Thermoplastic (PA/PC/PPO, UV Resistant) |
| Operating Temperature | -40°C to +90°C (or -40°F to +194°F) |
| Wire Gauge Compatibility | 2.5 mm² – 6 mm² (AWG 14 – AWG 10) |

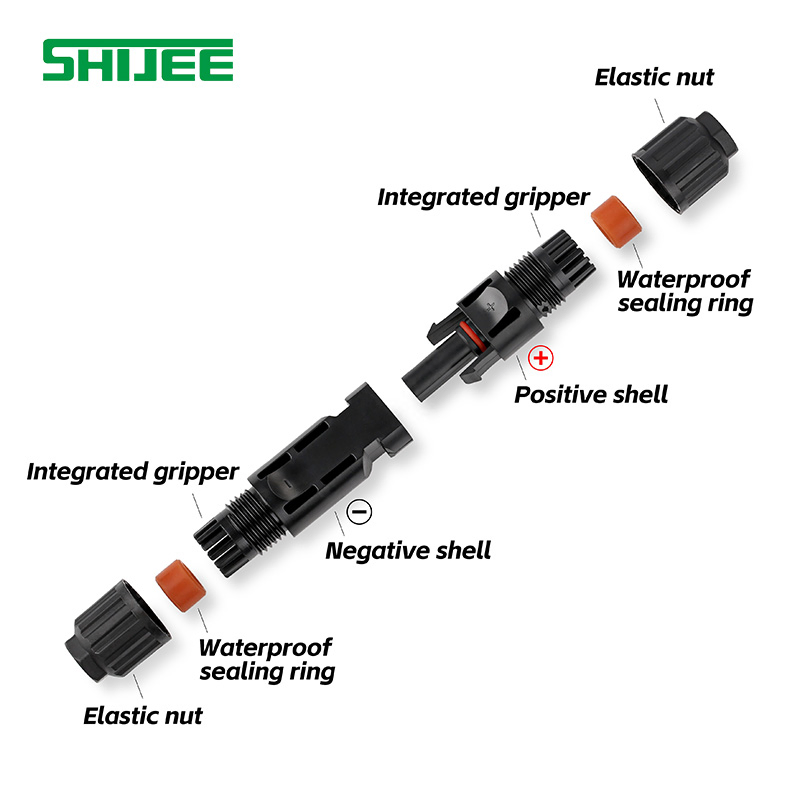

| Locking Mechanism | Push-Pull Lock / Screw Lock (Snap-in Design) |
| Fire Rating | UL94 V-0 (Flame Retardant) |
| Certifications | TÜV, UL, IEC 62852, EN 50521 |
| Application | Solar Power Systems, Photovoltaic Panel Wiring, Junction Box Connection, Solar Array Interconnection |
| Key Features | High Voltage Tolerance, Low Contact Resistance, Anti-UV, Corrosion Resistant, Easy Installation, Reliable Long-Term Outdoor Performance |
| Packaging | Bulk / Bag (100 pcs per bag) or Boxed |
| Customization | Available in Cable Length, Color (Black/Grey/White), and with Pre-assembled Cables |

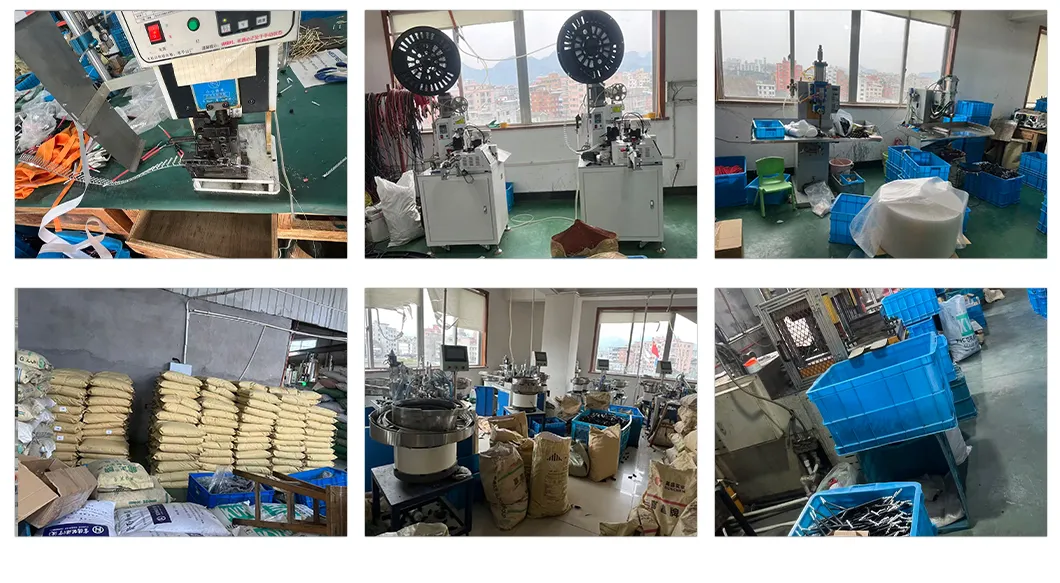

We are a professional solar PV electric components manufacturer. We specialize in DC Combiner boxes, DC circuit breakers, MC4 connectors, Surge Protective Devices, DC fuses, isolator switches, etc.
