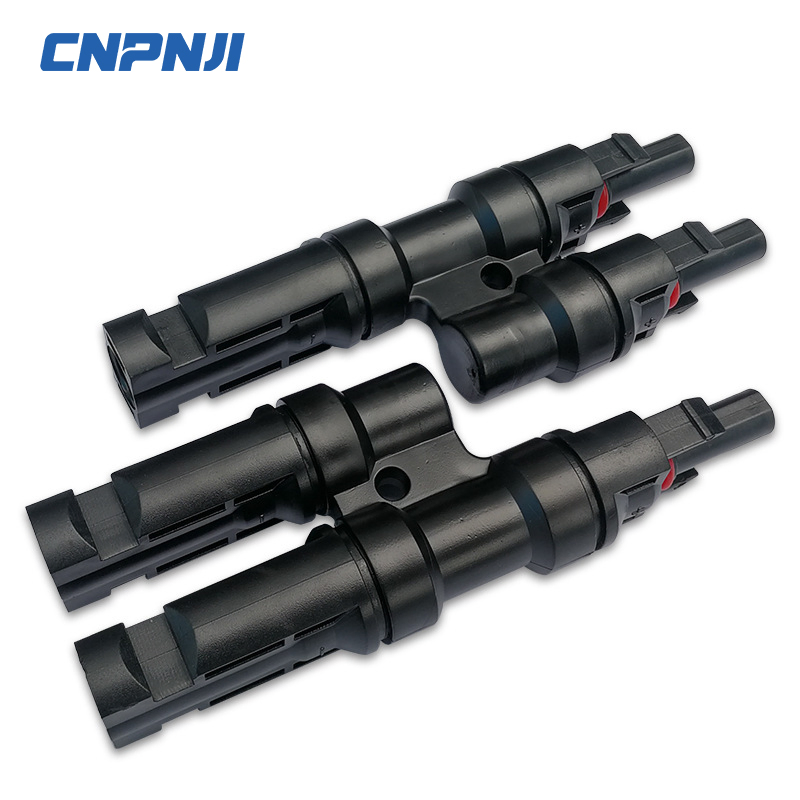

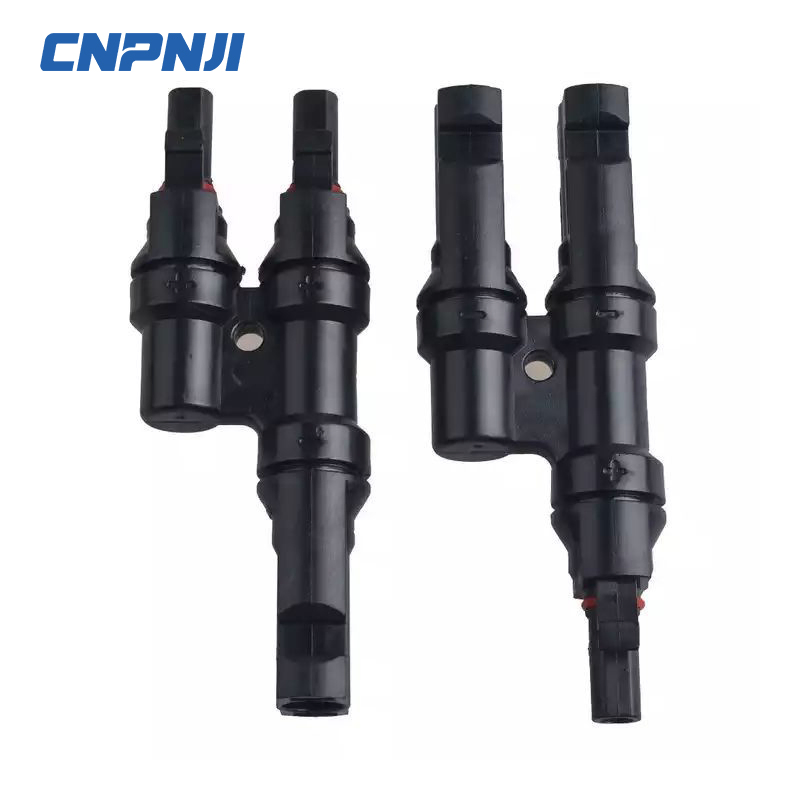

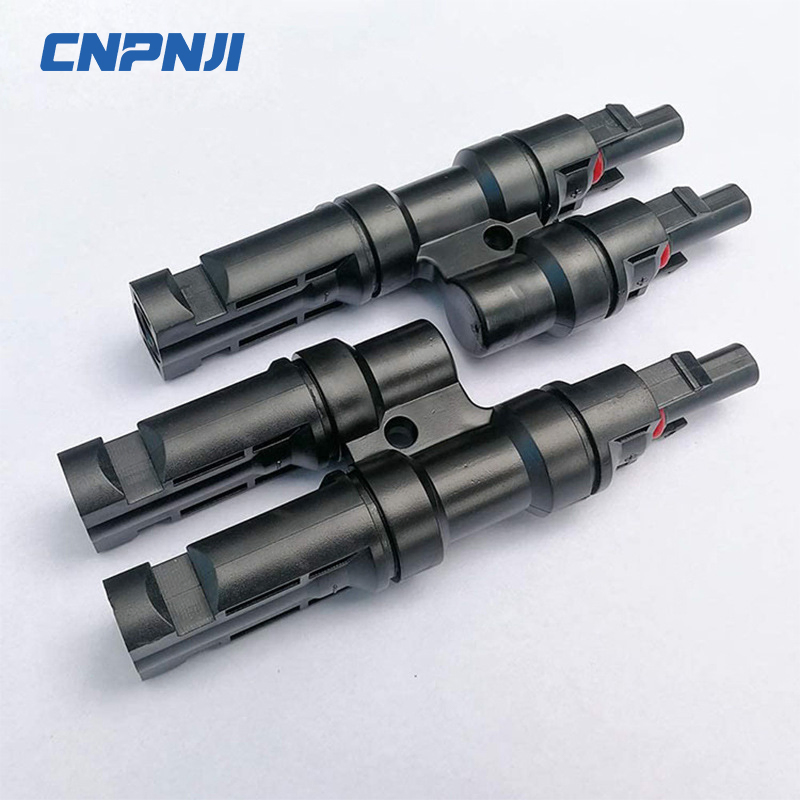

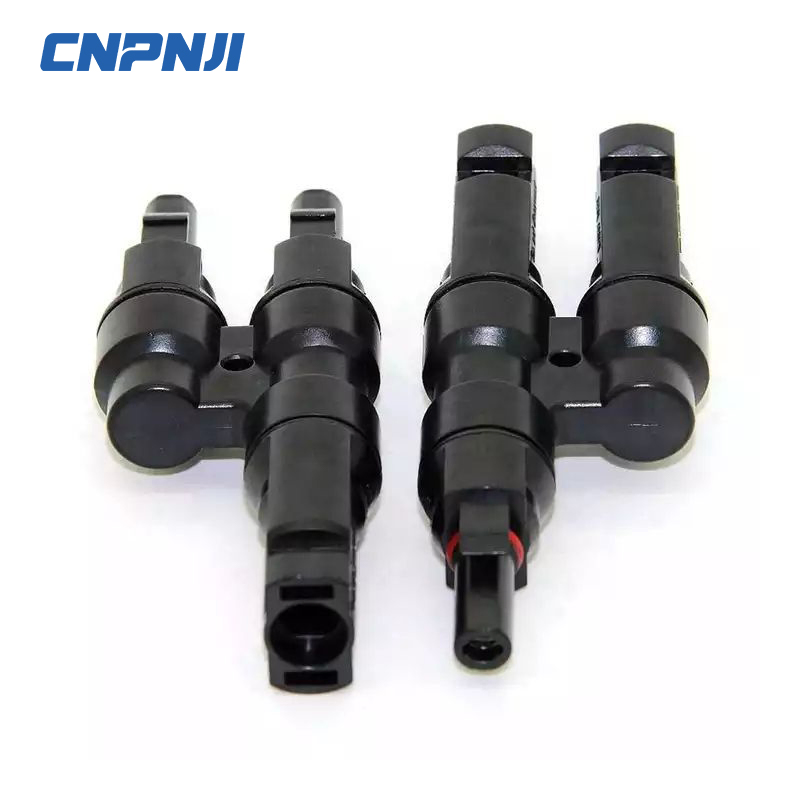

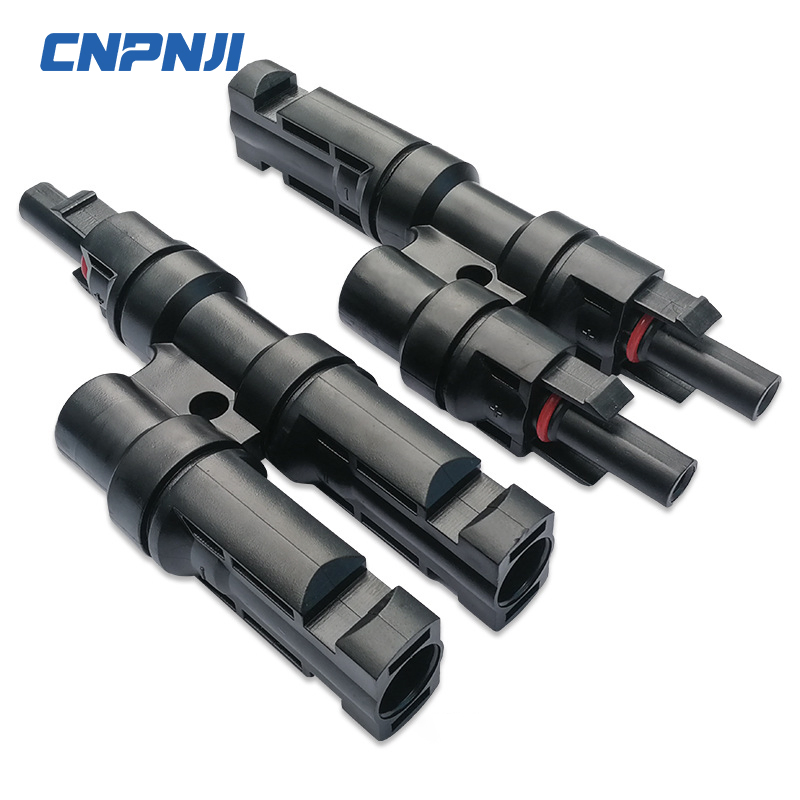

High Quality IP68 Waterproof Copper Pins Connector PV Solar Connector for 2.5mm 4mm 6mm Cable

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview

Basic Info.

Condition
New
Certification
ISO, CE, TUV CE CQC
Application
Home, Industrial, Commercial, Solar System Connection
Specification
Normal, MGT4
Type
M/F
Gender
Female / Male
Packaging Details
Carton/Wooden Box
Current
30A/45A
Voltage
1000VCD
Transport Package
Paper Carton
Trademark
CNPNJI
Origin
China
HS Code
85369000
Production Capacity
1000000PCS/Month

Packaging & Delivery

Package Size
49.00cm * 35.00cm * 37.00cm
Package Gross Weight
25.000kg
Product Features
The pv photovoltaic connector is an important accessory in the photovoltaic combiner box, providing reliable electrical connections and waterproof performance to ensure the efficient operation and safety of the photovoltaic system. Used in conjunction with MCB, MCCB, SPD, isolator switch, fuse.
Recommend Products
Product Description

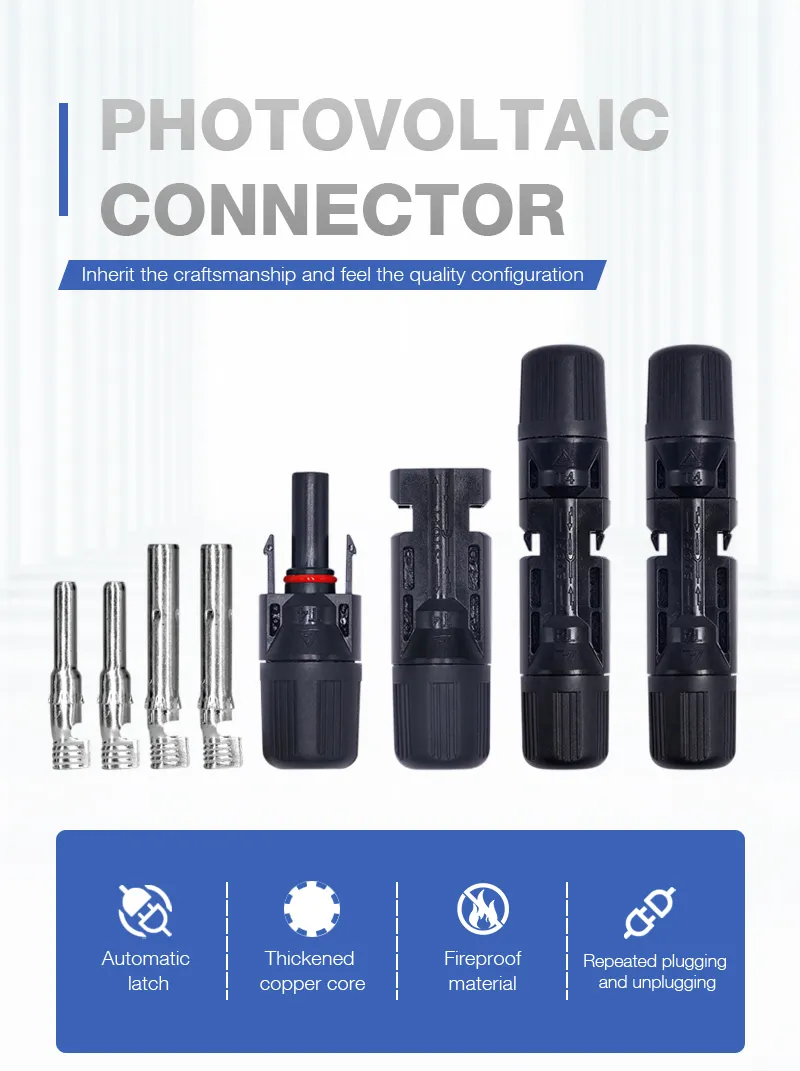

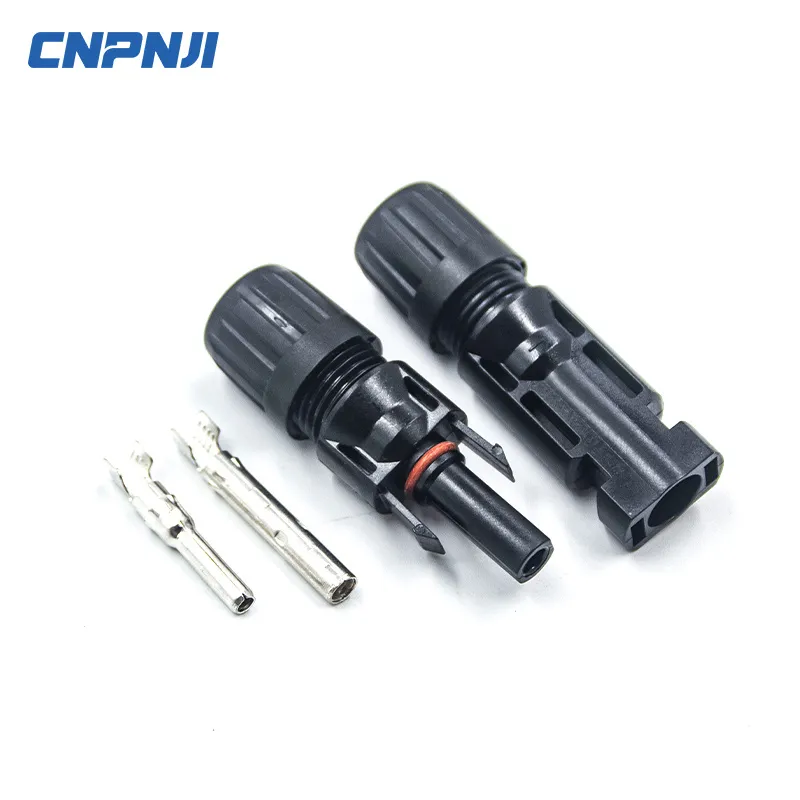

High Quality IP68 Waterproof Copper Pins Connector

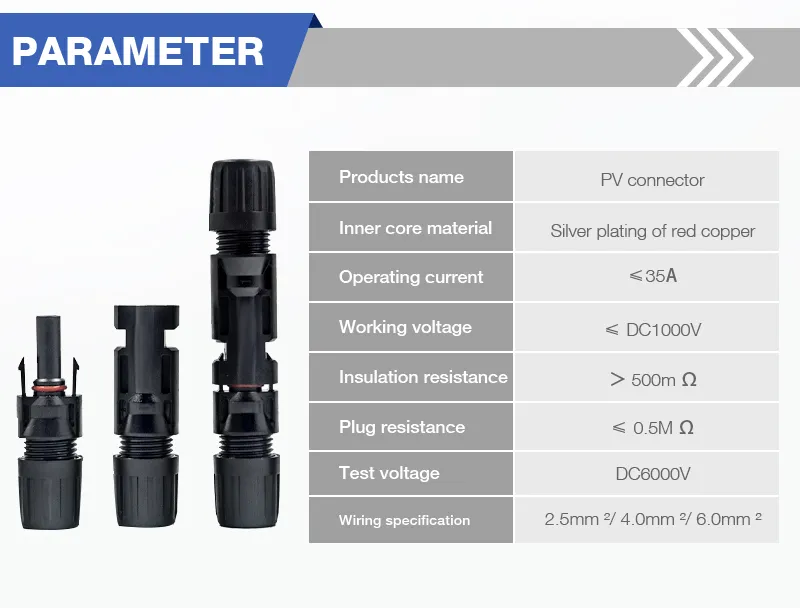

Solar Connector Specifications
Model Number MGMC4
Rated current 30A(2.5-6mm2), 45A(2.5-6mm2)
Rated voltage 1000VDC/1500VDC
Overvoltage Type/Pollution Degree 6000V(50Hz, 1min)
Contact Resistance Of Plug Connector CAT III/2
Contact Resistance Of Plug Connector (Actual) 1mΩ
Contact Material Copper, Tin-plated
Insulation Material PPO
Degree Of Protection IP2X/IP67
Flame Class UL94-VO
Safety Class II
Suitable Cable OD4.5-8.5(2.5-6.0mm2)
Insertion Force/Withdrawal Force ≤50N/≥50N
Connection System Crimp connection
Temperature Range -40ºC ~ +125ºC

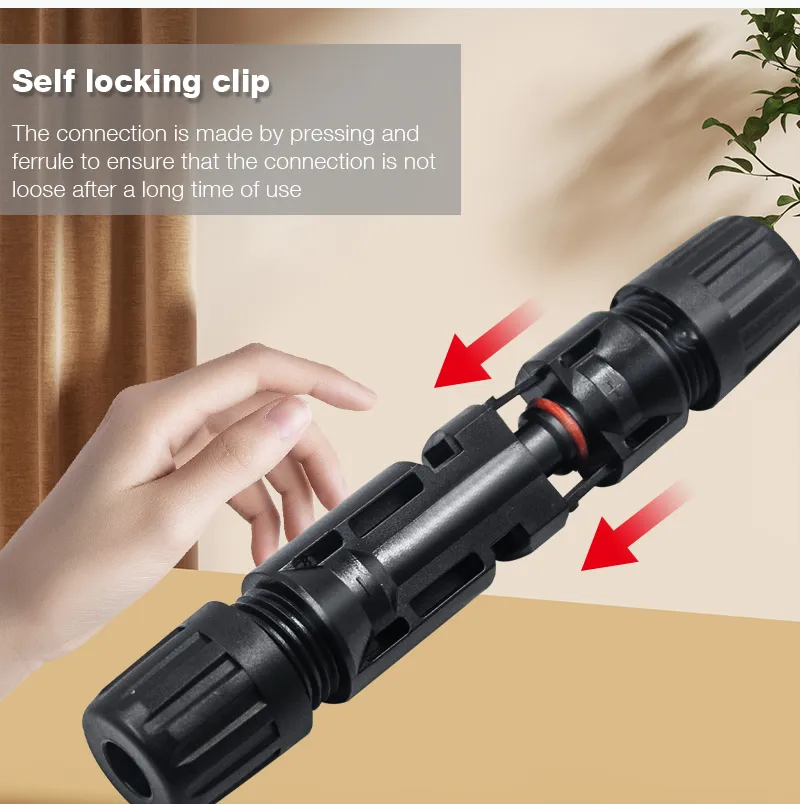

Solar Cable Assembly
Solar Cable Pins Details
Cable Connector Fitting Diagram

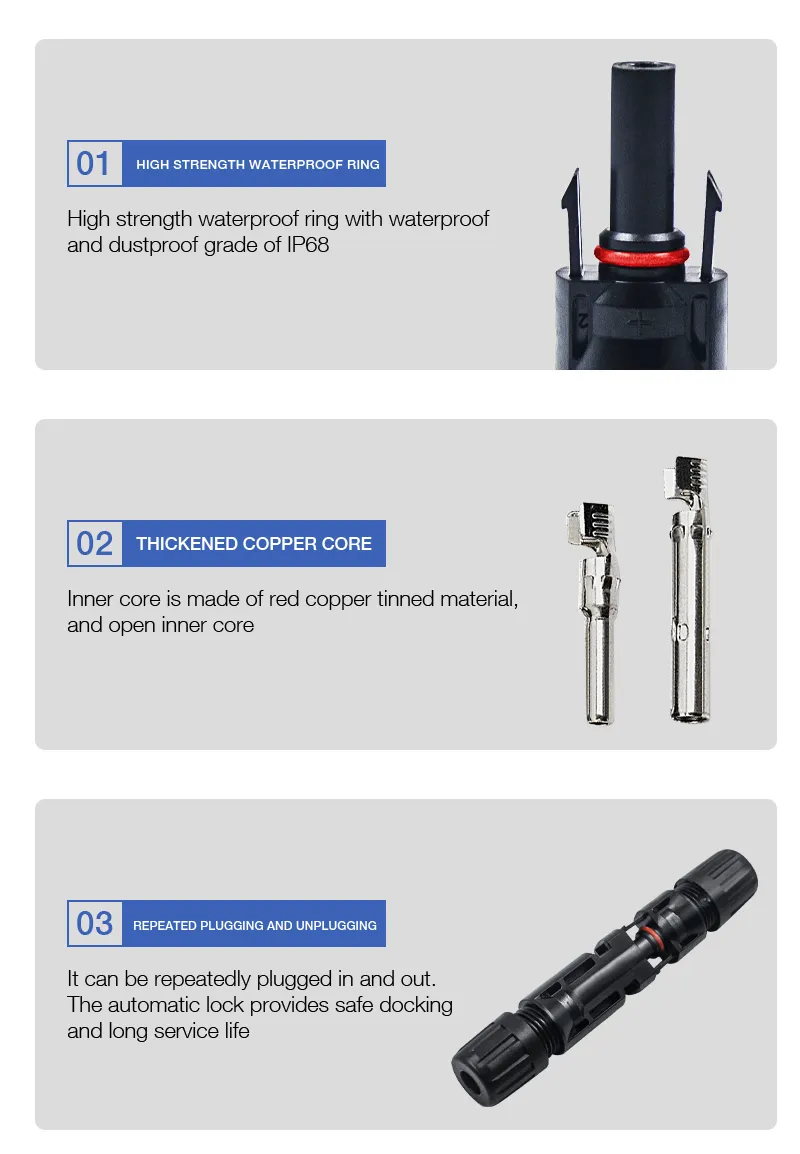

IP68 Waterproof Test Visual

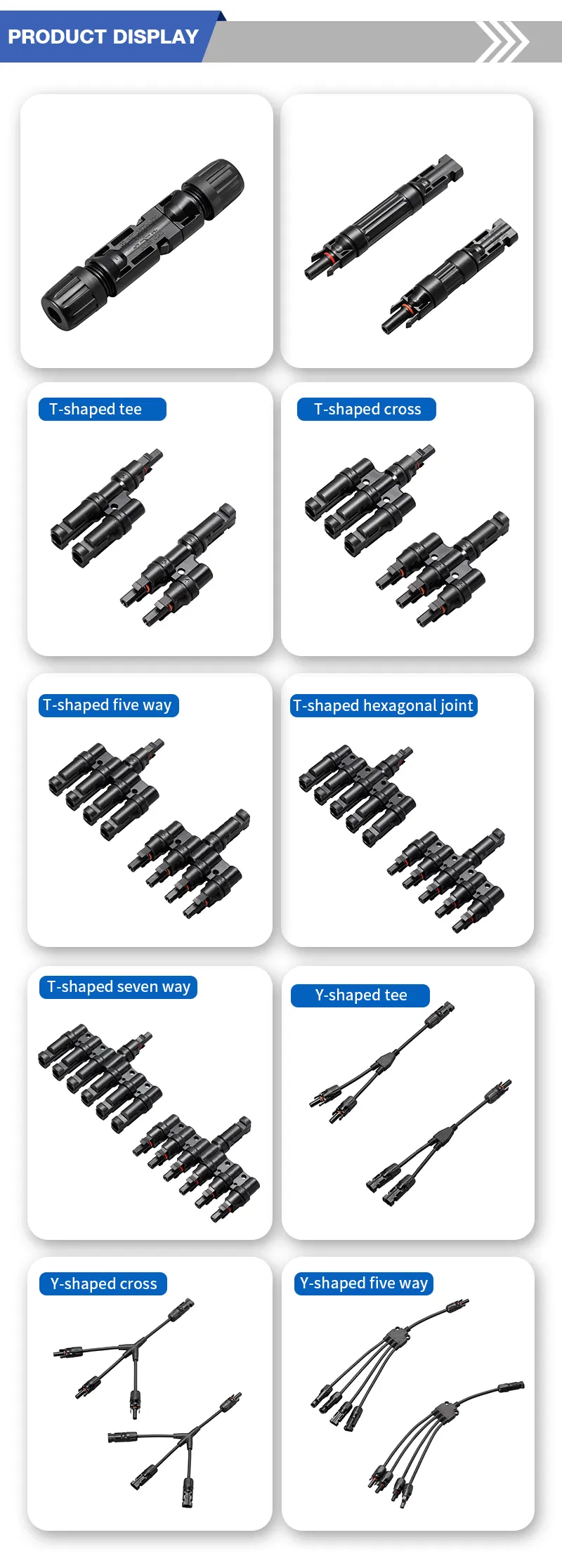

Connectors Dimensional Sheet
Company Profile

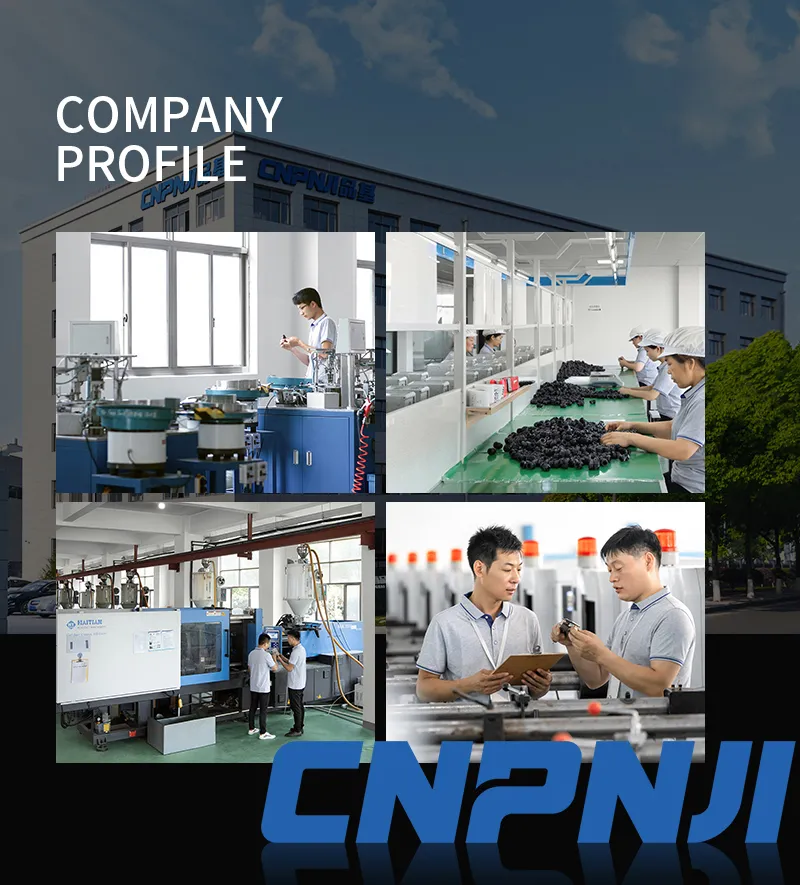

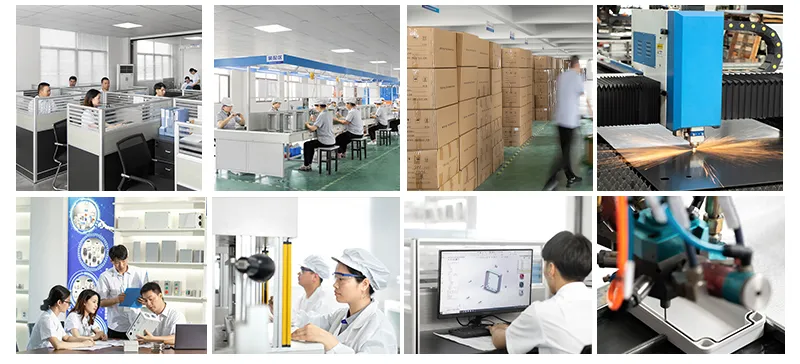

Factory Overview

Specialized in manufacturing waterproof junction boxes, cable glands, PV combiner boxes, MC4 connectors, flexible pipes, plastic wiring ducts, nylon cable ties, and more. Equipped with advanced production facilities and abundant technical expertise, the operation complies with the ISO9001:2000 standard. The main product ranges, including cable glands, have successfully achieved IP68, CE, SGS, and RoHS certifications. The output is widely applied in power transmission systems, automotive wiring, mechanical machinery, engineering installations, and electrical industries. With a strong sales network established domestically, stable cooperative relationships are also maintained with customers in Japan, South America, Europe, and globally. Pursuing quality remains the eternal commitment, continuous innovation guides the developmental philosophy, and a bright collaborative future is welcomed with all international partners.

Exhibition Display
Exhibition Booth
Packaging & Shipping
Packaging Box Logistics
Frequently Asked Questions
1What is the standard working time?
The active schedule is 08:30-17:00 (GMT+8 Beijing time), Monday through Saturday, alongside continuous 24-hour online customer service support for resolving urgent queries.
2Will product drawings remain secure after sharing?
Yes, design parameters and project drawings are kept completely confidential and will not be disclosed to any third party without explicit prior permission. Signing a Non-Disclosure Agreement (NDA) before drawing transmittal is fully supported.
3What is the Minimum Order Quantity (MOQ) requirement?
There is generally no rigid minimum order threshold specified, though unit costs scale down more favorably with larger quantities. Prototyping and prototype testing services are readily available to ensure quality standards before mass manufacturing.
4Can product samples be provided?
Yes, samples can be provided if the requested components are currently available in stock. The purchasing client covers the standard sample unit costs and the respective international courier delivery charges.
5What are the standard terms of payment?
The payment standard requires a 50% deposit paid via T/T, with the remaining 50% balance cleared prior to shipment dispatch. Visual confirmations of final products and packaging profiles are provided before balance transaction processing.
6How is the typical shipment delivery timeline managed?
Shipment dispatch generally takes between 5 to 7 business days following the receipt of advance deposit payments. The exact dispatch schedule varies based on specific item types and general bulk requirements.
