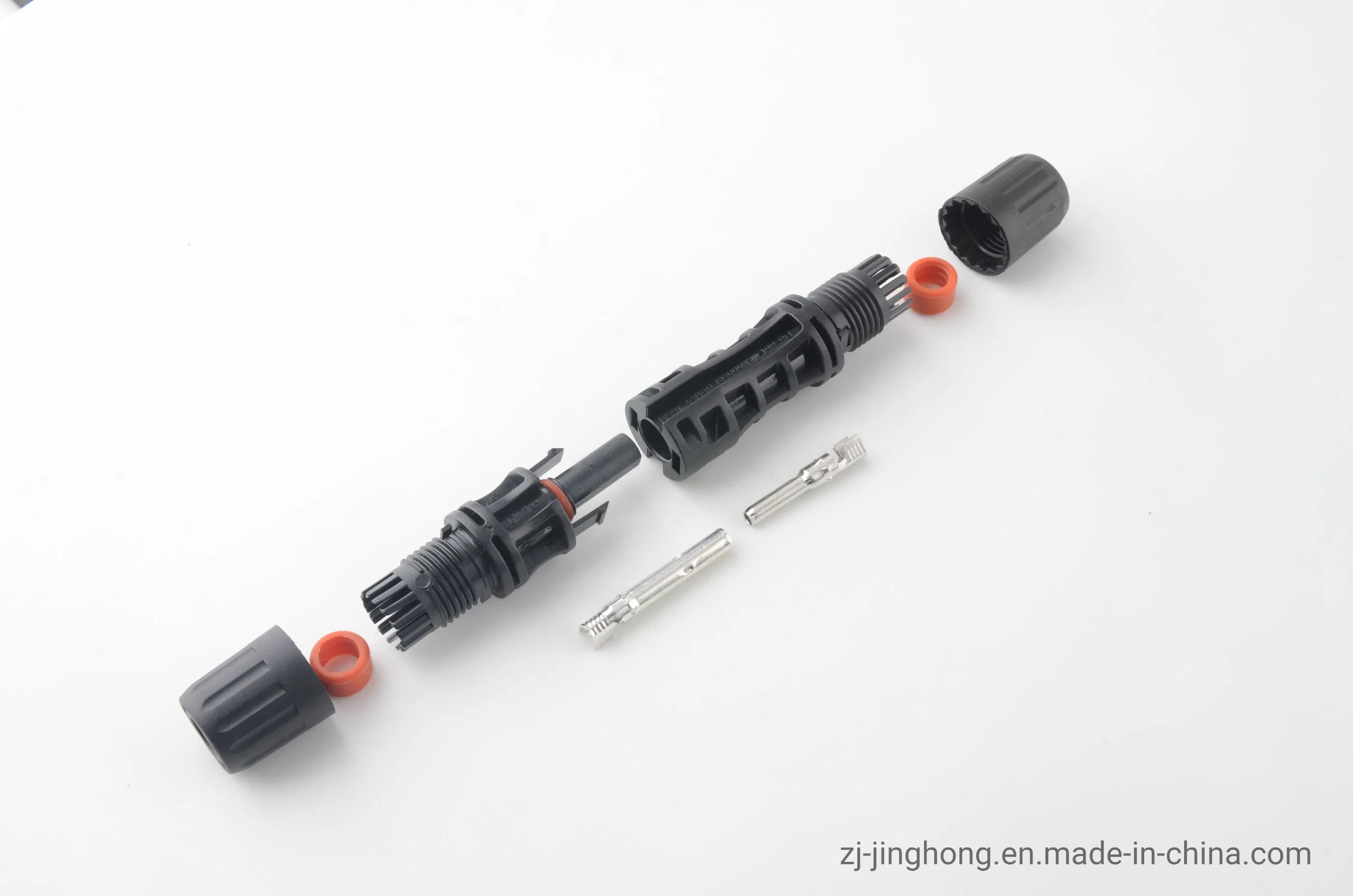

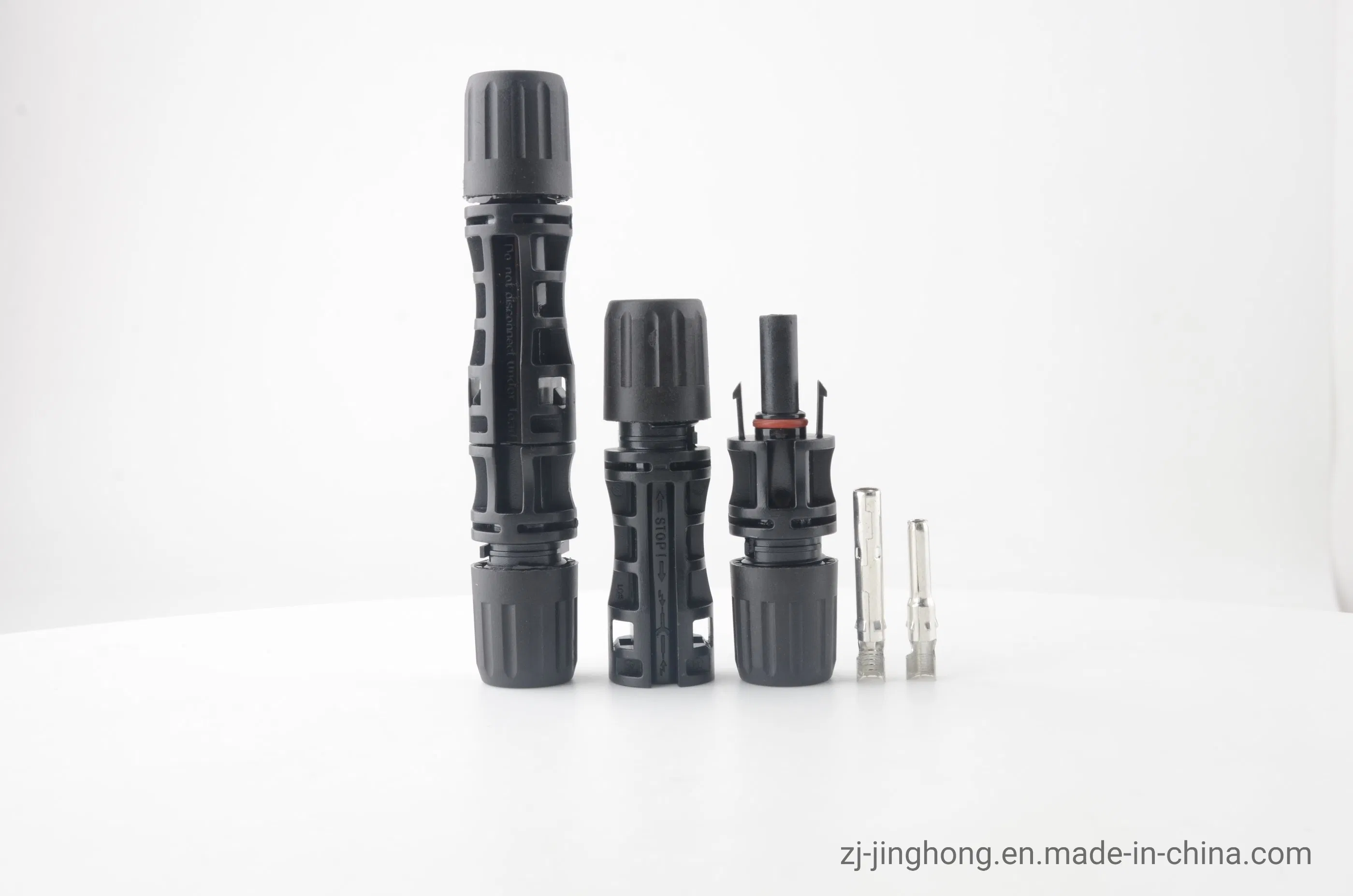

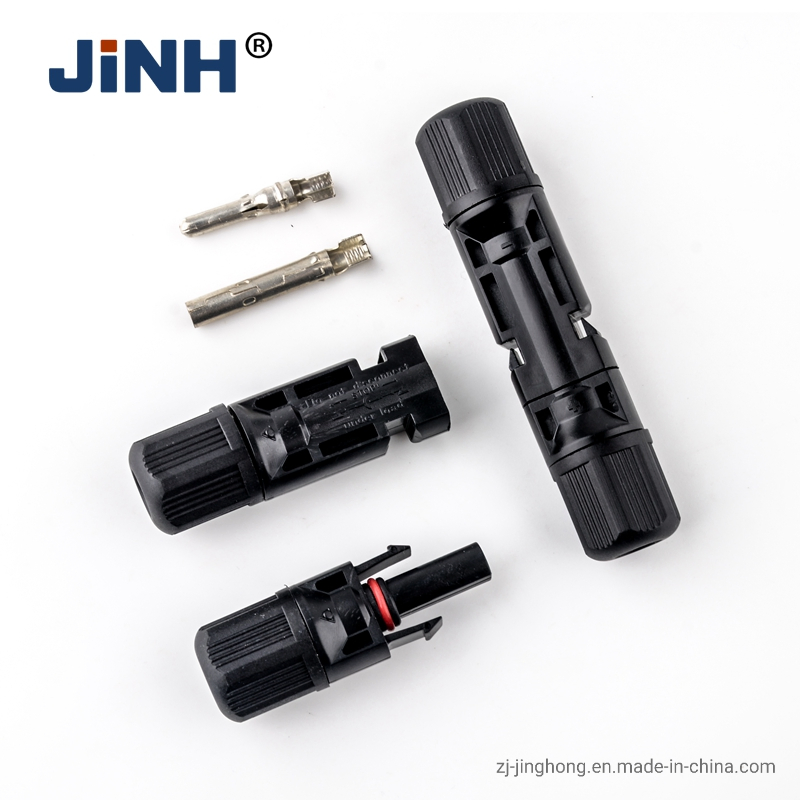

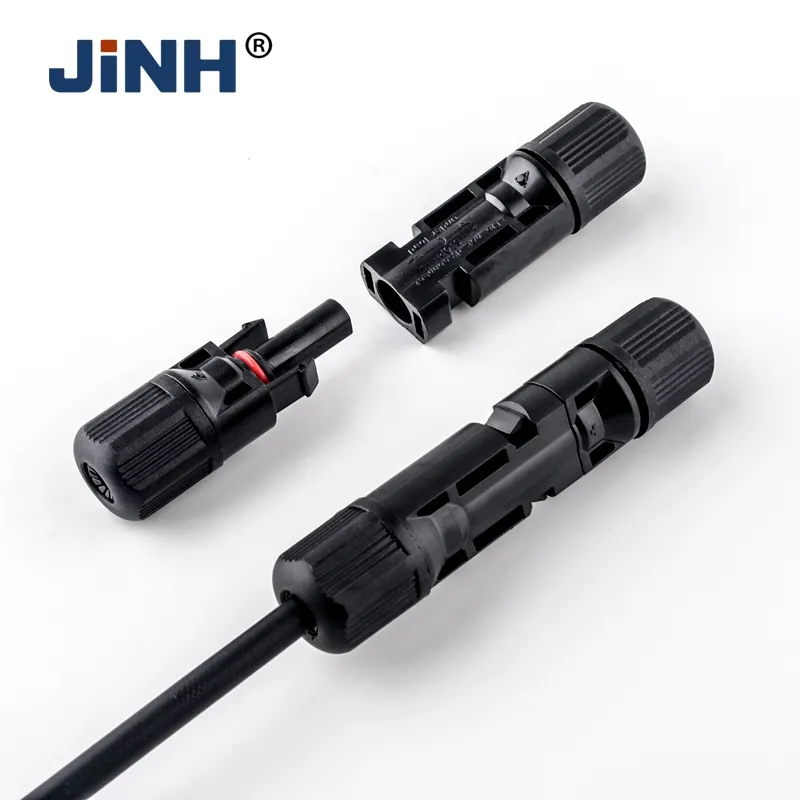

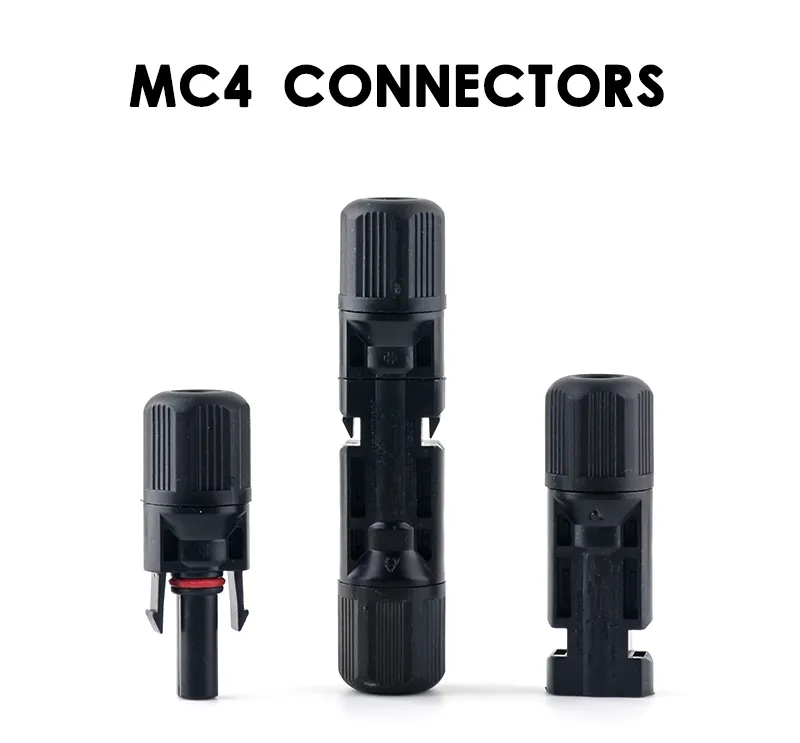

1500V 30A High Voltage Waterproof Solar System Panel PV Cable Connector

1 / 5

1500V 30A High Voltage Waterproof Solar System Panel PV Cable Connector

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO. MC4-30A 1500V

Certification CE

Application Industrial

Contact Material Copper, Silver Plated

Safety Class II of Mc4 Solar Cable Connector

Suit Cable 2.5/4/6mm² (14/12/10AWG)

Temperature Range -40 ~ +125℃

Insulation Material PPO

Rated Voltage DC1000

Flame Class UL94-Vo & UL94-5va

Degree of Protection IP67

Salt Mist Spray Test Severity IEC60068-2-52

Rated Current 30A/40A/50A

HS Code 853669000

Production Capacity 300,000/Week

Packaging & Delivery

Package Size 20.00cm * 15.00cm * 15.00cm

Package Gross Weight 2.500kg

Transport Package 50 Pairs Per Carton Box

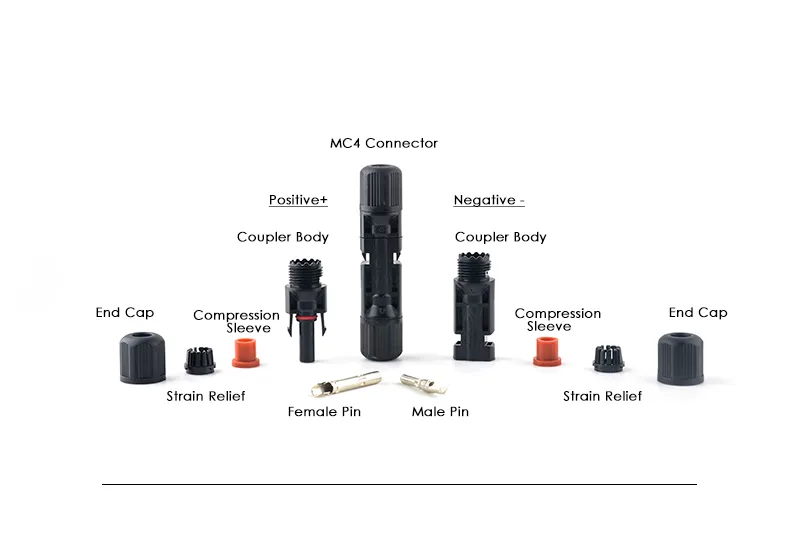

Product Description

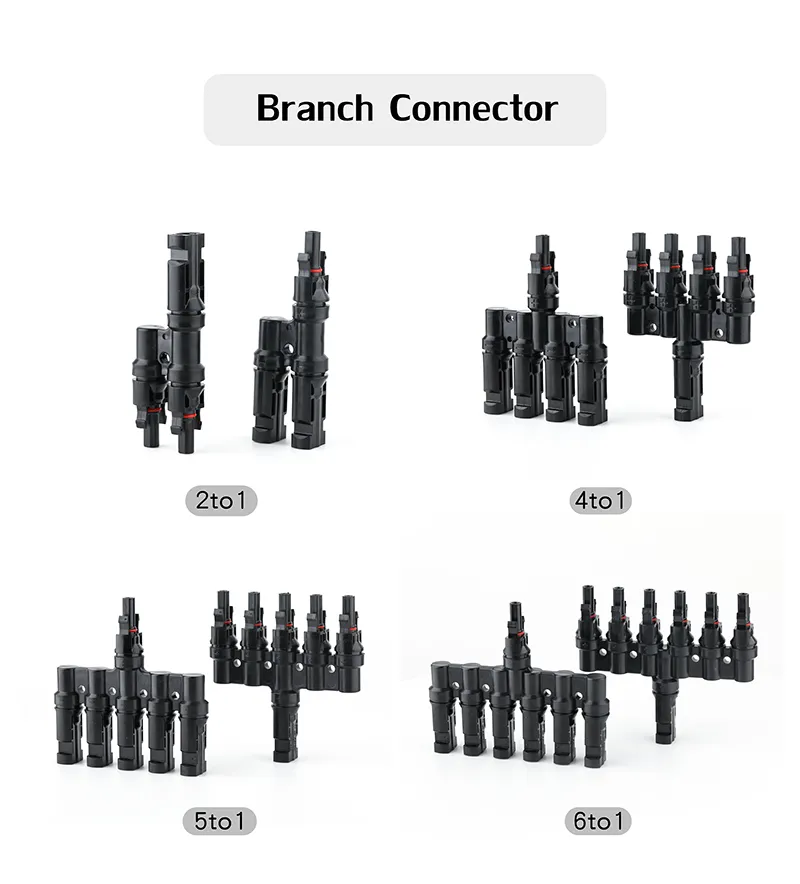

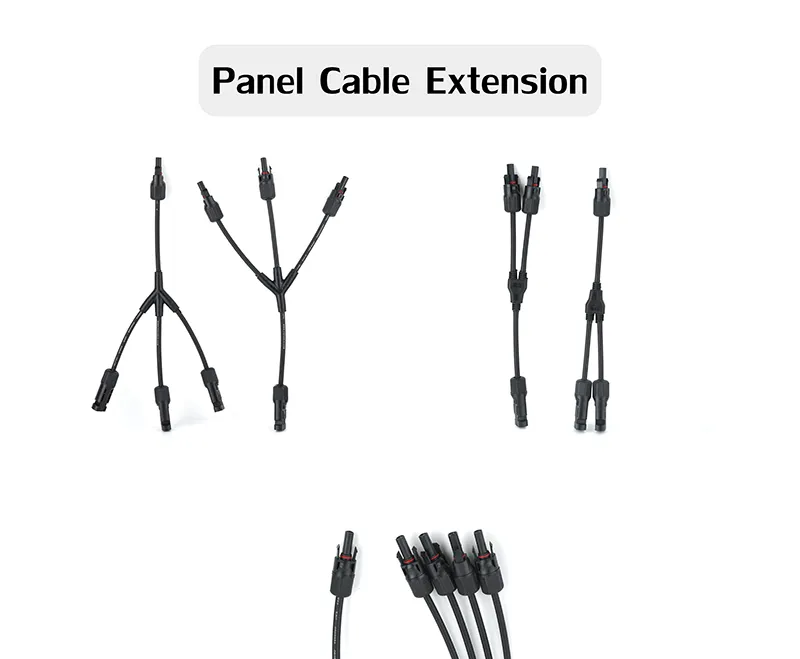

The Features of MC4 T branch solar connector

Simple assembly, easy to use
Suitable for different sizes of PV cable
Waterproof grade: IP67
Housing made of PPO material, anti-UV
High current carrying capacity
Contact material: Copper Tin Plated
High heat resistance, wear-resisting

Technical Parameters of MC4 T branch solar connector

Item Description	Specification details
Item	MC4 T branch connector
Rated current	30A (1.5-10mm²)
Rated voltage	1500V DC
Test voltage	6000V (50Hz, 1min)
Contact resistance of plug connector	1mΩ
Contact material	Copper, Tin-plated
Insulation material	PPO
Degree of protection	IP67
Flame class	UL94-V0
Insertion force	≤50N
Withdrawal force	≥50N
Temperature Range	-40ºC ~ +110ºC

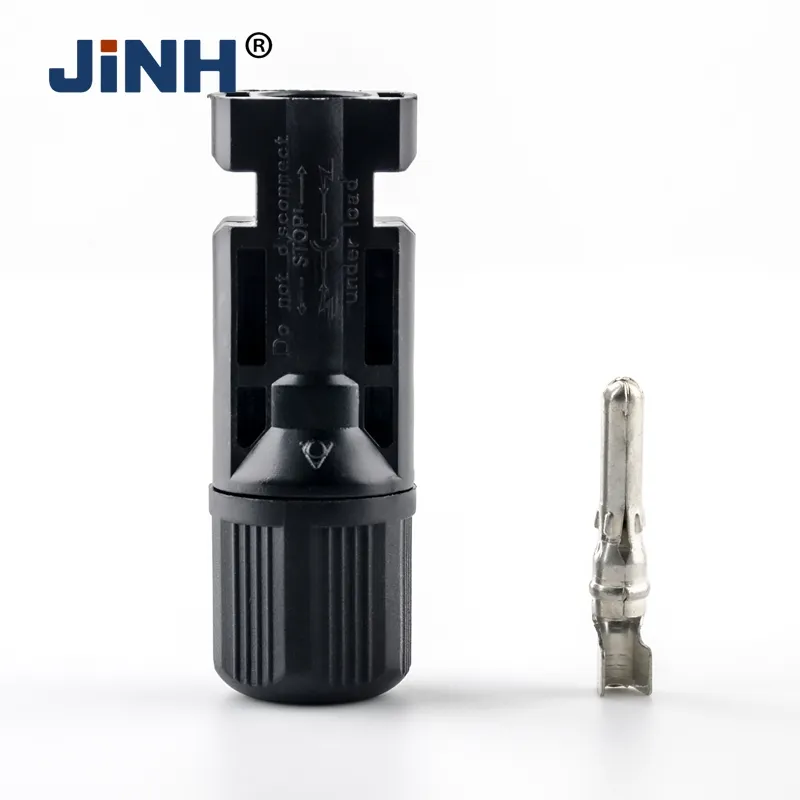

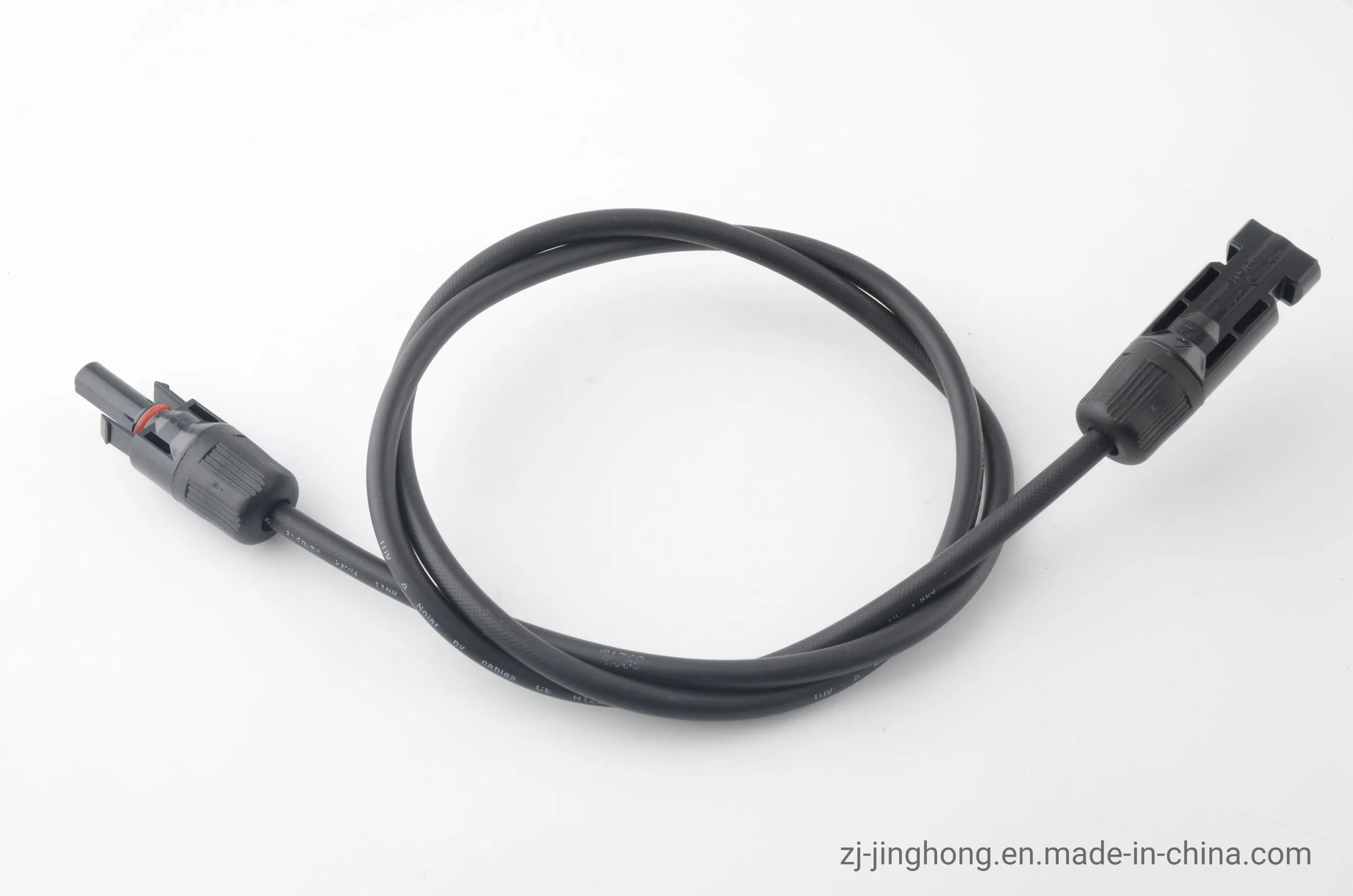

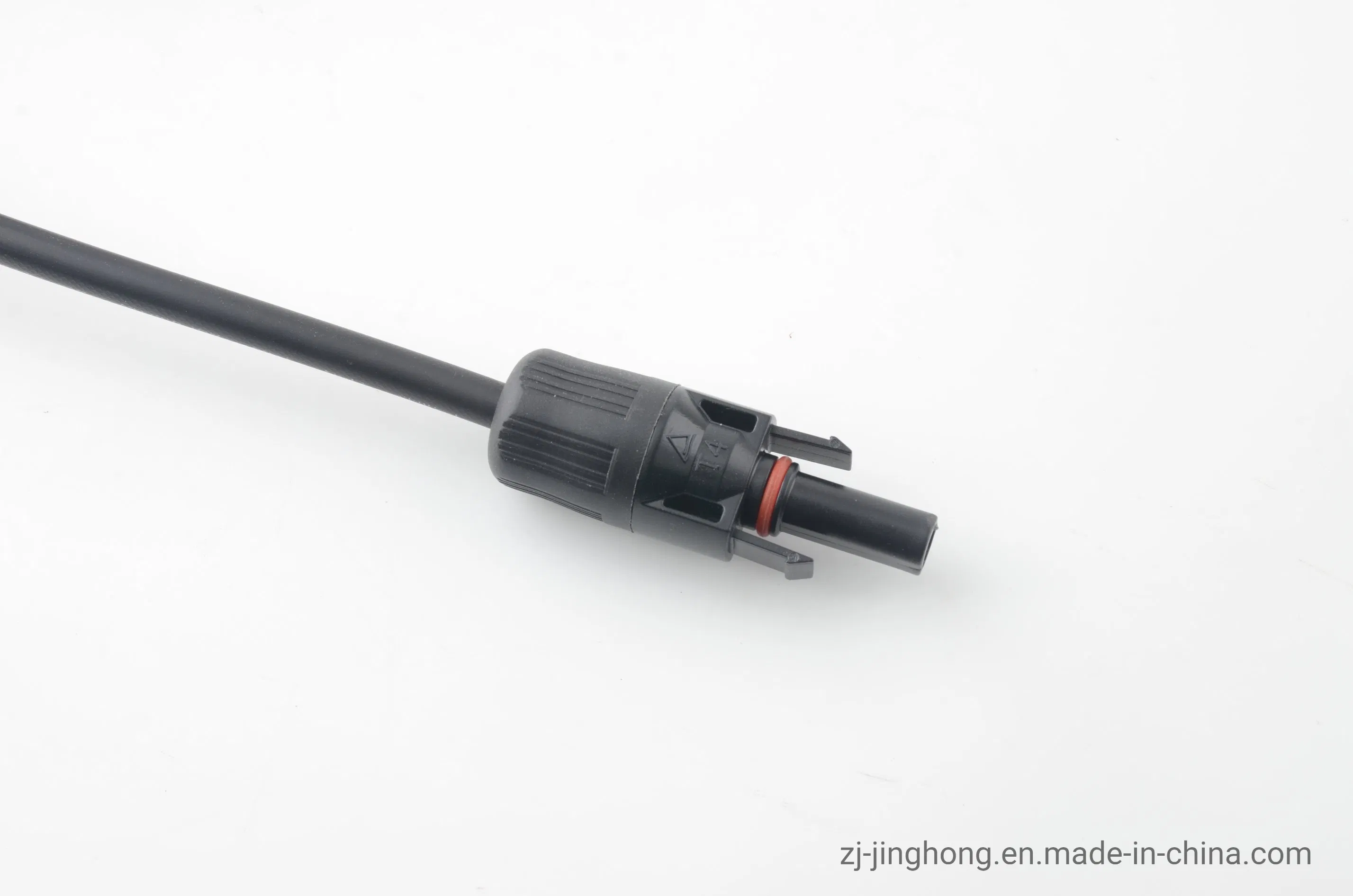

Product Gallery & Detailed Views

Frequently Asked Questions (FAQ)

What is the main application of the MC4 T branch solar connector?

The MC4 T branch solar connector is designed for industrial and outdoor solar systems to connect multiple solar panels in parallel, ensuring safe, reliable, and high-efficiency power transmission.

Is this MC4 connector waterproof and suitable for harsh environments?

Yes, the connector features an IP67 protection rating, making it highly waterproof and dust-resistant. It can operate in temperatures ranging from -40°C to +125°C.

What sizes of PV cables are compatible with this connector?

This branch connector is highly compatible with PV cable cross-sections of 2.5mm², 4mm², and 6mm² (which corresponds to 14AWG, 12AWG, and 10AWG).

What insulating and contact materials are used in this product?

The insulation material is premium PPO (Polyphenylene Oxide), offering UV resistance and a UL94-V0 flame class. The contact material is high-quality copper with tin/silver plating to ensure minimal resistance and optimal current flow.

Are these solar branch connectors easy to install?

Yes, they feature a simple, tool-free plug-and-play assembly design, allowing quick field installation and secure locking mechanisms with manual insertion and withdrawal forces of ≤50N and ≥50N.
