1500V IP68 TUV Certification UV Resistant MC4 Solar Connector for Panels Cables
Technical Key Features
Connector adopts touch of reed with inner-knob type.
Auto-lock system enables easy and highly reliable connection.
Popular figure suits most field installations.
Quick and straightforward connecting process.
Waterproof and dustproof design (IP68 protection).
Durable construction with long operational life.
Product Characteristics
Specification Parameter
Details
Insulation material
PPO
Rated Voltage
TUV 1500V DC / UL 600V DC
Test voltage
6KV (50Hz, 1Min)
Contact material
Copper, tin plated
Contact resistance
Less than 0.5 m ohm
Degree of protection
IP68
Pollution Degree
2
Protection class
Class II
Flame class
UL94-V0
Plug Force
Less than 50N
Withdrawal force
More than 50N
Ambient temperature range
-40°C ~ +90°C
Compatible cable cross sections (Solar Cable)
2.5mm², 4.0mm², and 6.0mm² (14 AWG, 12 AWG, 10 AWG)
Pin dimension
4.0mm
Business Operations & Advantages
Category
Business Profile
Business Type
Manufacturer / Exporter
Export Percentage
85%
Year Established
2008
Registered Capital
10,000,000
Certificate
CE, TUV, ISI, ISO9001
Primary Competitive Advantages
Professionalism, Quality Test, Equipment, Reliability, Fast response, Total Solution, Technical Support
No. of Total Staff
100 to 200
Product Range
Solar Connector, PV solar junction box, Industry Control & Protection, PV Cable
Product Showcase
Our Services
Upon receipt of our products, if you are not satisfied with the quality or concerned, you can return it within 3 days after receiving the products, but only if the products are kept intact and original. Any returns arising from the cost of freight and customs will be borne by the buyer.
We believe our quality and service will satisfy your needs. If any issues occur, please contact us immediately. We will make every effort to resolve the problem and guarantee your satisfaction.
24-hour Inquiry Reply
Detailed Question Answering
Safe & Convenient Shipping
Frequently Asked Questions (FAQ)
Q1: What is the rated voltage of this MC4 Solar Connector?
A1: This connector supports a rated voltage of TUV 1500V DC and UL 600V DC, making it suitable for high-voltage solar utility projects.
Q2: Does it feature dust and water protection?
A2: Yes, the connector is certified with an IP68 protection rating, which ensures reliable performance against water ingress and heavy dust environment.
Q3: Which cable cross sections are compatible with this connector?
A3: The connector is fully compatible with solar cables of 2.5mm², 4.0mm², and 6.0mm² cross sections (equivalent to 14 AWG, 12 AWG, and 10 AWG).
Q4: What material is used for insulation and contact parts?
A4: The insulation is constructed from durable PPO (Polyphenylene Oxide) and the electrical contacts are made of premium tin-plated copper with contact resistance under 0.5 m ohm.
Q5: What is the ambient temperature threshold for installation?
A5: The operational ambient temperature range of this connector is -40°C up to +90°C, ensuring high performance in extreme weather conditions.

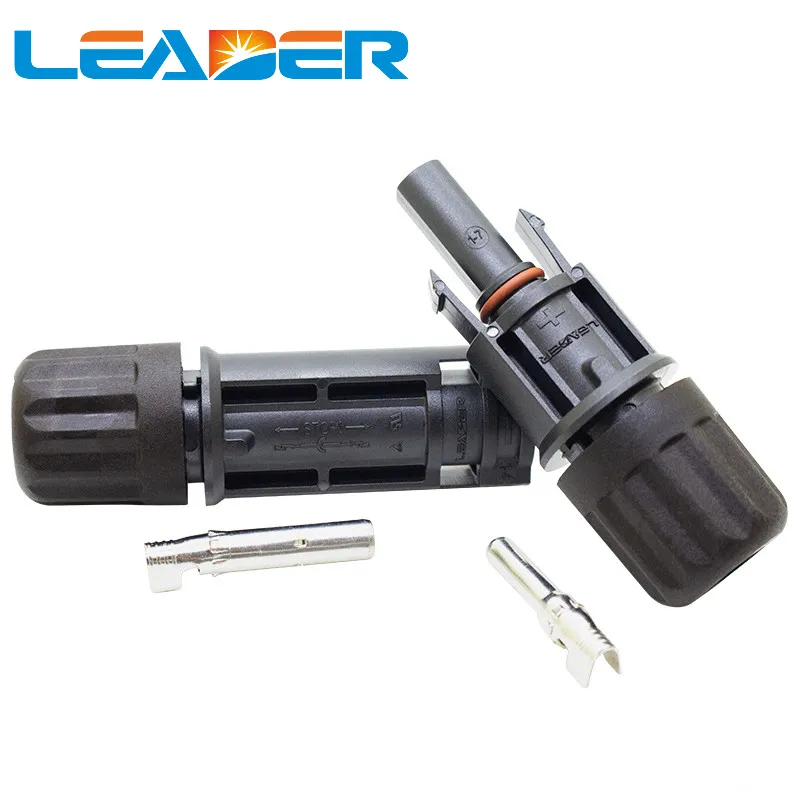

Q6: How does the locking mechanism work?
A6: It utilizes an integrated auto-lock system. It enables quick, easy connection and high mechanical reliability without manual tools.
