| 10KW Hybrid Solar Power System Configuration | ||
|---|---|---|
| Model | Description | Quantity |
| Solar Panel | Half cut mono sliver frame 560w solar panel | 18 pcs |
| Combiner Box | Optional | 1 pc |

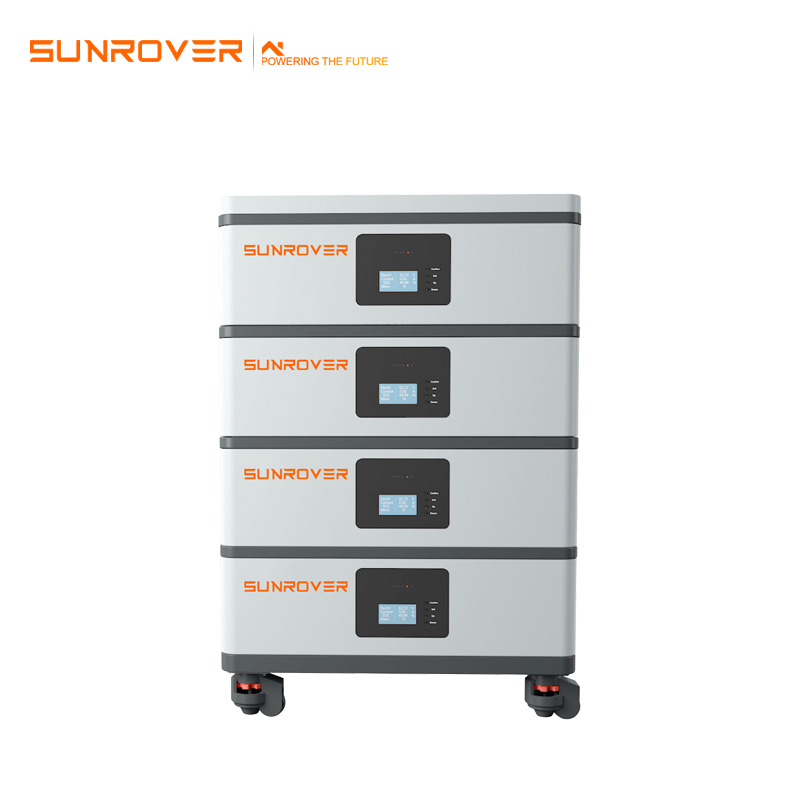

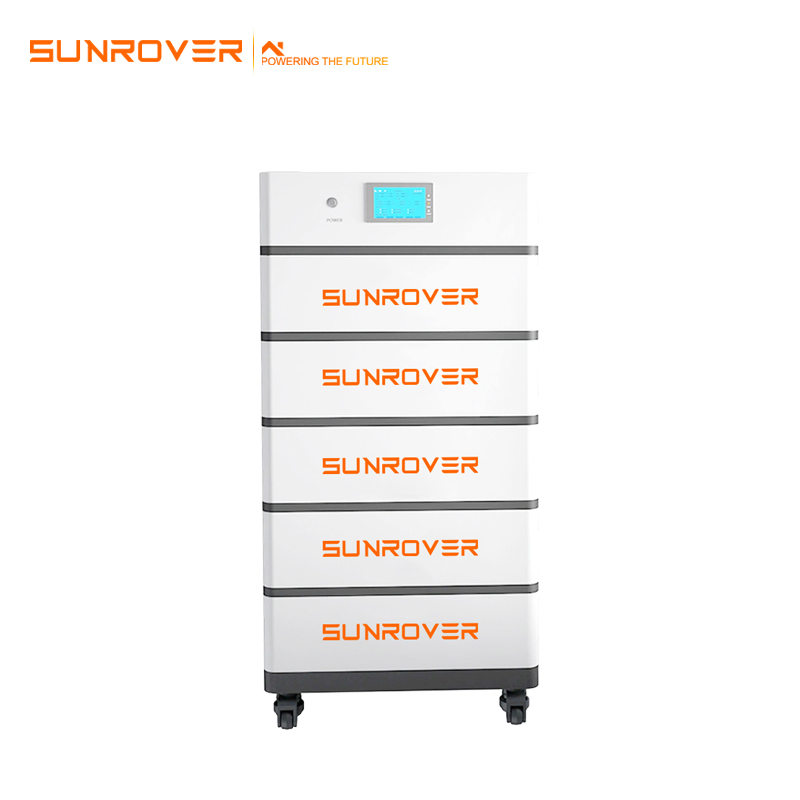

| Lithium Battery/Lead Acid Battery | 20kWh Stacked Battery | 1 pc |
| Hybrid Inverter | 10KW | 1 pcs |
| Mounting Support | Roof/Ground | 1 set |
| Cable | 4mm² PV cable | 400 mm |
| Connector | Solar Connector | 20 pairs |
| Tools Bag | Solar Installation tools | 1 set |
The standard 10KW hybrid configuration includes 18 pieces of 560W monocrystalline solar panels, a 10KW hybrid inverter, a 20kWh stacked lithium or lead-acid battery, a mounting support structure (roof or ground), PV cables, connectors, and an installation tools bag. A combiner box is optional.
The solar panels feature a conversion efficiency exceeding 21%, excellent mechanical load resistance, and high resistance to PID, salt, and ammonia. They also feature an anti-reflective and anti-soiling surface to minimize power loss from dust and dirt, backed by a 25-year warranty.

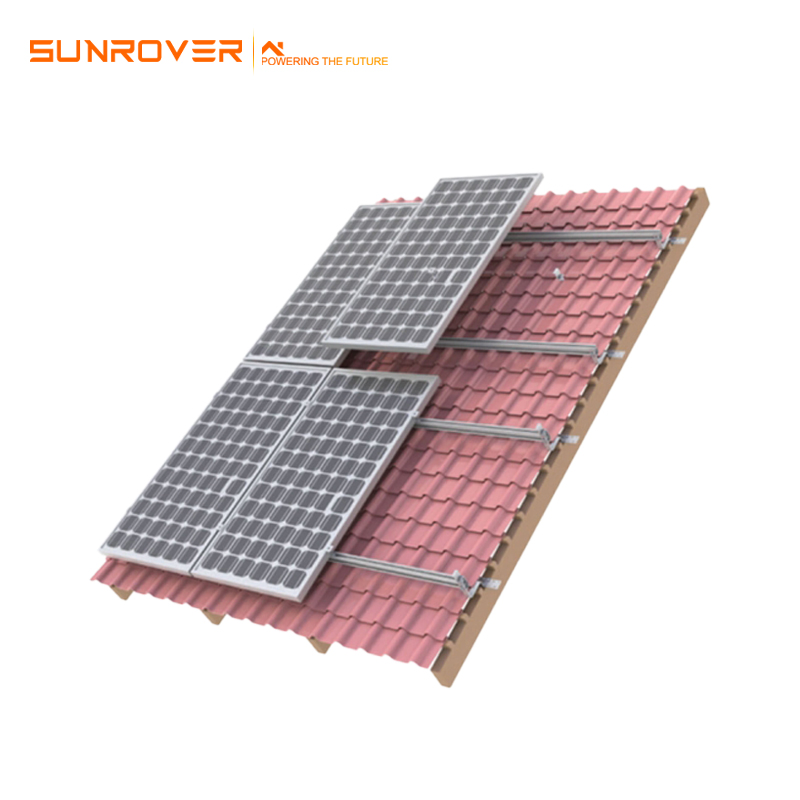

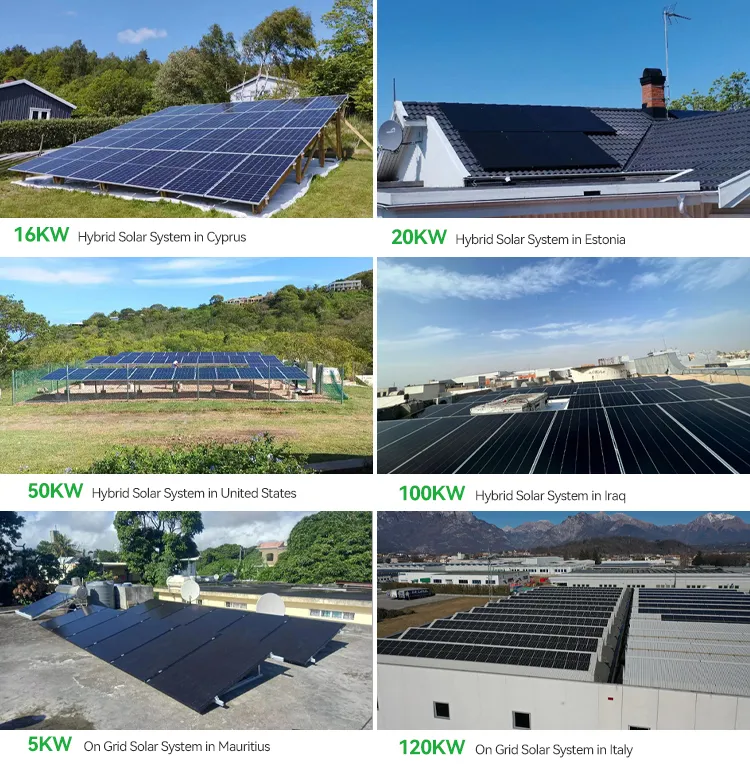

We support diverse installation requirements, including residential pitched roofs, commercial flat or workshop roofs, ground mounting systems, vertical walls, all-aluminum structures, and solar car parking mount designs.

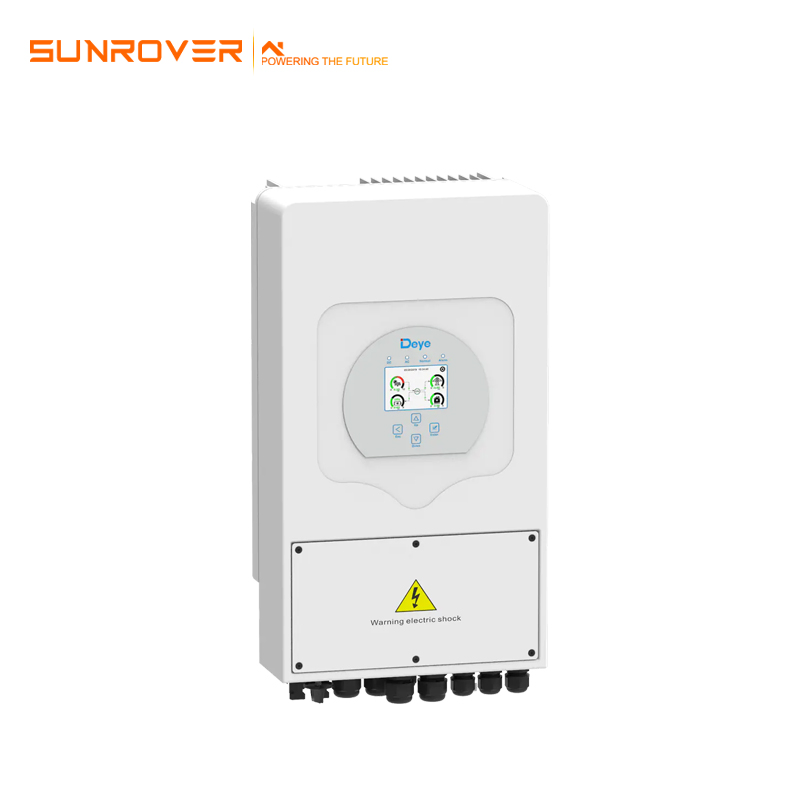

The hybrid inverter operates at a maximum efficiency of 99.6% (European efficiency of 99%). It features a transformer-less design for easier installation, an integrated DC switch for safety, and supports flexible communication including RF and WIFI for system monitoring.
Yes, the system supports adjustable output frequencies (50Hz/60Hz) and output voltages including 110V, 120V, 208V, 240V, 277V, 480V, as well as the EU standard 220-240V/380V, making it highly versatile for global locations.
