| Product Specifications | |||
| Insulation material | PPE/PA | Safety degree | II |
| Rated current | Max.50A | Flame class | UL94-V0 |
| Rated voltage | 1500VDC | Ambient temperature range | -40ºC…+85ºC (IEC) |
| Test voltage | 8kV(50Hz,Imin) | Suitable cable cross sections | 2.5~16mm2 /14~6AWG |
| Contact resistance | ≤ 0.25mΩ | Connecting system | Crimp connection |
| Contact material | Copper, Tin plated | Nut cap locking force | 0.8-1.0Nm |
| Degree of protection | IP68(1m,1H) | Upper limiting temperature | 110ºC (IEC) |
| Overvoltage category/Pollution degree | CATIII/2 | Suitable for fuse size | 10*85/14*85 |
How can I trust the quality of your products and manufacturing?
Our production processes have been established for over 13 years. Products are widely exported and carry certificates from TUV, CE, and other European institutions. Our facilities strictly operate under the ISO9001 quality management system with multiple patented technologies.
What shipment methods are available for orders?
We offer shipment by express courier, air freight, sea freight, and rail transport. We evaluate transit routes and costs to recommend the most optimal shipping solution for your region.
What is the process to place an order?
Please send us an inquiry through the contact portal or via email. Our sales team will get back to you within 24 hours with complete details and step-by-step guidance.

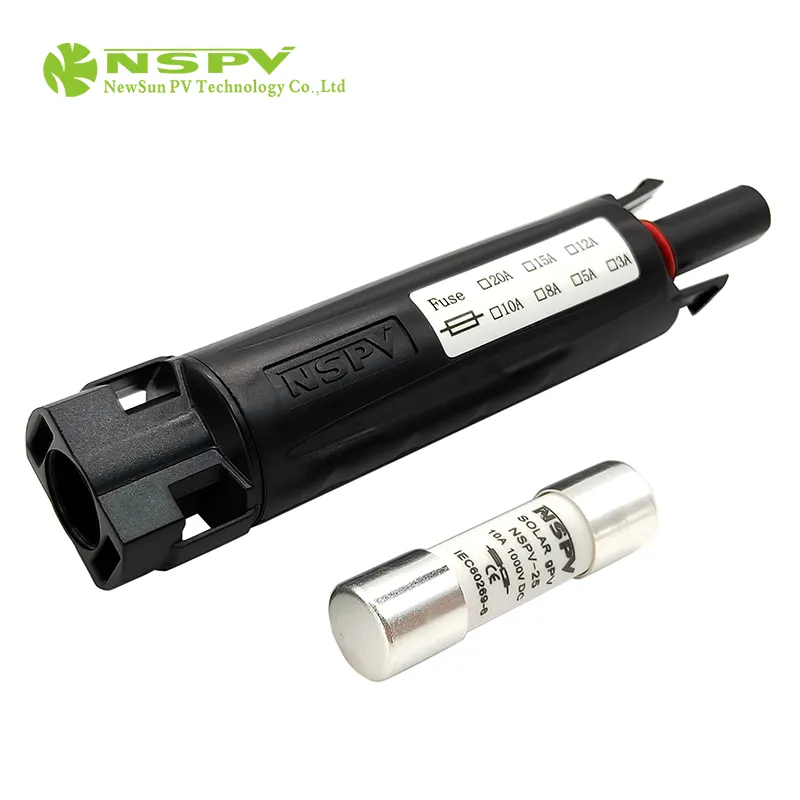

What safety ratings and standards do these solar fuse connectors hold?
These branch connectors are designed for demanding solar environments, featuring an IP68 protection rating (waterproof/dustproof), UL94-V0 flame class, and class II safety degree rating.

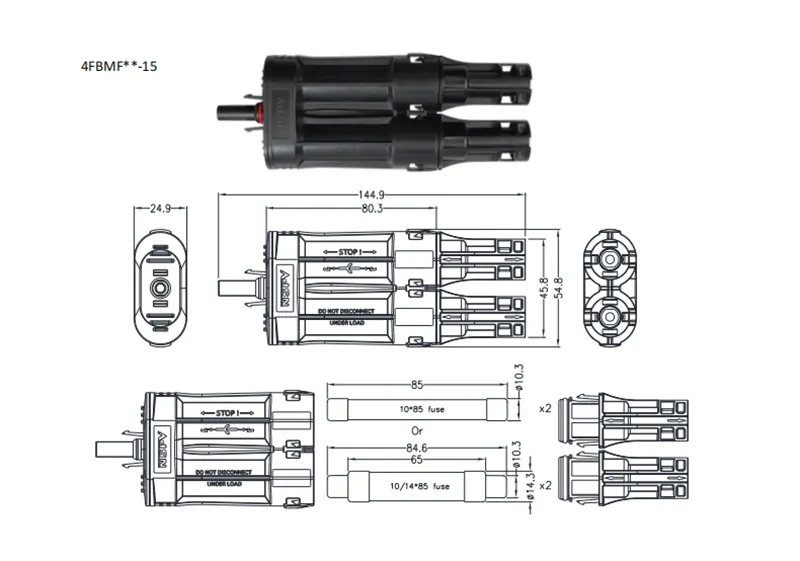

What cable sizes are compatible with the Y-type branch connector?
They are suitable for solar cable cross-sections ranging from 2.5mm² up to 16mm² (14 to 6 AWG) and support crimp connection systems.
Are these branch connectors suitable for high voltage setups?
Yes, they are engineered to support high-voltage solar configurations with a rated voltage capacity of up to 1500V DC and a max current rating of 50A.
