Photovoltaic Complete off Grid 15kw 30kw 50kw 80kw 100kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Industry Home

Customization:	Available
Weight:	1300 Kg
Warranty:	10 Years

Send Inquiry

Product Description

Overview

Basic Info

Model NO.

CSAS solar system

Cycle Life

1000 Cycles

Nominal Capacity

5kw 3kw 1000W 10kw 10 Kw 6kw 15kw

Certification

ISO, CE

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

off Grid Inverter

Solar Panel

Monocrystalline Solar Panel

Transport Package

Carton/Wooden Box

Trademark

CSAS/OEM/ODM

Origin

Jiangsu, China

HS Code

8501802000

Production Capacity

4500 Sets/Month

Product Description

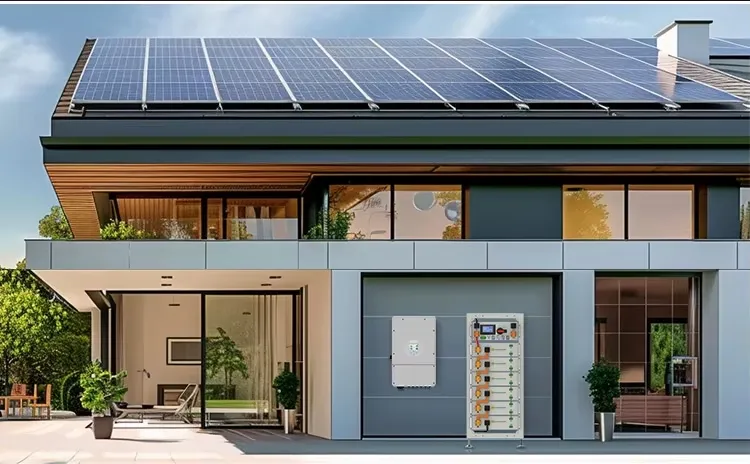

Photovoltaic Complete off Grid Solar Power System Overview

Product Parameters

Parts	Specification	SP5KW	SP6KW	SP8KW	SP10KW	SP12KW
Solar Panel	590W Mono Panel	6 Pieces	10 Pieces	12 Pieces	16 Pieces	20 Pieces
Hybrid Inverter	Single Phase/ Three Phase	1 pcs 5KW	1 pcs 6KW	1 pcs 8KW	1 pcs 10KW	1 pcs 12KW
LiFePO4 Battery	Powerwall/Rack-mounted, 48V 5/10KWH, optional	1 Pieces	2 Pieces	2 Pieces	2 Pieces	2 Pieces
Bracket	Ground or Roof (Customized Optional)	1 set	1 set	1 set	1 set	1 set
PV Cables	4mm²	100 meters	200 meters	200 meters	200 meters	200 meters
MC4 Connector	Male + Female	5 pairs	10 pairs	10 pairs	15 pairs	15 pairs
Installation Tools	Optional	1 set	1 set	1 set	1 set	1 set

Note: Product dimensions and physical appearance in this data sheet are nominal. The right to make the product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown, is reserved.

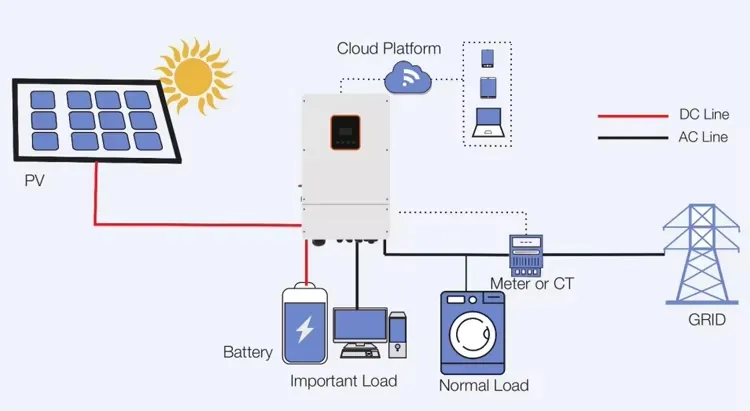

1. Solar Panel

2. Off Grid Inverter

3. Switch Box

4. Power Meter

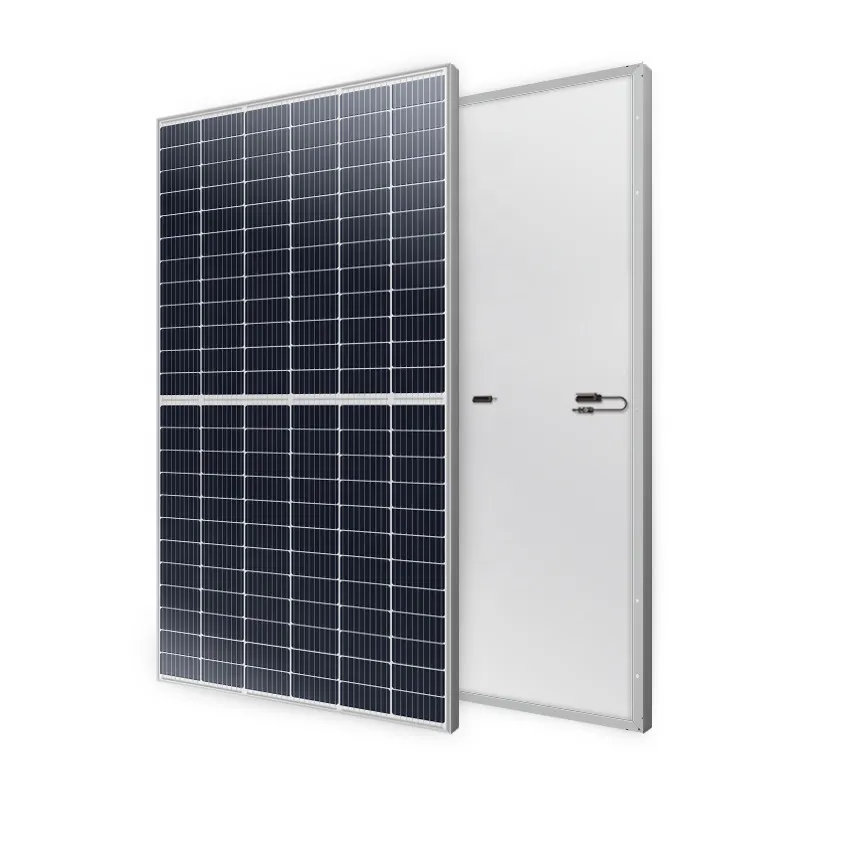

Mono Solar Panels

Peak Power Watts: 590W
Maximum Power Voltage: 41.5V
Maximum Power Current: 11.3A
Open Circuit Voltage: 48.5V
Short Circuit Current: 11.96A
Dimensions: 2094 * 1038 * 35 mm
Weight: 25 kg

Inverter with MPPT Controller

AC 220V/230V/50HZ, Capacity 5.5KW, MPPT voltage range 70-450Vdc, Maximum open-circuit voltage 500Vdc. Maximum photovoltaic connection 5.5kwp.
WIFI service is optional and supports connection updates.

Gross Weight (KG): 15
Packaging Dimensions (mm): 600 * 180 * 420
Volume (m³): 0.045

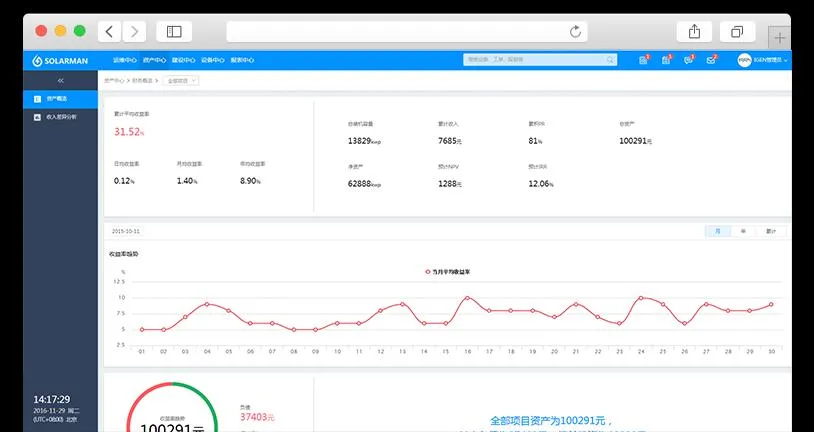

Remote Monitoring System

Data Logging Stick allows you to receive information from the solar power system, in order to keep you informed about the situation of your PV system and the atmospheric conditions, everywhere and every time, thanks to the web server, accessible via Wi-Fi, Lan or GPRS.
App Available for PC, iOS & Android

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

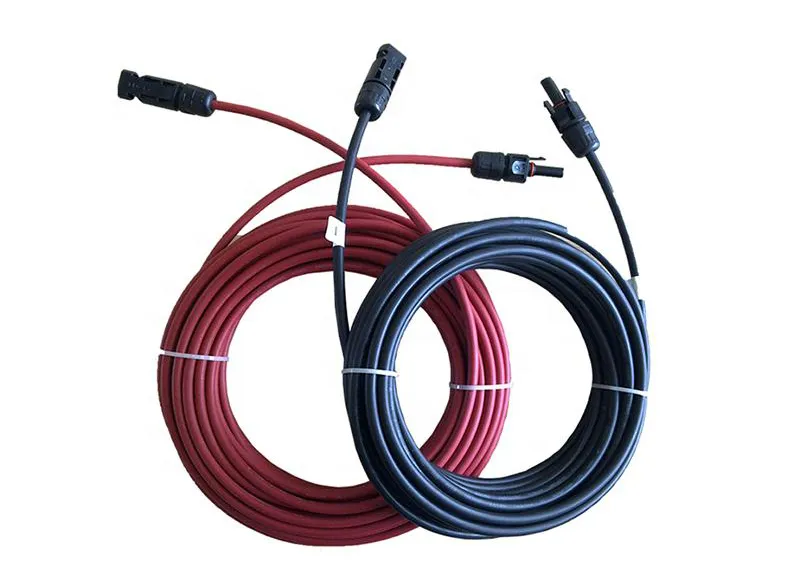

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC / 1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤ 25 Years

Lithium Battery

Capacity: 4.8KWH (Including battery connection cables and communication cables)
Gross Weight (KG): 103
Package Size (mm): 710 * 500 * 310
Volume (m³): 0.110

Frequently Asked Questions (FAQ)

Q1: What nominal capacities does the CSAS solar system support?

The system supports multiple capacity setups to suit various needs, including 1000W, 3kw, 5kw, 6kw, 10kw, and 15kw options.

Q2: What is the estimated cycle life of the LiFePO4 battery?

The lithium battery provides a robust performance cycle life of up to 1000 cycles, offering stable long-term energy storage.

Q3: Can the mounting system be installed on both ground and roof layouts?

Yes, the PV mounting system is versatile and supports both roof and ground installation. Custom brackets can be adjusted to fit specific architectural settings.

Q4: Does the system include a remote monitoring utility?

Yes, it features a Data Logging Stick that enables real-time updates and atmospheric monitoring through Wi-Fi, LAN, or GPRS. Dedicated applications are available for PC, iOS, and Android devices.

Q5: What certifications do these hybrid PV solar system components carry?

All major parts of the system are verified with CE and ISO certifications, meeting international standards for efficiency and safety.

Q6: What specifications apply to the DC cabling and connectors?

The setup uses TUV certified 4mm² (with 6mm² optional) DC cables rated at 600VDC/1000VDC, coupled with weather-resistant male and female MC4 connectors designed for up to 25 years of service life.
