| Model NO. | SOLAR POWER SYSTEM |
| Condition | New |
| Certification | ISO, CE, RoHS Soncap Pvoc Coc Saso FCC |
| Application | Home, Industrial, Commercial |
| Specification | Normal, 600*300*520mm |
| Output Voltage (V) | AC 220V |
| Solar Panel (W) | 450W-700W |
| Battery Type | Lead-Acid/Opzv/Lithium |
| Mounting Type | Ground Mounting, Roof Mounting, Carport Mounting |
| Work Time (H) | 24 Hours |
| Optional Part | Storage Battery |
| Technical Support | Solar System Installation Video |
| Solar Panel Type | Monocrystalline Silicon |
| Controller Type | MPPT |
| Output Frequency | 50/60Hz |
| Serve Life | 25 Years |
| Safety Class | Class a |

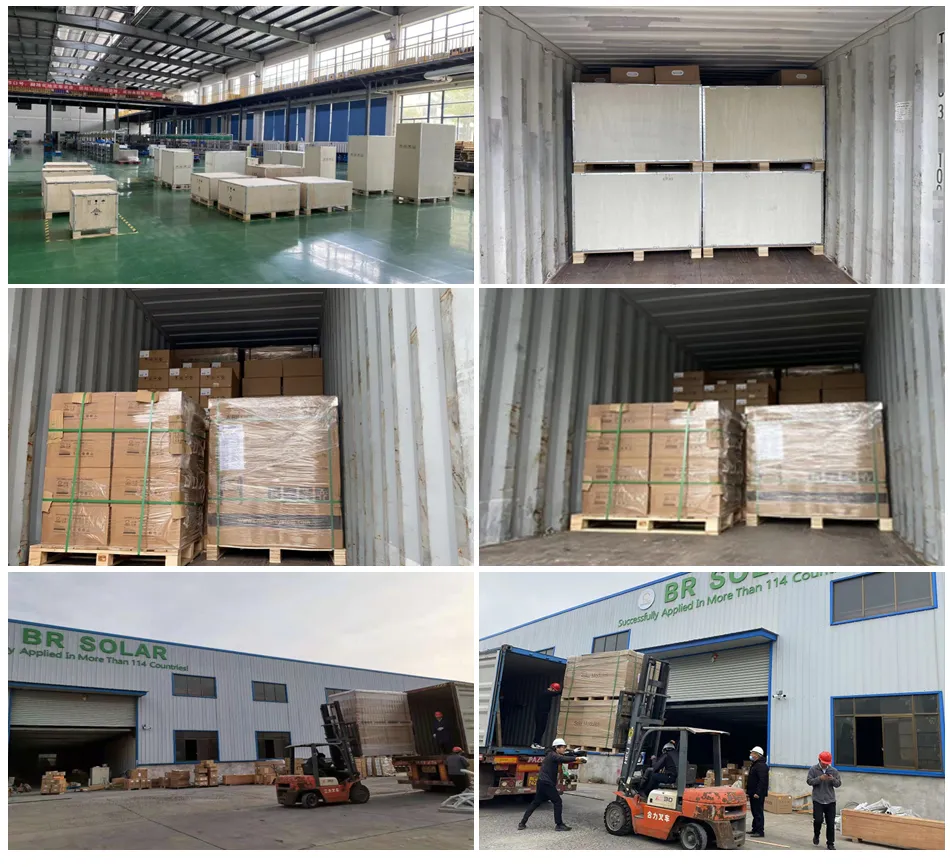

| Transport Package | Standard Export Carton with Foam Inside |
| HS Code | 8501610000 |
| Production Capacity | 50000 Set/Year |
| Package Size | 80.00cm * 50.00cm * 30.00cm |
| Package Gross Weight | 50.000kg |
WORKING PRINCIPLE FOR SOLAR POWER SYSTEM:
Solar System absorbs sun's energy to light up your home and power your home electrical appliances including charging mobiles.

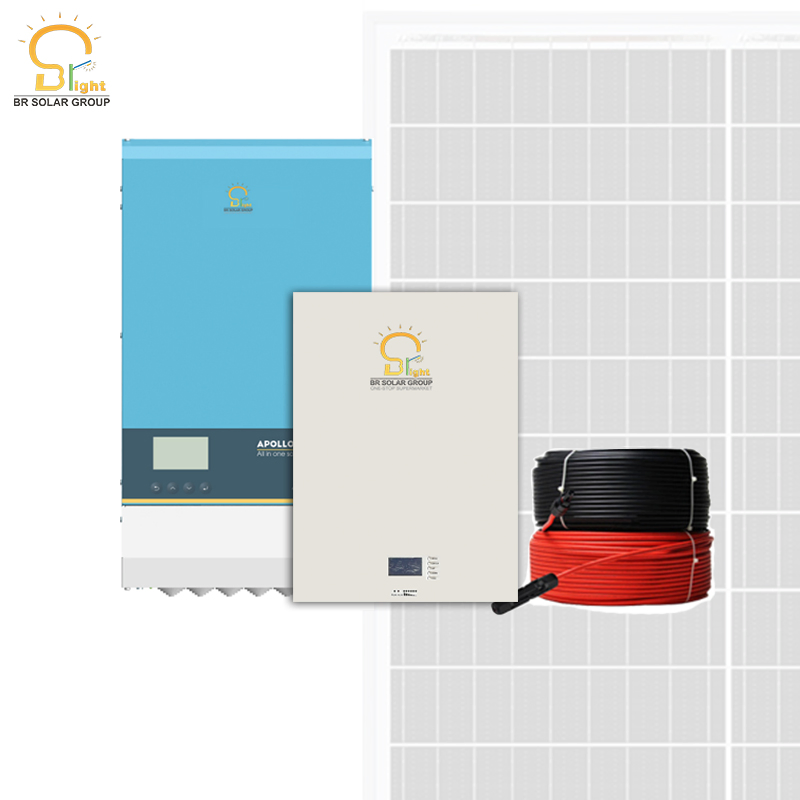

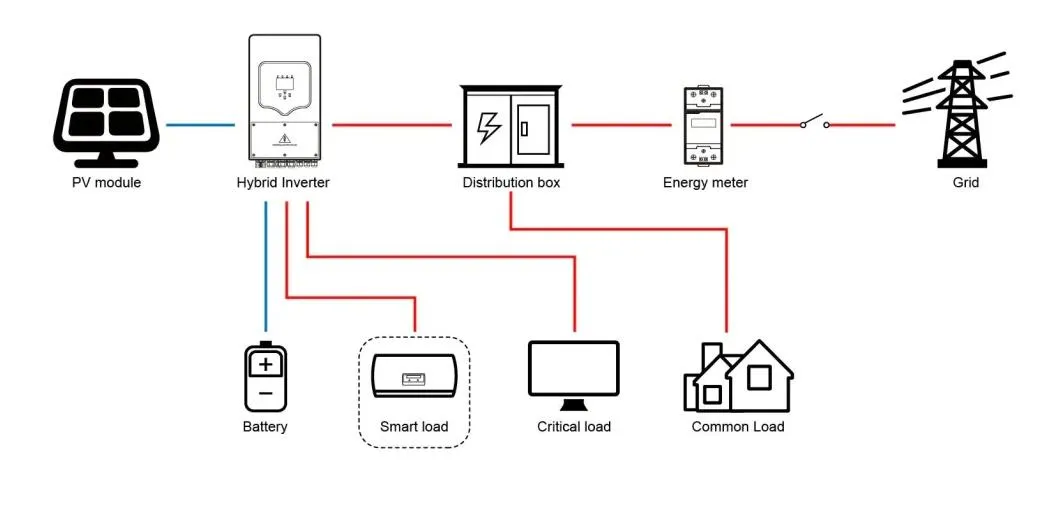

The components of the solar system includes solar panel, lighting bulbs, integration controlling box inside with charge controller, solar battery, and inverter. Some system can be with fan, TV set, laptop, air conditioner, etc.
Providing illumination powered from the sun energy, the solar panel in the system convert the sun's energy directly into electricity.
This electricity can be stored in the battery and used for lighting whenever required.
Our solar System, compact, portable and easily mountable, is an economical solution to all your power problems and comes in an easy-to-install kit.
The off grid solar system is widely used in the following places:
(More customized offers available upon inquiry)
| Part | Specification | Qty | Unit |
|---|---|---|---|
| Solar panel | N Type TOPCon Solar Module, TUV Certificate by Germany; connection method: 15 strings x 4 parallels, 25 Years Design Lifespan | 60 | Pcs |
| Bracket | Aluminum alloy rail tripod system, Anti-Rust, Anti-Corrosion, Anti-Salt Spray, wind resistance ≥150KW/H | 1 | Set |

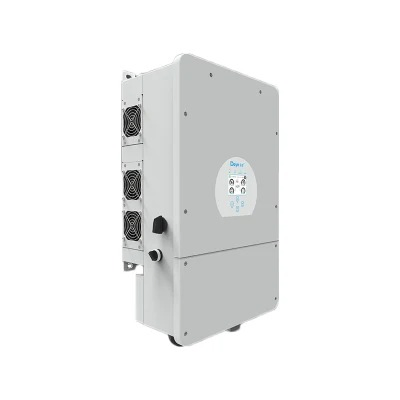

| Hybrid Inverter 50KW with WIFI monitor | Hybrid Inverter 50KW/380AC 3PHASE 1. AC input: 380/400VAC. 2. Support grid/Diesel Input. 3. Pure sine wave, power frequency output. 4. AC output: 380/400VAC, 50/60HZ (optional). 5. Battery Voltage range: 40-60 low voltage. 6. 6 time periods for battery charging/discharging. 7. Max. charging/discharging current of 240A. 8. Frequency droop control, Max.16pcs parallel. 15 Years Design Lifespan |
1 | Pcs |

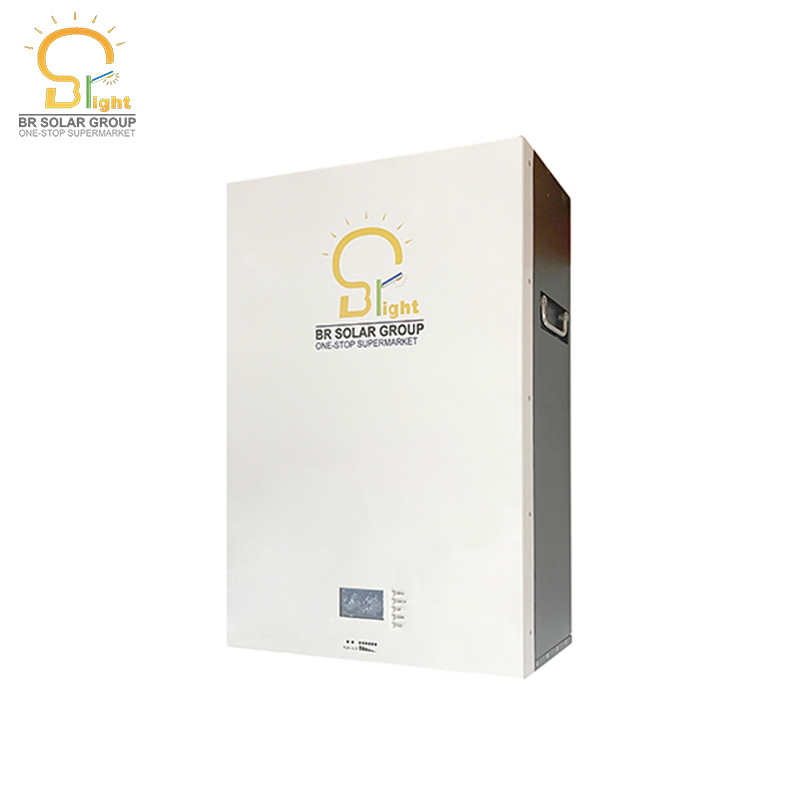

| Lithium Battery | 51.2V--280AH modules, *7pcs, Including high voltage box. 1. DOD: 90%, >6000 cycles. 2. Communication: CAN. 3. Battery protection: Over-current/Over-voltage/Short circuit/Under-voltage. Total 100.3KWH. 15 Years Design Lifespan |
1 | Set |
| Connector | MC4 Rated Voltage: 1000V DC, rated current: 30A, Water-proof and dust-proof grade: IP67, Ambient temperature: -40ºC to +85ºC | 10 | Pairs |
| PV cables (solar panel to PV combiner box to Inverter) | 6mm² Pure Copper | 200 | M |
| BVR cables (Battery Box to Inverter) | 25mm² Pure Copper | 20 | M |
| Groundwire | 10mm² | 20 | M |
| Grounding | Φ16 | 1 | Pcs |
| AC Connecting cables | YJV3*25+2*16mm² | 20 | M |
| AC Distribution Board | 50KW | 1 | Pcs |
| Mc4 Crimping Tool Kits | Free | 1 | Set |
| Item | Part | Specification | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Solar panel | Mono Half Cell, Class A+, 21.6% Efficiency | 4pcs | Class A+ Grade, 550W, TUV Certificate authorized by Germany; connection method: 2 strings x 2 parallels; daily power generation: 9.3KWH, 25 Years Design Lifespan |
| 2 | Y-TYPE MC4 CONNECTOR | 2-1 | 1pc | 4 inputs, 1 output; 20 Years Design Lifespan |
| 3 | Mounting Bracket | Hot-dip Galvanized Rooftop Mounting Brackets | 1set | Rooftop Mounting Brackets; Anti-Rust, Anti-Corrosion, Anti-Salt Spray, wind resistance ≥160KW/H; 35 Years Design Lifespan |
| 4 | Power Frequency Inverter | Bright Series All in one Inverter 48V/5kw | 1set | 1. AC input: 220VAC. 2. Support grid/Diesel Input. 3. Pure sine wave, power frequency output. 4. AC output: 220VAC, 50/60HZ (optional). 15 Years Design Lifespan |
| 5 | Deep Cycle GEL Battery | 2218 Times 30% Deep Cycling Gelled Battery 12V-200AH | 4pcs | European Projects Standard 58KGS Design; 4pcs in series; Total release power: 6.7KWH; 12 Years Design Lifespan |
| 6 | MC4 Connector | MC4 | 2 pairs | 20 Years Design Lifespan. Included length for free. Longer length needs negotiation. |
| 7 | PV cables (solar panel to PV combiner box) | 4mm² | 60m | 20 Years Design Lifespan |
| 8 | BVR Cables (PV combiner box to Controller) | 6mm² | 10m | |
| 9 | BVR Cables (Controller to Battery) | 16mm² | 2sets | |
| 10 | BVR Cables (Inverter to Battery) | 25mm² | 2sets | |
| 11 | Connecting Cables | 25mm² | 4sets | |
| 12 | Breaker | 2P63A | 1pc | |
| 13 | Installation Tools | PV Installation Package | 1 Package | FREE GIFTS |
| 14 | Extra Accessories | FREE CHANGING | 1 SET | FREE GIFTS |
(More diagrams available upon inquiry)

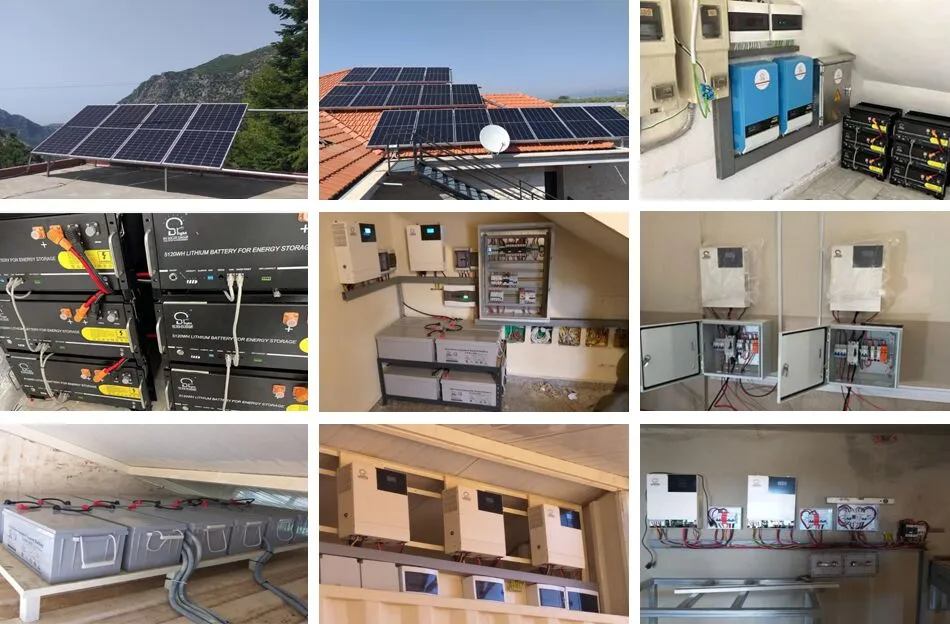

We choose quality material; Quality is our culture. Our solar products have been successfully applied in more than 128 countries including UN projects and NGO projects.
