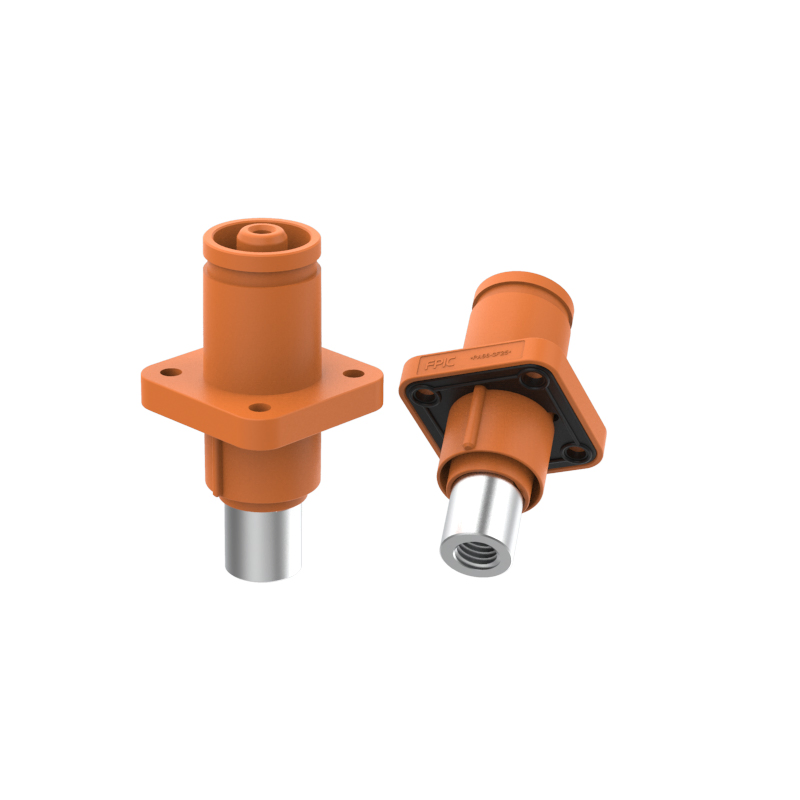

Connector Battery Cable Battery Pack Connectors Solar Panel Energy Storage Connectors

1 / 5

Connector Battery Cable Battery Pack Connectors Solar Panel Energy Storage Connectors

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

OEM

Rated Voltage

1000V DC

Rated Current

60-500A

Dielectric Strength

3000V AC

Insulation Resistance

1000ohm Min

Contact Resistance

0.2 Ohm Max

IP Grade

IP67

Operation Temperature

-40 Degree ~ +125 Degree

Flammability

94V-0

Environment

RoHS Compliance

Color

Red, Orange, Black

Insulation Material

PA66

Contact Material

Copper

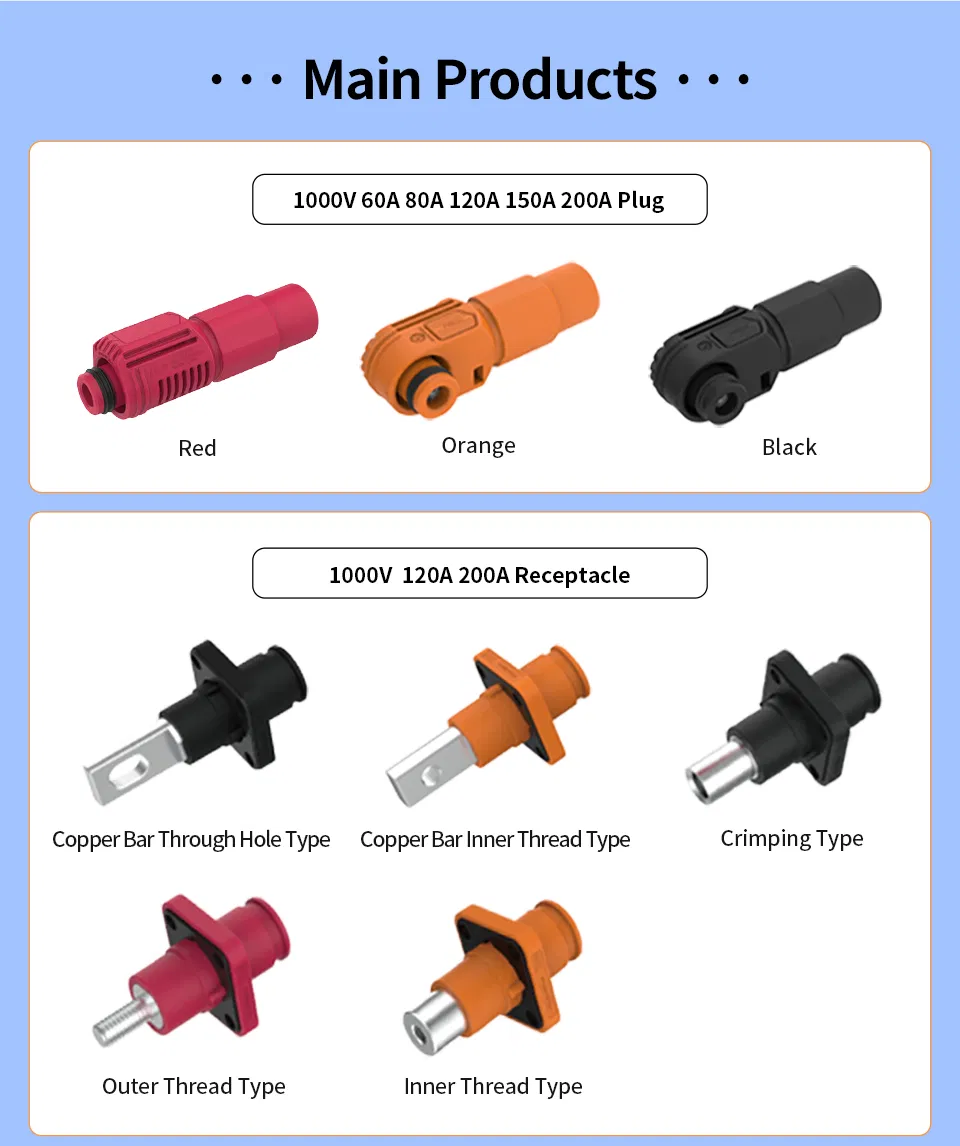

Connection Type

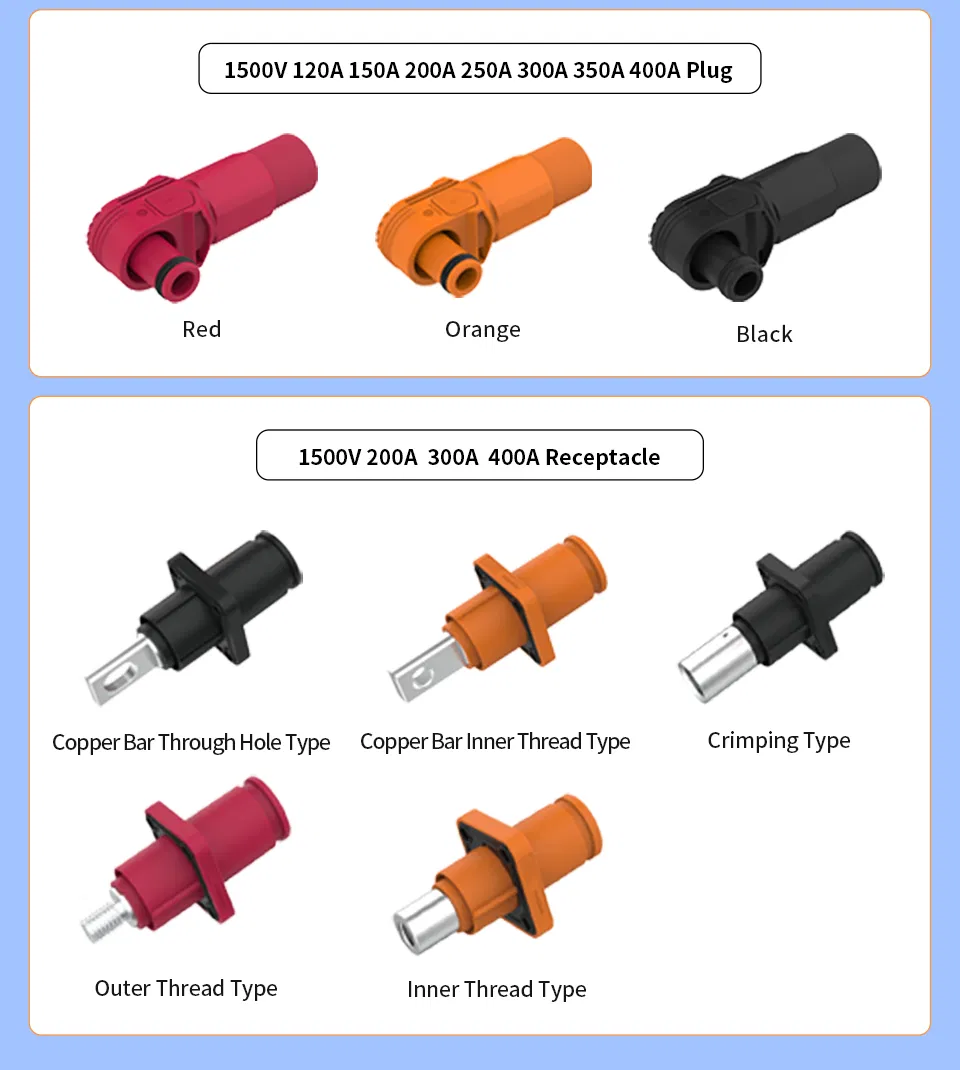

Copper Bar Through Hole, Crimping, Inner T Inner

Wire Size

10mm2 ~ 150mm2

Durability

>=500

Transport Package

Carton + Pallet

Specification

Energy Storage Connector

HS Code

8548900090

Production Capacity

500000PCS/Day

Packaging & Delivery

Package Size

20.00cm * 10.00cm * 20.00cm

Package Gross Weight

1.000kg

Product Description

Trusted Leading Manufacturer with over 20 years of experience.
Our products serve the automotive, new energy, industrial automation, and medical devices markets. We boast our own R&D/testing centers, full-process production departments, and multiple international management system certifications (ISO9001, ISO14001, etc.) as well as product certifications (UL, TUV).

Product Information		Product Parameter
Housing Material	PA66+GF25	Rated Current	60A, 120A, 150A, 200A, 300A, 350A, 400A, 450A
Connection Type	Thread/Through Hole	Rated Voltage	1000V DC, 1500V DC
Palm Rejection	IP2XB	Voltage Resistance	3000V AC, 4000V AC
Installation Location	Front Back Installation	Insulation Resistance	1000MΩ Min
Pin Size	6.0-14.0mm, Customized	Life Time	>100 Cycles
Operation Temp.	-40°C ~ 125°C	IP Level	IP67

⚙️ Energy Storage Connector & Cables Key Features

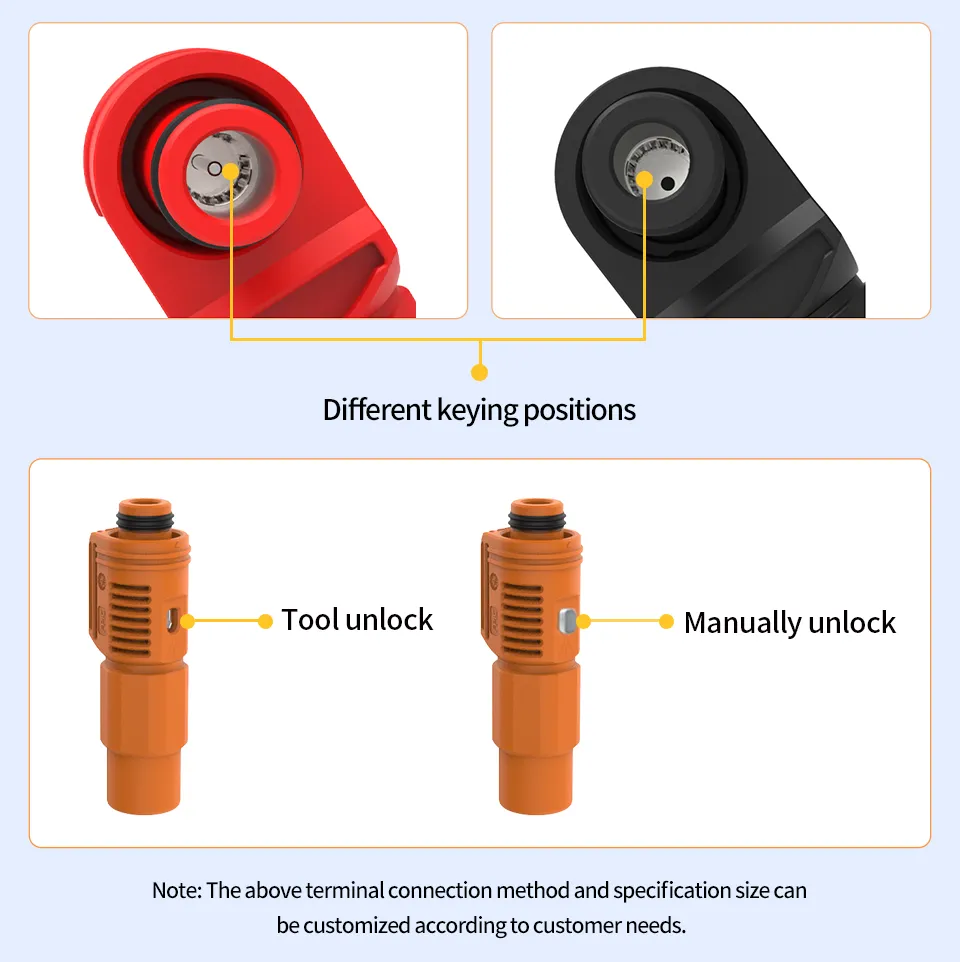

Ease of Assembly: User-friendly press-to-release design, simplifying the assembly process without the need for tools, saving valuable time during installation.

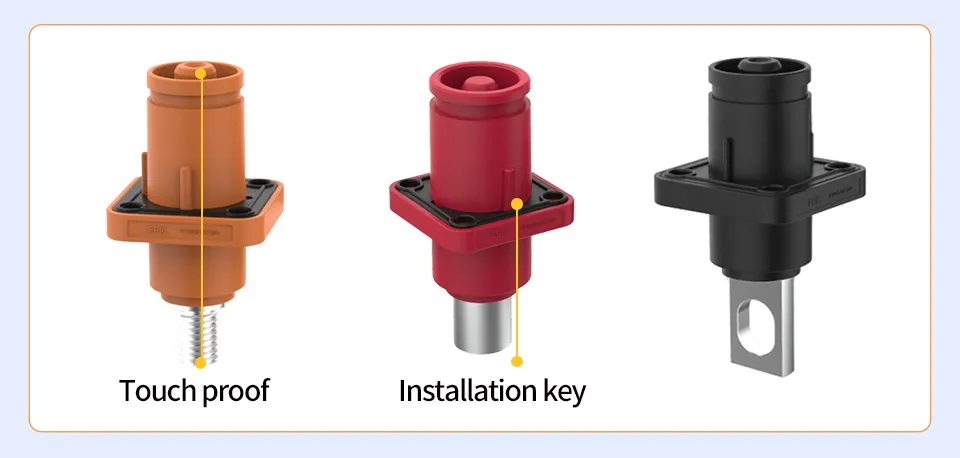

Safety and Reliability: Prioritized safety via touch-proof design, guaranteeing secure connections and preventing accidental finger contact.

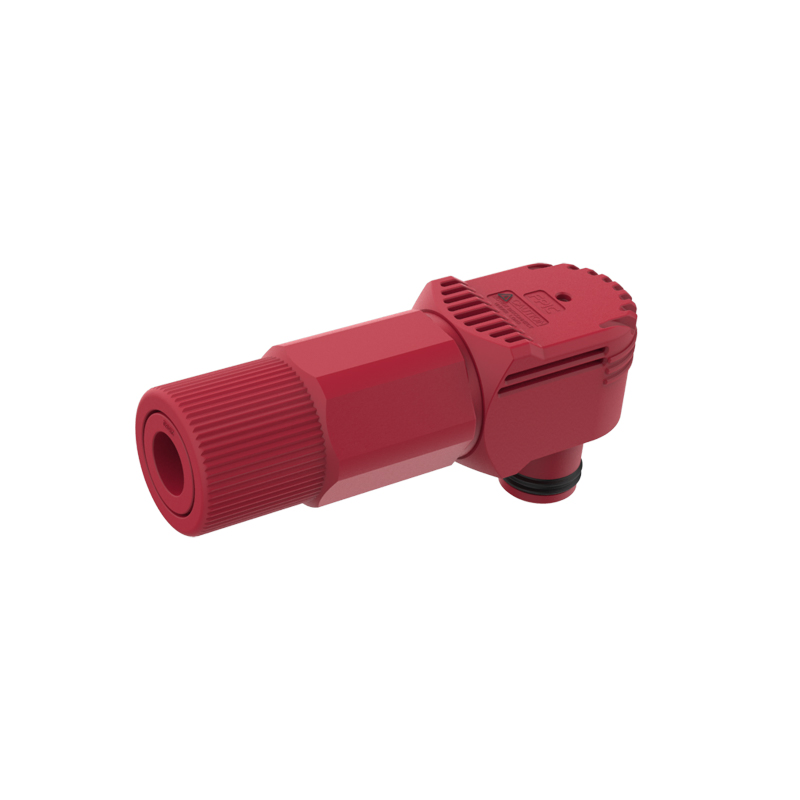

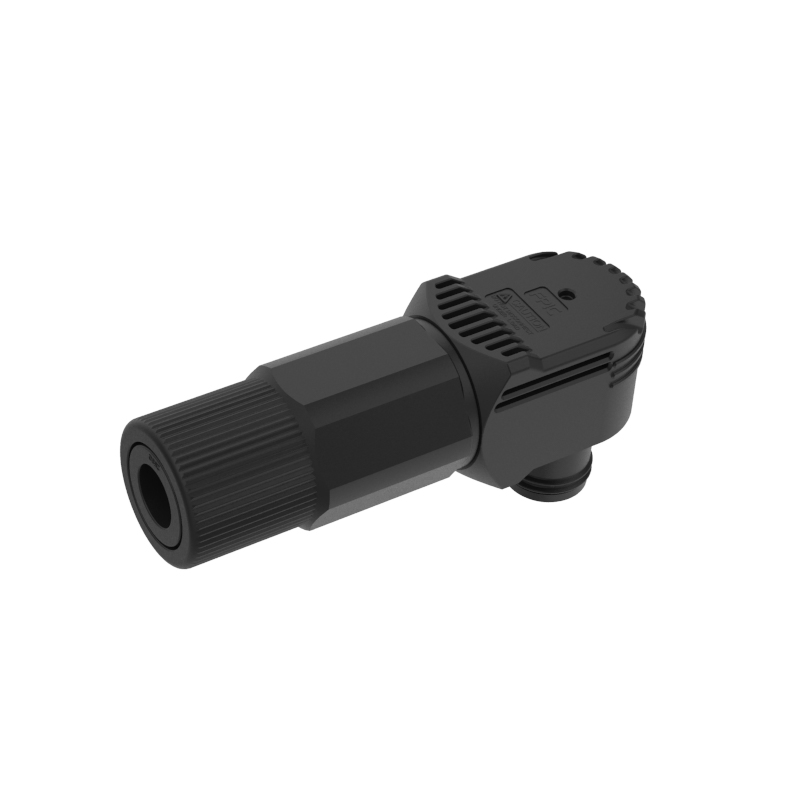

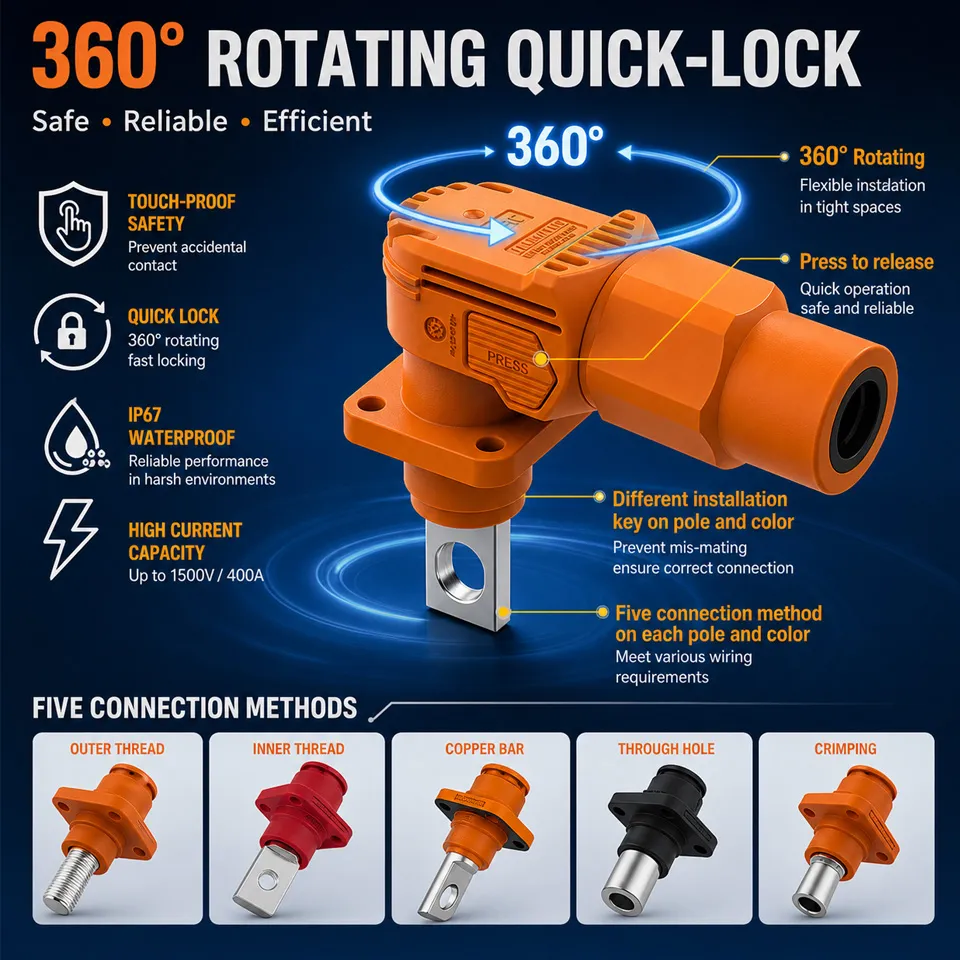

360° Rotating Plug: Innovative rotating plug design provides flexibility during installation, optimizing space usage, and ensuring effortless operation.
Compact and Fire-Resistant: Compact design with a fire-resistant UL 94-V0 material housing, enhancing safety and protection for all applications.
RoHS Compliance: Adheres to RoHS standards, complying with global regulations for hazardous substance restriction.
Cost-Effectiveness: Superior performance and reliability, offering a highly cost-efficient solution.

🚀 Energy Storage Connector & Cables Applications

Energy Storage Systems (BMS/Energy Storage): Crucial to energy storage systems, optimizing power distribution and management.
Electric Vehicles (EV/HEV): Facilitates fast and secure charging, contributing to EV adoption.
Rail Mass Transit: Ensures reliable power transmission, supporting safe and efficient rail transportation.
Process Control and Automation: Meets the demands of process control and automation applications, ensuring uninterrupted power supply.
Heavy Equipment: Provides reliable connections, facilitating seamless power delivery in challenging environments.

Why Choose Our Energy Storage Connectors

20+ years connector manufacturing experience
ISO 9001 / ISO 14001 / IATF 16949 / ISO 45001 certified
Custom design & zero-risk development support
Stable mass production & fast lead times
In-house testing & strict quality control

Company Profile

We are a leading and experienced manufacturing vendor dedicated to the development of metal and plastic parts. For over 20 years, we have specialized in the design and production of connectors and cable assemblies. Our market spans the automotive, new energy, industrial automation, and medical devices sectors.

We are certified by ISO 9001, ISO 14001, ISO 45001, IATF 16949, and ISO 13485, and we are also a member of the USB Association, with UL and TUV certifications.

Our goal is to provide a unique service experience and add value for our customers through end-to-end management. We take pride in our reputation for being fast, flexible, and customer-focused.

Frequently Asked Questions

What kinds of products can you provide?

We provide OEM/ODM spare parts, focusing on tooling and mass production of metal stamping parts, injection-molded plastic parts, and insert-molding components.

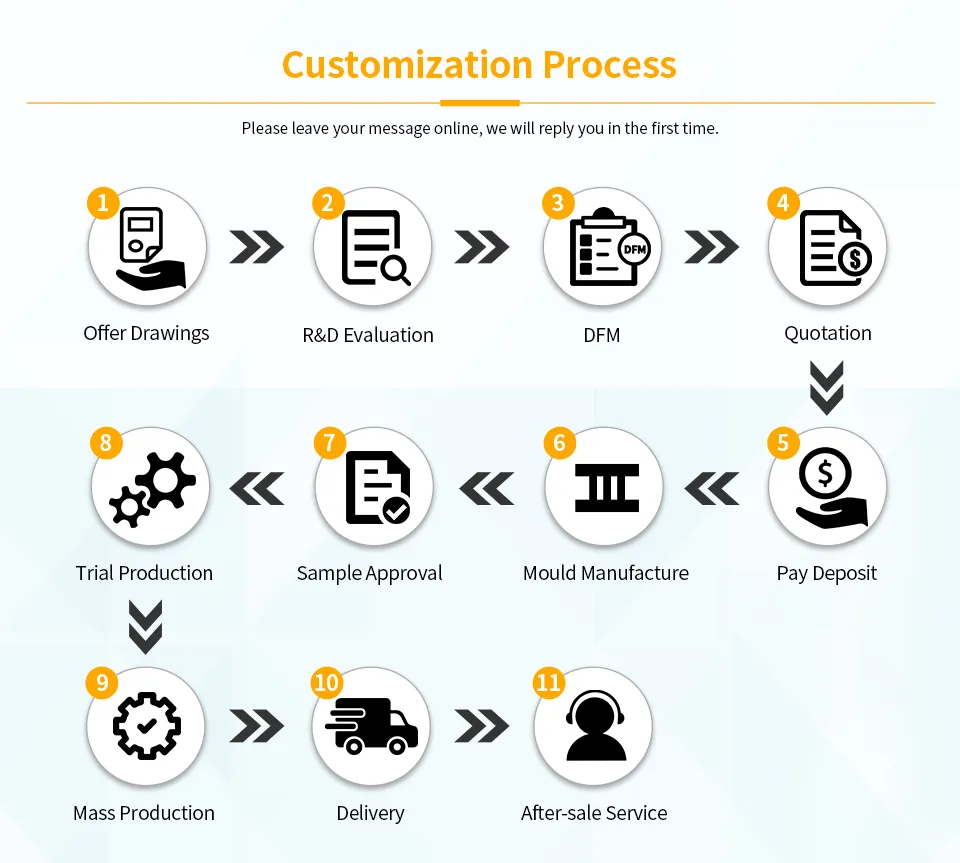

What kind of information is required for a quotation?

To provide an accurate quote quickly, please share the following details:

1. 3D drawings (STEP, CAD, SolidWorks, PROE, DXF, and PDF)

2. Material requirements (contact and insulation materials)

3. Surface treatment specifications

4. Estimated quantity (per order, monthly, or annually)

5. Any special requirements such as packaging, labeling, or delivery demands.

What should we do if we do not have product drawings?

You can send your physical sample to us. We can analyze it to replicate or provide optimized solutions. If you place an order, we will create the CAD or 3D files for your review and approval.

What makes your connector products different from competitors?

We stand out through our professional R&D team of engineering experts, our advanced automated production machinery, and our comprehensive in-house quality testing equipment.

Is it possible to track the progress of my order without visiting?

Yes. We provide a detailed production schedule and send regular reports complete with photos or videos showing the current manufacturing status.

Can I place a trial order or request a few samples first?

Yes, sample and trial orders are welcome. Since products are customized, we charge a sample production fee, which is fully refundable once mass production orders are finalized.
