| Model NO. | M16 |
| Application | Power |
| Certification | CE, ISO 9001, RoHS |
| Terminal Material | Copper |
| Interface Type | AC/DC |
| Current Rating | 10A |
| Voltage Rating | 300V |
| Waterproof Level | IP67/IP68 |
| Connector Type | Connector with Open Wire End |
| Wire Gauge | 0.2-1.0mmsq |
| Cable OD | 3-7.5mm |
| Transport Package | Carton |
| Specification | 2 to 6 pin |
| Origin | China |
| HS Code | 8536690000 |
| Production Capacity | 5000 sets/Week |
| Package Size | 30.00cm * 2.00cm * 3.00cm |
| Package Gross Weight | 0.500kg |

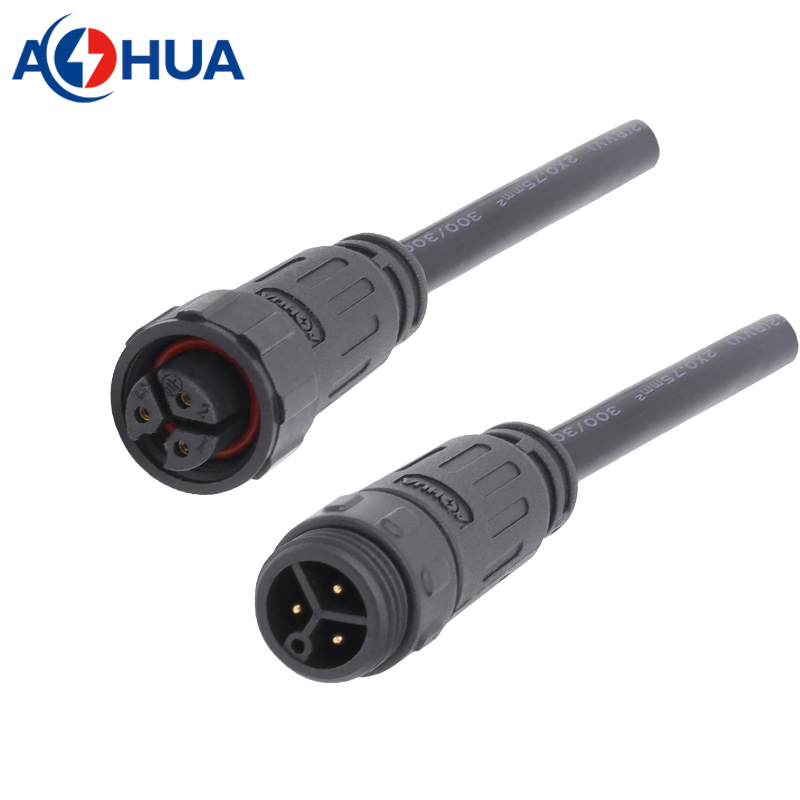

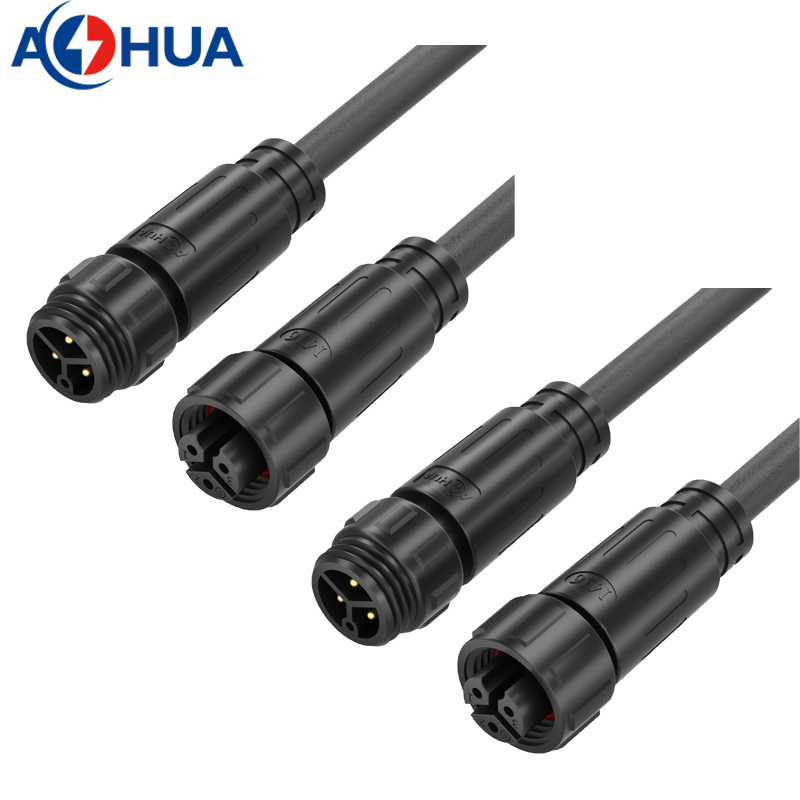

3 Pin Solar LED Lighting Power Cable Driver Waterproof Connector
Please provide the following details before requesting a quotation:
These connectors are also widely referred to as waterproof plugs, IP connectors, LED connectors, power connectors, cable connectors, circular connectors, and nylon waterproof wire connectors.
Please select the wire size and cable outer diameter (OD) to ensure the proper connector pairing.
| Contact Numbers | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 6 Pin |
|---|---|---|---|---|---|
| Voltage Rating | 300V | 300V | 250V | 110V | 110V |
| Current Rating | 10A | 10A | 4A | 2A | 2A |
| Wire Size | ≤1.0mm² | ≤1.0mm² | ≤0.5mm² | ≤0.3mm² | ≤0.3mm² |
| Cable OD | 6.0mm - 8.3mm |
| Mechanical Life | 3,000 Mating Cycles |
| Operating Temperature | -40ºC to +105ºC |
| Waterproof Level | IP67 |
These connectors are widely applied in power transmission, drivers, controllers, signal systems, outdoor LED lighting, electrical equipment, and outdoor exploration gear.
The M16 connector provides a favorable waterproof level rated at IP67/IP68, which ensures complete protection against dust and water ingress in outdoor installations.
You can choose between 2, 3, 4, 5, or 6 pin configurations depending on your system's power and signal requirements.
These connectors are built to withstand extreme environmental conditions, operating efficiently within a temperature range of -40ºC to +105ºC.
The connectors are fully compliant with international safety and quality standards, carrying CE, ISO 9001, and RoHS certifications.

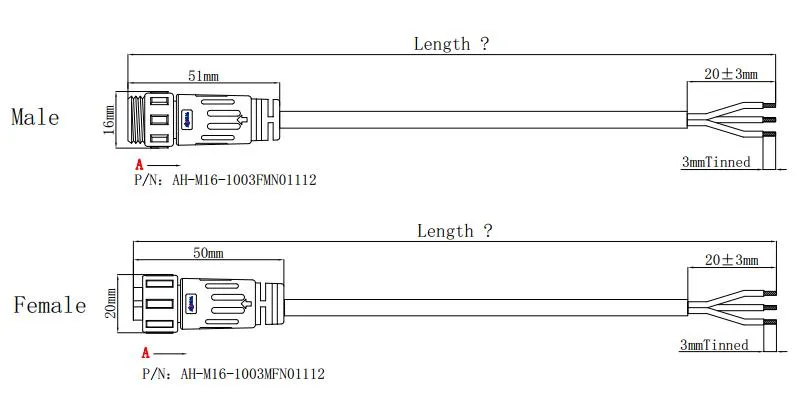

Please provide your required pin configuration (number of contacts), working amperage/voltage specifications, wire gauge, and the desired cable length.
