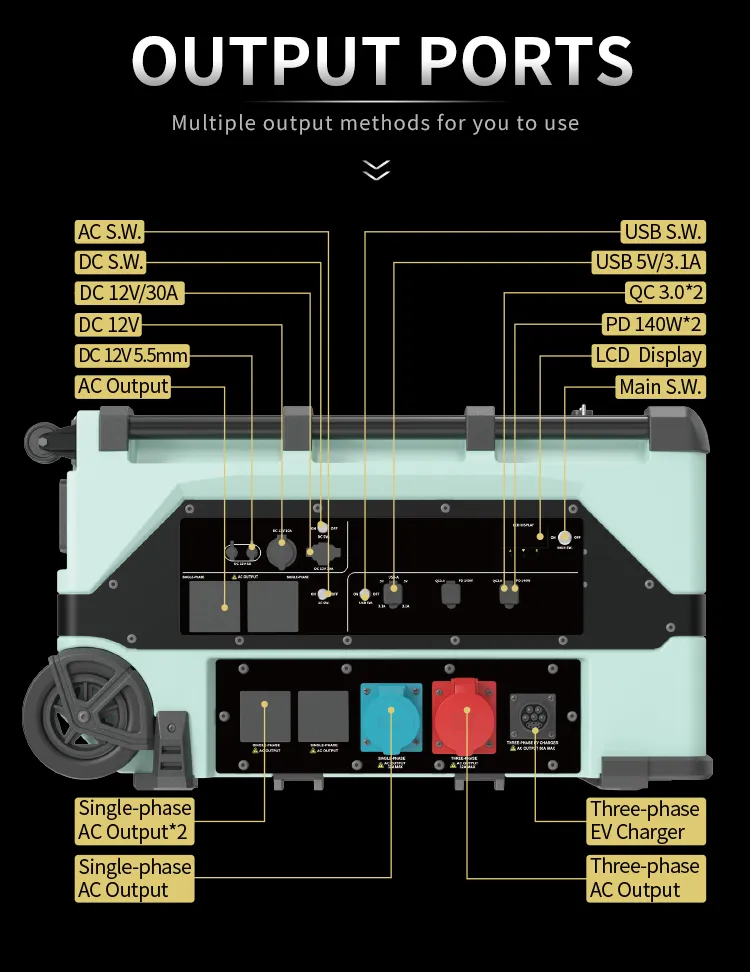

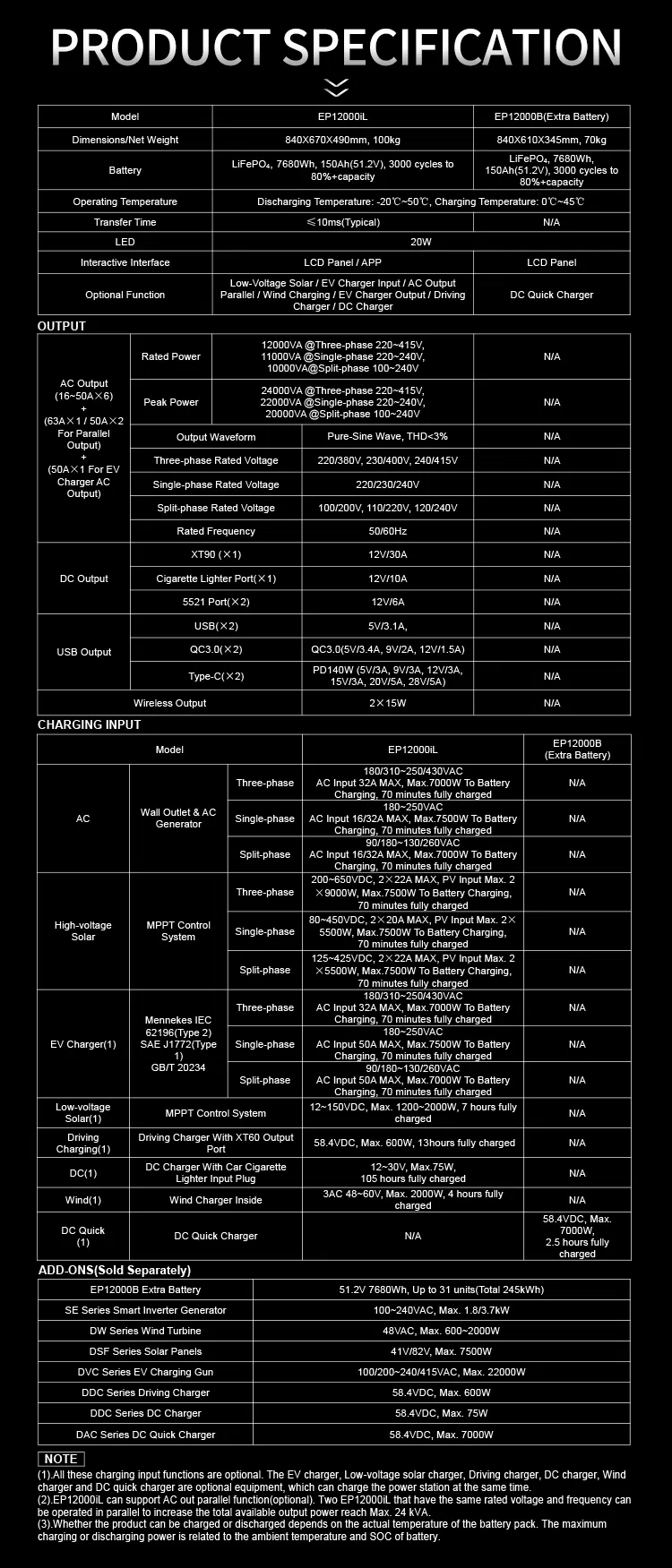

| Output Type | Parameter Key | Specifications | Notes |
|---|---|---|---|

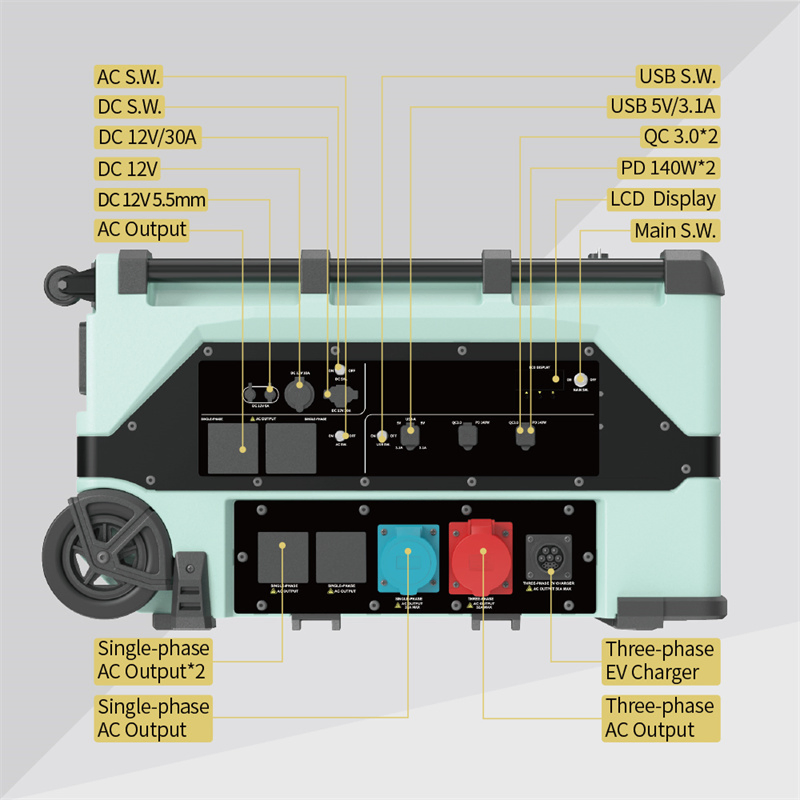

| AC Output (16~50A×6) + (63A×1 / 50A×2 For Parallel) + (50A×1 For EV Charger) |

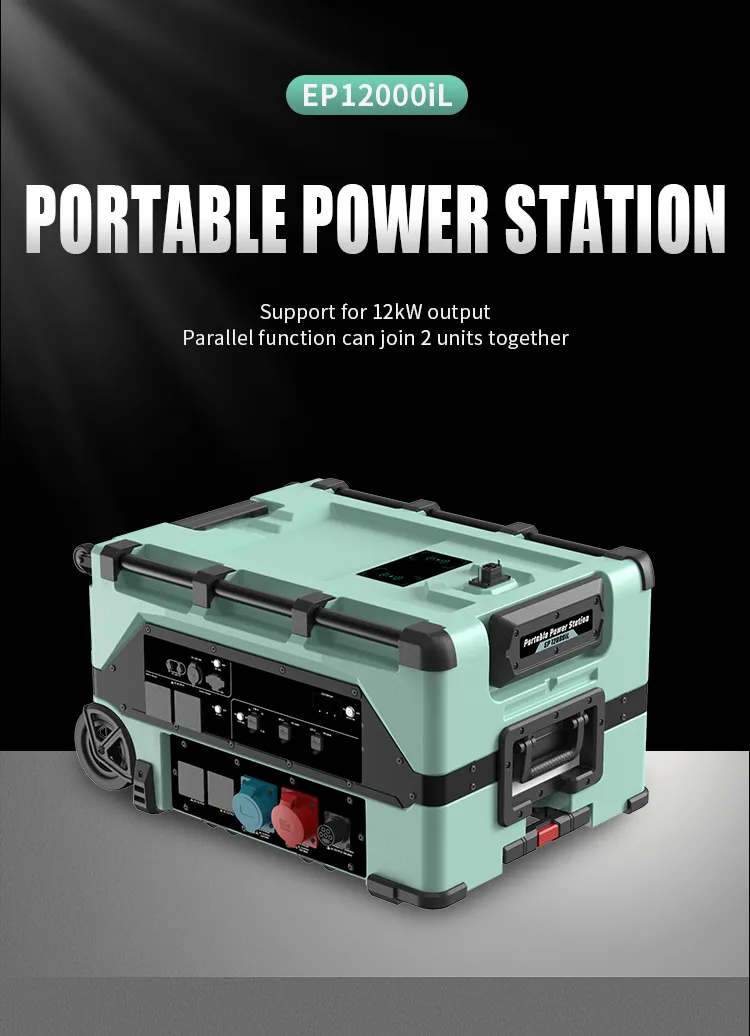

Rated Power | 12000VA @Three-phase 220~415V, 11000VA @Single-phase 220~240V, 10000VA @Split-phase 100~240V |
N/A |
| Peak Power | 24000VA @Three-phase 220~415V, 22000VA @Single-phase 220~240V, 20000VA @Split-phase 100~240V |
N/A | |

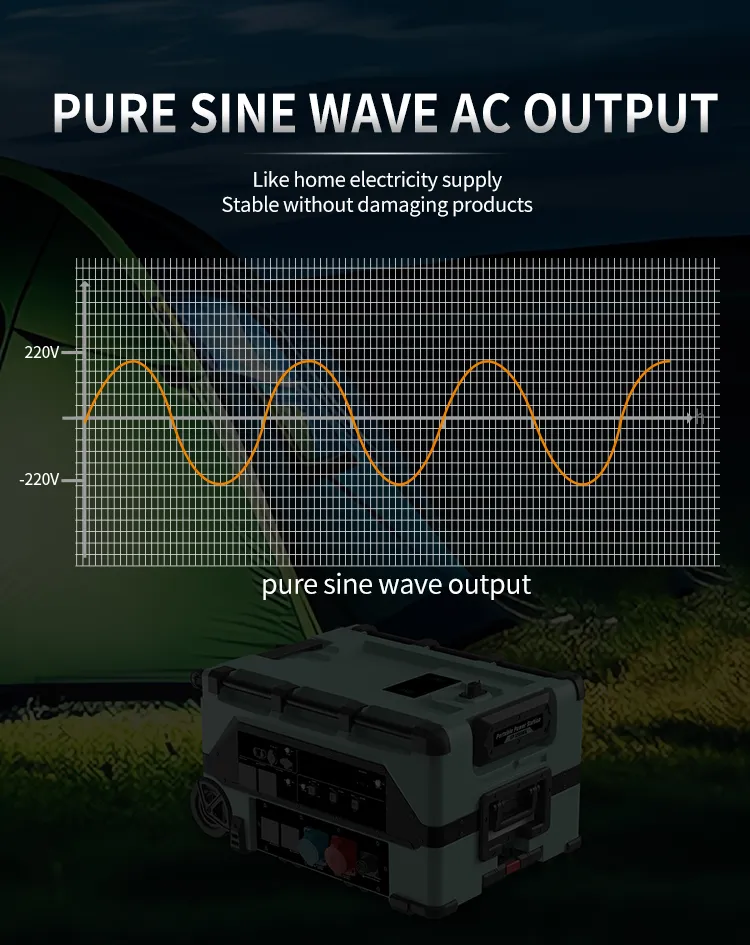

| Output Waveform | Pure-Sine Wave, THD < 3% | N/A | |
| Three-phase Rated Voltage | 220/380V, 230/400V, 240/415V | N/A | |
| Single-phase Rated Voltage | 220/230/240V | N/A | |
| Split-phase Rated Voltage | 100/200V, 110/220V, 120/240V | N/A | |
| Rated Frequency | 50/60Hz | N/A | |
| DC Output | |||
| DC Output Ports | XT90 (×1) | 12V/30A | N/A |
| Cigarette Lighter Port (×1) | 12V/10A | N/A | |
| 5521 Port (×2) | 12V/6A | N/A | |
| USB Output | |||
| USB Output Ports | USB (×2) | 5V/3.1A | N/A |
| QC3.0 (×2) | 5V/3.4A, 9V/2A, 12V/1.5A | N/A | |
| Type-C (×2) | PD 140W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A) | N/A | |

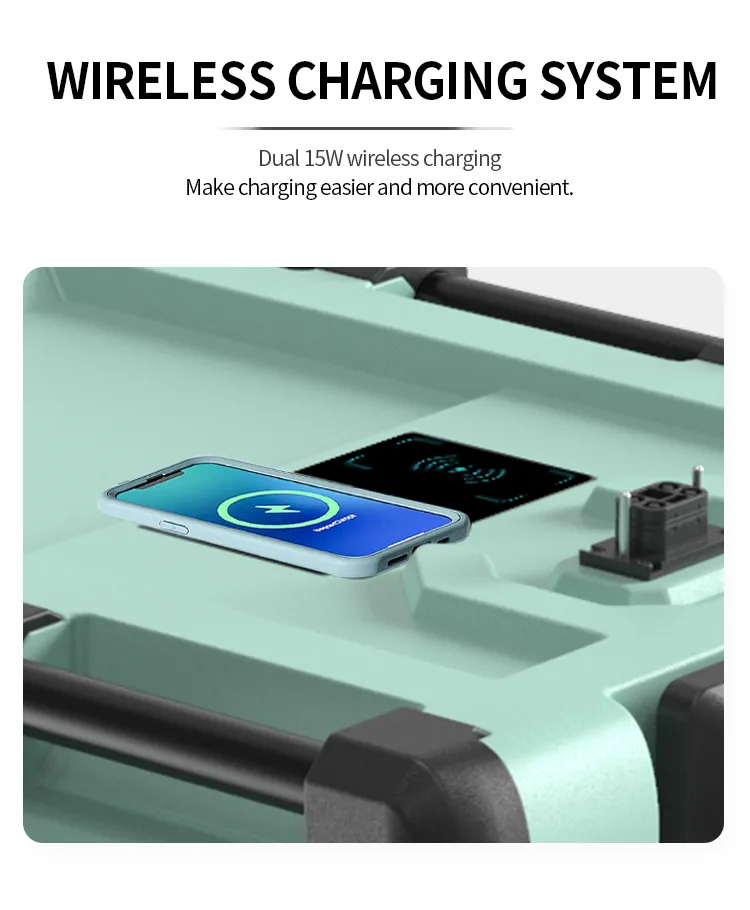

| Wireless Output | Wireless Charging (×2) | 2 × 15W | N/A |

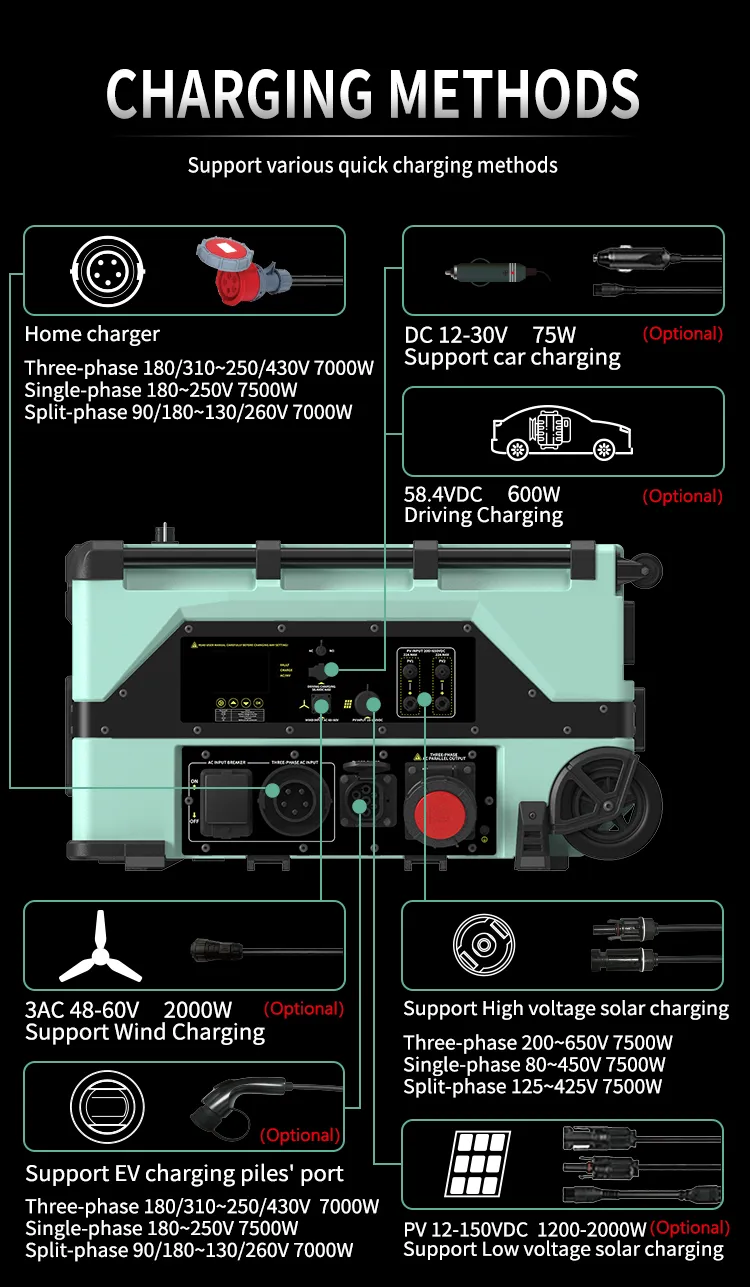

| Charging Source | Charging Mode | EP12000iL | EP12000B (Extra Battery) |
|---|---|---|---|
| AC (Wall Outlet & Generator) | Three-phase | 180/310~250/430VAC, AC Input 32A Max. Max 7000W to battery charging. (70 mins fully charged) | N/A |

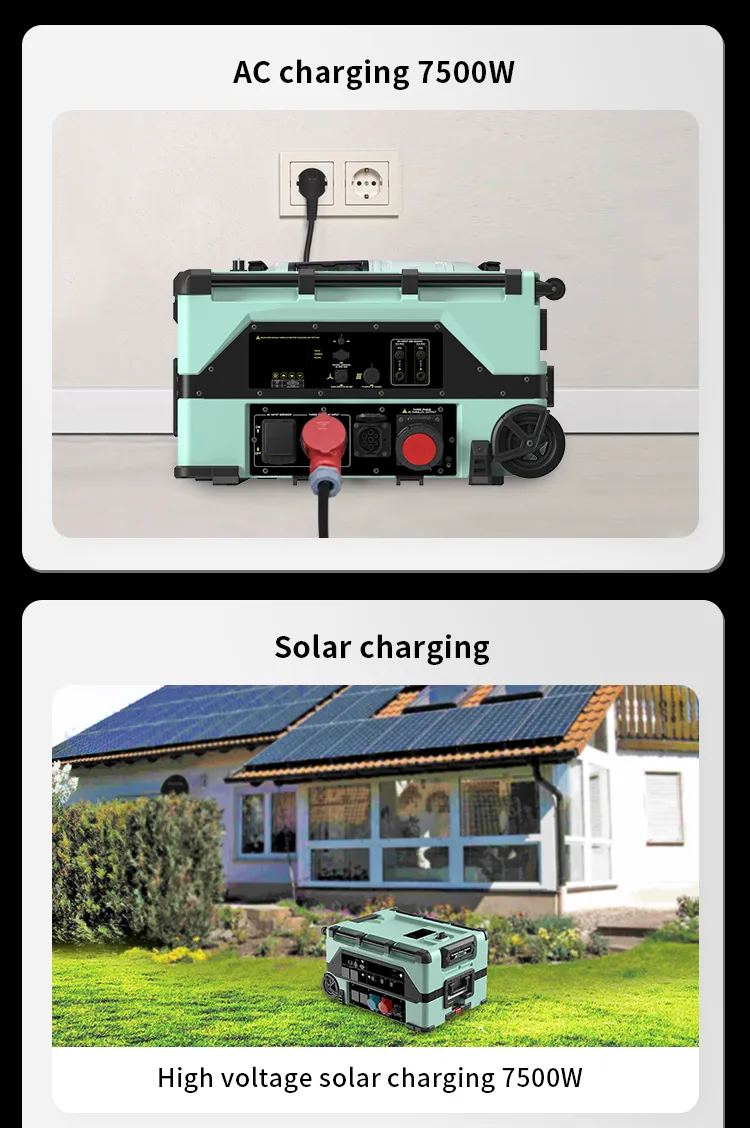

| Single-phase | 180~250VAC, AC Input 16/32A Max. Max 7500W to battery charging. (70 mins fully charged) | N/A | |
| Split-phase | 90/180~130/260VAC, AC Input 16/32A Max. Max 7000W to battery charging. (70 mins fully charged) | N/A | |
| Solar & Alternative Inputs | |||

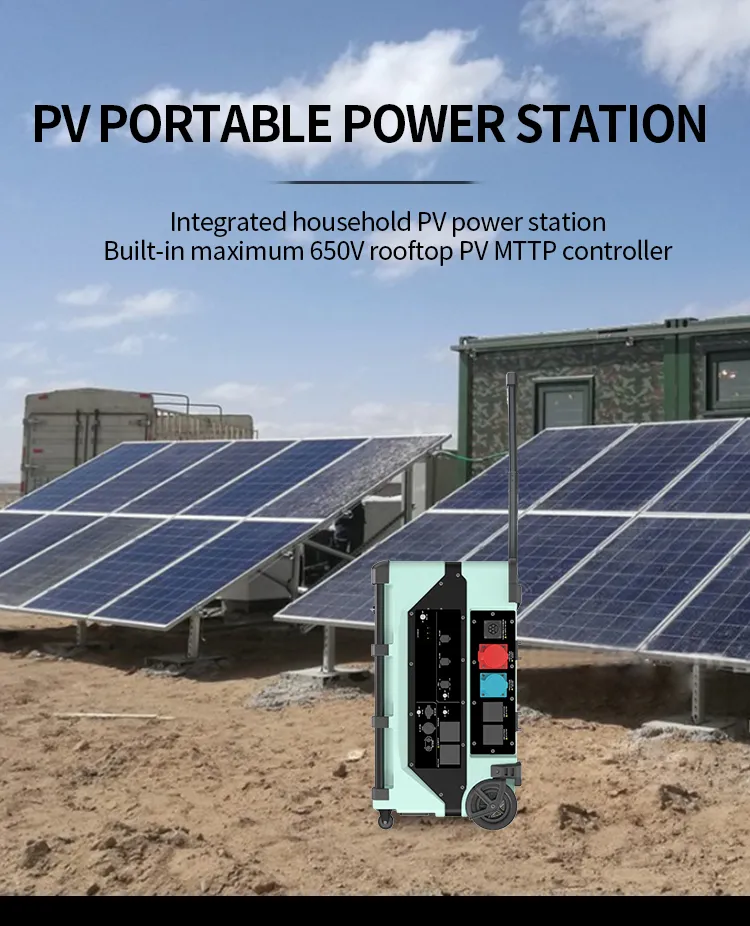

| High-voltage Solar (MPPT) | Three-phase | 200~650VDC, 2×22A Max, PV Input Max 2×9000W. Max 7500W to battery. (70 mins fully charged) | N/A |
| Single-phase | 80~450VDC, 2×20A Max, PV Input Max 2×5500W. Max 7500W to battery. (70 mins fully charged) | N/A | |
| Split-phase | 125~425VDC, 2×22A Max, PV Input Max 2×5500W. Max 7500W to battery. (70 mins fully charged) | N/A | |

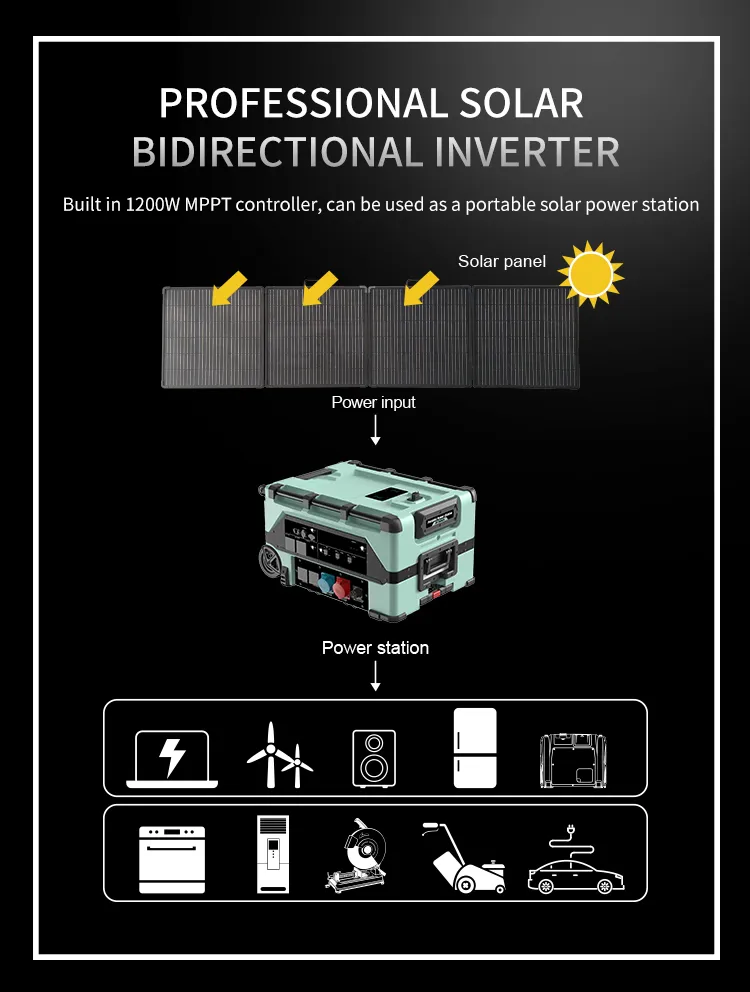

| Low-voltage Solar | MPPT Control System | 12~150VDC, Max 1200~2000W. (7 hours fully charged) | N/A |
| Driving Charging | Driving Charger (XT60) | 58.4VDC, Max 600W. (13 hours fully charged) | N/A |
| DC Input | Car Cigarette Plug Input | 12~30V, Max 75W. (105 hours fully charged) | N/A |
| Wind Input | Wind Charger Inside | 3AC 48~60V, Max 2000W. (4 hours fully charged) | N/A |
| DC Quick Charge | DC Quick Charger | N/A | 58.4VDC, Max 7000W. (2.5 hours fully charged) |

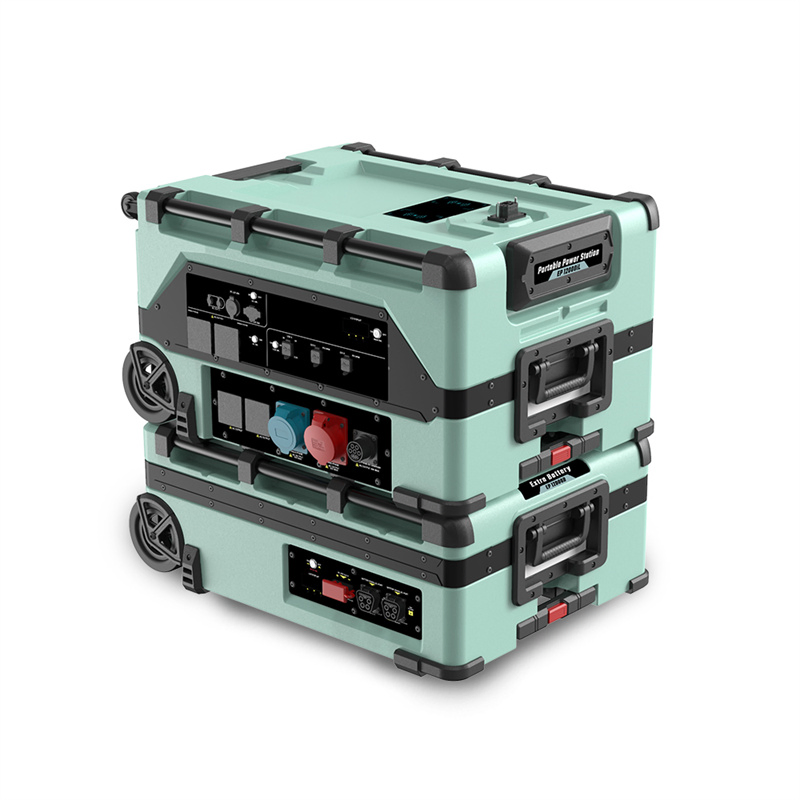

| Specification Item | EP12000iL | EP12000B (Extra Battery) |
|---|---|---|
| Dimensions/Net Weight | 840 X 670 X 490 mm, 100 kg | 840 X 610 X 345 mm, 70 kg |

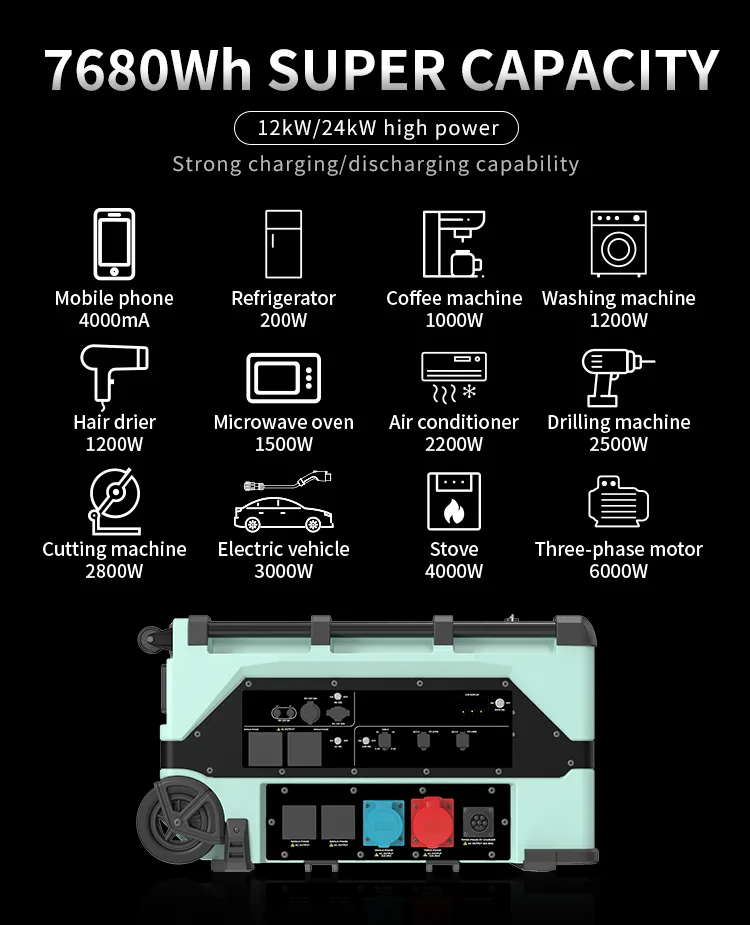

| Battery Type | LiFePO4, 7680Wh, 150Ah (51.2V), 3000 cycles to 80%+ capacity | LiFePO4, 7680Wh, 150Ah (51.2V), 3000 cycles to 80%+ capacity |
| Operating Temperature | Discharging Temp: -20ºC ~ 50ºC | Charging Temp: 0ºC ~ 45ºC | |
| Transfer Time | ≤10ms (Typical) | N/A |
| LED Panel Power | 20W | |

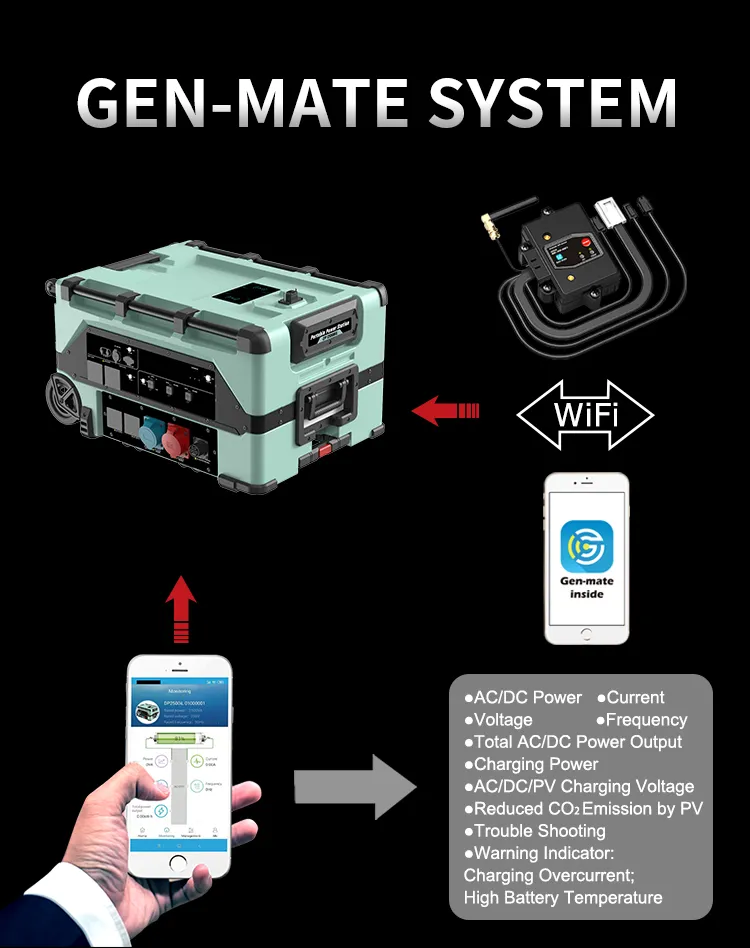

| Interactive Interface | LCD Panel / APP | LCD Panel |

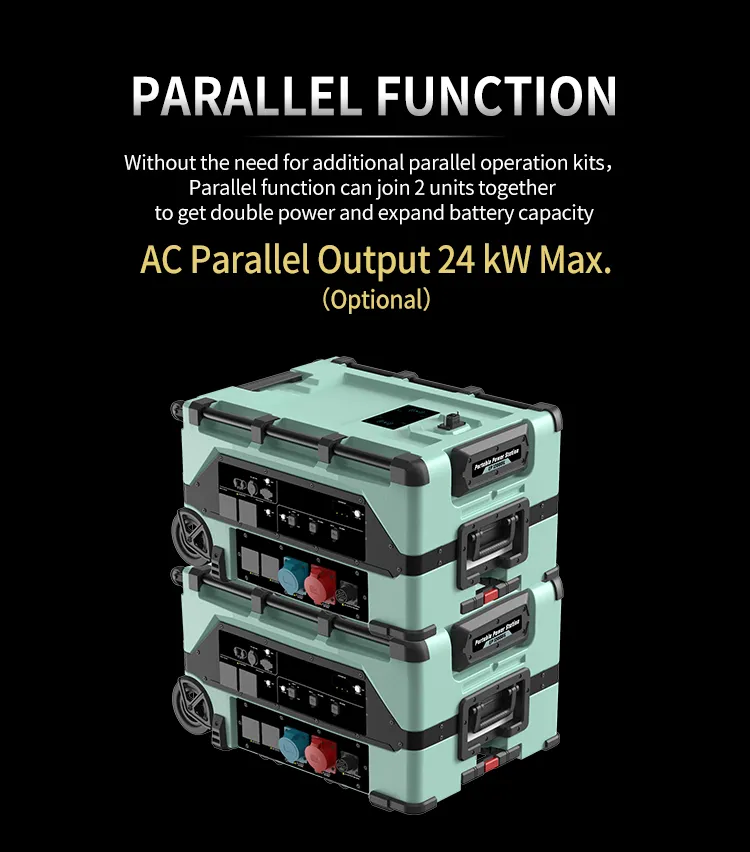

| Optional Function | Low-Voltage Solar / EV Charger Input / AC Output Parallel / Wind Charging / EV Charger Output / Driving Charger / DC Charger | DC Quick Charger |
| Add-On Accessory | Key Parameters & Support Details |
|---|---|

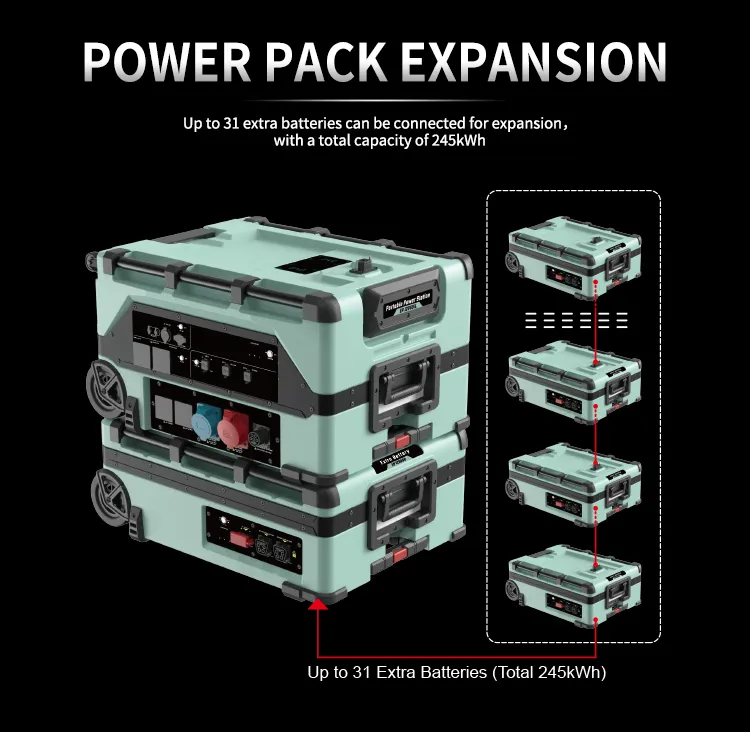

| EP12000B Extra Battery | 51.2V 7680Wh, expandable up to 31 units (Total 245kWh) |
| SE Series Smart Inverter Generator | 100~240VAC, Max 1.8 / 3.7 kW |
| DW Series Wind Turbine | 48VAC, Max 600~2000W |
| DSF Series Solar Panels | 41V / 82V, Max 7500W |
| DVC Series EV Charging Gun | 100/200~240/415VAC, Max 22000W |
| DDC Series Driving Charger | 58.4VDC, Max 600W |
| DDC Series DC Charger | 58.4VDC, Max 75W |
| DAC Series DC Quick Charger | 58.4VDC, Max 7000W |
