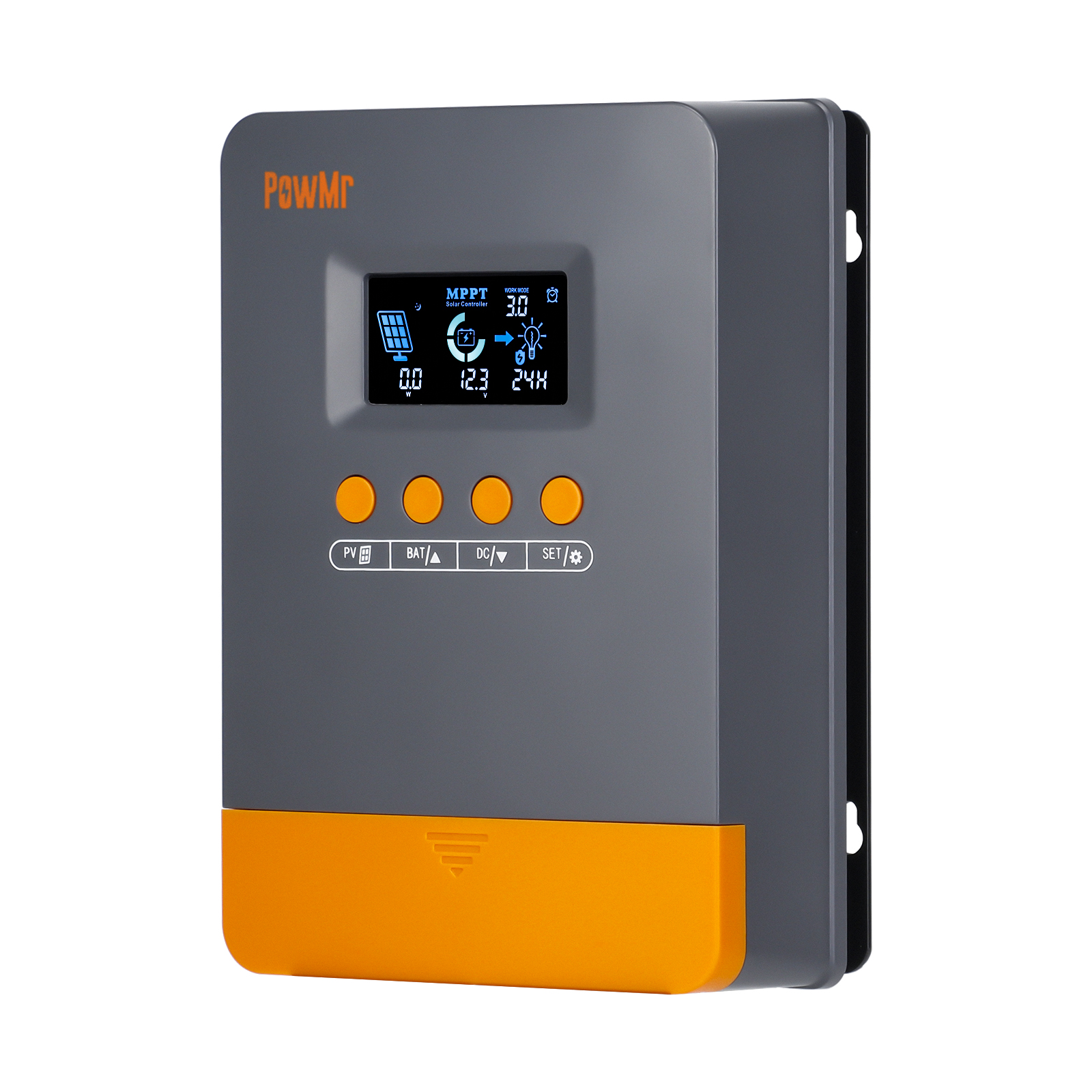

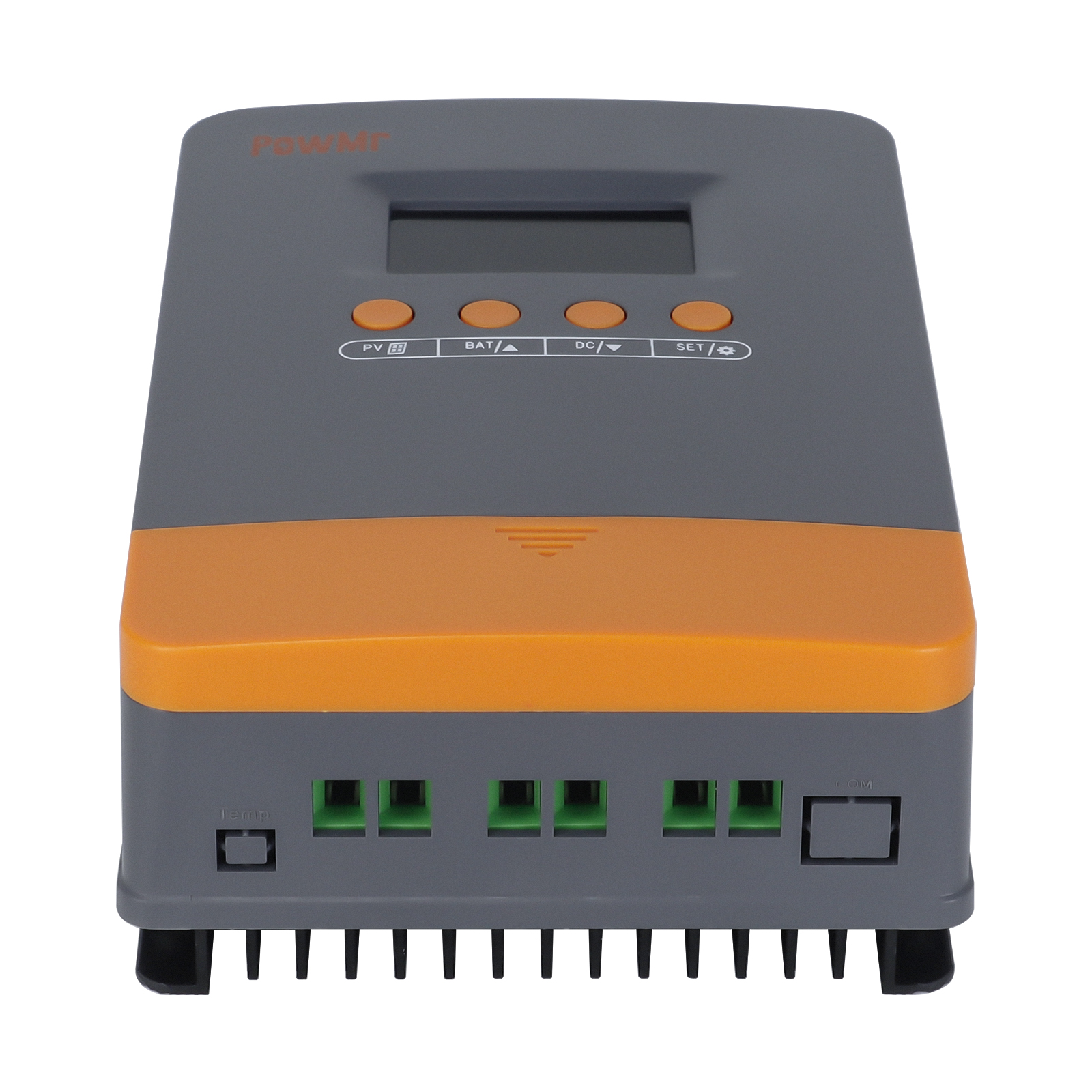

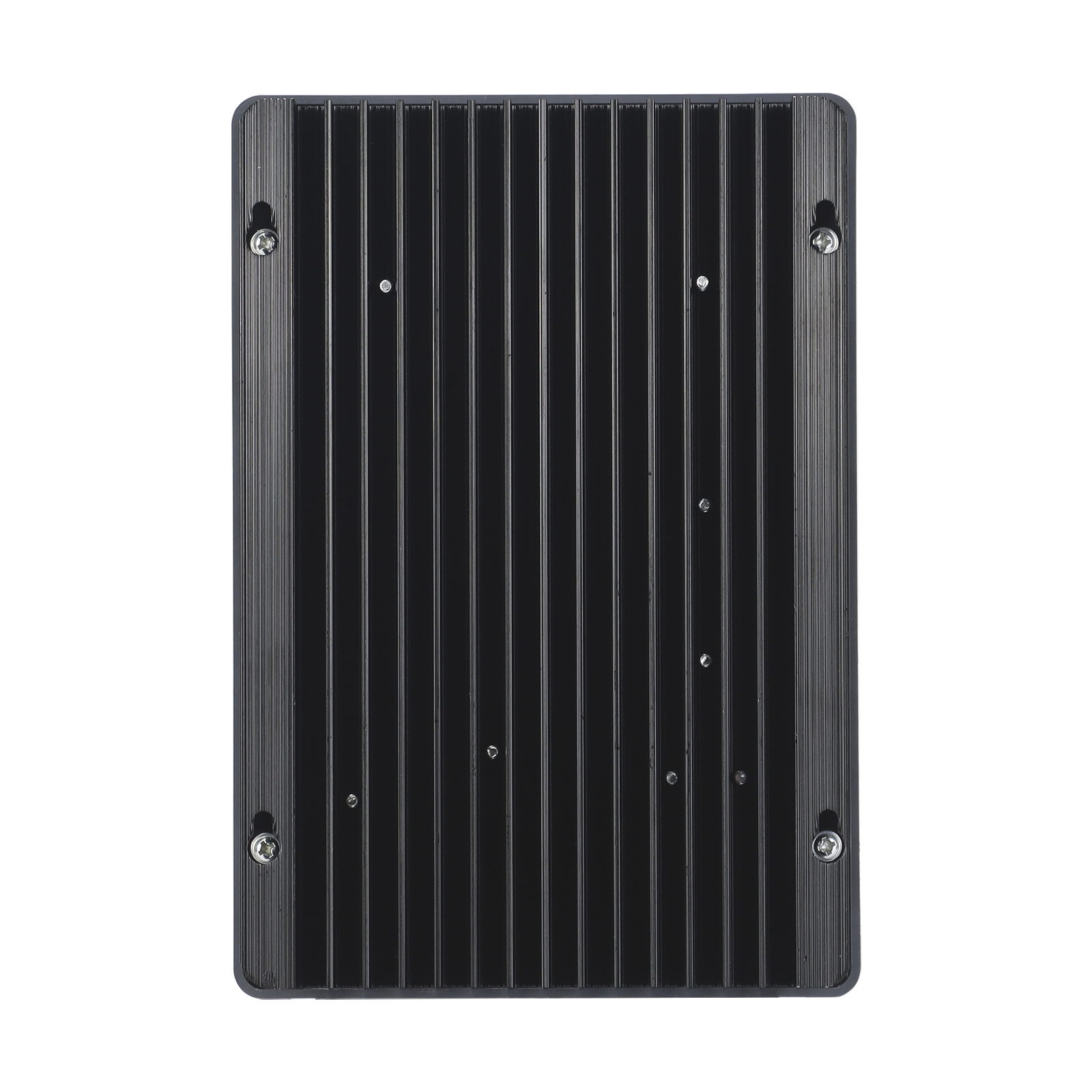

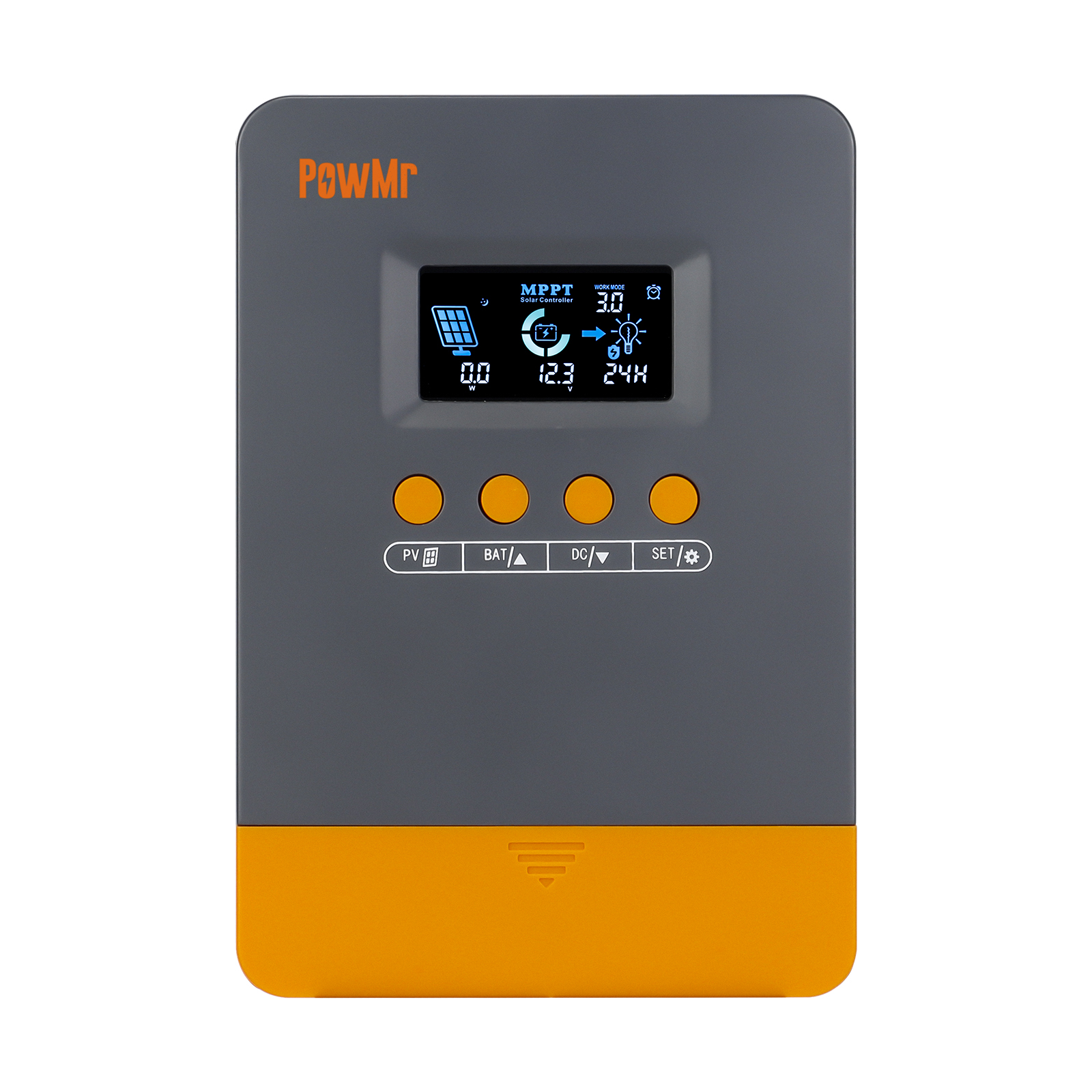

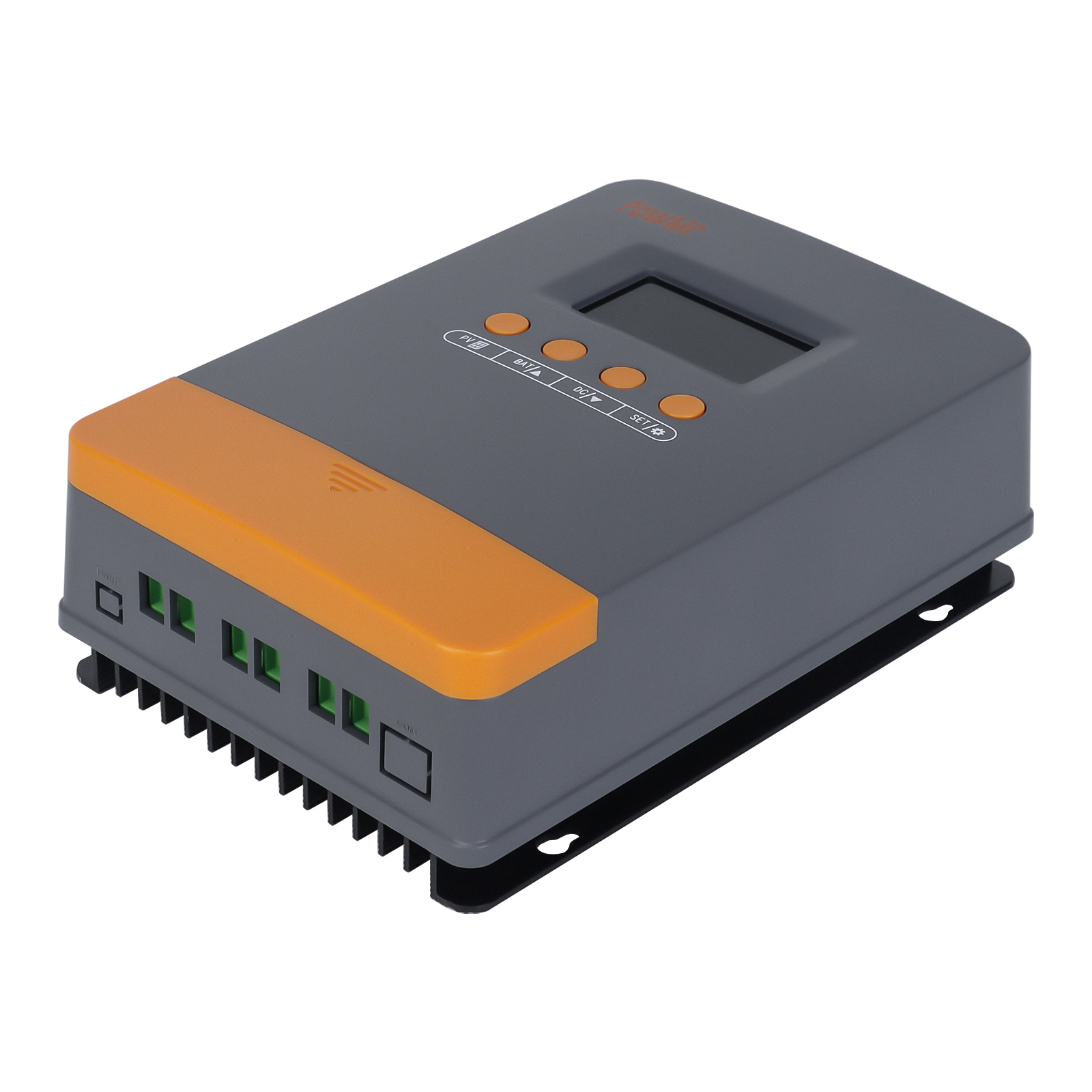

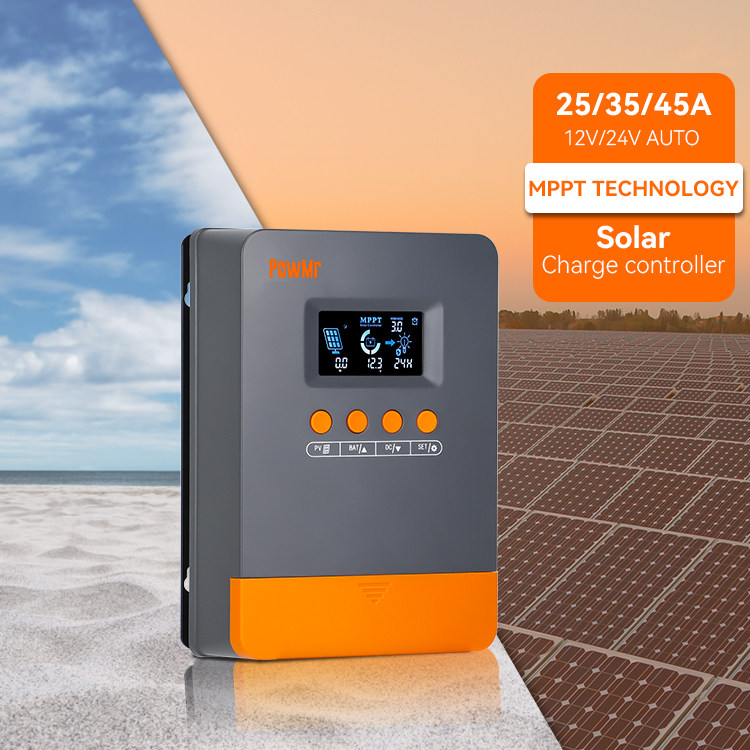

Our POW-M series solar controllers offer extensive expand ability and customization options, streamlining the solar system configuration process. Whether you are building a standalone solar system or expanding a solar energy project, the POW-M series controllers will be an indispensable partner. Their compact size and lightweight design, combined with air-cooled and aluminum alloy back plate natural cooling technologies, enhance operational safety, stability, and suitability for various scenarios. The parallel function allows users to easily scale up their solar energy capacity.
| Models | POW-M25-PRO | POW-M35-PRO | POW-M45-PRO |
|---|---|---|---|
| Max. PV Open-Circuit Voltage | 100V | ||
| Charging Technology | MPPT | ||
| Charging Algorithm | 3 Stages | ||
| Nominal System Voltage | 12V/24V | ||
| Battery Voltage Range | 9~30V | ||
| Rated Charging Current | 25A | 35A | 45A |
| Max. Power Point Tracking Efficiency | >99% | ||
| Operating Temperature Range | -35°C~+45°C | ||
| IP Class | IP32 | ||
| Dimensions | 160x115x51mm | 195x135x65mm | 195x135x65mm |
| Net Weight | 500g | 900g | 1035g |
