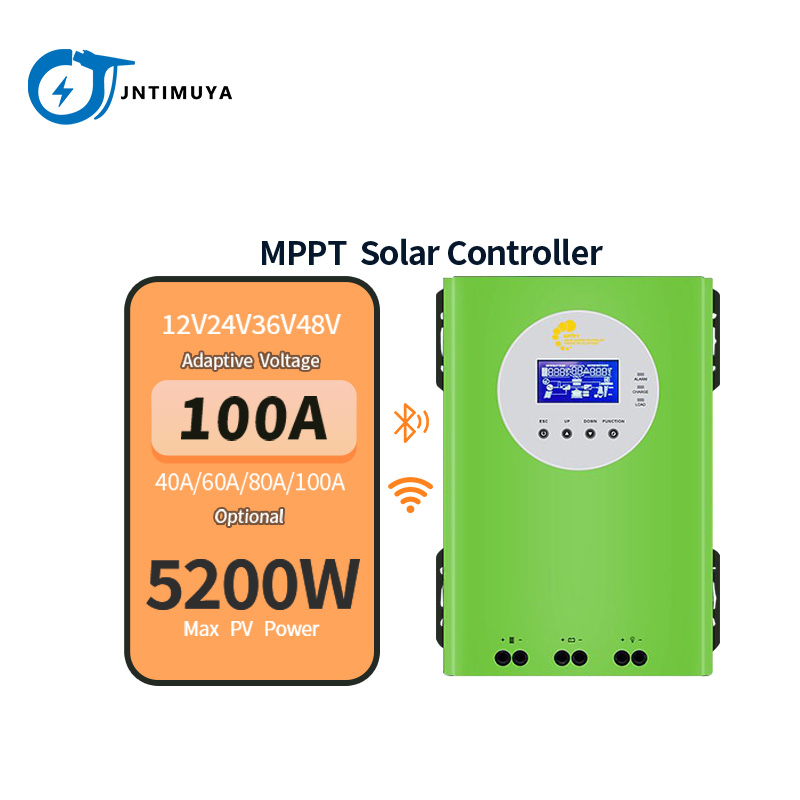

JNTIMUYA 12v 24v 36v 48v Adaptive 80a Mppt Solar Charge Controller Mppt 80a with Three-stage Smart Charging
JNTIMUYA 12v 24v 36v 48v Adaptive 80a Mppt Solar Charge Controller Mppt 80a with Three-stage Smart Charging
JNTIMUYA 12v 24v 36v 48v Adaptive 80a Mppt Solar Charge Controller Mppt 80a with Three-stage Smart Charging
JNTIMUYA 12v 24v 36v 48v Adaptive 80a Mppt Solar Charge Controller Mppt 80a with Three-stage Smart Charging
JNTIMUYA 12v 24v 36v 48v Adaptive 80a Mppt Solar Charge Controller Mppt 80a with Three-stage Smart Charging
1 / 5
JNTIMUYA 12v 24v 36v 48v Adaptive 80a Mppt Solar Charge Controller Mppt 80a with Three-stage Smart Charging
JNTIMUYA 12v 24v 36v 48v Adaptive 80a Mppt Solar Charge Controller Mppt 80a with Three-stage Smart Charging
JNTIMUYA 12v 24v 36v 48v Adaptive 80a Mppt Solar Charge Controller Mppt 80a with Three-stage Smart Charging
JNTIMUYA 12v 24v 36v 48v Adaptive 80a Mppt Solar Charge Controller Mppt 80a with Three-stage Smart Charging
JNTIMUYA 12v 24v 36v 48v Adaptive 80a Mppt Solar Charge Controller Mppt 80a with Three-stage Smart Charging

JNTIMUYA 12v 24v 36v 48v Adaptive 80a Mppt Solar Charge Controller Mppt 80a with Three-stage Smart Charging

Send Inquiry

Product Description

Solar Product Image 1 Solar Product Image 2
Model Specs 40A 60A 80A 100A
System Voltage 12V/24V/36V/48V (Adaptive) 12V/24V/36V/48V (Adaptive)
Applicable Battery Type All type battery adaptive All type battery adaptive
MPPT Tracking Efficiency ≥99.5% ≥99.5%
PV Input Maximum Open Circuit Voltage (VOC) 150VDC 150VDC
Solar Panel Rated Input Power 540W / 1080W / 2160W 800W / 1600W / 3200W 1040W / 2080W / 4160W 1300W / 2600W / 5200W
Load Undervoltage Protection 10.5V*N (N stands for batteries number, parameters adjustable) 10.5V*N (N stands for batteries number, parameters adjustable)
Protections Input and output over-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current protection

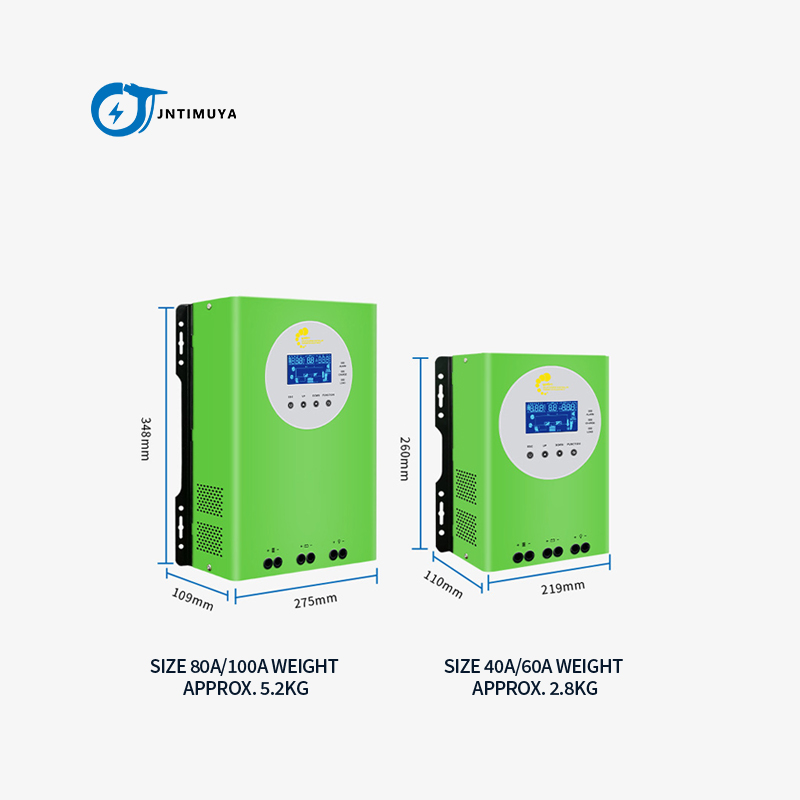

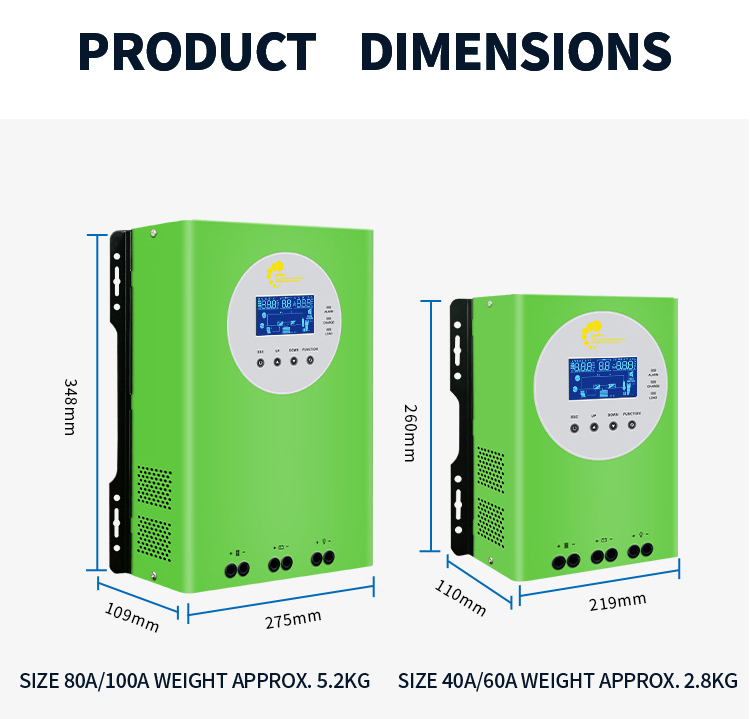

Dimension (L×W×H) 219*260*110mm 275*348*109mm
Net Weight (KG) 2.8KG 3KG 5.2KG 5.5KG

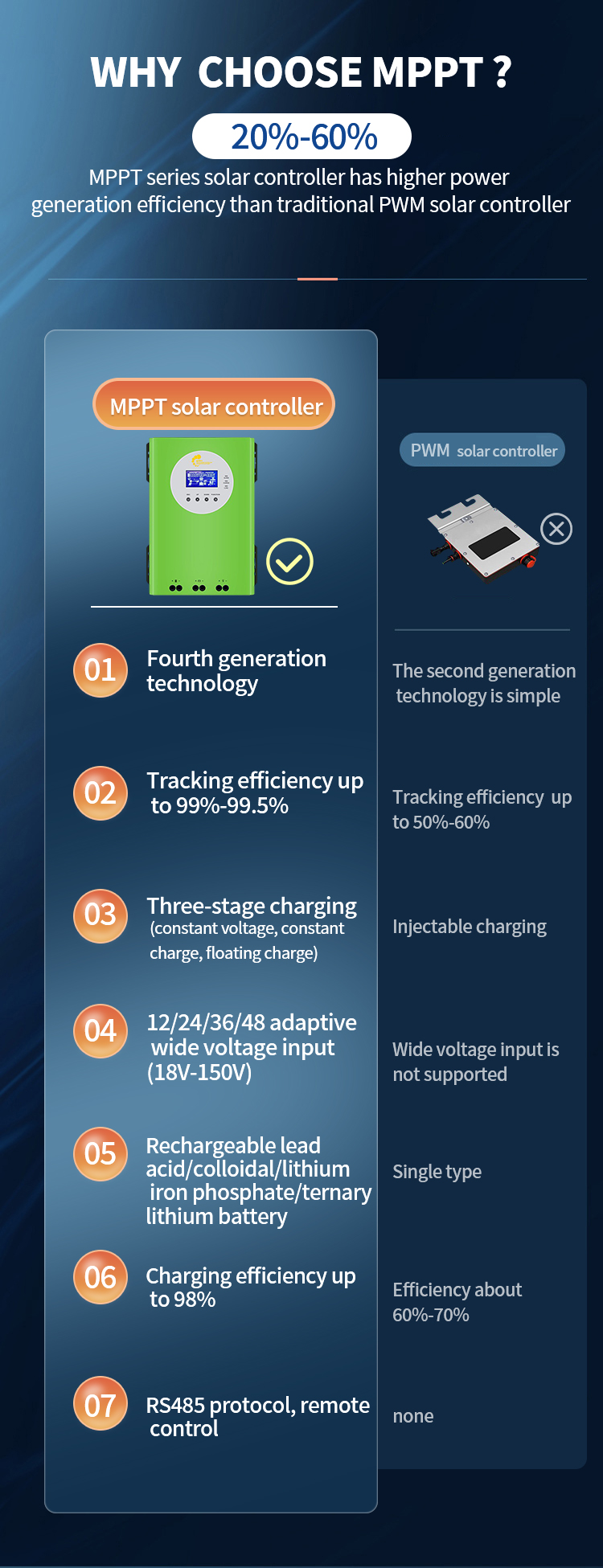

Gallery Image 1

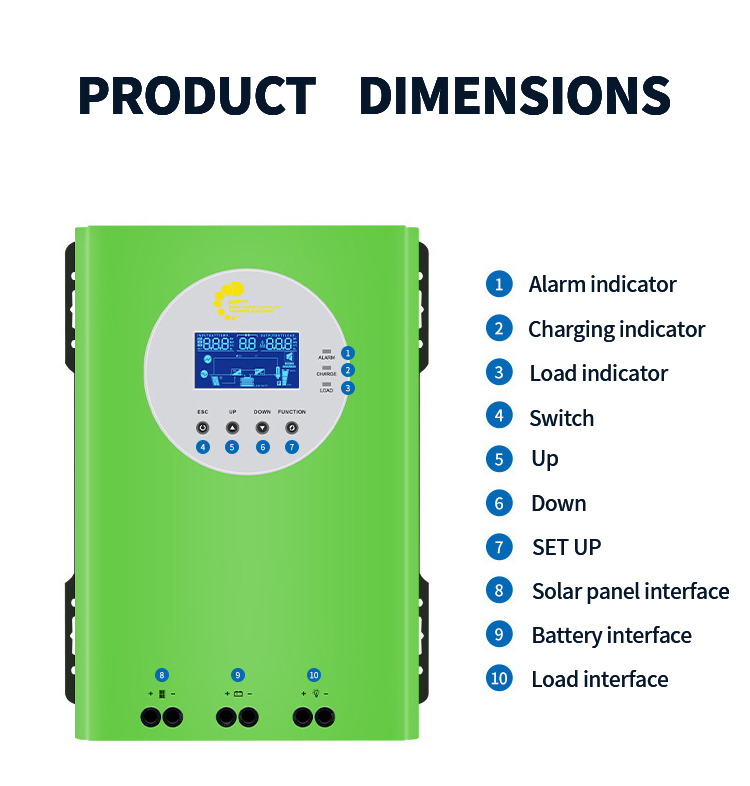

Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
Gallery Image 7

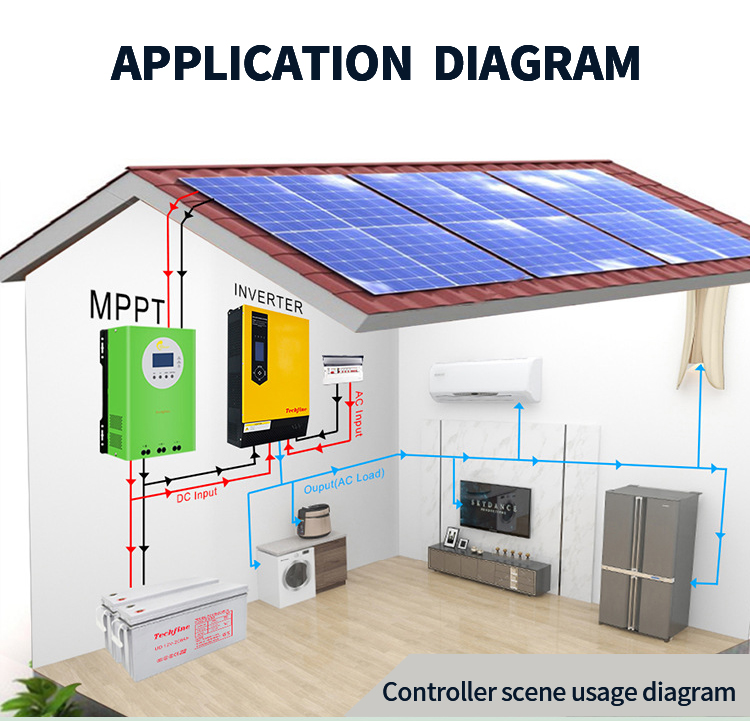

Gallery Image 8
Gallery Image 9
Gallery Image 10
Frequently Asked Questions
What is the MPPT tracking efficiency of these controllers?
Our MPPT solar charge controllers feature an advanced tracking algorithm that delivers an MPPT tracking efficiency of ≥99.5%, ensuring maximum power harvest from your solar array.
Are these controllers compatible with different system voltages?
Yes, they feature auto-adaptive system voltage detection supporting 12V, 24V, 36V, and 48V battery systems automatically.
What types of batteries can be used with this MPPT controller?
The controllers are compatible with virtually all major battery types, including Lead-Acid, AGM, Gel, and Lithium batteries, offering custom charging parameter adjustments.
What is the maximum PV open circuit voltage (Voc) allowed?
The maximum input PV open circuit voltage (Voc) is 150VDC, allowing you to connect multiple solar panels in series for higher efficiency configuration.
What built-in safety protections do these units offer?
Comprehensive security is built in, including input/output over-voltage protection, input/output anti-reverse protection, over-temperature protection, and load over-current protection.
