| Model | VMS-V-9K-48-H/HG |
| RATED POWER | 9000W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Power | 15000VA |
| Transfer Time | 15 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Max. PV Array Open Circuit Voltage | 500 VDC |
| Max. PV Array Power | 11000W (5500W*2) |
| MPP Range @operating Voltage | 90~450 VDC |
| Max. Solar Charge Current | 150A |
| Max. AC Charge Current | 120A |
| Max. Charge Current | 120 A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 147 x 432 x 553 mm |
| Net Weight (kgs) | 17.2 |

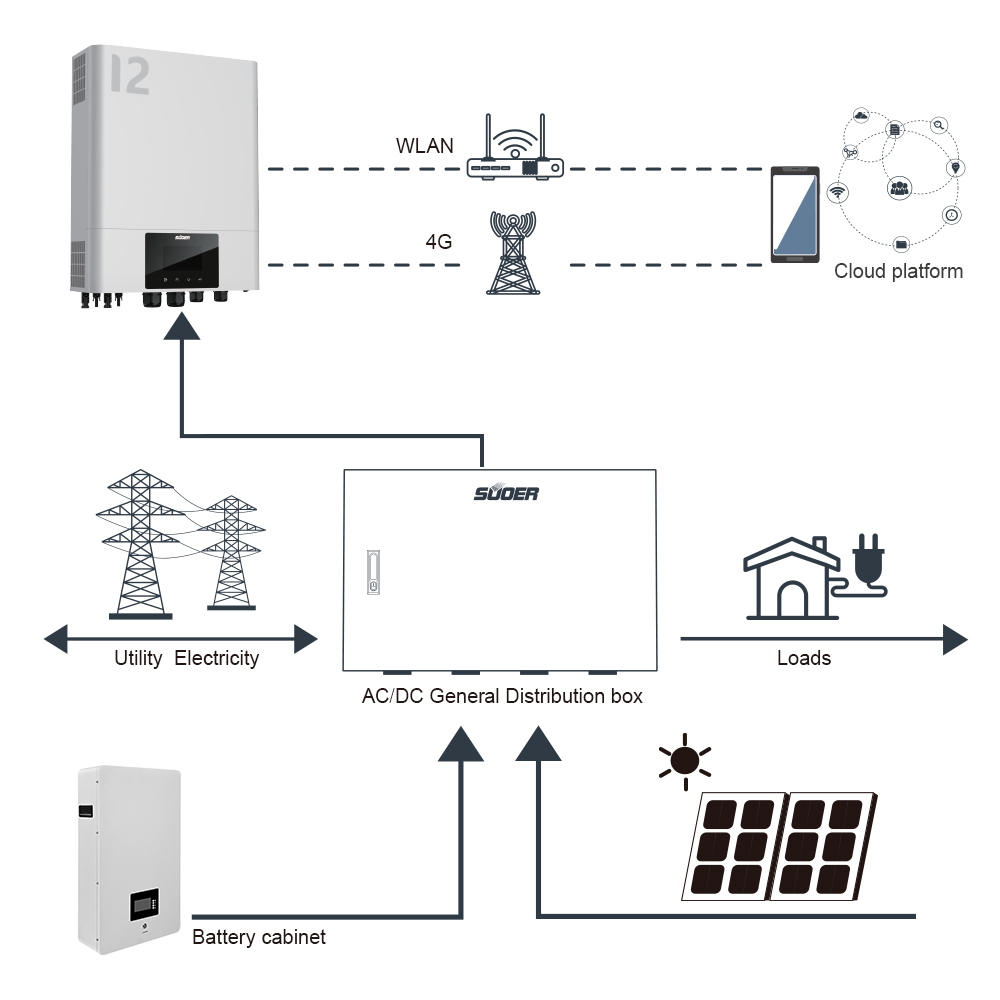

| Communication Interface | RS485 / Wifi / Dry-contact |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
