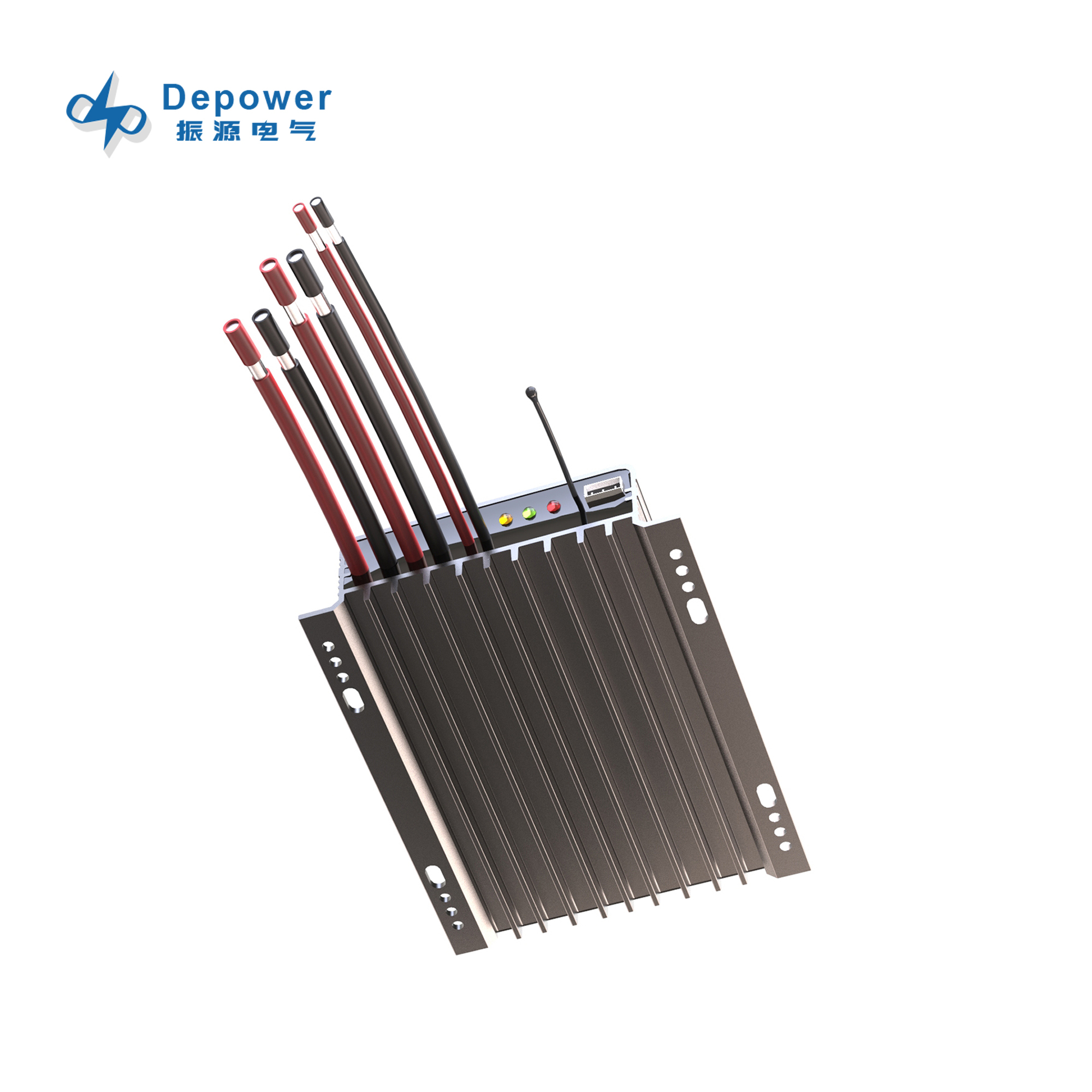

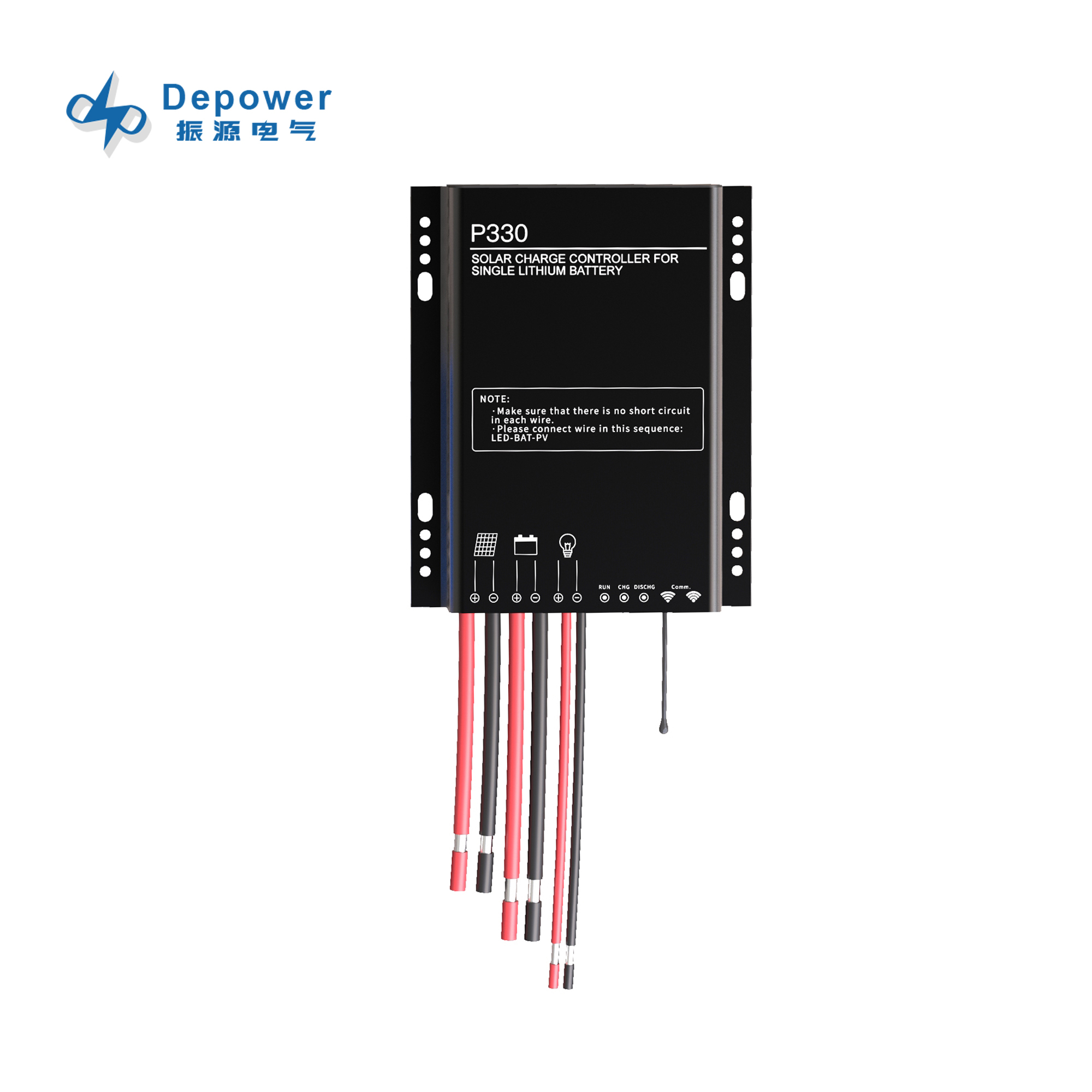

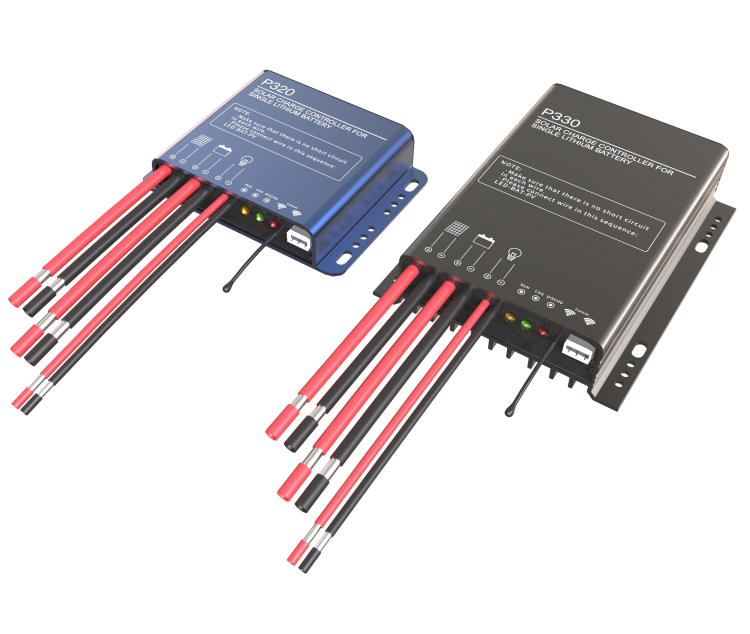

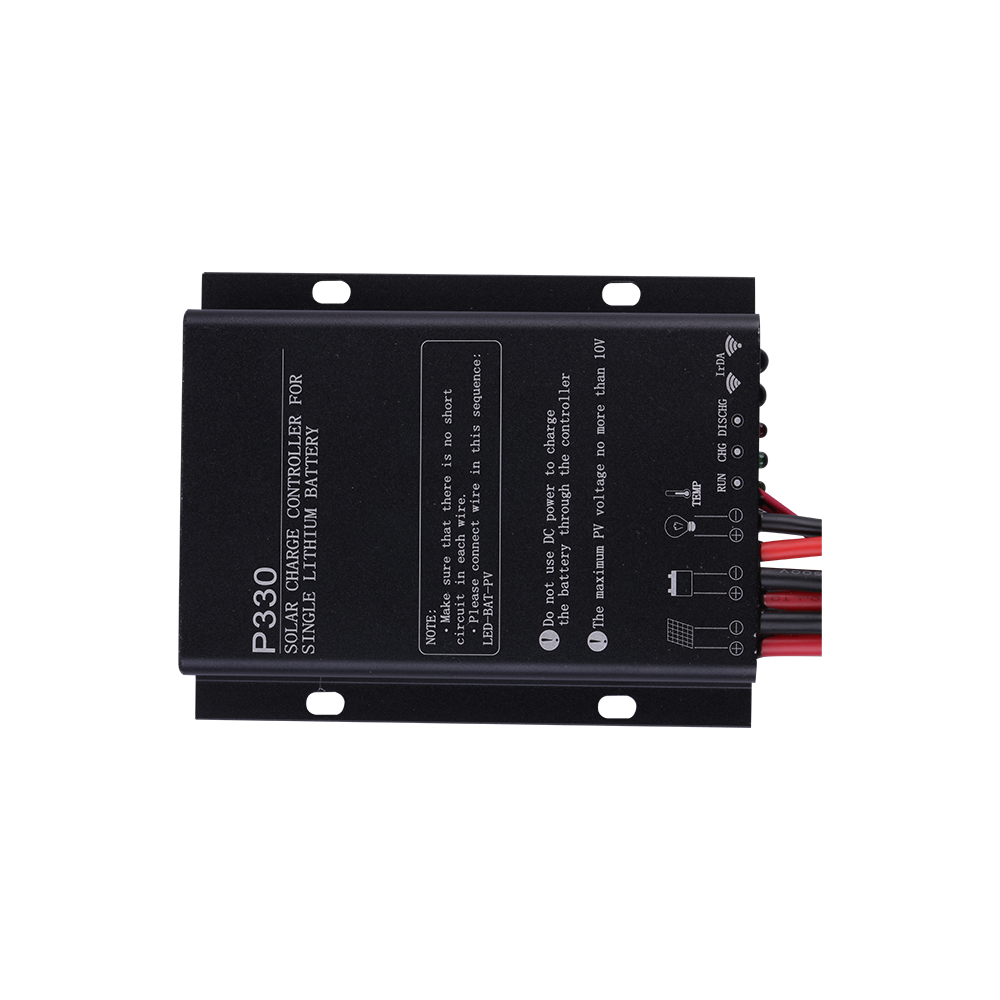

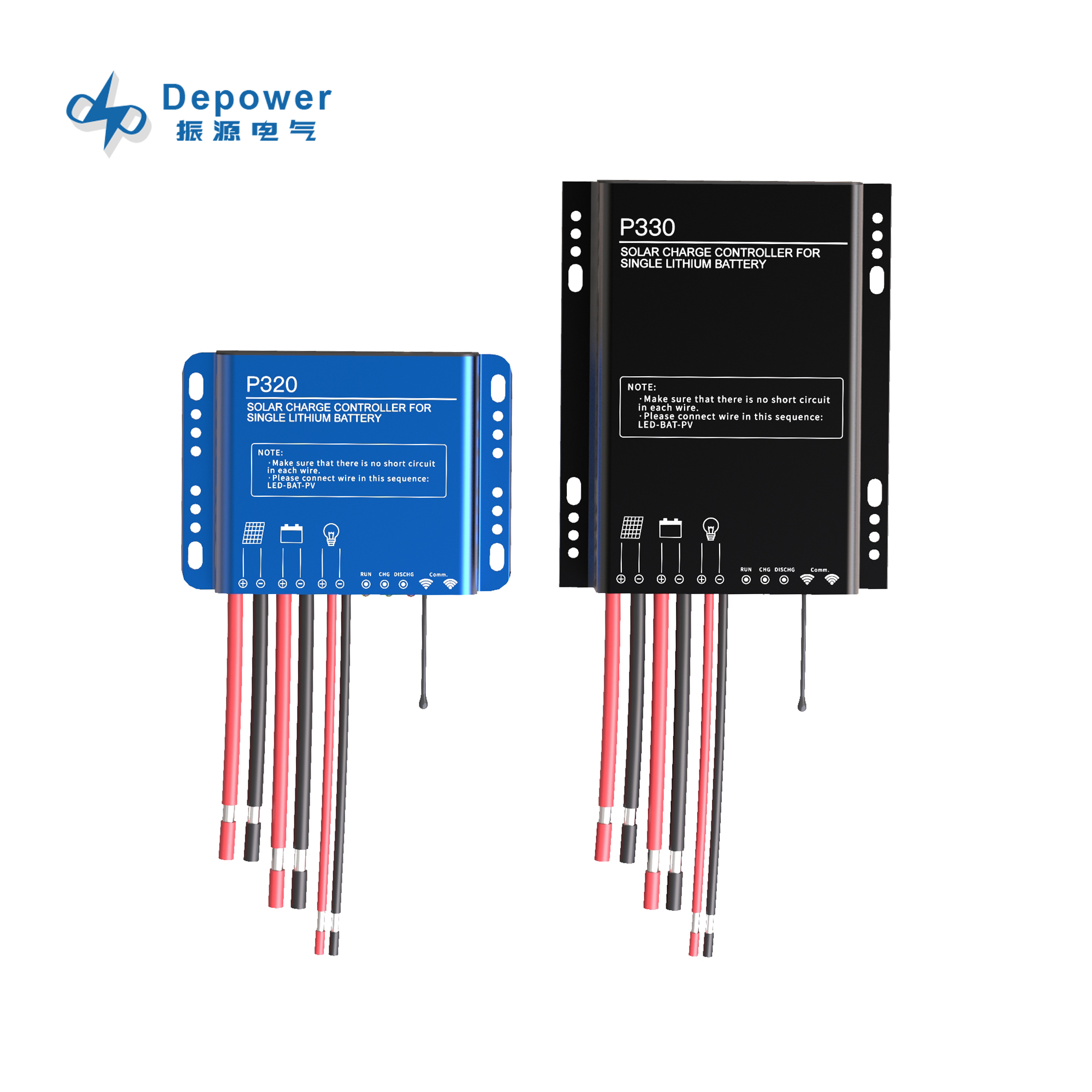

| Parameter Item | Specification Details (Model: P330) | |||
|---|---|---|---|---|
| Battery Parameters | Battery Type | Lead acid battery / Lithium battery | ||
| Rated System Voltage | 3.2/3.7V Lead acid (auto identified); Lithium (need to be set) | |||
| Max. Charge Current | 20A | |||
| Boost Charge Voltage (Settable) | 3.6V | |||
| Charge Voltage Range | 5-35V | |||
| Charge Voltage Range (Lithium) | 0-4.2V | |||
| Low Voltage Disconnect (Settable) | 2.6V | |||
| Low Voltage Reconnect (Settable) | 3.0V | |||
| Temp. Compensation Coefficient | -4mV/°C/2V | |||
| PV Parameters | Max. PV Input Voltage | 10V | ||
| Solar Panel Max. Power | 120W / 6V | |||
| Turn on Lamp PV Voltage | 1-2V | |||
| Output Parameters | Output Current Range | 50 ~ 3000mA | ||
| Output Voltage Range | 0-4.2V | |||
| Max. Output Power | 60W (12V) / 100W (24V) | |||
| Output Current Accuracy | ≤ 3% FS | |||
| Output Mode | 1. Five time periods control; 2. Five time periods sensing; 3. Morning light function | |||
| Output Dimming Range | 0-100% | |||
| System Parameters | Max. Output Efficiency | 89.4% | ||
| Self Consumption Current | ≤ 0.24W (12V); ≤ 0.52W (24V) | |||
| Communication | 2.4G / Infrared | |||
| Operating Temperature Range | -35°C ~ 60°C | |||
| Relative Humidity Range | 0 ~ 100% RH | |||
| Max. Operating Altitude | 3000M | |||
| Degree of Protection | IP68 (1.5m depth, 72 hours) | |||
| Certification | CQC, CE, RoHS | |||
| Mechanical Parameters | Weight | 0.35KG | ||
| Dimensions | 101mm * 82mm * 23.5mm | |||
| Package | 54PCS / BOX | |||
