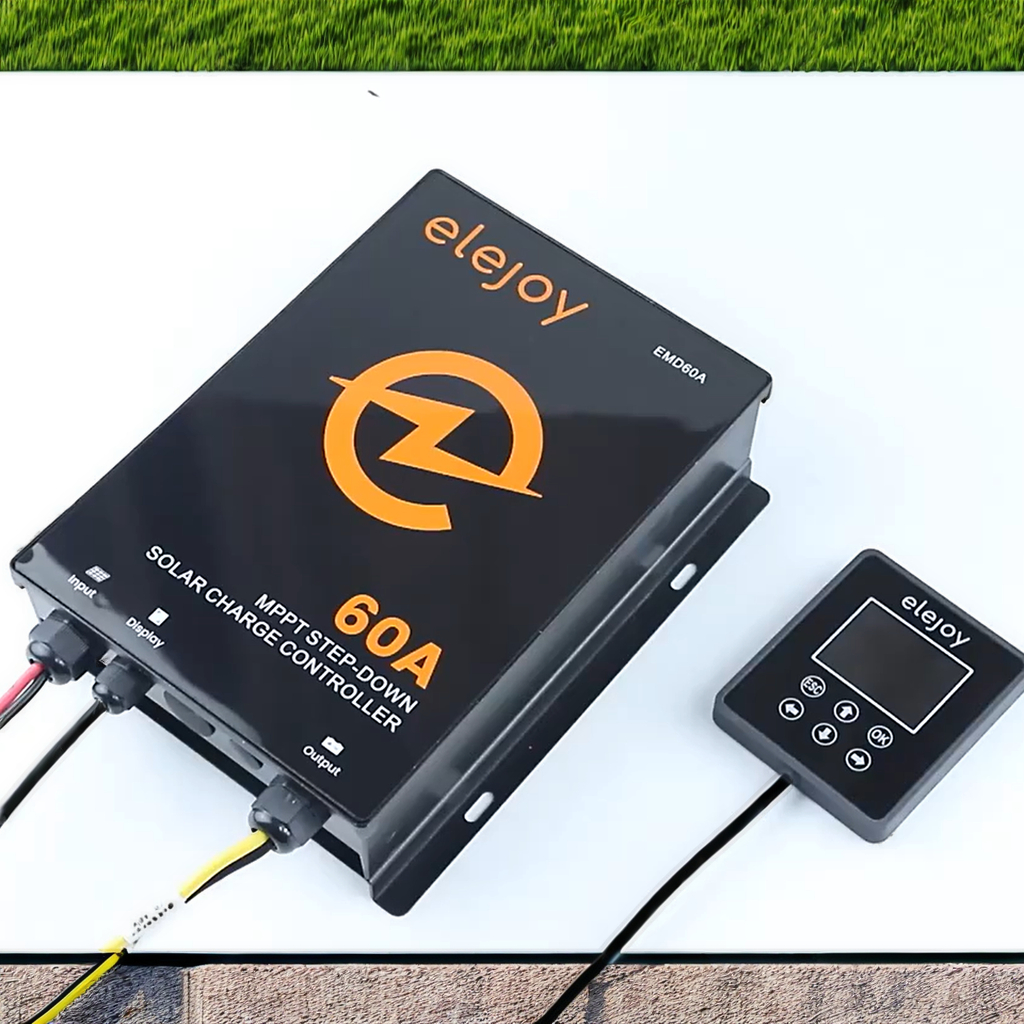

The MPPT controller utilizes Solar Maximum Power Point Tracking (MPPT) technology to extract maximum power from the solar array. The tracking algorithm is fully automatic and does not require user adjustment. MPPT technology tracks the array maximum power point as it varies with weather conditions, ensuring that maximum power is harvested from the array throughout the course of the day.

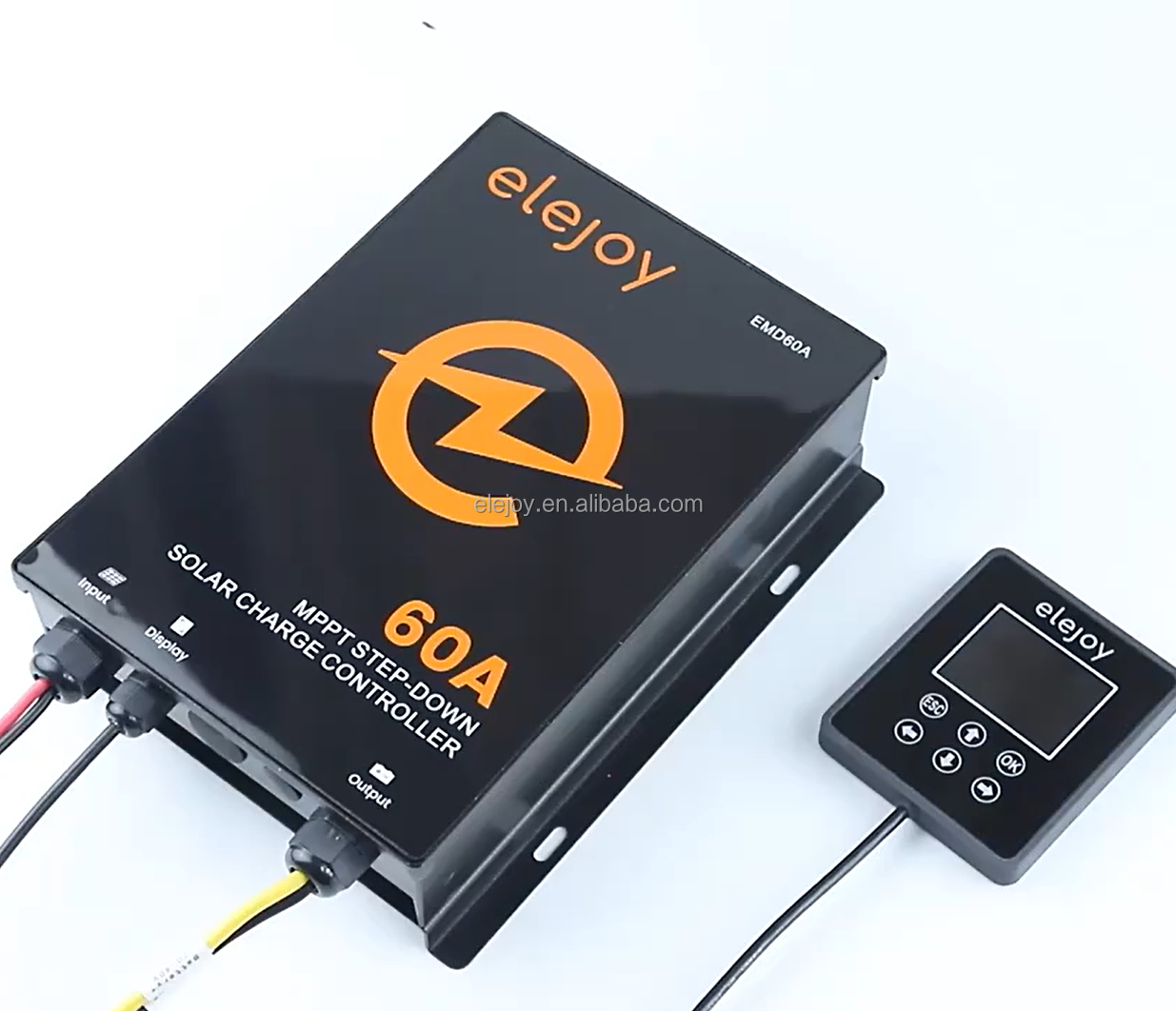

| Product Category | Model | EMD60A |
| Product Name | MPPT solar charge controller | |
| Input Features | Open Circuit Voltage | >20V |
| Input Voltage | 16V - 130V | |
| 16V - 130V @12V battery | ||
| 32V - 130V @24V battery | ||
| 46V - 130V @36V battery | ||
| 62V - 130V @48V battery | ||
| Output Features | Output Voltage | 10V - 60V |
| Output Current | 60A @ <2700W | |
| No-load Loss | 2.5W-5.5W | |
| Power Conversion Efficiency | >93% | |
| MPPT Conversion Efficiency | >99% | |
| Other Features | Voltage Adjustment Rate | 1% |
| Load Adjustment Rate | 5% | |

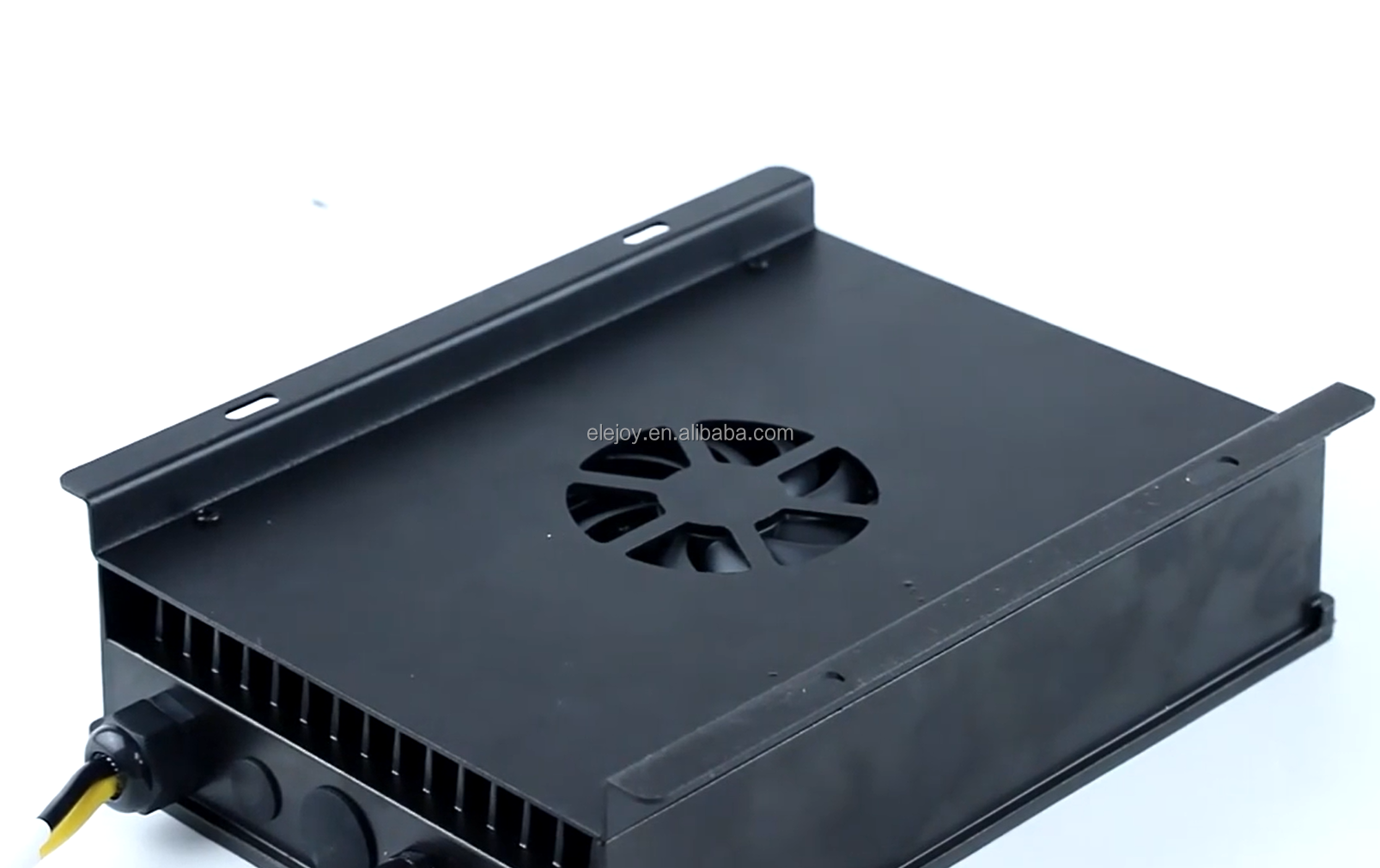

| Cooling Method | Smart air cooling | |
| Operating Temperature | -40℃ ~ 60℃ | |
| Net Weight | - | |
| Dimensions | 275mm×165mm×60mm |

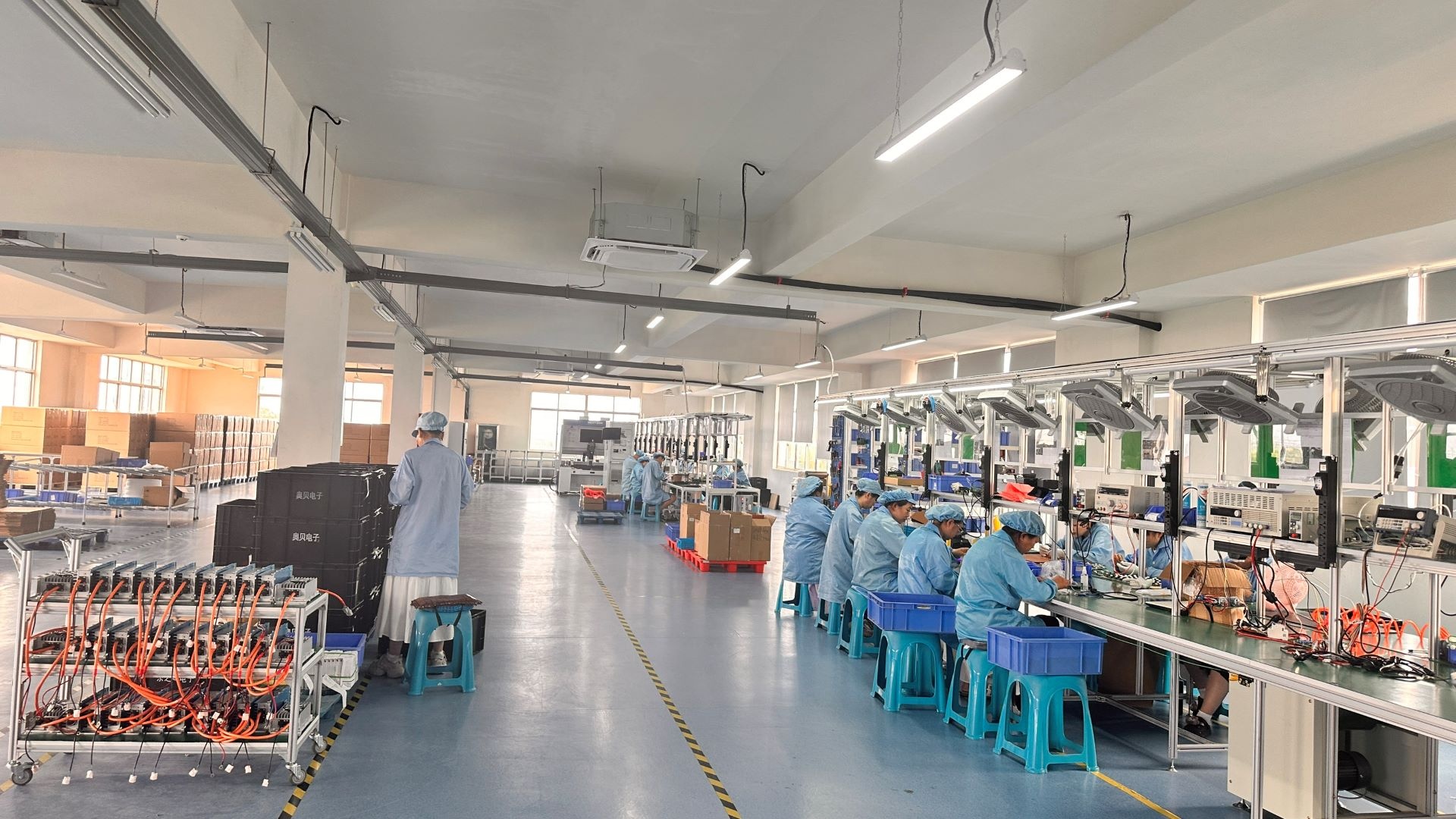

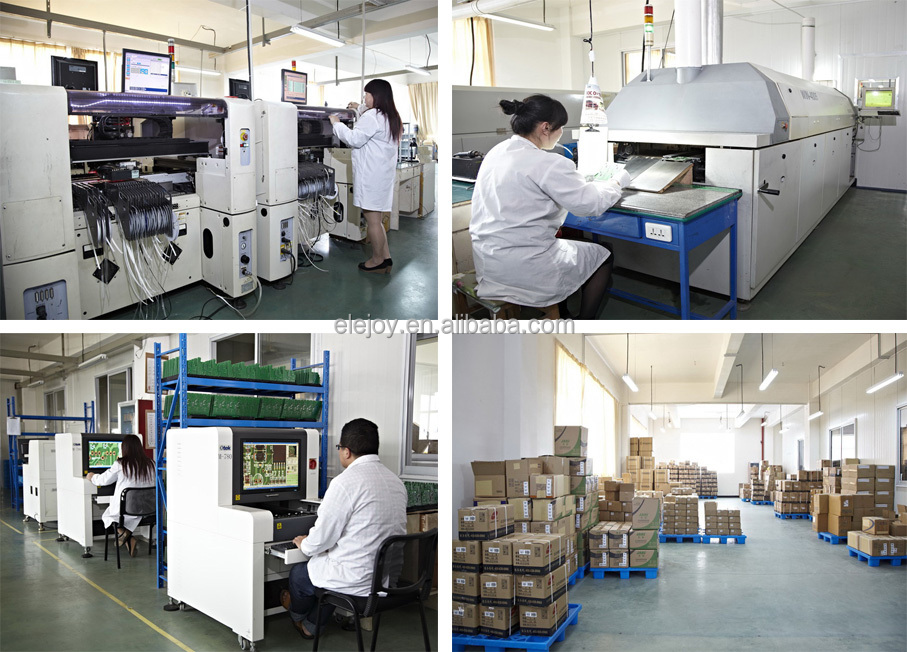

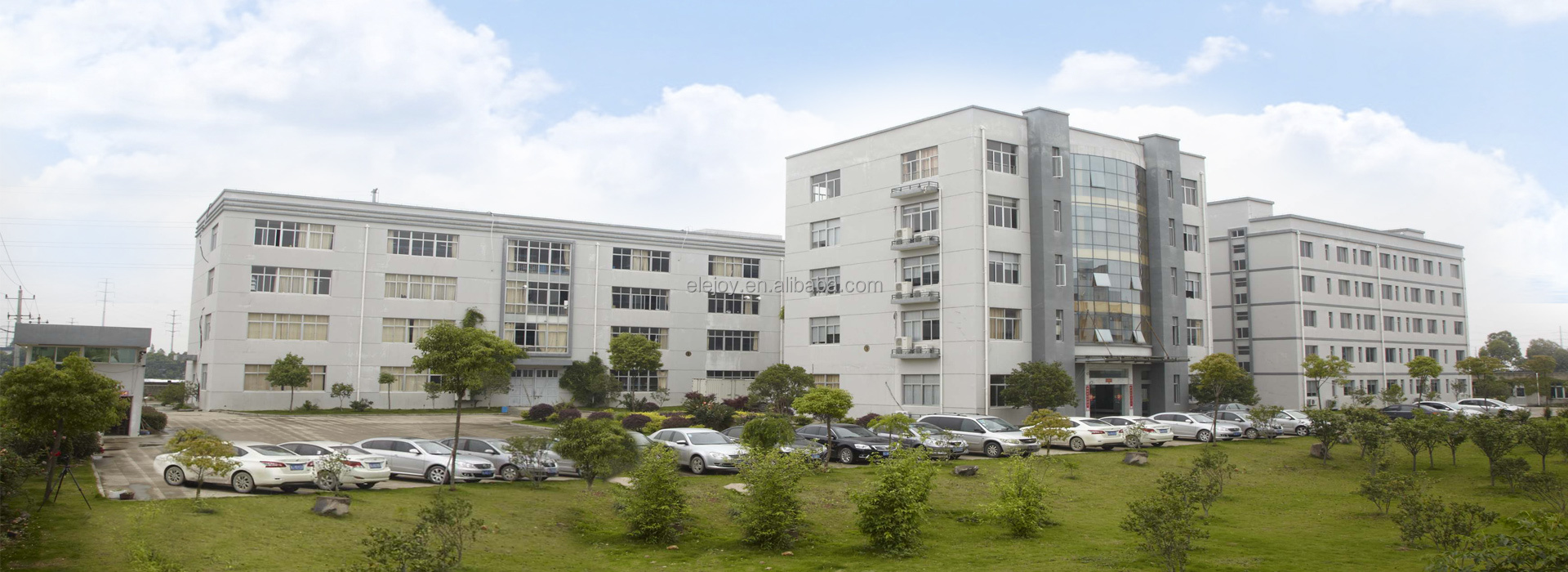

100% yes, if you have a chance, you can visit our factory anytime.
One piece is possible, you can buy one sample for testing first.
Normally 1-2 working days after receive the payment.
Please send the payment to our account directly.

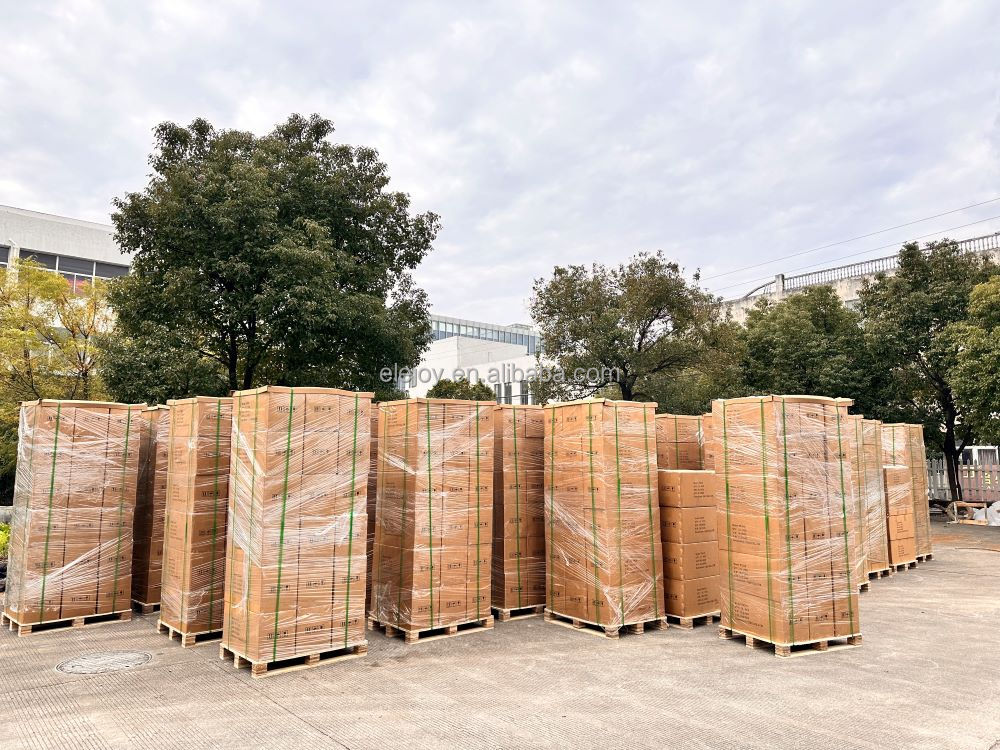

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.
Yes, we offer 1-year warranty for all solar charge controllers.
