| Parameter | Value (HF4830S60-145) | ||
|---|---|---|---|
| INVERTER OUTPUT | |||
| Rated Output Power | 3,300W | ||
| Max.Peak Power | 6,600VA | ||
| Rated Output Voltage | 230Vac (Single-Phase) | ||
| Load Motor Capacity | 2HP | ||
| Rated Frequency | 50/60Hz | ||
| Waveform | Pure sine wave | ||
| Switch Time | 10ms (typical) | ||
| BATTERY | |||
| Battery Type | Lead-Acid / Li-ion / User-Define | ||
| Rated Battery Voltage | 48V | ||
| Battery Voltage Range | 40~60Vdc | ||
| Max.Solar Charging Current | 60A | ||
| Max.Grid/Generator Charging Current | 60A | ||
| Max.Hybrid Charging Current | 120A | ||
| SOLAR INPUT | |||
| No. Of MPPT | 1 | ||
| Max.PV Array Power | 3,400W | ||
| Max.Input Current | 40A | ||
| Max.Open Circuit Voltage | 145Vdc | ||
| MPPT Voltage Range | 60~115Vdc | ||
| GRID/GENERATOR INPUT | |||
| Input Voltage Range | 170~280Vac | ||
| Input Frequency Range | 50/60Hz | ||
| Bypass Overload Current | 30A | ||
| EFFICIENCY | |||
| MPPT Tracking Efficiency | 99.9% | ||
| Max.Efficiency | 92% | ||
| GENERAL DATA | |||

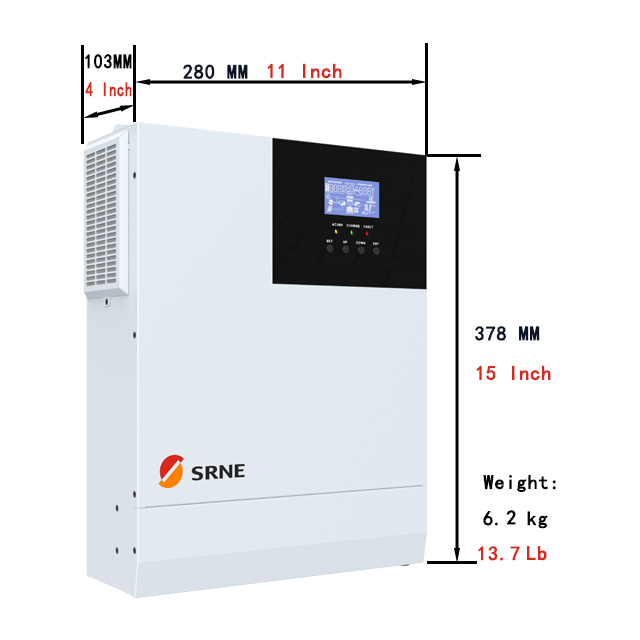

| Dimension | 378*280*103mm | Moisture | 0~100% |
| Weight | Weight | Cooling Method | Fan Cooling |
| Protection Degree | Protection Degree | Warranty | 2 years |
| Temperature | Temperature | Communication | RS485/CAN/USB/Dry Contact |
| External Module (Optional) | Wi-Fi / GPRS | Topology | Transformerless |
| Certificate | RoHs / EN61000 / FCC Part15 ClassB / IEC 62109 / IEC 62040 / IEC 62477 / SAA / PSE Circular Certification | ||
