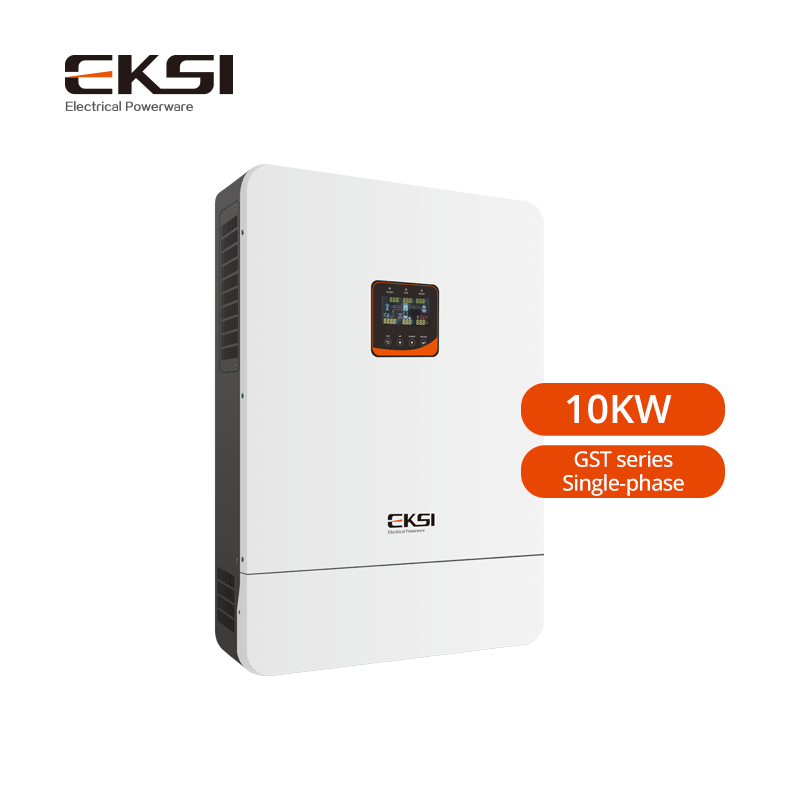

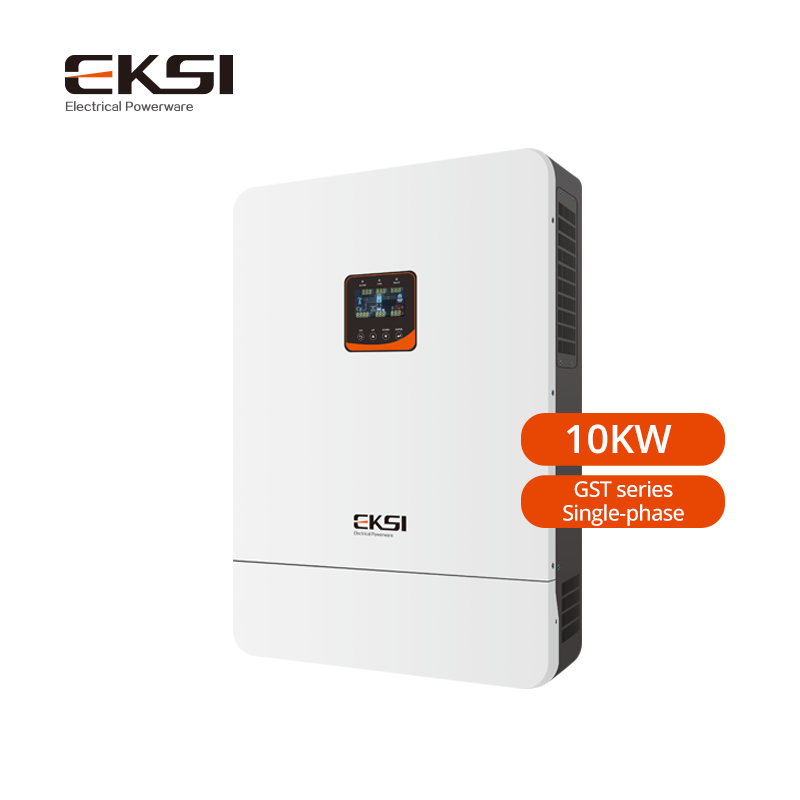

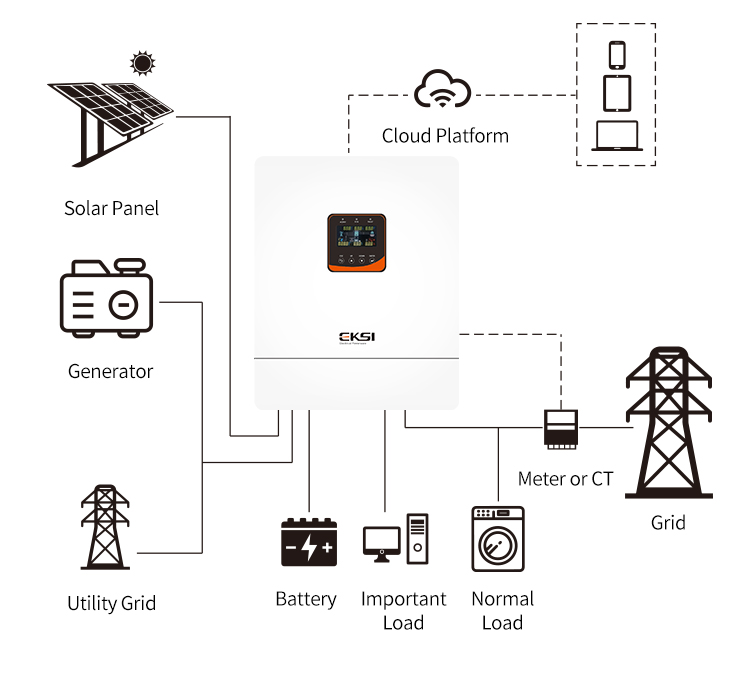

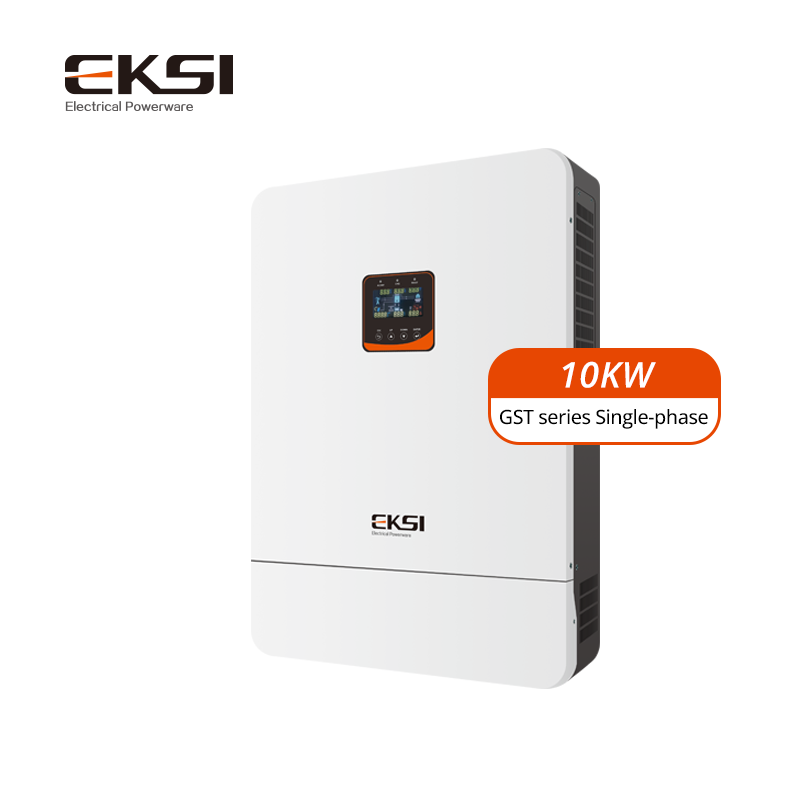

GST series is a new all-in-one solar charge inverter, which integrates solar energy storage & utility charging energy storage and AC sine wave output.
It supports battery-free output and only PV start and load, featuring a dedicated battery activation function.

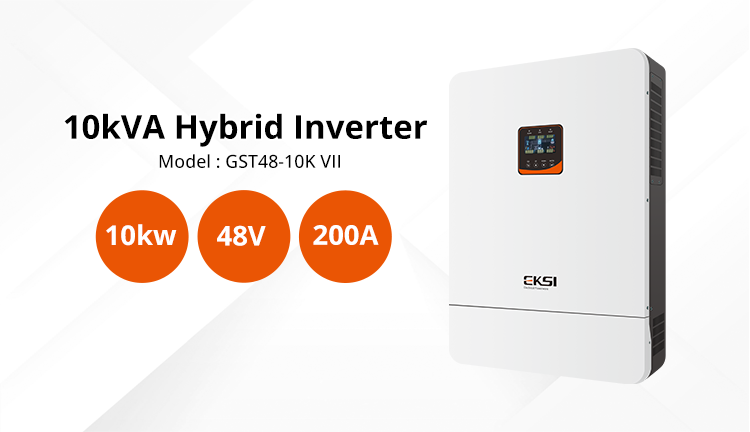

| MODEL | GST24-2500 VII | GST48-3500 VII | GST48-5500 VII | GST48-10K VII |
|---|---|---|---|---|
| INVERTER OUTPUT | ||||
| Rated output power (W) | 2500W | 3500W | 5500W | 10000W |
| Rated output power (VA) | 2500VA | 3500VA | 5500VA | 10000VA |
| Maximum Peak Power | 5000W | 6000W | 10000W | 15000W |
| Load Capacity with Motors | 2HP | 2HP | 4HP | 6HP |
| Rated AC Output | 230 Vac (200 / 208 / 220 / 240 Vac), 50 / 60Hz | |||
| Output Voltage Waveform | Pure Sine Wave | |||
| Inverter and Bypass Switching Time | 10ms (typical) | |||
| Parallel Capacity | 9 | |||
| Maximum Battery Inverter Efficiency | 93% | |||
| BATTERY | ||||
| Battery Type | Lithium / Lead-acid / User Defined | |||
| Rated Battery Voltage | 24Vdc | 48Vdc | ||
| Battery Voltage Range | 20-33Vdc | 40-60Vdc | ||
| Max. MPPT Charging Current | 60A | 60A | 100A | 200A |
| Max. Mains Charging Current | 60A | 60A | 60A | 120A |
| Max. Hybrid Charging Current | 120A | 120A | 100A | - |
| Charging current error | ±3Adc | |||
| Charging Short Circuit protection | Blown Fuse | |||
| PV CHARGING | ||||
| PV Tracker Input Channels | 1 | 1 | - | 2 |
| Max. PV array power | 1700W | 3400W | 5500W | 5500W + 5500W |
| Max. PV input current | 50A | 50A | 22A | 22A + 22A |
| Max. Open Circuit Voltage | 100Vdc | 145Vdc | 500Vdc | 500Vdc + 500Vdc |
| MPPT Voltage Range | 30-85Vdc | 60-115Vdc | 120-450Vdc | |
| MPPT Tracking Efficiency | 99.9% | |||
| MAINS INPUT | ||||
| Input Voltage Range | 90-280Vac / 170-280Vac | |||
| Frequency Range | 50/60Hz ± 0.3Hz | |||
| Output Short Circuit Protection | Circuit breaker | |||
| Bypass Overload Current | 24A | 30A | 40A | 63A |
Remote Wifi/GPRS for option. Realize working status monitoring anytime and anywhere.

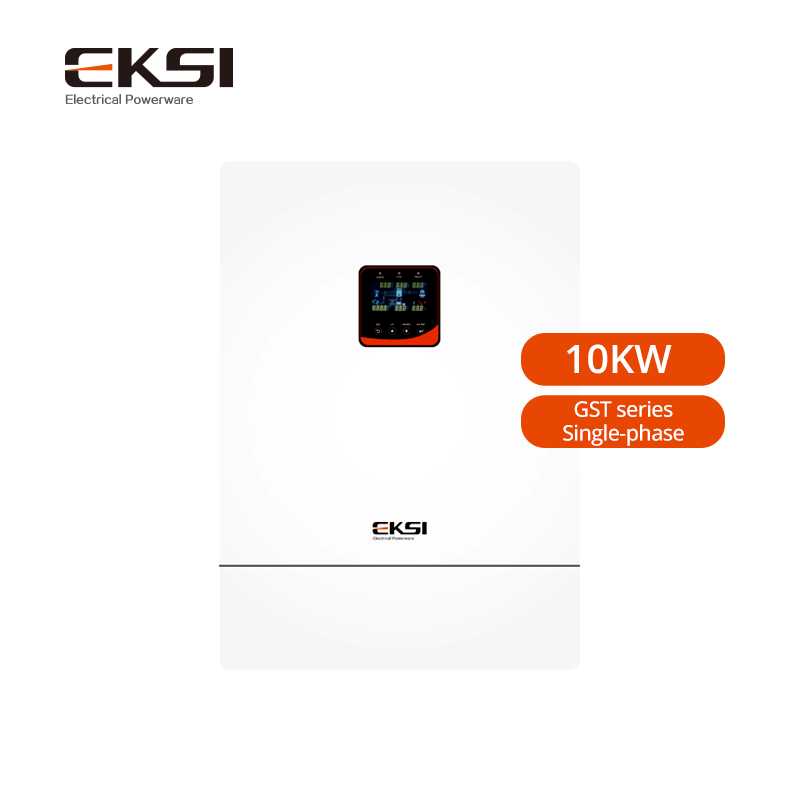

Mainly divided into three functional areas: dynamic LCD screen, LED status display area, and convenient Key area.
Equipped with double cooling fans to provide excellent heat dissipation. Utilizes forced air cooling with variable fan speeds based on system load.
It can be flexibly combined to achieve up to 9 parallel machines. The parallel system can output single-phase and three-phase AC voltage to meet diverse power requirements.
