| MODEL | ASP4880SH3 | ASP48100SH3 | ASP48120SH3 |
| AC OUTPUT | |||
| Rated Output Power | 8,000W | 10,000W | 12,000W |
| Max.Output Power | 16,000VA | 20,000VA | 24,000VA |
| Rated Output Voltage | 230/400Vac (three-Phase) | ||
| Load Motor Capacity | 5HP | 6HP | |
| Rated Frequency | 50/60Hz ±0.3 | ||
| Switch Time | 10ms (typical) | ||
| BATTERY | |||
| Battery Type | Li-ion / Lead-Acid / User Defined | ||
| Rated Battery Voltage | 48V | ||
| Battery Voltage Range | 40 ~ 60Vdc | ||
| Max.Grid/Generator Charging Current | 100A | 120A | 120A |
| Max.Hybrid Charging Current | 180A | 220A | 260A |
| SOLAR INPUT | |||
| No. Of MPPT | 2 | ||
| Max.Input Power | 6,000W+6,000W | 7,500W+7,500W | 9,000W+9,000W |
| Max.Input Current | 22A+22A | ||
| Max.Open Circuit Voltage | 800Vdc+800Vdc | ||
| MPPT Voltage Range | 200-650Vdc / 200-650Vdc | ||
| GRID/GENERATOR INPUT | |||
| Input Voltage Range | Phase voltage 170~280V, Line voltage 305~485V | ||
| Input Frequency Range | 50/60Hz | ||
| Bypass Overload Current | 23.2A | 29A | 35A |
| EFFICIENCY | |||
| MPPT Tracking Efficiency | 99.9% | ||
| Max.Efficiency | ≥92% | ||
| European Efficiency | 97.2% / 97.5% | ||
| GENERAL DATA | |||

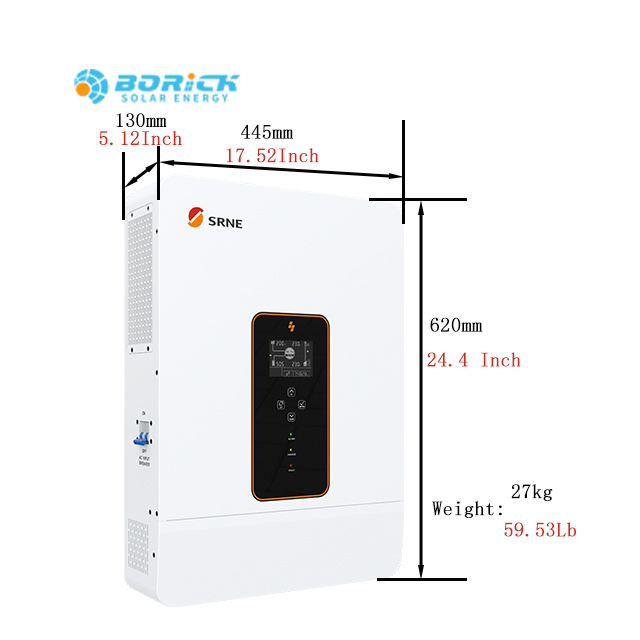

| Dimension | 620*445*130mm | Humidity | 0 ~ 100% |
| Weight | 27kg | Cooling Method | Fan cooling |
| Protection Degree | IP20 | Warranty | 2 years |
| Temperature | -10~55℃, >45℃ Derate | Communication | RS485 / CAN / USB / Dry Contact |
| External Module(Optional) | Wi-Fi / GPRS | Topology | Transformerless |
| Certificate | IEC62109 / EN61000 / RoHS | ||
