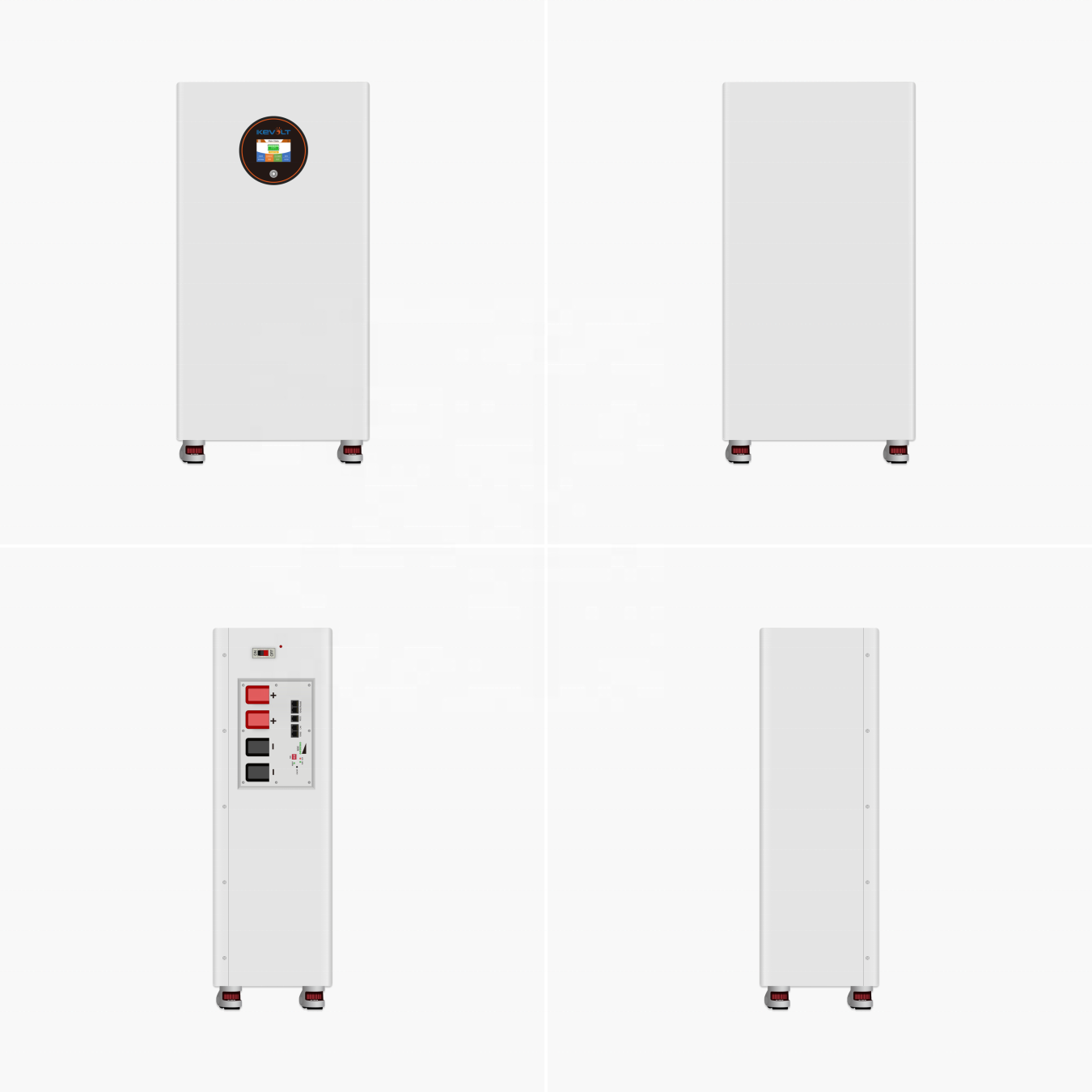

| Parameter Name | 16.08kWh Specification | 20.48kWh Specification |
|---|---|---|
| Battery Type | A Grade LiFePO4 | A Grade LiFePO4 |
| Capacity Module | 314Ah | 400Ah |
| Energy Capacity | 16.08kWh | 20.48kWh |
| Suggested SOC | 20~100% | 20~100% |
| Normal Voltage | 51.2V | 51.2V |
| Max Charge Current | 200A | 200A |
| Max Discharge Current | 200A | 200A |
| Parallel Quantity | 15 Units | 15 Units |
| Cycle Life | 8000 Cycles | 6000 Cycles |
| Dimensions (mm) | 420*260*860 | 500*260*1055 |
| Weight (kg) | 123 kg | 178 kg |
| Operating Temperature | Charge: 0~50℃, Discharge: -20~60℃ | Charge: 0~50℃, Discharge: -20~60℃ |
| Installation Method | Floor Mounted | Floor Mounted |
| Screen | 3.5-Inch Touch Color Screen | 3.5-Inch Touch Color Screen |

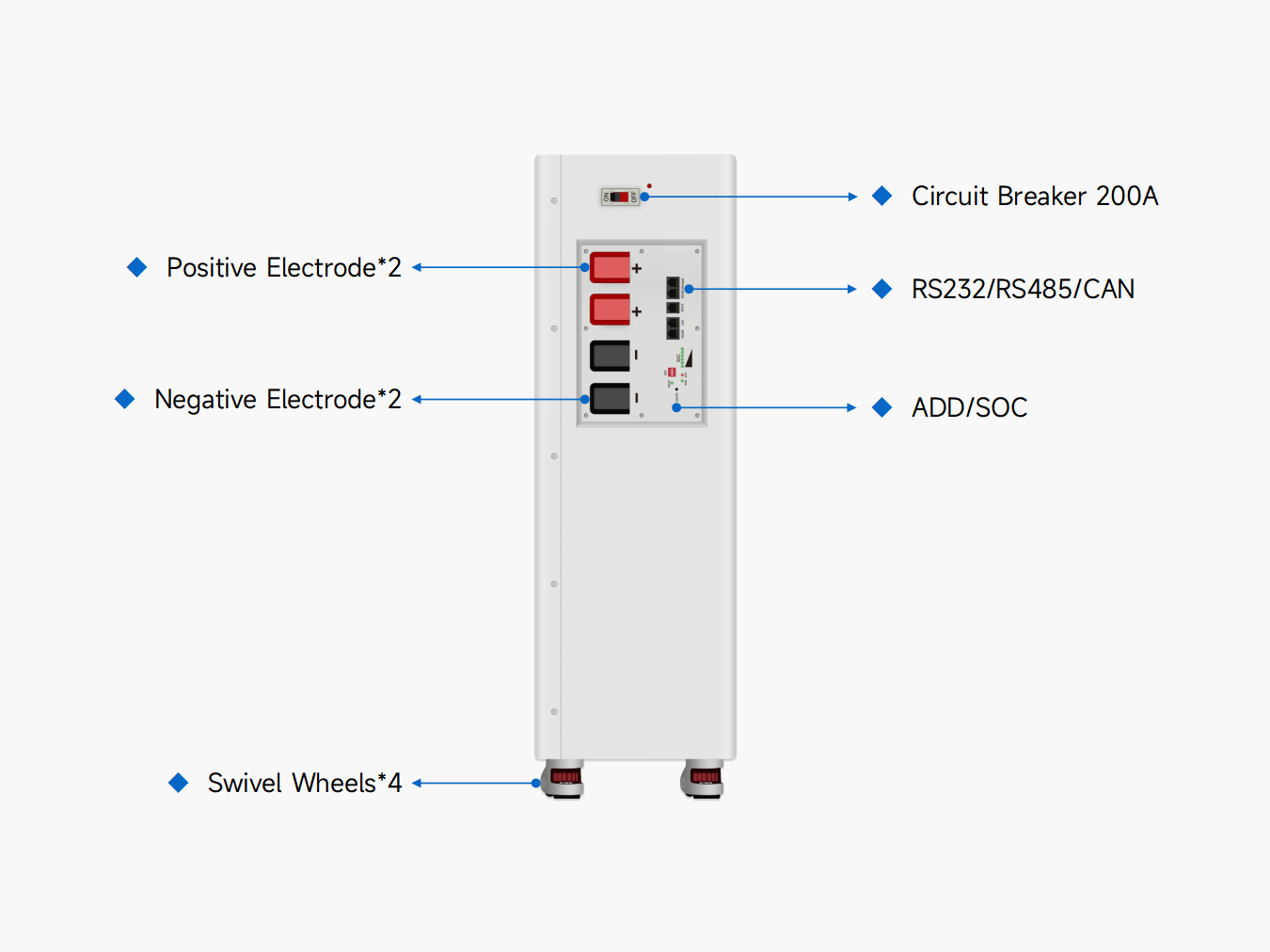

| Number of Ports | Positive Pole*2, Negative Pole*2 | Positive Pole*2, Negative Pole*2 |
| Communication Port | RS485, IEC, CAN, RS232 | RS485, CAN, RS232 |
| Warranty | 10 Years | 10 Years |
| Customizable Item | Capacity, Panel Pattern, LOGO, Packaging | Capacity, Panel Pattern, LOGO, Packaging |
| Compatibility | Compatible with 95% Inverter Brands | |
