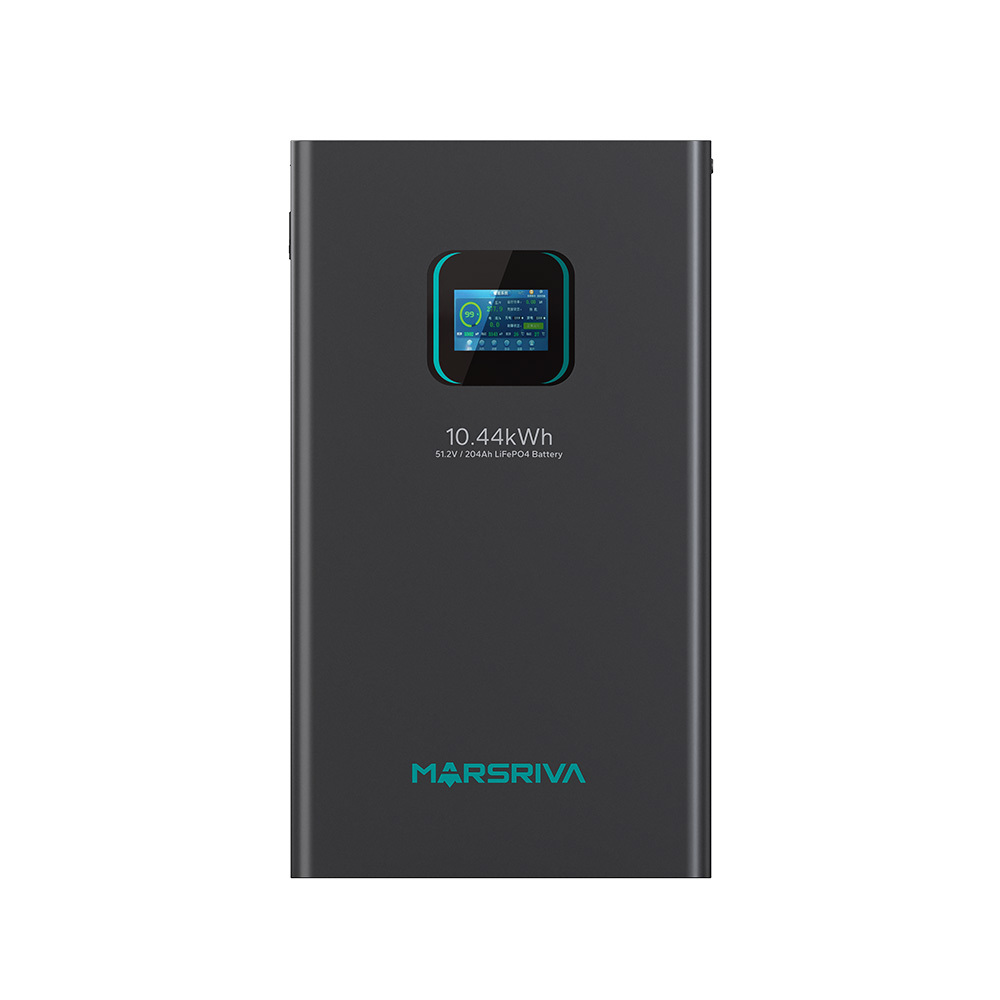

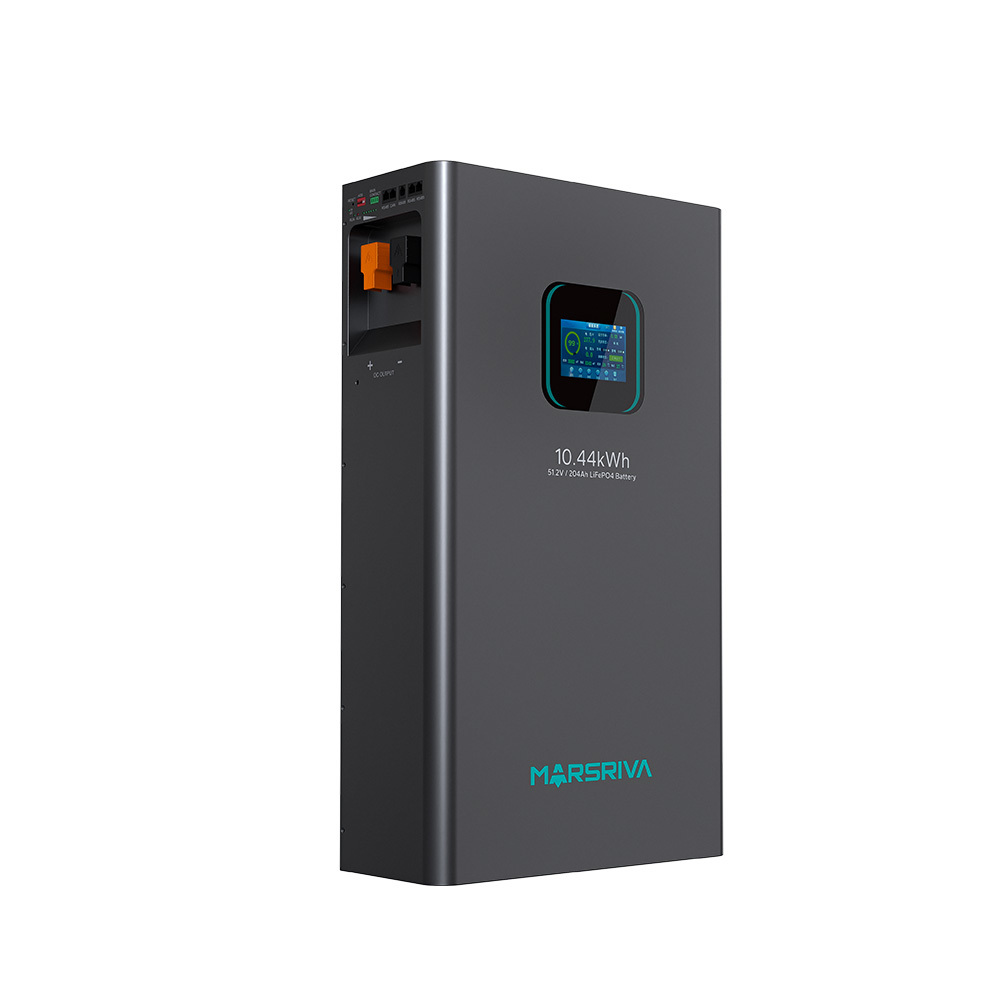

All In One Solar Home Storage Battery (Grade A) 10.44kWh (51.2V / 204Ah) BYD LiFePO4 Battery

Product Description

Products Description

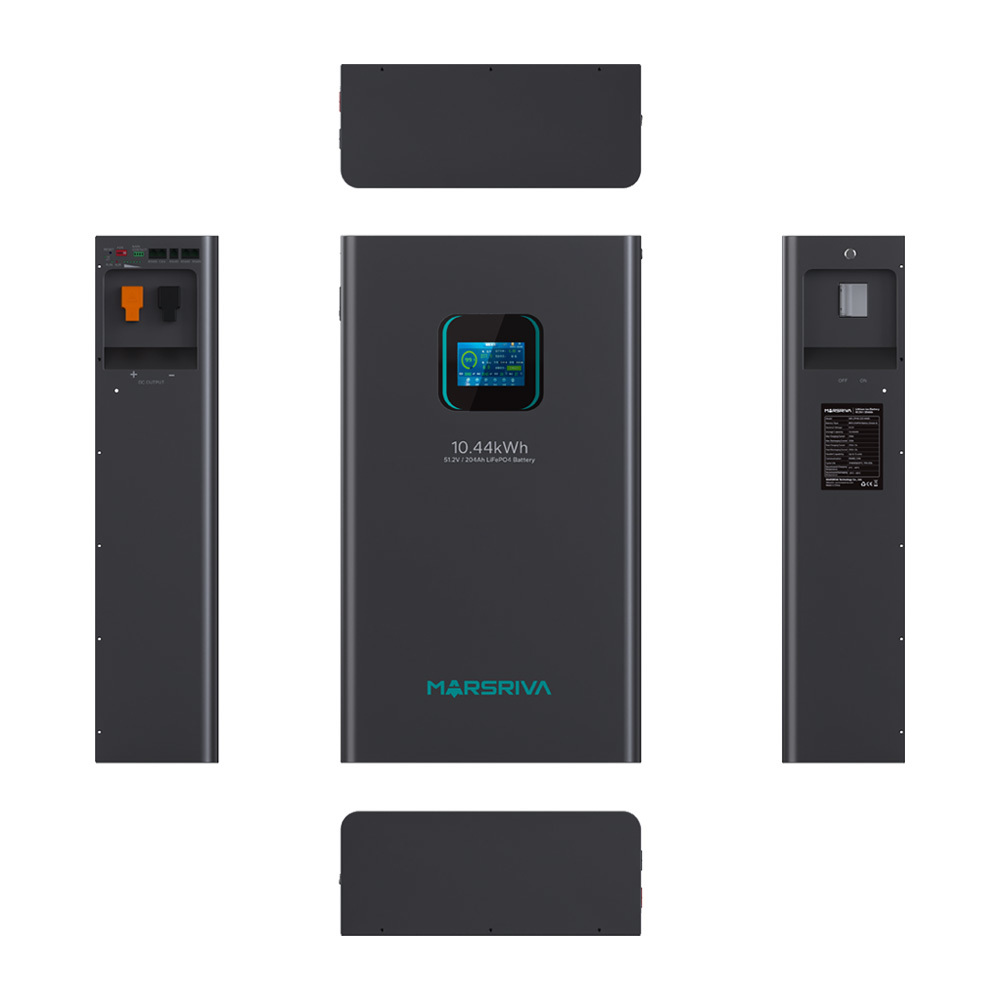

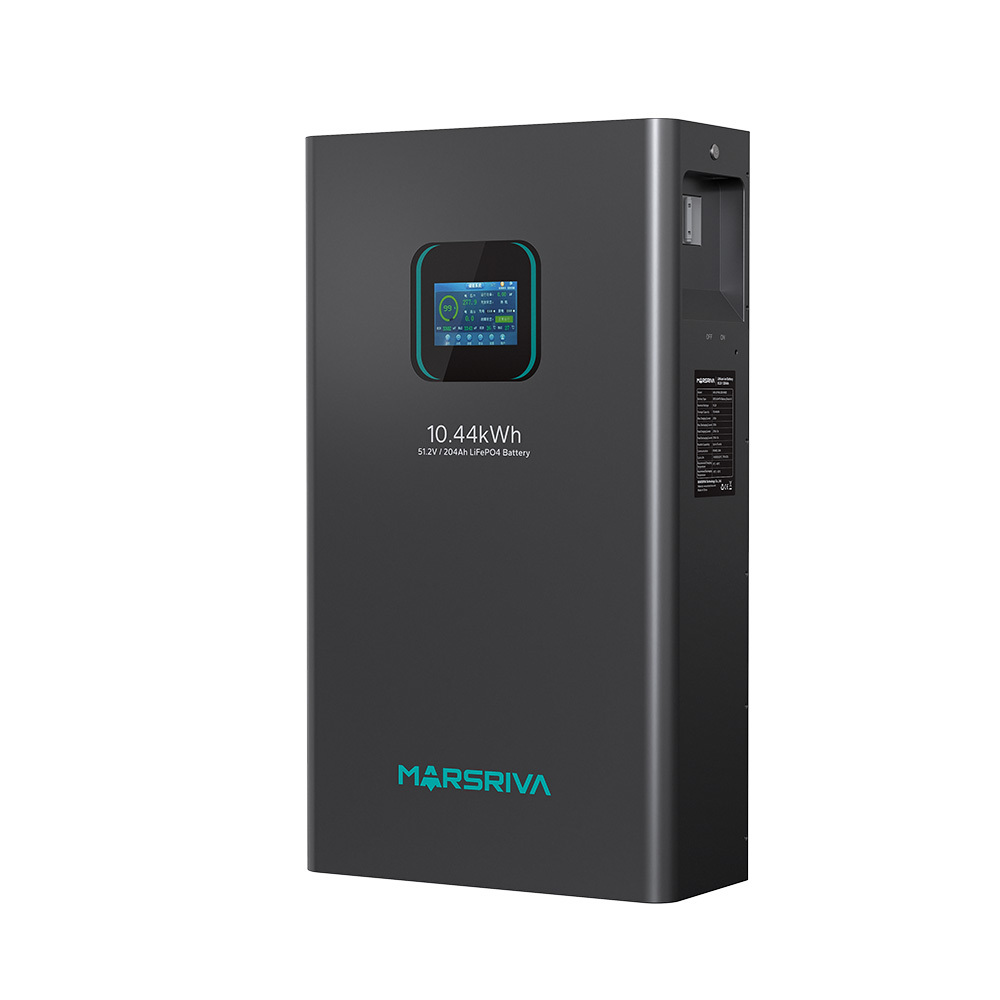

Product Image
  • Iron phosphate-lithium power battery
  • High energy density, high capacity, longer discharge time
  • Support using under wide temperature range, 6000 cycle life
  • Built-in BMS
  • Support connected in parallel mode for expansion
  • Long warranty period

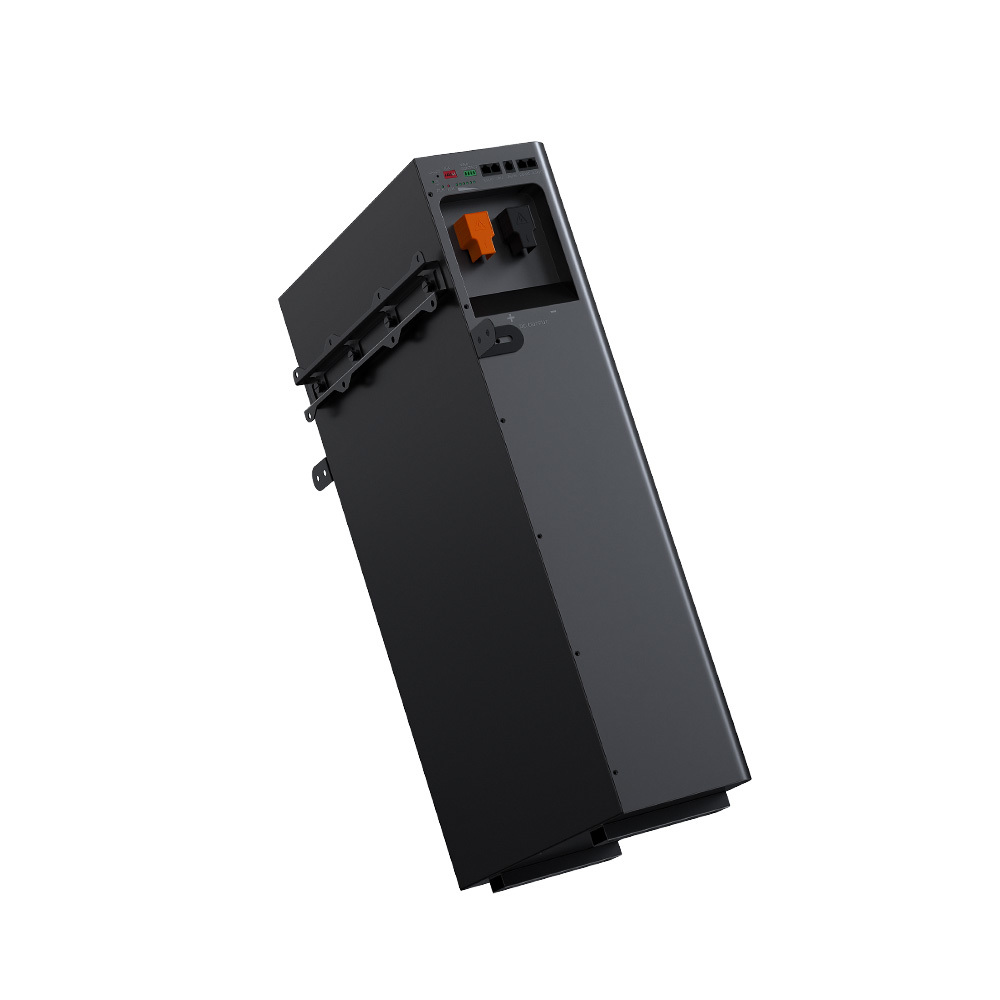

  • Floor standing or wall mount for simple installation
  • Constructed with SPCC high-quality cold-rolled steel for robust support
  • 4.3-inch touch screen for easy operation
Specification
MODEL MR-LFP48-200-WMD
Battery Type BYD LiFePO4 Battery (Grade A)
Nominal Voltage 51.2V
Capacity 204Ah
Storage Capacity 10.44kWh
Battery Internal Resistance ≤10mΩ
Cycle Life ≥6000 @25°C, 70% EOL
Design Life ≥10 years
Max. Charging Current 210A
Max. Discharging Current 210A
Peak Charging Current 215A / 2s
Peak Discharging Current 215A / 2s
Communication RS232, RS485, CAN
Number of Parallel Connections Up to 15 units
Charging Temperature 0ºC to 60ºC
Discharge Temperature -15ºC to 55ºC
Storage Temperature -30ºC to 35ºC
Humidity 5% – 95%
Dimension (L*W*H) 847 × 483 × 200mm
Weight Net Weight: 89.3kg (Gross Weight: 104.2kg)
Specifications are subject to change without notice, all product drawings are for reference only.
Why Choose Us
Overview
Overview
With a strong emphasis on high-tech product development, efficient production, and rigorous quality management, as a cutting-edge new energy enterprise, we are dedicated to becoming one of the best suppliers of UPS systems, power supplies, solar photovoltaic products, and related products.
We began expanding business in the Middle East and Africa markets. We will keep exceeding ourselves by offering high-quality products, establishing ourselves as the most reliable choice worldwide. We take great pride in providing a comprehensive range of products and services to meet the diverse requirements of clients, from local regions to worldwide markets. Our unwavering focus is on fostering strong and successful partnerships with all our customers.
International Business Network
International Business Network
We supply products to more than 60 countries, serving millions of people worldwide. Our company proudly holds ISO9001 management system certification, and several of our products have been granted national patents.
Looking ahead, there are plans to expand with additional branch offices, R&D centers, and logistic centers in various regions, further supporting our valued business partners from around the globe. We are dedicated to providing innovative products and solutions to meet the needs of consumers worldwide.
Core Value
Core Value
Adhering to the principle that "customer is the king," we place utmost importance on our customers and their needs. Our unwavering commitment is to provide the most suitable and reliable solution to solve our customers' problems effectively.
From product development to after-sales support, we consistently strive to exceed customer expectations, ensuring their complete satisfaction with our offerings. Our core value is not just a statement but a way of doing business. We are committed to delivering excellence, and our customers remain at the center of everything we do.

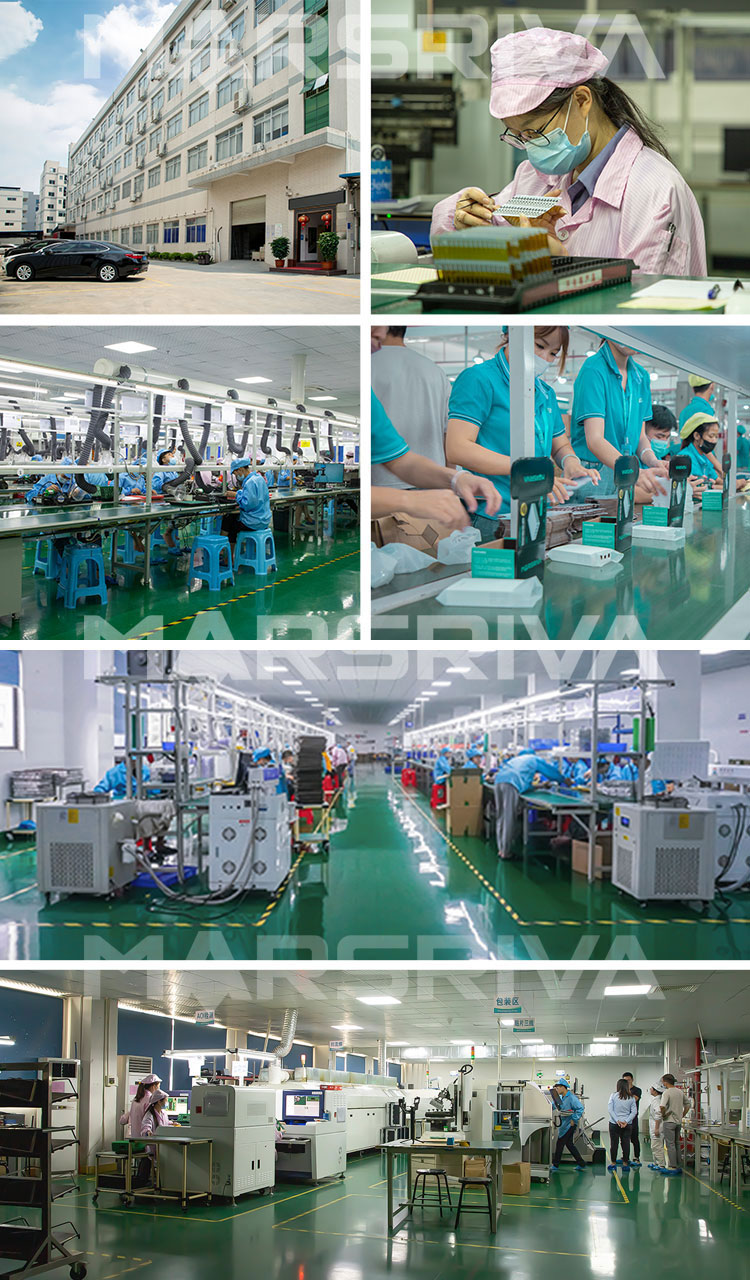

Company Profile
Company Profile

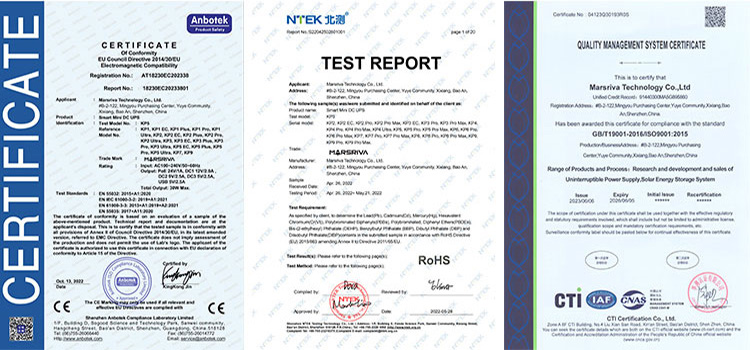

Certifications
Certifications
Exhibition
Exhibition Main
Exhibition Sub 1
Exhibition Sub 2
Product Packaging
Packaging
Frequently Asked Questions
Q1: What cells are used in this lithium battery?
A1: This battery uses premium Grade A BYD LiFePO4 cells, which offer superior thermal stability, safety, and a prolonged service life.
Q2: What is the expected cycle life of the battery?
A2: The battery is rated for ≥6000 cycles at 25°C with 70% EOL (End of Life), providing a long design lifespan of over 10 years under standard operating conditions.
Q3: How many units can be connected in parallel for expansion?
A3: The system supports parallel configuration of up to 15 units, allowing you to easily scale up storage capacity as power needs grow.
Q4: Does the battery come with an integrated Management System?
A4: Yes, it features a built-in Battery Management System (BMS) that monitors operations, protects against overcharging/discharging, and supports RS232, RS485, and CAN communication interfaces.
Q5: What are the installation options for this model?
A5: This model features a versatile design that allows for both floor standing and wall mount installations for simple, flexible setup in various spaces.
Q6: What is the operating temperature range for charging and discharging?
A6: The recommended charging temperature is between 0ºC and 60ºC, while the discharge temperature ranges from -15ºC to 55ºC.
