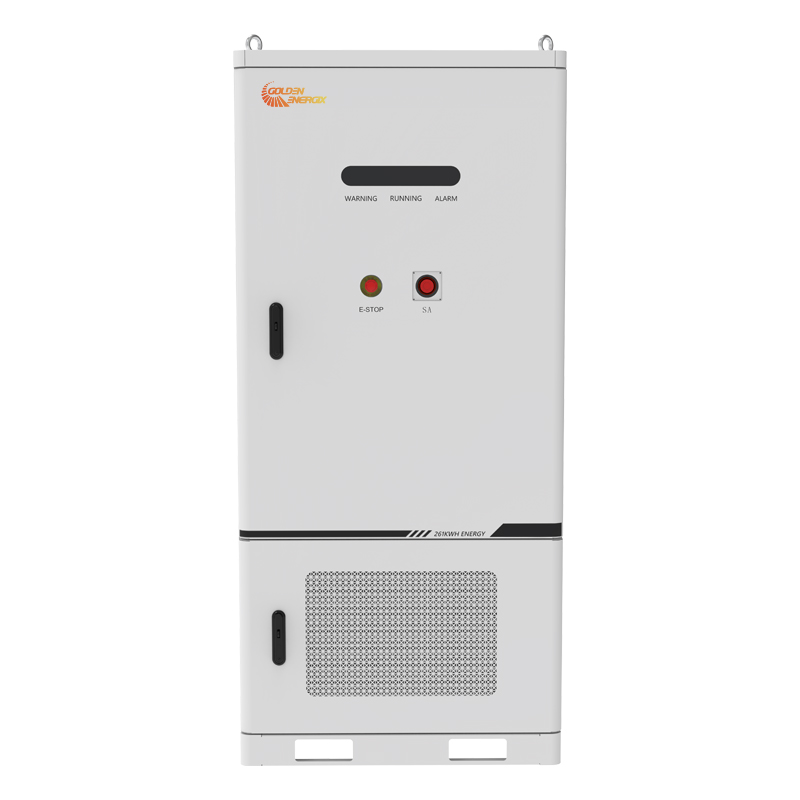

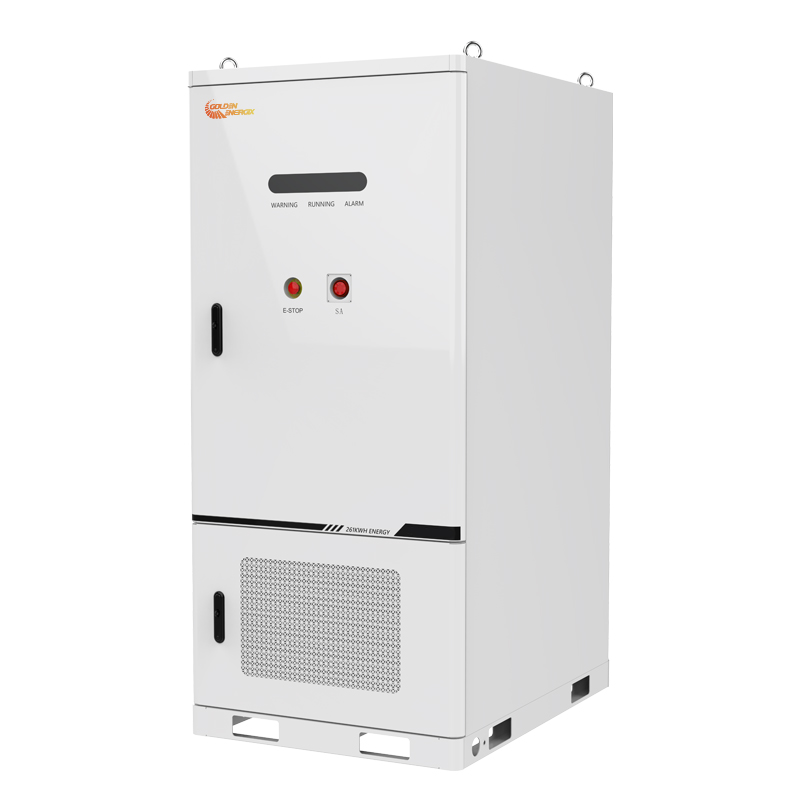

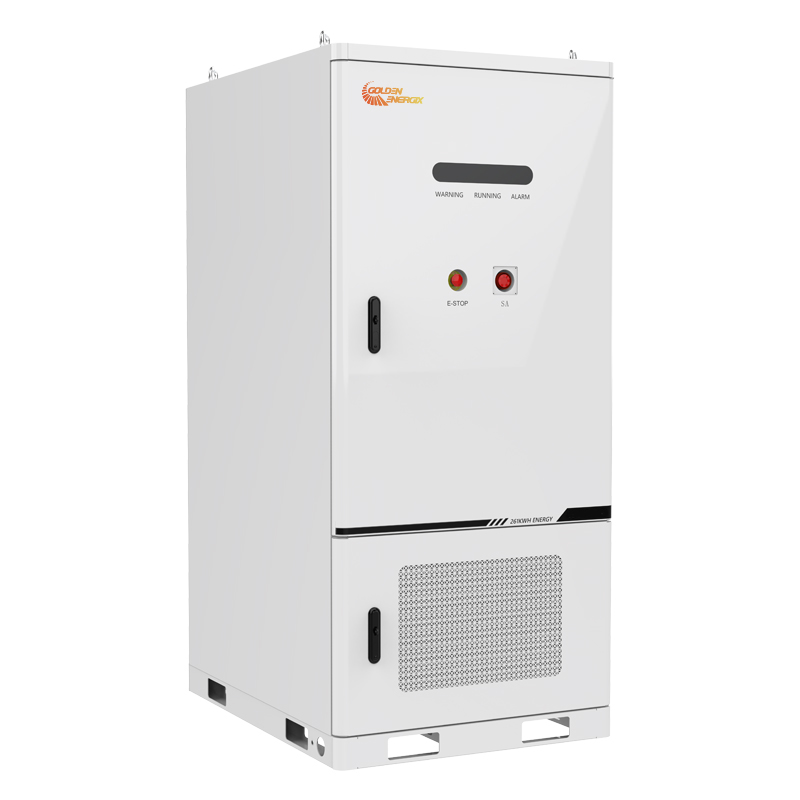

Hybrid Off-Grid Solar Energy Storage System Residential Power Solution with Solar Panels for Industrial & Commercial Use
Hybrid Off-Grid Solar Energy Storage System Residential Power Solution with Solar Panels for Industrial & Commercial Use
Hybrid Off-Grid Solar Energy Storage System Residential Power Solution with Solar Panels for Industrial & Commercial Use
Hybrid Off-Grid Solar Energy Storage System Residential Power Solution with Solar Panels for Industrial & Commercial Use
Hybrid Off-Grid Solar Energy Storage System Residential Power Solution with Solar Panels for Industrial & Commercial Use
1 / 5
Hybrid Off-Grid Solar Energy Storage System Residential Power Solution with Solar Panels for Industrial & Commercial Use
Hybrid Off-Grid Solar Energy Storage System Residential Power Solution with Solar Panels for Industrial & Commercial Use
Hybrid Off-Grid Solar Energy Storage System Residential Power Solution with Solar Panels for Industrial & Commercial Use
Hybrid Off-Grid Solar Energy Storage System Residential Power Solution with Solar Panels for Industrial & Commercial Use
Hybrid Off-Grid Solar Energy Storage System Residential Power Solution with Solar Panels for Industrial & Commercial Use

Hybrid Off-Grid Solar Energy Storage System Residential Power Solution with Solar Panels for Industrial & Commercial Use

Send Inquiry

Product Description

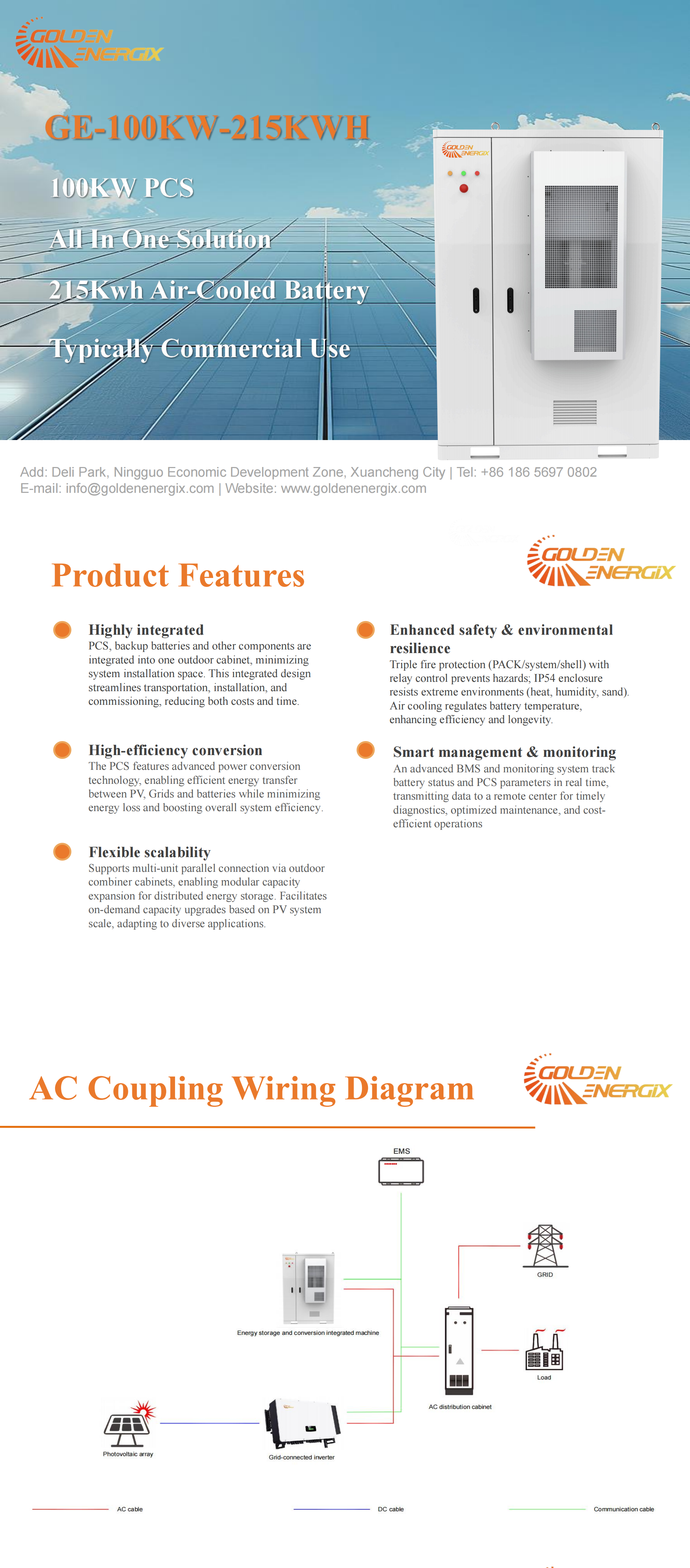

Energy Storage System Showcase

Product Datasheet

Model GE-100KW/215KWH
Battery Type 280Ah
Battery Capacity 215.04kWh
Nominal Voltage 768V
Voltage Range 672V-852V
Rates Output Power 100kW
Max. AC Output Power 116kVA
THDi < 3% (at nominal power)
Nominal Grid Voltage 400V, 3L+N+PE
Nominal Grid Frequency 50/60Hz
Protection Class IP54
Anti-corrsion Level C3
Max. Number of Connection 10pcs
Communication RS485/CAN
Certification IEC 62619, EN 62477, NRS 097, EN 50549
Weight 2500kg
Dimension(W*D*H) 1400*1350*2300
Permissible Altitude 2000m
Working Temperature 0 - 45℃ Charge / -20 - 50℃ Discharge

Our Projects

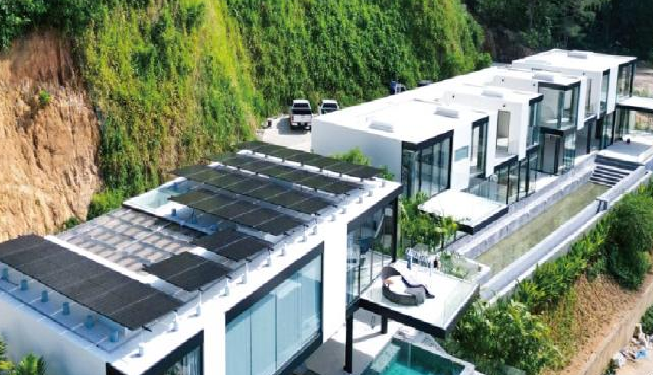

Project Installation View 1

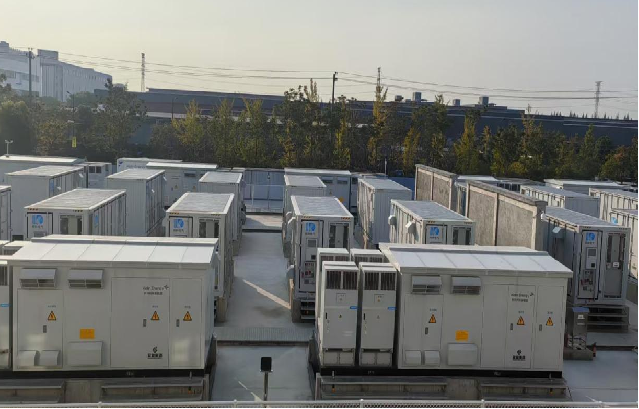

Project Installation View 2

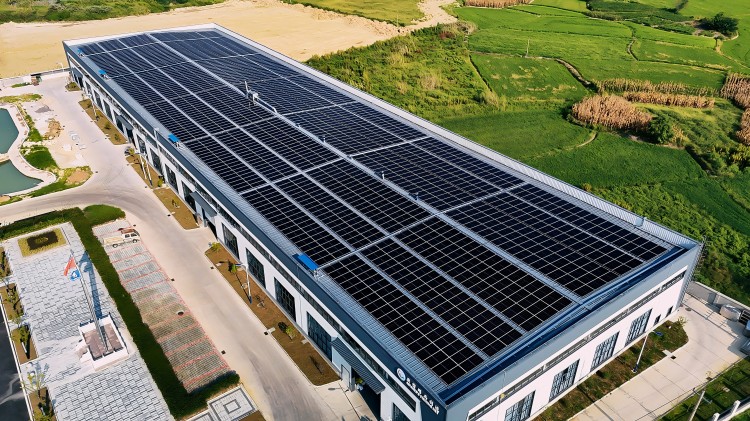

Project Installation View 3
Project Details Diagram
Project Cabinet Internal Setup

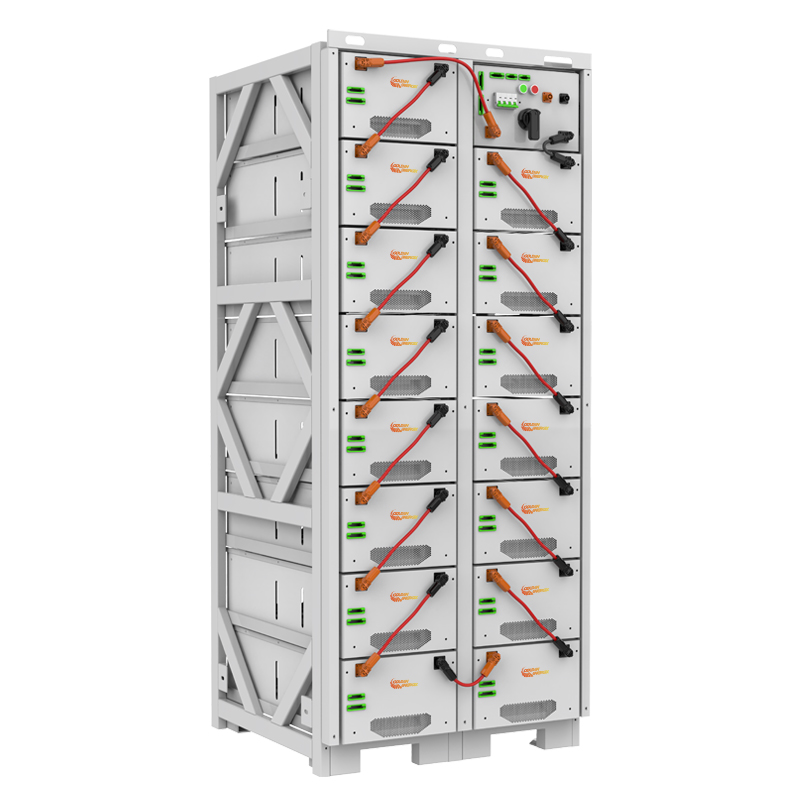

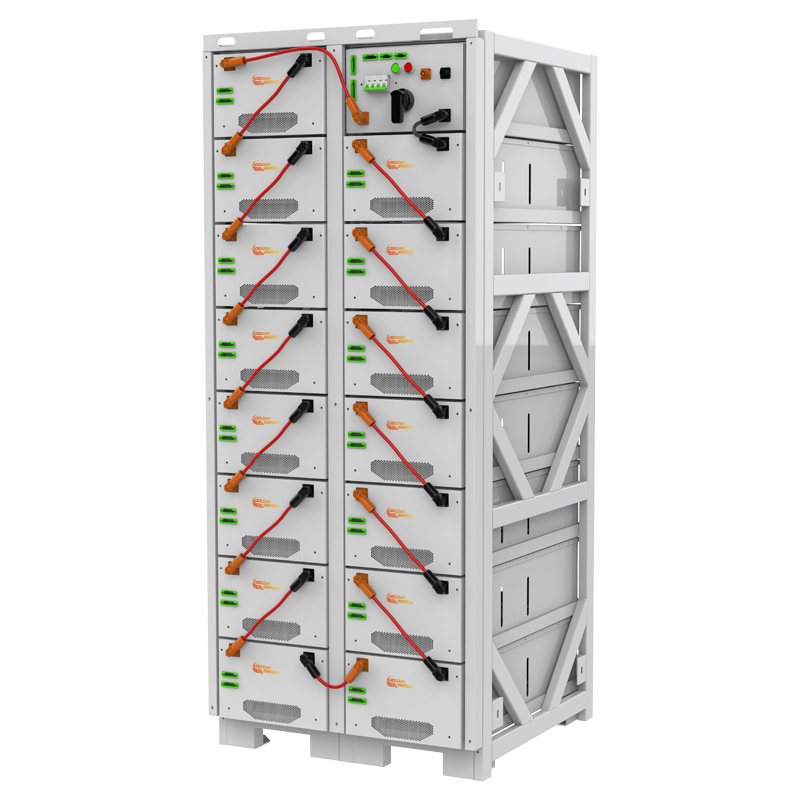

Battery Rack Construction
Outdoor Battery Cabinet Deployment
Integrated Energy Management Display

Our Company

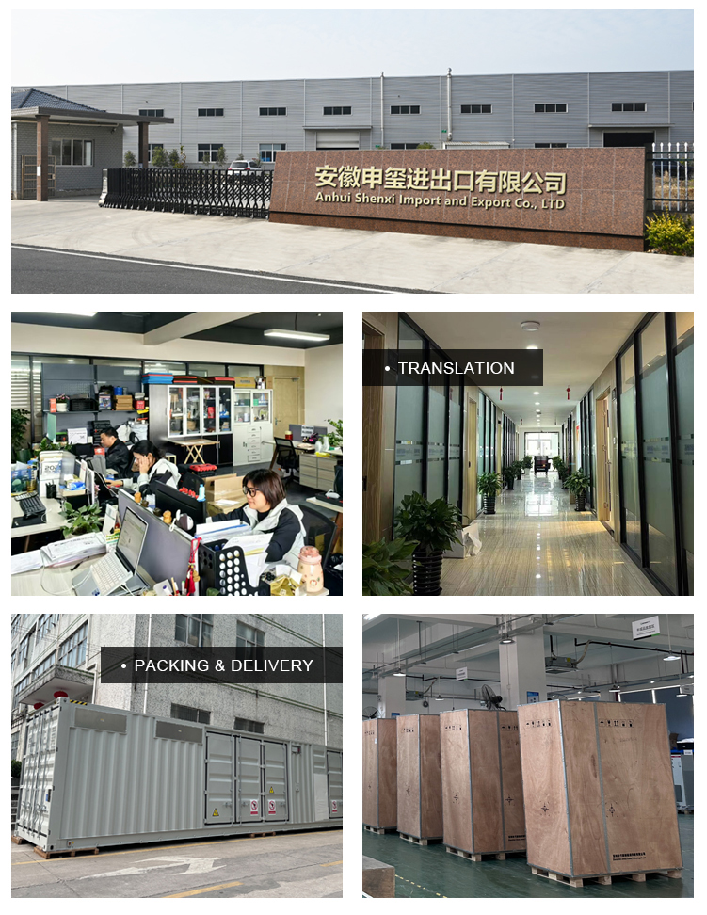

Manufacturing Facility Overview
R&D Lab and Quality Testing Setup

Frequently Asked Questions

What is the battery capacity and nominal voltage of the GE-100KW/215KWH system?
The GE-100KW/215KWH energy storage system offers a nominal battery capacity of 215.04kWh utilizing premium 280Ah battery cells, operates at a nominal voltage of 768V, and supports a working voltage range of 672V to 852V.
How many units of this system can be connected together in parallel?
The system is designed for high scalability, allowing a maximum of 10 units to be connected in parallel configurations to dynamically scale total capacity up to 1MW/2.15MWh.
What are the environmental ratings and working temperature limits?
This commercial unit has an IP54 protection rating and C3 anti-corrosion rating, ensuring high durability. It performs efficiently with a charging temperature range of 0 to 45°C and a discharging temperature range of -20 to 50°C.
What certifications does the GE-100KW/215KWH system hold?
The system conforms to rigorous safety and operational standards, fully certified under IEC 62619, EN 62477, NRS 097, and EN 50549.
What communication protocols are supported for system integration?
The device supports standard industrial communication interfaces, specifically RS485 and CAN, facilitating easy and reliable connection to SCADA and Local Energy Management Systems (EMS).
