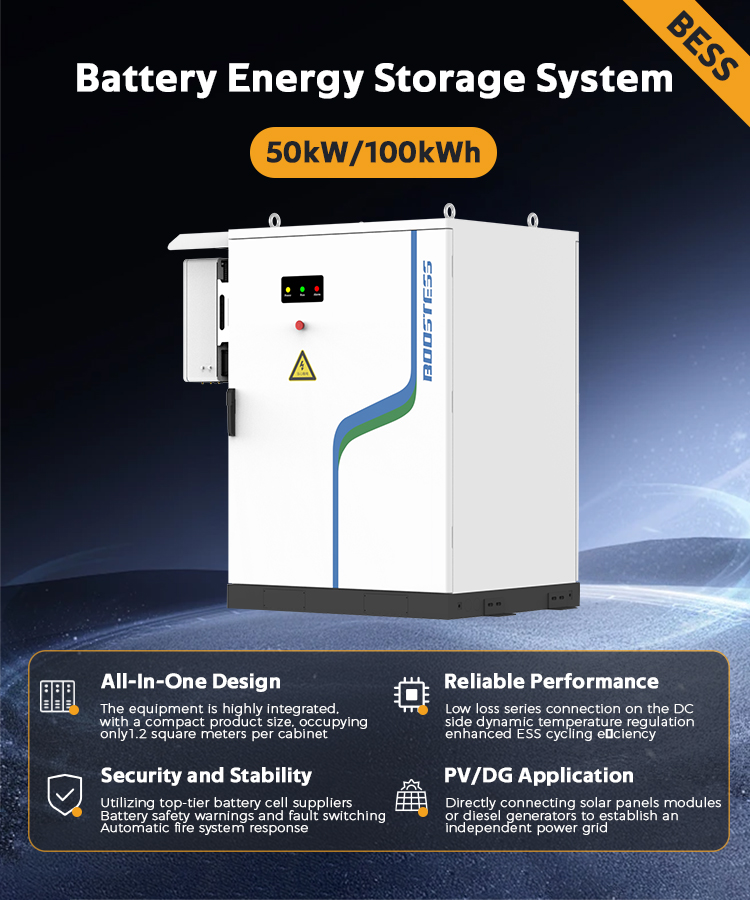

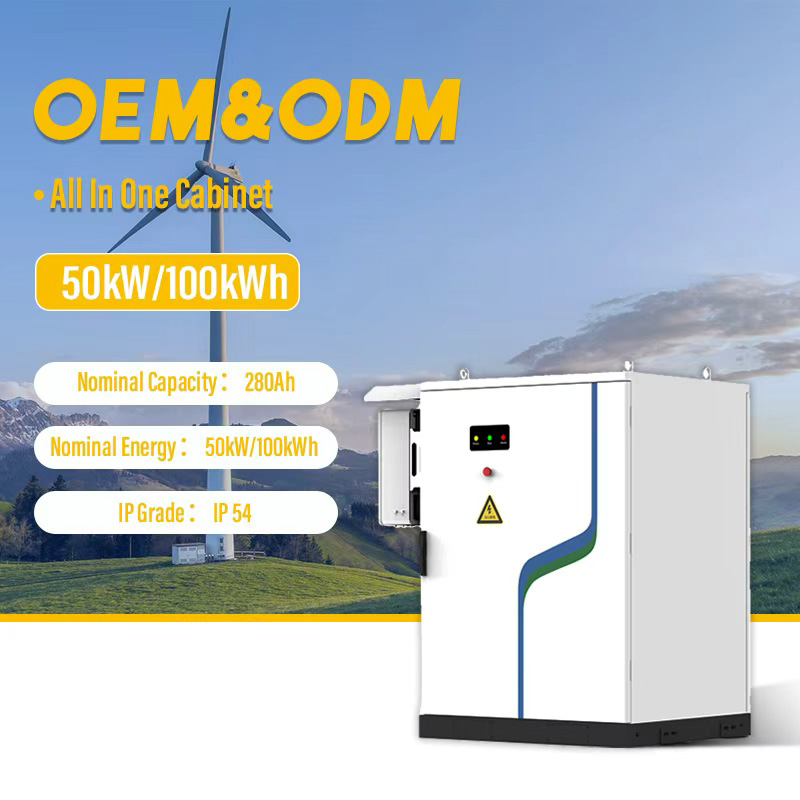

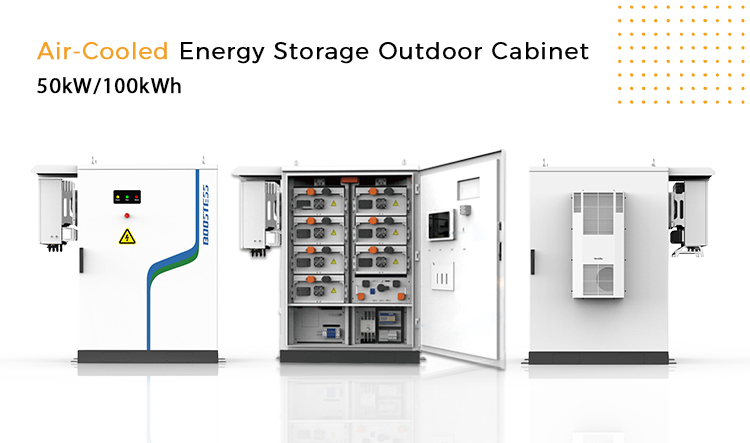

| DC Parameters | |||
|---|---|---|---|
| Battery Type | LFP | Voltage Range | 280V ~ 408.8V |
| Combination Mode | 1P112S | Charge/Discharge Current | 100A / 100A |
| Rated Capacity | 280Ah | Cooling Mode | Air Cooling |
| Rated Energy | 100kWh | Cycle Number | 8000 |
| Rated Voltage | 358.4V | Fire Protection System | Aerosol Extinguishing |
| Rated Power | 50kW | Detector Type | Temperature / Smoke Sensor / Water Leak |
| PV Parameters | |||
| Maximum Input Power | 96kW | Maximum DC Input Voltage | 1000V |
| MPPT Operating Voltage Range | 150-850V | Maximum Input Current | 40A × 4 |
| Rated Output Power | 50kW | Maximum Conversion Efficiency | 98.5% |
| AC Parameters | |||
| Rated Output Power | 50kW | Rated Voltage | 3L/N/PE; 220/380V; 230/400V; 240/415V |
| Grid Frequency | 50/60Hz | Maximum Output Current | 78A |
| Power Factor | 0.99 (0.8 Lead... 0.8 lag) | ||
| System Parameters | |||
| Operating Environment | -20°C ~ 55°C (Power derating 45°C+) | ||
| Size | 1130 * 1000 * 1600mm | Weight | About 1.4t |
| Class Of Protection | IP54 | Allowable Relative Humidity | 0-95% |
| Allowable Altitude | ≤ 2000m (Power derating 2000m+) | ||
| Certification Standard | IEC62619, EN62477, IEC63056, IEC61000, UN38.3, IEC61727, EN50549-1, VDE-AR-N 4105, NTS631, TORERZEUGERTYP A, AS4777.2, NRS097-2-1 | ||
Founded in 2015, we develop safe, efficient, and affordable energy storage systems. With end-to-end in-house capabilities, we deliver customized solutions for global clients, including markets in Germany, the Czech Republic, and South Africa. We are committed to advancing smarter, more sustainable energy worldwide.
Normally we don't have MOQ request for most of our products. But the delivery time depends on the inverter model you require:
Our battery products are certified to meet global standards, including:
UN38.3, CE, EMC, UL, and REACH.
These certifications ensure compliance with international regulations, meeting the import requirements of most countries, and guaranteeing product quality and reliability.
Yes, we provide both OEM and ODM services. Please note that a minimum order quantity (MOQ) is required for custom configurations.

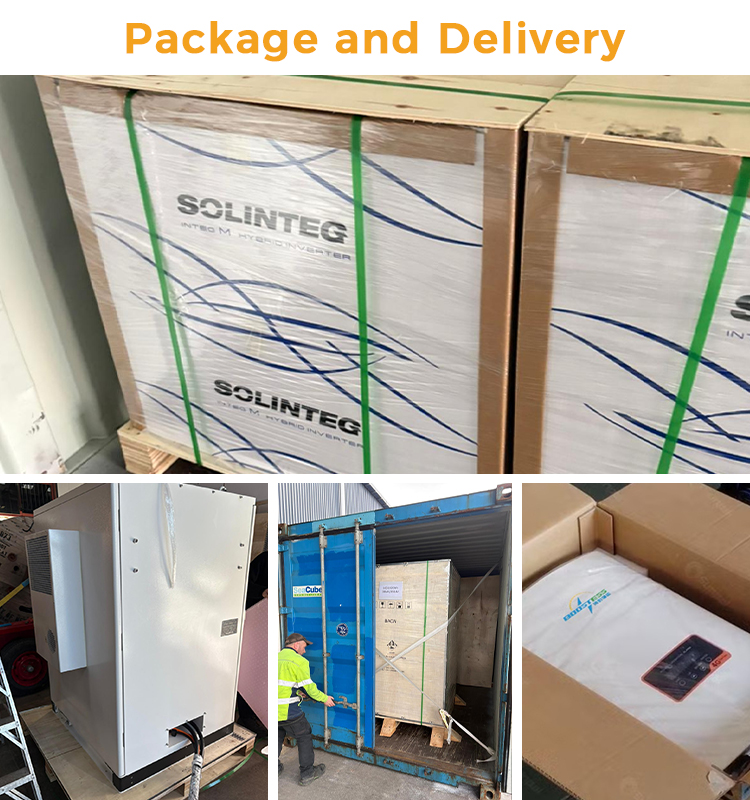

Absolutely! We work with long-term, experienced freight forwarders who specialize in battery shipments, ensuring safe, compliant, and efficient transportation globally.
Our products come with an industry-leading warranty of up to 10 years, ensuring long-term reliability and support.
We offer comprehensive after-sales support through our overseas branches, which can handle technical issues, repairs, and replacements promptly.
