Empower your business with reliable, efficient, and scalable energy solutions. Delivering stable power, lower energy costs, and sustainability—your trusted partner for the future of energy.

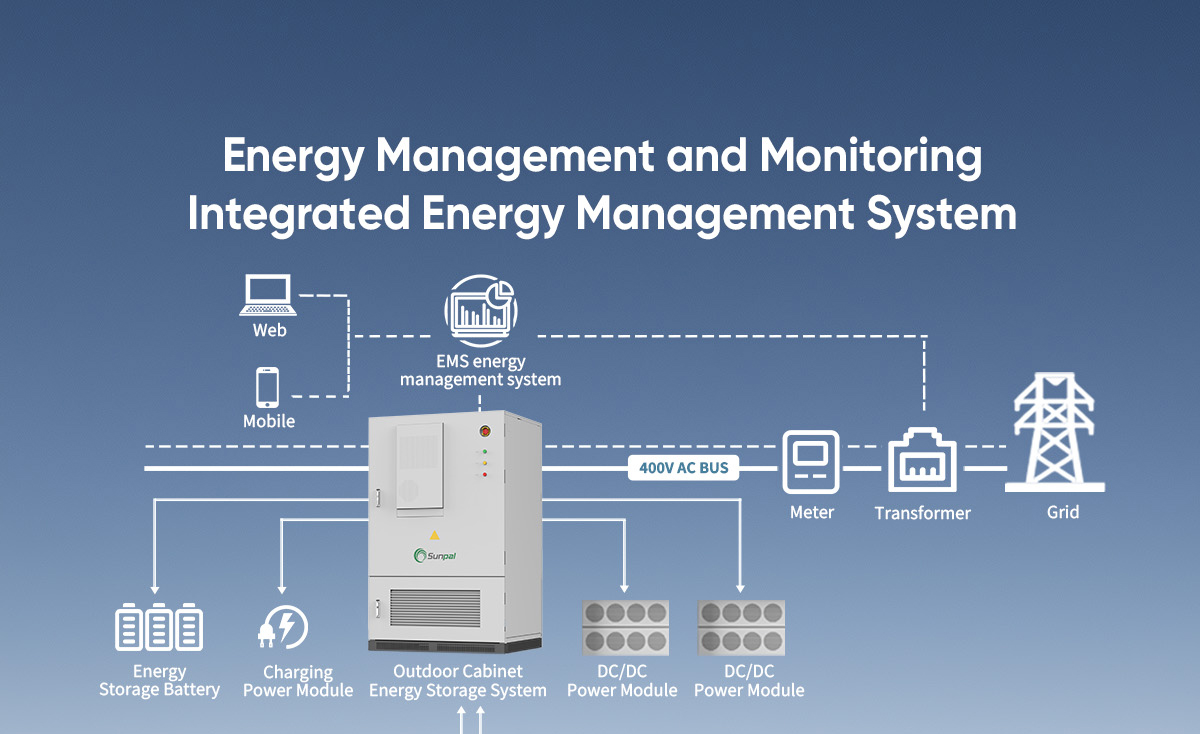

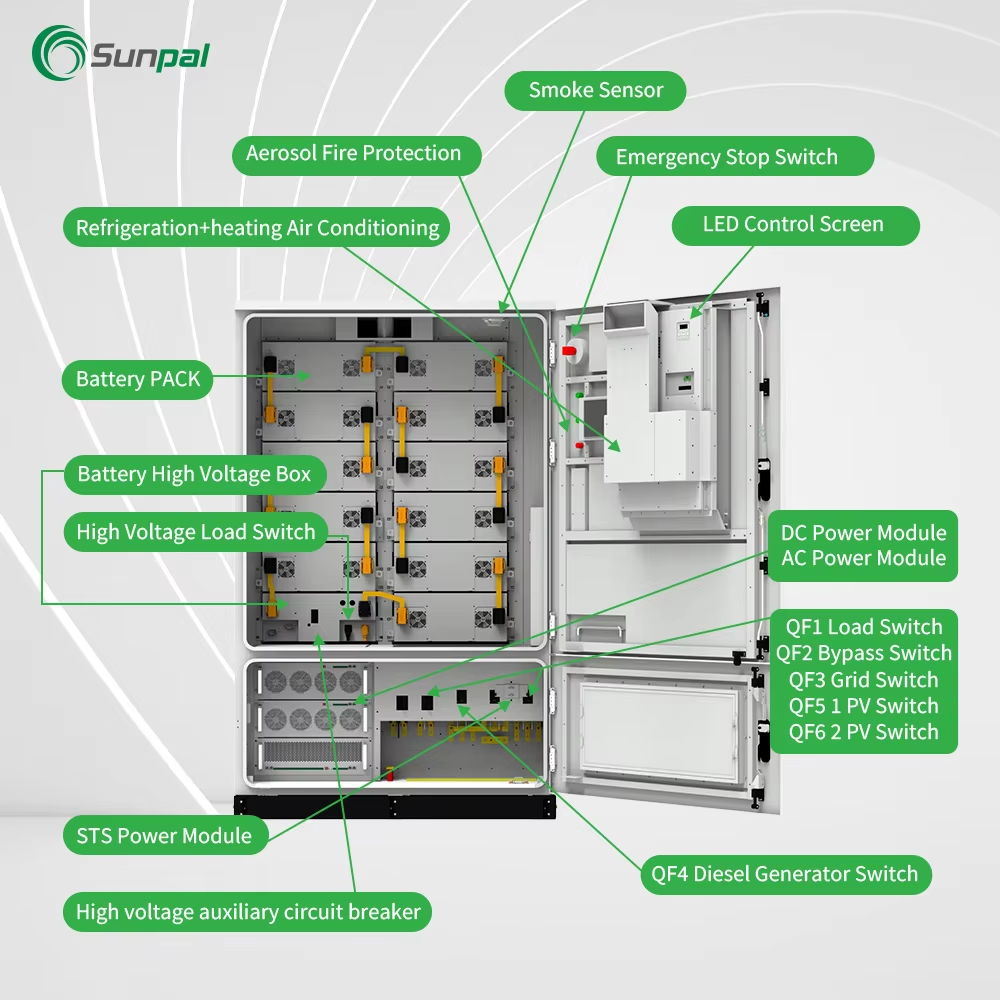

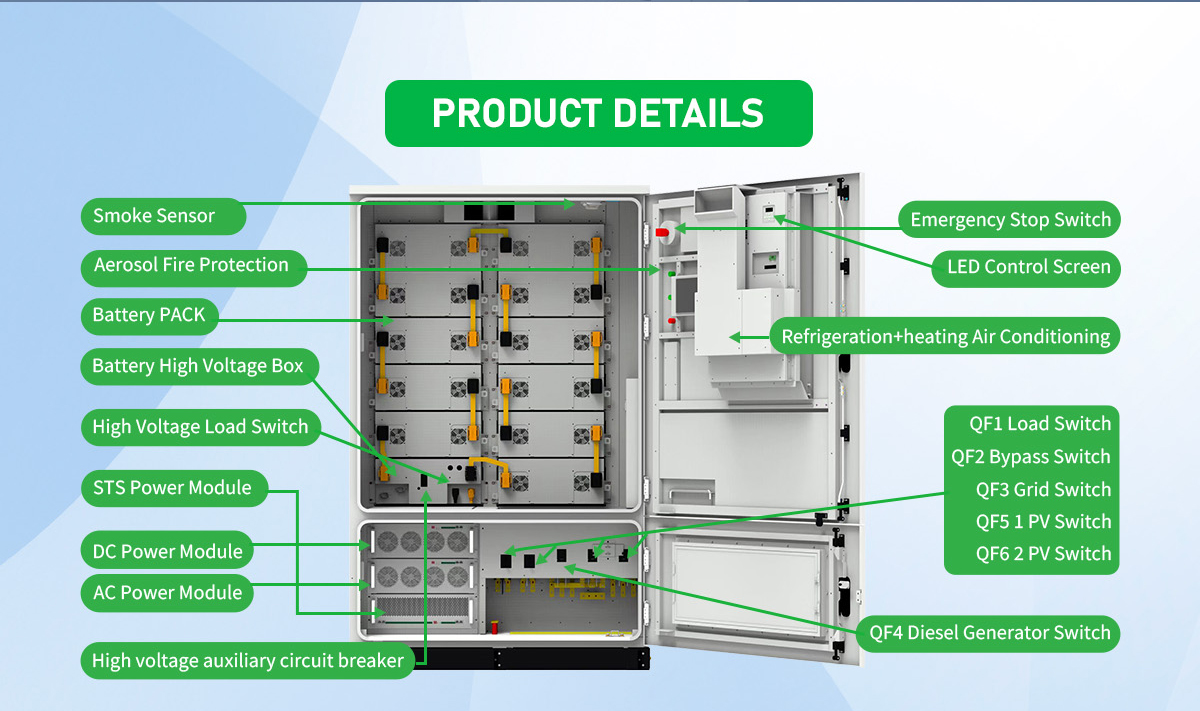

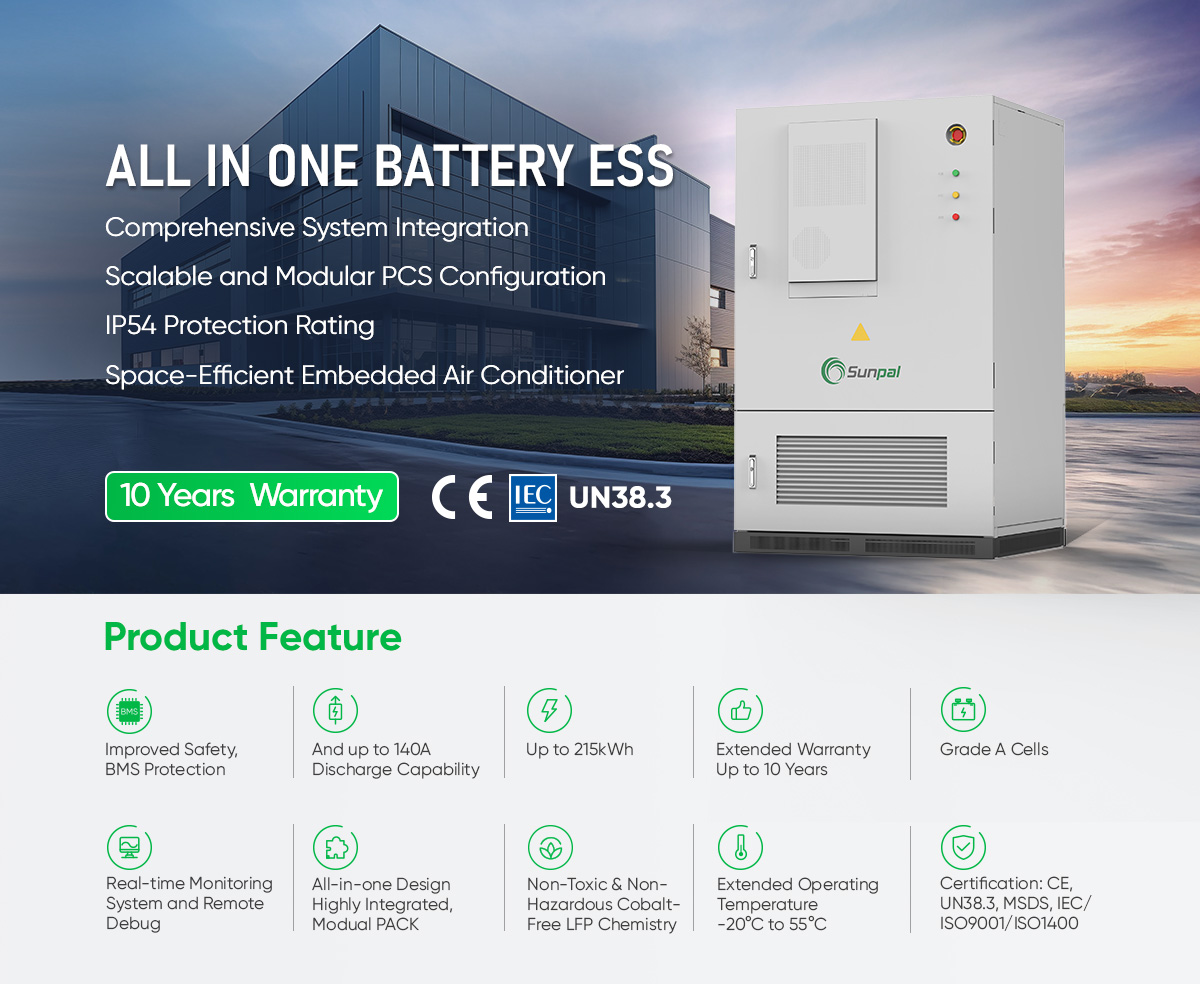

Integrated PCS, battery, BMS, EMS, and air conditioning in a compact outdoor cabinet, reducing installation complexity and cost.

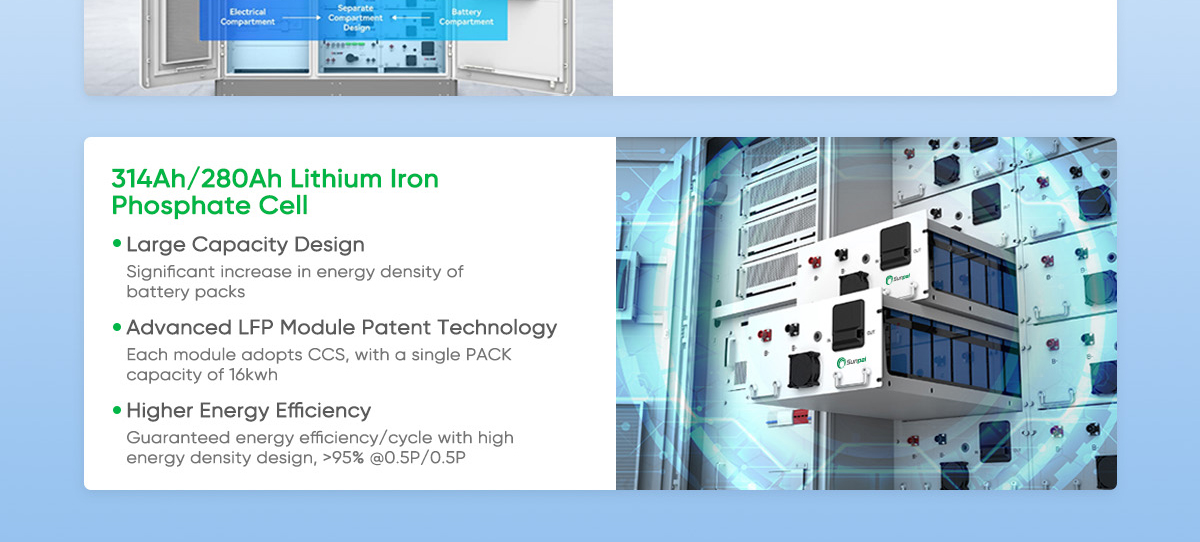

LFP batteries with advanced BMS ensure long lifespan, real-time monitoring, and multi-level protection.
Ideal for C&I facilities, microgrids, EV charging stations, and renewable integration.
Cut electricity bills, maximize solar self-consumption, and secure stable power supply.
Factory pre-assembled and tested, quick to install and ready to operate.

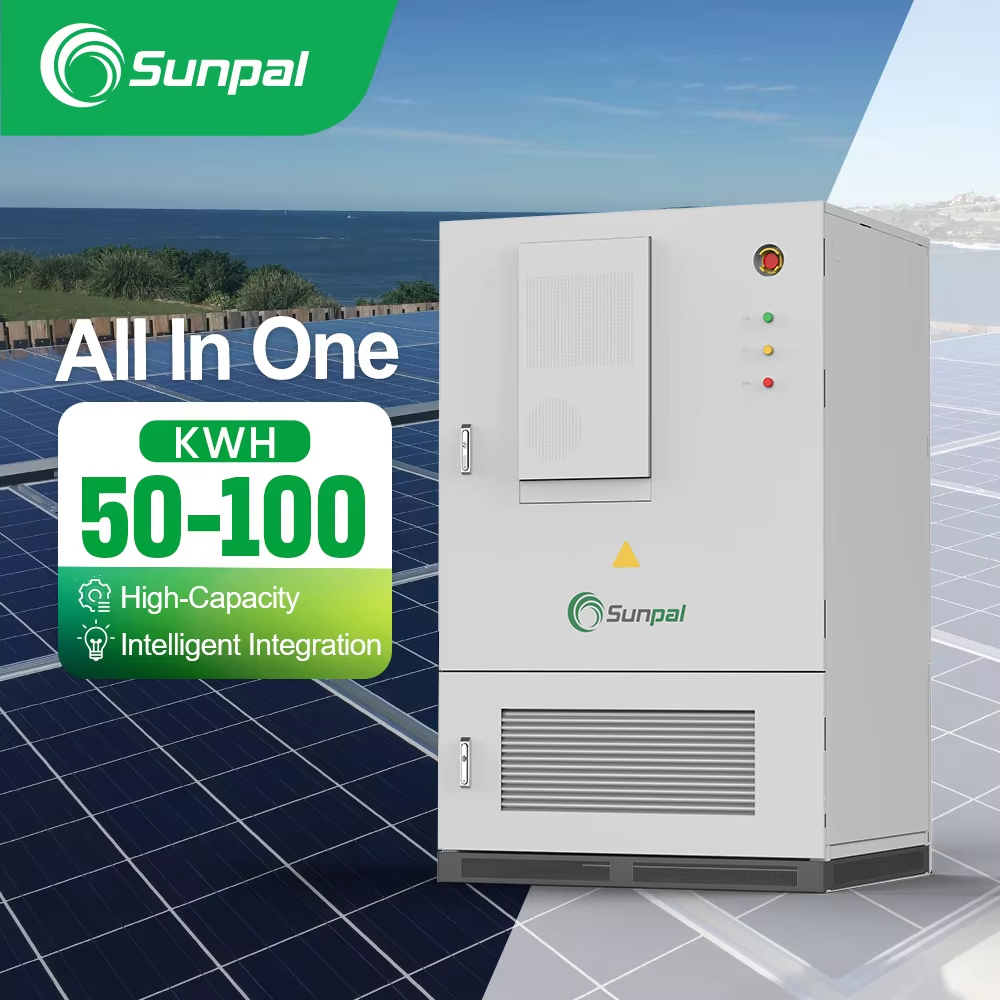

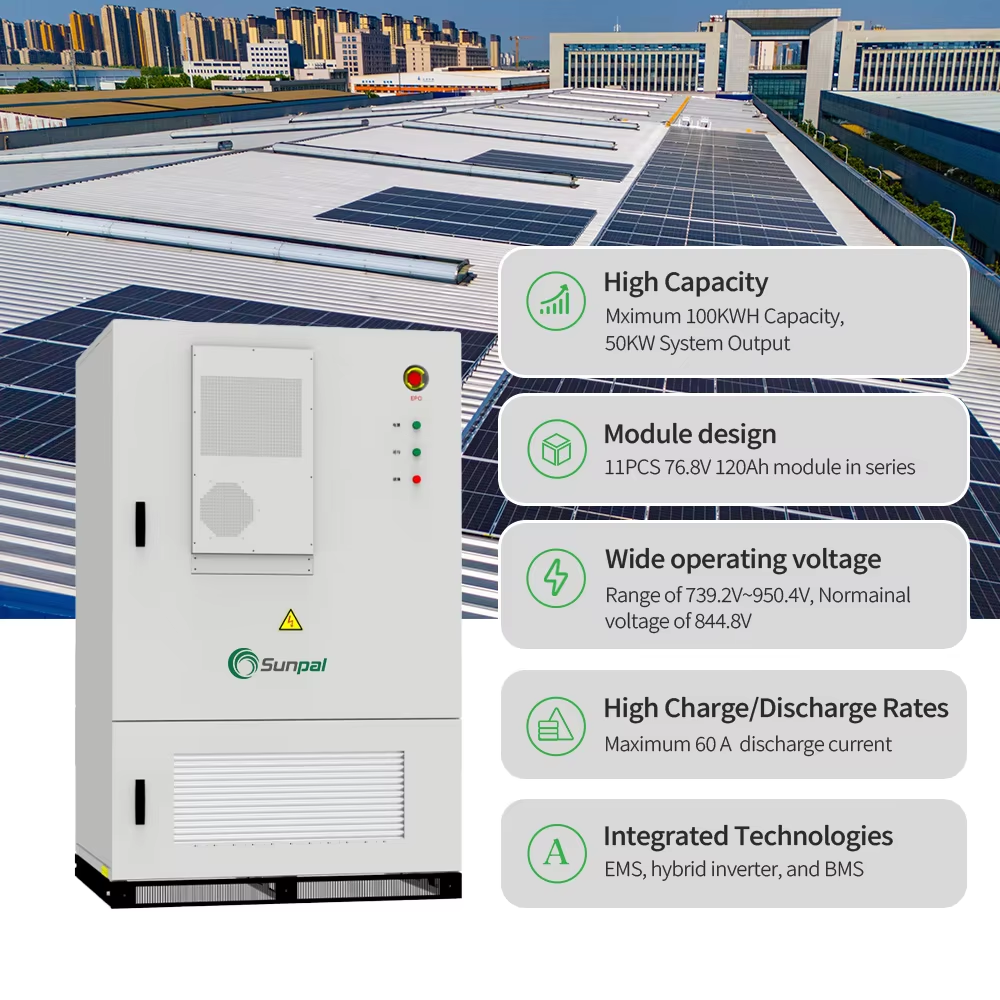

| Model | Monet-50TS (DC50) (100kWh) |
| Battery rated capacity | 100kWh |
| Battery rated voltage | 844.8V |
| Battery voltage range | 739.2V ~ 950.4V |
| Battery type | Lithium iron phosphate battery (LFP) |
| Battery cell capacity | 120Ah |
| Series of Battery | 1P*24S*11S |
| Maximum charge and discharge current | 60A |
| Photovoltaic rated capacity | 50kW |
| Photovoltaic voltage range | 200 ~ 550V |
| Rated AC power | 50kW |
| Rated AC current | 72A |
| Rated AC voltage | 400V, 3W+N+PE / 3W+PE |
| Rated AC frequency | 50/60Hz |
| THDI | < 3% (Rated power) |
| Power Factor | -1 leading to +1 lagging |
| THDU | < 3% (Linear Load) |
| Protection level | IP54 |
| Isolation mode | Industrial Transformer Isolation |
| Shutdown self-discharge | < 100W (Without transformer) |
| Display | LCD |
| Relative humidity | 0 ~ 95% (no condensation) |
| Noise | < 78dB |

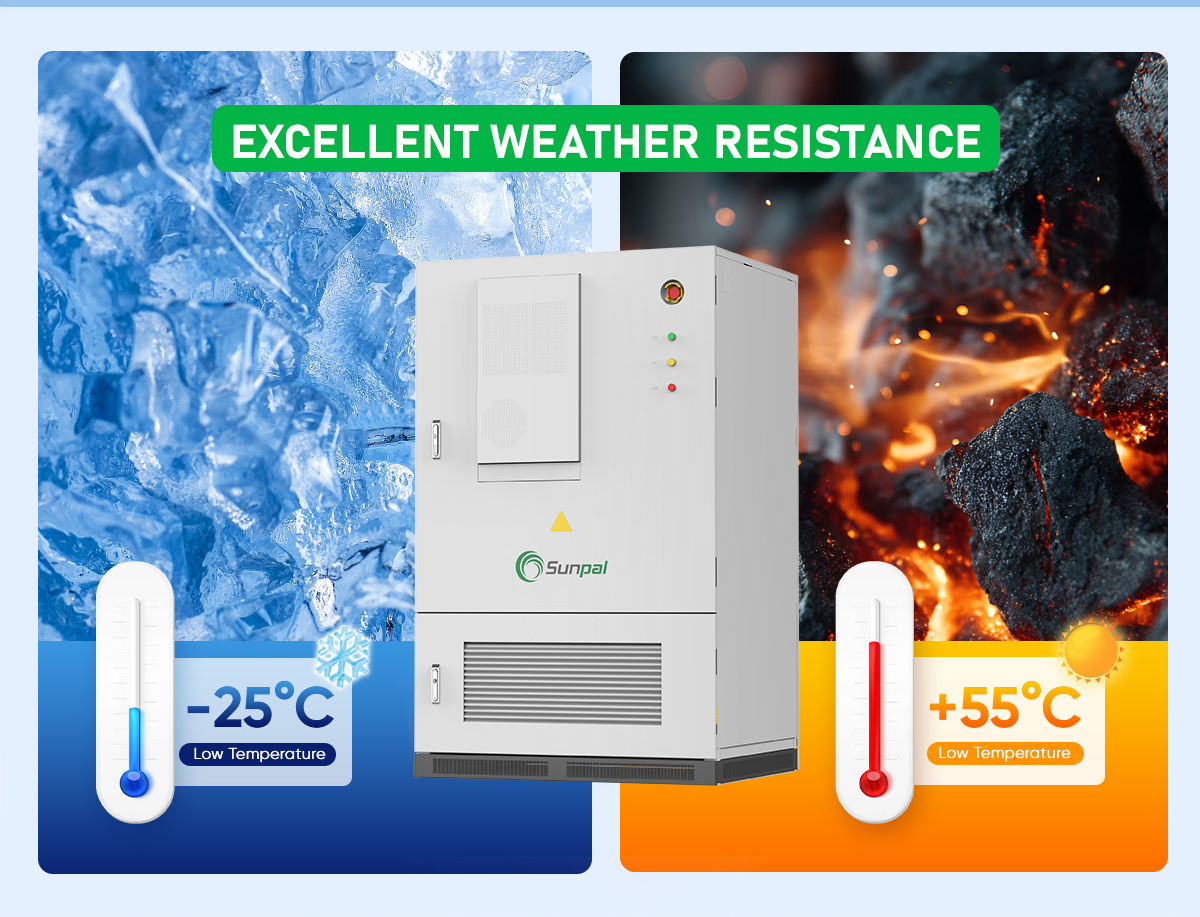

| Ambient temperature | -25°C to +60°C (with derating at temperatures above 45°C) |
| Cooling mode | Intelligent air-cooled |
| Altitude | 3000m (> 3000m reduction) |
| Communication interface | CAN / Ethernet / 485 |

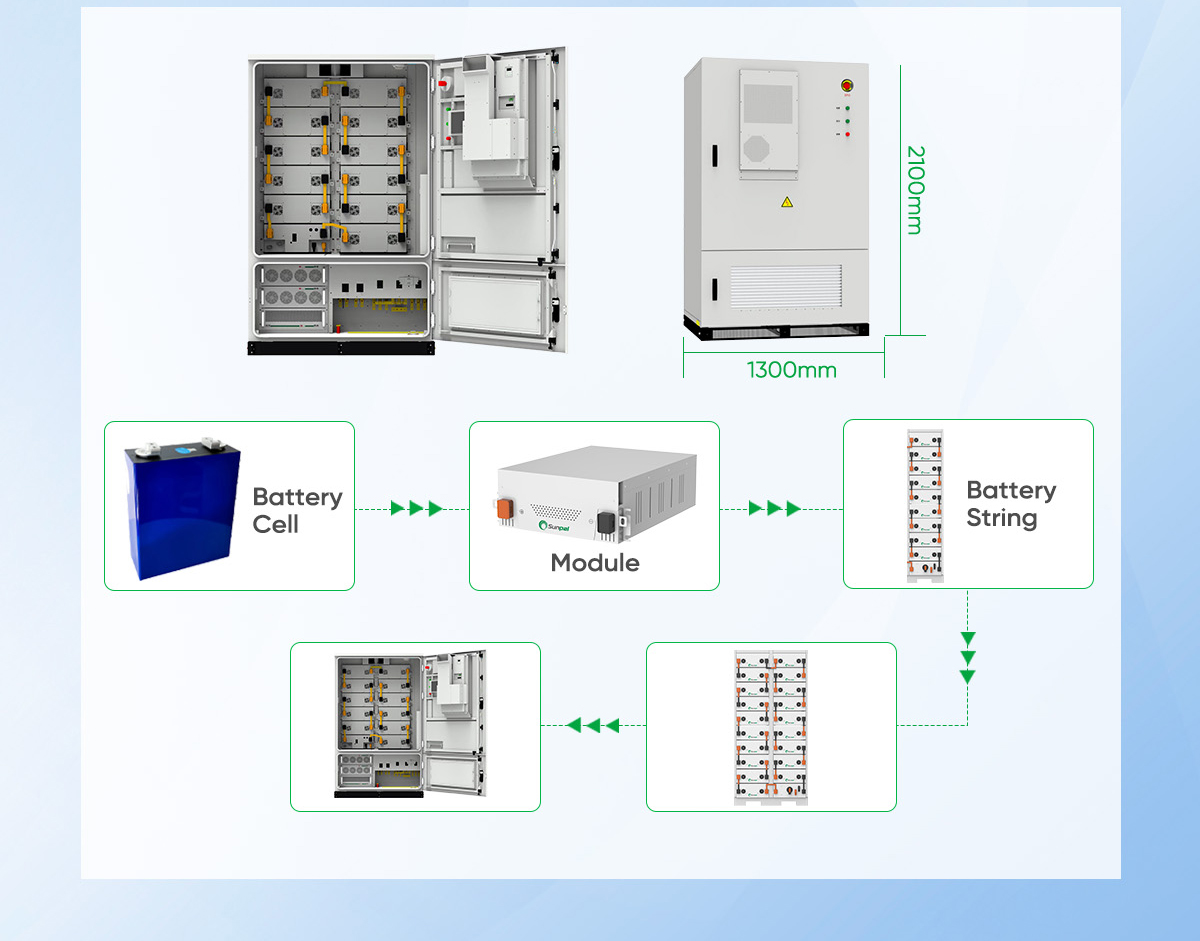

| Dimension (W * D * H) | 1300 * 1030 * 2100mm |
| Weight (approx.) | 2150kg |
We are a professional energy storage and solar solution provider, specializing in the design and manufacturing of advanced C&I outdoor all-in-one cabinets. With years of expertise in renewable energy integration, we deliver reliable, safe, and cost-effective power solutions to customers worldwide.
Our portfolio covers lithium battery systems, solar PV modules, inverters, and turnkey ESS solutions, enabling seamless deployment in factories, commercial buildings, microgrids, and EV charging stations. By combining cutting-edge technology, strict quality control, and global service support, we ensure that every outdoor cabinet we provide—such as the 50kW-100kWh system—meets the highest standards of performance, safety, and durability. We are committed to helping our partners achieve energy independence, cost savings, and sustainability goals through innovative energy storage solutions.
