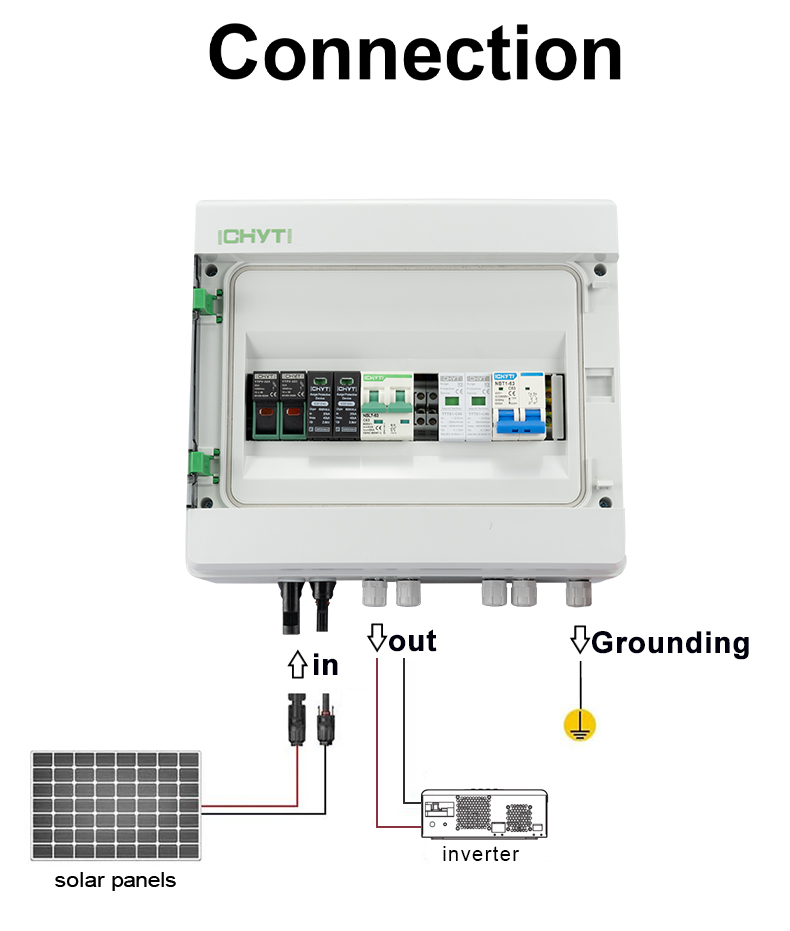

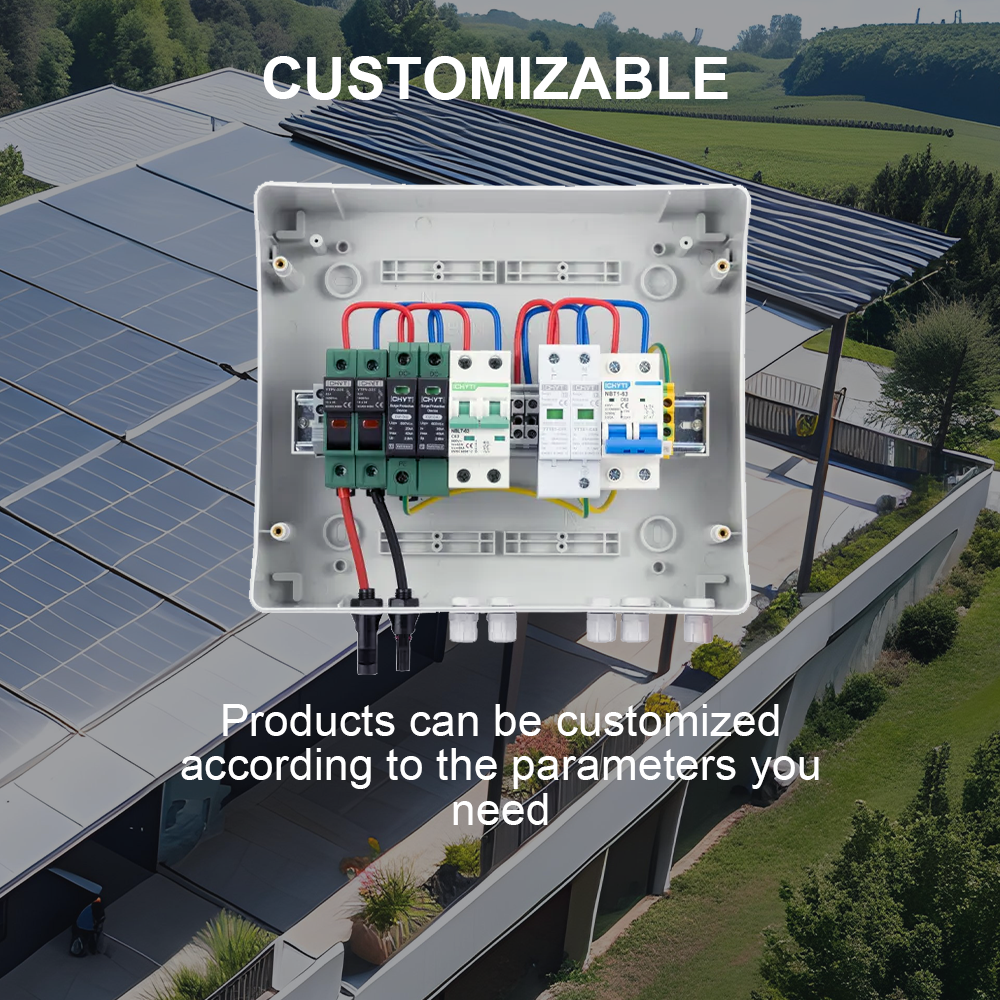

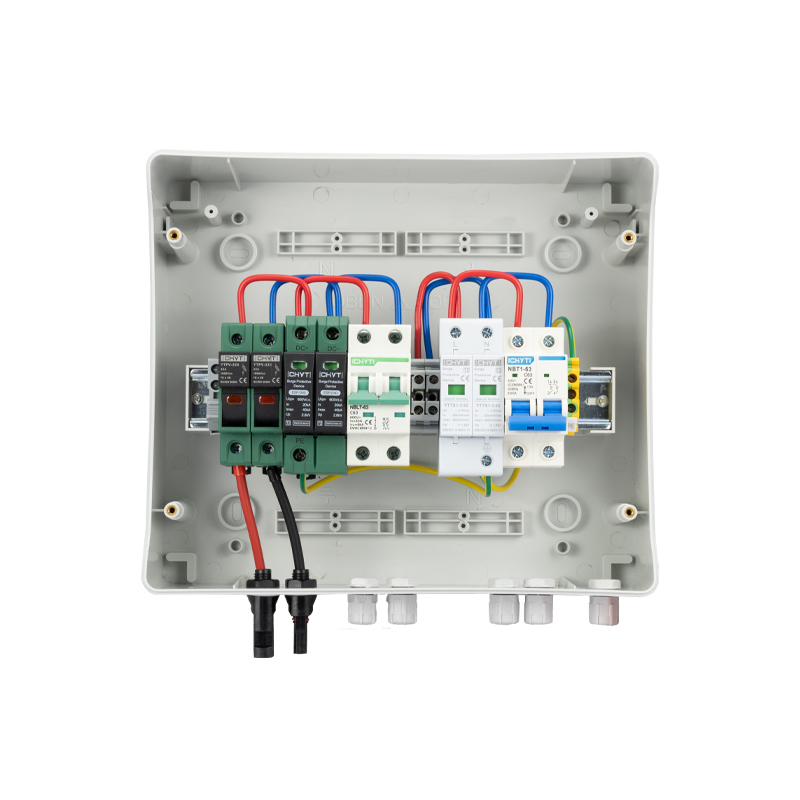

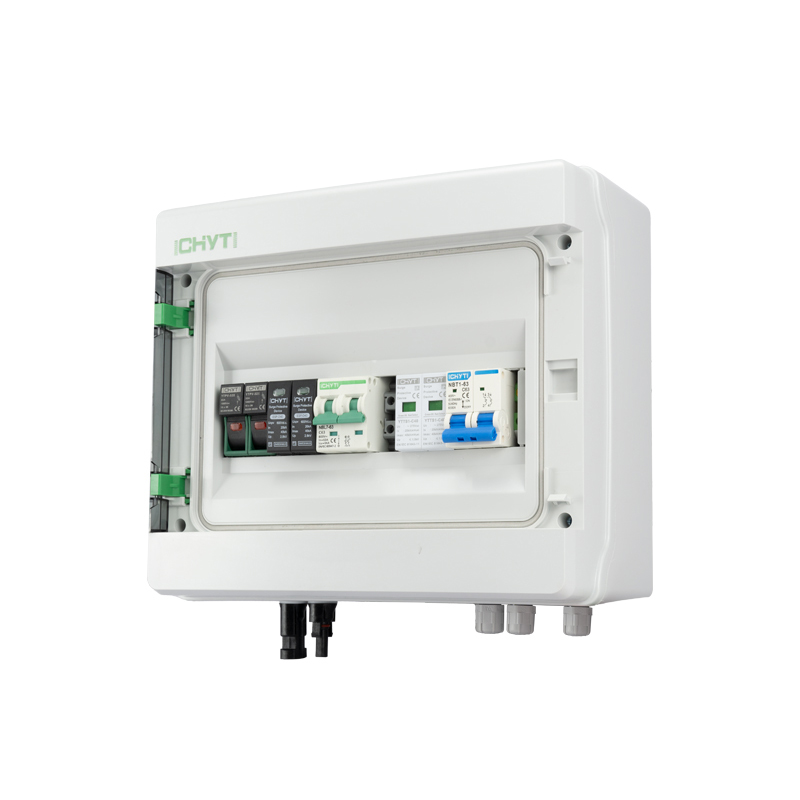

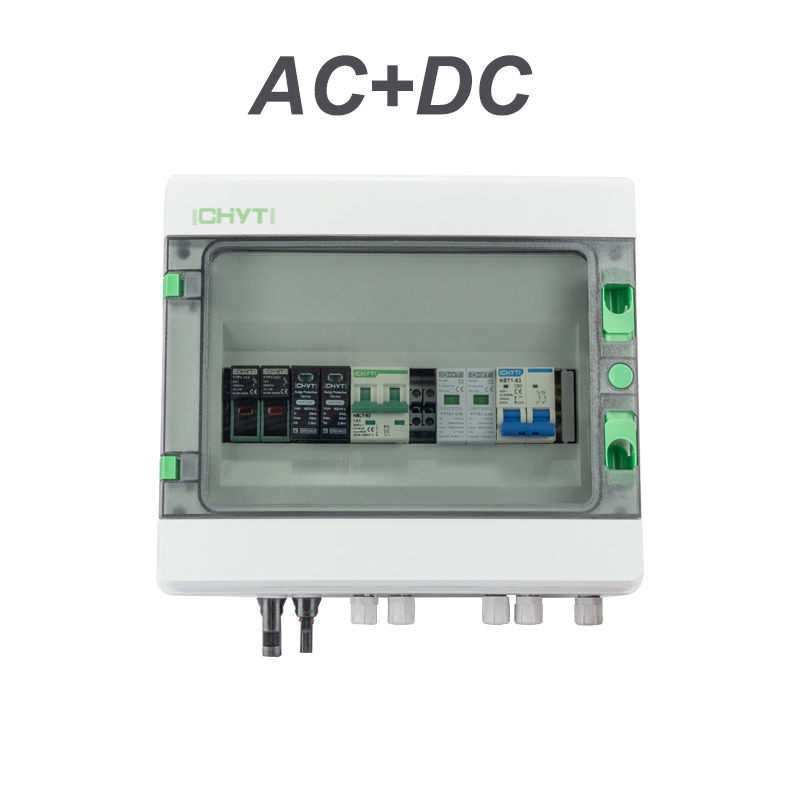

YTPV1-1 combiner box is suitable for inverter( MAX input voltage DC 600V, 1PV input channel 1 output chanel, 1MPPT) , AC Part MAX current is 63A. DC+ AC box new design, small size, simple installation Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
| Solar PV DC Combiner Box | 1 in 1 out |
| Rated voltage of photovoltaic system | DC 600V |
| Max input amp for each string | 15A |

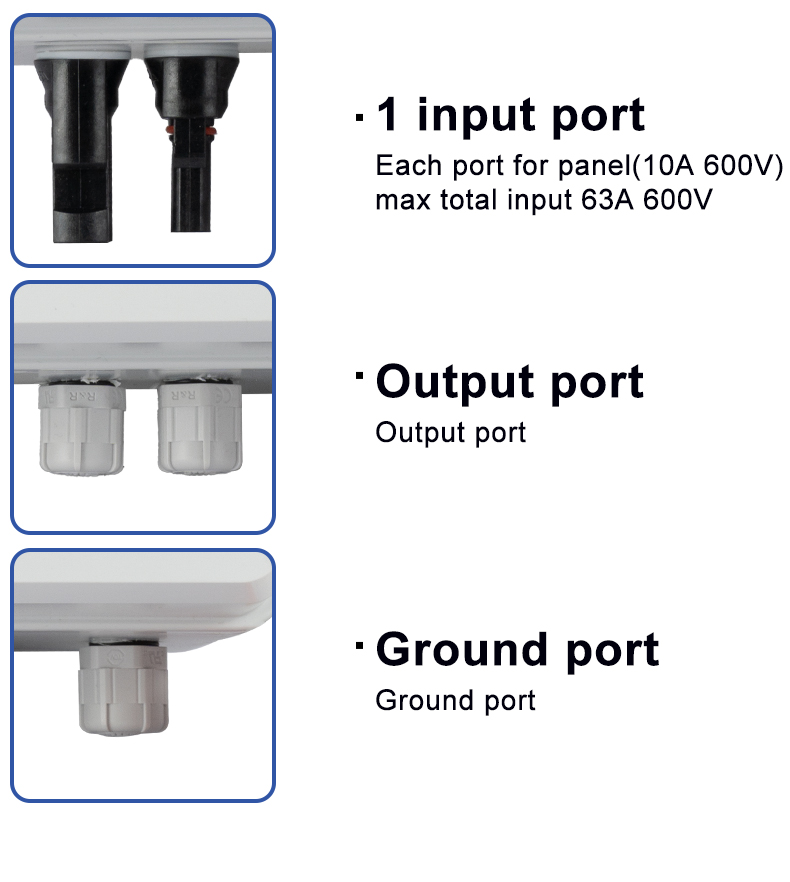

| Input strings | 1 |
| Number of output strings | 1 |
| Inverter Range | 1.5-30kW |

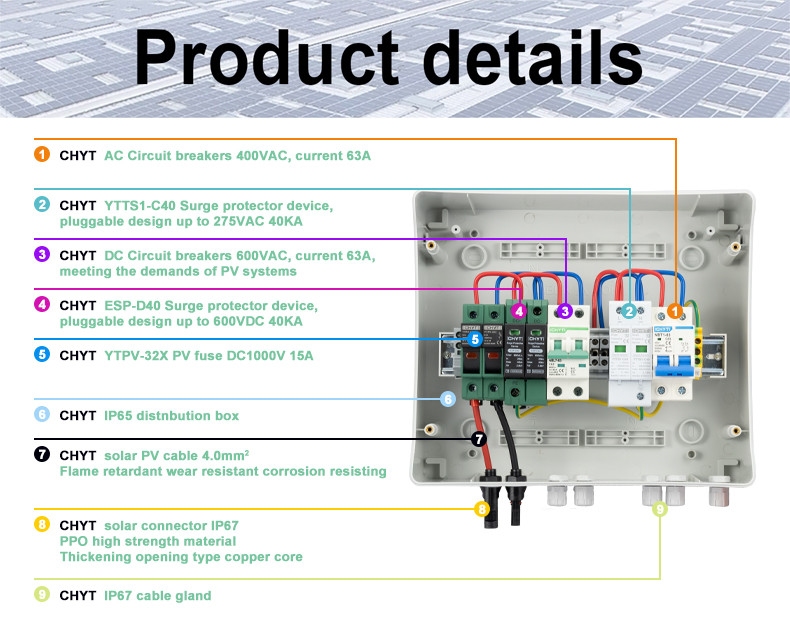

| DC System Details | |

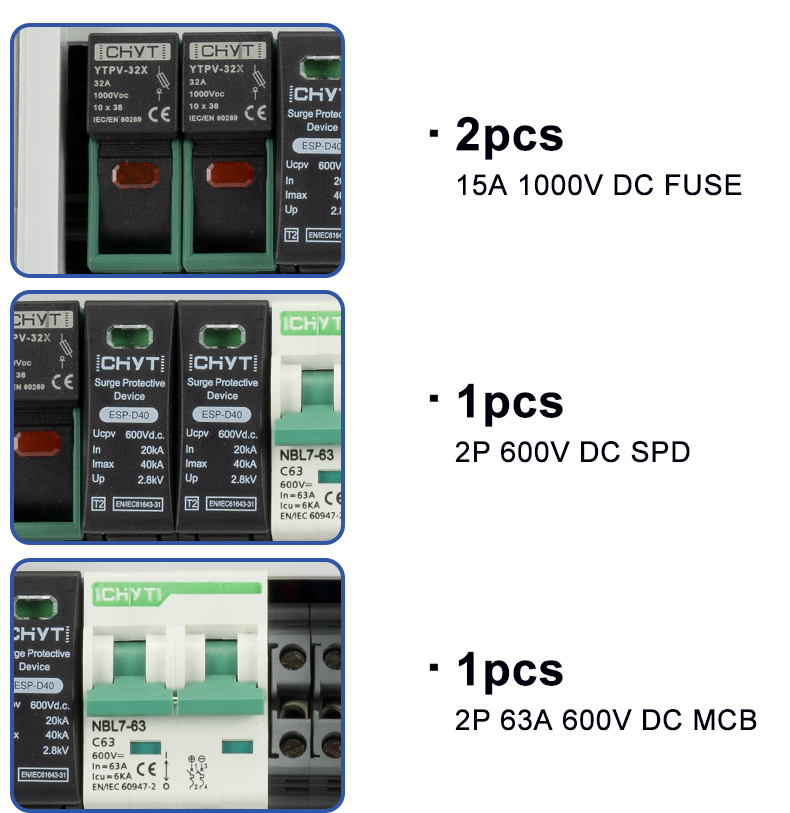

| DC Fuse | 1P 15A |
| DC MCB | 2P 63A |
| DC SPD | 2P 600V 20-40kA |
| DC SPD Max discharge current | 40KA |
| AC System (Single Phase) | |

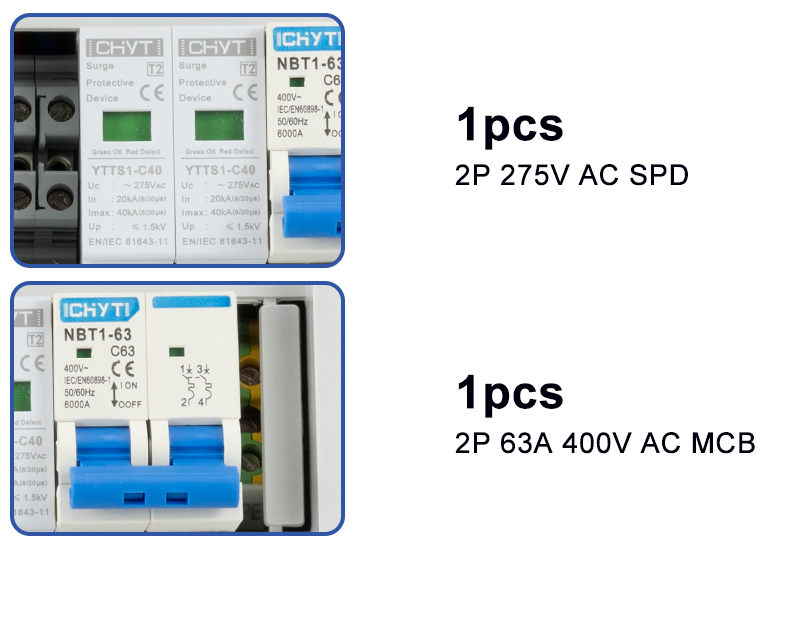

| AC MCB | 2P 63A |
| AC SPD | 2P 275V 20-40kA |
| General System Parameters | |

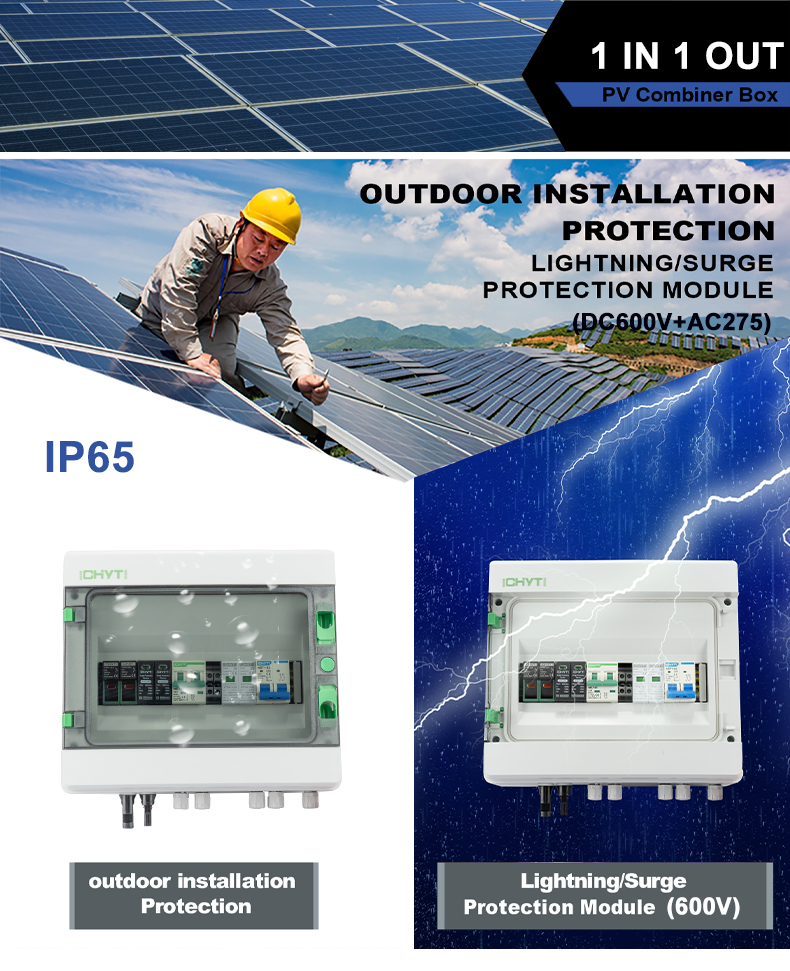

| Protection grade | IP65 |
| Solar connector | Optional |
| Box material | PVC |
| Installation method | Wall mounting type |
| Operating temperature | -25℃ - +60℃ |
| Installation (indoors/outdoors) | Yes |
| Mechanical Parameters | |

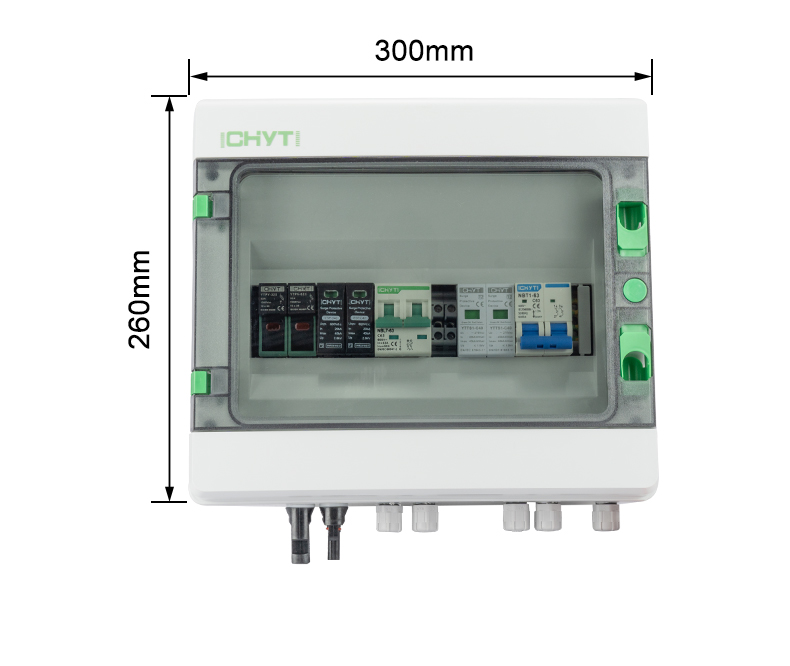

| Width * Height * Depth (mm) | 300 * 260 * 140 |

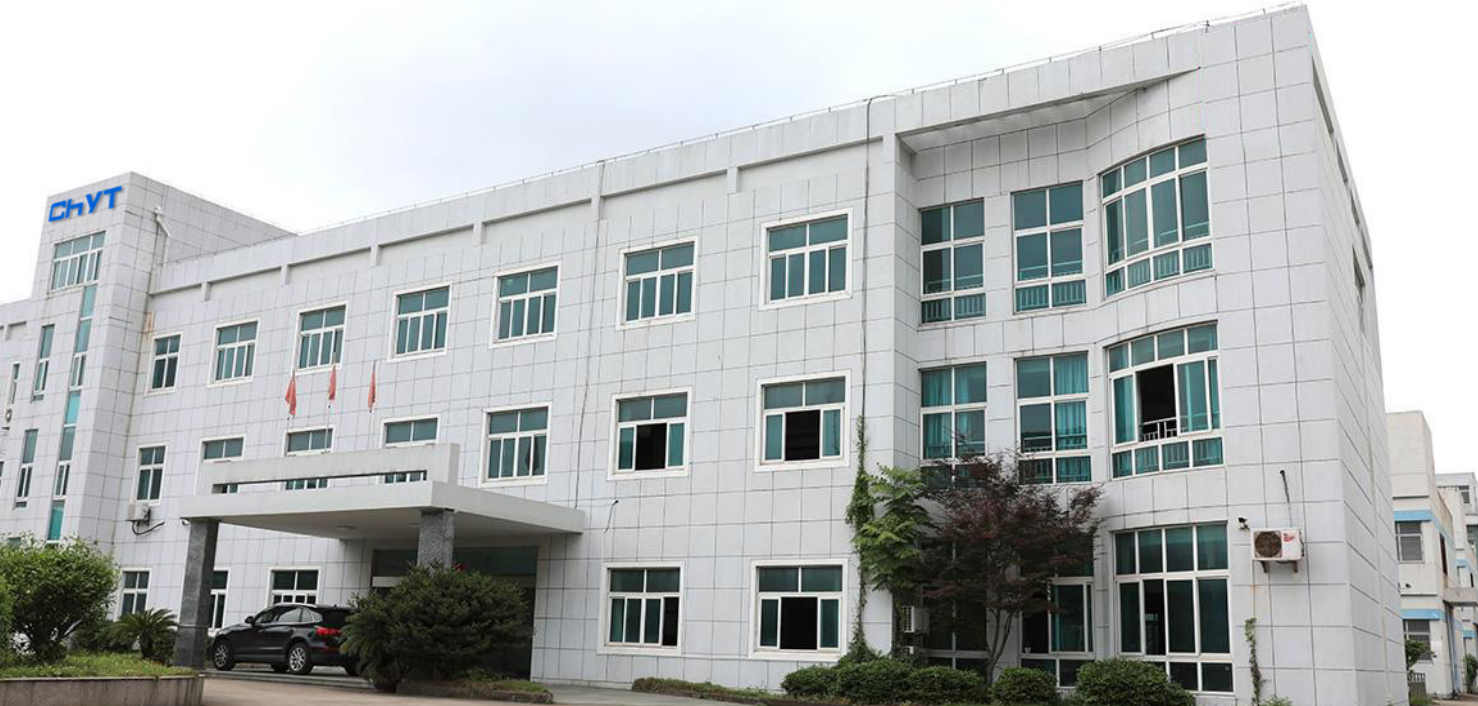

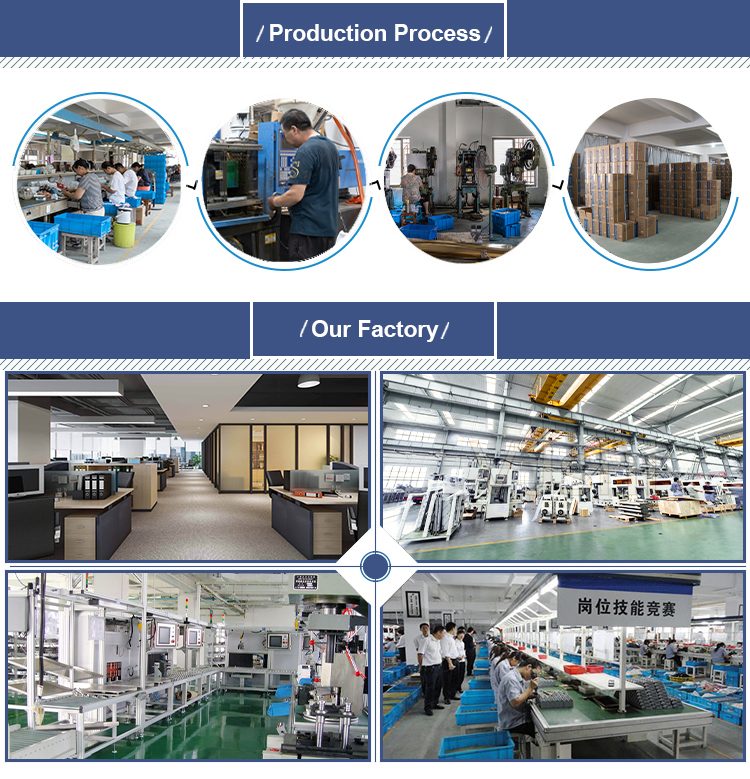

We are a professional solar PV electric components manufacturer. We specialize in DC circuit breakers, Surge Protective Devices, PV fuses, isolator switches, MC4 connectors, etc. Our experience of working in the electrical industry for more than 10 years allows us to create solar DC components that comply with the latest DC standards. We can assure you perfect quality and excellent service. We look forward to having a good long-term cooperation with you.
