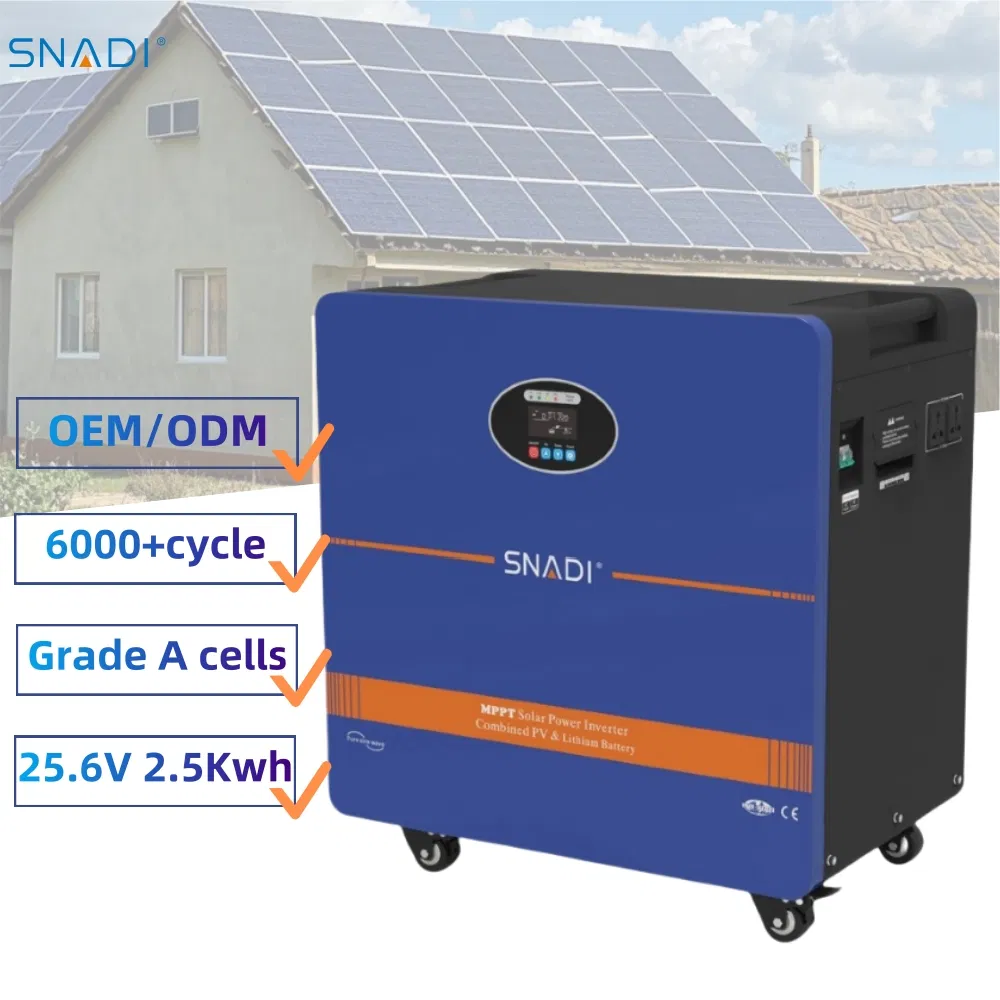

| Solar Power Generator | 0.6Kwh | 1.2Kwh | 2.2Kwh | 3.5Kwh | 5Kwh | |
|---|---|---|---|---|---|---|
| Inverter Specifications | ||||||
| Battery Voltage | 12.8V | 25.6V | ||||
| In-built Battery Specification | 50AH/12.8V | 50AH/25.6V | 100AH/25.6V | 75AH/51.2V | 100AH/51.2V | |
| Rated Power | 600W | 1200W | 2200W | 3500W | 5000W | |
| Output Voltage | 110/220VAC | |||||
| Output Frequency | 50/60Hz | |||||
| Output Waveform | Pure Sine Wave | |||||
| Input Voltage Range | 72-138/145-275VAC | 85-138/170-275VAC | ||||
| Input Frequency | 45-65Hz | |||||
| MPPT Charge Controller | ||||||
| Maximum Photovoltaic Voltage | ≤100V | ≤100V | ≤150V | |||
| PV Input Range Voltage | 18-100V | 35-100V | 60-150V | |||
| Rated Charge Current | MPPT 30A | 60A(MAX.) | ||||
| Maximum Power | 420Wp | 840Wp | 1650Wp | 3400Wp | ||
| Voltage of Floating charge | 14.2V | 28.4V | 56.8V | |||
| MPPT Efficiency | ≥97% | ≥99% | ||||
| DC Output Parameters | ||||||
| Voltage of High-voltage Protection | 16V | 32V | 64V | |||
| Voltage of High Voltage Recovery | 14.5V | 29V | 58V | |||
| Voltage Of Low Voltage Recovery | 13V | 26V | 52V | |||
| Voltage Of Low Voltage Protection | 11.2V | 22.4V | 44.8V | |||

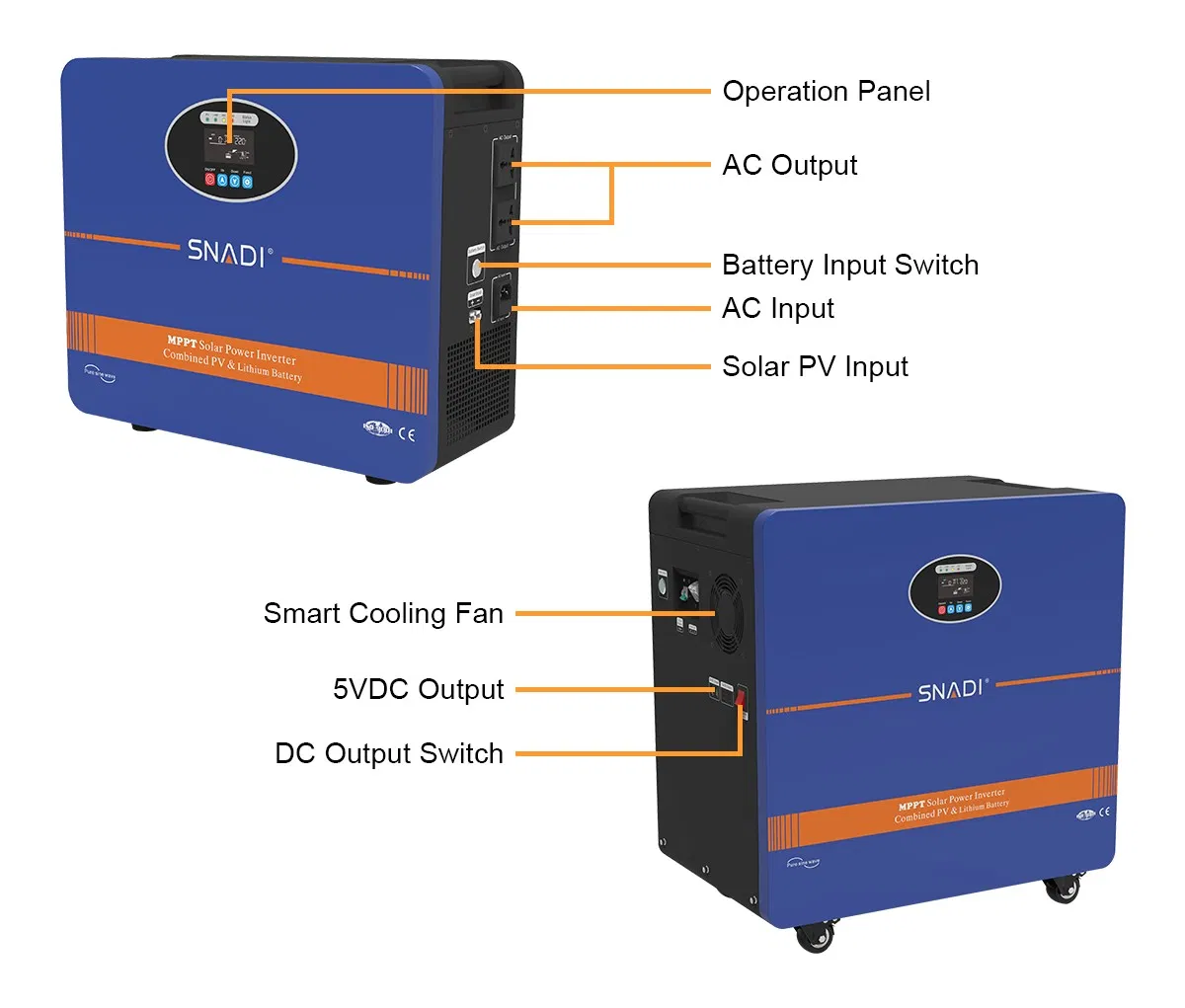

| 5VDC USB Output Port | 2 Units/MAX 2A | |||||
