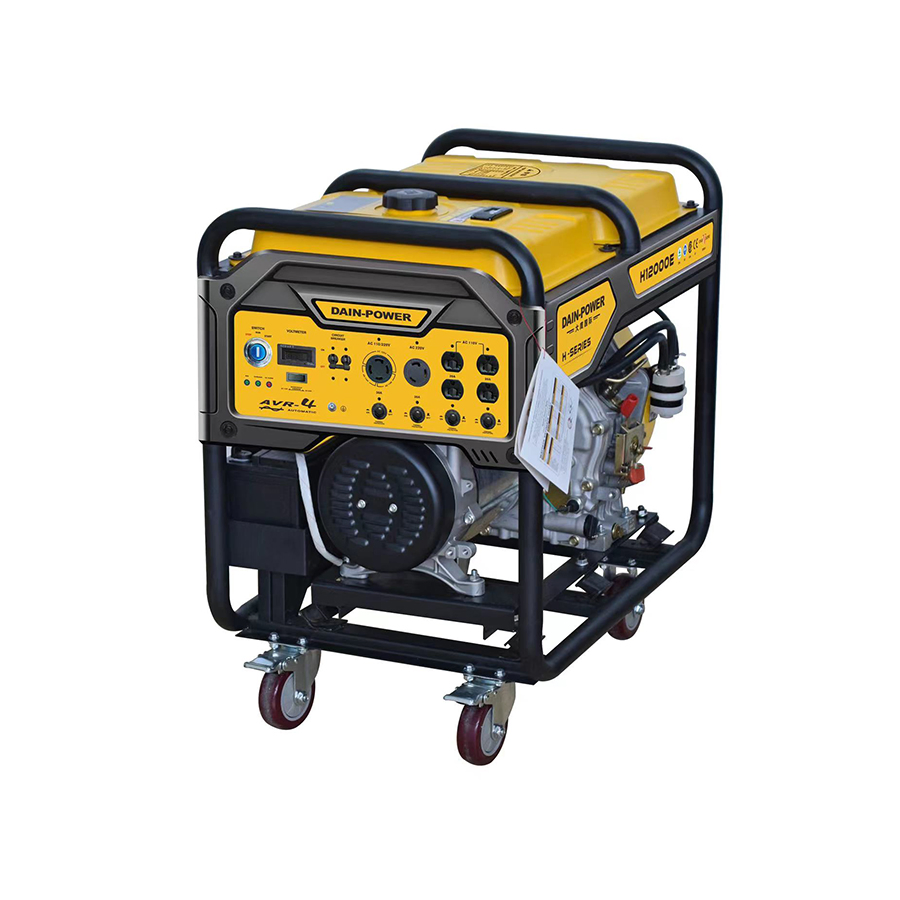

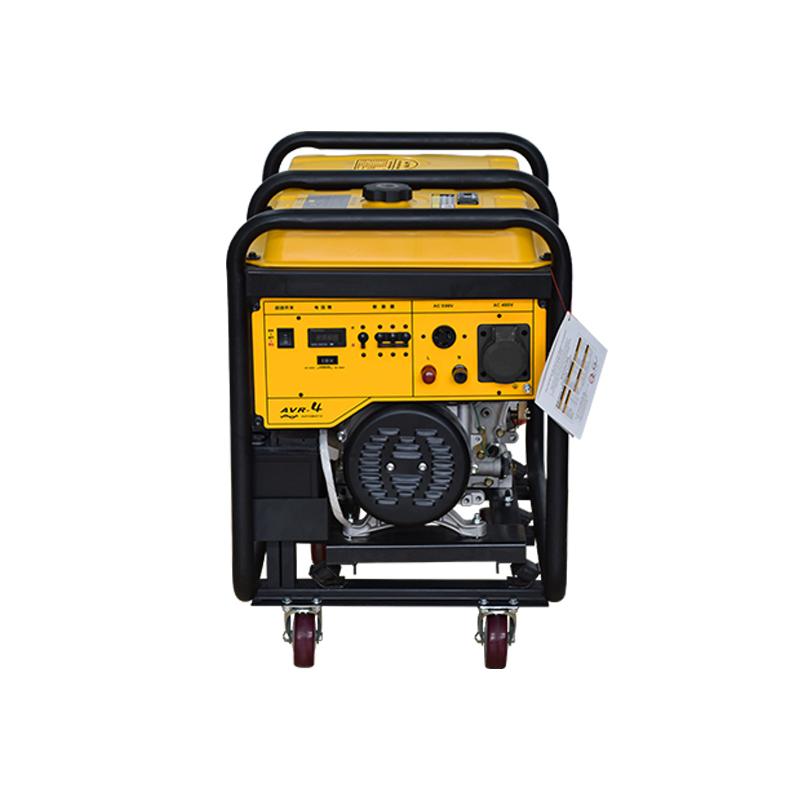

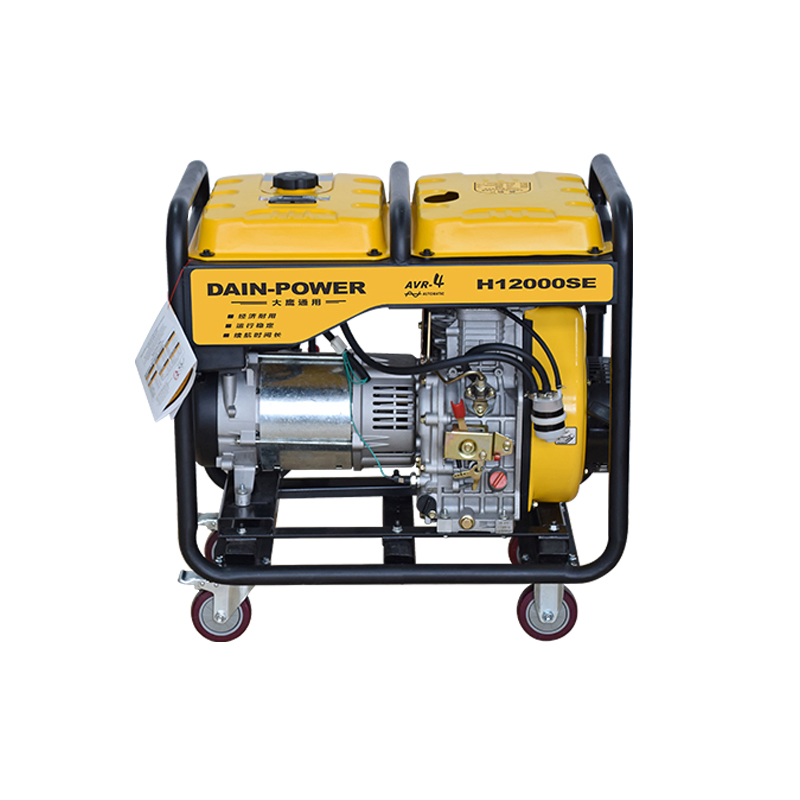

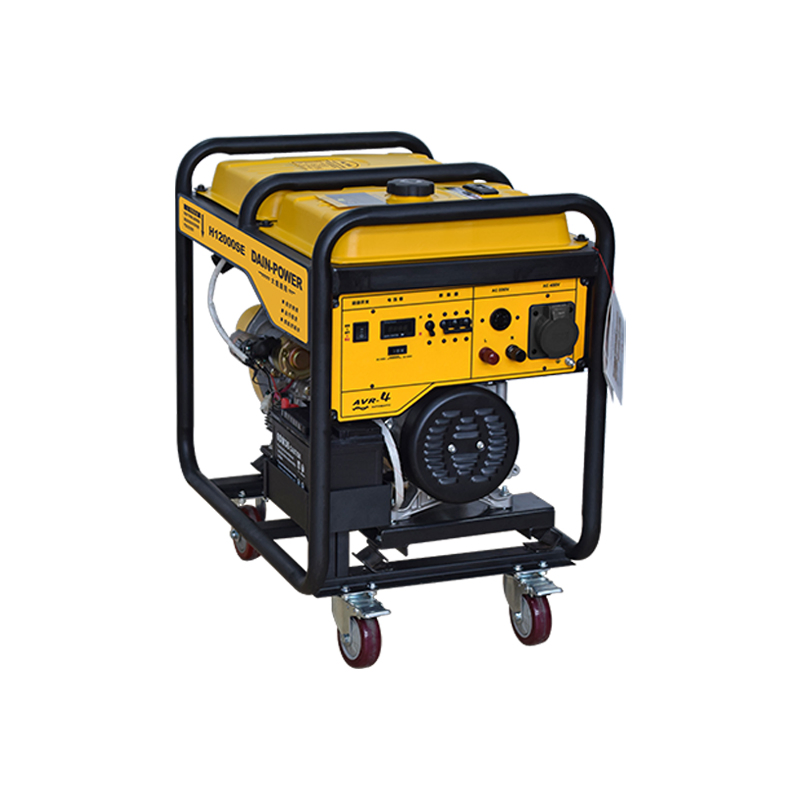

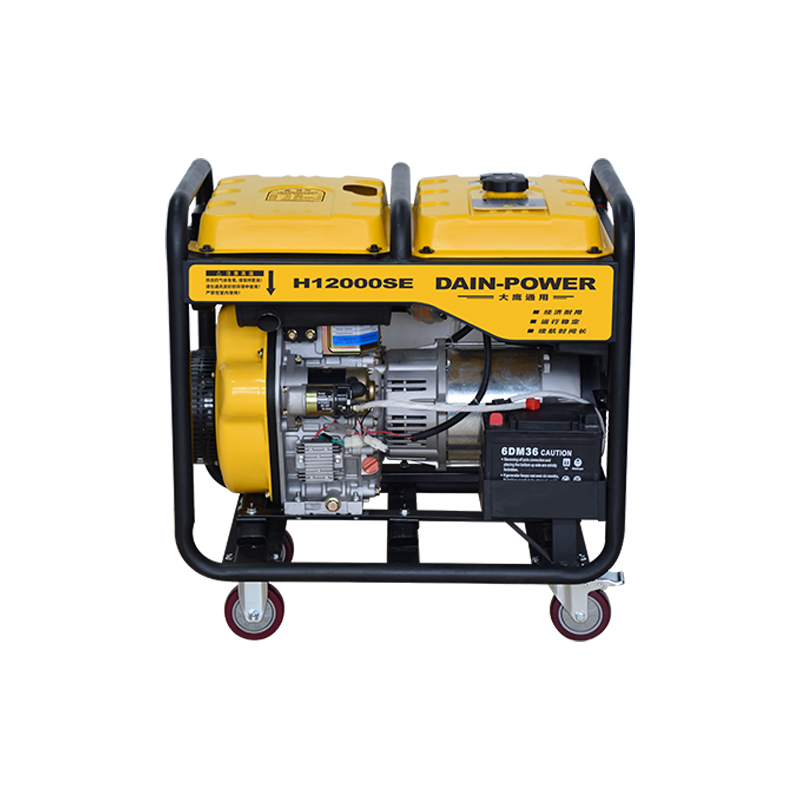

Dain 8/9kVA 10kVA 20kw 30kVA 50kw 3 Phase Portable Mobile Electric Manual Start Solar Atmospheric Water Small Diesel Inverter Gosline Gas Generator Engine Set

Customization: Available
After-sales Service: Provide
Warranty: One Year

Product Description

  • Overview
  • Video
  • Description
  • Specification
  • Workshop
  • Exhibition
  • Certifications
  • FAQ
⚙️ Basic Info & Specifications
Model NO.
DYH13500E/SE
Type
Electric Start
Installation Method
Portable
Stroke
Four Stroke
Cooling Method
Air Cooled
Output Type
AC Three Phase
Speed
3000 rpm
Conditions of Use
Land Use
Usage
Common Units
Landuse Type
Ordinary
Excitation Mode
AC Rotating Exciter
Rated Voltage
110-220-380V
Rated Output Power
5-9kw
Maximum Output Power
5.5-9.5kw
Rated Current
23-40.5A
Power Factor
1/0.8
Fuel Tank Capacity
12L
Engine Model
C186fe/C188fe/C192fe/C195fe/C198fe/C1100fe
Engine Displacement
418/456/499/532/667/736 cc
Package Size
75.00cm * 53.00cm * 69.00cm
Package Gross Weight
140.000kg
Production Capacity
10000 Pieces/Year
🎥 Product Demonstration Video
📝 Product Description

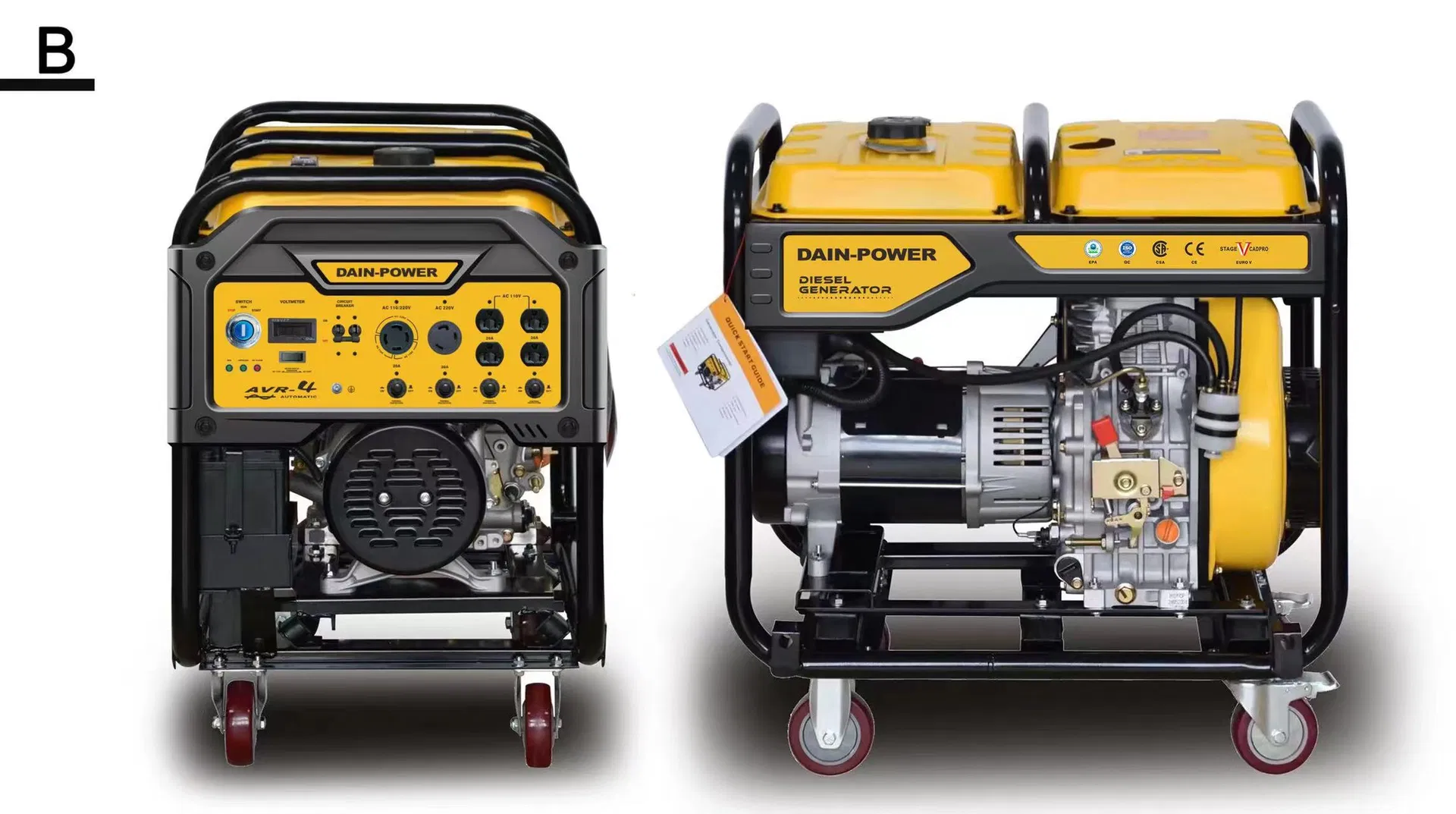

Diesel Generator Inverter Engine Set Description
📊 Technical Specifications
PRODUCT MODEL DYH9000E/SE DYH10000E/SE DYH12000E/SE DYH13500E/SE DYH14500E/SE DYH15500E/SE
Standard model 5.0kW 6.0kW 7.0kW 8.0kW 8.5kW 9.0kW
Rated voltage (V) 220/380 220/380 220/380 220/380 220/380 220/380
Rated output power (kW) COP 5.0 6.0 7.0 8.0 8.5 9.0
Maximum output power (kW) 5.5 6.5 7.5 8.5 9.0 9.5
Rated current (A) 22.5/9.5 27/11 31.5/13 36/15 38.5/16 40.5/17
Rated frequency (Hz) 50/60Hz optional
Power factor 1.0/0.8 1.0/0.8 1.0/0.8 1.0/0.8 1.0/0.8 1.0/0.8
Fuel tank capacity (L) 12 12 12 12 12 12
Theoretical working hours (h) 6~6.5 5~5.5 5~5.5 5~5.5 4~4.5 4~4.5
Engine model C188FE C192FE C195FE C198FE C1100FE C1105FE
Engine displacement (cc) 456 499 532 633 667 736
Oil capacity (L) 1.65 1.65 1.65 2 2 2
Fuel consumption (g/(kW · h)) ≤275 ≤275 ≤265 ≤260 ≤260 ≤260
Electric start weight (kg) 112/120 115/123 117/125 123/131 129/137 132/140

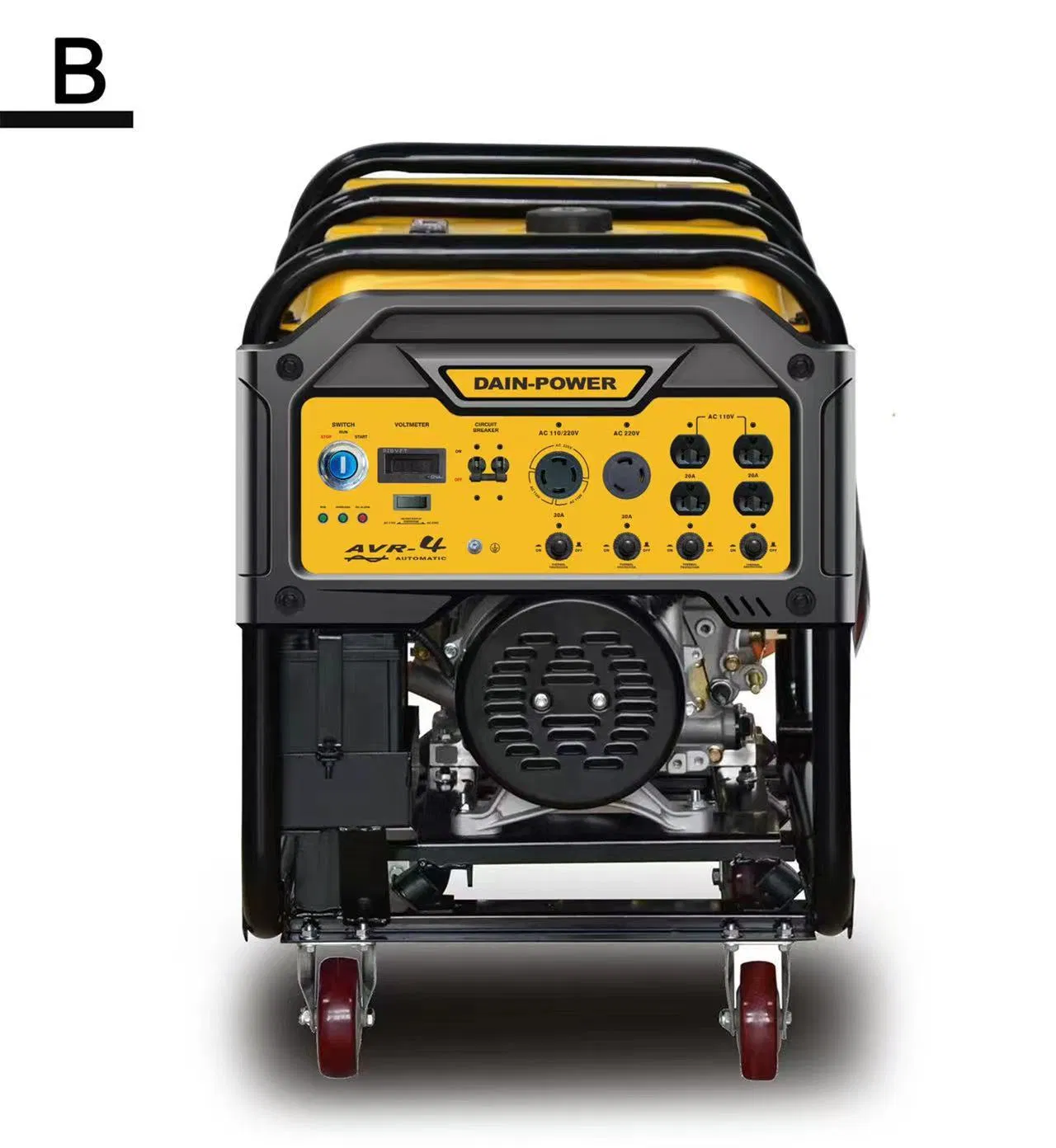

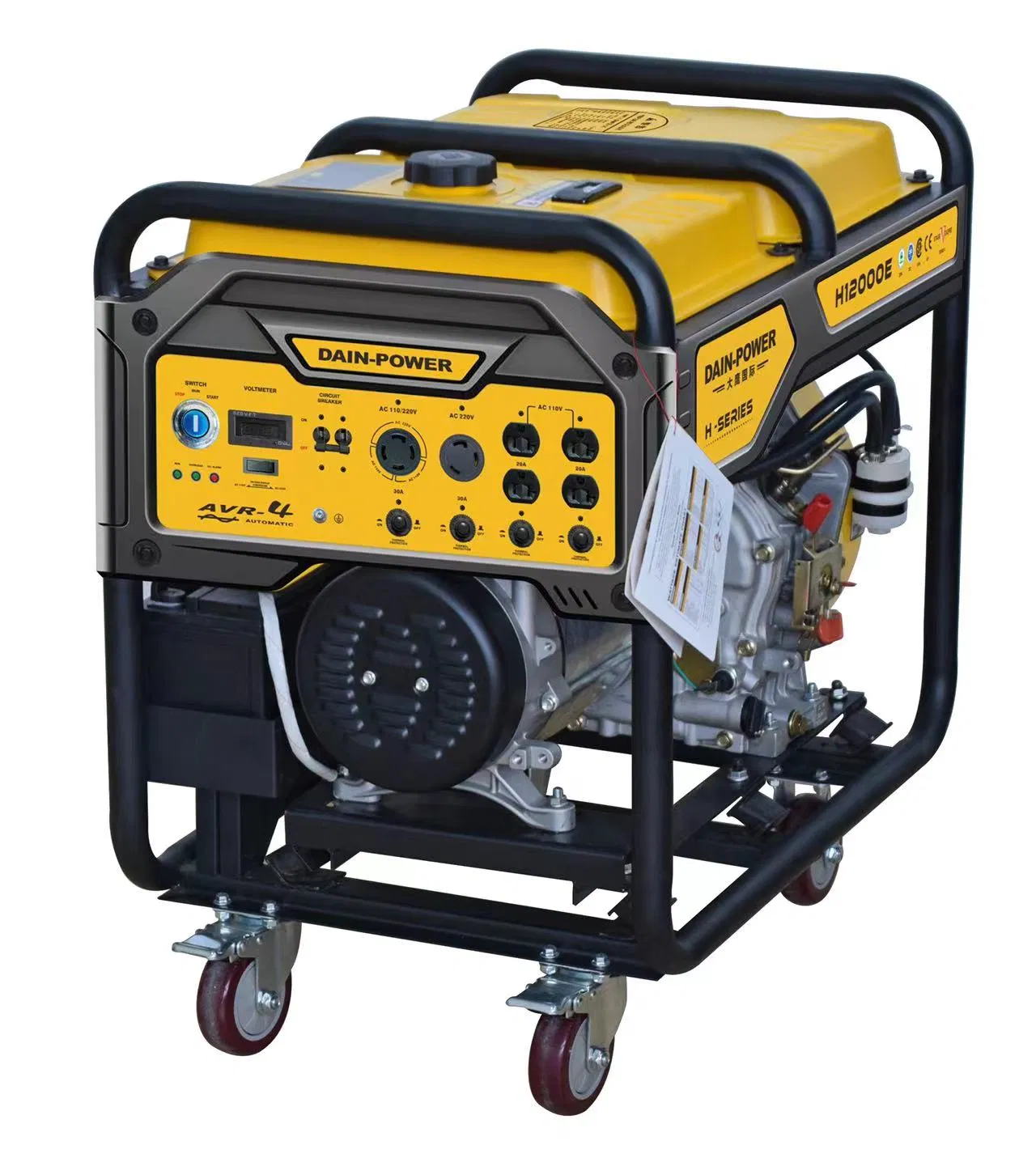

Generator Specification Detail 1 Generator Specification Detail 2 Generator Specification Detail 3
🏭 Factory Production Facility

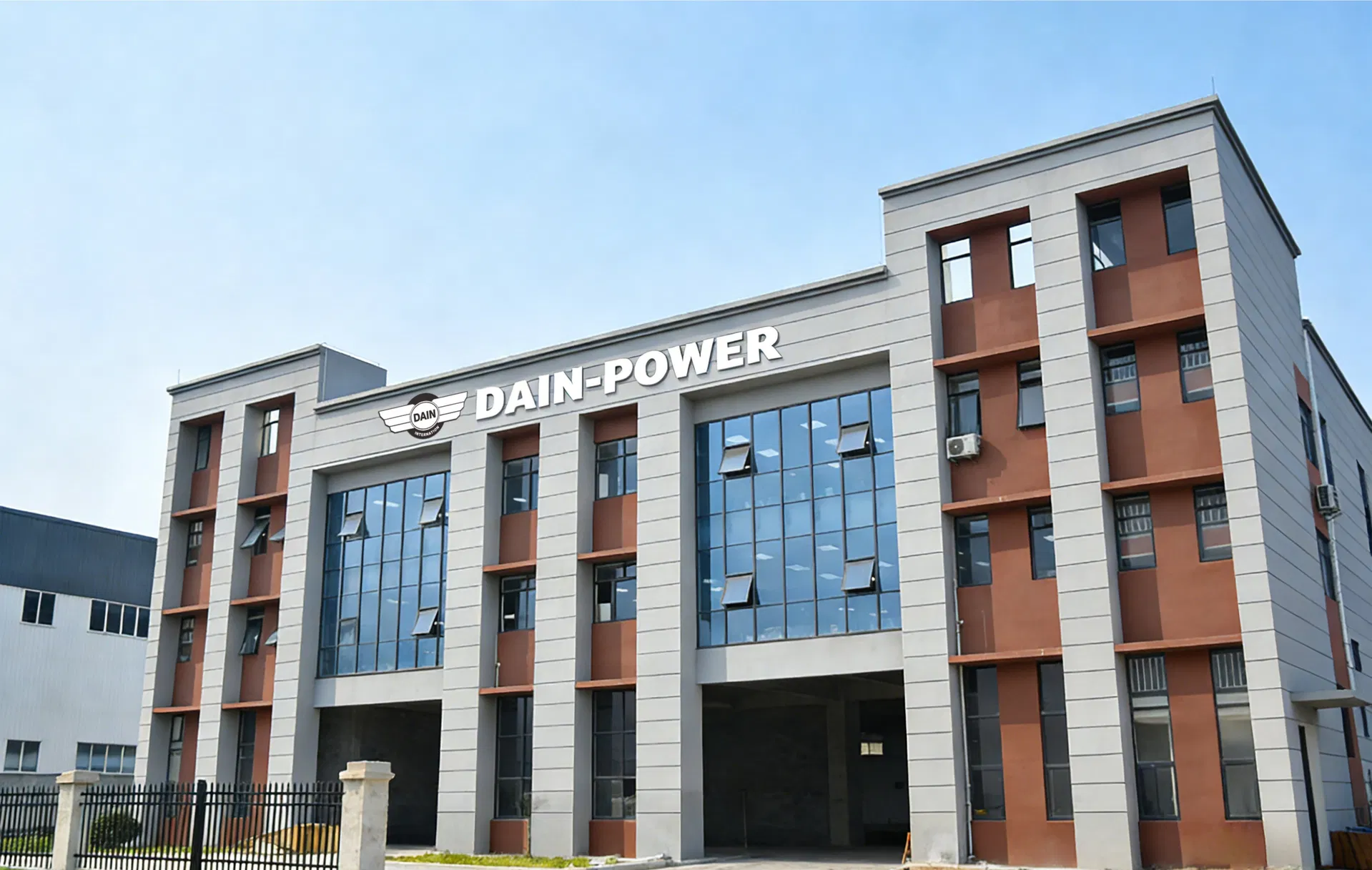

Main Production Facility View

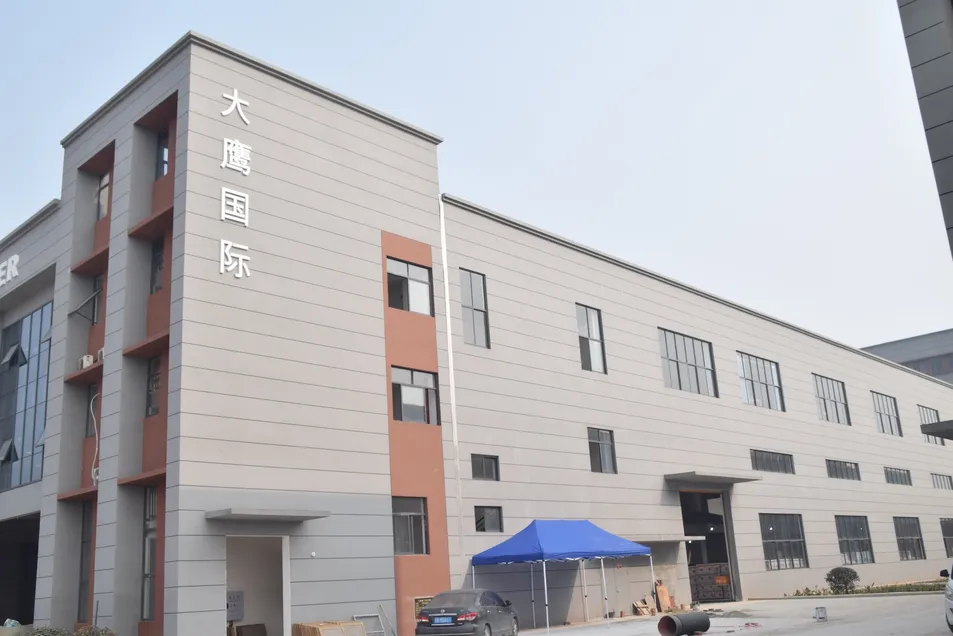

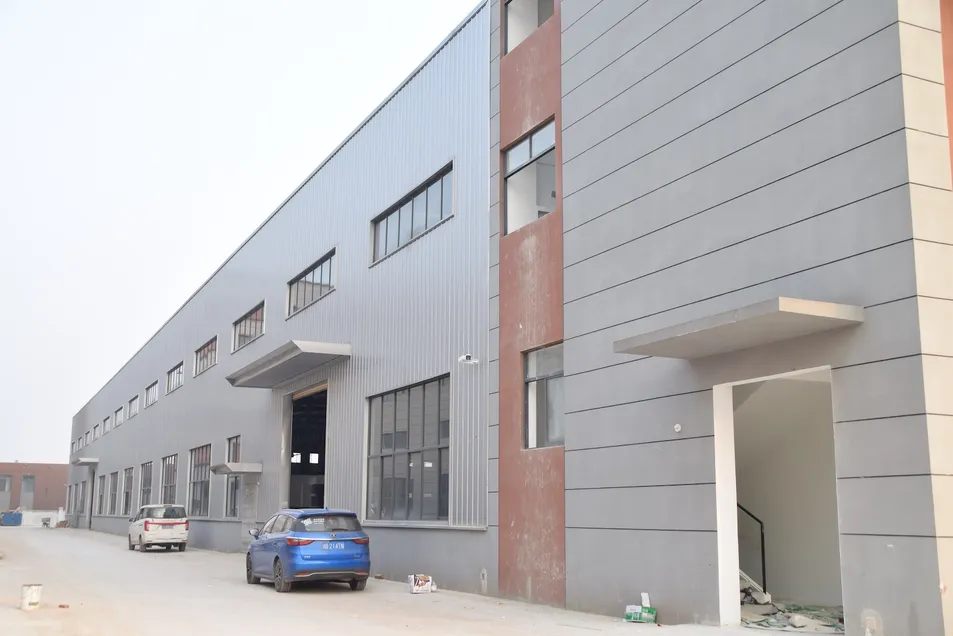

Production Process Image 1 Production Process Image 2
🔧 Assembly Workshop

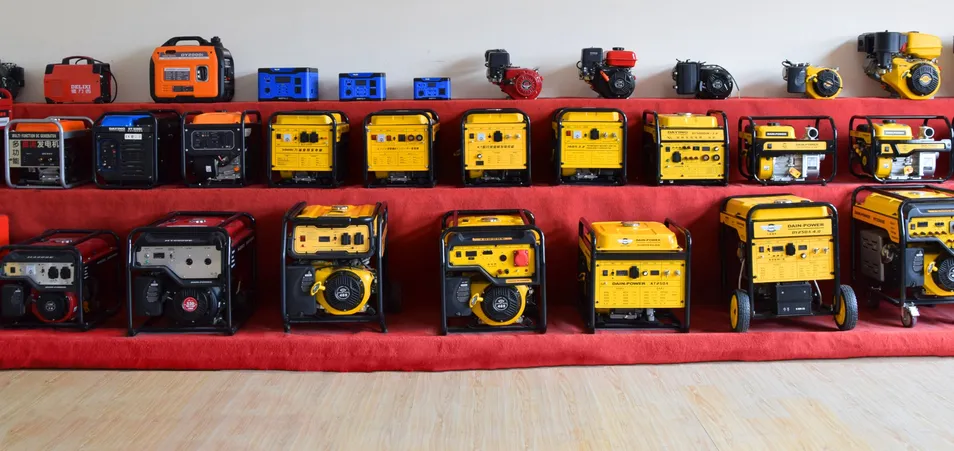

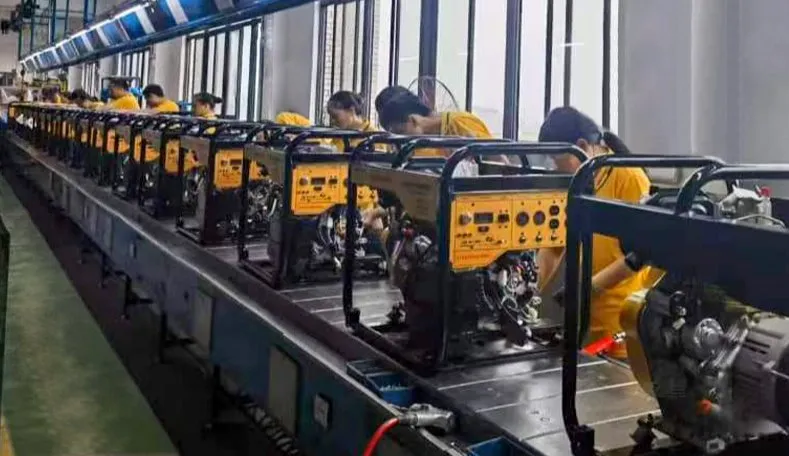

Assembly Workshop Area 1 Assembly Workshop Area 2

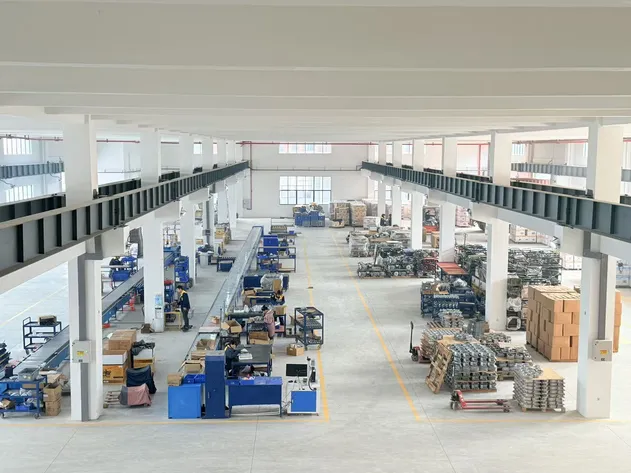

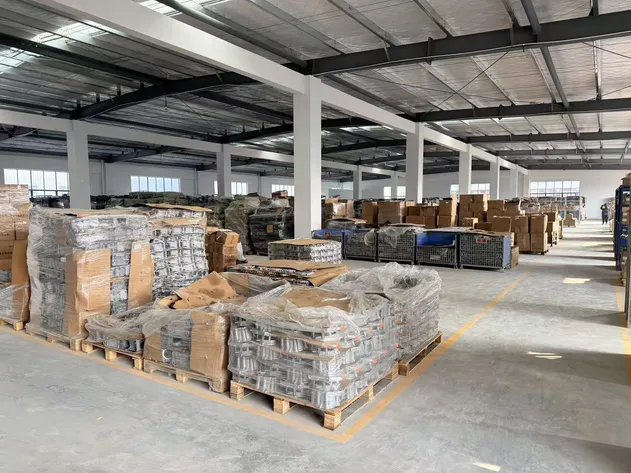

Engine Assembly Line Generator Inspection Station Quality Testing Bay
🎪 Trade Shows & Exhibitions

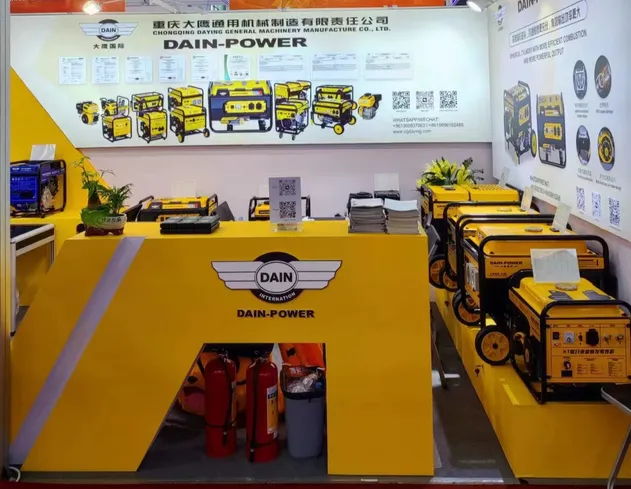

Exhibition Booth Display 1 Exhibition Booth Display 2 Exhibition Booth Display 3
📜 Product Certifications
Product Quality Certifications
Frequently Asked Questions (FAQ)
Q: Are you a trading company or manufacturer?
A: We are a factory, offering direct-from-source general machinery products.
Q: How can I get your product catalog?
A: Send an inquiry to us detailing your requirements, and our sales team will reply with our latest catalog within 6 hours.
Q: Can I get a sample to check the quality before placing a mass order?
A: Yes, you can. We welcome sample orders so you can evaluate the quality of our units prior to large-scale purchases.
Q: What guarantee do you offer for your products?
A: Quality is our core focus. All of our products come with a 12-month guarantee, providing you with full post-purchase reliability and business support.
Q: What certifications do your products have?
A: Our products are certified to pass CE, ROHS, Euro 5, and EMC standards, ensuring safe distribution and regulatory compliance worldwide.
Q: Do you support OEM/ODM services?
A: Yes, we do. We have an experienced R&D team ready to support custom OEM and ODM orders to match your market needs.
