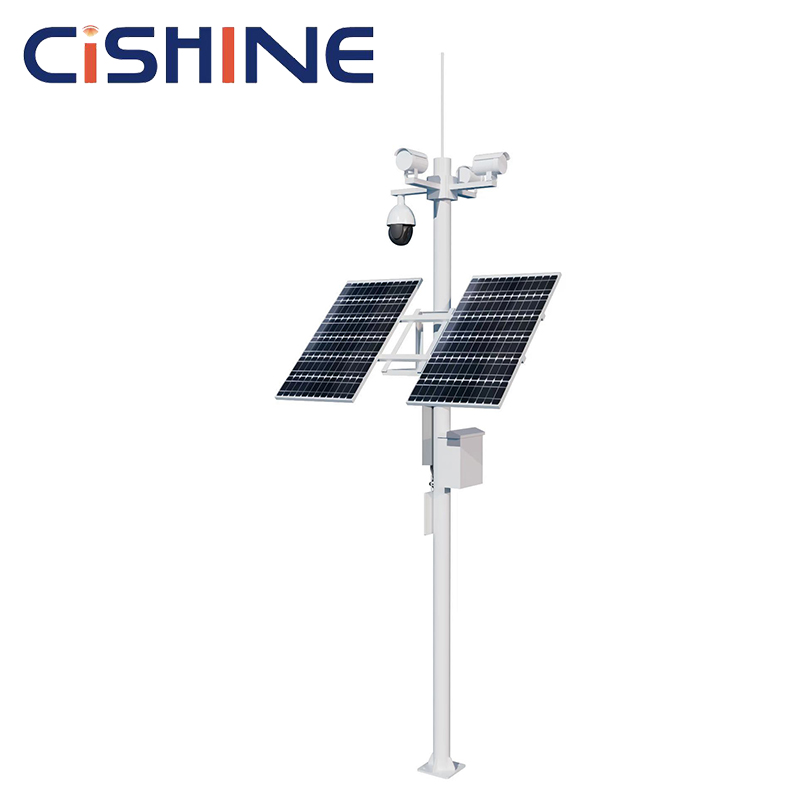

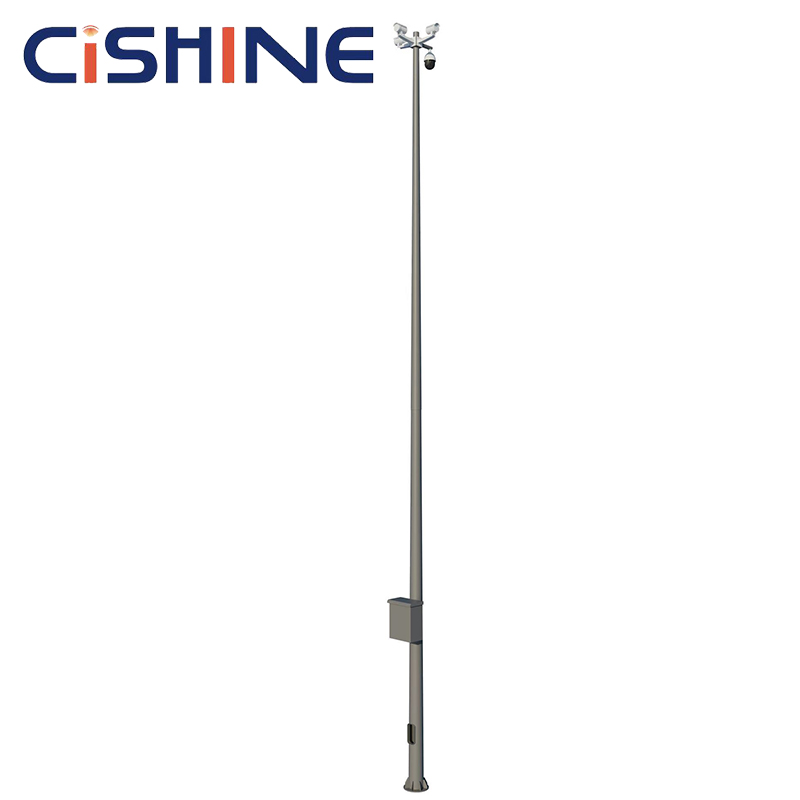

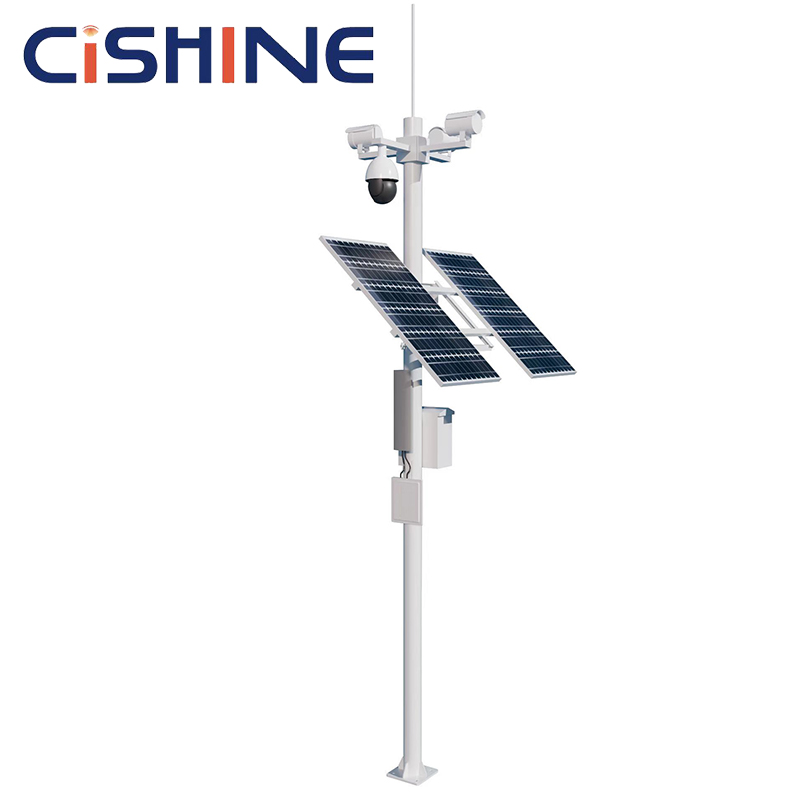

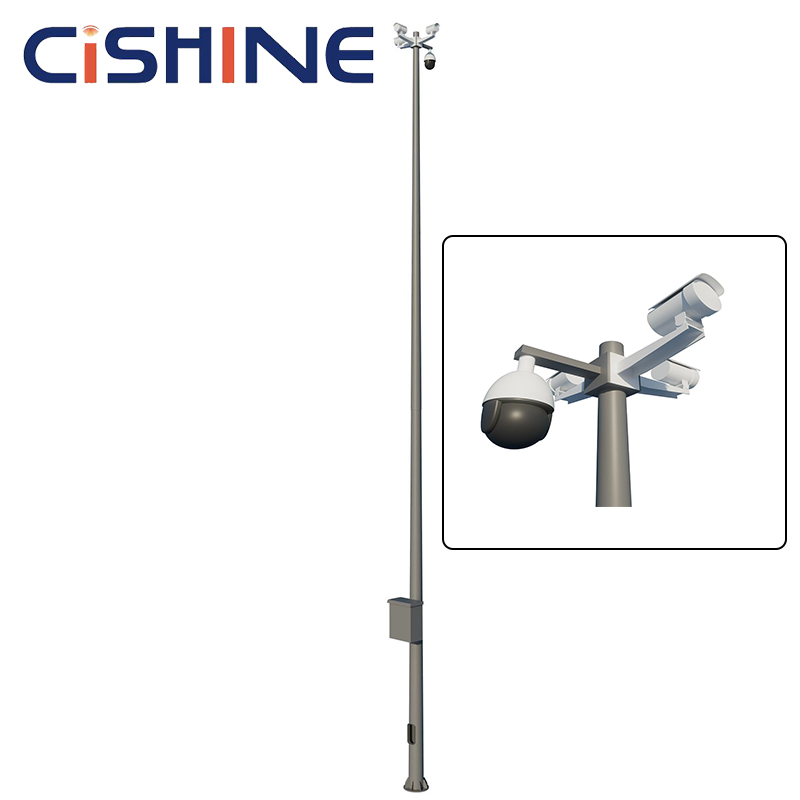

10m 14m 15m 5m 6m 8m 4Meter Manufacturer Outdoor Solar Cctv Mount Bracket Drawings Pole Camera Post Mounting Bracket With Panel

1 / 5

10m 14m 15m 5m 6m 8m 4Meter Manufacturer Outdoor Solar Cctv Mount Bracket Drawings Pole Camera Post Mounting Bracket With Panel

Send Inquiry

Product Description

Products Description

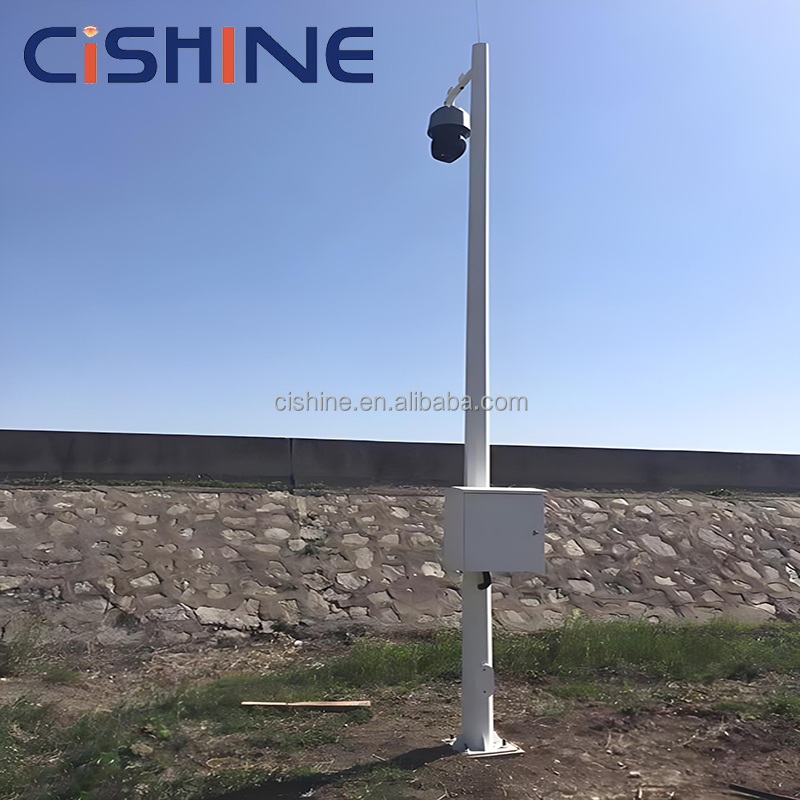

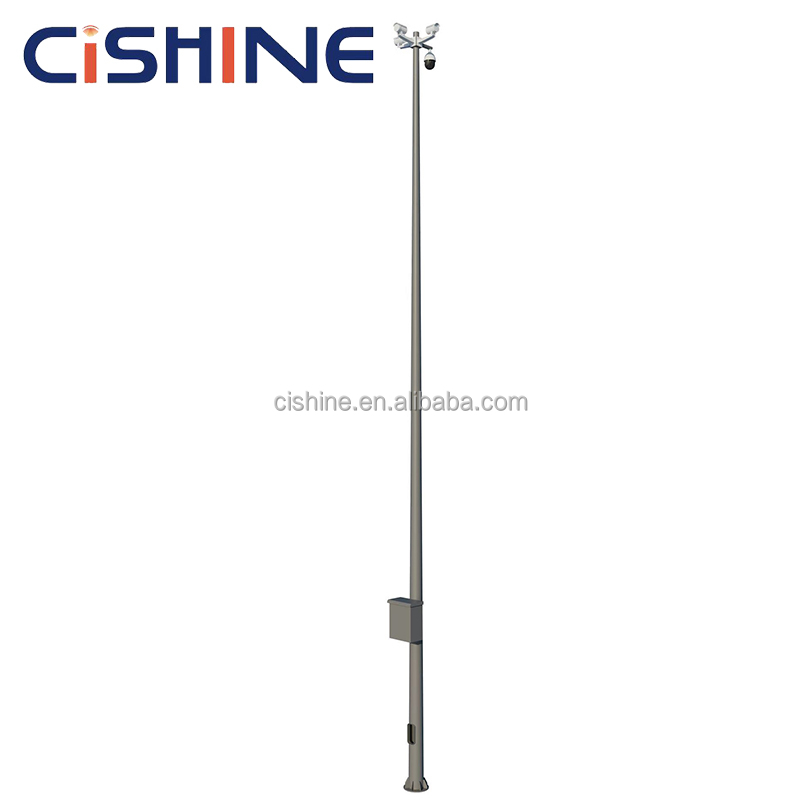

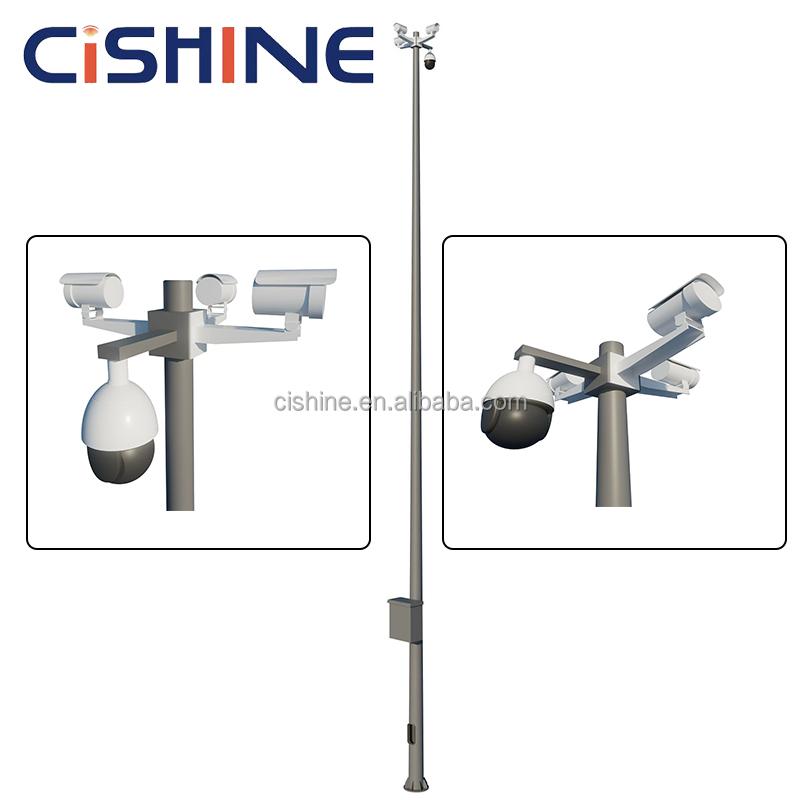

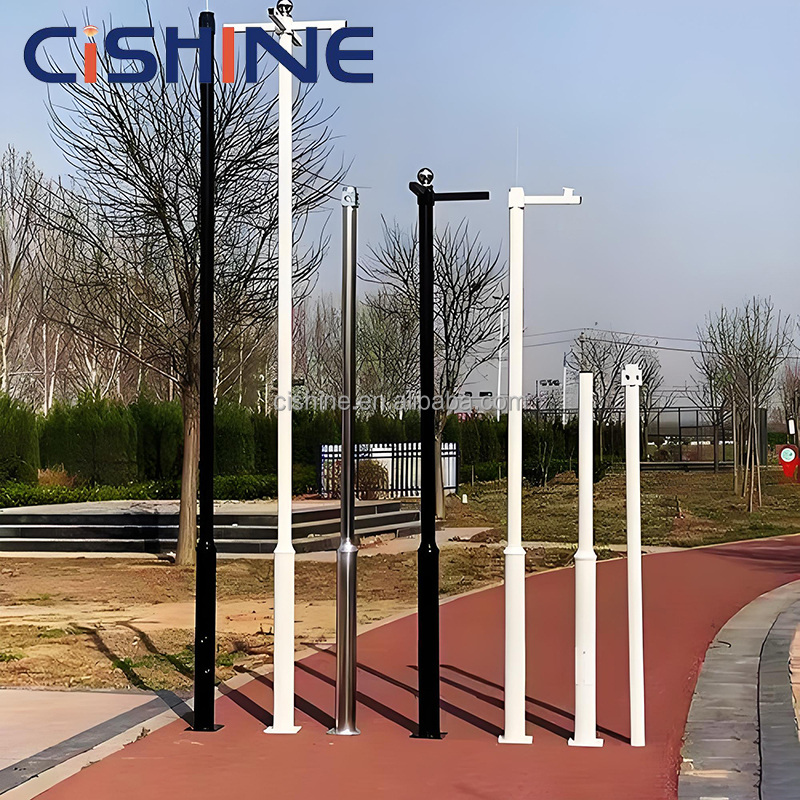

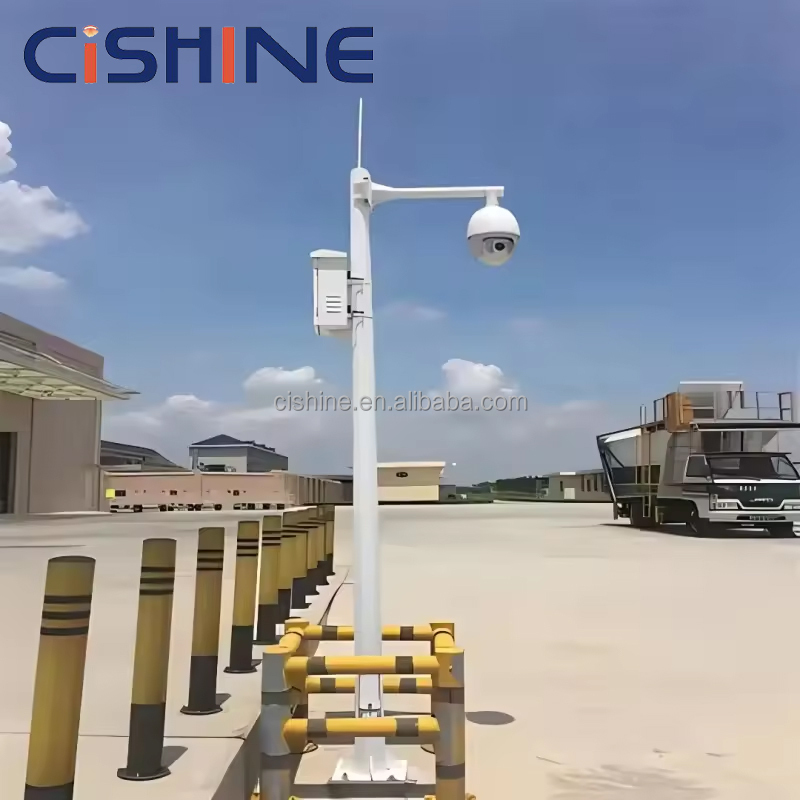

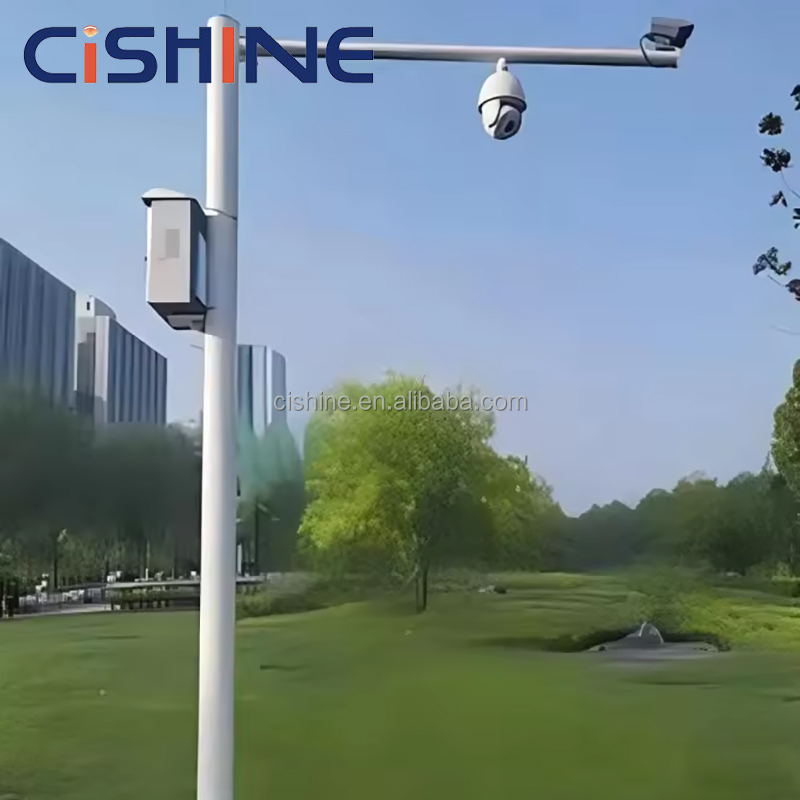

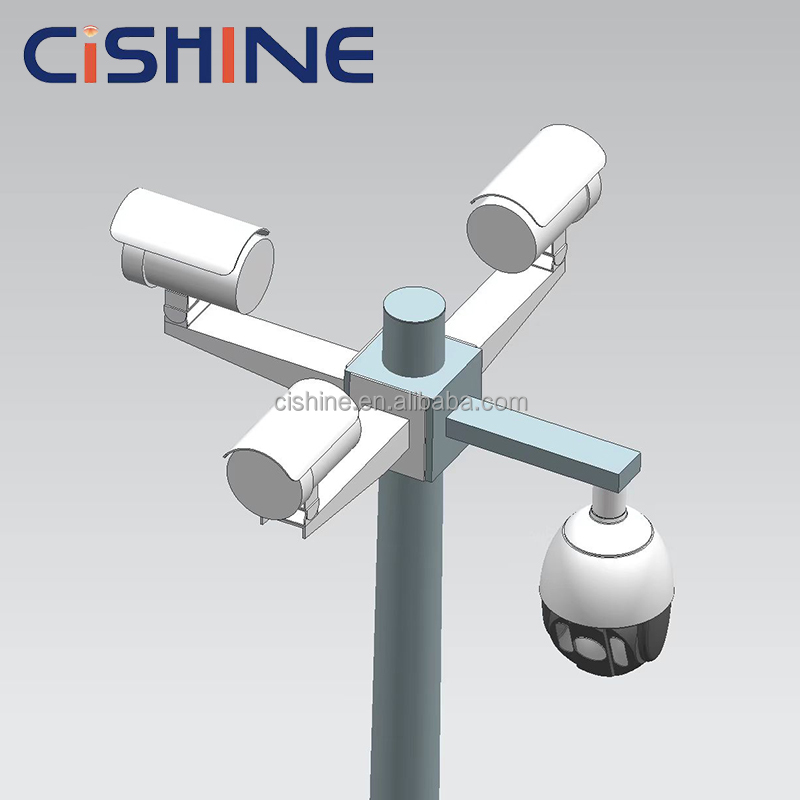

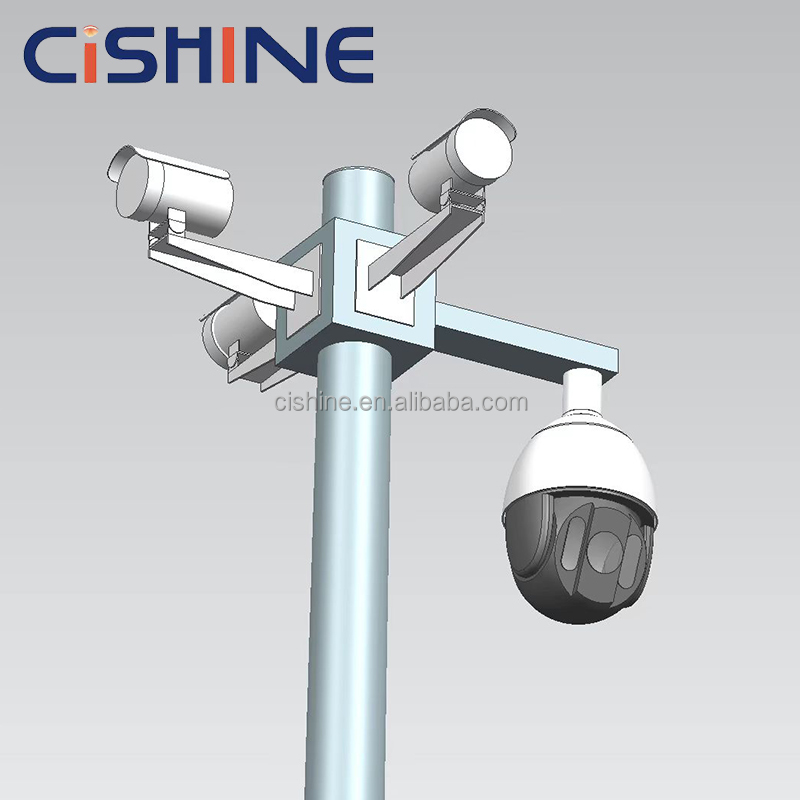

Application Scenarios of CCTV Poles

1. Urban Surveillance: Installed in streets, parks, and public areas for 24/7 security monitoring.
2. Commercial Security: Used in parking lots, shopping malls, and industrial sites to deter theft.

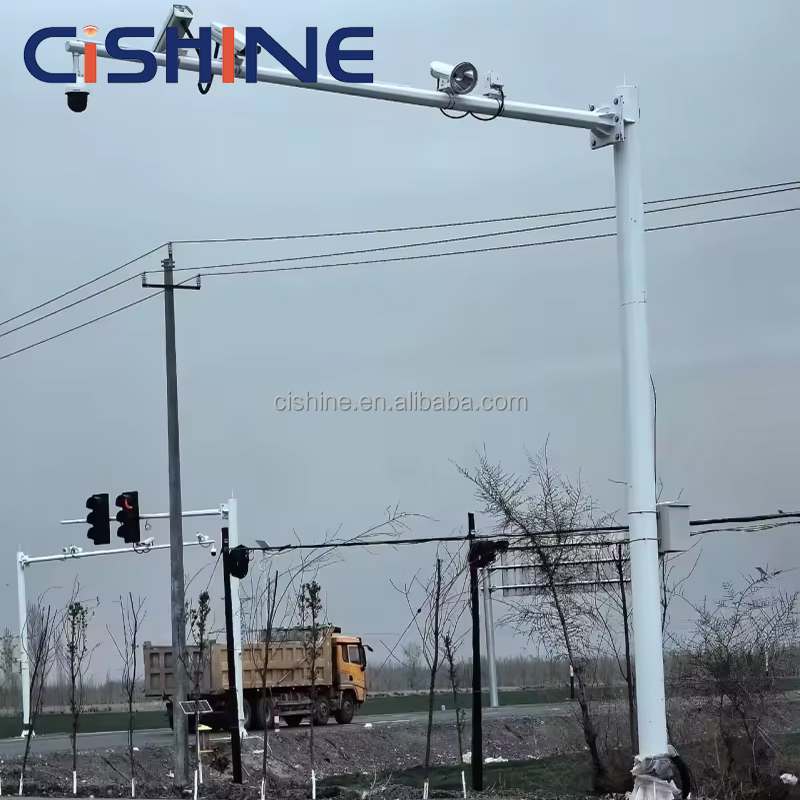

3. Traffic Management: Monitor traffic flow, accidents, and license plates at intersections.
4. Perimeter Protection: Secure borders of factories, warehouses, and residential complexes.

Application Scenarios and Features of CCTV Poles

Application Scenarios

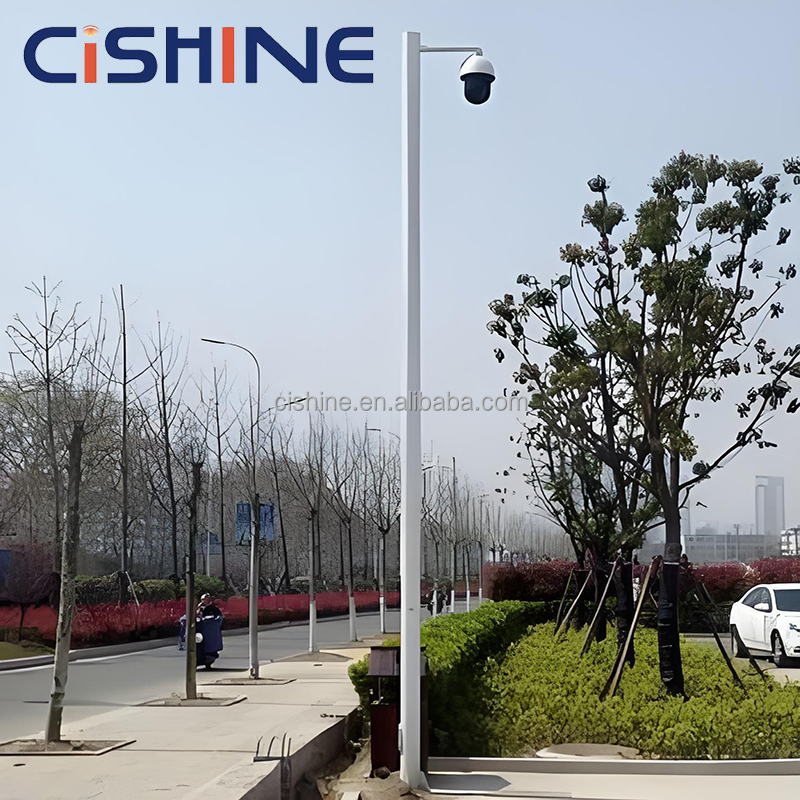

Urban Surveillance: Installed at intersections, public squares, and streets to monitor traffic and ensure public safety.
Commercial Areas: Used in shopping malls, parking lots, and business districts for security and monitoring purposes.
Industrial Sites: Deployed in factories, warehouses, and construction sites to oversee operations and enhance security.
Residential Areas: Installed in neighborhoods and residential complexes to provide security and monitor activities.
Public Utilities: Used in parks, schools, and other public places to ensure safety and monitor activities.

Features

Durability: Made from high-quality materials to withstand harsh weather conditions and provide long-term reliability.
Height Options: Available in various heights to cater to different surveillance needs and ensure optimal camera coverage.
Ease of Installation: Designed for easy and quick installation, reducing setup time and labor costs.
Compatibility: Compatible with various types of CCTV cameras and other surveillance equipment.
Aesthetics: Designed to blend seamlessly with the environment, ensuring they do not detract from the area's appearance.
Security: Equipped with tamper-proof features to prevent vandalism and unauthorized access.

CCTV Pole Detailed Dimension Specifications

Technical Specifications

Parameters	Details & Standards
Poles Height	3m to 40m
Shape	Round conical; Octagonal tapered; Straight square; Tubular stepped; Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine.
Material	Q235, Q345, Steel, Aluminum
Welding	It has passed flaw testing. Internal and external double welding makes the welding beautiful in shape and conforms with international welding standard of CWB, BS EN15614.
Thickness	1.8mm - 20mm
Surface Treatment	Hot Dip Galvanized + Powder Coating

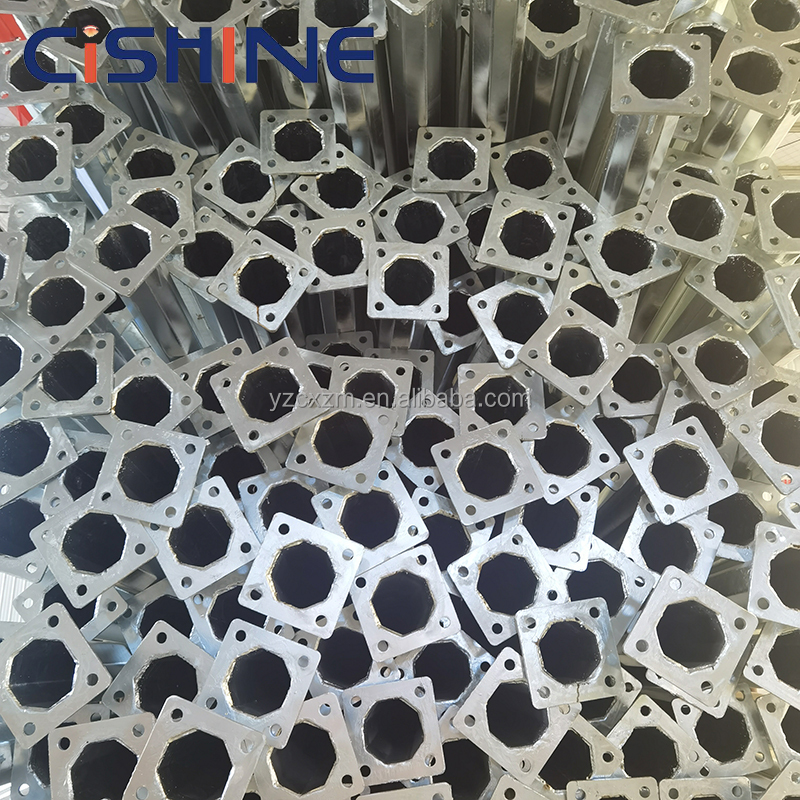

Base Plate Mounted	Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customer's requirement.
Powder Coating	Pure polyester powder painting, color is optional according to RAL Color standard.

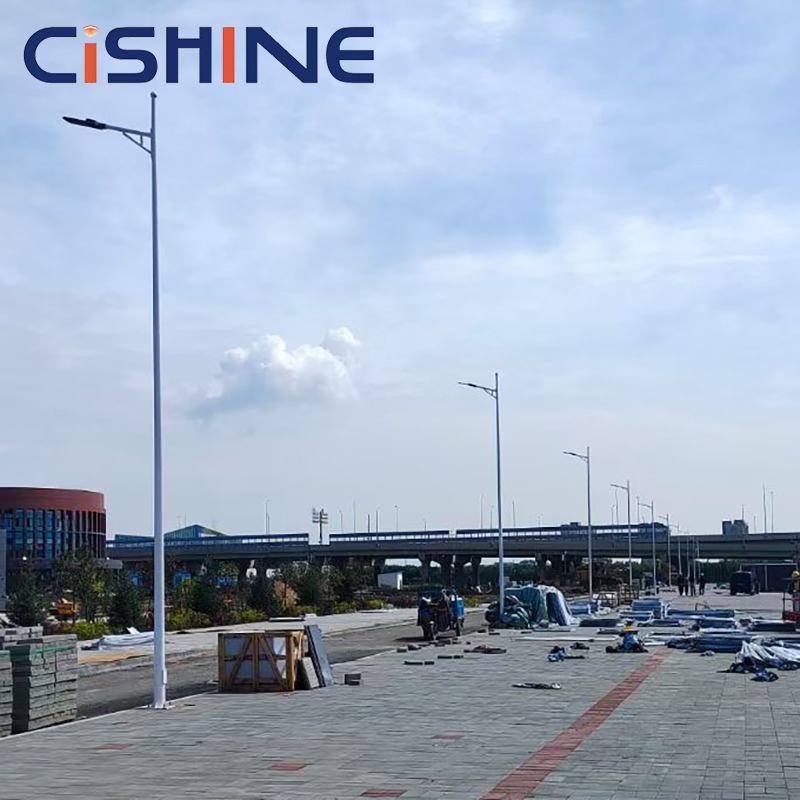

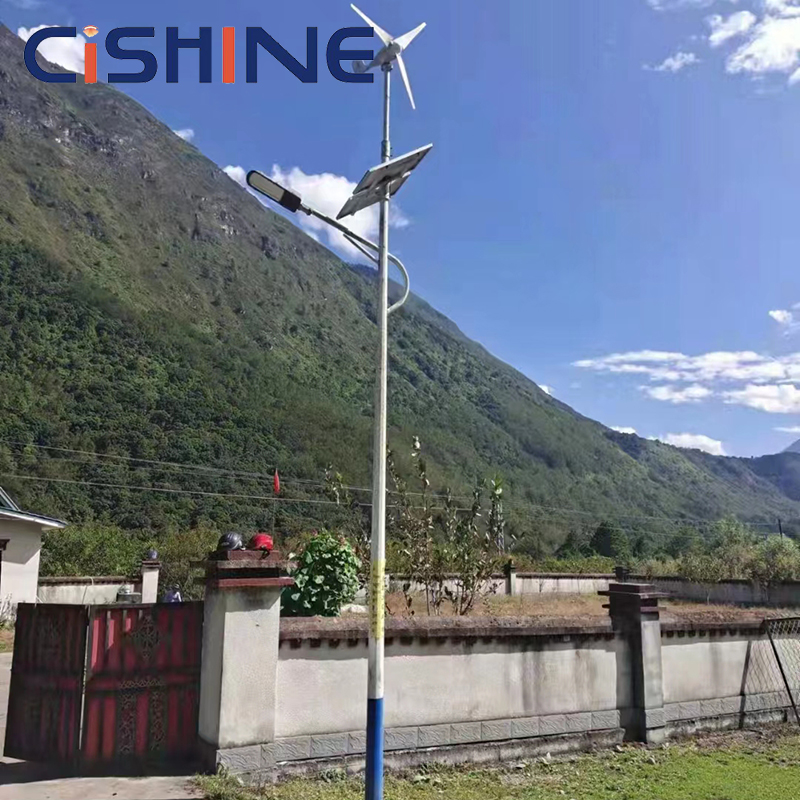

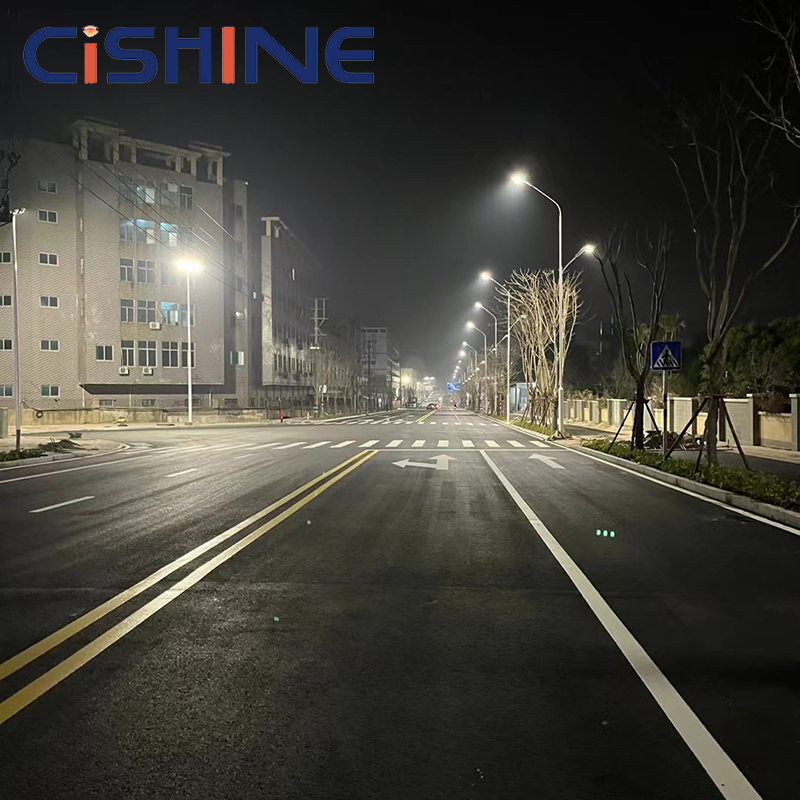

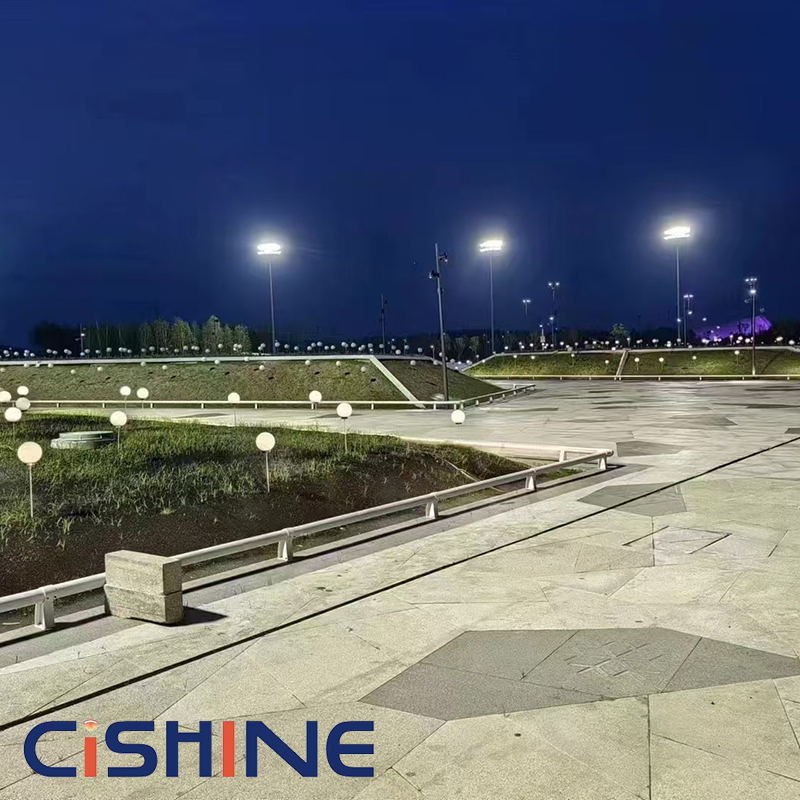

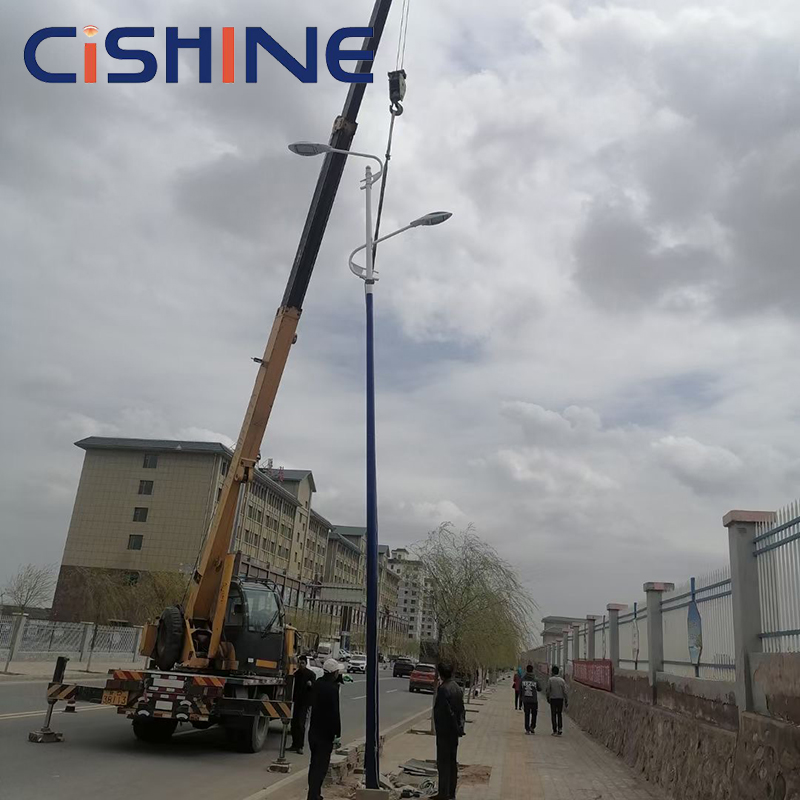

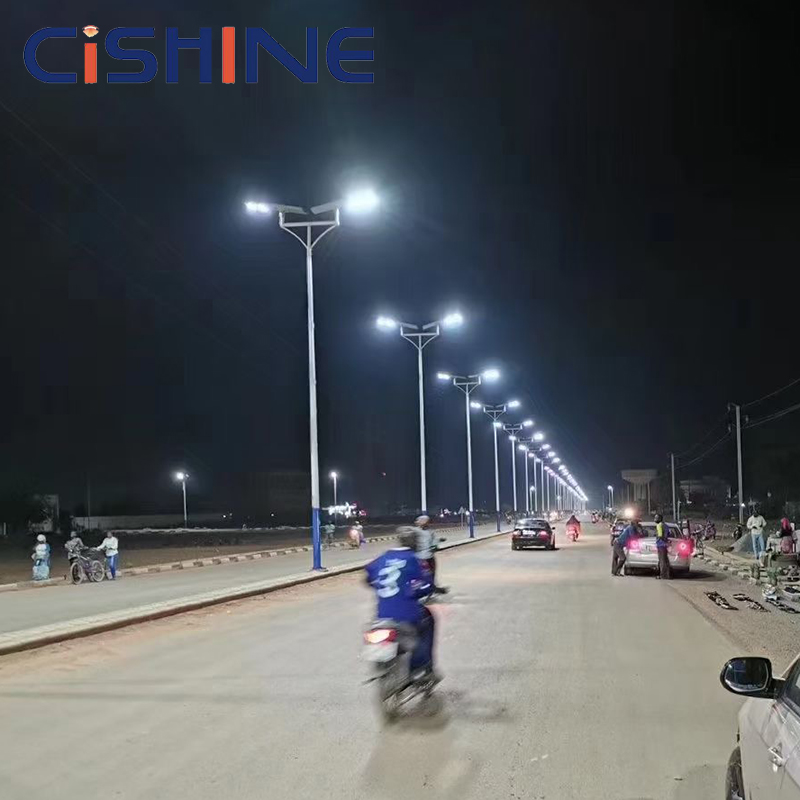

Lighting Applications

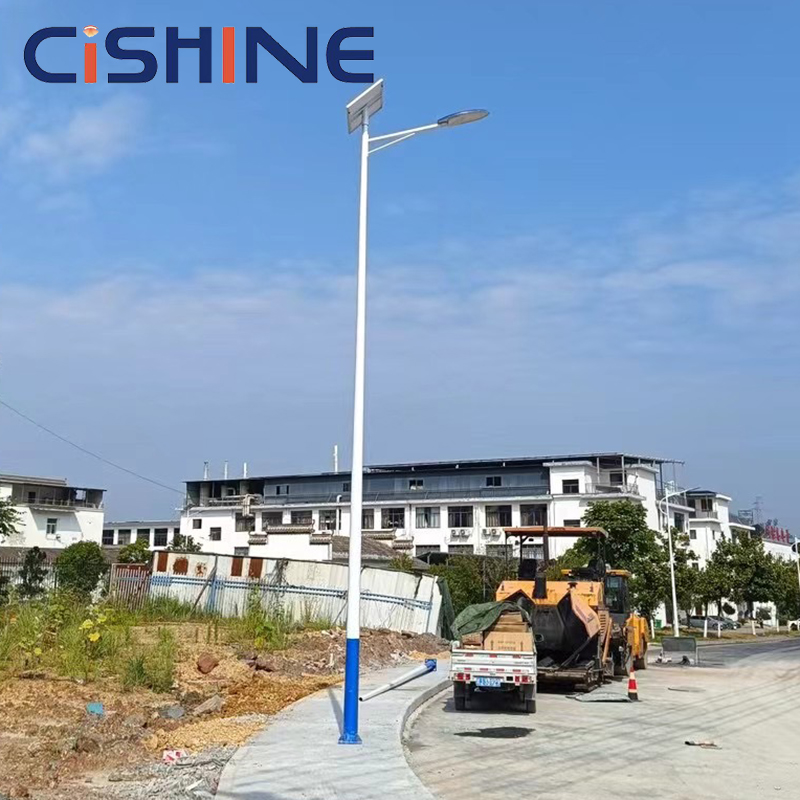

Solar-Powered Application Scenarios: Rural roads, suburban streets, courtyard lighting, parking lots, scenic spots, and remote areas lacking stable grid power.
Mains Electricity Application Scenarios: Urban arterial roads, residential communities, commercial plazas, industrial parks, pedestrian streets, and municipal engineering projects.
Universal Use: Street lighting, garden lighting, security lighting, and traffic signal lighting systems.

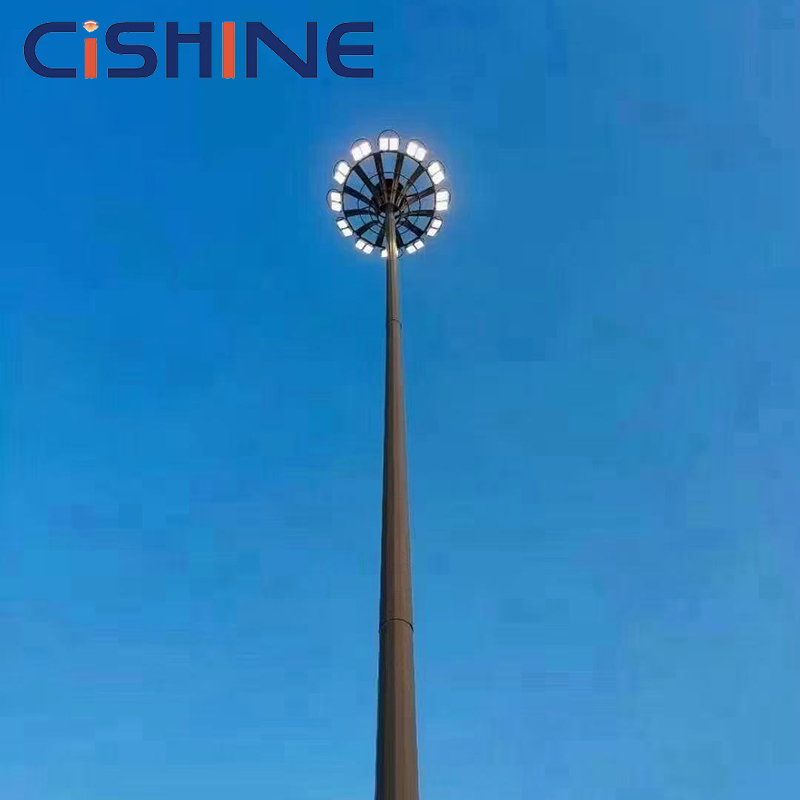

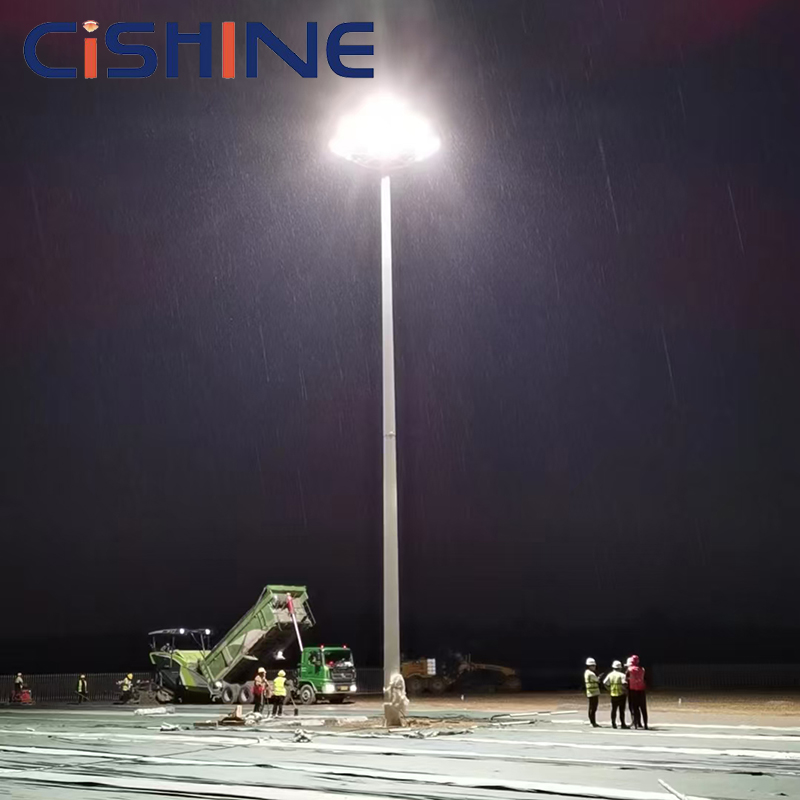

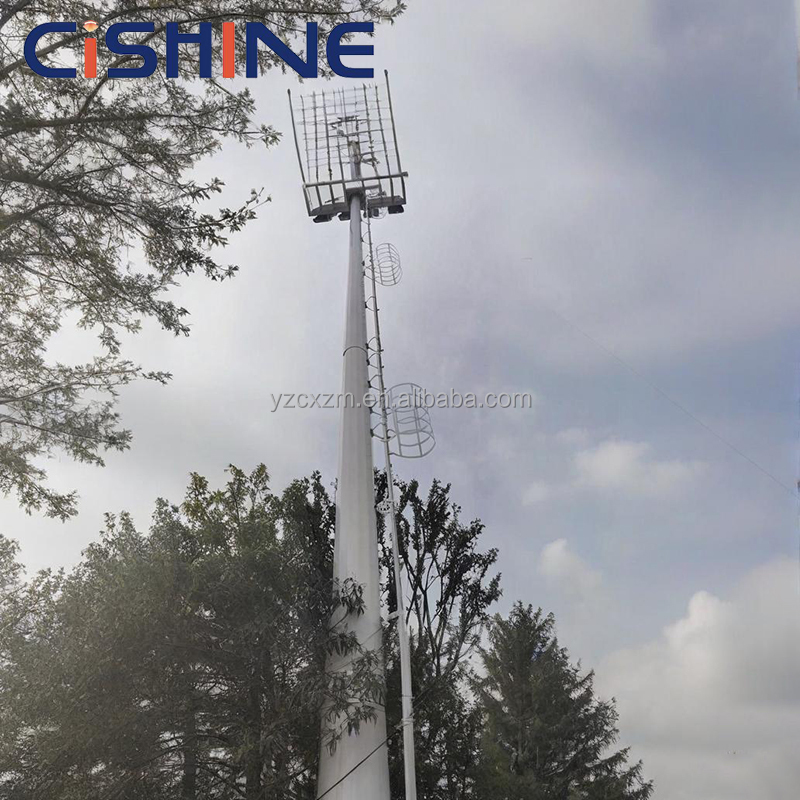

About Hot-Dip Galvanized High Mast Light Pole

Key Features:

Hot-dip galvanized steel for superior corrosion & weather resistance.
Dual-compatible with solar/mains power; easy wiring & installation.
High-strength structure with reliable wind resistance.
Optional powder coating for custom colors; ISO 9001/ASTM compliant.

Application Scenarios:

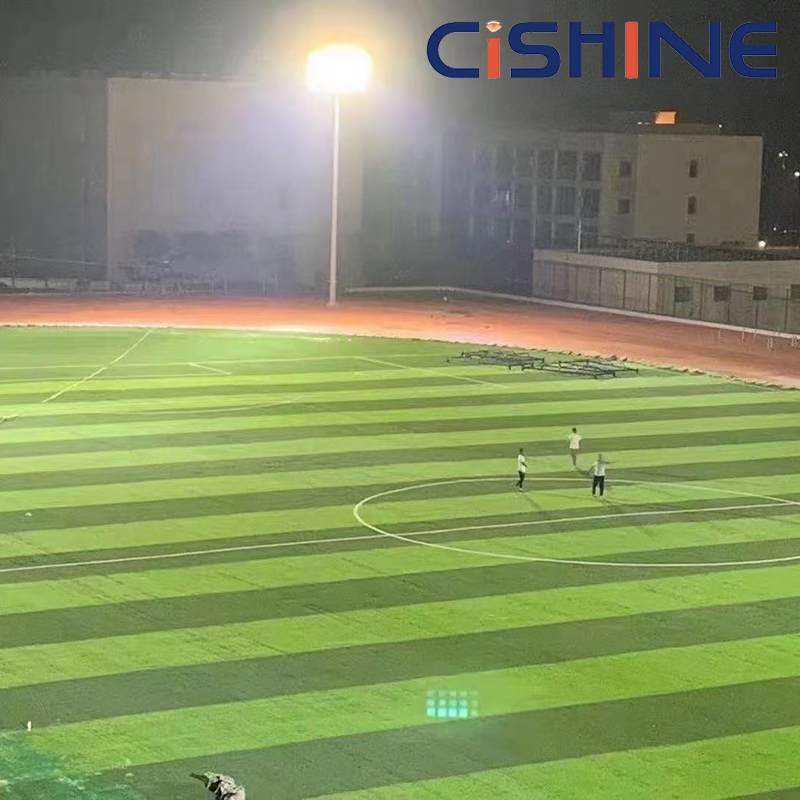

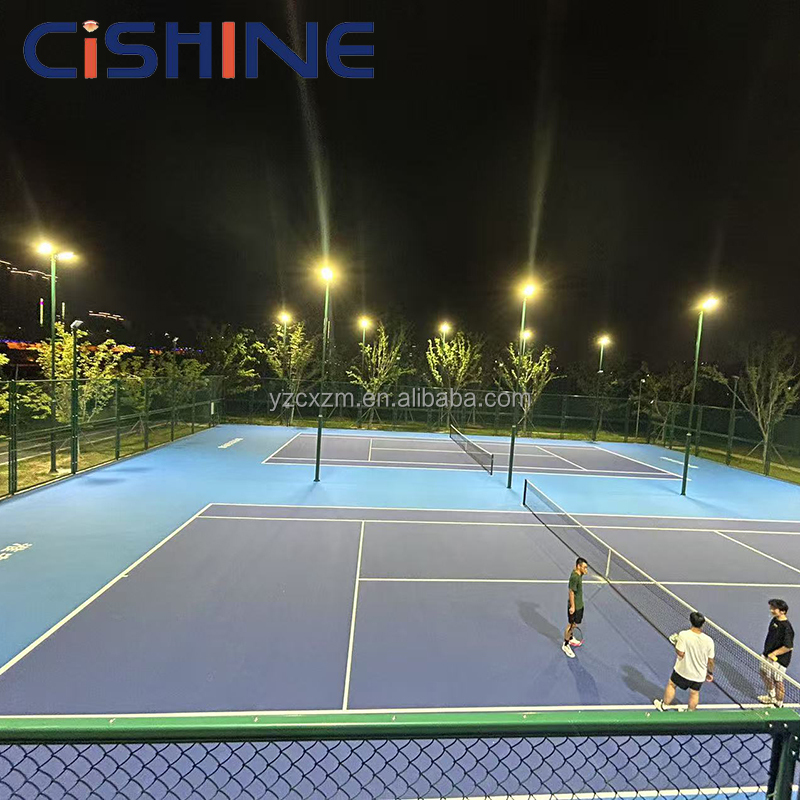

Sports venues: Tennis/basketball courts, stadiums.
Open spaces: Squares, parks, scenic spots.
Logistics hubs: Ports, docks, freight yards.

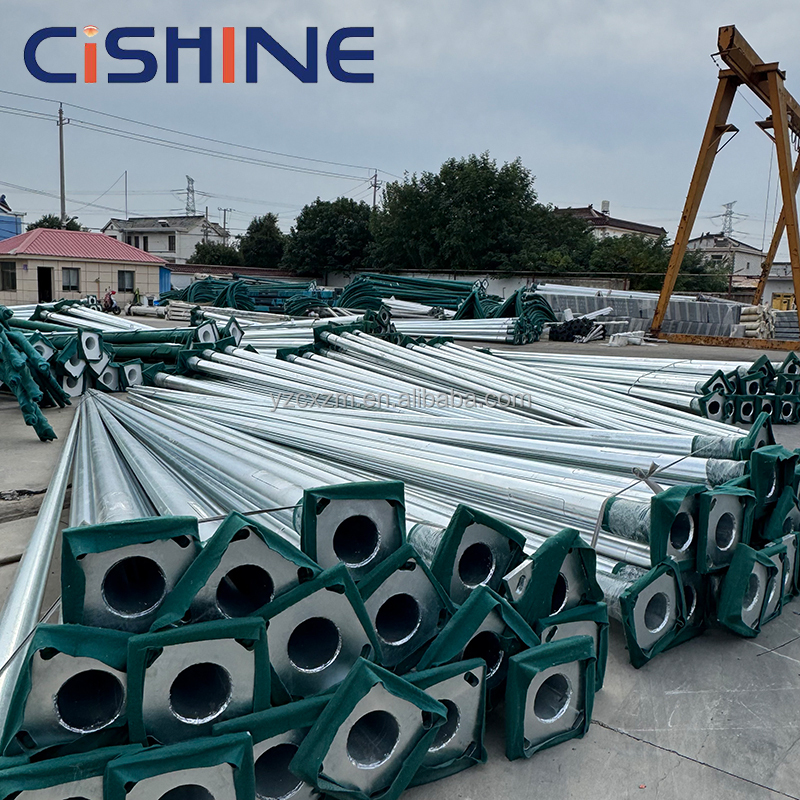

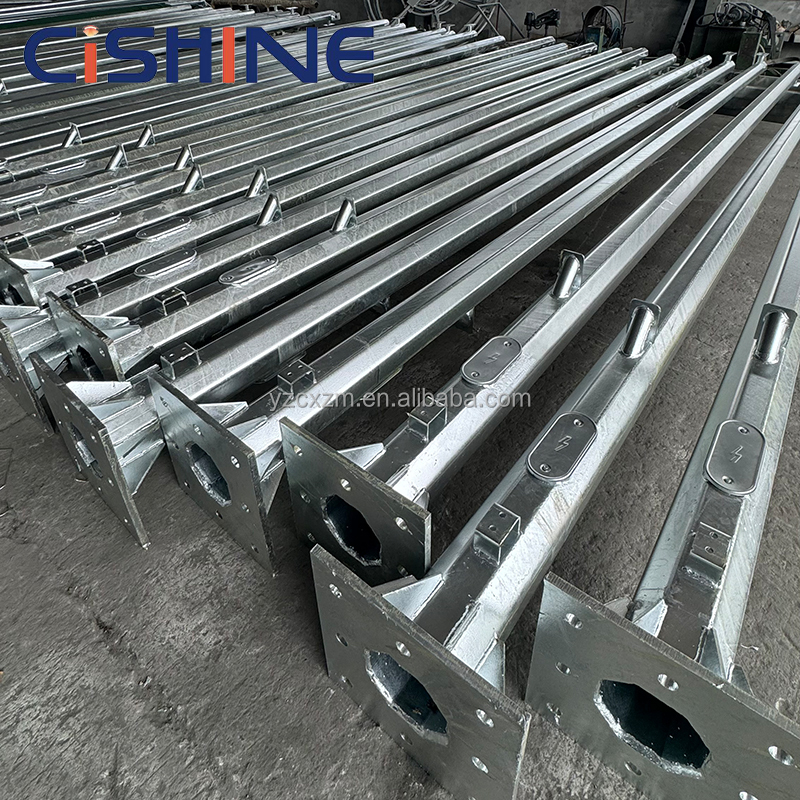

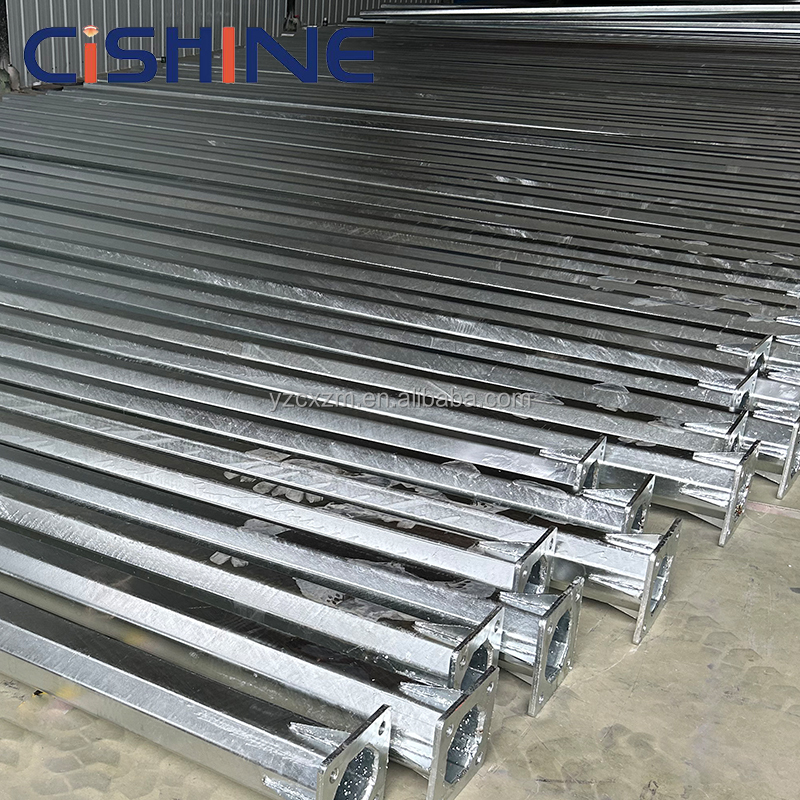

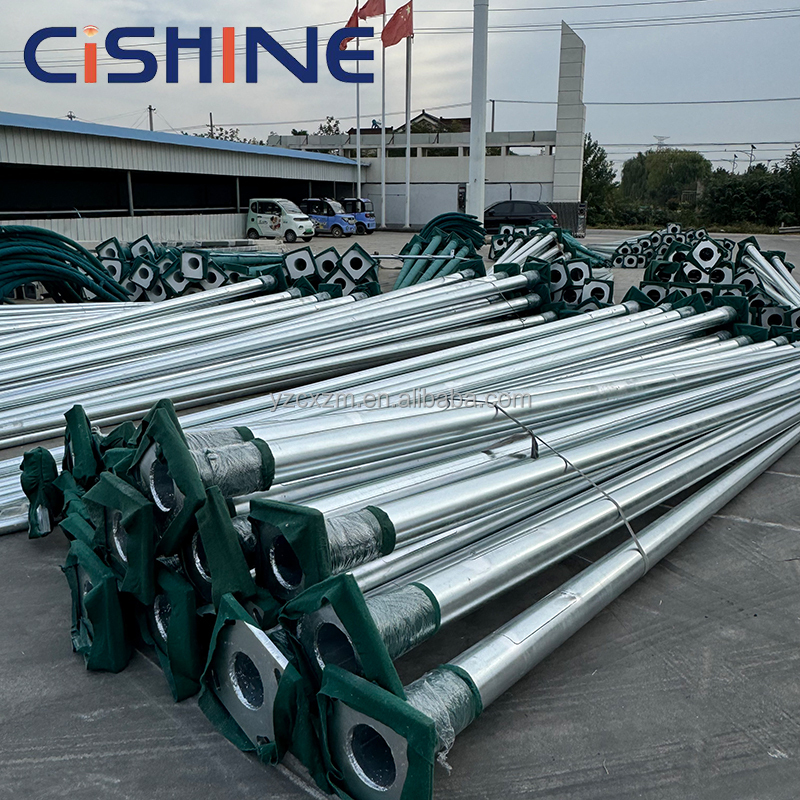

Details Images

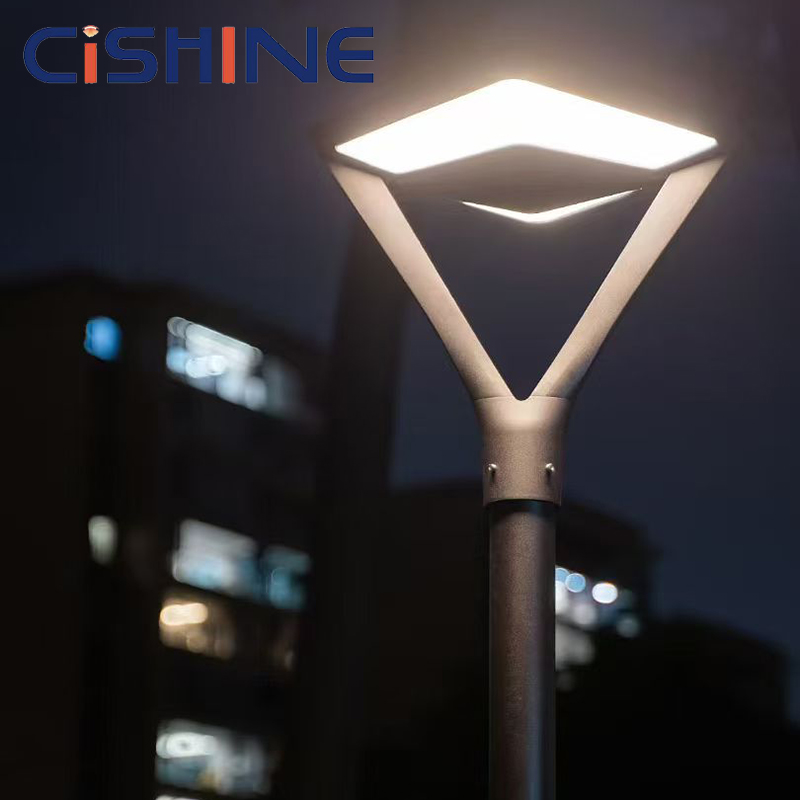

Recommend Products

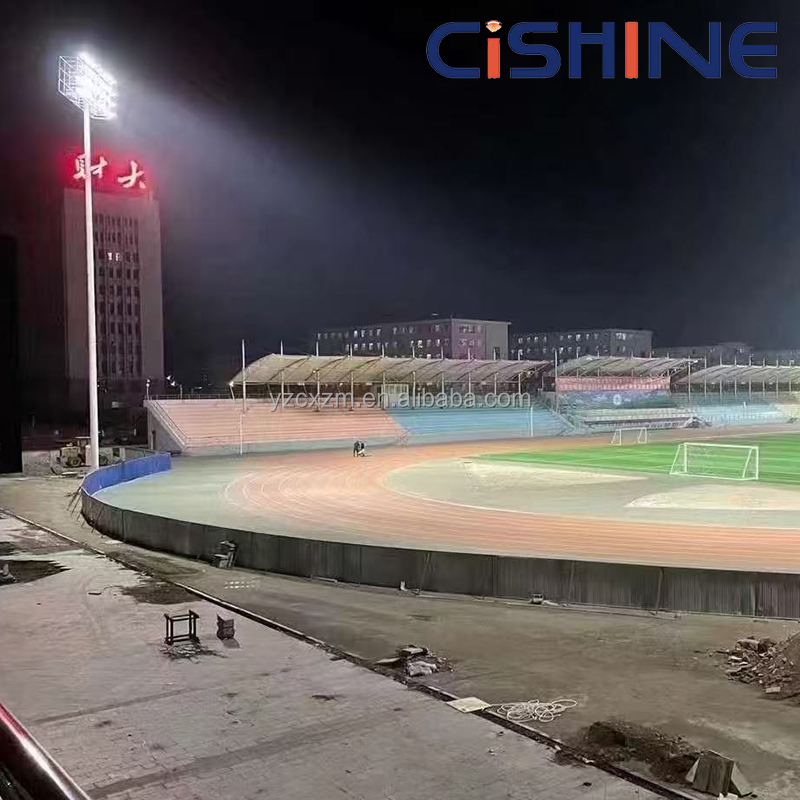

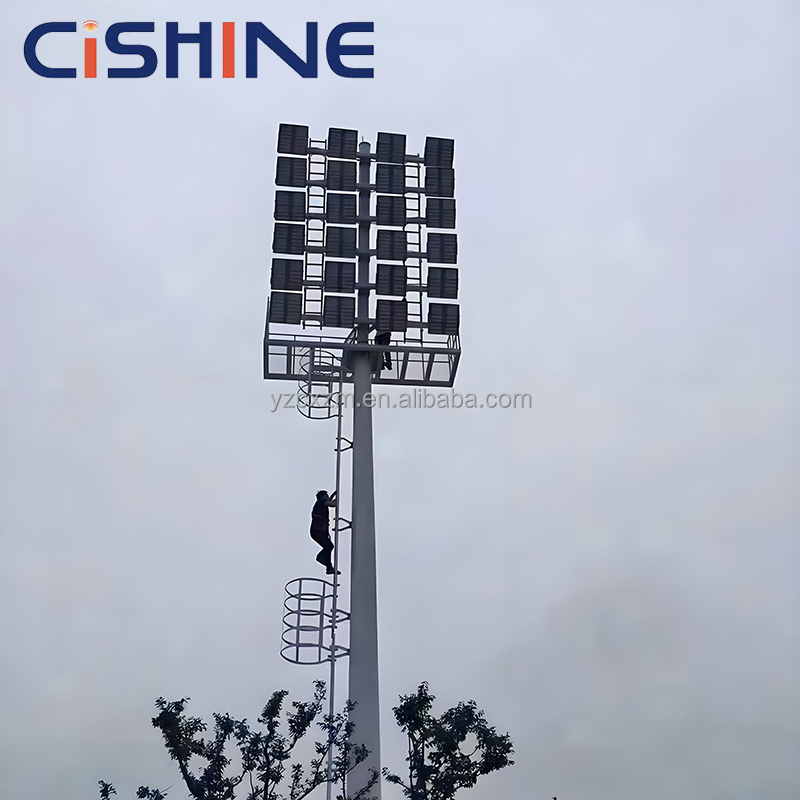

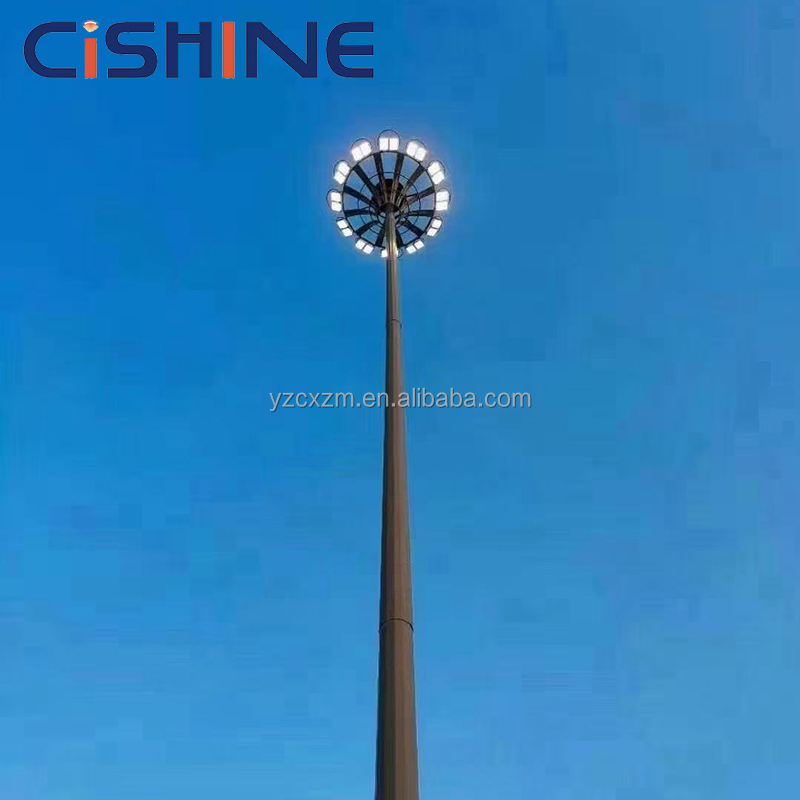

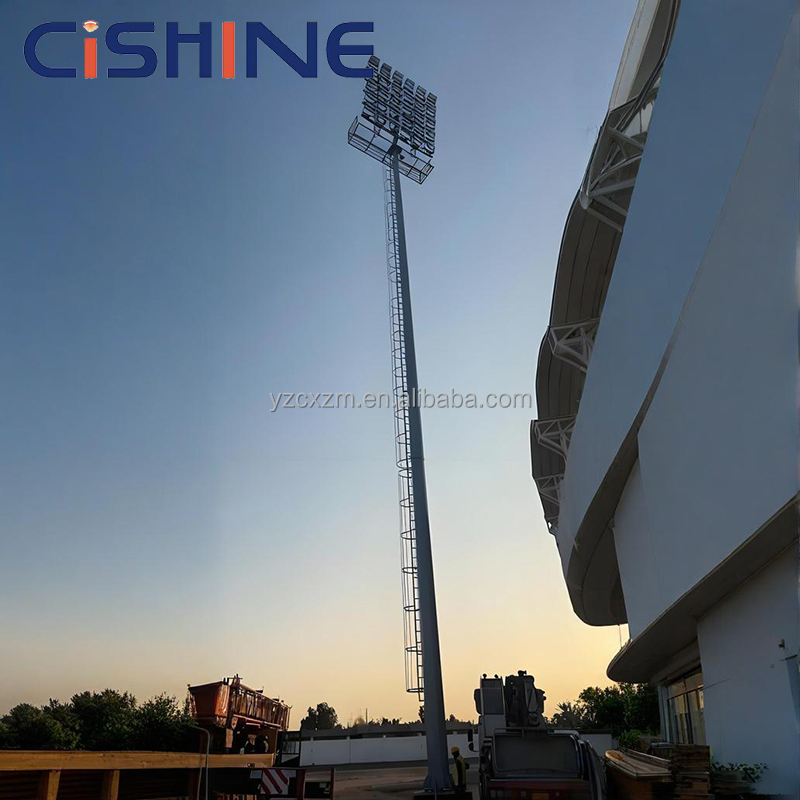

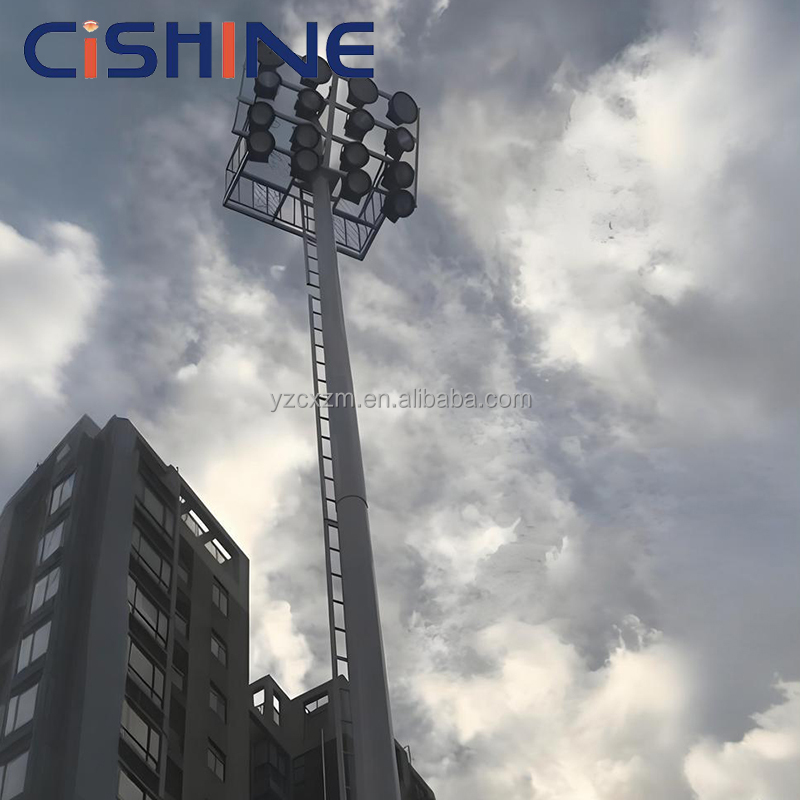

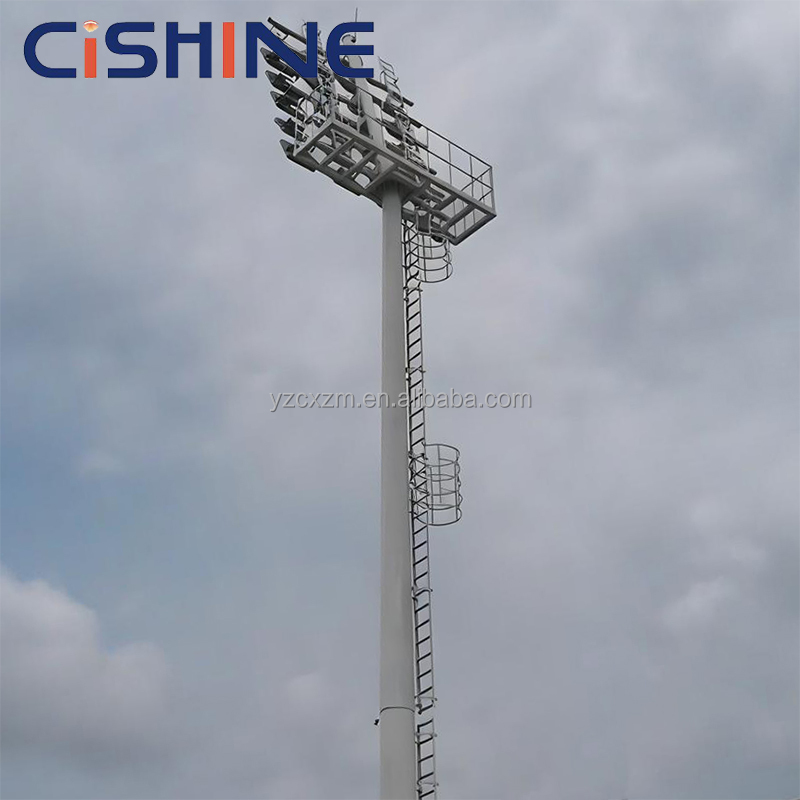

High Mast Stadium Light

High Mast/Stadium Light Pole: Full-pole hot-dip galvanization + optional powder coating for top-tier anti-corrosion, perfect for outdoor sports venues.
Stadium Floodlight: High-lumen LED delivers uniform light, meets professional illuminance standards for football/basketball/tennis courts.
Heavy-Duty Structure: Wind-resistant design ensures long-term stable operation for outdoor stadium lighting projects.
Energy-Saving LED: Low power consumption, minimal maintenance cost for sports venue lighting solutions.

Frequently Asked Questions

What height options are available for these CCTV and utility poles?

Our poles are manufactured in a wide range of heights from 3 meters up to 40 meters, allowing them to support varied surveillance and lighting layout demands effectively.

What materials and structural designs are used for the poles?

The poles are constructed from high-quality steel (such as Q235 and Q345) or aluminum. Available shapes include round conical, octagonal tapered, straight square, and tubular stepped configurations. Shafts are folded from steel sheets and longitudinally welded by automatic arc welding.

How are the poles protected against outdoor corrosion and rust?

Every pole undergoes a comprehensive hot-dip galvanization process, and we offer an optional pure polyester powder coating (customizable to RAL color standards) for superior weather, wind, and corrosion resistance.

Are these poles compatible with solar-powered lighting systems?

Yes, the poles feature a dual-compatible design optimized for both mains electricity and solar-powered utility applications. They are designed for clean, easy wiring and swift installation.

What standards are followed during the manufacturing and welding processes?

All poles are produced in compliance with global standards, including ISO 9001 and ASTM. Our internal and external double welding passes structural flaw tests and conforms with CWB and BS EN15614 international welding standards.

What security features are integrated into the CCTV poles?

Our CCTV poles are built with tamper-proof designs and secure components to prevent unauthorized access, vandalism, and camera tampering, making them highly reliable for critical urban and industrial security.
