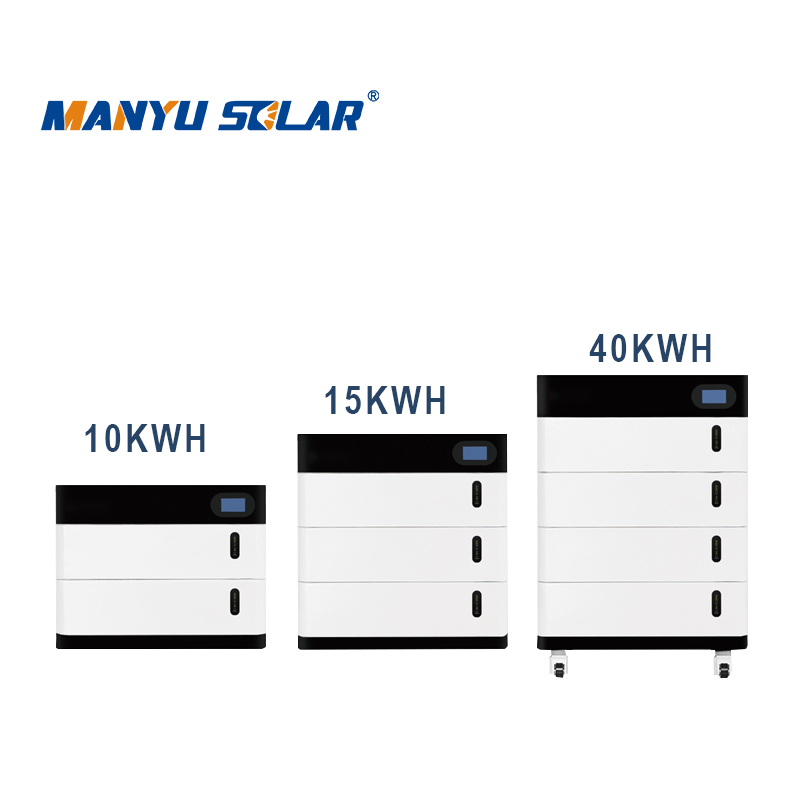

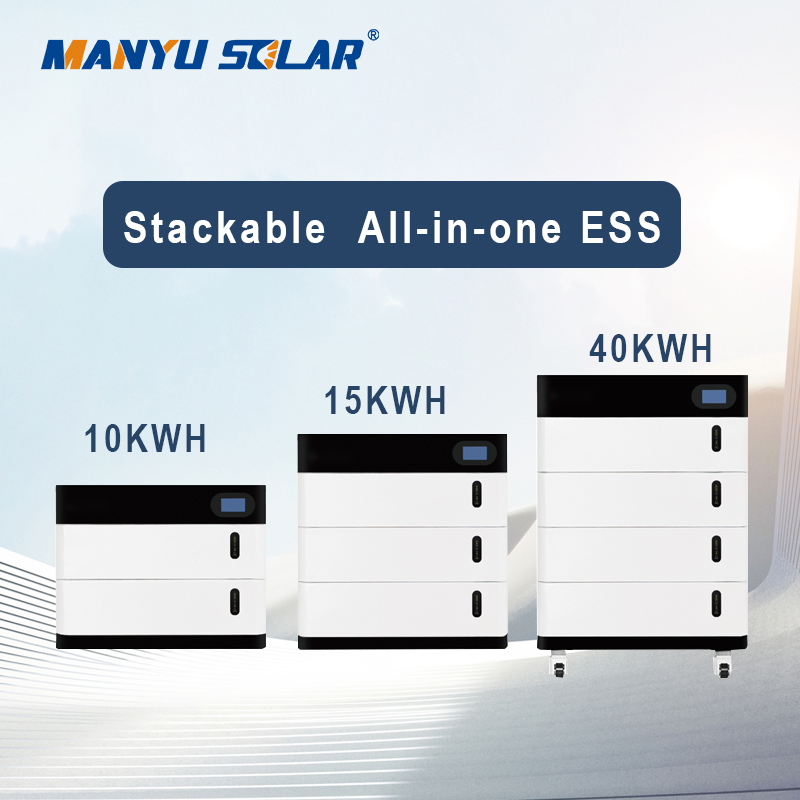

Customized 5KW to 30KWH All-in-One Power System Solar Energy System Stackable and Efficient with CAN Communication Port
Customized 5KW to 30KWH All-in-One Power System Solar Energy System Stackable and Efficient with CAN Communication Port
Customized 5KW to 30KWH All-in-One Power System Solar Energy System Stackable and Efficient with CAN Communication Port
Customized 5KW to 30KWH All-in-One Power System Solar Energy System Stackable and Efficient with CAN Communication Port
Customized 5KW to 30KWH All-in-One Power System Solar Energy System Stackable and Efficient with CAN Communication Port
1 / 5
Customized 5KW to 30KWH All-in-One Power System Solar Energy System Stackable and Efficient with CAN Communication Port
Customized 5KW to 30KWH All-in-One Power System Solar Energy System Stackable and Efficient with CAN Communication Port
Customized 5KW to 30KWH All-in-One Power System Solar Energy System Stackable and Efficient with CAN Communication Port
Customized 5KW to 30KWH All-in-One Power System Solar Energy System Stackable and Efficient with CAN Communication Port
Customized 5KW to 30KWH All-in-One Power System Solar Energy System Stackable and Efficient with CAN Communication Port

Customized 5KW to 30KWH All-in-One Power System Solar Energy System Stackable and Efficient with CAN Communication Port

Send Inquiry

Product Description

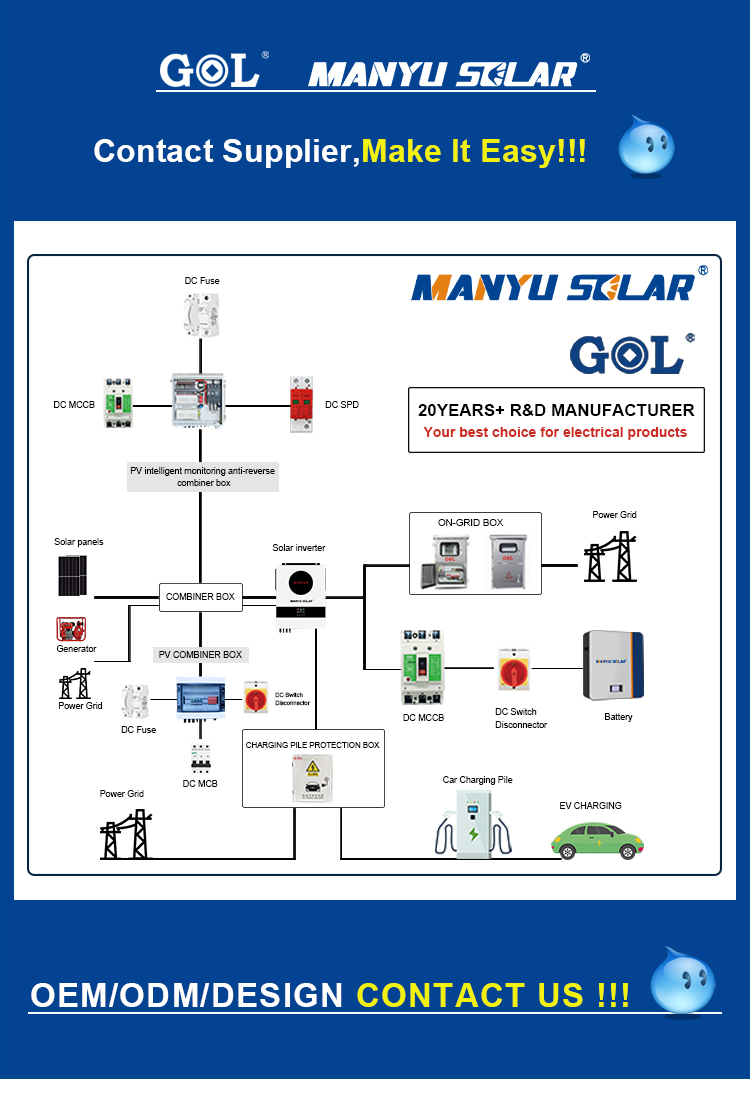

Product Banner
Product Description

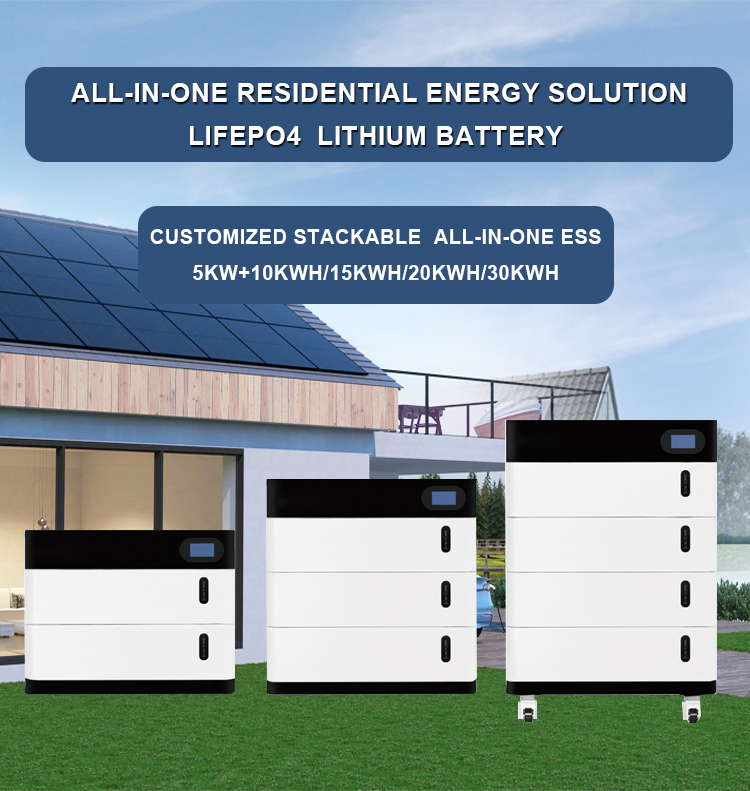

Product Details

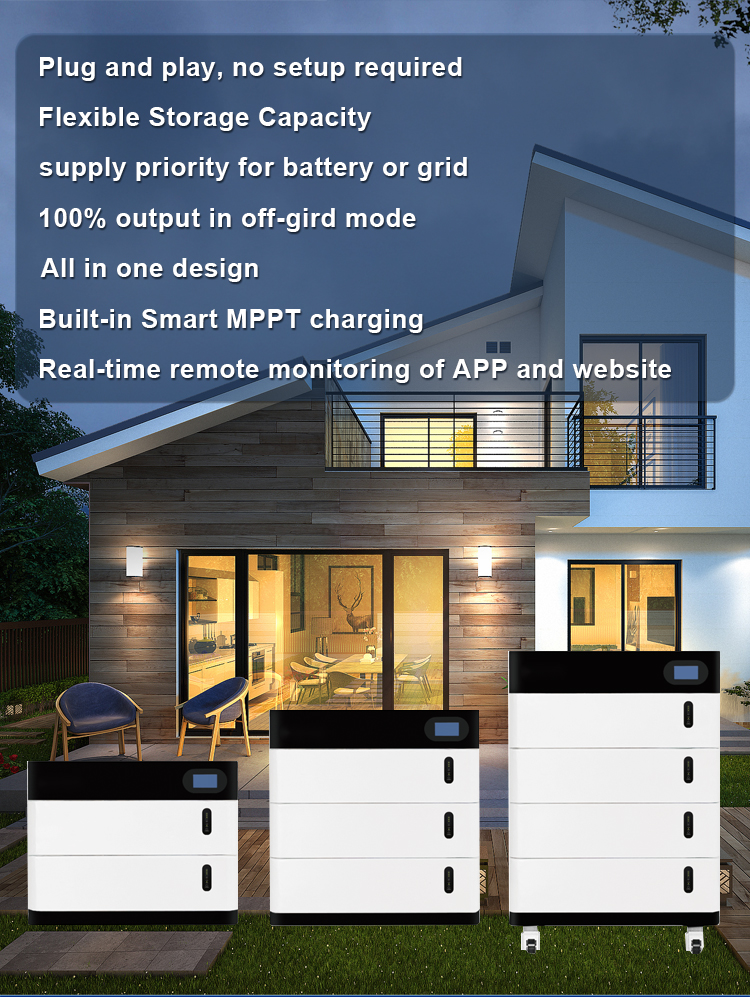

Product Advantages
★
Flexible & Easy Installation: Wall-mounted or floor-mounted options available.
★
Easy Management: Real-time online monitoring system for battery status and intelligent warning notifications.
★
Seamless Transition: Fast, seamless transition between off-grid and grid-connected modes.
★
Safety & Reliability: Advanced nano-coating and self-healing technology construct a secure LFP channel, adding a safety firewall to the battery.
★
Plug and Use: Simple setup and hassle-free operation.

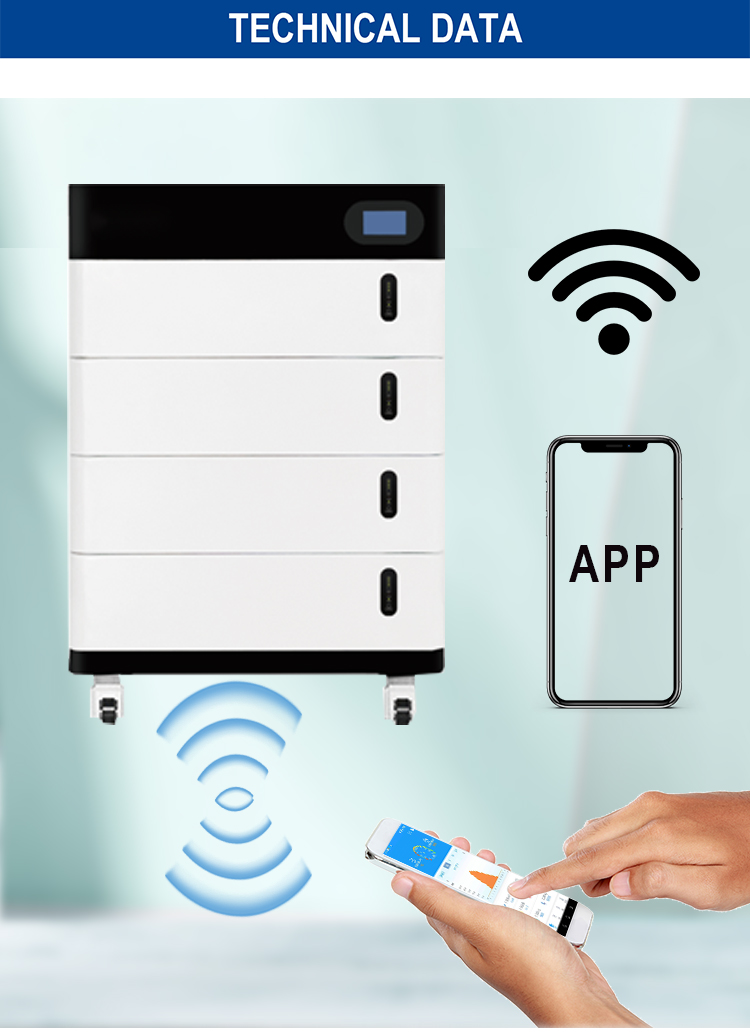

Product Inner Components

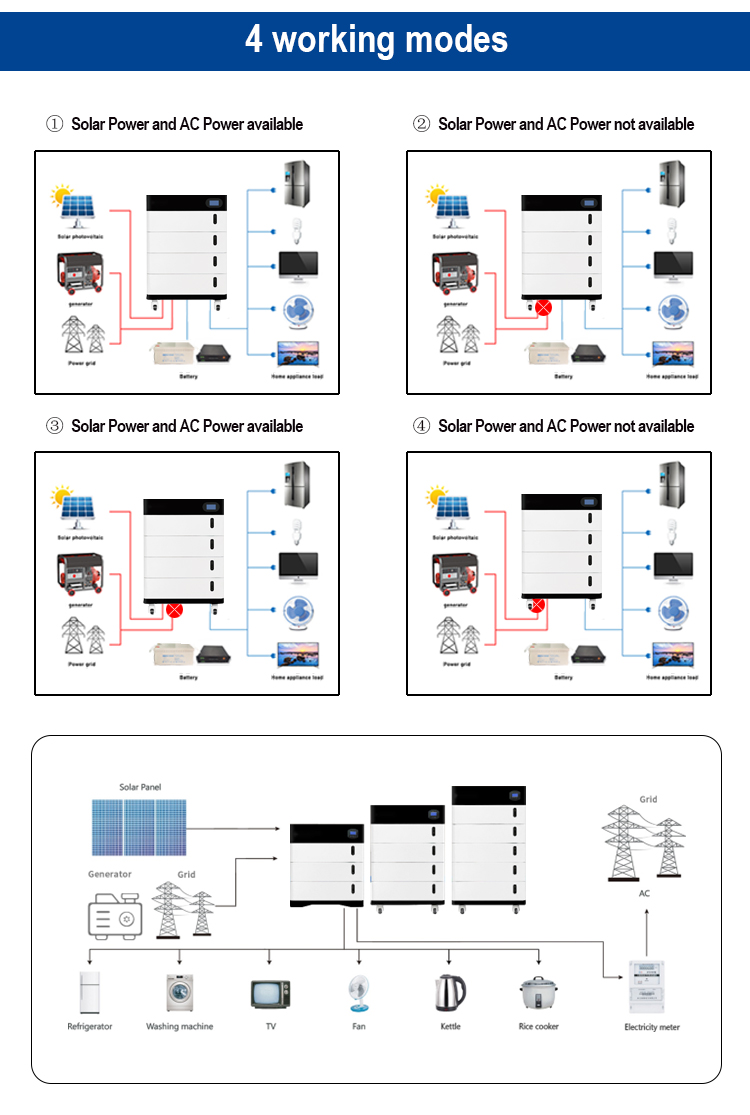

Product Features Layout
Specification
Model Specs 10KWh+5KW 15KWh+5KW 20KWh+5KW 30KWh+5KW
Model MY-10KWH+5KF1-A1 MY-15KWH+5KF1-A1 MY-20KWH+5KF1-A1 MY-30KWH+5KF1-A1
Battery System Parameters
Battery Voltage 51.2V
Battery Capacity 200Ah 300Ah 400Ah 600Ah
Charge Voltage 58.0V
Discharge Cut-off Voltage 42.0V
Charge Current 50A
Max Charge Current 100A
Discharge Current 100A
Max Discharge Current 150A
Max Peak Current 300A
Communication Method RS485/CAN
Inverter Parameters
Power 5KW
Output Voltage 230VAC
Frequency 50Hz
Input Power (PV) 5KW
Input Voltage Range (PV) 120-430VDC
Communication Connect Port RS485 / CAN / WiFi
General Parameters
Material / Colour Metal / White
Size 585*360*610mm 585*360*760mm 585*360*915mm 585*360*1225mm
Weight 105Kg (approx) 148Kg (approx) 191kg (approx) 234kg (approx)
Temperature Range Charge: 0°C - 50°C | Discharge: -15°C - 60°C
Case Presentation

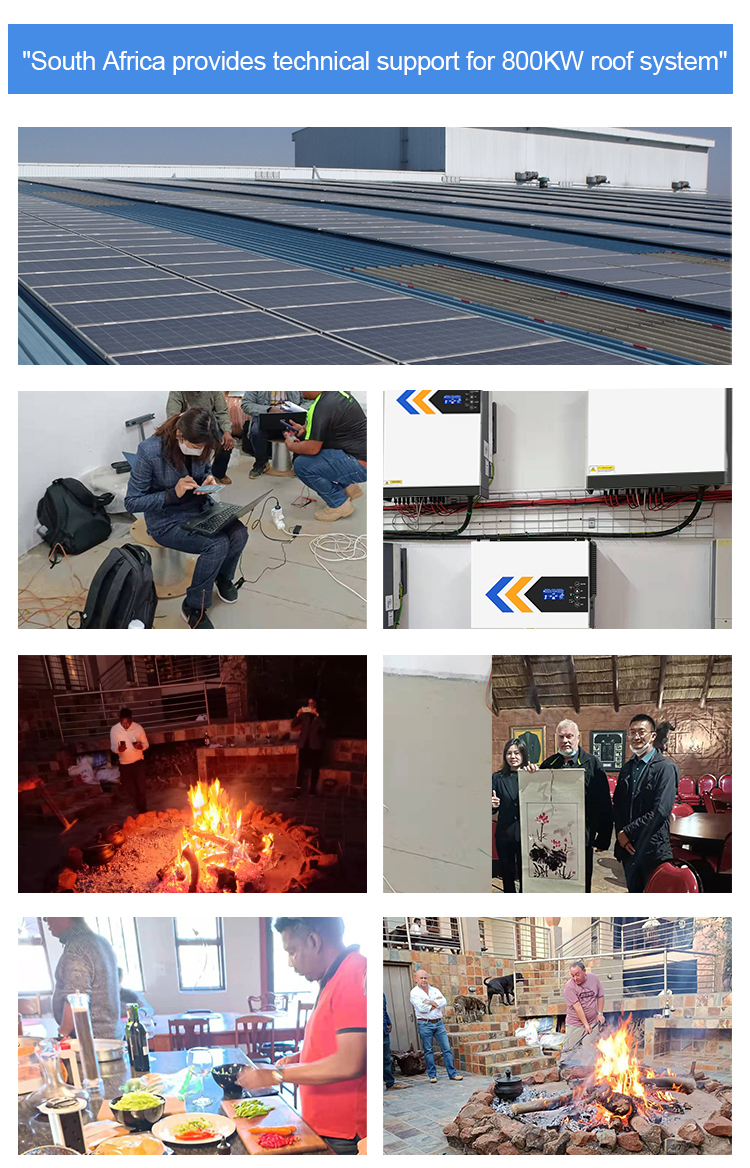

Installation Case 1

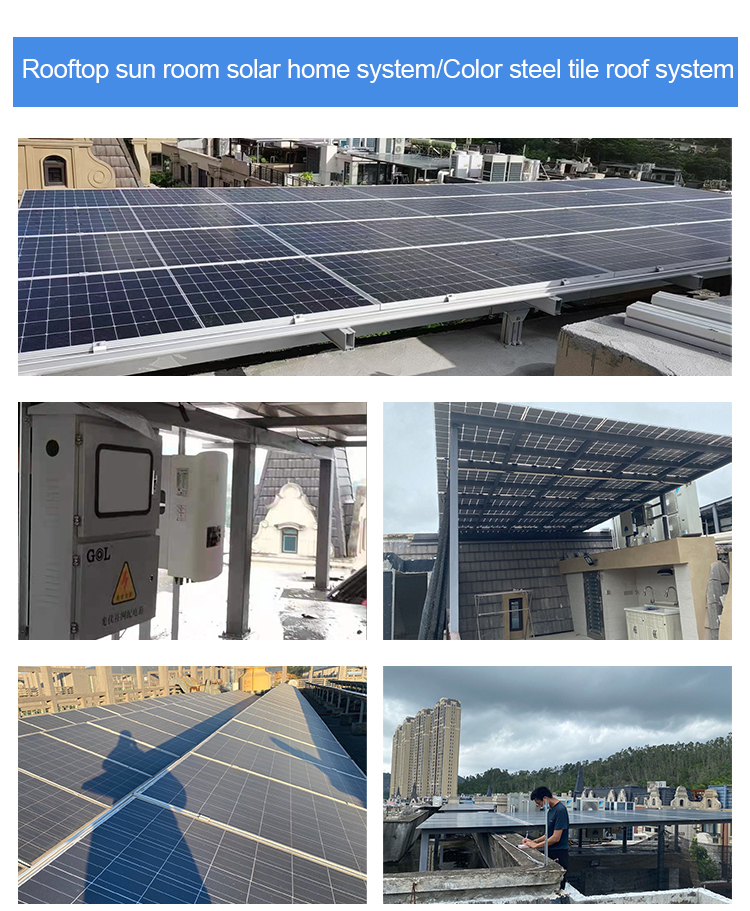

Installation Case 2

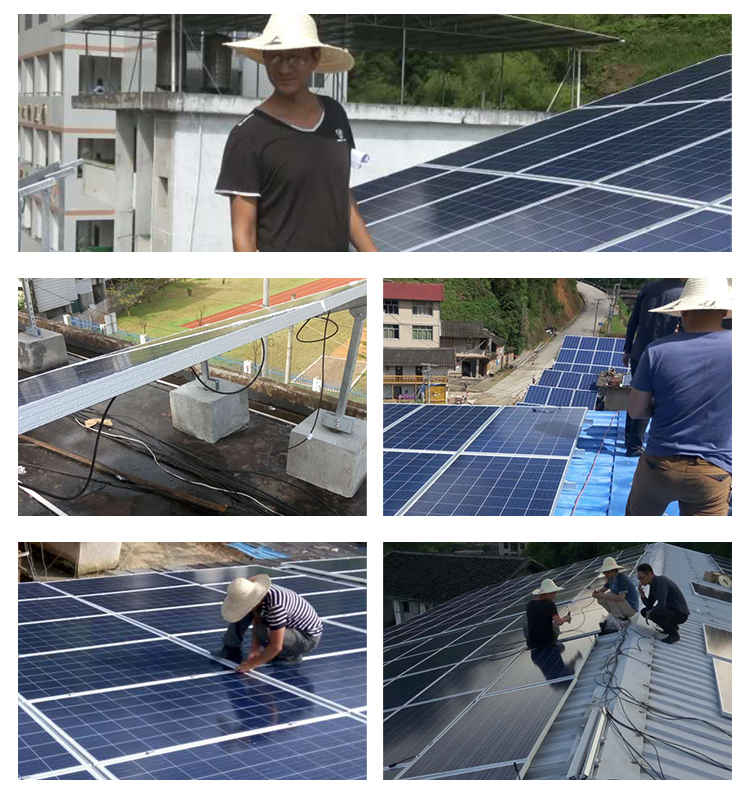

Installation Case 3
Production & Facility
Factory Overview
Testing Line
Packing & Delivery
Packing and Transport Details
Frequently Asked Questions
Can this battery system be installed outdoors?
The system features a robust metal casing and operates safely within typical temperature ranges (0°C to 50°C for charging). However, for optimal lifespan and efficiency, we recommend installing the unit in a sheltered, well-ventilated indoor area or a protected outdoor location away from direct sunlight and extreme moisture.
How long does the transition between off-grid and on-grid modes take?
The system features a seamless transition mechanism between off-grid and grid-connected modes, ensuring that critical appliances remain powered without interruption during grid outages.
What are the advantages of LFP batteries over other battery technologies?
Lithium Iron Phosphate (LFP) technology offers superior thermal stability, a longer cycle life, and high safety standards. Our LFP cells are enhanced with advanced nano-coating and self-healing technologies to act as an integrated firewall for maximum operating safety.
How do I monitor the performance of my system?
The system supports RS485, CAN, and WiFi connectivity. You can access the real-time online monitoring system to check battery capacity, input/output parameters, and receive intelligent warnings or system updates.
Is this system expansion-friendly?
Yes, the system is designed flexibly to fit different power demands. We offer capacities ranging from 10KWh to 30KWh combined with a 5KW inverter, catering to various home energy storage needs.
