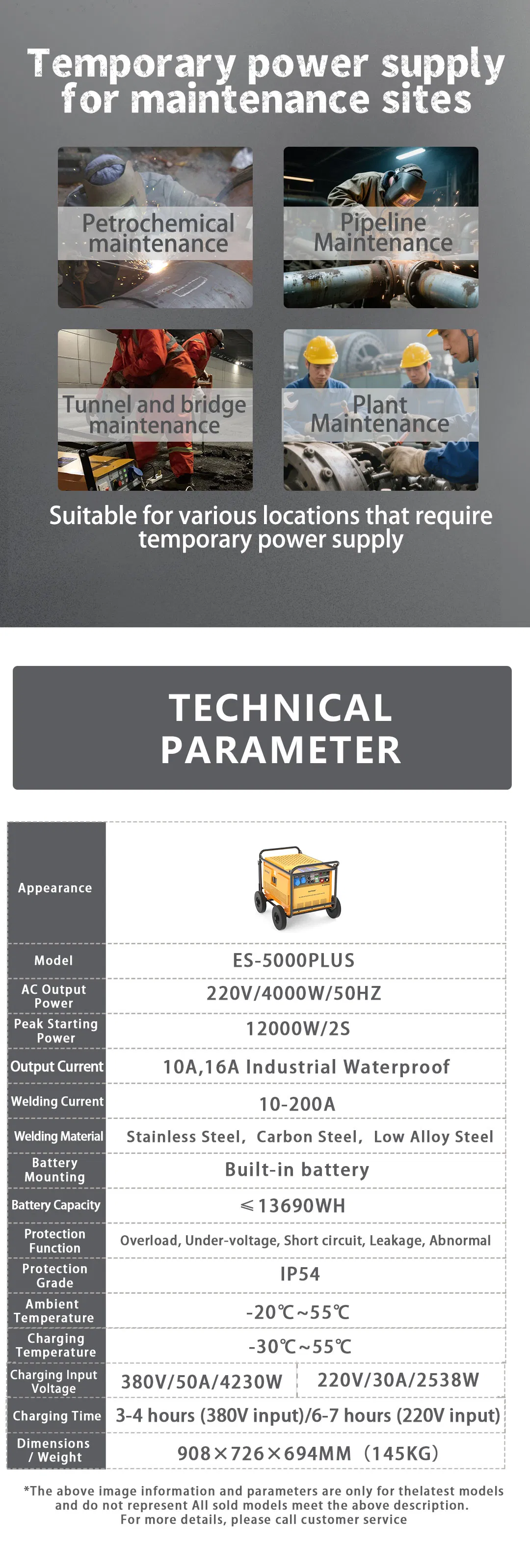

| Model NO. | ES-5000PLUS |
| Output Type | DC and AC |
| Output Voltage | 220V/50Hz |
| Rated Power | 4000W |
| Inductive Load | 12000W |

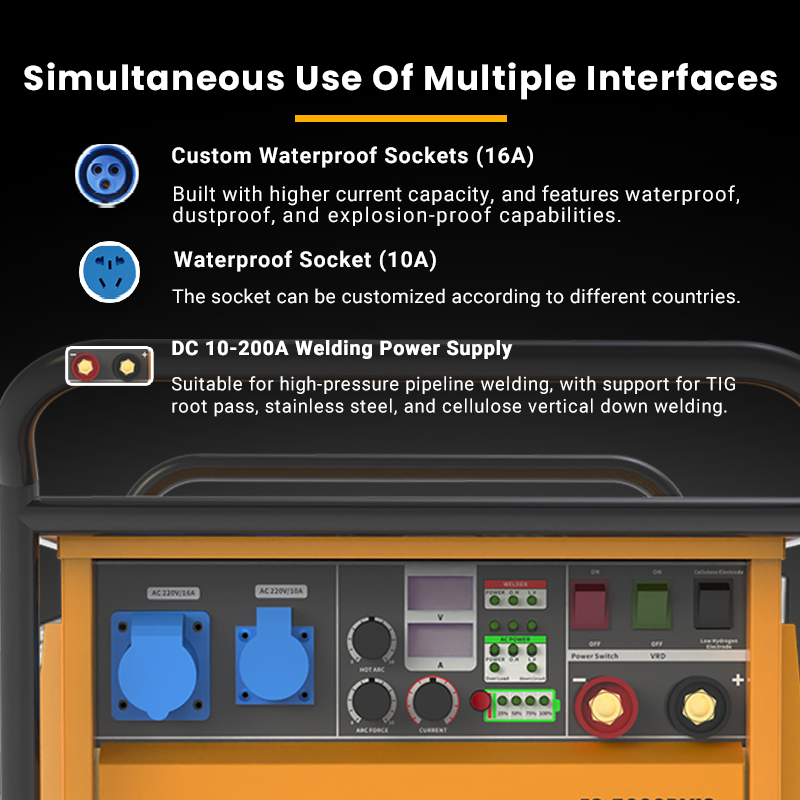

| Output Current | Waterproof 10A, 16A |
| Battery Type | Ncm |
| Protection Function | All-Round Protection Circuit, with Undervoltage Protection |
| Welding Function | MMA TIG |
| Weight | 145kg |
| Welding Current | 10-200A |
| Battery Capacity | 13.6kwh |
| Electrode Diameter | 2.5-5.0mm |
| Fast Charger | 72V50A |
| Battery Life | 8-10years |
| Transport Package | Wooden Box |
| Specification | 910x760x730MM |
| HS Code | 85044020 |
| Production Capacity | 100000PCS |
| Package Size | 910.00cm * 760.00cm * 735.00cm |
| Package Gross Weight | 160.000kg |

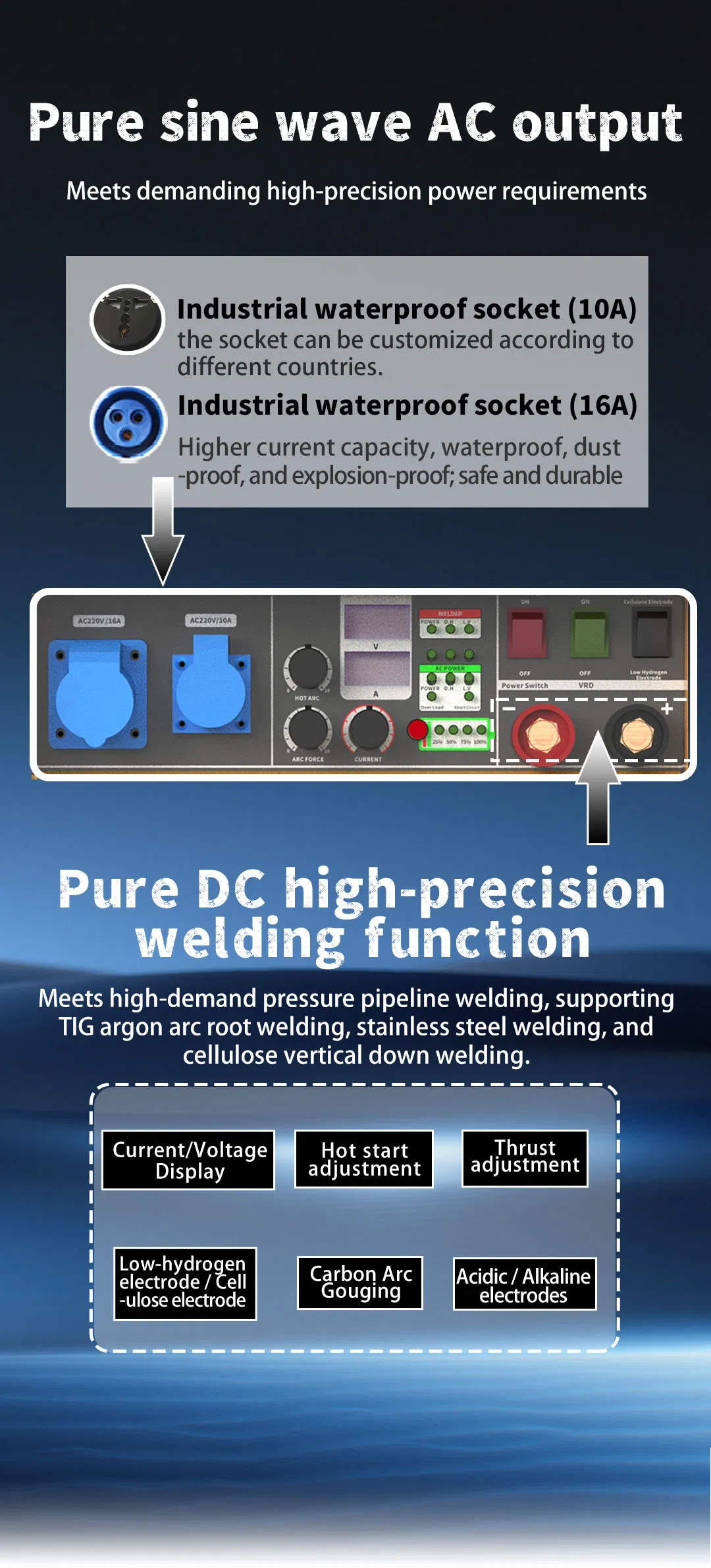

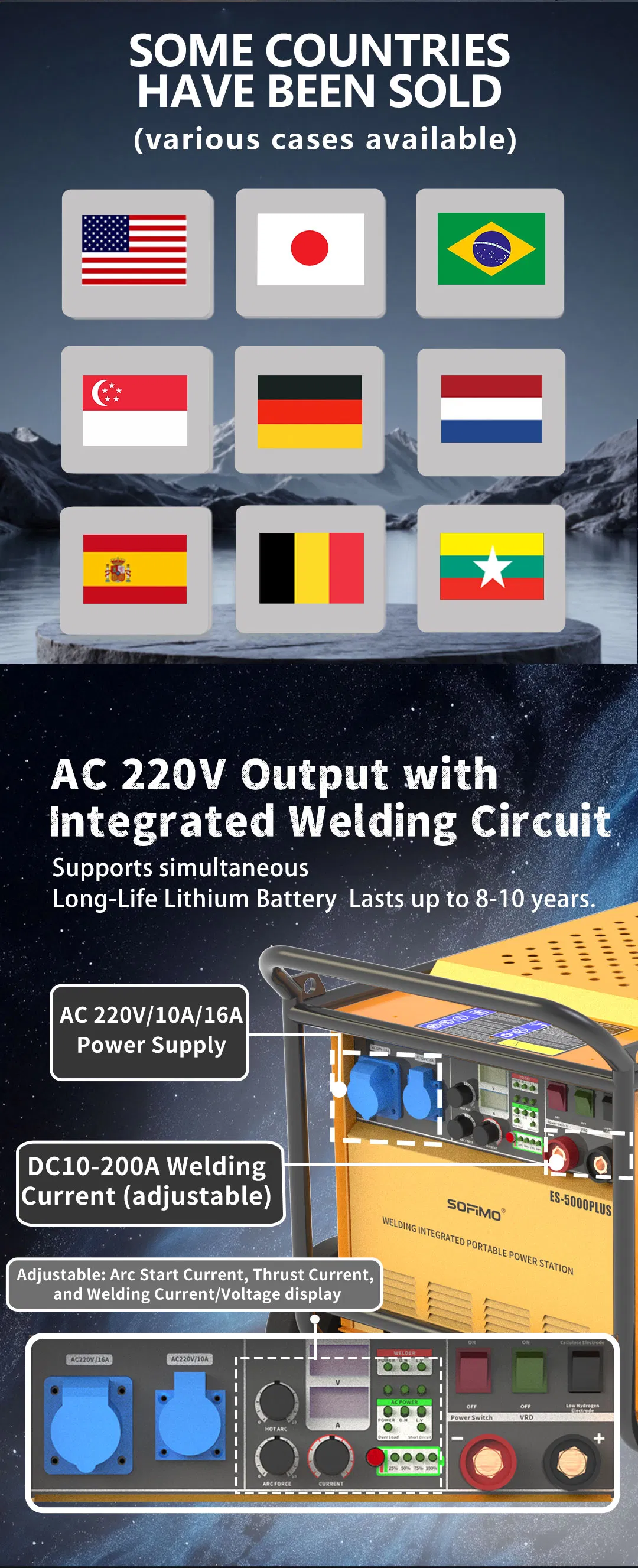

5000W AC output (selectable 220V, 50/60Hz) with strong peak starting capacity for grinders, pumps, and power tools used in construction, pipeline, and municipal maintenance. Features a built-in DC welding circuit with 10-200A current.
The large built-in battery pack delivers exceptionally long runtime for multi-shift tasks, easily powering lighting rigs and heavy site equipment while completely reducing reliance on noisy, emission-heavy diesel generators.

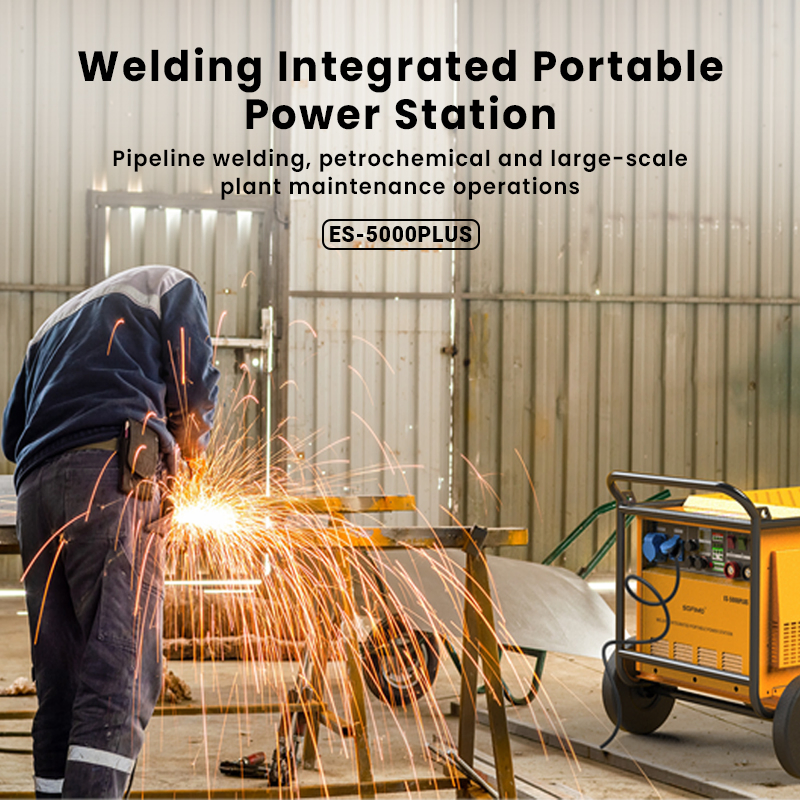

Supports robust welding current ranges (DC MMA/TIG compatible) and accepts common electrode sizes. It is the ideal portable power station for on-site fabrication, pipe welding, and emergency field repair work.
Features a rapid recharge time (typically 3–4 hours depending on model and environmental conditions), an IP54 all-weather design, and comprehensive protection circuits (against overload, undervoltage, short circuit, leakage, and over-temperature) to protect your tools and crews.

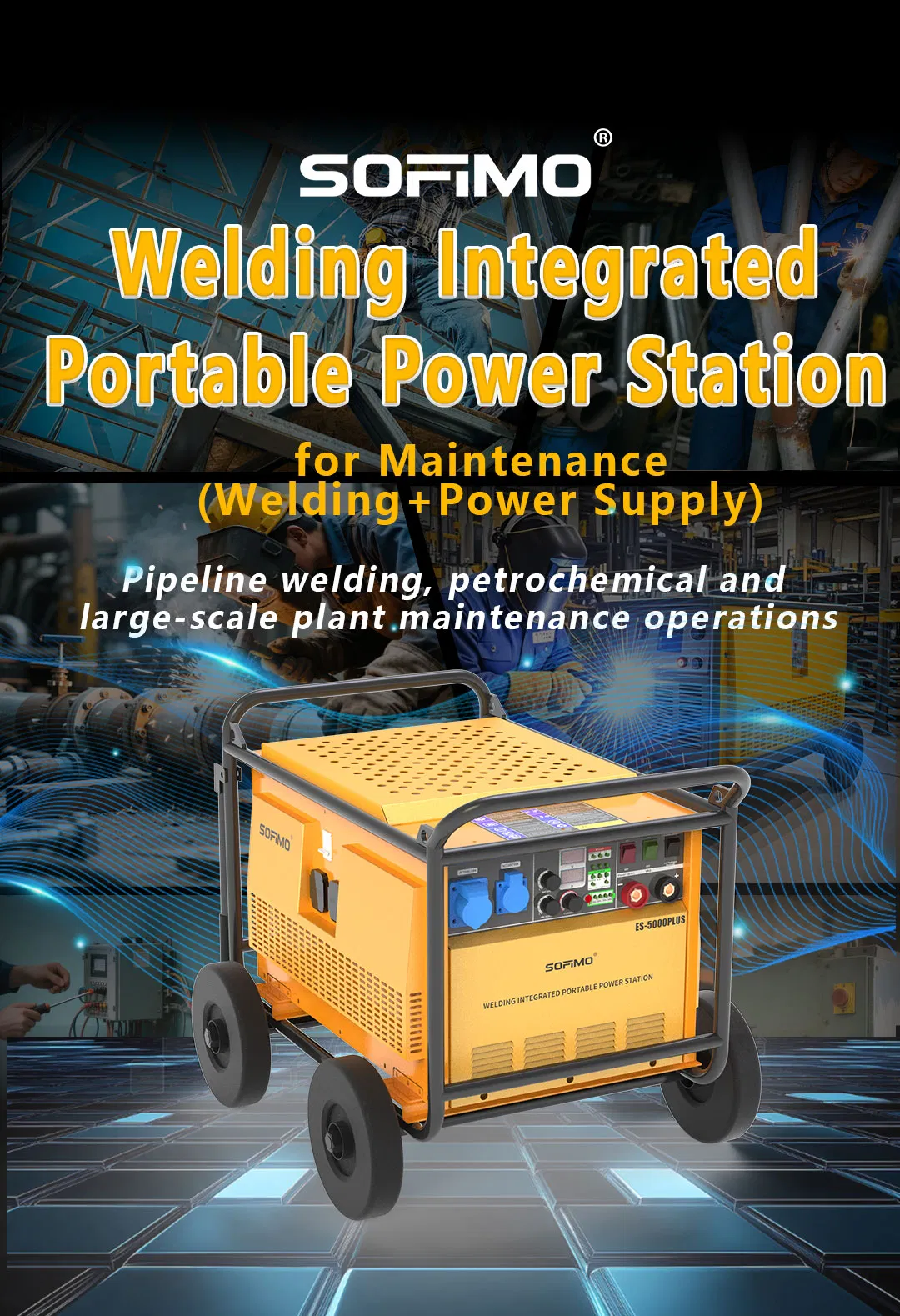

Designed with a wheeled chassis for convenient mobility. Quiet electric operation and scalable deployment significantly lower fuel, noise, and maintenance costs for rental fleets, tunnel/road crews, mining support, and emergency responders.
Industrial-Grade welding power and AC power with Low Operational Cost: Delivers generator-class welding and motor starting without fuel logistics. The integrated 13.7 kWh battery gives extended runtime and stable discharge. Fast charging and robust protections reduce downtime and safeguard sensitive equipment. Its wheeled, low-noise design boosts crew safety and site productivity—lowering the total cost of ownership for contractors, rental operators, and emergency teams.
Q: What is the battery capacity and estimated runtime for the ES-5000PLUS?

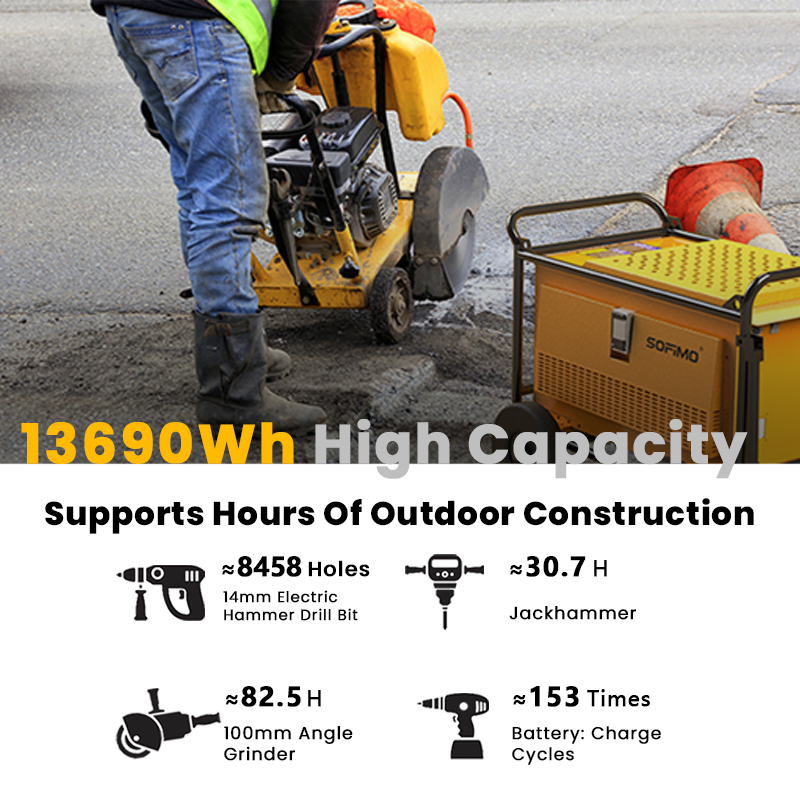

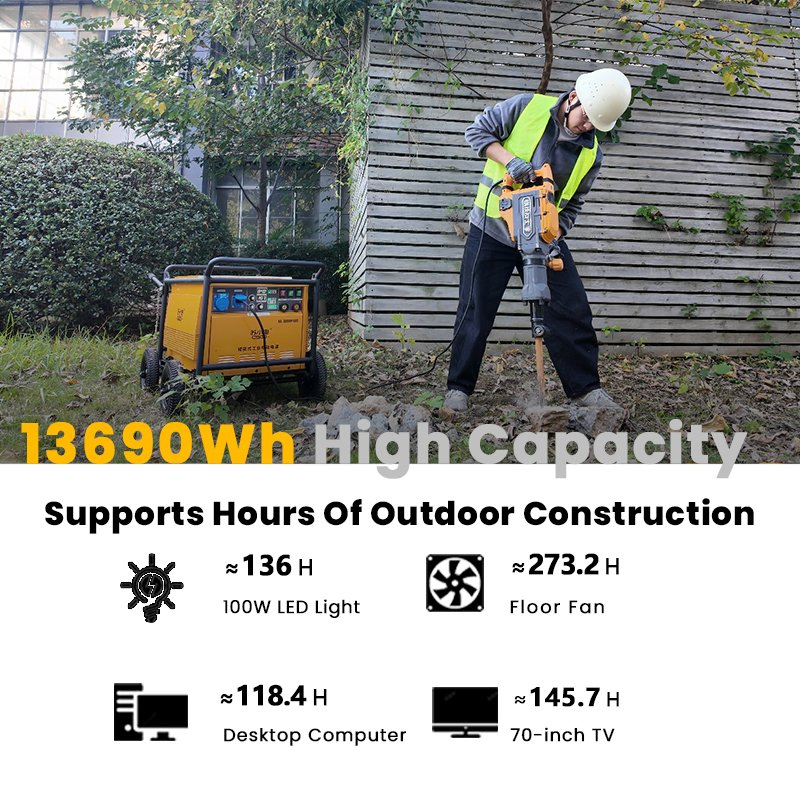

A: The unit features a high-capacity 13.6kWh (13,690Wh) NCM battery pack. It is designed to sustain extended runtime for heavy-duty industrial tasks and multi-shift operations, easily powering heavy site equipment, grinders, and lighting rigs.
Q: Can this machine handle heavy-duty welding? What types are supported?

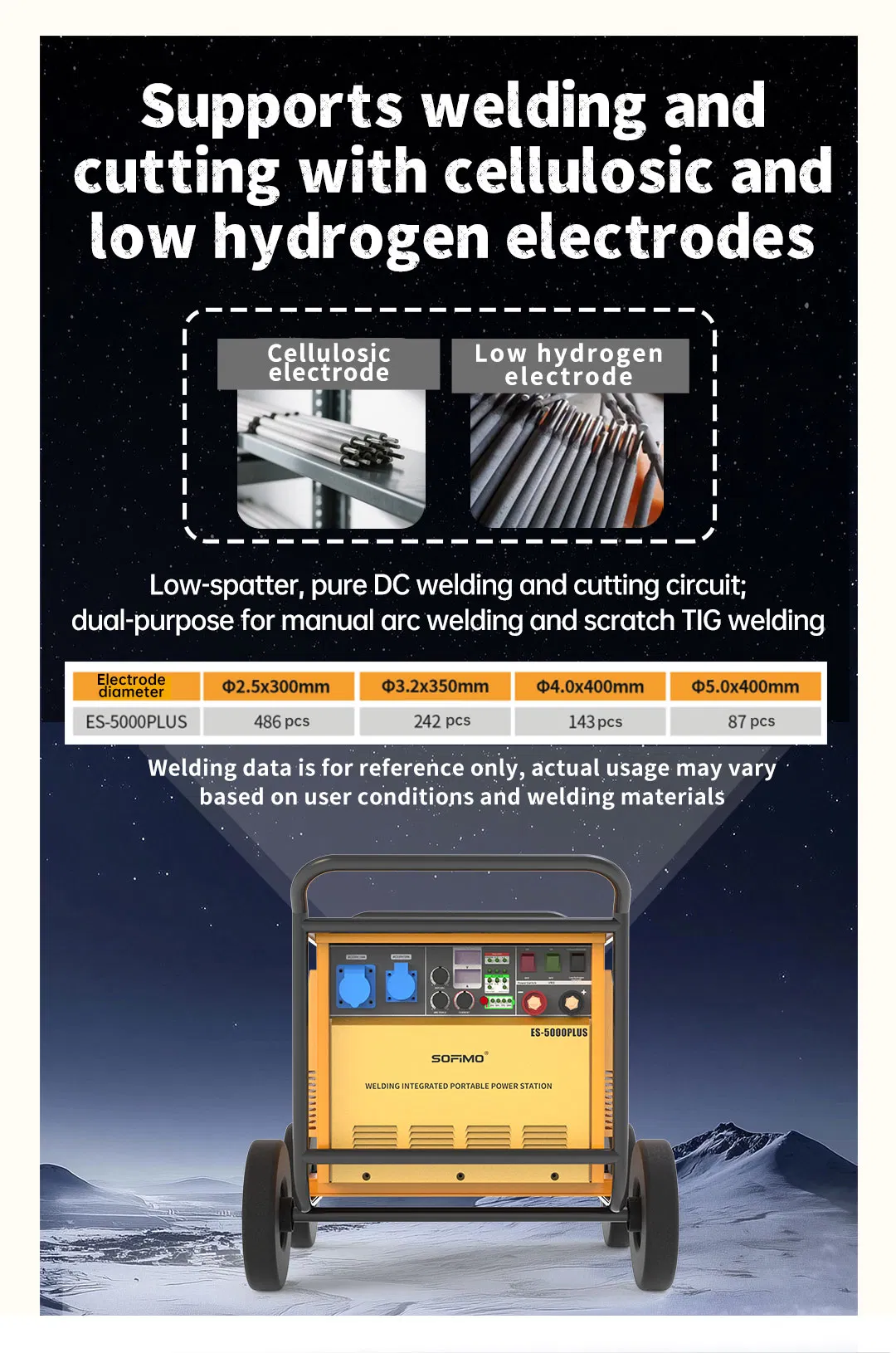

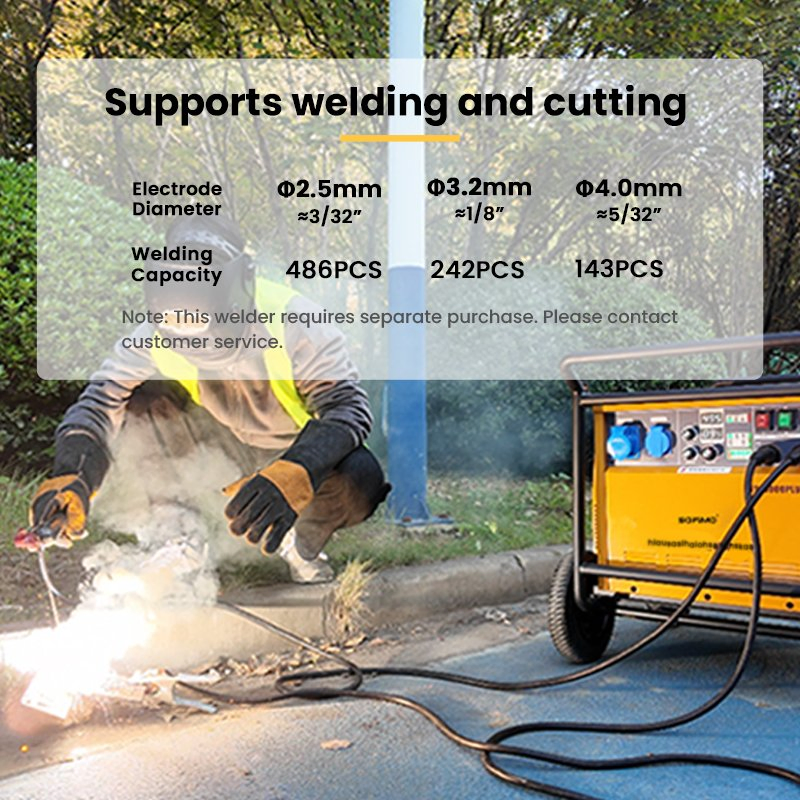

A: Yes, it is fully equipped with a built-in DC welding circuit supporting current ranges of 10-200A. It is compatible with MMA and TIG welding processes and handles standard electrode diameters ranging from 2.5mm to 5.0mm.
Q: What is the power output capability for running external tools?
A: It features a rated power of 4000W with a peak starting capacity of up to 12000W for inductive loads. This strong output is ideal for starting and running high-startup-power tools like pumps, heavy grinders, and site saws.
Q: How long does it take to fully charge the power station?

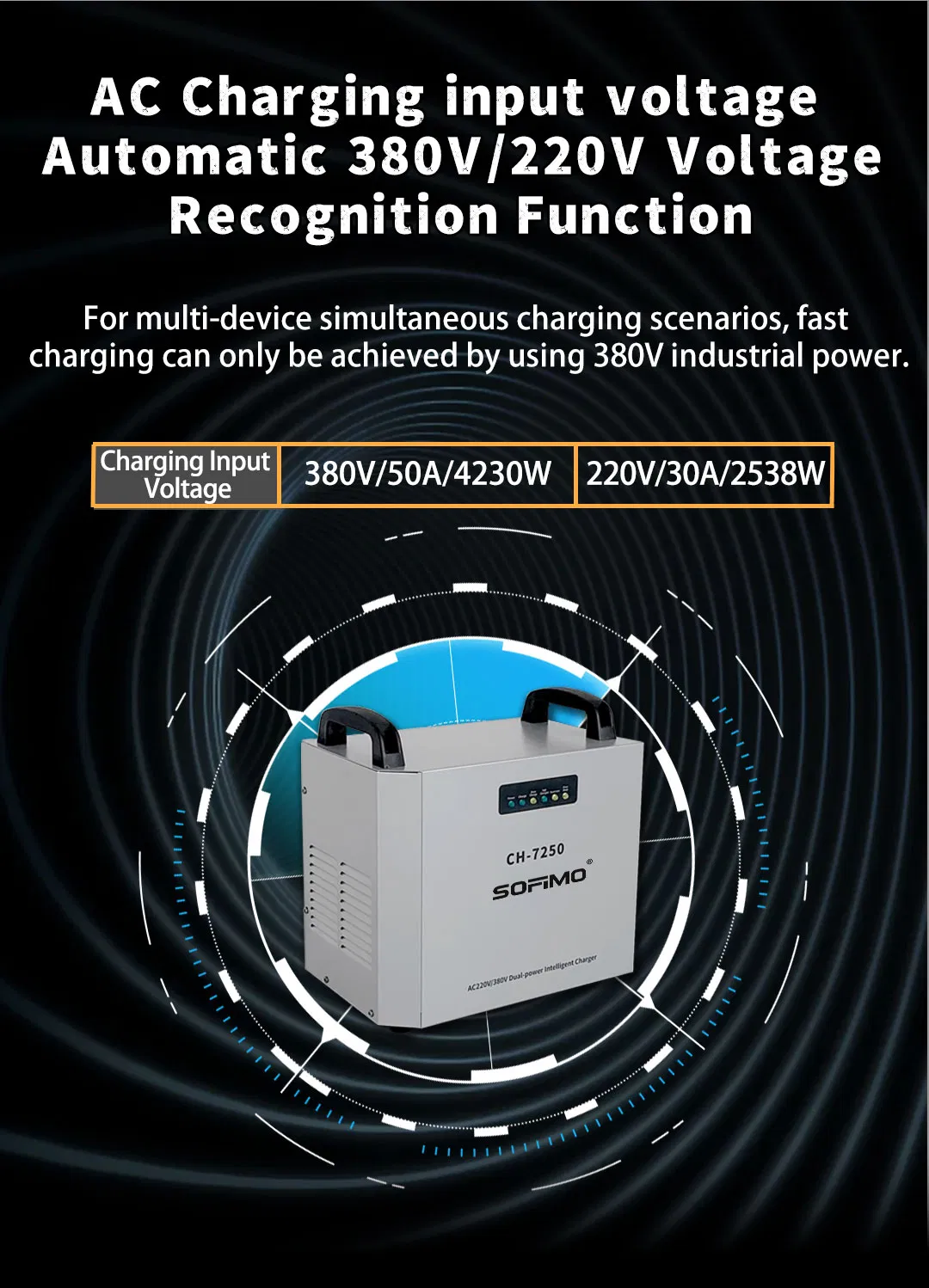

A: Thanks to the heavy-duty 72V 50A fast charger, the power station has a rapid typical recharge cycle of 3 to 4 hours, depending on current model parameters and jobsite thermal conditions.
Q: What built-in safety protection systems are included?
A: The unit is equipped with a comprehensive all-round protection circuit including safeguards for undervoltage, overload, short circuit, current leakage, and over-temperature to ensure total crew safety on high-risk job sites.
Q: How mobile is this generator and how is it packaged for transport?
A: Despite its solid weight of 145kg, it is mounted on a rugged wheeled chassis for easy maneuvering on jobsites. It is shipped securely in a robust wooden box (package weight approx. 160kg) for transit protection.
