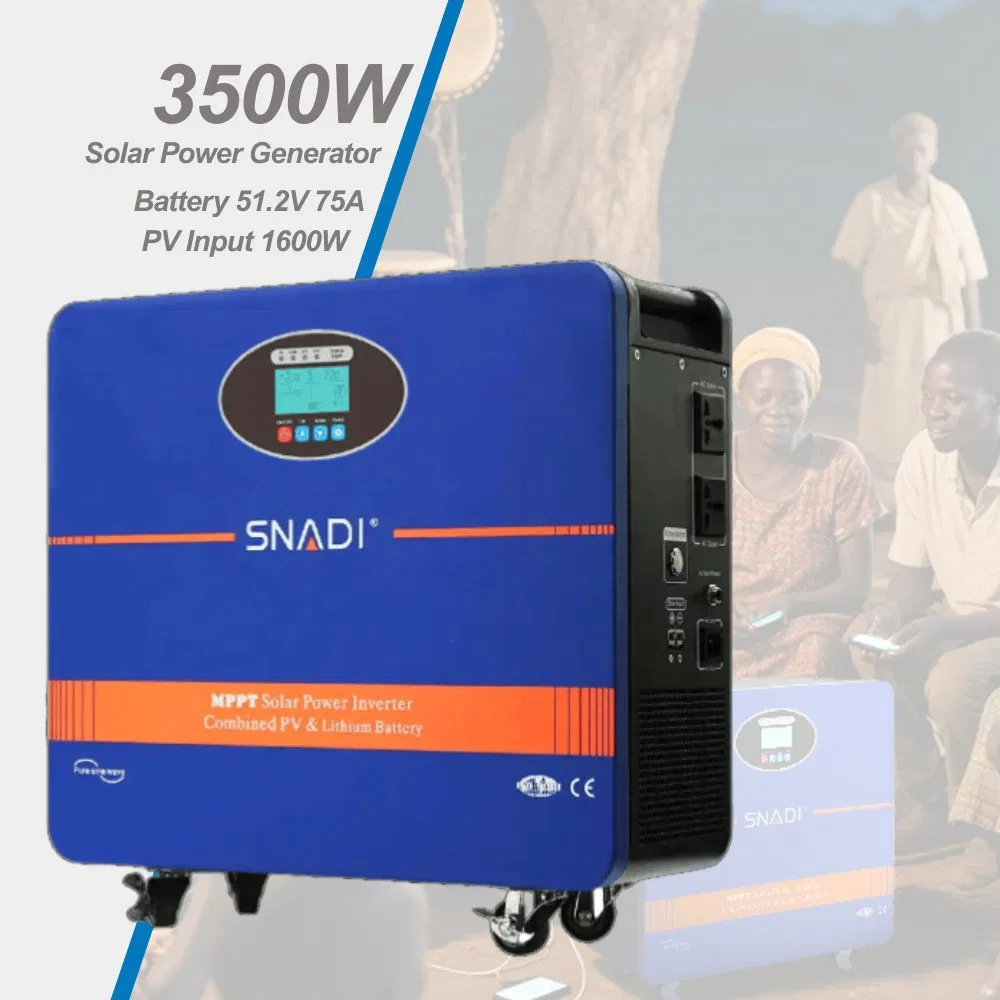

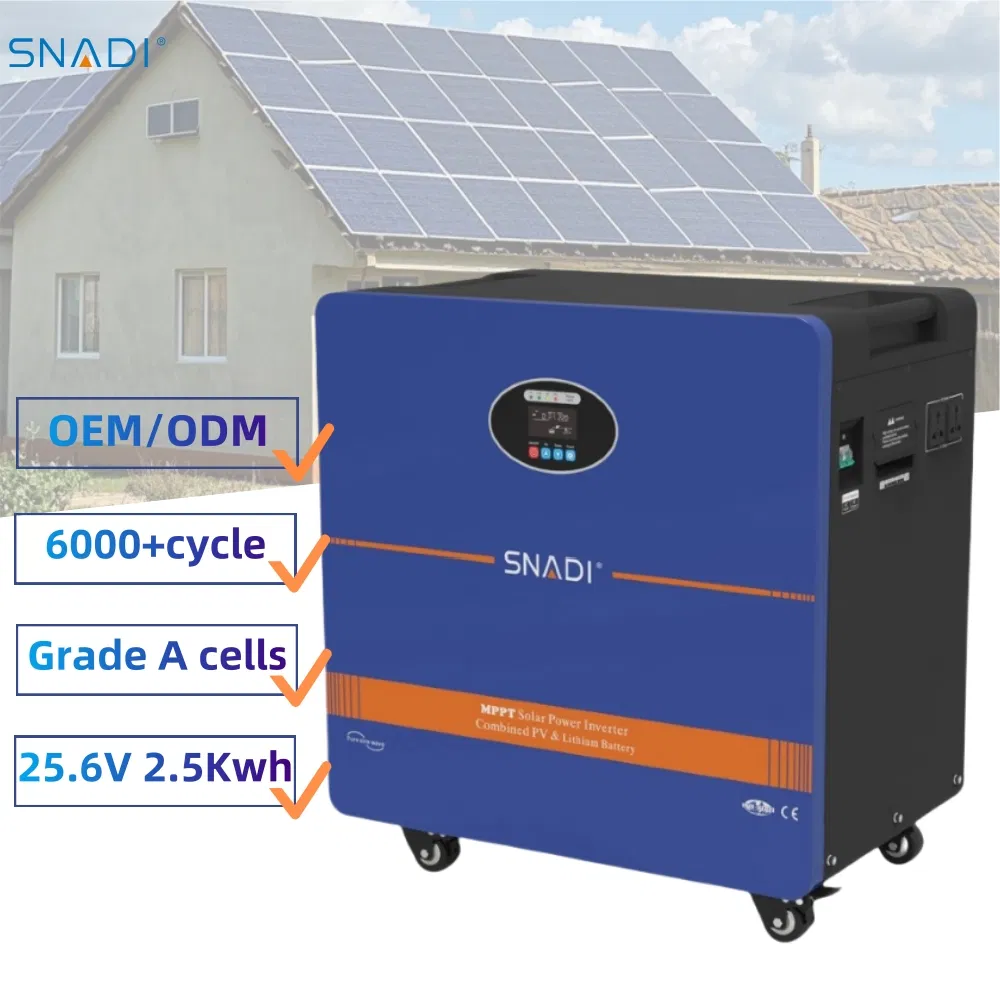

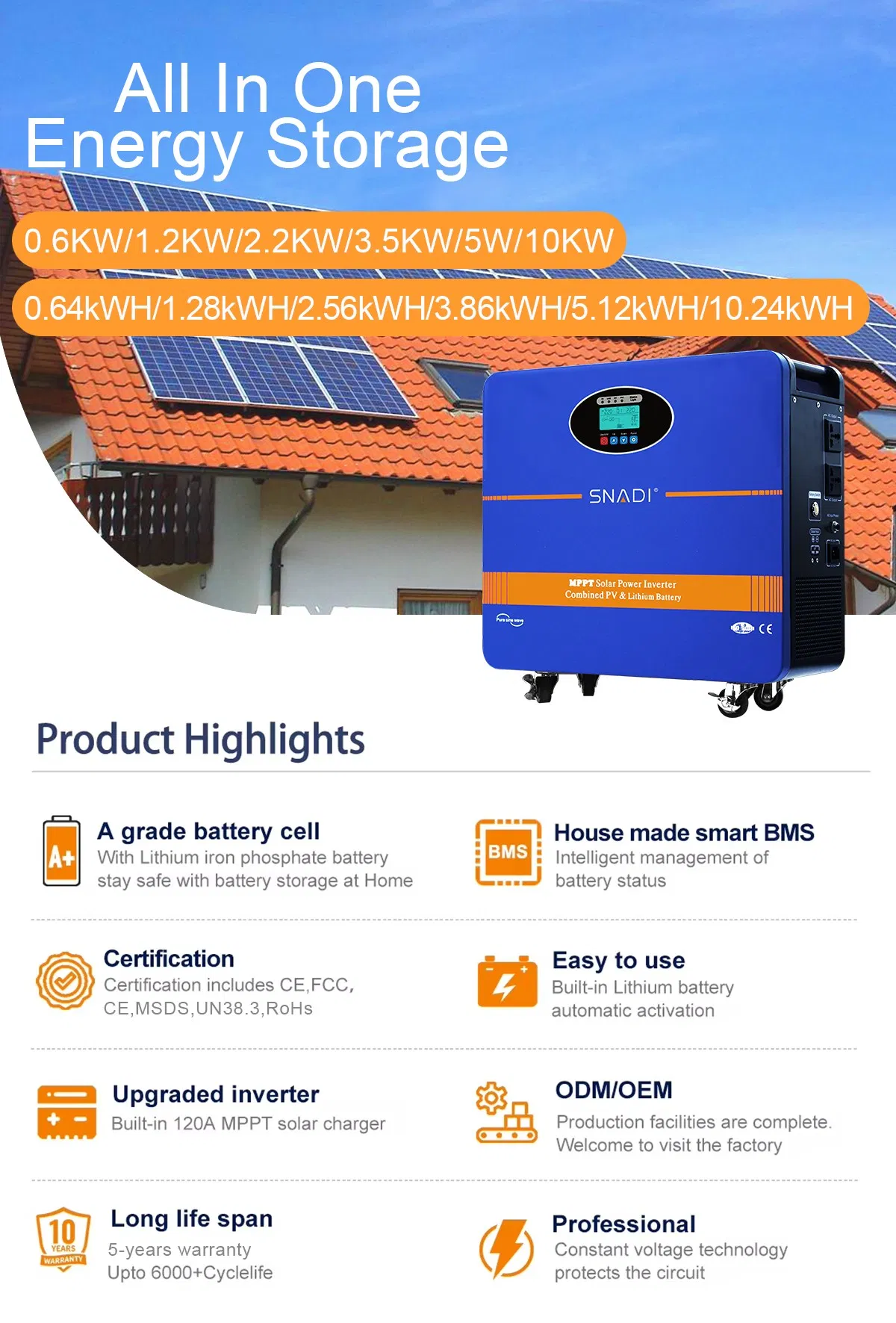

600W 3kw 5kw All-in-One Solar System Home Energy Storage Portable Solar Generator

Basic Info

Model NO.

ALS

Nominal Capacity

0.5kwh

Battery Voltage

51.2V

In-Built Battery Spec

100ah/51.2V

Inverter

Pure Sine Wave

Controller

MPPT Controller

Rated Power

600W-10kw

Output Voltage

110/120/220/230/240 VAC

Input Voltage Range

85~138/170~275VAC

Output Frequency

50/60Hz

PV Input Range Voltage

65-150V

MPPT Efficiency

97%

MPPT Max Power

3400wp

MPPT Rated Current

60A

Floating Charge Voltage

56.8V

Heat Dissipation

Intelligent Exhaust Fan

Certifications

CE RoHS TUV IEC

Transport Package

Packed in Wooden Cases

Specification

5000W

Production Capacity

50000/Month

Packaging & Delivery

Package Size

70.00cm * 60.00cm * 90.00cm

Package Gross Weight

150.000kg

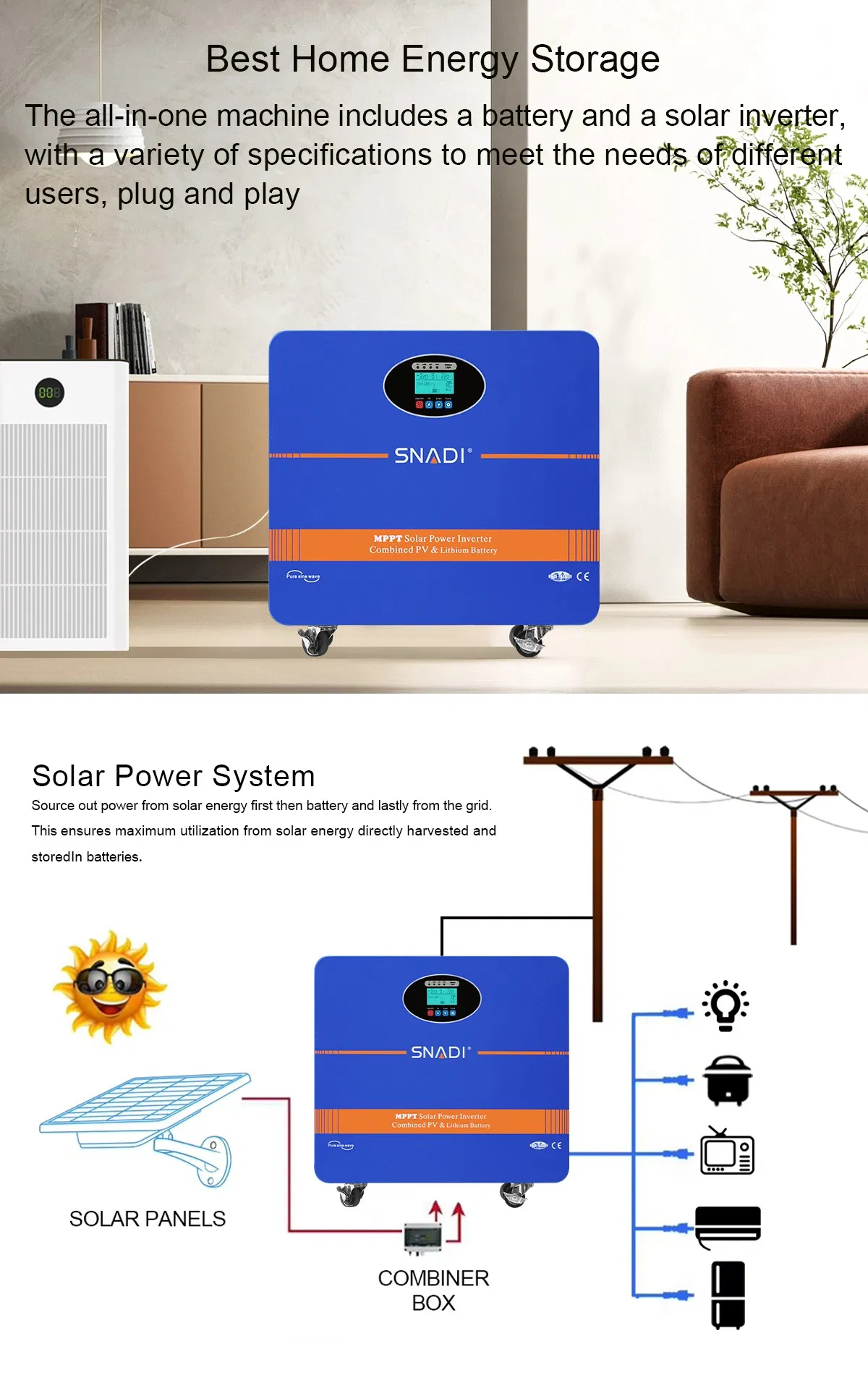

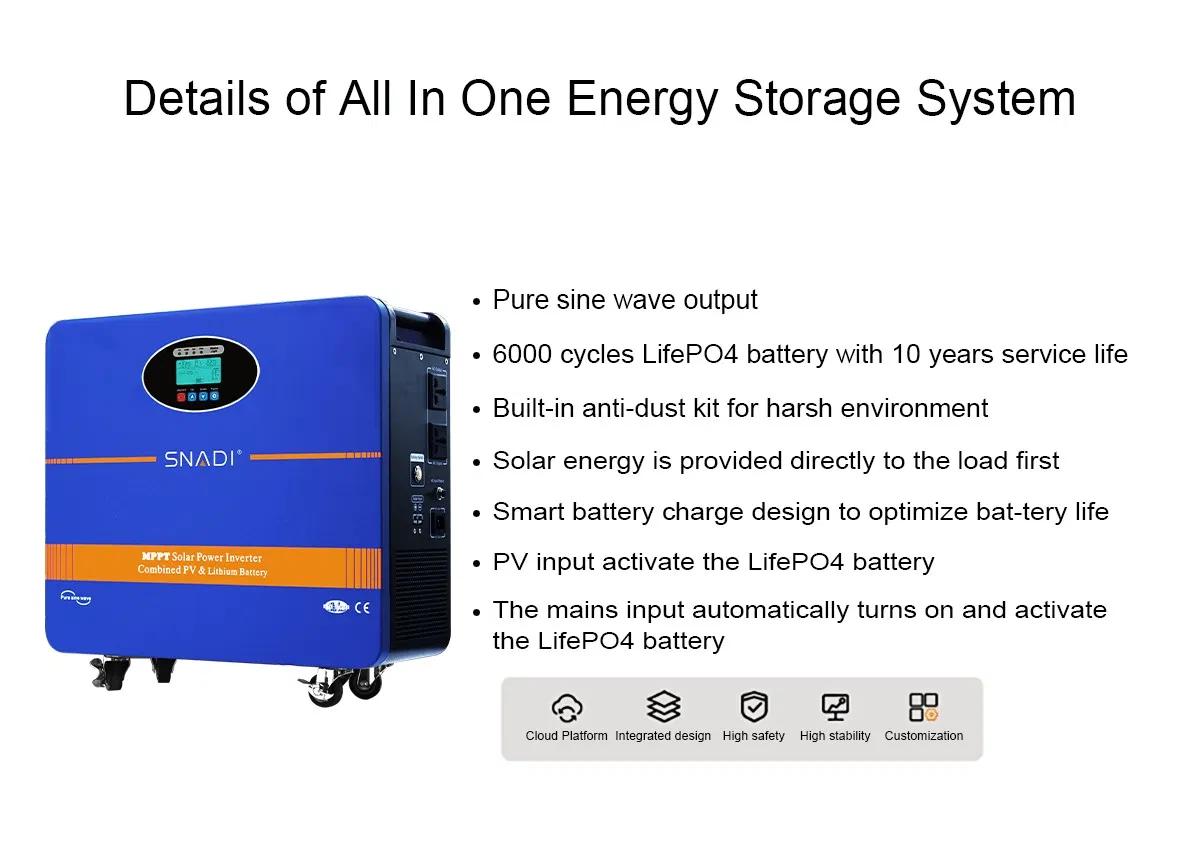

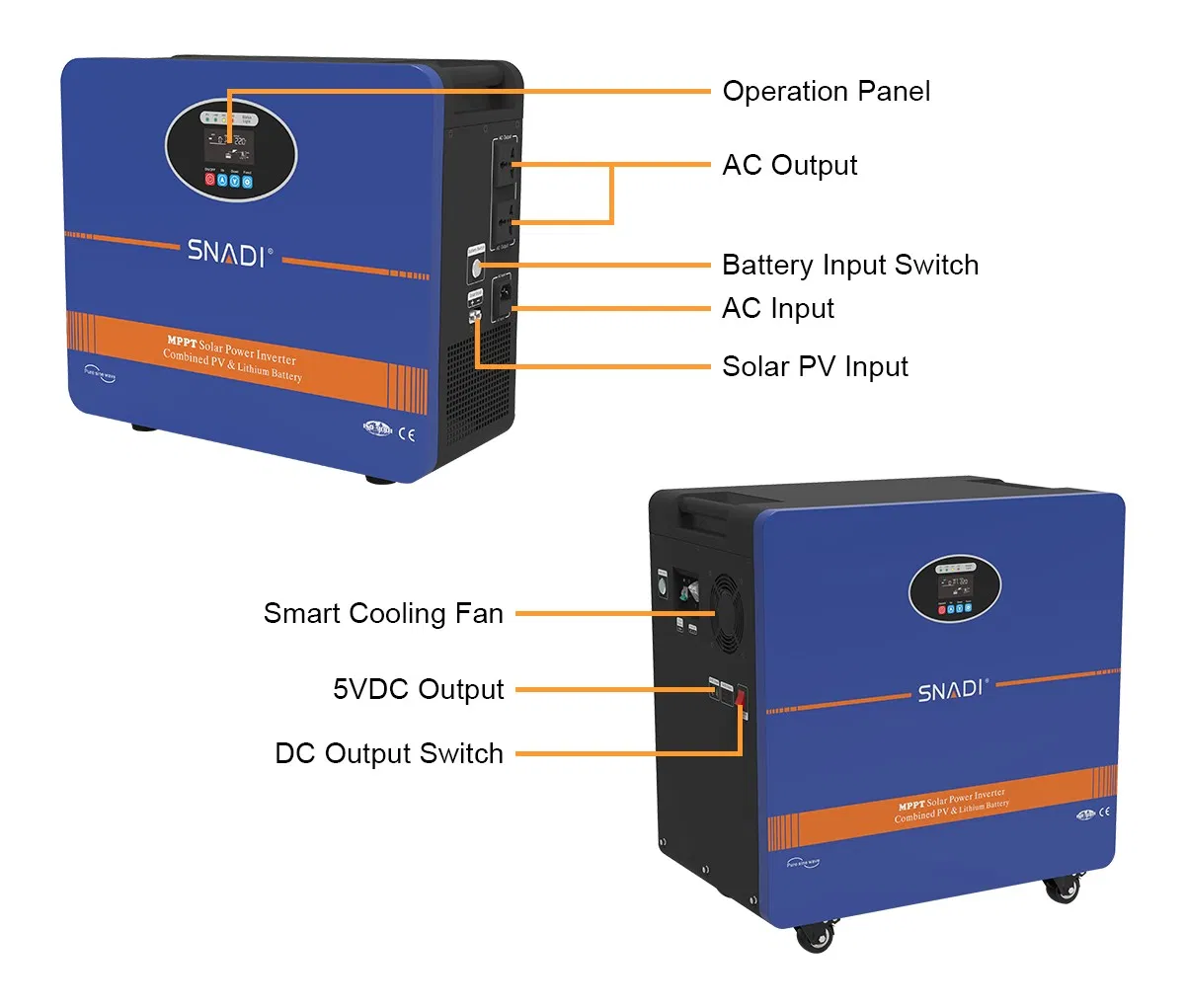

Product Description

Technical Specifications

Solar Power Generator		0.6Kwh	1.2Kwh	2.2Kwh	3.5Kwh	5Kwh
Inverter	Battery Voltage	12.8V	25.6V
	In-built Battery Specification	50AH/12.8V	50AH/25.6V	100AH/25.6V	75AH/51.2V	100AH/51.2V
	Rated Power	600W	1200W	2200W	3500W	5000W
	Output Voltage	110/220VAC
	Output Frequency	50/60Hz
	Output Waveform	Pure Sine Wave
	Input Voltage Range	72-138/145-275VAC		85-138/170-275VAC
	Input Frequency	45-65Hz
MPPT Charge	Max PV Voltage	≤100V	≤100V		≤150V
	PV Input Range Voltage	18-100V	35-100V		60-150V
	Rated Charge Current	MPPT 30A				60A(MAX.)
	Maximum Power	420Wp	840Wp		1650Wp	3400Wp
	Voltage of Floating Charge	14.2V	28.4V		56.8V
	MPPT Efficiency	≥97%			≥99%
DC Output	High-voltage Protection	16V	32V		64V
	High Voltage Recovery	14.5V	29V		58V
	Low Voltage Recovery	13V	26V		52V
	Low Voltage Protection	11.2V	22.4V		44.8V
	5VDC USB Output Port	2 Units/MAX 2A

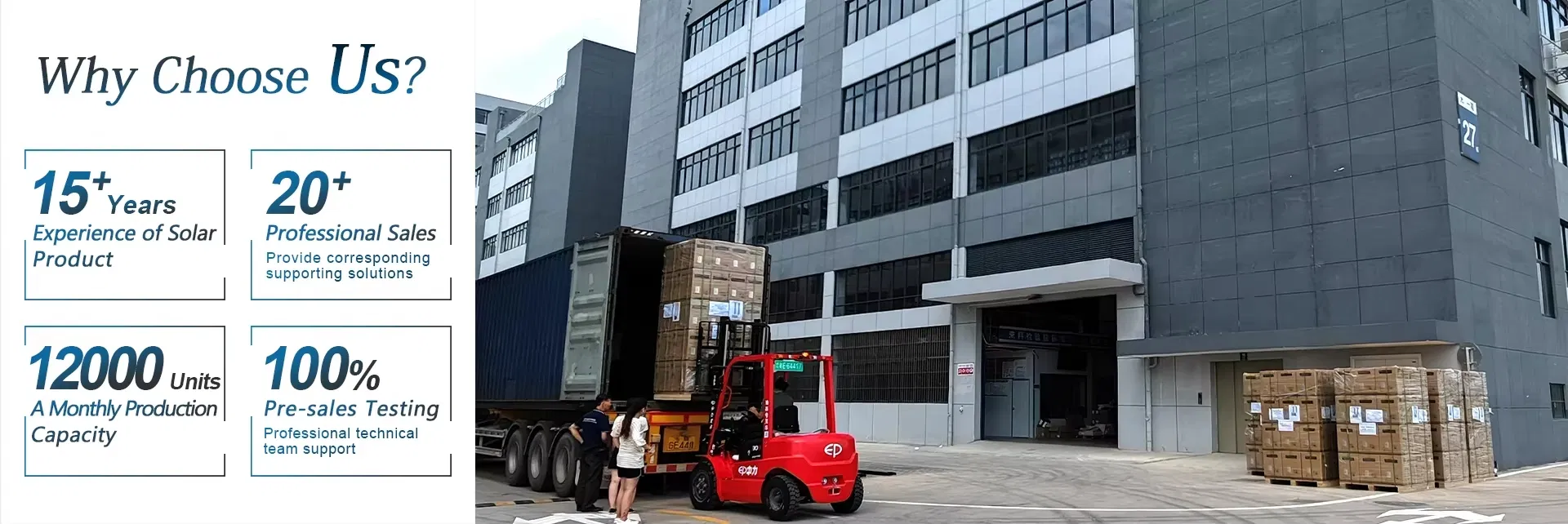

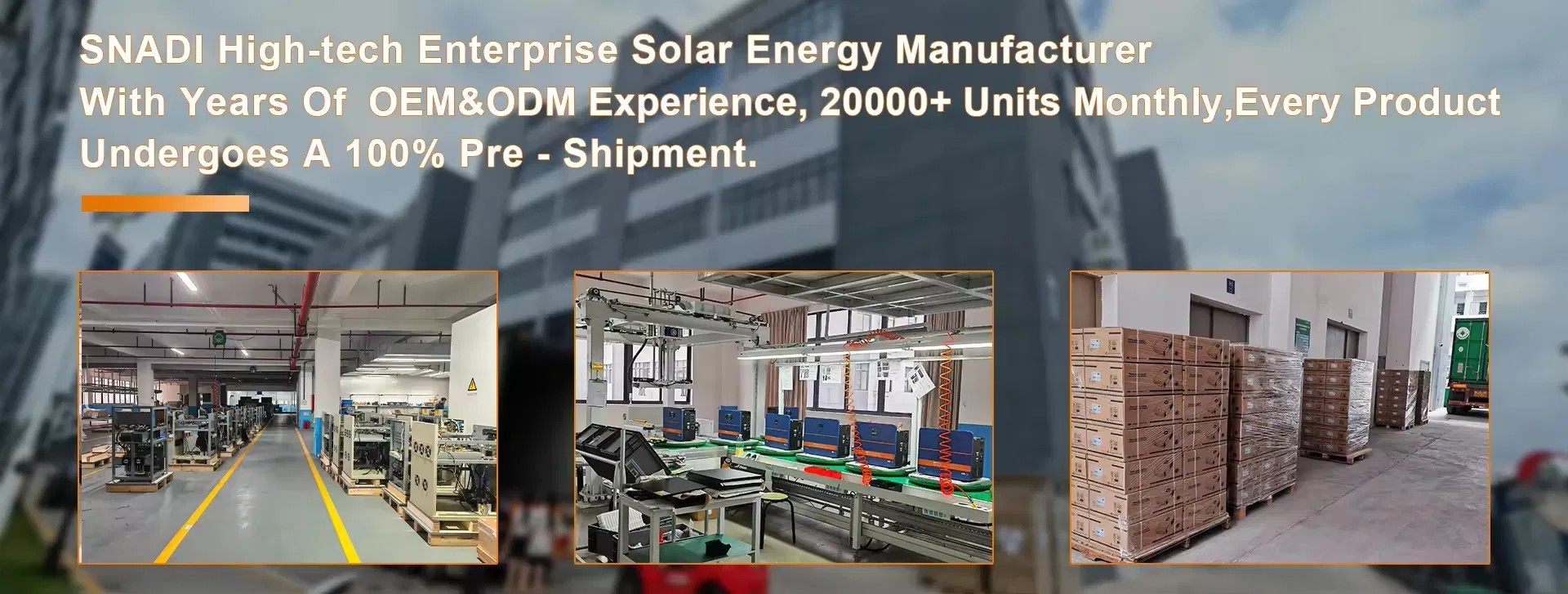

Factory Workshop & Production

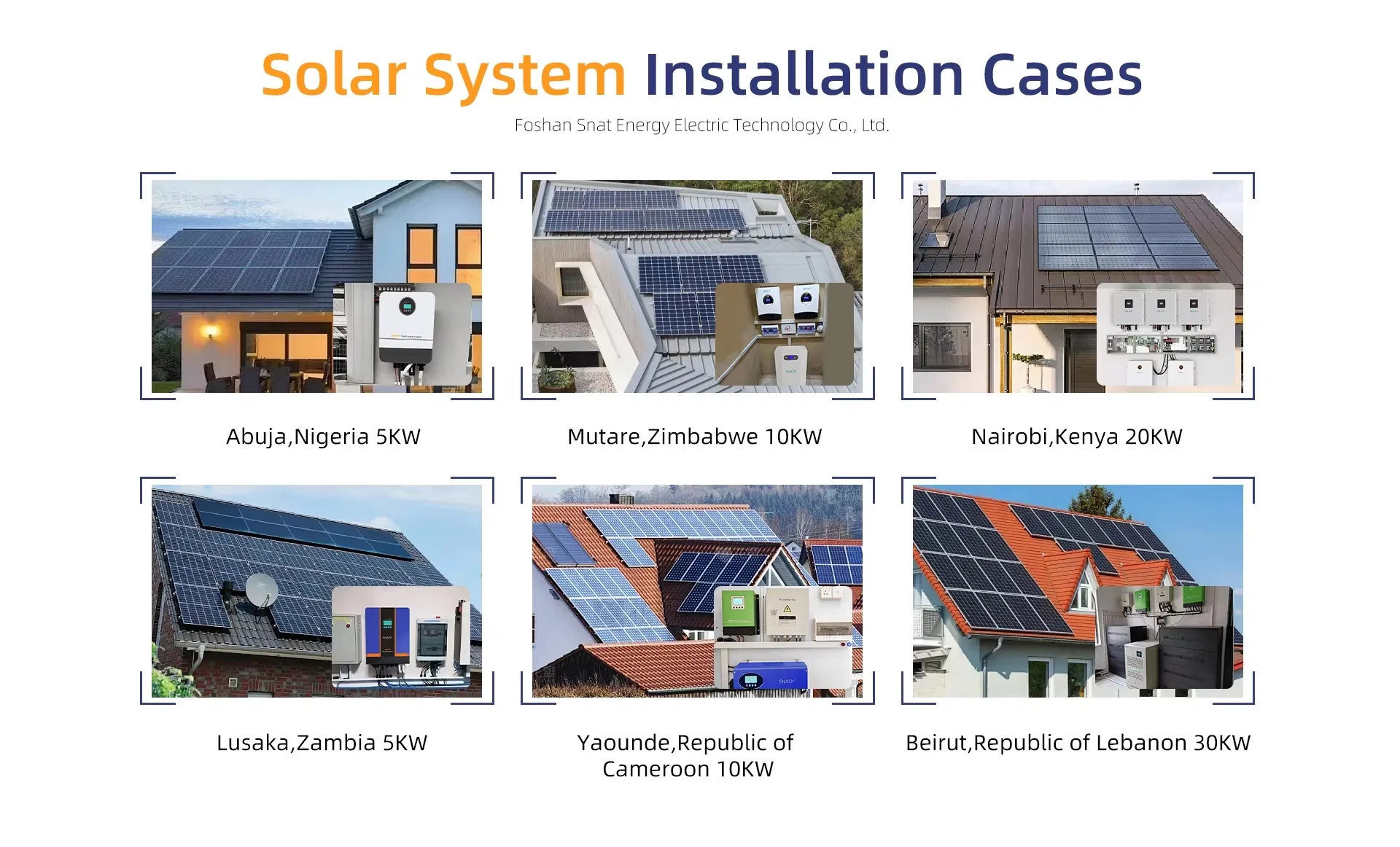

Client Feedback & Reviews

Frequently Asked Questions

What is your minimum order quantity?

One set.

Are you a trading company or manufacturer?

We are a manufacturer. We have our own factory.

What is your term of payment?

30% TT for deposit, balance before the shipping.

Can you accept trade insurance orders?

Yes, of course. We are happy to use trade insurance to confirm the order.

Can you supply the sample?

Yes, we can supply the sample order for testing.

When can you deliver the goods?

Sample order 3-5 days, mass order usually 15-25 days according to the quantity.
