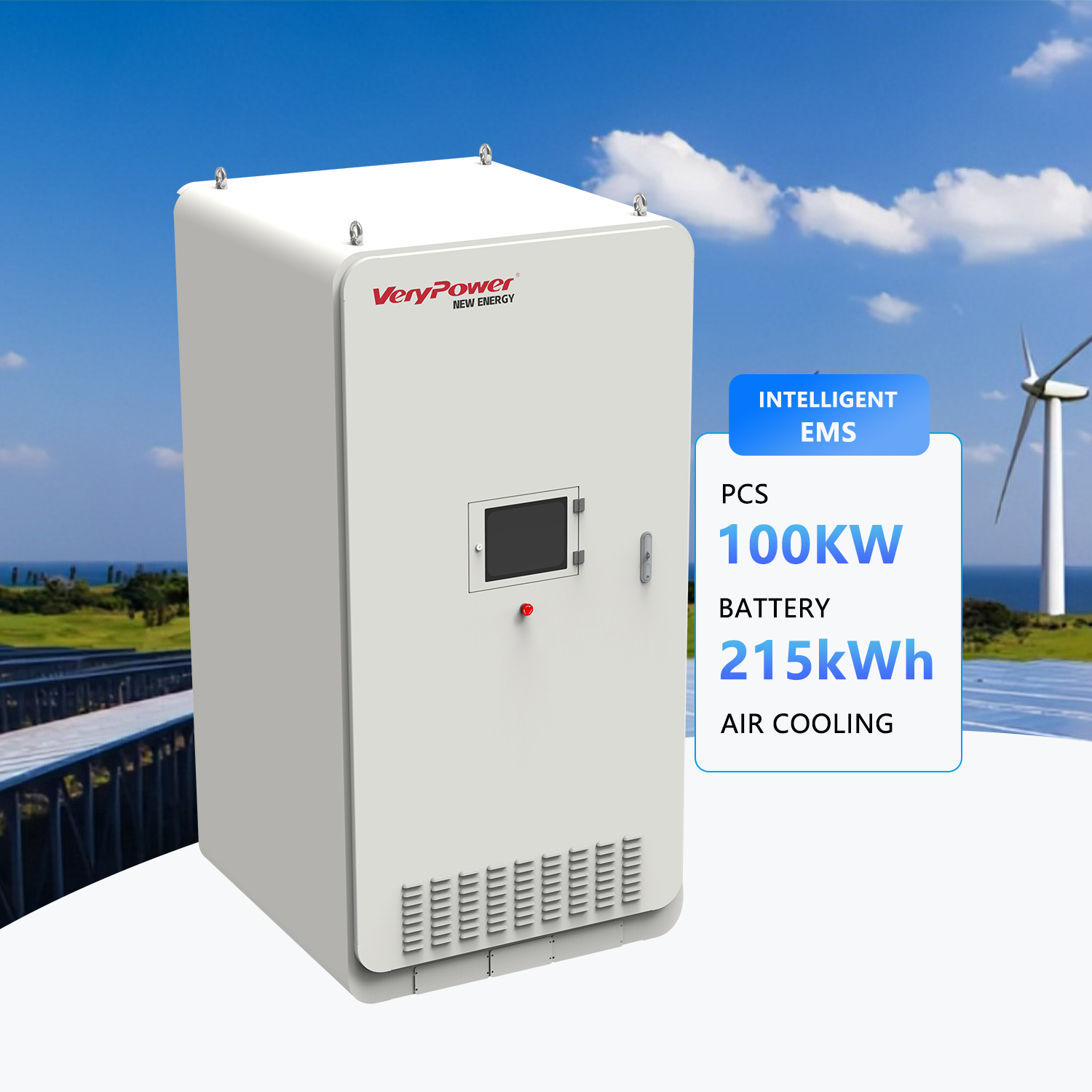

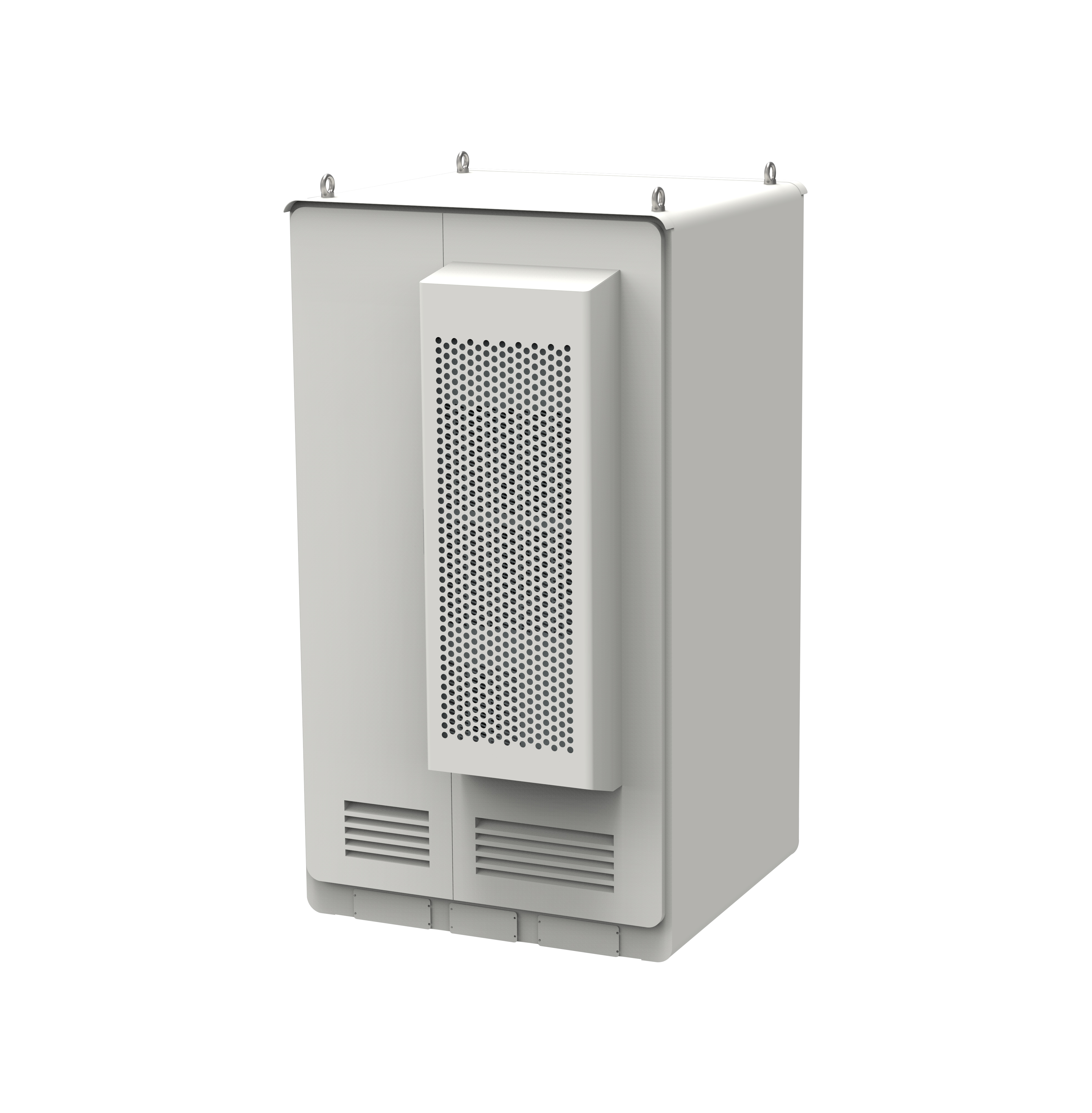

All in One Solar ESS PCS EMS 50kW 100kW 100kWh 200KWh Outdoor IP54 Class Commercial Solar Energy Battery Storage System
All in One Solar ESS PCS EMS 50kW 100kW 100kWh 200KWh Outdoor IP54 Class Commercial Solar Energy Battery Storage System
All in One Solar ESS PCS EMS 50kW 100kW 100kWh 200KWh Outdoor IP54 Class Commercial Solar Energy Battery Storage System
All in One Solar ESS PCS EMS 50kW 100kW 100kWh 200KWh Outdoor IP54 Class Commercial Solar Energy Battery Storage System
All in One Solar ESS PCS EMS 50kW 100kW 100kWh 200KWh Outdoor IP54 Class Commercial Solar Energy Battery Storage System
1 / 5
All in One Solar ESS PCS EMS 50kW 100kW 100kWh 200KWh Outdoor IP54 Class Commercial Solar Energy Battery Storage System
All in One Solar ESS PCS EMS 50kW 100kW 100kWh 200KWh Outdoor IP54 Class Commercial Solar Energy Battery Storage System
All in One Solar ESS PCS EMS 50kW 100kW 100kWh 200KWh Outdoor IP54 Class Commercial Solar Energy Battery Storage System
All in One Solar ESS PCS EMS 50kW 100kW 100kWh 200KWh Outdoor IP54 Class Commercial Solar Energy Battery Storage System
All in One Solar ESS PCS EMS 50kW 100kW 100kWh 200KWh Outdoor IP54 Class Commercial Solar Energy Battery Storage System

All in One Solar ESS PCS EMS 50kW 100kW 100kWh 200KWh Outdoor IP54 Class Commercial Solar Energy Battery Storage System

Send Inquiry

Product Description

Product Details

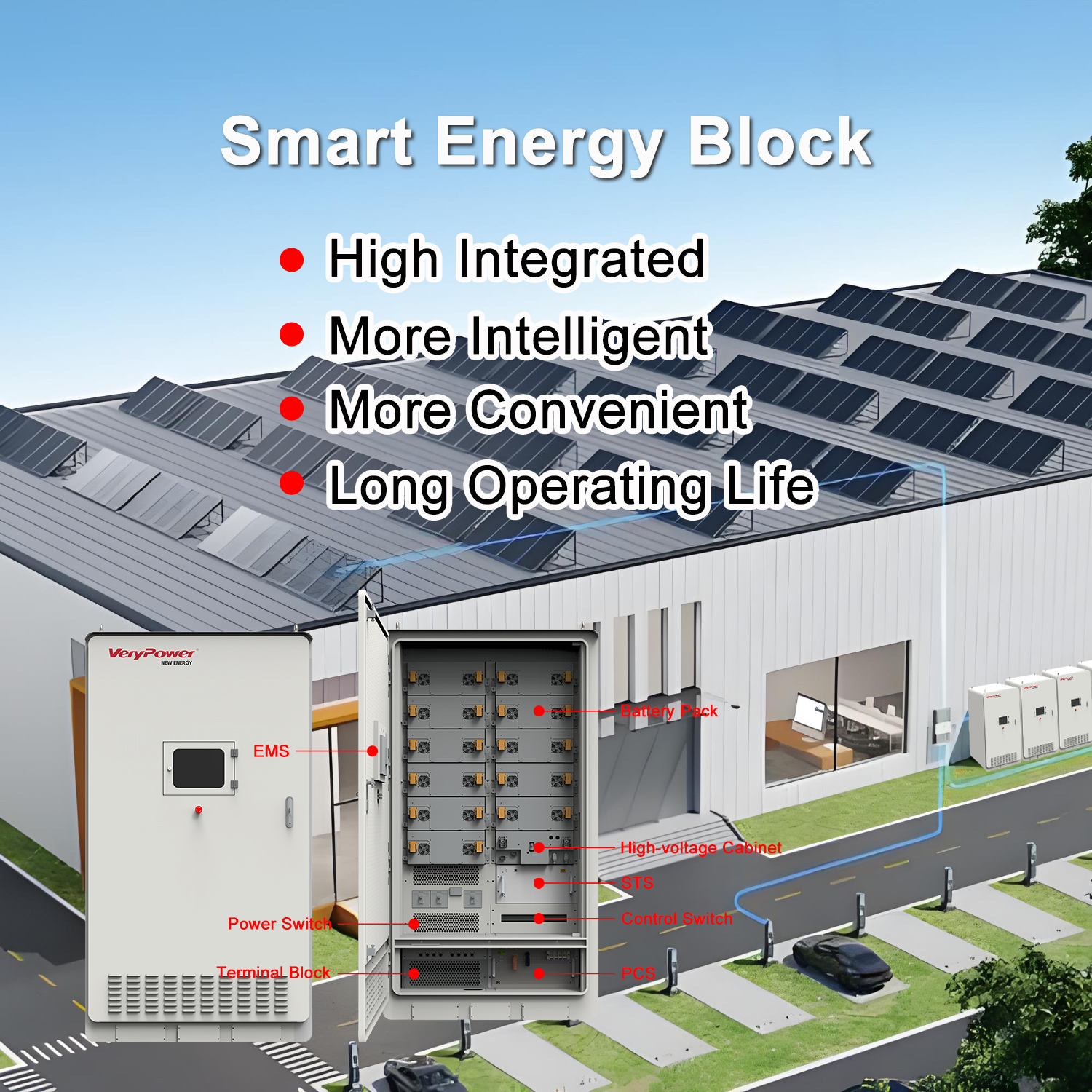

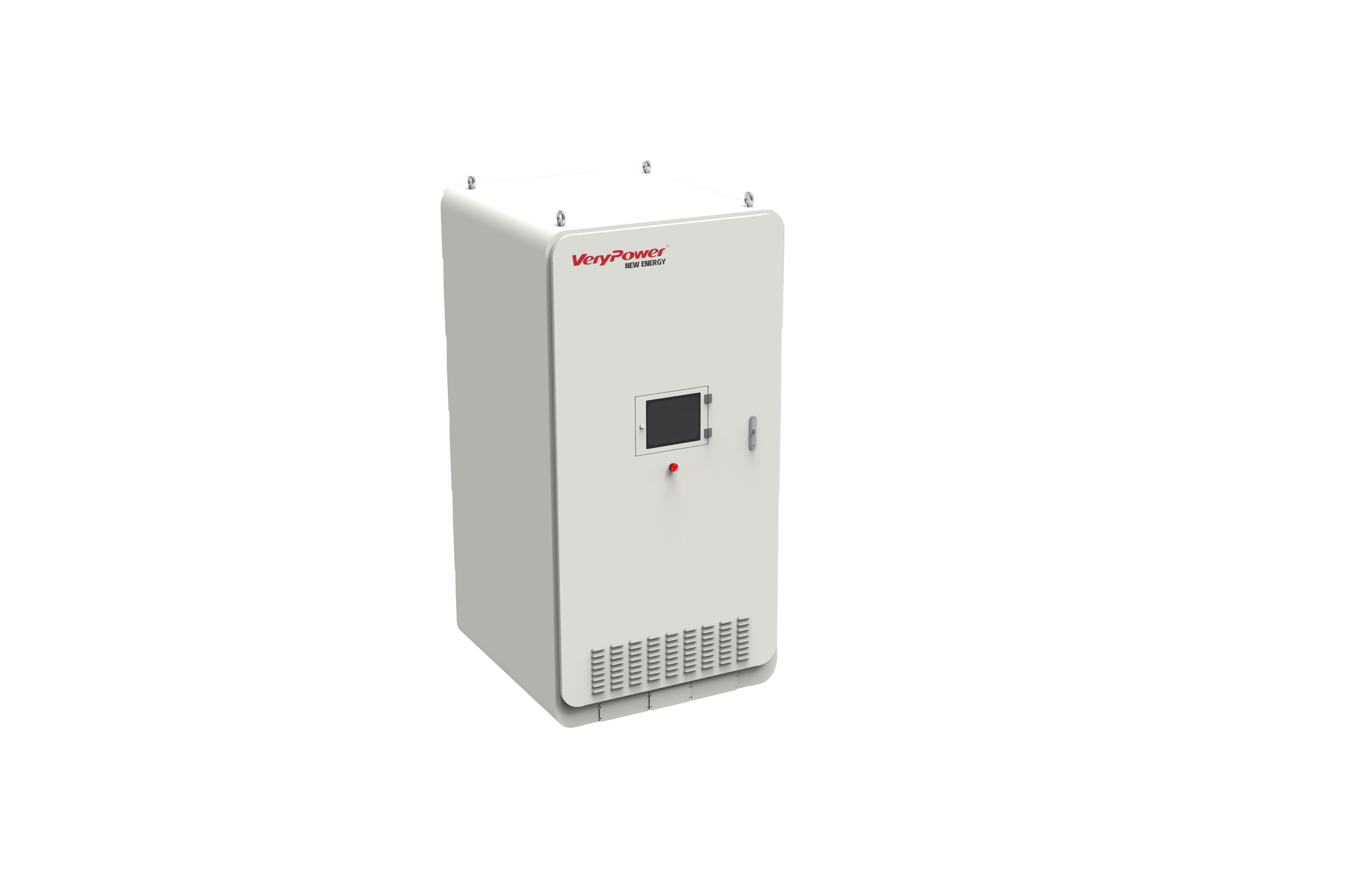

Highly Integrated System
Highly Integrated
BMS, EMS and PCS are integrated rationally. Featuring integration design, a single cabinet is a complete energy storage system. The system only covers an area of 1.56 square meters.
Long Operating Life
Equipped with long life lithium iron phosphate battery, efficient active balanced management, and multi-level warning and protection control strategy, the system involves 15 years of life.

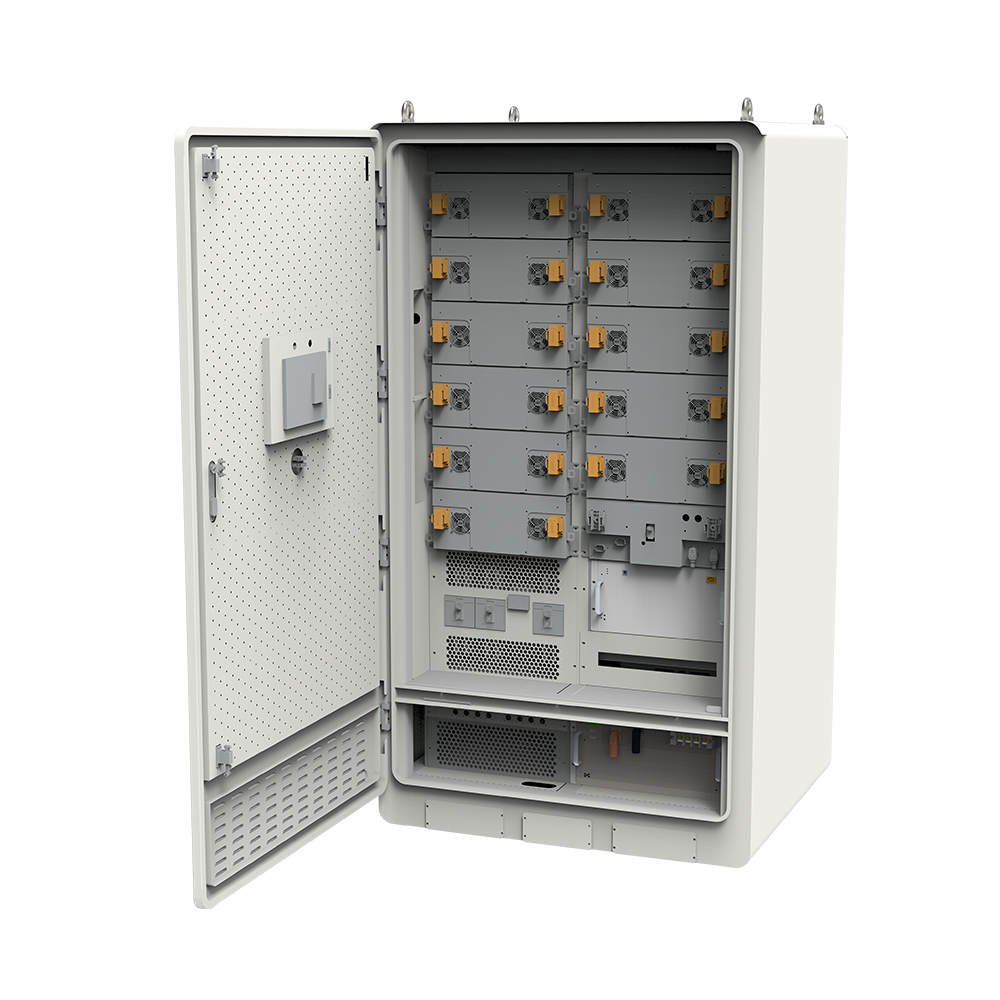

Long Operating Life System
Convenient and Intelligent System
More Convenient and Intelligent
1. Multi-machine parallel, flexible deployment and expansion, easy to install, plug and play.
2. Multiple operation management strategies, local, cloud intelligent operation and maintenance.
Product Diagram 1

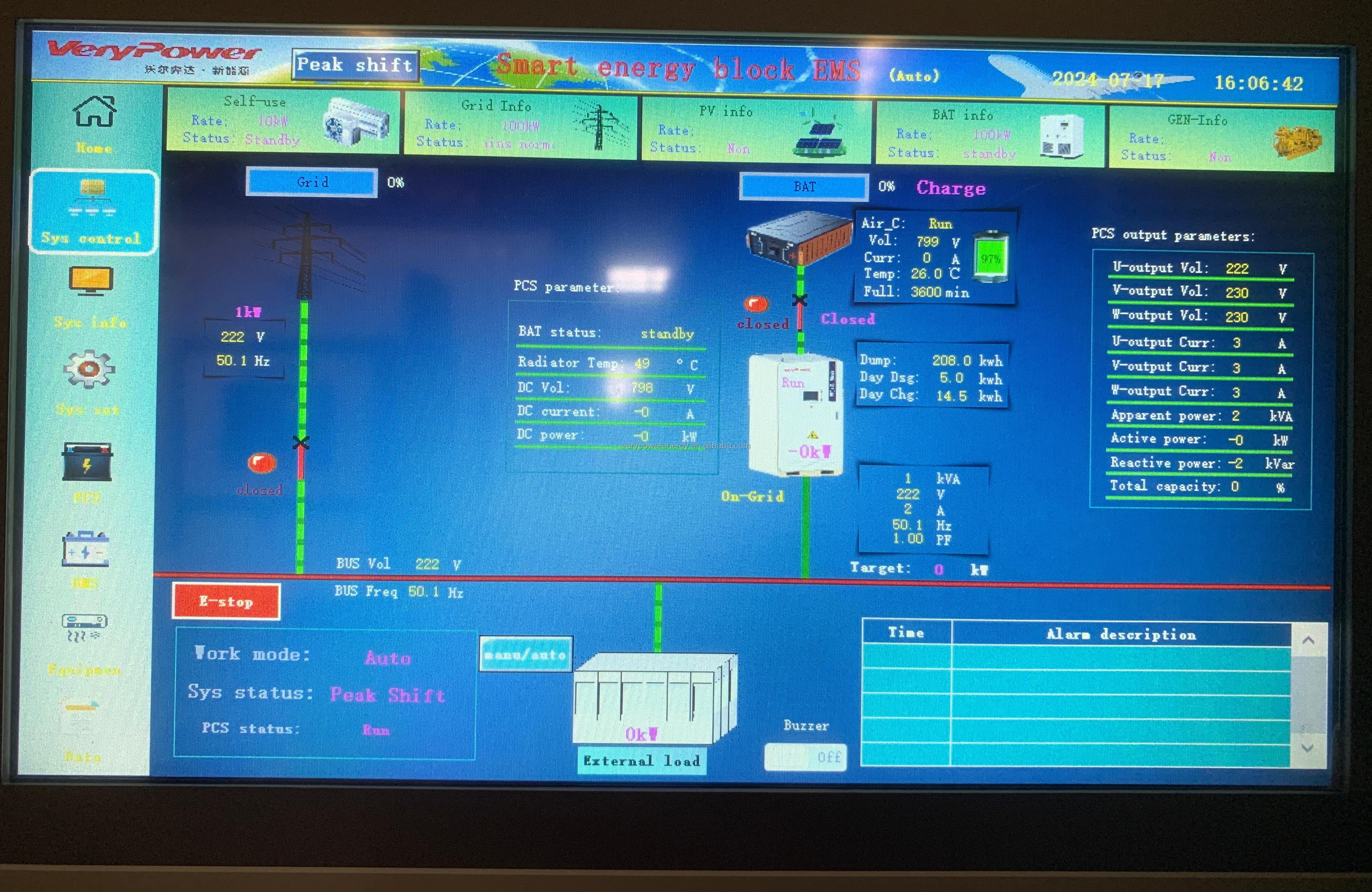

Product Diagram 2
Specification
VPCN-100KW/104kWh
Grid Connection Parameters Battery Parameters
Grid type 3L+N+PE Battery type Lithium iron phosphate
Rated Power 100kW Rated capacity(battery cell) 150Ah
Rated voltage 400V Rated energy 104kWh
Operating mode Off Grid/On Grid Magnification 1C
Maximum conversion efficiency 98% System Parameters
Access point User side 380V Cooling system Industrial grade air conditioner/forced air cooling
Rated frequency 50/60Hz Fire fighting system Perfluorohexanone gas
Total harmonic distortion rate ≤3% full load Noise level ≤70dB
Three-phase unbalance 100% Working temperature -20~50℃
Protection level IP54 Width*Depth*Height(mm) 1265*1340*2000
Seamless switching STS cabinet(optional) Integrated system size(mm) 1265*1570*2000 (Including air conditioner)
VPCN-100KW/215kWh
Grid Connection Parameters Battery Parameters
Grid type 3L+N+PE Battery type Lithium iron phosphate
Rated Power 100kW Rated capacity(battery cell) 280Ah
Rated voltage 400V Rated energy 215kWh
Operating mode Off Grid/On Grid Magnification 0.5C
Maximum conversion efficiency 98% System Parameters
Access point User side 380V Cooling system Industrial grade air conditioner/forced air cooling
Rated frequency 50/60Hz Fire fighting system Perfluorohexanone gas
Total harmonic distortion rate ≤3% full load Noise level ≤70dB
Three-phase unbalance 100% Working temperature -20~50℃
Protection level IP54 Width*Depth*Height(mm) 1265*1470*2500
Seamless switching Optional STS Integrated system size(mm) 1265*1680*2500 (Including air conditioner)
Recommend Products
Recommended Energy Storage Products
Our Advantages
Advantage Graphic 1
Advantage Graphic 2
Project Case

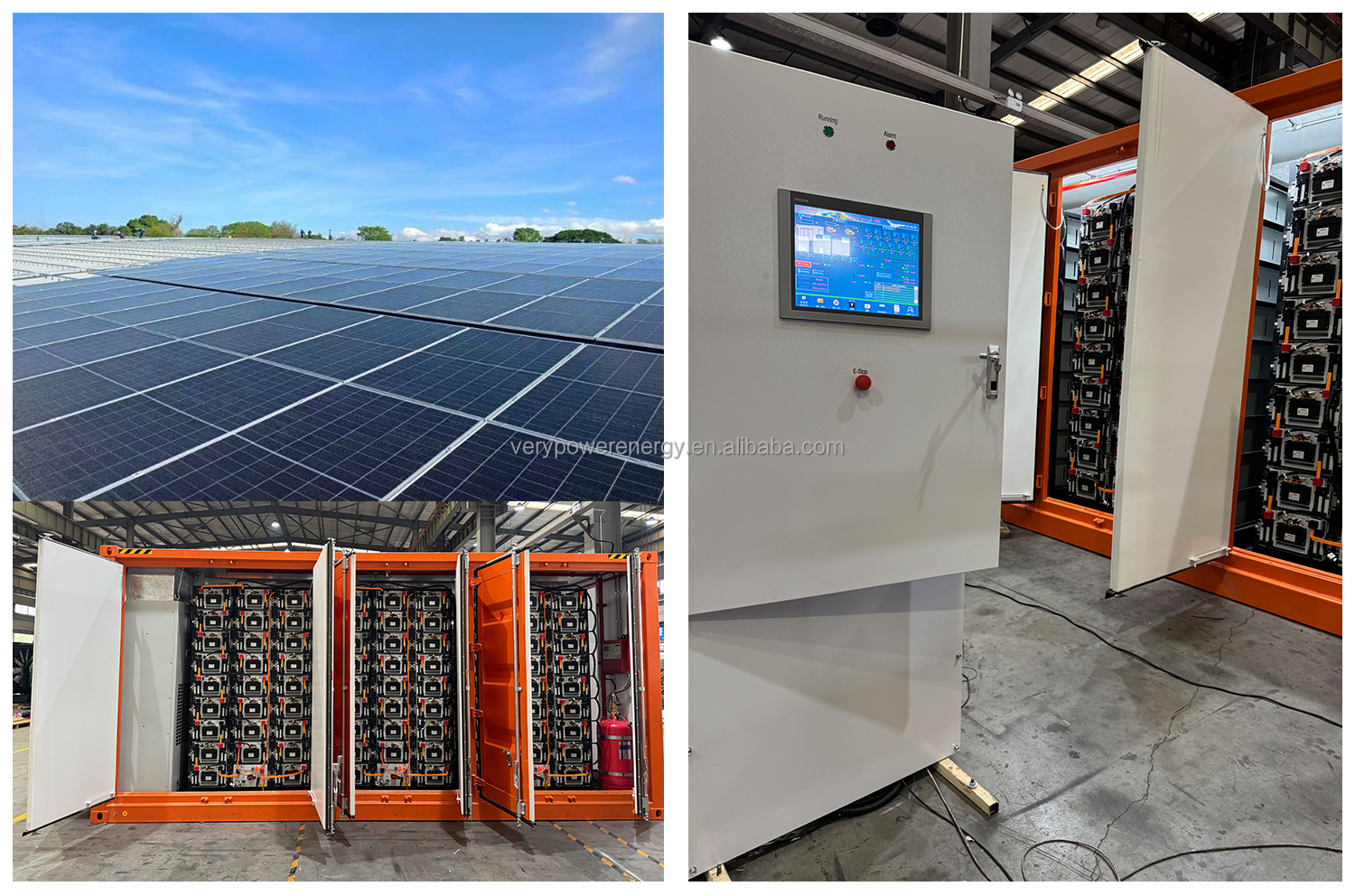

1.7MW PV + 3MWh BESS + 1.3MW Genset
1.7MW PV + 3MWh BESS + 1.3MW Genset Southeast Asia

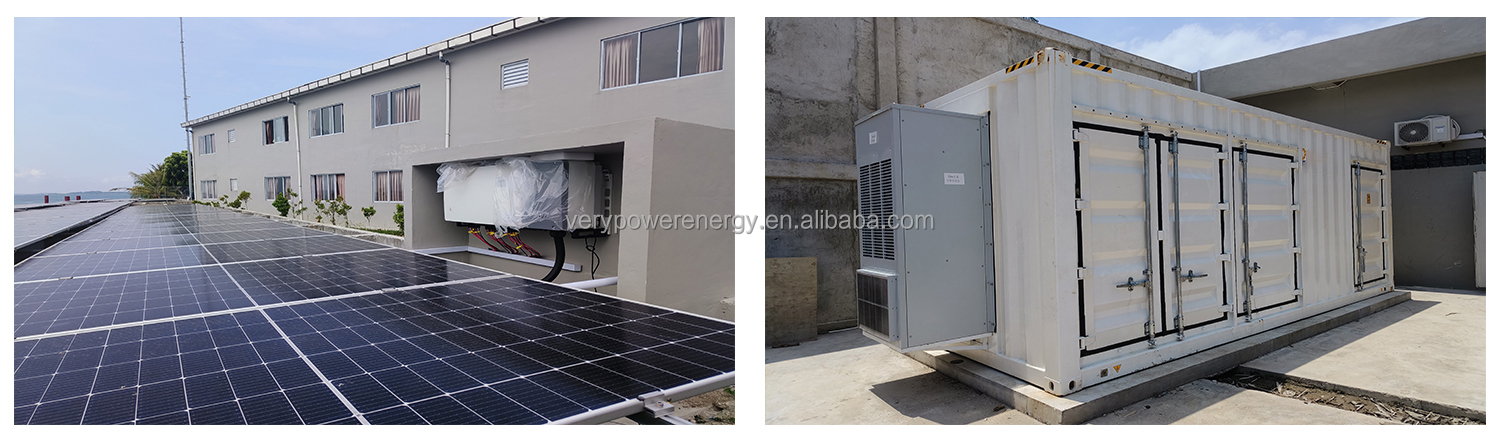

1250kW / 1032kWh Project
1250kW / 1032kWh Southeast Asia

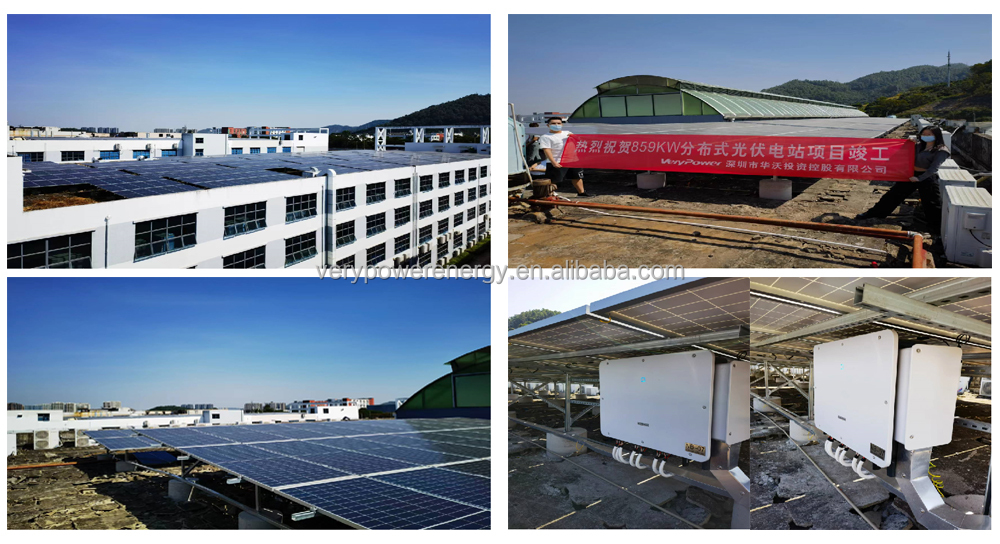

859KW Solar Project
859KW Solar

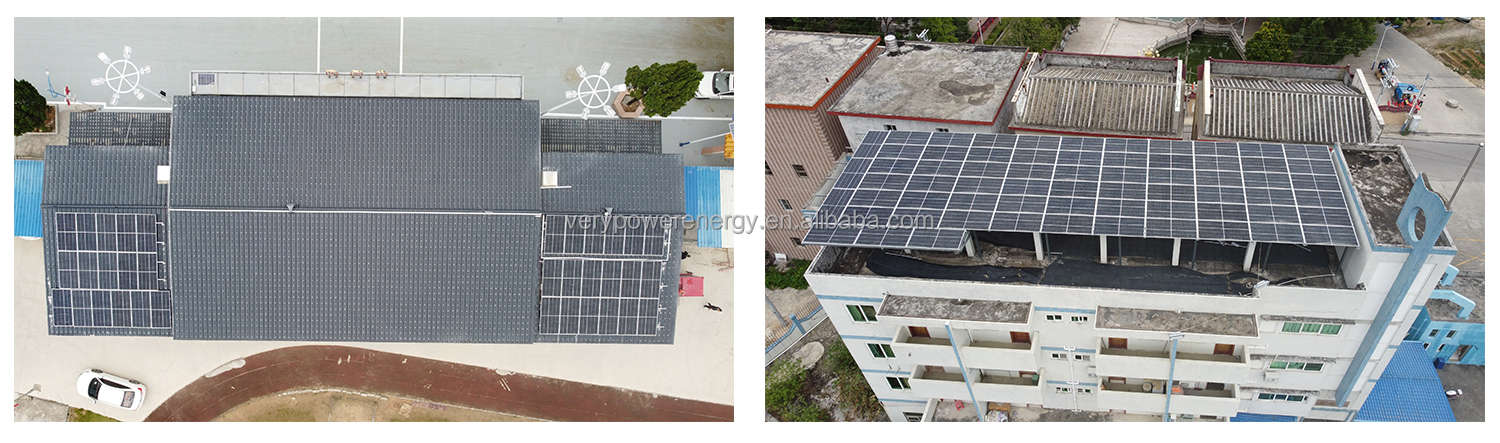

100kW / 104kWh Solar + BESS + Genset
100kW / 104kWh Solar + BESS + Genset

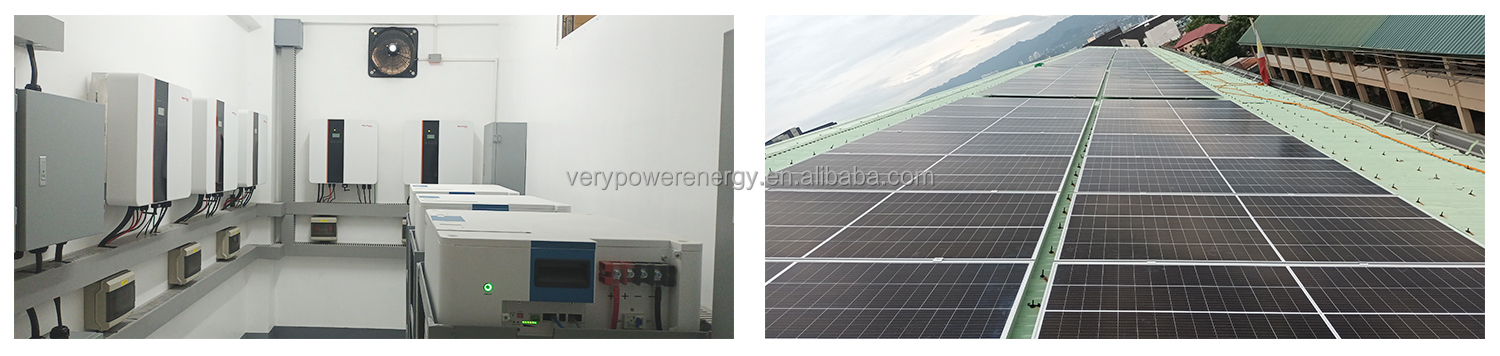

30kWp Project
30kWp Southeast Asia
Company Profile
Facility Image 1
Facility Image 2
Facility Image 3
Facility Image 4
Facility Image 5
Product Packaging
Packaging Image 1
Packaging Image 2
Packaging Image 3
Frequently Asked Questions
What is your team's industry background and expertise?
We have more than 24 years of experience in the energy industry. Our expert team focuses on the development of advanced new energy systems, including solar power systems, battery storage setups, and critical emergency power solutions.
How is the quality of the energy storage systems guaranteed?
Quality is maintained by producing pre-production samples prior to beginning mass production, alongside executing thorough final inspections of all components before shipment.
Can a sample order be placed for validation?
Yes, sample orders are welcome to test, evaluate, and check the overall quality and performance parameters.
Do you offer customizable options like OEM or ODM services?
Yes, comprehensive OEM and ODM services are fully offered to adapt the configurations to your specific design demands.
What application fields does the battery product range cover?
The product line focuses on Lithium Iron Phosphate (LiFePO4) batteries suitable for residential and commercial energy storage, telecom towers, UPS systems, AGVs, golf carts, boats, RVs, camping setups, and electric vehicles.
What cooling and safety features are integrated into these cabinets?
The systems are built with industrial-grade air conditioning or forced air cooling, a specialized perfluorohexanone gas fire-fighting safety system, and an IP54 protection level to safely support off-grid and on-grid operations.
