| Parameter |
Unit |

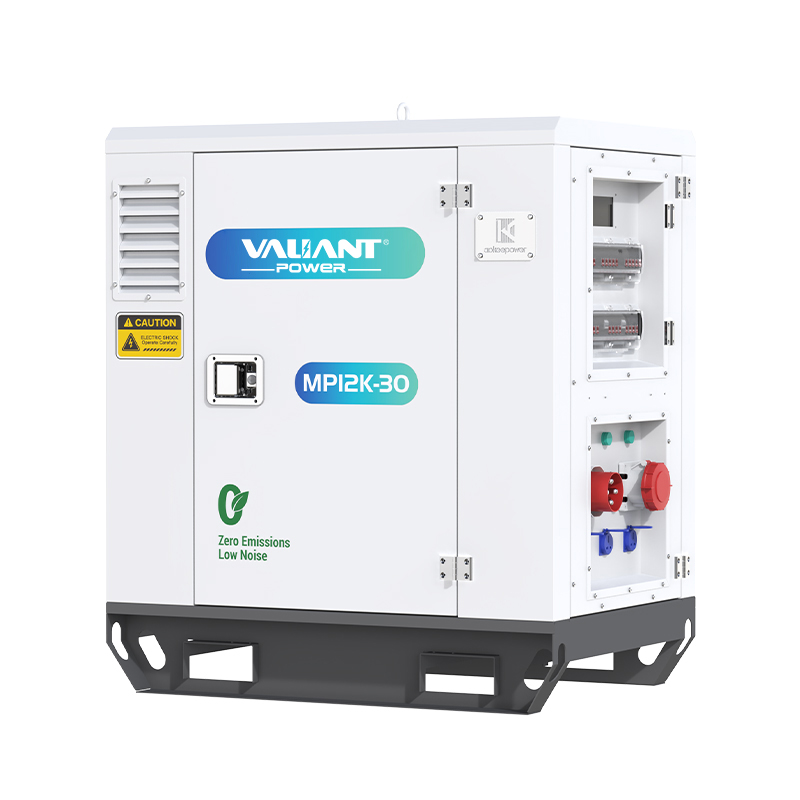

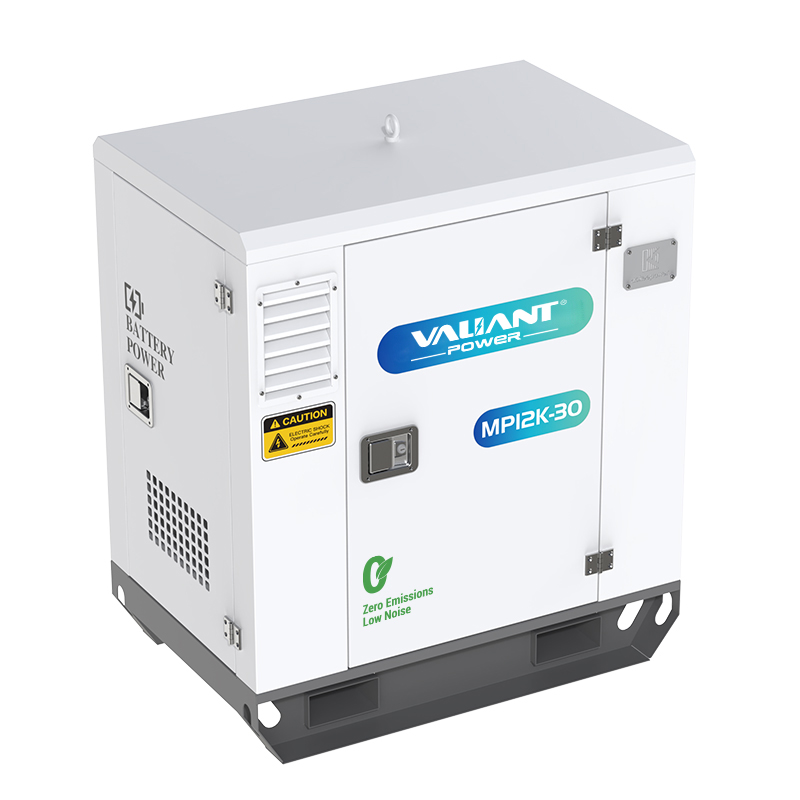

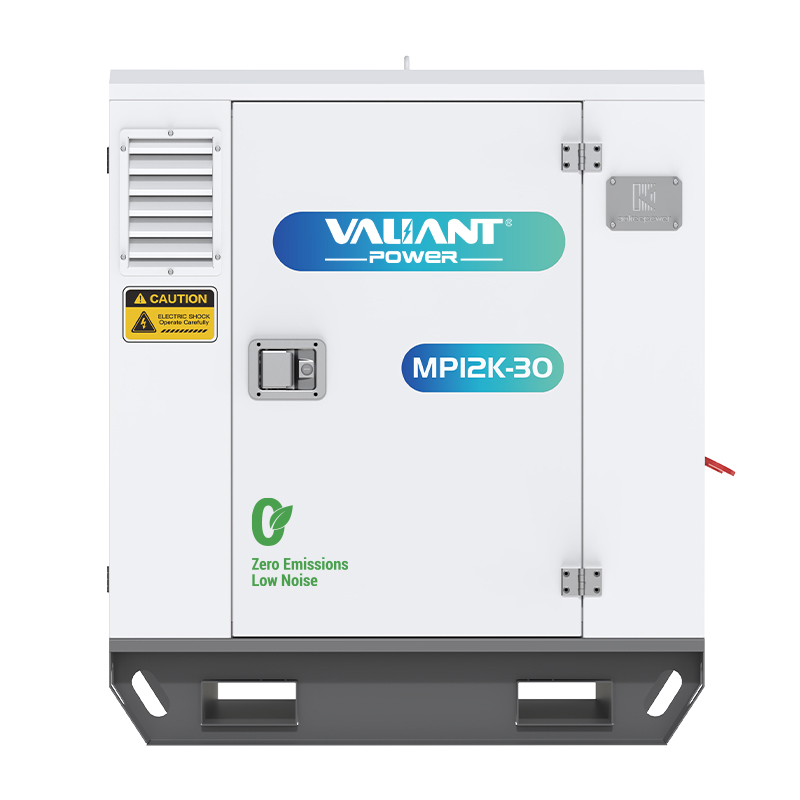

Specifications (Model: MP12K30) |
| Rated Output Power |
KW |
12kw (three-phase) |
| Rated Output Voltage |
VAC |
380 |
| Max PV Input Power |
W |
9000 * 2 |
| Max Open Circuit Voltage |
Vdc |
500 * 2 |
| MPPT Voltage Range |
Vdc |
200-650 |
| MPPT Efficiency |
- |
99.9% |
| Battery Type |
- |
LiFePO4, 16S1P |
| Battery Capacity Per Pack |
AH |
100 |
| Rated Voltage |
V |
51.2 |
| Max Charging Current |
A |
260 |
| Charging Mode |
- |
Constant Current / Constant Voltage |
| Max Capacity |
KWH |
200 |
| Charging Temperature |
°C |
0-65°C (32-149°F) |
| Discharge Temperature |
°C |
-20-65°C (-4-149°F) |
| Storage Temperature (>1 month) |
°C |
0-35°C |
| Storage Temperature (≤1 month) |
°C |
-20-45°C |
| Ambient Humidity |
- |
15-90% Relative Humidity (no condensation) |
| Cycle Life |
- |
6000 Cycles @ 25°C (80% DoD @ 25°C) |
Why Choose Us
Q1: Why you should choose us?

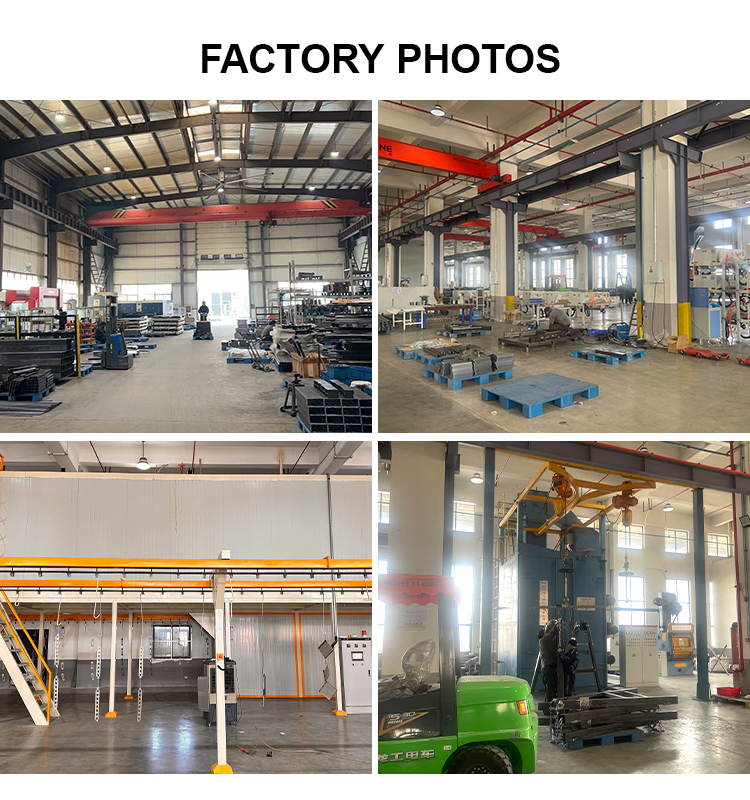

More than 18 years Electrical Equipment factory experiences
Professional sales team and R & D team
Qualified product and competitive price
Delivery in time
Sincerely services
Q2: How is your after-sale service?
We provide 2 years warranty. Under the circumstances of normal use and maintenance during the warranty period, if the product itself has quality problems and failures verified by inspection, we will provide free maintenance and replacement parts.
Q3: What kind of certificates your products have?
Our battery products have acquired UN38.3, CE, MSDS and other certificates, which are able to satisfy most country’s importing requirements.
Frequently Asked Questions
What are the primary output capabilities of the MP12K30 model?
The MP12K30 model features a three-phase system with a rated output power of 12kW and a rated output voltage of 380 VAC, making it suitable for robust commercial and residential applications.
What battery technology is used and what is its expected cycle life?
This system is equipped with advanced LiFePO4 (16S1P) chemistry, offering a long lifespan of 6000 cycles at 25°C under 80% Depth of Discharge (DoD).
What are the temperature parameters for charging and discharging?
The safe charging temperature range is 0°C to 65°C (32°F to 149°F), while the discharging operating temperature ranges from -20°C to 65°C (-4°F to 149°F).

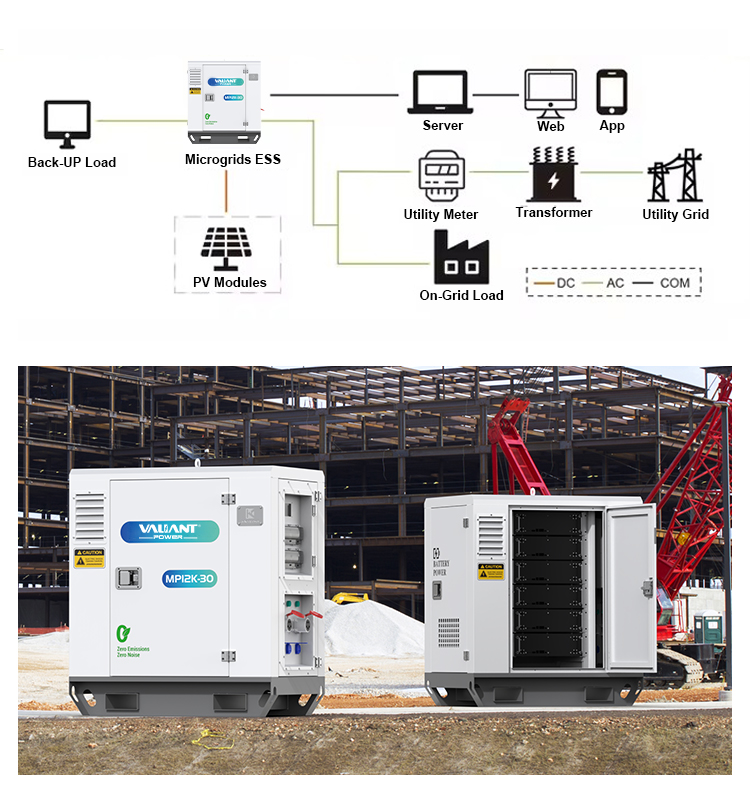

Does the system support solar inputs?
Yes, it features a dual MPPT setup supporting a maximum PV input power of 9000W * 2, with an MPPT efficiency rating of 99.9% and a voltage range of 200-650 Vdc.
What standard international certifications do the batteries possess?
The battery packs are fully certified with UN38.3, CE, and MSDS, ensuring compliance with international transportation and quality standards for smooth importation.
How is the warranty structured for this product?
The product is backed by a comprehensive 2-year warranty. If any quality issues or malfunctions arise under normal operating conditions, free replacement parts and technical maintenance are provided upon verification.
